  1. An Introduction to Cloud-based Services Paul Watson Newcastle University, UK paul.watson@ncl.ac.uk

  2. e.g. Amazon

  3. Plan • What is Cloud Computing? • Potential Advantages • Lessons from our own experiences • Cloud Issues

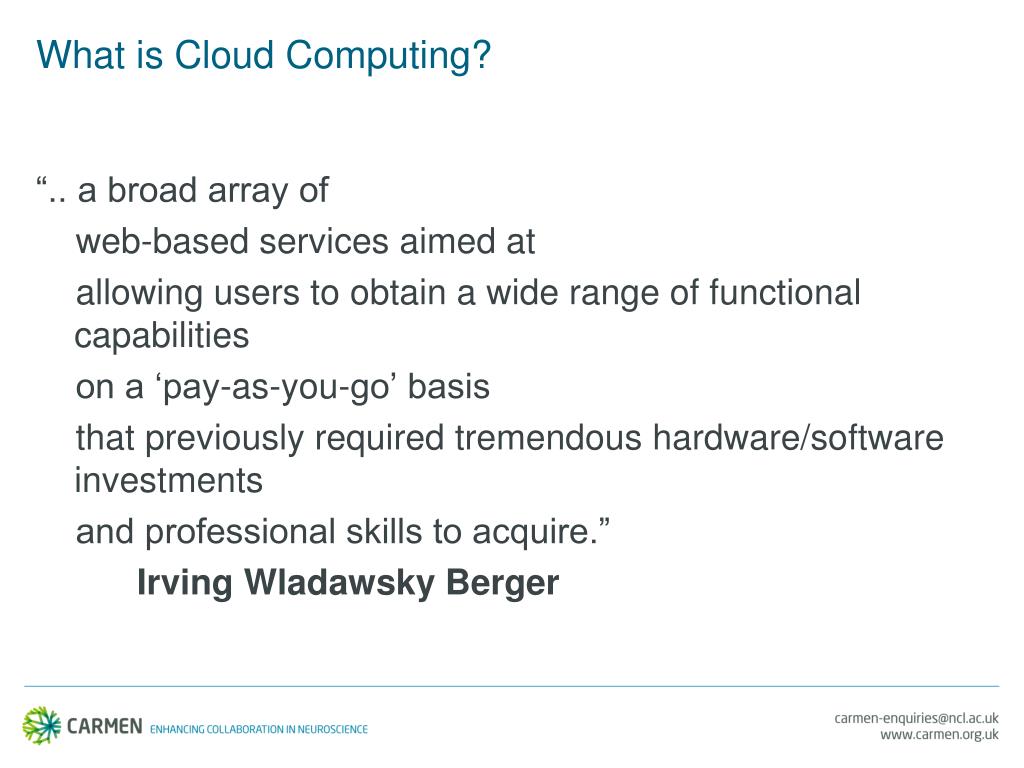

  4. What is Cloud Computing? “.. a broad array of web-based services aimed at allowing users to obtain a wide range of functional capabilities on a ‘pay-as-you-go’ basis that previously required tremendous hardware/software investments and professional skills to acquire.” Irving Wladawsky Berger

  5. What’s New? • illusion of Infinite computing resources On Demand • no up-front commitment by users • Pay for use of resources on a short-term basis as needed (from “Above the Clouds: A Berkeley View of Cloud Computing”)

  6. Example – Amazon Web Services • Based on Xen VMs • run any OS & software stack • CPU: 1.0Ghz x86 instance @ $0.10 /hour • Blob Storage @ $0.12 /GB month • External Data Transfer @ $0.10 /GB • Also queue, key store, block store, range of instances

  7. Why is this Important (I): Internal IT Problems (slide by permission of Arjuna Technologies) Silos = Inflexibility

  8. Why is this Important (II)? Time to put Ideas into action Research • Have good idea • Write proposal • Wait 6 months • If successful.. • Buy Computers • Install Computers • Start Work Science Start-ups • Have good idea • Write Business Plan • Ask VCs to fund If successful.. • Buy computers • Install Computers • Start Work

  9. Why is this a Good idea: using commercial clouds • Have good idea • Grab nodes as needed from Cloud provider • Start Work • Pay for what you used

  10. Cloud Services Continuum (based on Robert Anderson) http://et.cairene.net/2008/07/03/cloud-services-continuum/ Software (SaaS) Google Docs Salesforce.com Platform (PaaS) Flexibility Complexity Google AppEngine Microsoft Azure Infrastructure (IaaS) Amazon EC2 & S3

  11. Example Lessons from CARMEN Project • Design began in 2006 • Commercial clouds not an option • Designed own “private” cloud • Experimenting with Commercial Cloud

  12. UK EPSRC e-Science Pilot £4M (2006-10) 20 Investigators CARMEN Project Stirling St. Andrews Newcastle York Manchester Sheffield Leicester Cambridge Warwick Imperial Plymouth

  13. Industry & Associates

  14. Research Challenge Understanding the brain is the greatest informatics challenge • Enormous implications for science: • Medicine • Biology • Computer Science

  15. Collecting the Evidence 100,000 neuroscientists generate huge quantities of data • molecular (genomic/proteomic) • neurophysiological (time-series activity) • anatomical (spatial) • behavioural

  16. Epilepsy Exemplar Data analysis guides surgeon during operation Further analysis provides evidence WARNING! The next 2 Slides show an exposed human brain

  17. enables sharing and collaborative exploitation of data, analysis code and expertise that are not physically collocated CARMEN

  18. CARMEN e-Science Requirements • Store • very large quantities of data (100TB+) • Analyse • suite of neuroinformatics services • support data intensive analysis • Automate • workflow • Share • under user-control

  19. Background: North East Regional e-Science Centre • 25 Research Projects across many domains: • Bioinformatics, Ageing & Health, Neuroscience, Chemical Engineering, Transport, Geomatics, Video Archives, Artistic Performance Analysis, Computer Performance Analysis,.... • Same key needs:

  20. Result: e-Science Central • Integrated Store-Analyse-Automate-Share infrastructure • Generic • CARMEN neuroinformatics & chemistry as pilots

  21. e-Science Central • Web based • Works anywhere e-Science Central • Dynamic Resource • Allocation • Pay-as-you-Go* • Controlled Sharing • Collaboration • Communities

  22. Science Cloud Architecture Access over Internet (typically via browser) Upload data & services Run analyses Data storage and analysis

  23. Science Cloud Options Users Science App 1 Science App n Service Developers .... Science Platform Science App 1 Science App n .... Cloud Infrastructure: Storage & Compute Cloud Infrastructure: Storage & Compute

  24. .... App App App API e-Science Central Security Analysis Services Social Networking Science Cloud Platform Workflow Enactment Processing Cloud Infrastructure Storage

  25. Editing and Running a Workflow on the Web

  26. Workflow Result File Viewing the output of Workflow Runs

  27. Viewing results

  28. Blogs and links Communicating Results Linking to results & workflows

  29. What we learnt: Moving into a Cloud • Moving existing technologies into a cloud can be difficult • some can’t run in a Cloud at all

  30. Raw Data Exploration with Signal Data Explorer

  31. What we learnt : Scalability • Clouds offer the potential for scalability • grab compute power only when needed • Developers have to manage scalability • for Infrastructure as a Service Clouds • scale up as well as down

  32. Adaptive Dynamic Deployment with Dynasoar Commercial “pay-as-you-go” clouds would allow us to avoid this limit Adding Processors as you need them optimises resources and saves money in pay-as-you-go clouds Ensure system can also release unwanted nodes

  33. Microsoft Azure Cloud for e-Science Demo • Recent experiments with Microsoft Azure Cloud • running Chemical analyses • Silverlight App Thanks to: - Paul Appleby & Team at the Microsoft Technology Centre, Reading - & MS External Research e-Science Group

  34. Microsoft Azure Cloud Demo

  35. When not to use Clouds? • Large data transfers • Time & Cost • High Performance • cpu/io/network bandwidth/low latency • Predictable Performance • Confidentiality • High Availability? • High Server Utilisation? • private clouds better?

  36. Create Private Cloud (slides by permission of Arjuna Technologies)

  37. Private Cloud Examples • Eucalyptus • Amazon API • Private Cloud deployments of Microsoft Azure • Arjuna Agility

  38. Federating Private & Public Clouds Public Cloud Public Cloud e.g. Amazon App1 Service Agreement Arjuna Agility App1 App1 & 2 Service Agreement Internal Cloud Dept A Dept B

  39. Public Cloud e.g. Amazon App1 App1 Public Cloud e.g. FlexiScale Arjuna Agility App1 App1 & 2 Internal Cloud Dept A Dept B Arjuna

  40. Summary • Cloud computing can revolutionise e-science • provide sustainable infrastructure • reduce time from idea to realisation • Don’t underestimate complexity • building scalable distributed systems is still hard • can Science Clouds help by lowering the hurdles? • e-Science Central • Store-Analyse-Automate-Share e-science platform • adding content from a range of domains • CARMEN is evaluating it for neuroinformatics
