  1. .NET Security and MSIL Tom Roeder CS215 2006fa

  2. MSIL • Common intermediate language • really CIL in ECMA standard • MSIL is common name • Very close to C# (and other OO languages) • define classes • define methods • similar attributes • statements look more like assembly

  3. MSIL • No structured control flow • use conditional/unconditional branches • Specify calls exactly • need to have the right number of parameters • eg [mscorlib]System.Console::WriteLine(string, object, object) • Stack language • main operations push and pop from stack • call methods in other objects from stack

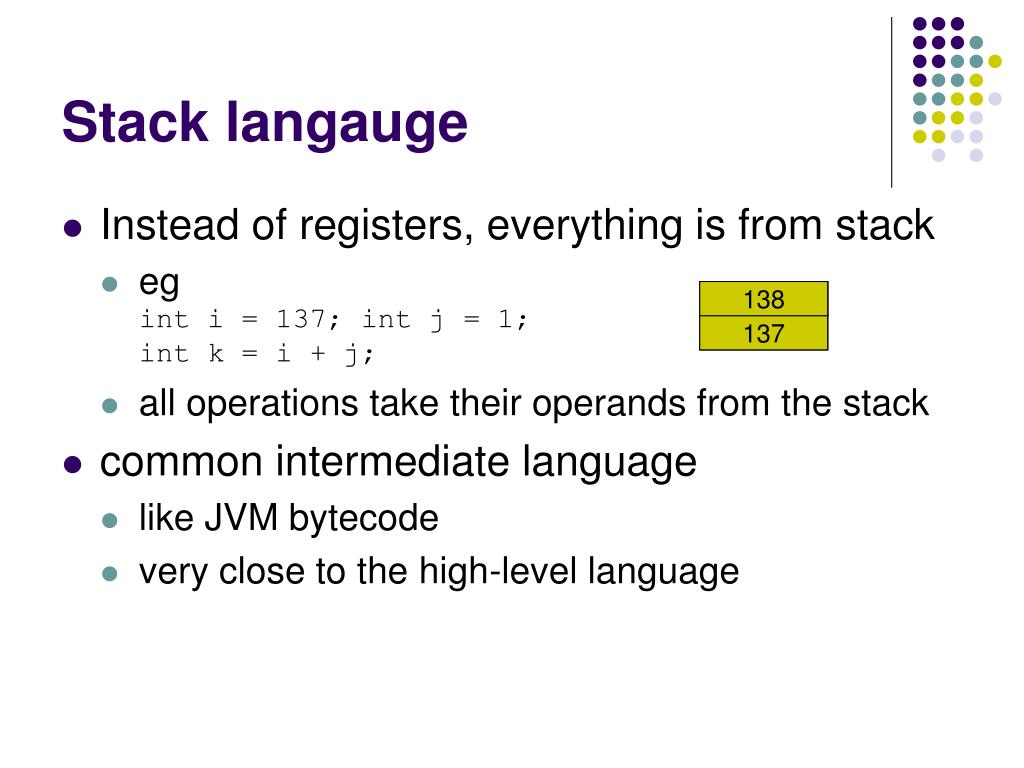

  4. Stack langauge • Instead of registers, everything is from stack • egint i = 137; int j = 1;int k = i + j; • all operations take their operands from the stack • common intermediate language • like JVM bytecode • very close to the high-level language 137 1 138 137

  5. MSIL • why a stack language? • consistent for all machines • limited but possible everywhere • stack construct easy to check • Always implemented by JIT • stack construct mostly in theory • slower to interpret

  6. MSIL operations • stloc <index> • pops and stores in local index (16 bits) • some assemblers handle variable names • ldloc <index> • pushes contents of local index onto stack • integer operations • eg. add, mul, sub, div • box/unbox • conv.*

  7. MSIL operations • call • static • instance • uses the static type of the class • callvirt • uses dynamic instead of static typing • castclass • pop, try to cast, push new reference on stack

  8. MSIL operations • ceq/cgt/clt • pop top two elements of stack • check =, >, < • push 1 if true, 0 if false • br/beq/bgt/blt/bfalse/btrue • do the comparison and jump • br is an unconditional jump • use to implement structured control flow

  9. MSIL structure • .method • define methods • .class • define any type • extends • extend some other type • if extend System.ValueType, then value type, and sealed • .entrypoint

  10. MSIL structure • .locals • define names and types for local variables • useful if writing straight MSIL • .maxstack • say how large the stack will be at most • must push onto stack for method calls • must remember to push object being called • one reason compilers are useful

  11. MSIL example • Can generate from arbitrary C# • use ILDASM • can be found in Visual Studio • [ see example in emacs and Visual Studio ]

  12. Brief Security Intro • Lampson’s Gold Standard (Au) • Authentication: who’s who • Authorization: who can do what • Audit: who did what • Need mechanisms for all three • need good support libraries • eg. built-in crypto • C# security based on Windows security

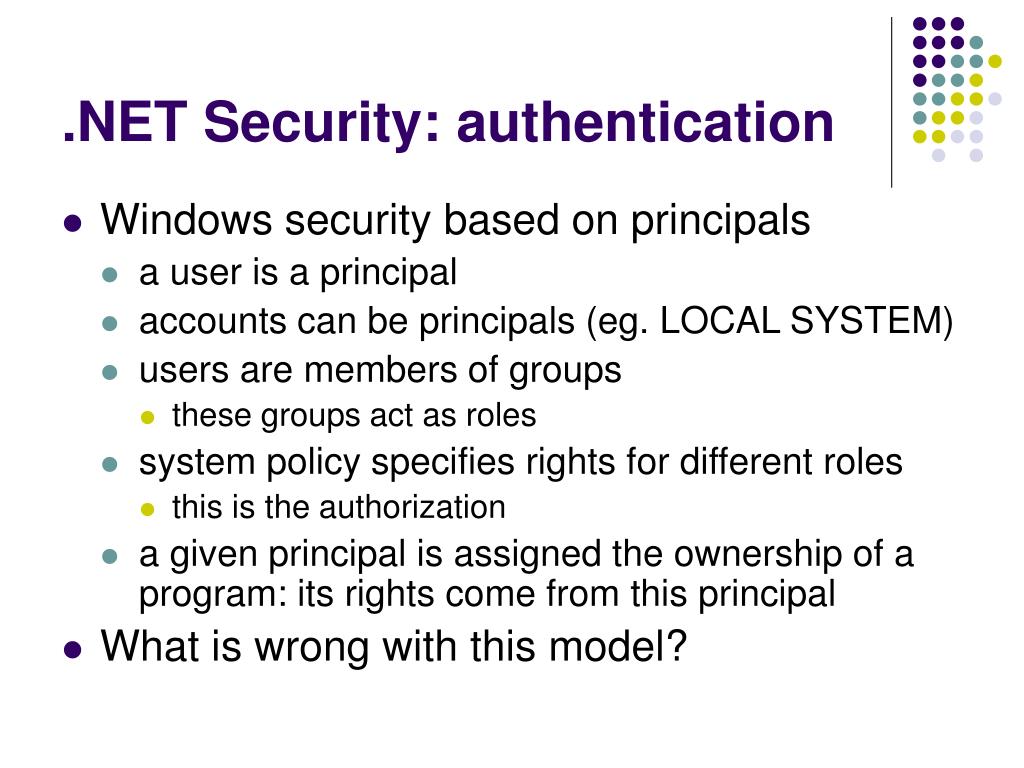

  13. .NET Security: authentication • Windows security based on principals • a user is a principal • accounts can be principals (eg. LOCAL SYSTEM) • users are members of groups • these groups act as roles • system policy specifies rights for different roles • this is the authorization • a given principal is assigned the ownership of a program: its rights come from this principal • What is wrong with this model?

  14. .NET Security: authentication • Evidence-based security • called “code access security” • evidence is taken from many properties of code • url, signature, site, etc • system policy can assign different rights • thus authorization is based on this policy • can specify access rights to classes/resources • When would this be useful? • Somewhat coarse-grained • must be specified in the system • defaults based on code group

  15. Code Access Security • Can assign permissions to groups of code • grouping made explicitly • or on evidence • Code can request permissions • Declaratively (using attributes) • happens at compile time (JIT compilation) • Imperatively (using calls to subclass of CodeAccessPermission) • happens at runtime • When would you want to use each?

  16. Code Access Security • Can also request permissions for assembly • RequestMinimum • RequestOptional • RequestRefuse • What happens on requests • stack walk • if any caller in stack doesn’t have permission, then Security exception is thrown • default deny

  17. Code Access Security

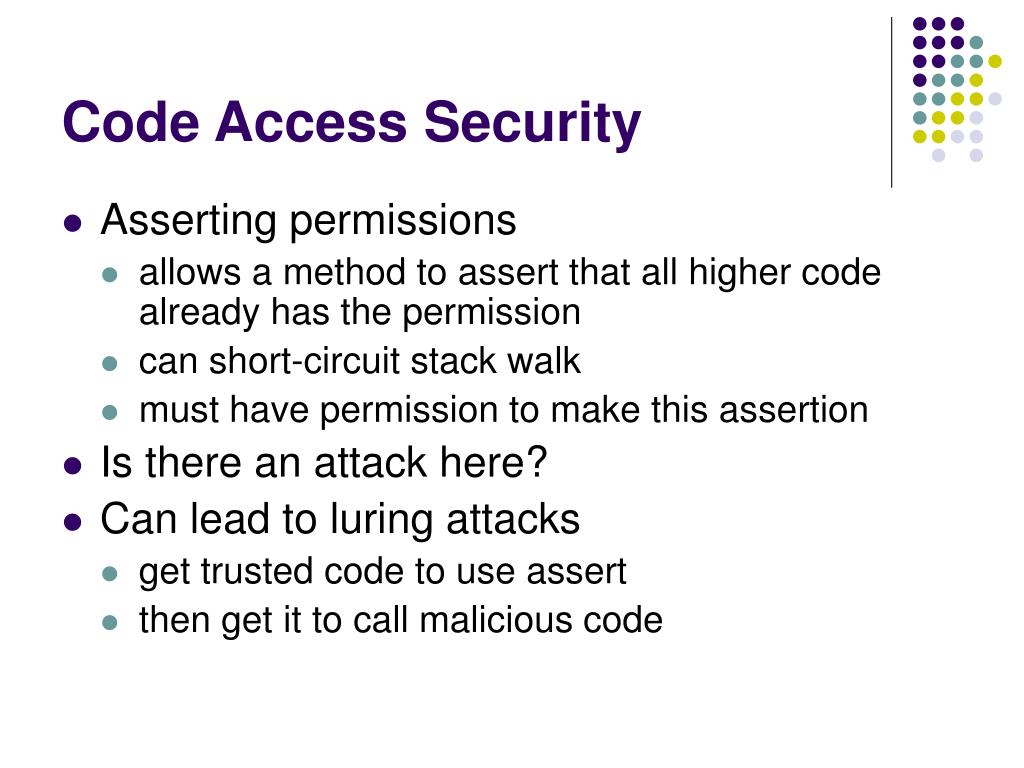

  18. Code Access Security • Asserting permissions • allows a method to assert that all higher code already has the permission • can short-circuit stack walk • must have permission to make this assertion • Is there an attack here? • Can lead to luring attacks • get trusted code to use assert • then get it to call malicious code

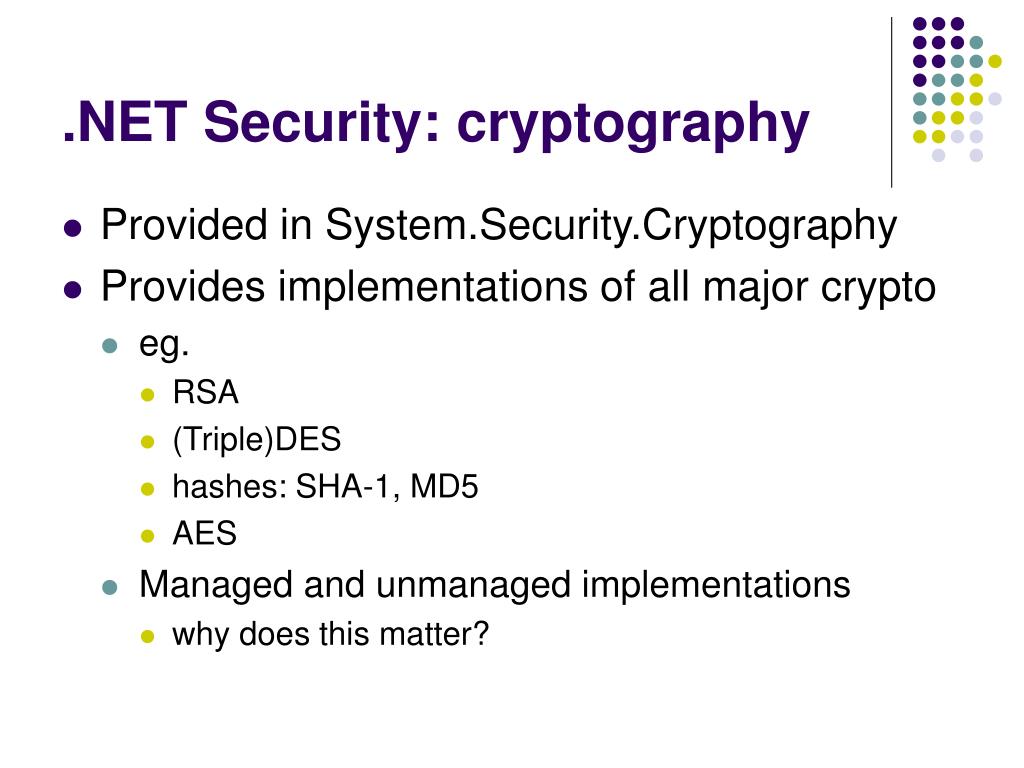

  19. .NET Security: cryptography • Provided in System.Security.Cryptography • Provides implementations of all major crypto • eg. • RSA • (Triple)DES • hashes: SHA-1, MD5 • AES • Managed and unmanaged implementations • why does this matter?
