HFO Power Plant

An HFO power plant is an energy-generating unit that uses heavy fuel oil to produce electricity as its primary fuel. A heavy fuel oil power plant using high-quality marine diesel engine technology. HFO is an efficient, cost-effective alternative to diesel fuel. HFO burns inside the engine, and this combustion's products act as the working fluid to produce mechanical energy. The engine is coupled to an alternator for the production of electric power. The voltage generated by the alternator is stepped up by the power transformer and supplied to the transmission line.

Murshidul
Download Presentation

HFO Power Plant

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

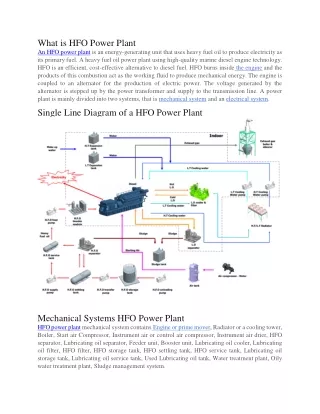

  1. What is HFO Power Plant An HFO power plant is an energy-generating unit that uses heavy fuel oil to produce electricity as its primary fuel. A heavy fuel oil power plant using high-quality marine diesel engine technology. HFO is an efficient, cost-effective alternative to diesel fuel. HFO burns inside the engine and the products of this combustion act as the working fluid to produce mechanical energy. The engine is coupled to an alternator for the production of electric power. The voltage generated by the alternator is stepped up by the power transformer and supply to the transmission line. A power plant is mainly divided into two systems, that is mechanical system and an electrical system. Single Line Diagram of a HFO Power Plant Mechanical Systems HFO Power Plant HFO power plant mechanical system contains Engine or prime mover, Radiator or a cooling tower, Boiler, Start air Compressor, Instrument air or control air compressor, Instrument air drier, HFO separator, Lubricating oil separator, Feeder unit, Booster unit, Lubricating oil cooler, Lubricating oil filter, HFO filter, HFO storage tank, HFO settling tank, HFO service tank, Lubricating oil storage tank, Lubricating oil service tank, Used Lubricating oil tank, Water treatment plant, Oily water treatment plant, Sludge management system.

  2. Electrical Systems HFO Power Plant In a power plant electrical system comprises low voltage(LV), medium voltage(MV), high voltage(HV) and control voltage systems and also various electrical equipment like Alternator, Transformer, NGR, Motor, Frequency converter, Circuit breaker, Isolator, Relay, Storage battery etc. HFO Power Plant Related Systems Fuel System Lubricating Oil System  Heating System Water System Oily water & Sludge management System HFO Power Plant Fuel System The purpose of the fuel system is to provide the engine with an uninterrupted and reliable supply of clean fuel at correct pressure and viscosity. In a power plant with heavy fuel oil as the main source of energy and normally alternative light fuel oil is installed for emergency use and maintenance situations. Engine Related System Fuel system Cooling system Lubricating oil system Intake and exhaust system Starting system Electrical System In a power plant electrical system consists of Low voltage system Medium voltage system High voltage system Control voltage system Auxiliaries of engine 1.Radiator 2.Lubricating oil cooler 3.Lubricating oil filter 4.Lubricating oil seperator 5.Fuel booster pump 6.Fuel heater

  3. 7.Fuel filter 8.Fuel mixing tank 9.Fuel pulsation damper 10.Clean leak fuel tank 11.Dirty leak fuel tank 12.Oil mist detector 13.Oil mist separator/ Oil mist eliminator 14.Charged air filter 15.Charged air silencer 16.Booster servo motor 17.Ventilation fan 18.Ventilation fan filter Major parts of engine 1.Engine block 2.Crank shaft 3.Camshaft 4.Piston 5.Connecting rod 6.Cylinder 7.Cylinder liner 8.Cylinder head 9.Push rod 10.Rocker arm assembly 11.Main bearing 12.Thrust bearing 13.Big end bearing 14.High pressure fuel pump 15.Water circulating pump 16.Lubricating oil circulating pump 17.Fly wheel 18.Governor 19.Turbo charger 20.Charged air cooler 21.Charged air receiver 22.Exhaust manifold
