BANNER ATTRIBUTES

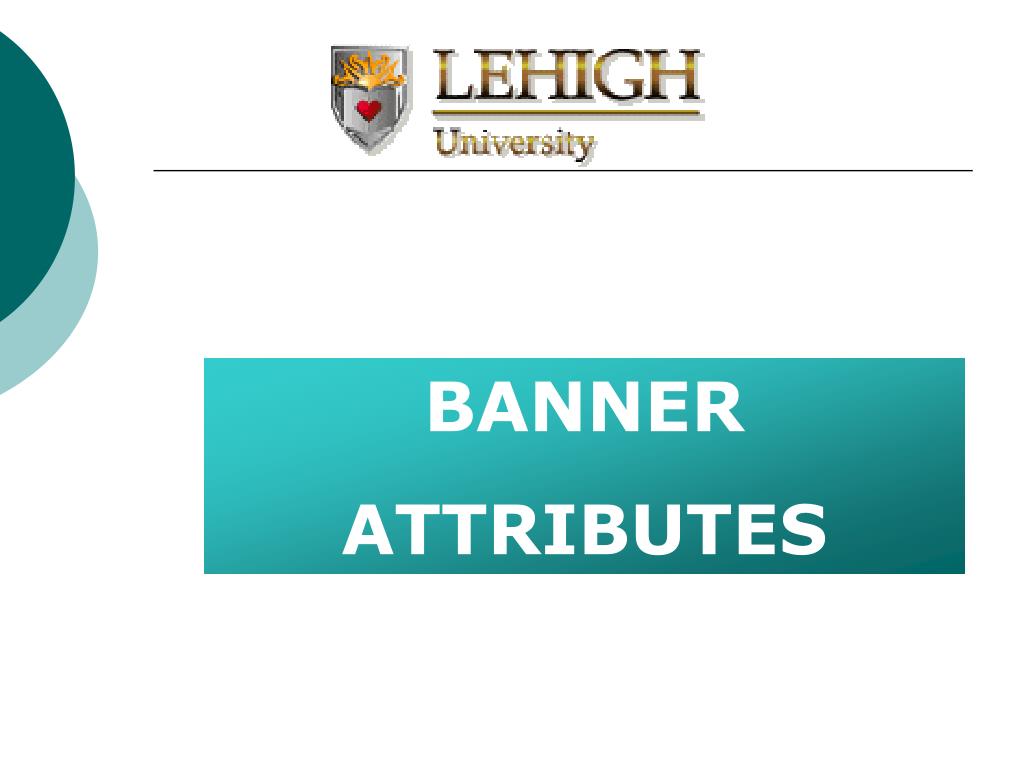

1. BANNER ATTRIBUTES

2. Using Banner Attributes Uses of Attributes • As Extension of the Chart of Accounts • To Add Reporting Flexibility • To Enhance Accounting Controls

3. Using Banner Attributes • Allows for groupings of similar information without having to build structure into account, fund or org codes • Provides a controlled method to classifying large groups of data • Enables dynamic reporting Extension of the Chart of Accounts

4. Using Banner Attributes • 990 Reporting • NSF Survey • NCAA Annual Audit • Internal Financial Reports Adds Reporting Flexibility • Changes more easily applied • Easier to maintain consistency • At Lehigh codes used for:

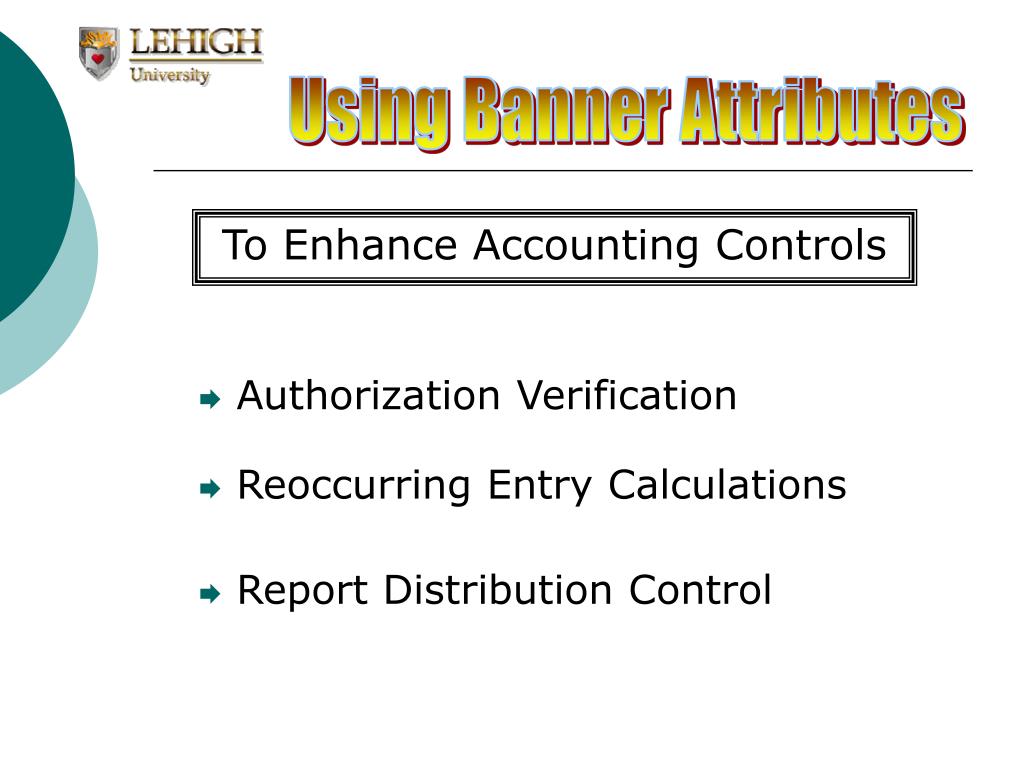

5. Using Banner Attributes • Authorization Verification • Reoccurring Entry Calculations • Report Distribution Control To Enhance Accounting Controls

6. Creating Banner Attributes Will Attributes Work? • What are you trying to group/control? • Who is going to maintain it? • Is there another way?

7. Roll up by Entity Roll up by Accounts Creating Banner Attributes Lay It All Out – Be Specific

9. Creating Banner Attributes • FTMCOAS – Define Set usage within COA • FTMATTT – Maintain TYPE codes • FTMATTS – Maintain SET codes • FTMATTV – Maintain valid VALUES Forms Used to Create Attribute Must be set up in the order as shown

10. Only if using SETs

11. Creating Banner Attributes ATTRIBUTE TYPE CODES • All TYPE codes are maintained on one table • Each TYPE code can be associated with multiple FOAPAL elements • Sample of TYPE codes used at Lehigh: • 990IILIN – linked to accounts for 990 line items • 990IICOL – linked to funds/orgs for 990 columns • NCAALIN – linked to accounts for NCAA reporting • AUTH* – linked to funds/orgs for authorized signers • FDST* – linked to funds/orgs for report distribution

12. Banner Form: FTMATTT

13. Creating Banner Attributes ATTRIBUTE SET CODES • All SET codes maintained on one table • Used to further combine TYPEs for reporting purposes • Not required to use Attributes • Once initialized [FTMCOAS] is permanent • SET usage is initialized at Lehigh

14. Banner Form FTMATTS To create a new set: Enter Chart of Accounts Fill in code and description Select FOAPAL element Click on menu option “Select Attribute Types to Associate with Set

15. Check TYPES to include When complete select save

18. Creating Banner Attributes SETTING VALUES for TYPE’s • Specific values defined for each attribute TYPE • All VALUES, by TYPE, are on one table • Refine FOAPAL element(s) that can use it (e.g., FUND only, ORGN only, BOTH - based on TYPE FOAPAL definition)

22. Applying the Attributes Assigning the Attributes on Banner • ASSIGNED via form FTMFATA • VIEWED via form FTIFATA

25. To Assign Associations use form FTMFATA

34. Select a FOAPAL and Criteria To View Associations use form FTIFATA

35. You can query on any field (can use wild card %)

37. Same Form but Query for Account Associations

42. Working with the Attributes Putting the Attributes to work Oracle Tables for use via Access: • FIMSMGR_FTRORGA – ORGN usage • FIMSMGR_FTRFNDA – FUND usage • FIMSMGR_FTRATTS – Sets w/Type • FIMSMGR_FTRATTV – Type w/Values • FIMSMGR_FTVATTS – Valid Sets only • FIMSMGR_FTVATTT – Valid Types only

43. Working with the Attributes Putting the Attributes to work • Join Attribute Tables to Data tables via Microsoft Access • Key field(s) for join dependent on defined FOAPAL relationship of attribute and data being queried • Once joined, all attributes TYPE, SET, VALUES and descriptions are available for selecting, summarizing, printing, etc.

44. Working with the Attributes

45. BANNER ATTRIBUTES Thanks for your attention! Questions ???????
