  1. Aromatic Substitution Chapter 22 WWU-Chemistry

  2. Sections to skip!! Skip sections 22.1 (most), 22.3, 22.4, and 2.13 through 22.15 Keep 22.16 (review from c. 351, for some of you) Keep 22.17 WWU-Chemistry

  3. Problems • In text: 4 - 6 8 - 13 20 - 29 • End of Chapter: 1 - 5 9 - 13 WWU-Chemistry

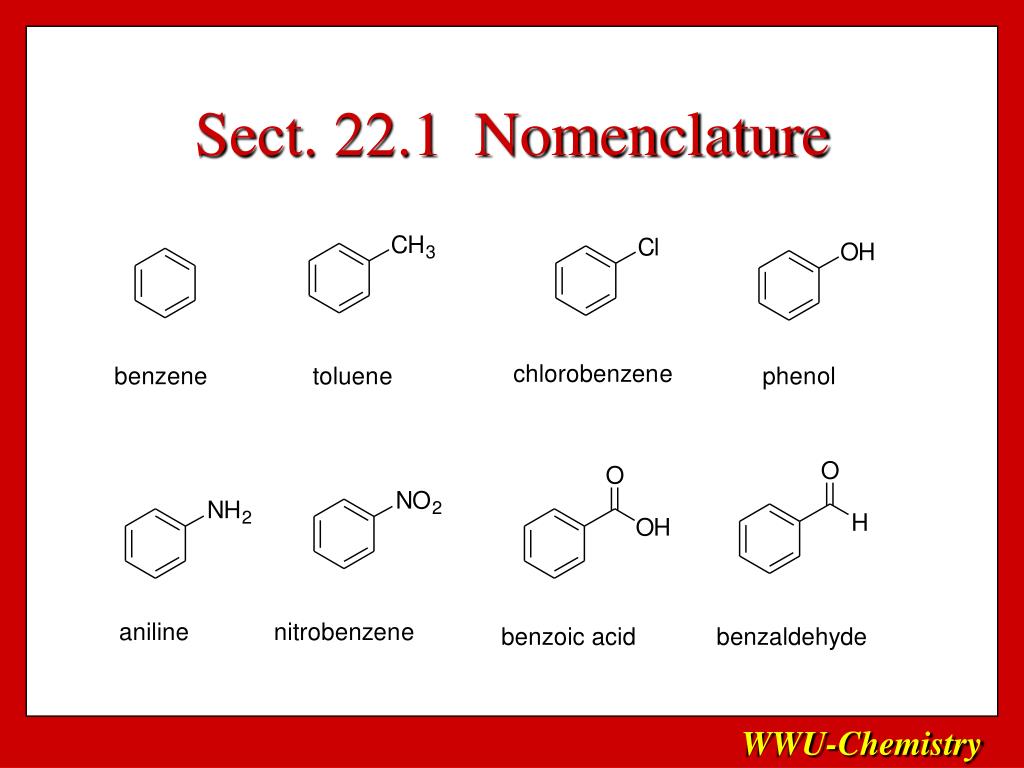

  4. Sect. 22.1 Nomenclature WWU-Chemistry

  5. Catechols WWU-Chemistry

  6. Nomenclature-- examples WWU-Chemistry

  7. Chapter 22: Aromatic Substitutions, Monosubstitution reactions on benzene Sect. 22.2 Electrophilic aromatic substitution mechanism Sect. 22.5 Nitration Sect. 22.6. Halogenation Sect. 22.7 Friedel-Crafts Reactions Sect. 22.8 Sulfonation Reactions (skip fall 2006) WWU-Chemistry

  8. Sect. 22.2 Electrophilic aromatic substitution. WWU-Chemistry

  9. Sect. 22.5: Nitration • conc. HNO3 and H2SO4 react to make electrophile, NO2+ • nitro aromatics are important intermediates • reduction of nitro groups give anilines WWU-Chemistry

  10. Mechanism of Aromatic NitrationStep 1: Where does the electrophile come from? Nitronium ion (NO2+) is the electrophile that reacts with the benzene ring. WWU-Chemistry

  11. Mechanism of Aromatic Nitration (Step 2) WWU-Chemistry

  12. Mechanism of Aromatic Nitration (Step 3) WWU-Chemistry

  13. Sect. 22.6: Halogenation • active electrophile is a bromonium or chloronium ion • need Lewis acid catalyst ( FeX3 ) to activate X2 WWU-Chemistry

  14. Sect. 22.7: Friedel-Crafts Alkylation • alkyl halide + AlCl3 -->carbocation + AlCl3X- • watch out for carbocation rearrangements! • more than one alkylation can occur --> mixtures! WWU-Chemistry

  15. Friedel-Crafts Acylation • acid chloride + AlCl3 --> acylium ion + AlCl4- • cation rearrangements are NOT observed! • acylation will only occur ONCE... • reaction VERY sensitive to substituents-- an acyl group prevents further reaction WWU-Chemistry

  16. WWU-Chemistry

  17. Aromatic substitution on Benzene • Sect. 22.8: Sulfonation (skip, fall 06) • Sect. 22.9: Summary WWU-Chemistry

  18. Sect. 22.10 and 22.11: Directing effects • methoxy group releases electrons by resonance effect: ortho and para director • nitro group withdraws electrons by inductive and resonance effect: meta director WWU-Chemistry

  19. These are ortho and para directors! All are electron releasing!! WWU-Chemistry

  20. All ortho/para directing groups have pairs of electrons next to the benzene ring! The only exception are alkyl groups. They are also ortho/para directors. WWU-Chemistry

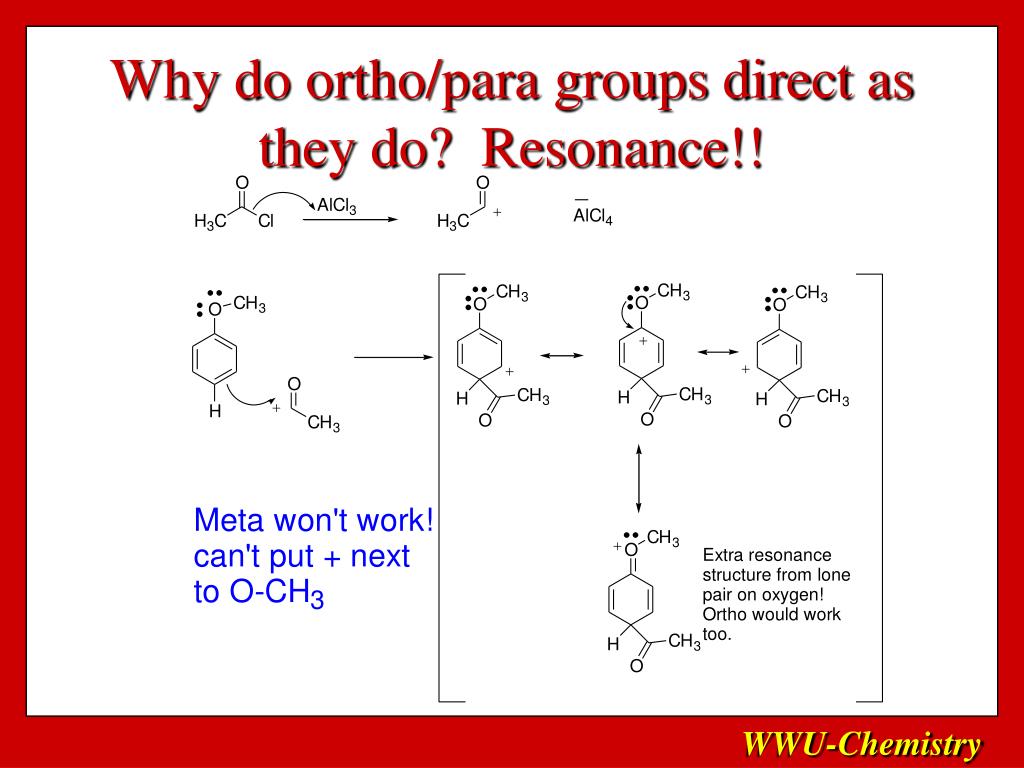

  21. Why do ortho/para groups direct as they do? Resonance!! WWU-Chemistry

  22. These are meta directors! All are electron withdrawing!! WWU-Chemistry

  23. Now let’s look at a meta directing group This is an example of Electrophilic Aromatic Substitution (EAS). WWU-Chemistry

  24. Why does the nitration reaction take place preferentially at the meta position? Let’s ask a “what if” question. WWU-Chemistry

  25. ortho BAD! meta para BAD! WWU-Chemistry

  26. meta substitution preferred because the + charge is never next to the CO2R group WWU-Chemistry

  27. Activation during substitution All ortho and para directing groups are activating relative to benzene, except halogen substituents. Halogens are weakly deactivating but are still o, p- directors. WWU-Chemistry

  28. Deactivation during substitution • All meta directors arestrongly deactivating relative to benzene. WWU-Chemistry

  29. Sect. 22.12 and 22.17: Some synthetic examples involving aromatic substitution WWU-Chemistry

  30. ortho/para directors can work together with meta directors. They reinforce each other. WWU-Chemistry

  31. Strong o/ p directors win over weak o, p and meta directors. WWU-Chemistry

  32. Substitution RARELY occurs in-between two substituents--too hindered! WWU-Chemistry

  33. Some groups can be modified to change their directing effects. WWU-Chemistry

  34. Good stuff! Order of reaction is critical! WWU-Chemistry

  35. Some more good stuff! WWU-Chemistry

  36. An explosive! WWU-Chemistry

  37. 2,4,6-Trinitrotoluene = TNT WWU-Chemistry

  38. Some miscellaneous examples • Nitration of 3-nitrobenzoic acid • Acylation of 1,3-dimethylbenzene • Acylation of 1,4-dimethylbenzene • Make 2-methyl-1-phenylpropane WWU-Chemistry

  39. Sect. 22.16 Aromaticity and Huckel’s Rule Aromatic compounds 4n + 2 pi electrons n = 1 6 pi electrons systems : WWU-Chemistry

  40. WWU-Chemistry

  41. Other n = 1 aromatics : : : : : 6 electrons, one pair not involved! 6 electrons, one pair not involved! 6 electrons All are aromatic! WWU-Chemistry

  42. WWU-Chemistry

  43. n = 0 aromatic: 2 pi electrons WWU-Chemistry

  44. WWU-Chemistry

  45. Some Antiaromatic compounds : Not aromatic! WWU-Chemistry

  46. Diazonium ions, Azo Dyes and the Sandmeyer Reaction- from Chapter 23 (not covered 06) Sect 23.16: Diazonium ion formation Sect 23.17: Sandmeyer reaction Sect 23.19: Azo dyes WWU-Chemistry
