Incident Response, Parking Management, and Maintenance Management Systems

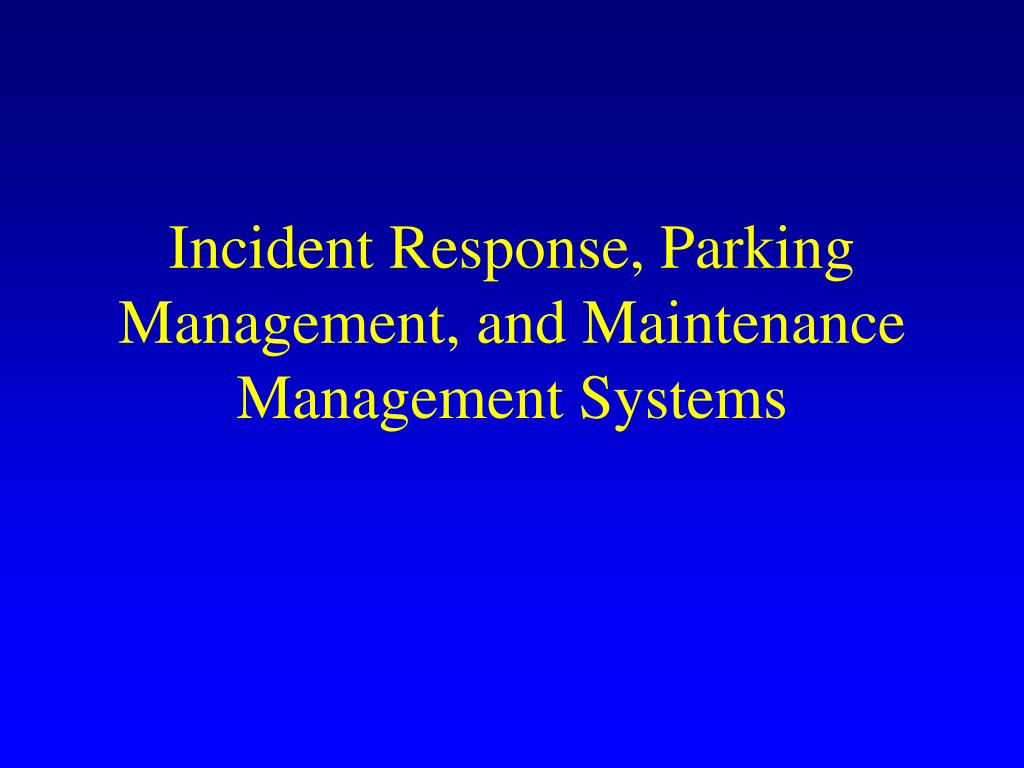

1. Incident Response, Parking Management, and Maintenance Management Systems

2. Incidents Could be anything, outhouses to Christmas trees

3. Incidents in Washington

4. Incident Management / Emergency Response • Urban legend: 60 percent of delay is related to non-recurring congestion – incidents • Solution: • Identify and remove incidents • Speed removal by sending the correct equipment as quickly as possible

5. Incident Management • Incident detection • Incident verification • Incident response • Management • Motorist information

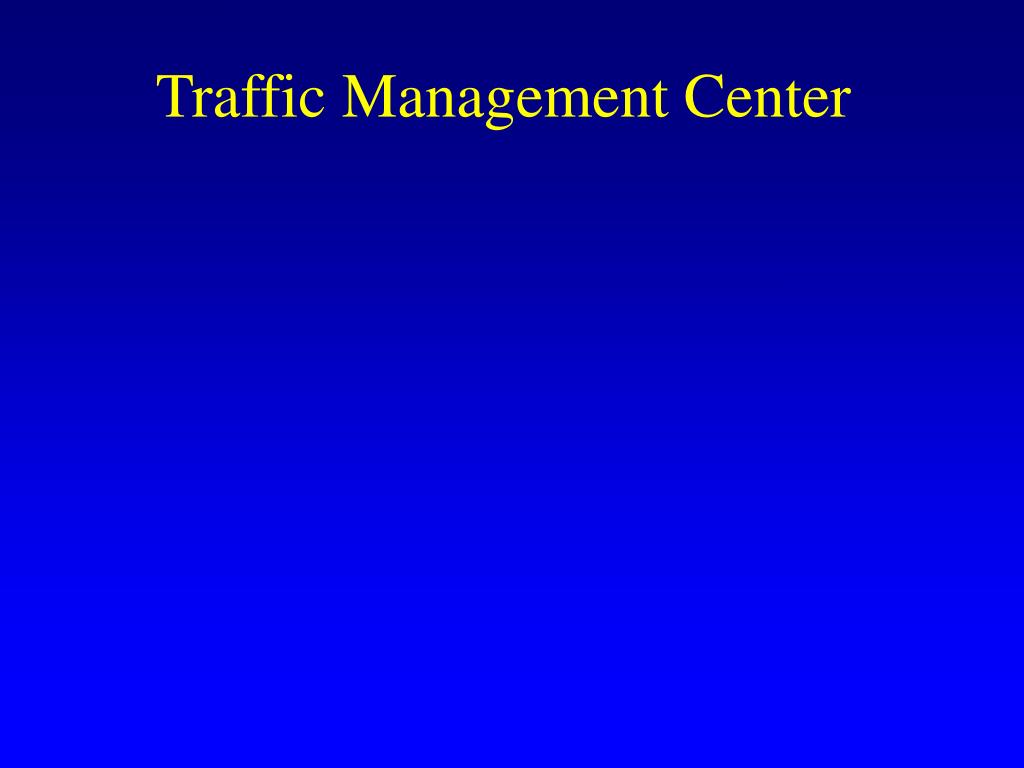

6. Traffic Management Center

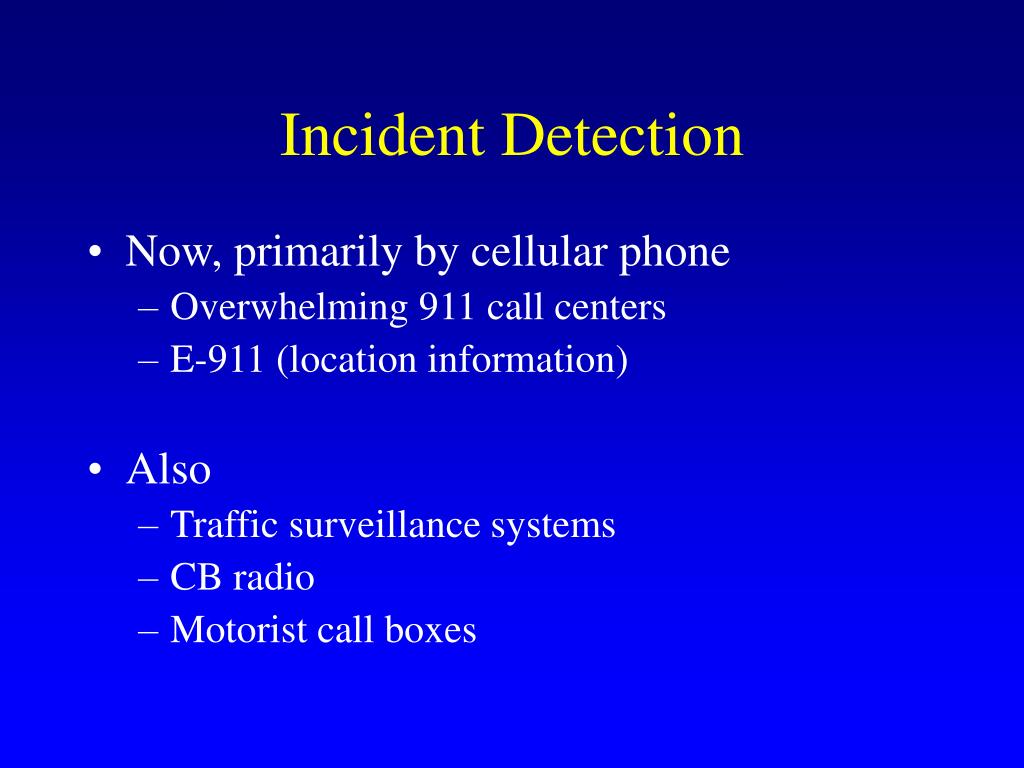

7. Incident Detection • Now, primarily by cellular phone • Overwhelming 911 call centers • E-911 (location information) • Also • Traffic surveillance systems • CB radio • Motorist call boxes

8. Motorist Call Boxes • Used to be expensive, now easy to install because of cell service

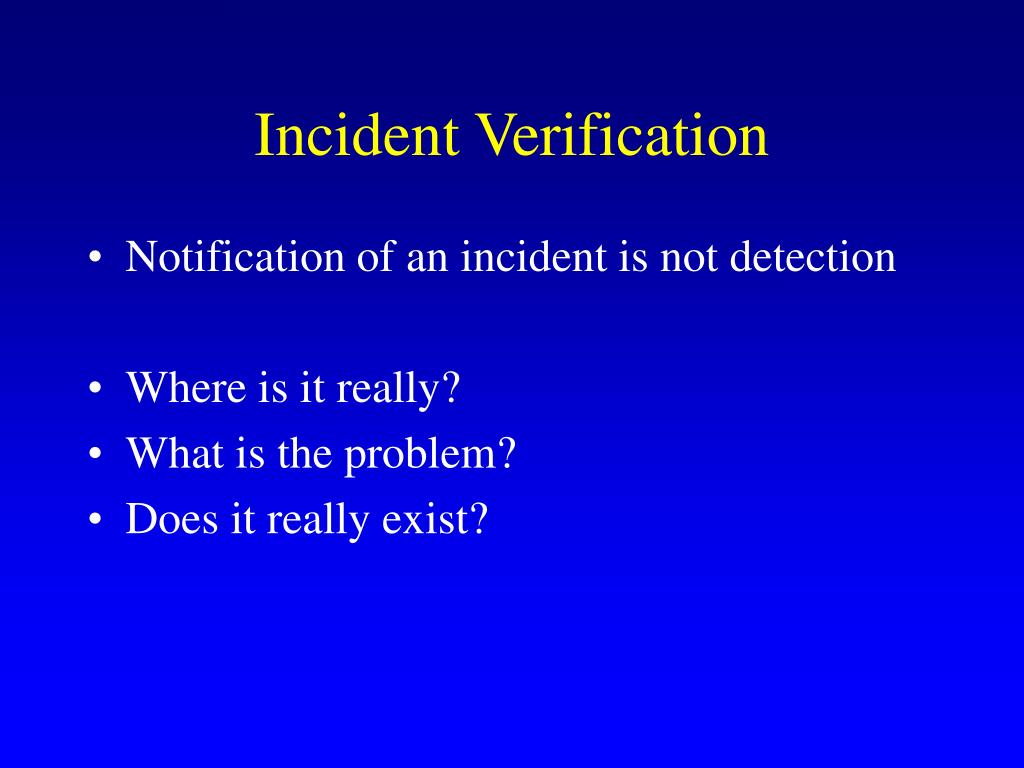

9. Incident Verification • Notification of an incident is not detection • Where is it really? • What is the problem? • Does it really exist?

10. Incident Verification • Usually requires visual confirmation • CCTV • Personal visit • Service patrol • Police • Airplane • Maintenance staff

11. Service Patrols

12. Service Patrols

13. Incident Verification - Response • Verification allows call out of response • The faster the proper response, the faster clearance takes place

14. Level of Response

15. Level of Response

16. Incident Response • Proper response requires an understanding of the incident • Basic assistance (gas / a push) • Tow truck • Large tow truck • Fire truck • EMT • Hazardous material spill recovery • Fatal accident investigation team (Police use technology to record and clear scene, e.g. photogrammerty)

17. Incident Response - Management • Communications are key • Between respondents • Call for additional assistance • Coordination of efforts • Turf wars used to be a big issues • ITS provides many new cost effective communication options

18. Incident Management – Motorist Information • Motorist information is a big part of management • Routing information • Manage facility demand • Provide better travel alternatives to customers • Reduce frustration / poor driving behavior • Manage traveler expectations

19. Motorist Information • Information needs to be delivered to customers • Radio • VMS / CMS • New electronic devices • Other

20. HAR

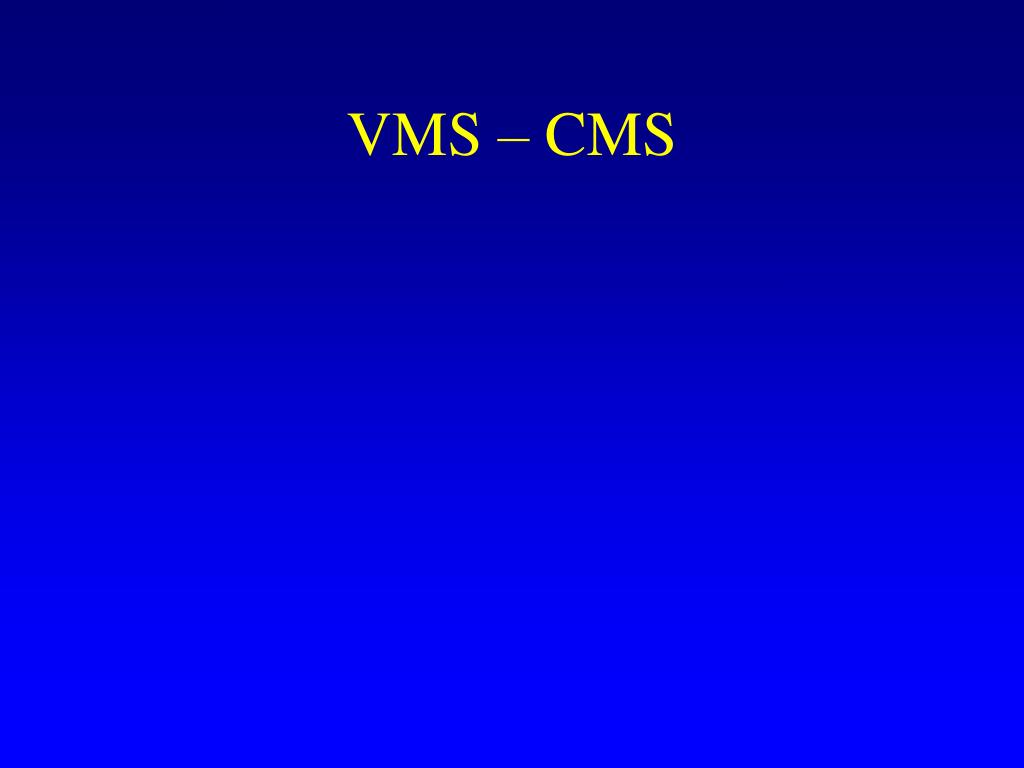

21. VMS – CMS

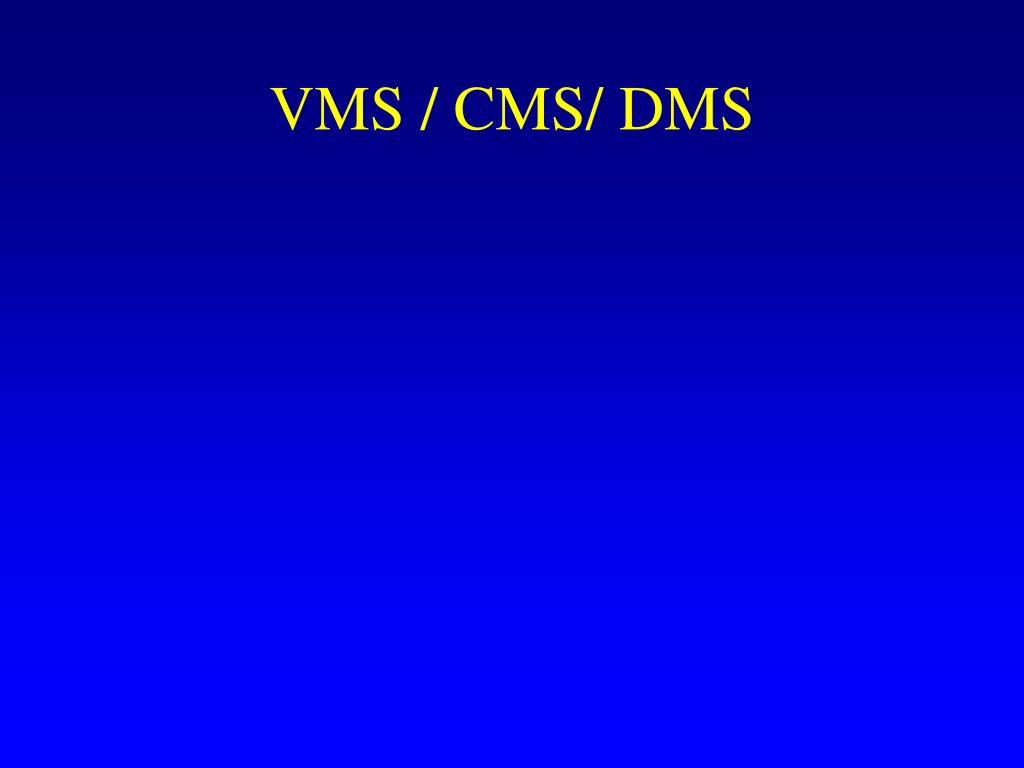

22. VMS / CMS/ DMS

23. Parking Management • Maximize space utilization (if demand is not evenly distributed) • Reduce VMT caused by searching for a space • One estimate is up to 30% of urban traffic is “search traffic”

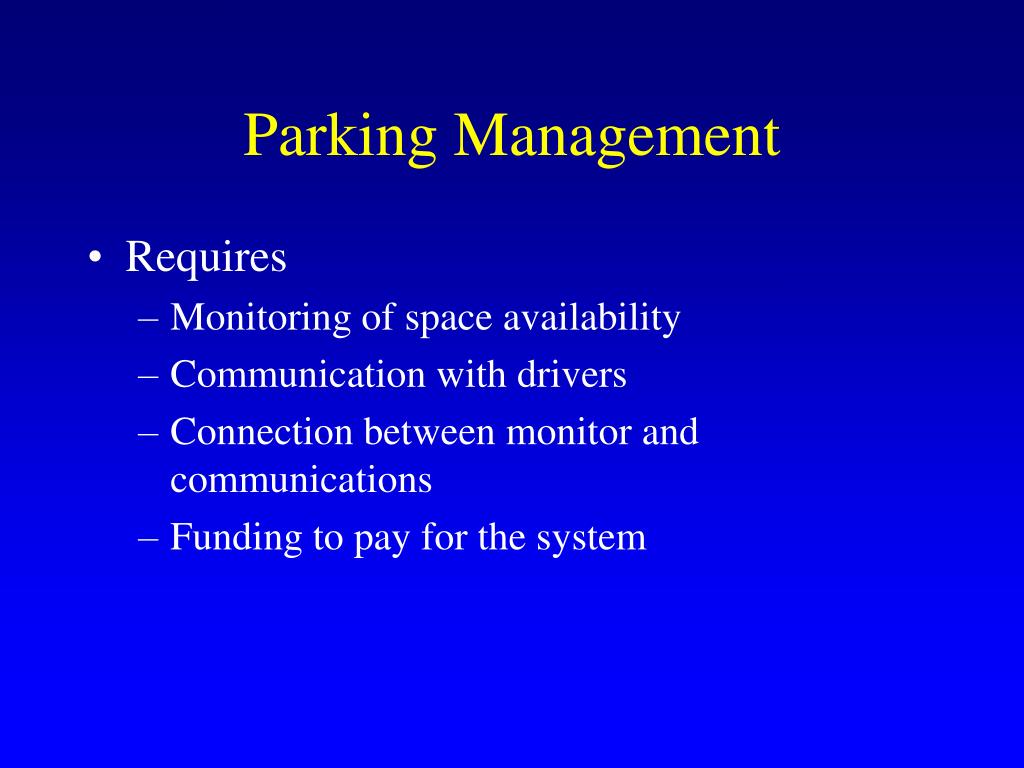

24. Parking Management • Requires • Monitoring of space availability • Communication with drivers • Connection between monitor and communications • Funding to pay for the system

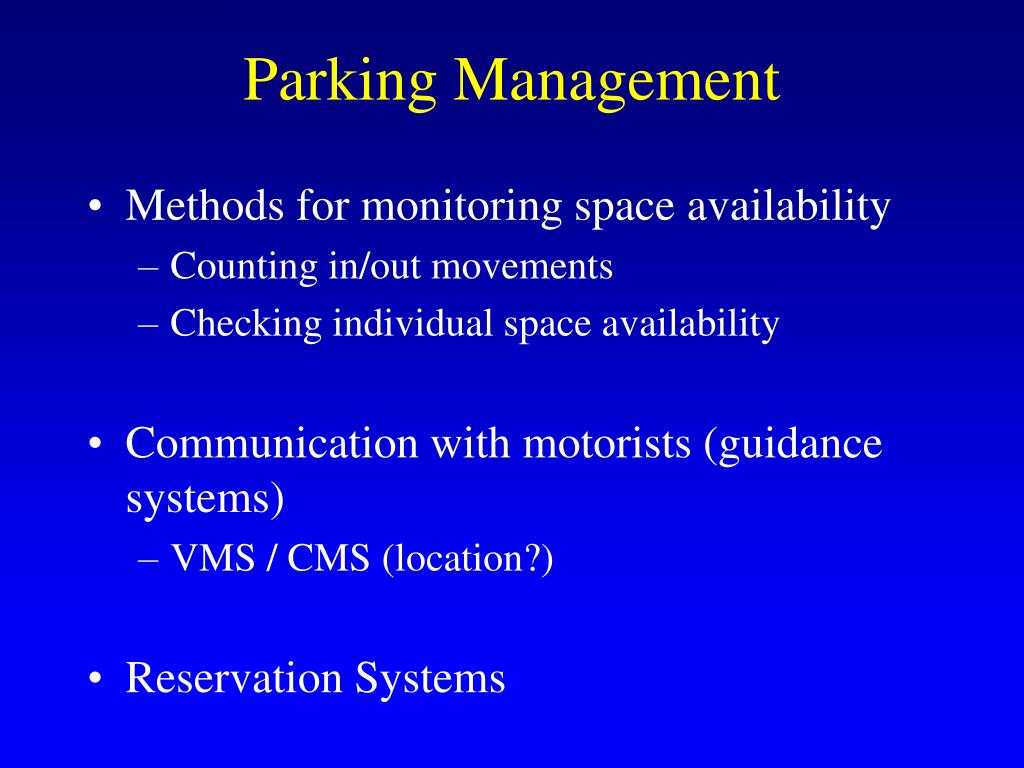

25. Parking Management • Methods for monitoring space availability • Counting in/out movements • Checking individual space availability • Communication with motorists (guidance systems) • VMS / CMS (location?) • Reservation Systems

26. Parking Management • Message Signs • Where do you place them? • At the garage • Prior to the garage • At decision points • What do they say? • Numbers versus directions • How do you update them? • When do they get updated?

27. Parking Technologies • Automated parking systems • Robopark • Electronic or wireless reservation/payment • Similar to electronic tolls • Use mobile phone or transponders • Advanced parking meters • Provide real time information if space is occupied

28. Parking Management • Who pays for the system? • What’s the incentive to do this? • Who participates in the system? • Where are the benefits? • The public? • The private parking companies?

29. EU’s e-Parking Project • On-going European Union program • Uses wireless networks, cell phones, PDAs to: • Get advance information on parking space • Make a reservation • Open barrier at facility • Pay for service • Can all be completed in vehicle

30. e-Parking Project

31. Smart Parking at Baltimore Airport • Signs indicate number of free spaces

32. Ultrasound sensor checks each space for a vehicle. Green/Red light above space indicates if space available.

33. Green arrows point direct drivers to floors with open spaces

34. Signs point to open spaces

35. Open Stall Changeable signs indicate spaces in rows

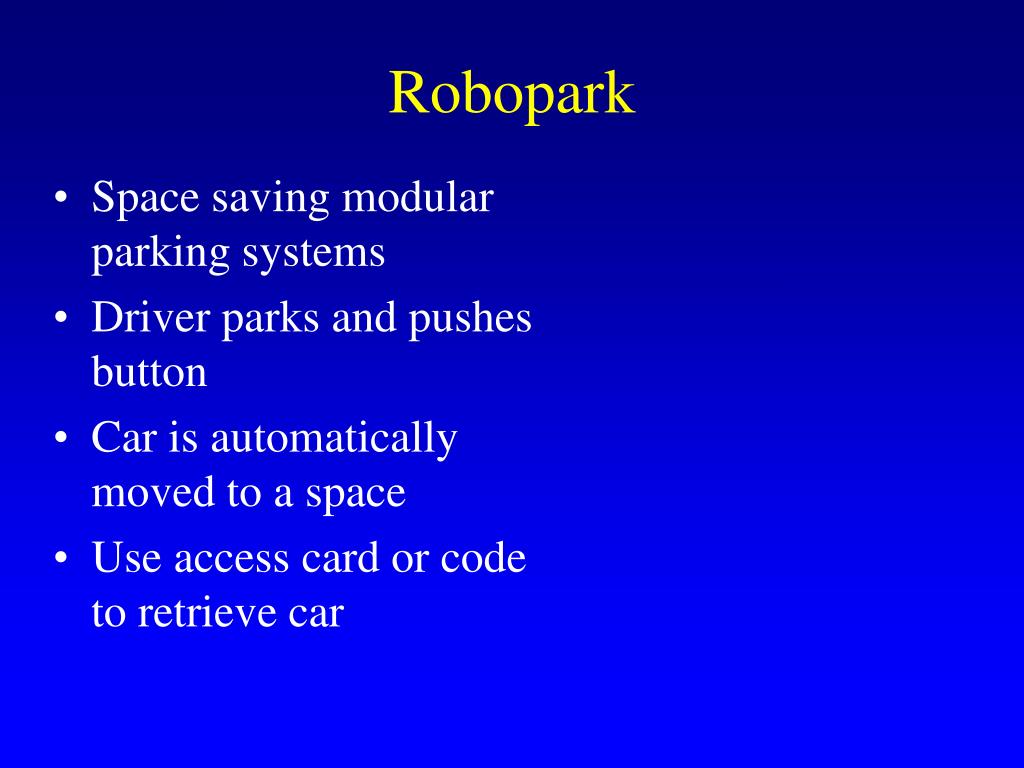

36. Robopark • Space saving modular parking systems • Driver parks and pushes button • Car is automatically moved to a space • Use access card or code to retrieve car

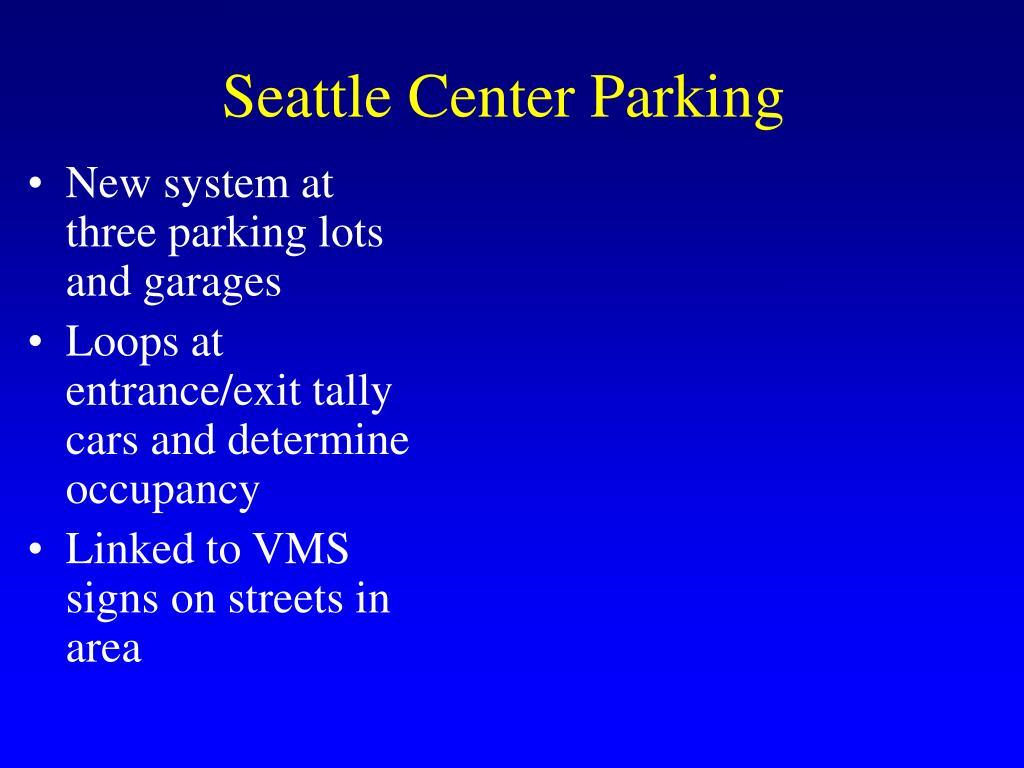

37. Seattle Center Parking • New system at three parking lots and garages • Loops at entrance/exit tally cars and determine occupancy • Linked to VMS signs on streets in area

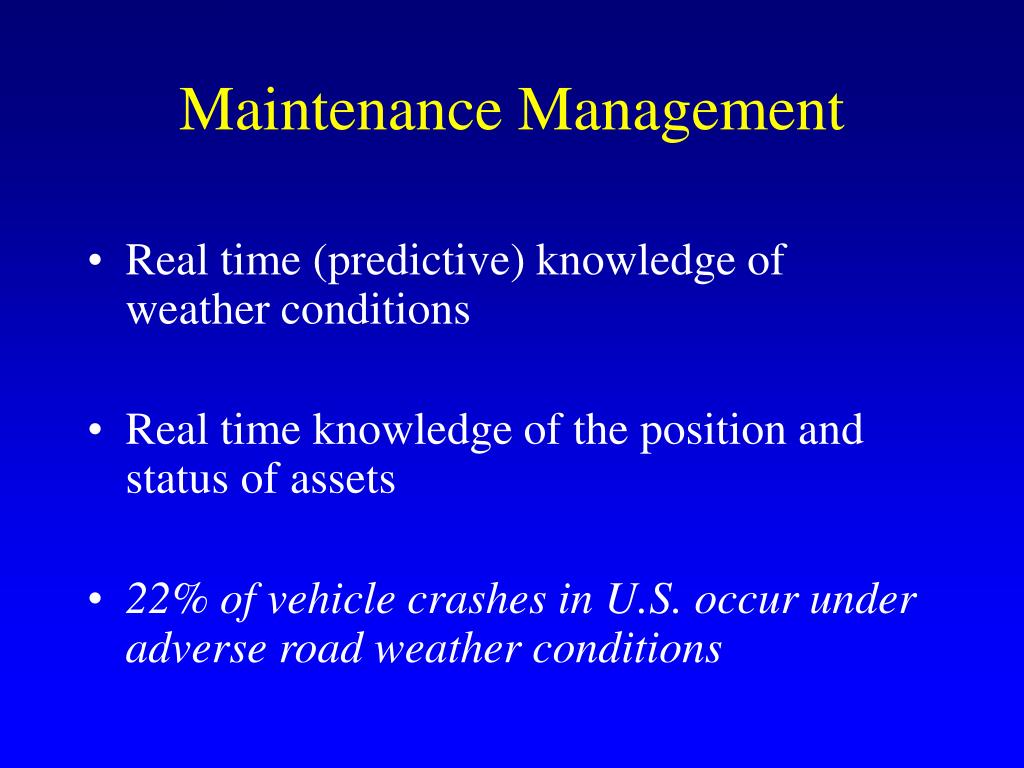

38. Maintenance Management • Real time (predictive) knowledge of weather conditions • Real time knowledge of the position and status of assets • 22% of vehicle crashes in U.S. occur under adverse road weather conditions

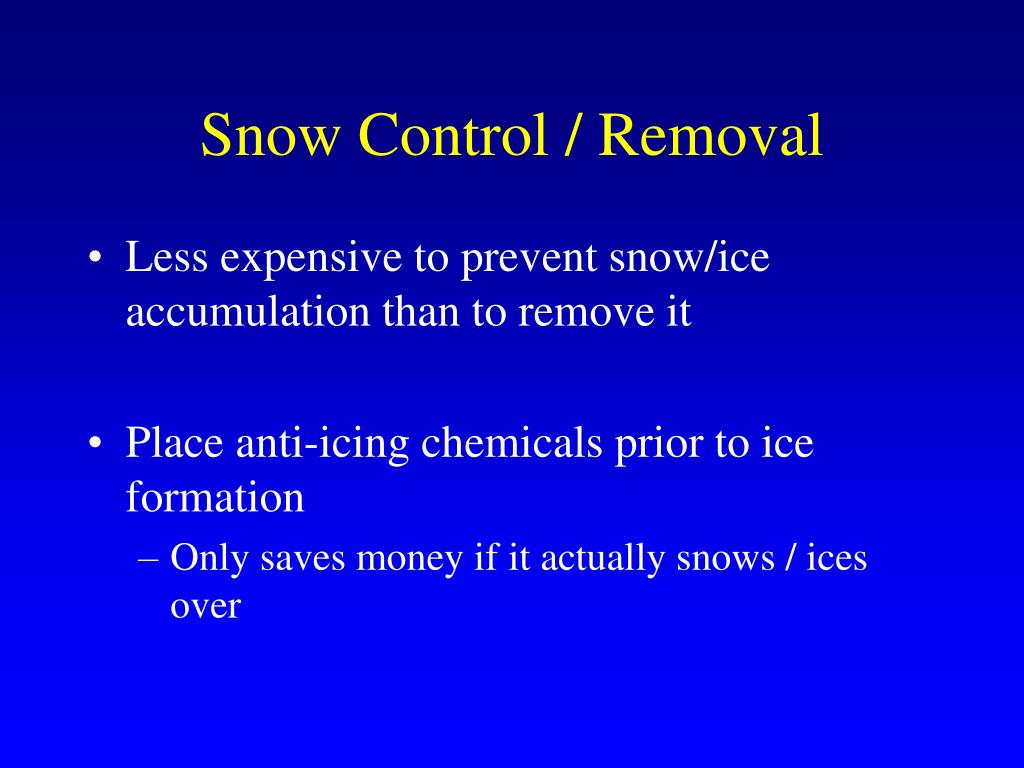

39. Snow Control / Removal • Less expensive to prevent snow/ice accumulation than to remove it • Place anti-icing chemicals prior to ice formation • Only saves money if it actually snows / ices over

40. Snow Prediction • Requires extensive weather monitoring system • Must track micro-climates • Need forecasting capabilities • But can be save money

41. Smart Snowplow Technologies • Finding and staying on roads • GPS with accurate road database, magnetic paint strips, embedded magnetic markers • Detect hidden objects • Collision warning radar • Rear end collisions • Strobes • Driver fatigue • Devices designed with driver comfort in mind • Friction measurement (for performance info)

42. Smart Snowplows

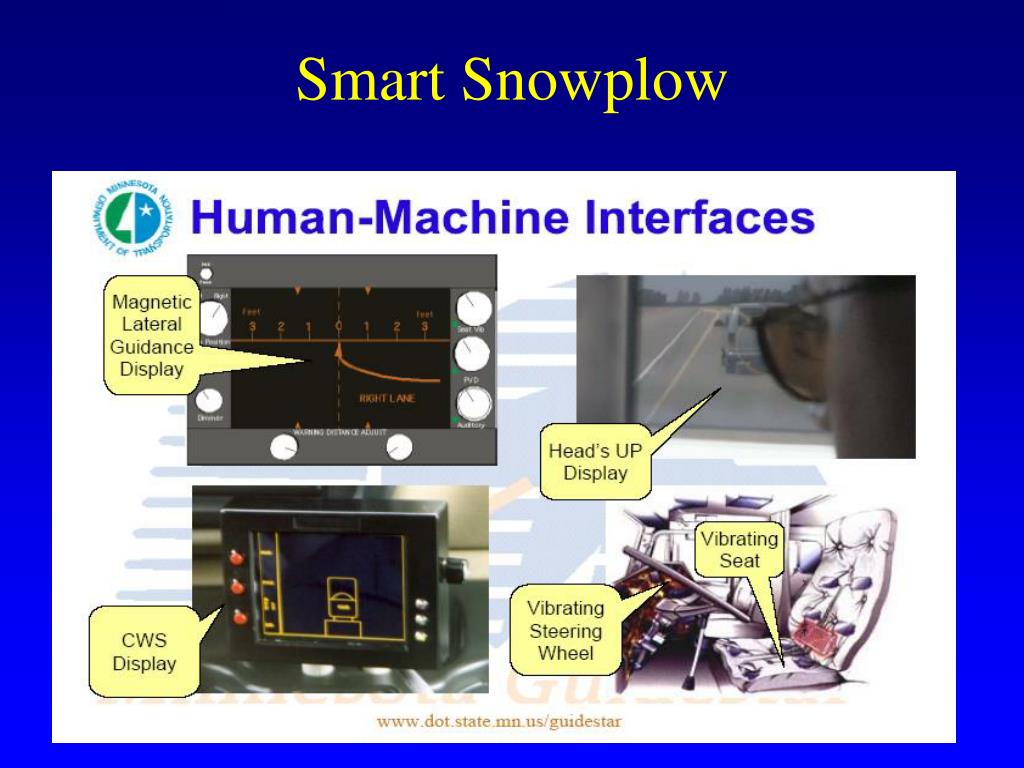

43. Smart Snowplow

44. Washington Roadway Weather Forecasting RWIS (Remote Weather Information Systems) • Linked stations from a number of agencies • Airport • Universities • Cities • Military Bases • On Ferries • 570 stations across state

46. Forecasting Grids Resolutions 12 Kilometer 4 Kilometer 36 Kilometer

47. Public Page - Statewide View

48. Public Page - Regional View

49. Public Page - Local View

50. Route and Road Surface Conditions
