  1. The Nitrogen Cycle

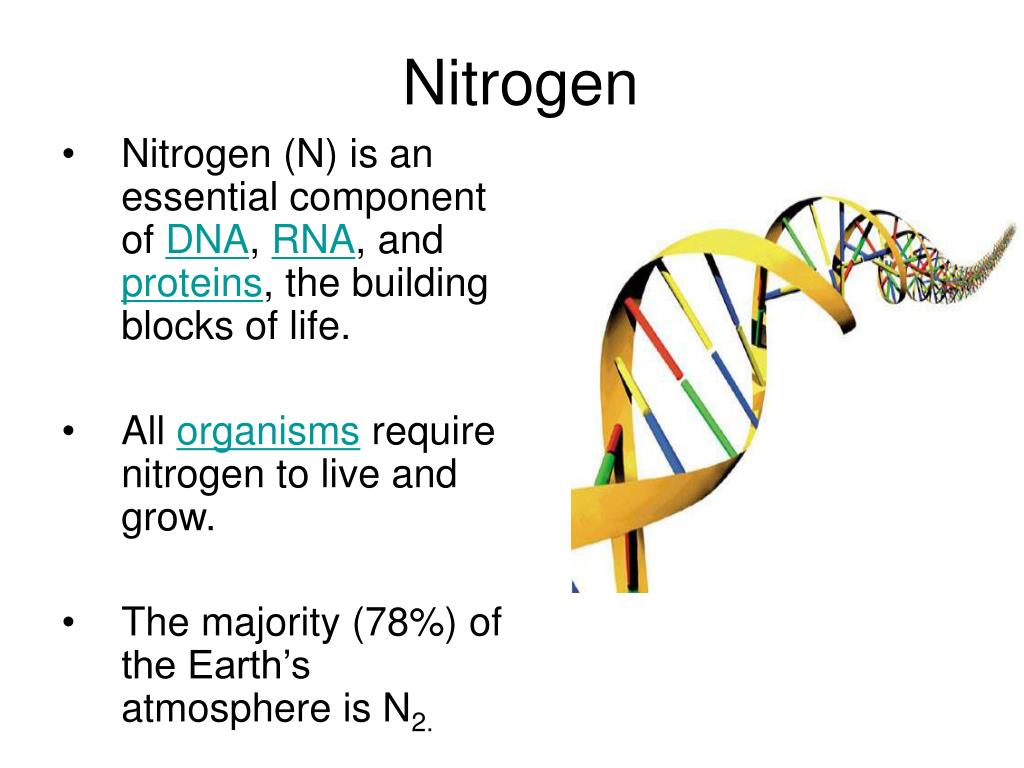

  2. Nitrogen • Nitrogen (N) is an essential component of DNA, RNA, and proteins, the building blocks of life. • All organisms require nitrogen to live and grow. • The majority (78%) of the Earth’s atmosphere is N2.

  3. Have you ever started a fishtank? Why must you wait to add a bunch of fish? Like all living creatures, fish give off waste products (pee and poo). These nitrogenous waste products break down into ammonia (NH3), which is highly toxic to most fishes.

  4. Nitrogen’s triple bond • Although the majority of the air we breathe is N2, most of the nitrogen in the atmosphere is unavailable for use by organisms. • This is because the strong triple bond between the N atoms in N2molecules makes it relatively inert (like a noble gas).

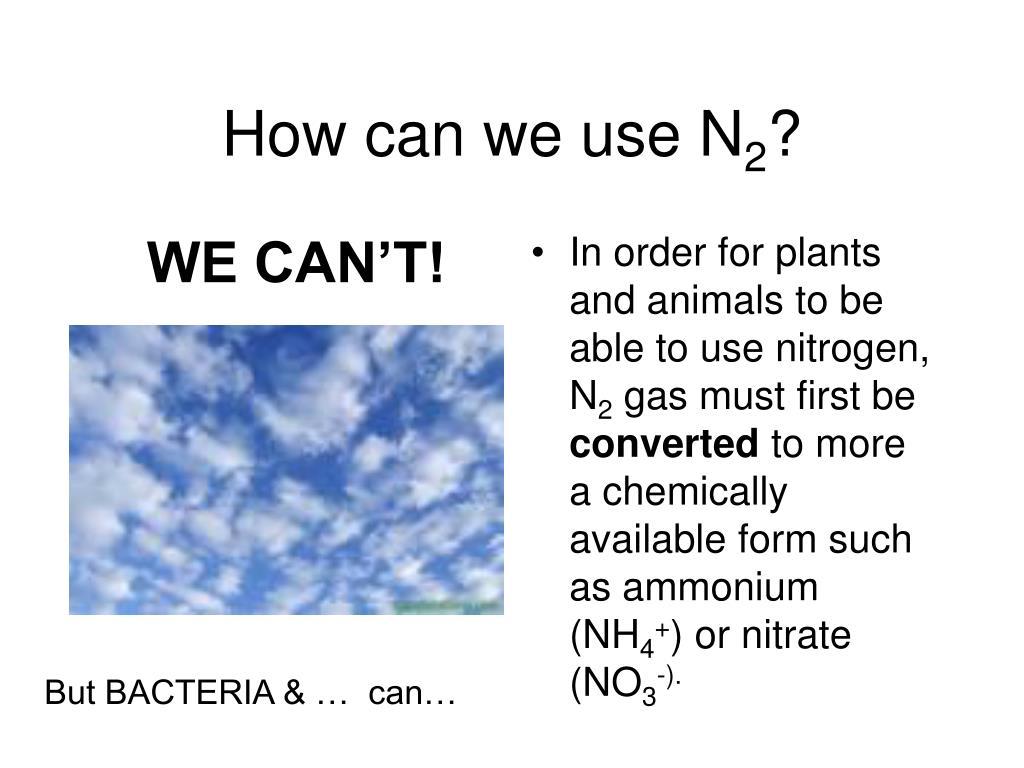

  5. How can we use N2? WE CAN’T! • In order for plants and animals to be able to use nitrogen, N2 gas must first be converted to more a chemically available form such as ammonium (NH4+) or nitrate (NO3-). But BACTERIA & … can…

  6. Nitrogen Fixation (N2 --> NH3 or NH4+) Nitrogen Fixation (N2 --> NH3 or NH4+) HOW? Biological or Environmental or Humans BIOLOGICAL: Bacteria (called Nitrogen-fixing bacteria)These bacteria form symbiotic relationships with host plants. The bacteria live in nodules found in the roots of the legume family of plants (e.g. beans, peas, and clover) HOW? Biological or Environmental or Humans BIOLOGICAL: Bacteria (called Nitrogen-fixing bacteria)These bacteria form symbiotic relationships with host plants. The bacteria live in nodules found in the roots of the legume family of plants (e.g. beans, peas, and clover)

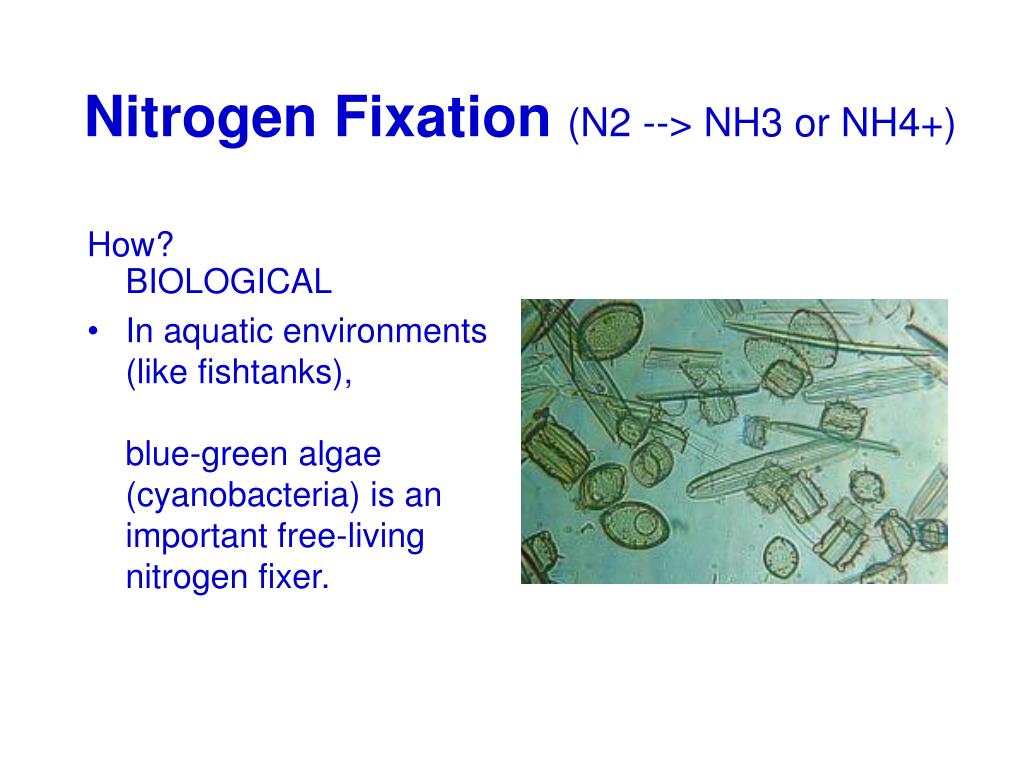

  7. Nitrogen Fixation (N2 --> NH3 or NH4+) How?BIOLOGICAL • In aquatic environments (like fishtanks), blue-green algae (cyanobacteria) is an important free-living nitrogen fixer.

  8. Nitrogen Fixation (N2 --> NH3 or NH4+) ENVIRONMENTAL High-energy natural events which break the bond N2 Examples:lightningforest fireshot lava flows

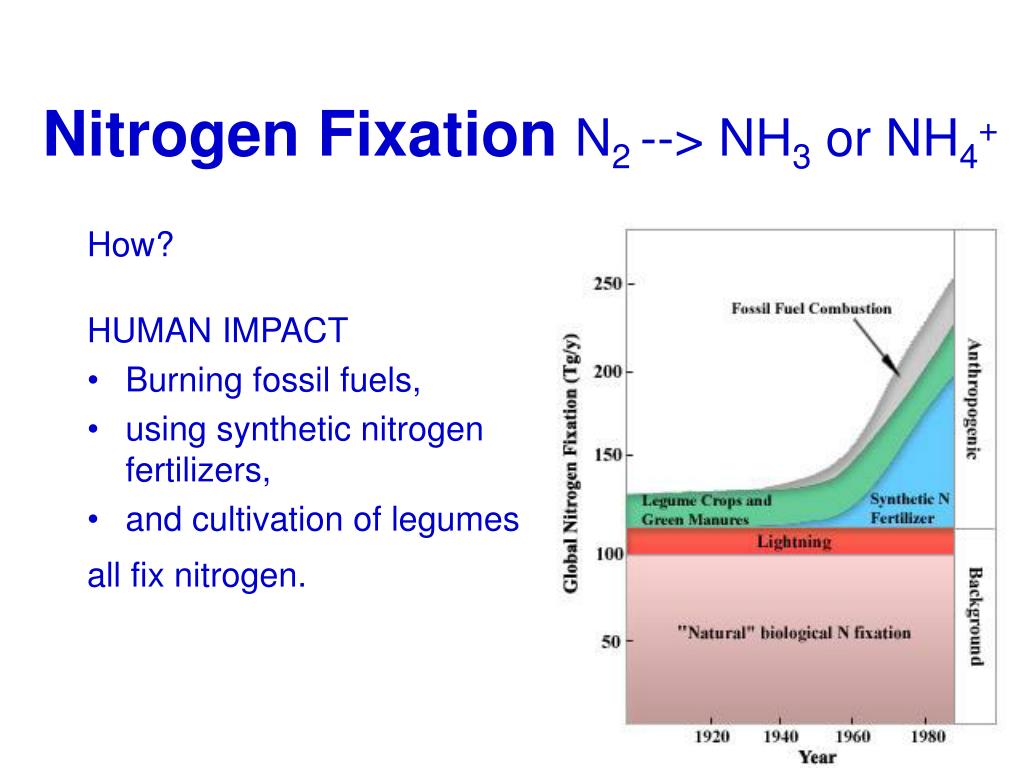

  9. Nitrogen Fixation N2 --> NH3 or NH4+ How? HUMAN IMPACT • Burning fossil fuels, • using synthetic nitrogen fertilizers, • and cultivation of legumes all fix nitrogen.

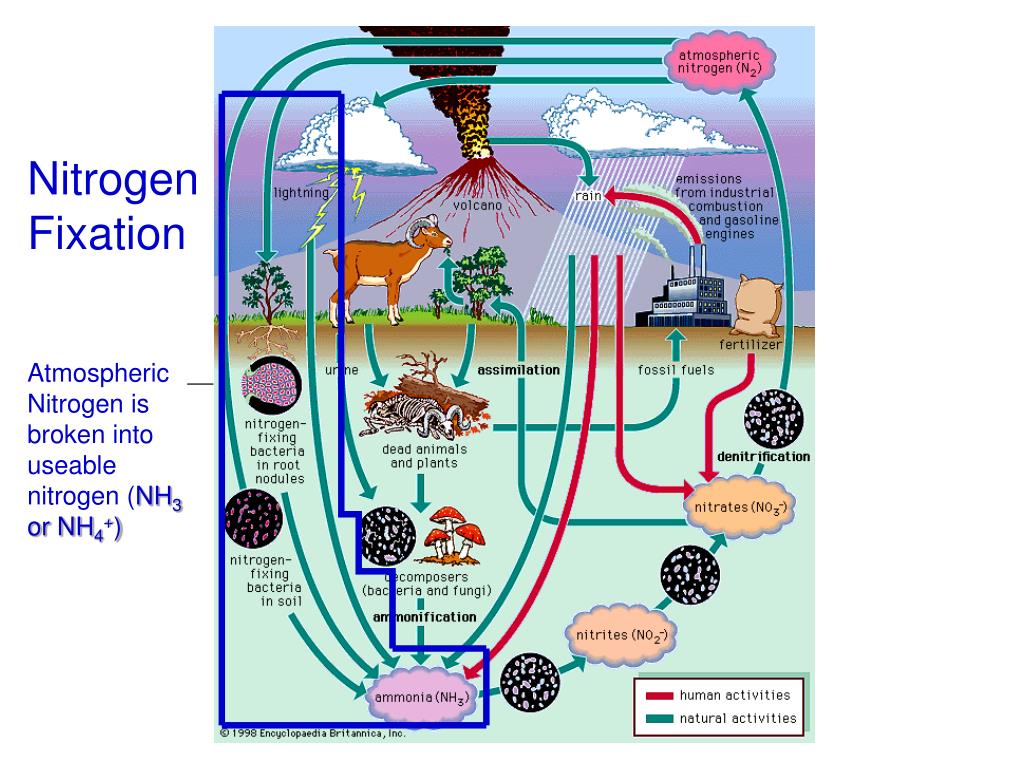

  10. Nitrogen Fixation Atmospheric Nitrogen is broken into useable nitrogen (NH3 or NH4+)

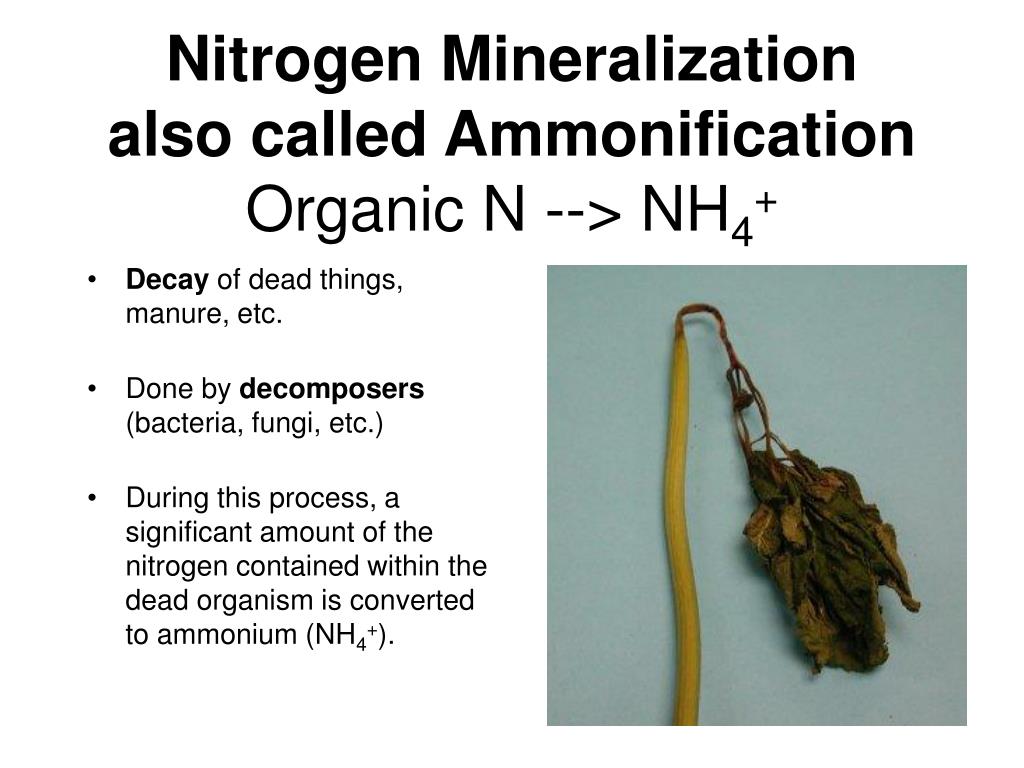

  11. Nitrogen Mineralizationalso called AmmonificationOrganic N --> NH4+ • Decay of dead things, manure, etc. • Done by decomposers (bacteria, fungi, etc.) • During this process, a significant amount of the nitrogen contained within the dead organism is converted to ammonium (NH4+).

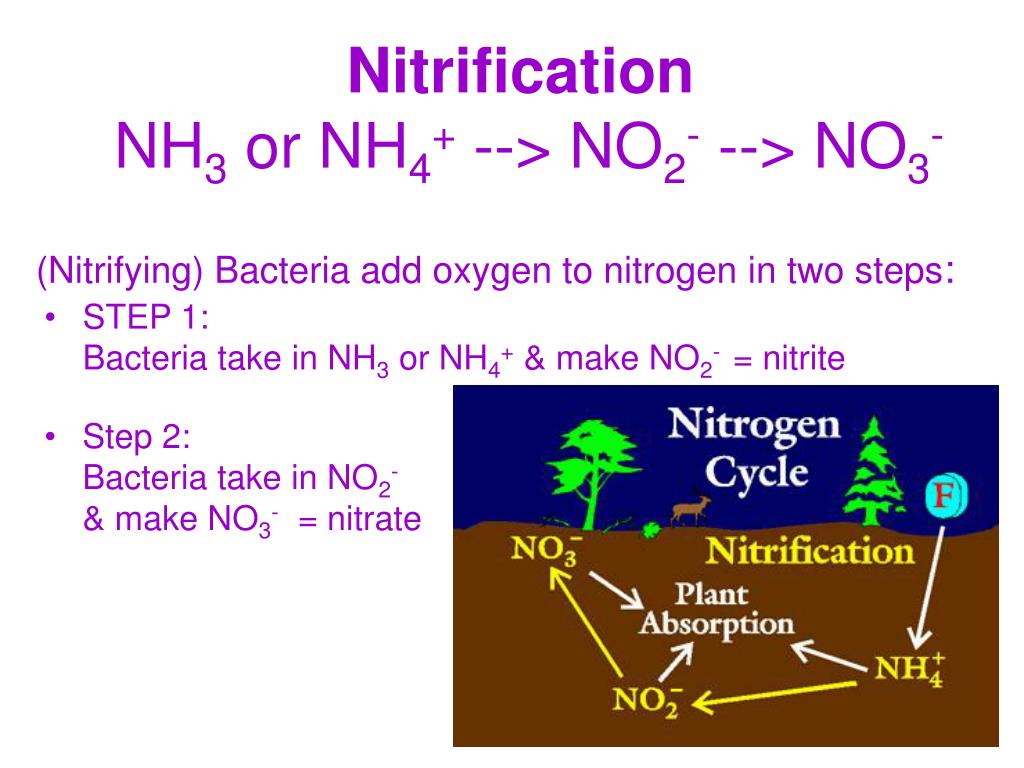

  12. NitrificationNH3 or NH4+--> NO2- --> NO3- (Nitrifying) Bacteria add oxygen to nitrogen in two steps: • STEP 1: Bacteria take in NH3 or NH4+& make NO2- = nitrite • Step 2:Bacteria take in NO2- & make NO3- = nitrate

  13. Nitrification

  14. Nitrogen Uptake • The ammonia (NH3) produced by nitrogen-fixing bacteria is usually quickly incorporated into protein and other organic nitrogen compounds (organisms!). • It’s either absorbed by a plant, by the bacteria itself, or by another soil organism. • Organisms at the top of the food chain (like us!) eat and grow, uptaking nitrogen (that has already been fixed).

  15. DenitrificationNO3- --> N2 (Denitrifying) Bacteria do it. Denitrificationremoves nitrogen from ecosystems, and converts it back to atmospheric N2.

  16. Human Impact • FERTILIZERS! • Extra nitrogen fertilizer can runoff, where it contaminates surface water or infiltrates into ground water. • In drinking water, excess nitrogen can lead to cancer in humans and respiratory distress in infants.

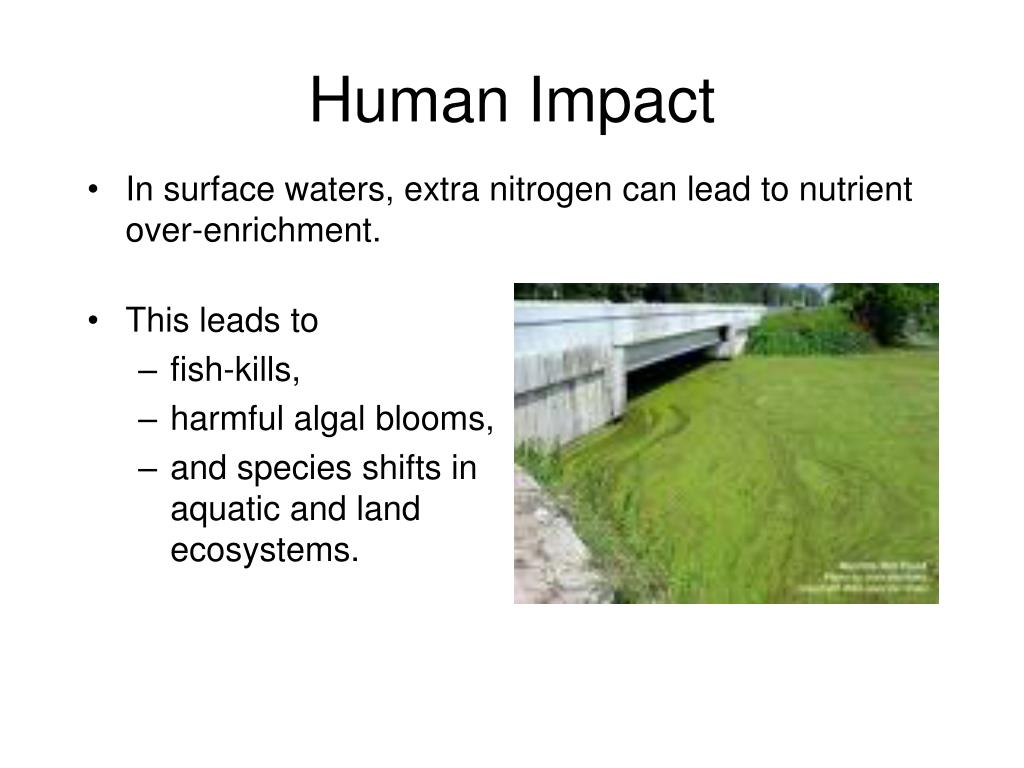

  17. Human Impact • In surface waters, extra nitrogen can lead to nutrient over-enrichment. • This leads to • fish-kills, • harmful algal blooms, • and species shifts in aquatic and land ecosystems.

  18. Human Impact Some forms of nitrogen (like NO3- and NH4+) can also enter the atmosphere to become: • smog- nitric oxide (NO) • Greenhouse gas- nitrous oxide (N2O) • Acid Rain-(nitrogen oxides)

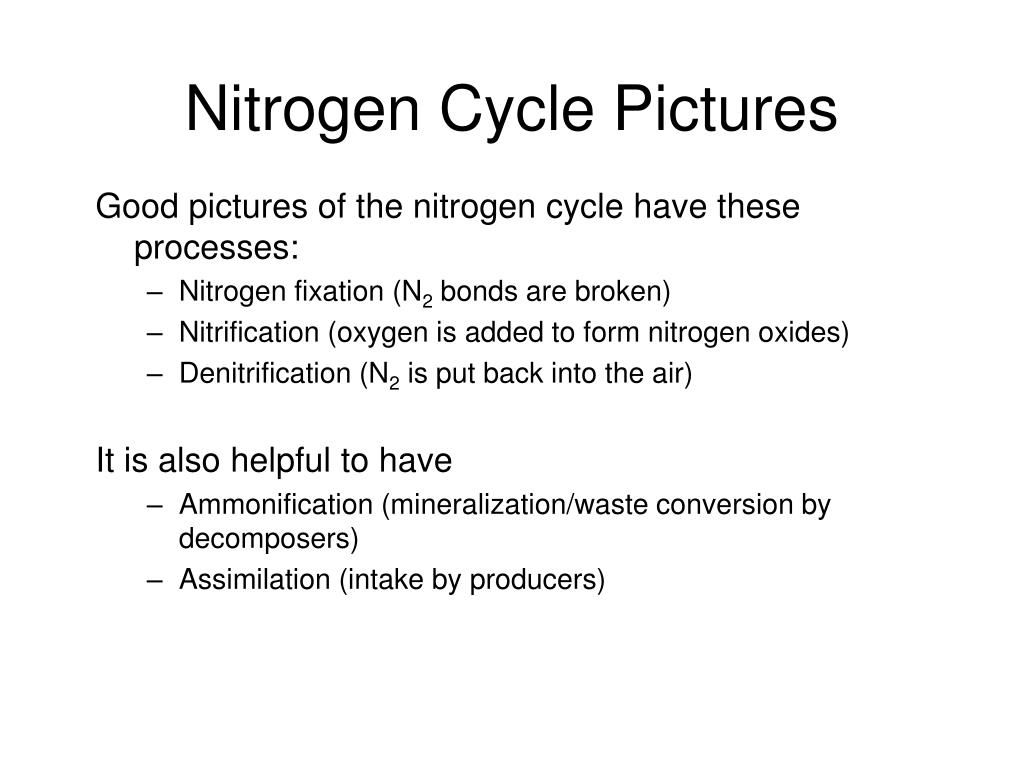

  19. Nitrogen Cycle Pictures Good pictures of the nitrogen cycle have these processes: • Nitrogen fixation (N2 bonds are broken) • Nitrification (oxygen is added to form nitrogen oxides) • Denitrification (N2 is put back into the air) It is also helpful to have • Ammonification (mineralization/waste conversion by decomposers) • Assimilation (intake by producers)

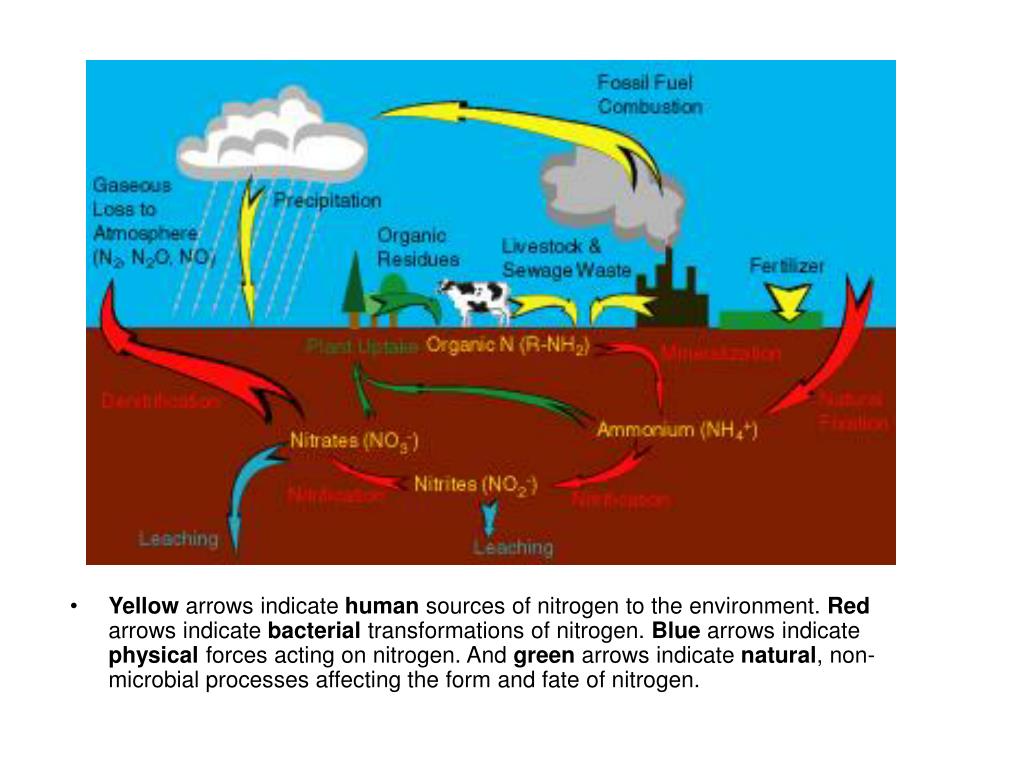

  20. Yellow arrows indicate human sources of nitrogen to the environment. Red arrows indicate bacterial transformations of nitrogen. Blue arrows indicate physical forces acting on nitrogen. And green arrows indicate natural, non-microbial processes affecting the form and fate of nitrogen.
