What the Standards Don’t Tell You About Flashback Arrestor Testing

1. What the Standards Don’t Tell You About Flashback Arrestor Testing Why Are Aussie Welders Still Getting Caught Out by Fumes? Let’s face it—ventilation often gets the short end of the stick in Aussie welding workshops. You’ve got your flashback arrestor testing ticked off, your helmets are top-shelf, and your team’s trained. But then a welder complains of headaches, or a routine inspection raises questions about airflow. Suddenly, all eyes are on the one safety measure many workshops assume they’ve already handled: ventilation. In this article, we go beyond the usual checklist. We’ll unpack why relying solely on Australian Standards can leave gaps in your safety system, what practical steps you can take to fix them, and how flashback arrestor testing ties into the bigger picture of fume control. If you think ‘meeting the standard’ is enough—you might want to read on.

2. The Gap Between Compliance and Real-World Protection Welding fume safety is governed by Australian Standards like AS/NZS 1674.1 and the WHS Code of Practice for Welding Processes. But here’s the kicker: many of these guidelines focus on what must be done—not always what should be done. Take ventilation. Standards specify that ventilation must reduce airborne contaminants to safe levels, but they rarely define how that looks in a real-world workshop juggling multiple processes. It’s left to the PCBU (Person Conducting a Business or Undertaking) to interpret. Interpretation, however, is where things often fall short. And then there’s flashback arrestor testing. While it's more commonly linked to oxy/fuel system safety, it’s often overlooked as part of the ventilation conversation. Yet a compromised gas system can increase fume levels rapidly—especially in enclosed or poorly ventilated spaces. What the Welding Code of Practice Doesn’t Spell Out: ● The specific airflow rates needed per welder or welding process ● The difference between general and local exhaust ventilation (LEV) ● The impact of workshop layout on airflow circulation

3. ● How flashback events can spike airborne contaminants This is where experience matters. A compliant workshop isn’t always a safe one. It’s the details that make the difference—and missing those details can result in long-term health issues or costly compliance breaches. The Cost of Getting It Wrong In 2022, a small manufacturing business in regional NSW passed a compliance inspection for their flashback arrestors and PPE. Six months later, a welder developed occupational asthma. An internal review found that while the flashback arrestors were tested and working, the shop’s fume extraction system was undersized for the workload. Despite compliance, welders were unknowingly exposed to hazardous airborne metals. The local exhaust ventilation system was only effective within a narrow radius and failed to capture the fume generated during multi-station operations. The lesson? Tick-box compliance isn’t enough. Real protection means evaluating how every safety system works together—especially when it comes to fumes.

4. What Welders and Workshop Owners Need to Know 1. Flashback Arrestor Testing and Fume Control Go Hand in Hand Flashback arrestors are designed to prevent reverse gas flow and explosions in oxy-fuel systems. But when improperly tested or maintained, they can leak or fail—releasing excess gas into the workspace. That’s where ventilation becomes crucial. If flashback testing is skipped or rushed, the released gas can increase contaminant load, especially in smaller shops or enclosed bays. Pro Tip: Make flashback arrestor testing part of your ventilation review. If your workshop doesn’t pass both tests—gas system and air quality—it’s not fully safe. 2. Use Fit-for-Purpose Ventilation—Not Just Fans General extraction fans are not enough. You need task-specific controls, especially when welding stainless steel, aluminium, or using high-fume consumables. Best Practice:

5. ● Install LEV systems with adjustable arms at each welding station. ● Use fume extraction MIG guns in high-output environments. ● Retrofit portable fume extractors for hard-to-reach or temporary workspaces. ● Integrate sensors that monitor particle concentration and alert when thresholds are exceeded. 3. Match Your Welding Helmet to Your Fume Risk Using a quality auto-darkening helmet like a 3M Speedglas helmet with integrated respirator isn’t just about visibility—it’s a frontline defence against fume inhalation. Helmet Respiratory Ideal For Protection ❌ Standard Auto-Darkening Low-risk, open workshops Helmet ✅ (PAPR) 3M Speedglas 9100 FX Air Confined spaces, heavy-duty welding ✅ Welding Helmet with High-fume materials like stainless Respirator steel 4. Assess Your Ventilation Zone by Zone Not all parts of your workshop have the same airflow quality. Fumes can collect in dead zones, corners, or under mezzanines. Ventilation Checklist: ● Are extraction hoods placed directly at the weld point?

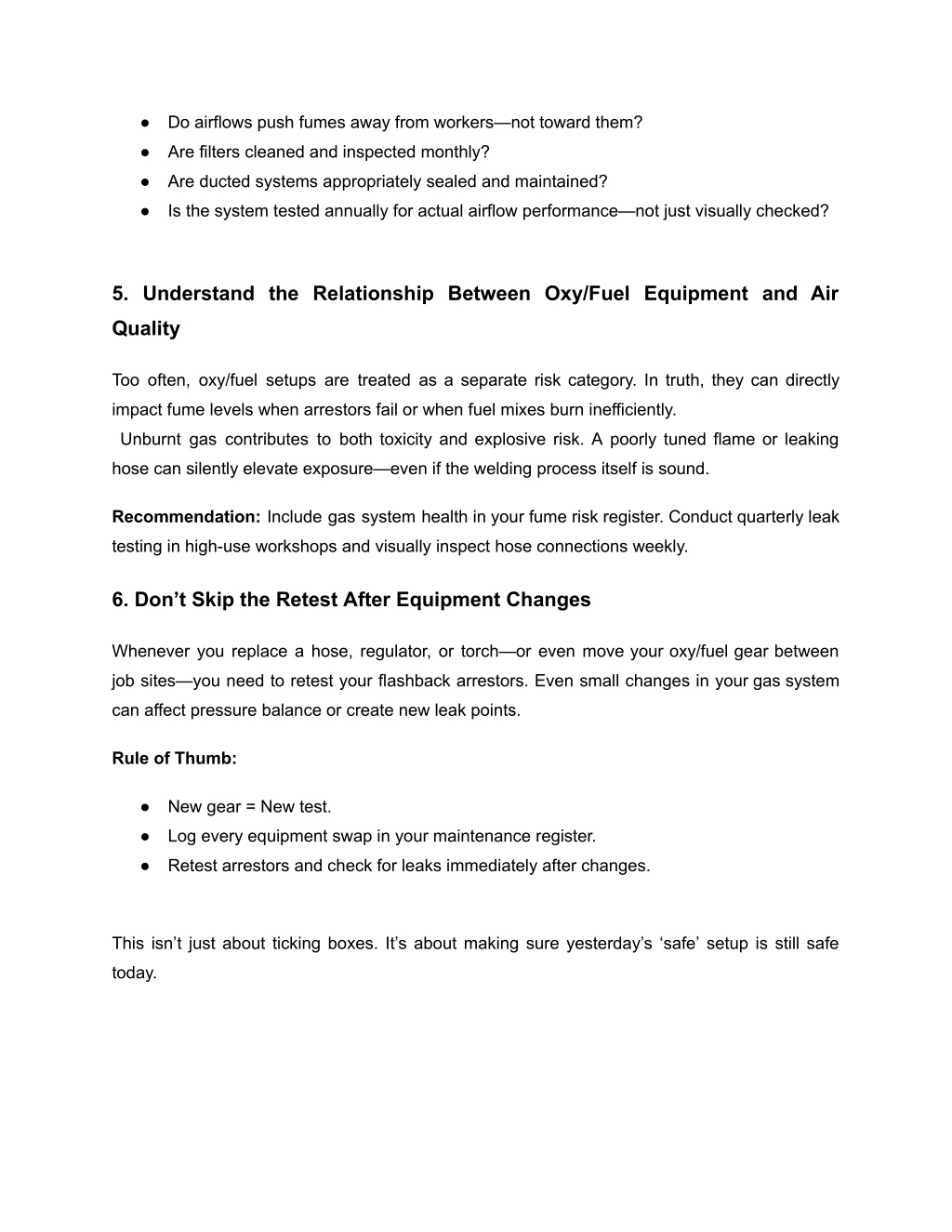

6. ● Do airflows push fumes away from workers—not toward them? ● Are filters cleaned and inspected monthly? ● Are ducted systems appropriately sealed and maintained? ● Is the system tested annually for actual airflow performance—not just visually checked? 5. Understand the Relationship Between Oxy/Fuel Equipment and Air Quality Too often, oxy/fuel setups are treated as a separate risk category. In truth, they can directly impact fume levels when arrestors fail or when fuel mixes burn inefficiently. Unburnt gas contributes to both toxicity and explosive risk. A poorly tuned flame or leaking hose can silently elevate exposure—even if the welding process itself is sound. Recommendation: Include gas system health in your fume risk register. Conduct quarterly leak testing in high-use workshops and visually inspect hose connections weekly. 6. Don’t Skip the Retest After Equipment Changes Whenever you replace a hose, regulator, or torch—or even move your oxy/fuel gear between job sites—you need to retest your flashback arrestors. Even small changes in your gas system can affect pressure balance or create new leak points. Rule of Thumb: ● New gear = New test. ● Log every equipment swap in your maintenance register. ● Retest arrestors and check for leaks immediately after changes. This isn’t just about ticking boxes. It’s about making sure yesterday’s ‘safe’ setup is still safe today.

7. What the Standards Leave Out—and What You Can Do About It Australian Standards serve as a baseline. They’re the minimum. But when it comes to health and safety, the minimum won’t protect your team from long-term harm. Missing Elements in Common Standards: ● Real-time monitoring expectations ● Cumulative exposure tracking ● Material-specific fume profiles ● Temperature and humidity influence on gas dispersion To address these, businesses can adopt an internal best-practice guide that exceeds the standards. Examples include: ● Setting internal exposure benchmarks 30% below legal limits ● Rotating staff out of high-exposure zones ● Scheduling high-fume tasks during low-occupancy hours

8. Don’t Wait for the Audit Compliance is just the start. A safer, healthier, and more productive welding environment means looking beyond the code—and seeing the full picture. That includes: ● Making flashback arrestor testing part of your air quality plan ● Choosing the right helmets and fume extractors ● Understanding your workshop’s airflow dynamics ● Prioritising real-world testing over assumptions Because in welding, just like in business—learning never stops. And neither should safety. FAQs: What Aussie Workshops Often Miss Q: How often should flashback arrestors be tested? A: At least every 12 months, or more frequently in high-use environments. Always follow manufacturer guidance and document the test results. Q: Is natural ventilation enough in a welding bay? A: Rarely. Open doors and windows can help, but without local extraction, welders remain exposed to harmful particulates. Q: Are integrated PAPR helmets overkill for general welding? A: Not if you’re dealing with materials like galvanised steel or aluminium. Respiratory protection should match the fume hazard—not the task. Q: Does flashback arrestor failure increase fume risk? A: Absolutely. Failed or leaking arrestors can discharge unburnt gas, increasing both explosion risk and toxic exposure. Q: Can fume exposure affect workshop productivity? A: Yes. Headaches, fatigue, and absenteeism are all linked to long-term exposure to welding fumes—even at low levels.
