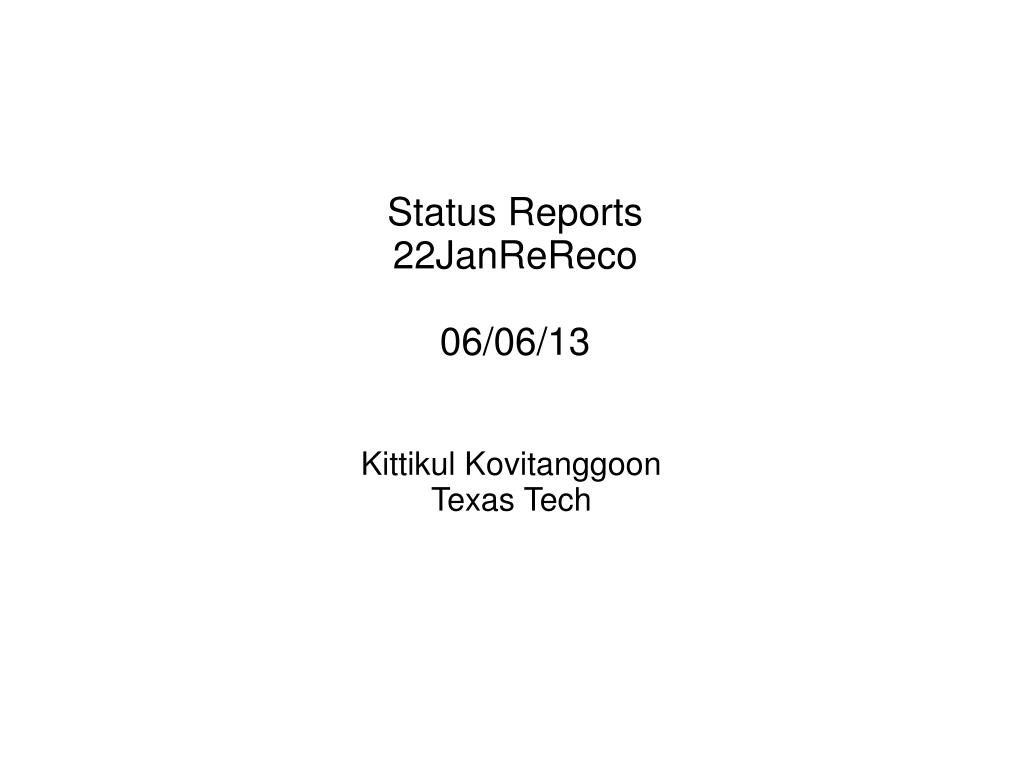

  1. Status Reports 22JanReReco 06/06/13 Kittikul Kovitanggoon Texas Tech

  2. DataSets /DoubleMu/Run2012A-22Jan2013-v1/AOD /DoubleMuParked/Run2012B-22Jan2013-v1/AOD /DoubleMuParked/Run2012C-22Jan2013-v1/AOD /DoubleMuParked/Run2012D-22Jan2013-v1/AOD Cert_190456-208686_8TeV_22Jan2013ReReco_Collisions12_JSON.txt /DYJetsToLL_M-50_TuneZ2Star_8TeV-madgraph-tarball/Summer12_DR53X-PU_S10_START53_V7A-v1/AODSIM

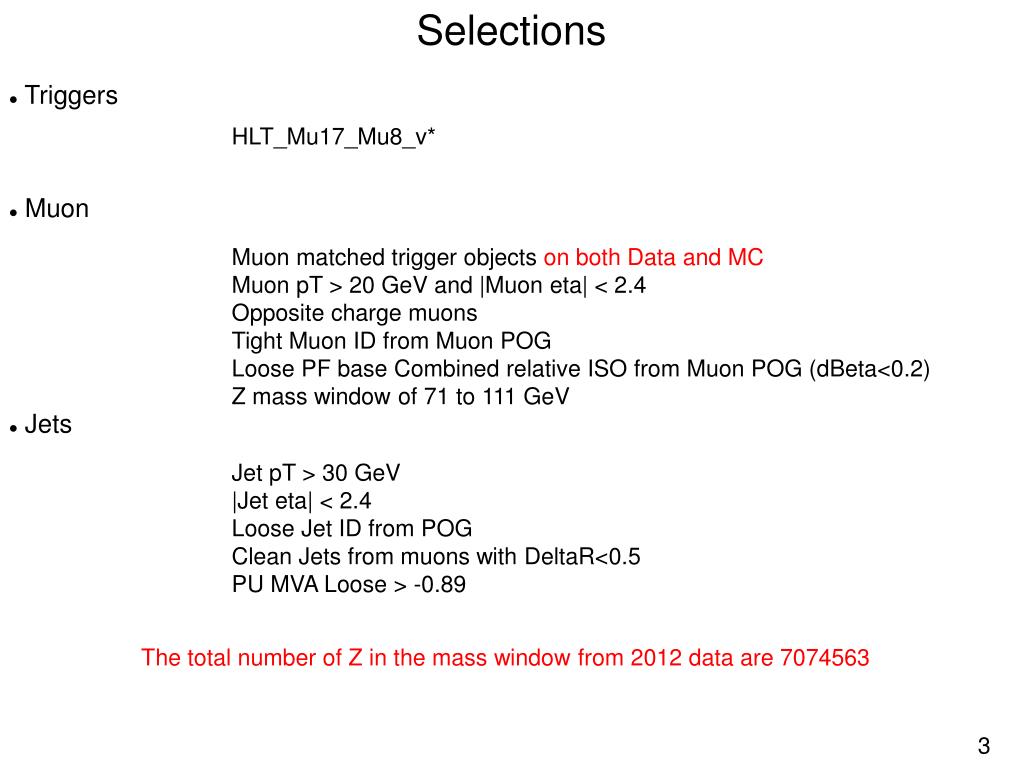

  3. Selections • Triggers HLT_Mu17_Mu8_v* • Muon Muon matched trigger objects on both Data and MC Muon pT > 20 GeV and |Muon eta| < 2.4 Opposite charge muons Tight Muon ID from Muon POG Loose PF base Combined relative ISO from Muon POG (dBeta<0.2) Z mass window of 71 to 111 GeV • Jets Jet pT > 30 GeV |Jet eta| < 2.4 Loose Jet ID from POG Clean Jets from muons with DeltaR<0.5 PU MVA Loose > -0.89 The total number of Z in the mass window from 2012 data are 7074563

  4. Exclusive Jet Multiplicity • Data are corrected with 1/SF of ISO,ID,and Trigger • MC are corrected with PU reweighting

  5. Exclusive Jet Multiplicity • Data are NOT corrected with ID,ISO, and trigger scale factor.

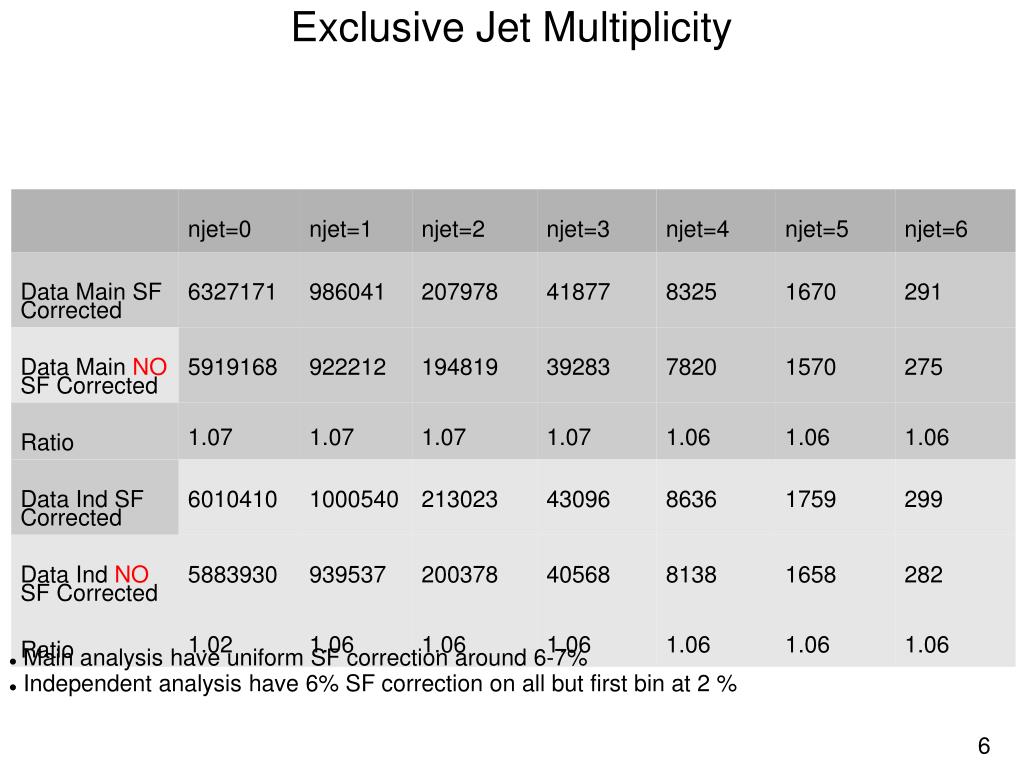

  6. Exclusive Jet Multiplicity • Main analysis have uniform SF correction around 6-7% • Independent analysis have 6% SF correction on all but first bin at 2 %

  7. Exclusive Jet Multiplicity DoubleMuA: Main analysis-> total number of event=4606634 Independen analysis total number of event=4758742 - Data are NOT corrected with ID,ISO, and trigger scale factor. Main analysis: total number of Z = 289849 Independent analysis: total number of Z = 289080 Z Ratio = 1.002 - Data are corrected with ID,ISO, and trigger scale factor. Main analysis: total number of Z = 308333 Independent analysis: total number of Z =307502 Z Ratio = 1.002

  8. Exclusive Jet Multiplicity DoubleMuB: Main analysis-> total number of event=23293427 Independen analysis total number of event=25950121 - Data are NOT corrected with ID,ISO, and trigger scale factor. Main analysis: total number of Z = 1675965 Independent analysis: total number of Z =1667795 Z Ratio = 1.005 - Data are corrected with ID,ISO, and trigger scale factor. Main analysis: total number of Z = 1783914.9 Independent analysis: total number of Z = 1774980 Z Ratio = 1.005

  9. Exclusive Jet Multiplicity DoubleMuC: Main analysis-> total number of event= 32648926 Independen analysis total number of event=35381603 - Data are NOT corrected with ID,ISO, and trigger scale factor. Main analysis: total number of Z = 2569351 Independent analysis: total number of Z =2562563 Z Ratio = 1.003 - Data are corrected with ID,ISO, and trigger scale factor. Main analysis: total number of Z = 2733885.9 Independent analysis: total number of Z =2726890 Z Ratio = 1.003

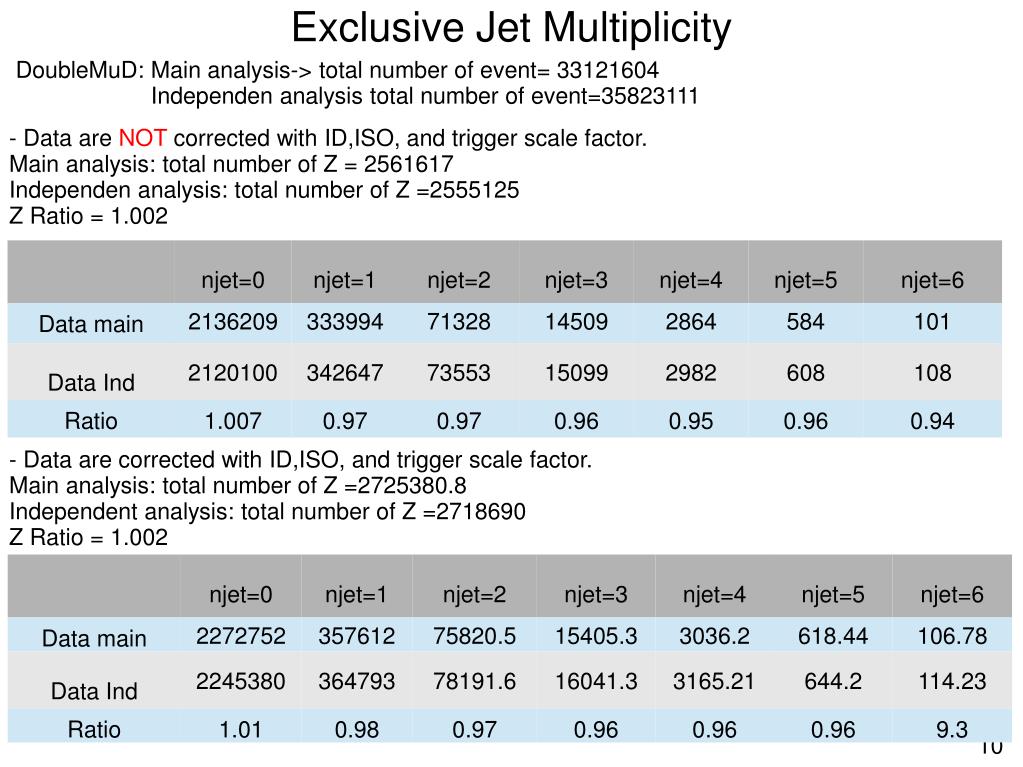

  10. Exclusive Jet Multiplicity DoubleMuD: Main analysis-> total number of event= 33121604 Independen analysis total number of event=35823111 - Data are NOT corrected with ID,ISO, and trigger scale factor. Main analysis: total number of Z = 2561617 Independen analysis: total number of Z =2555125 Z Ratio = 1.002 - Data are corrected with ID,ISO, and trigger scale factor. Main analysis: total number of Z =2725380.8 Independent analysis: total number of Z =2718690 Z Ratio = 1.002
