  1. TECH GUIDE ONE Computer Hardware

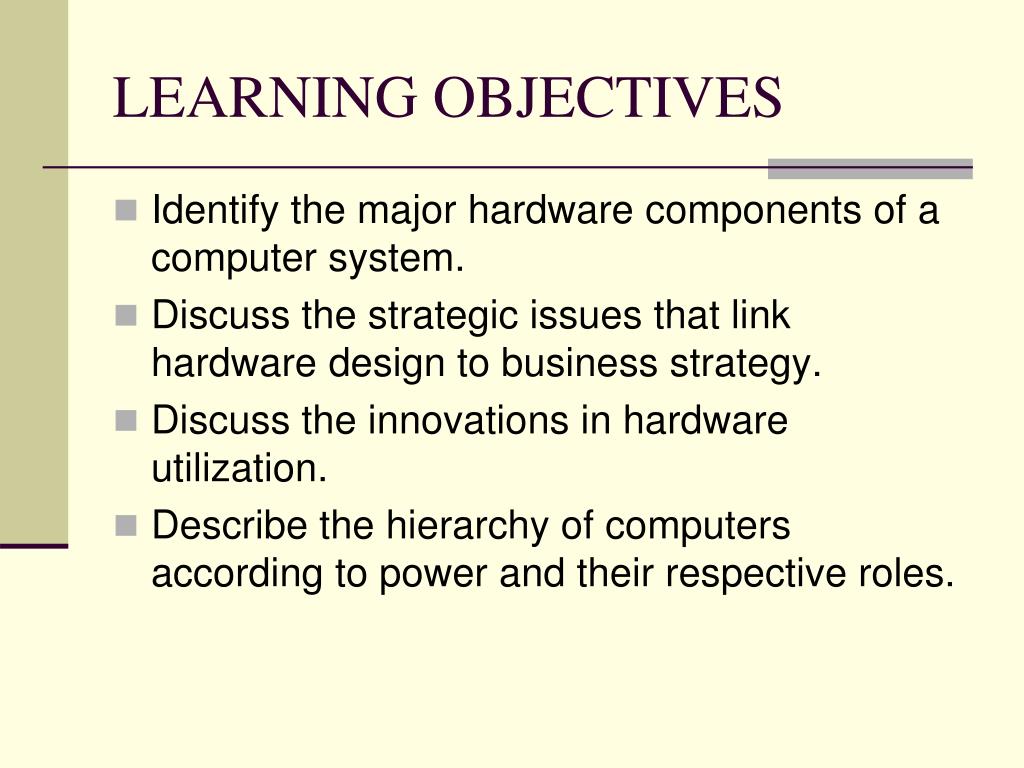

  2. LEARNING OBJECTIVES • Identify the major hardware components of a computer system. • Discuss the strategic issues that link hardware design to business strategy. • Discuss the innovations in hardware utilization. • Describe the hierarchy of computers according to power and their respective roles.

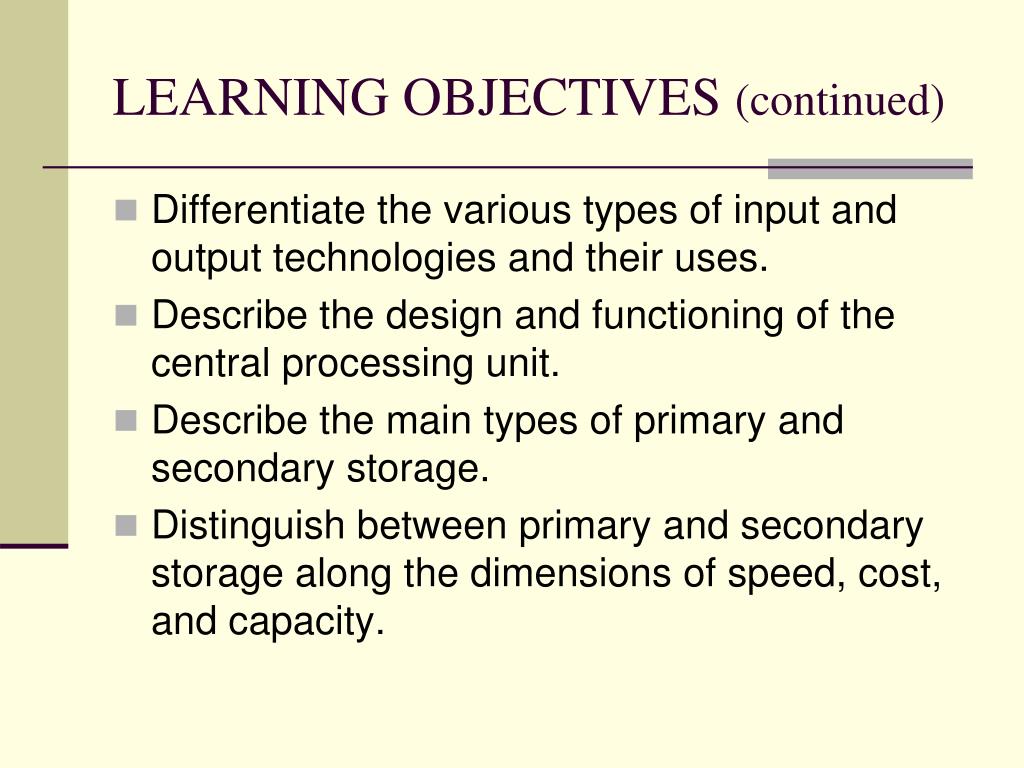

  3. LEARNING OBJECTIVES (continued) • Differentiate the various types of input and output technologies and their uses. • Describe the design and functioning of the central processing unit. • Describe the main types of primary and secondary storage. • Distinguish between primary and secondary storage along the dimensions of speed, cost, and capacity.

  4. What is hardware? Hardware

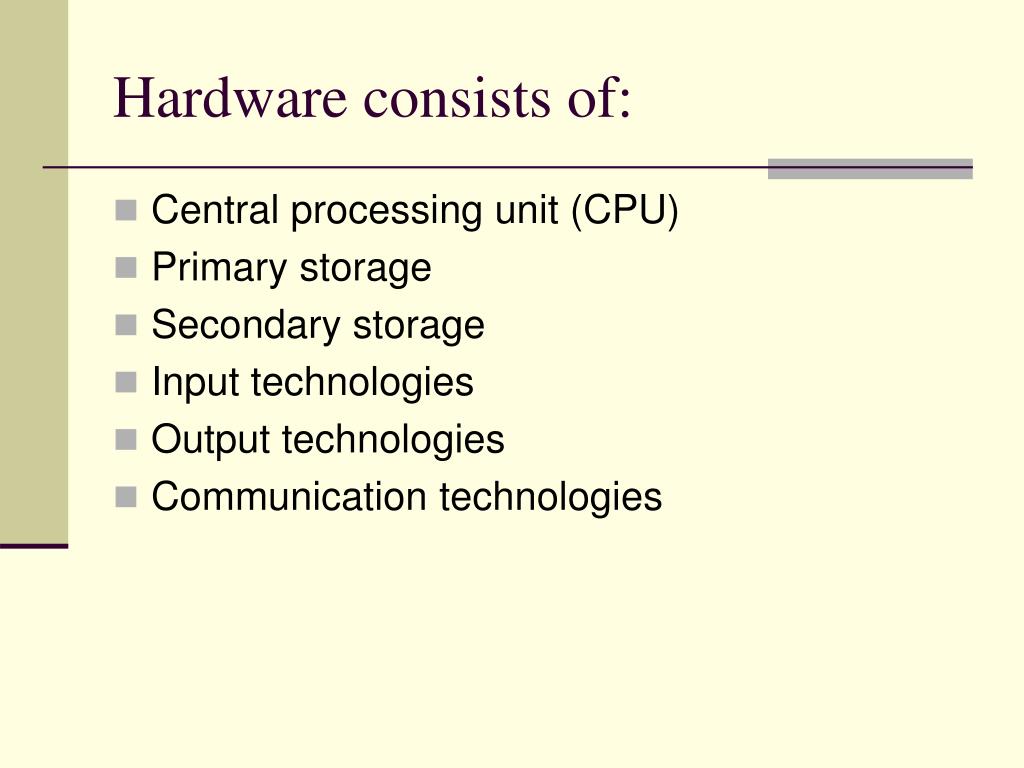

  5. Hardware consists of: • Central processing unit (CPU) • Primary storage • Secondary storage • Input technologies • Output technologies • Communication technologies

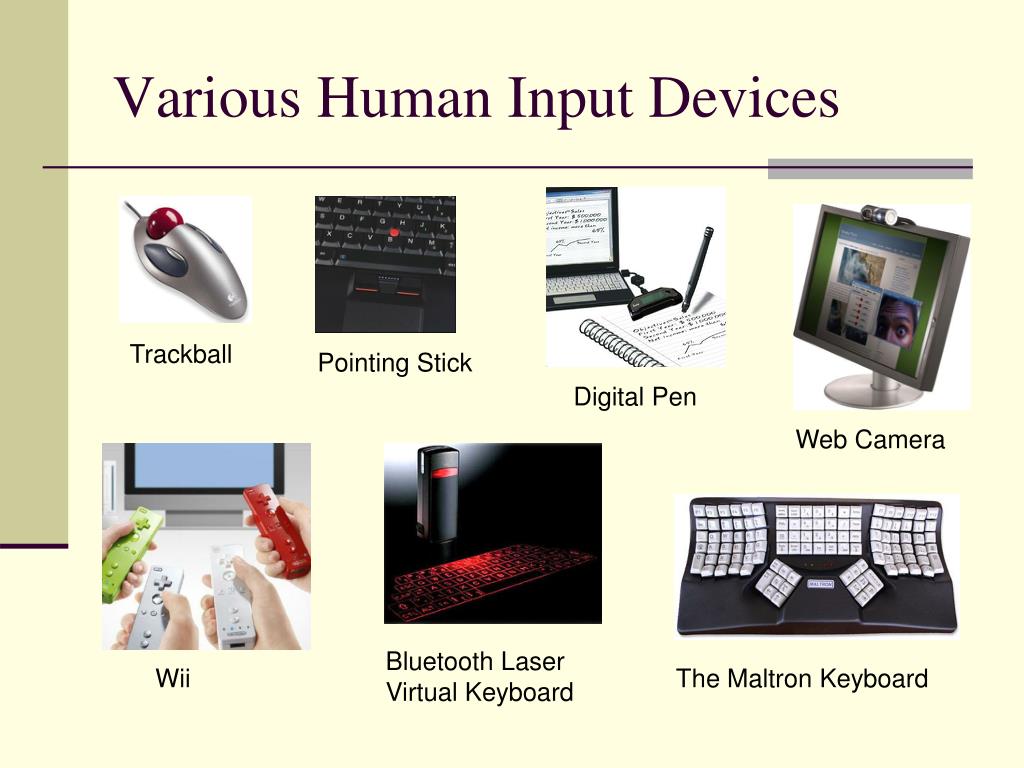

  6. Various Human Input Devices Trackball Pointing Stick Digital Pen Web Camera Bluetooth Laser Virtual Keyboard Wii The Maltron Keyboard

  7. Output Technologies • Output generated by a computer can be transmitted to the user over several output devices and media, which include: • Monitors • Printers • Audio/Speakers • Etc.

  8. Output Technologies: Monitors • Measured diagonally (15”, 19”, etc.) • Screen resolution – amount of pixels (or dots) that can be displayed • More pixels = clearer picture, better quality • Measured width x height • Values range from 640 x 480 to 2000 x 1600 • Currently common: 1024 x 768

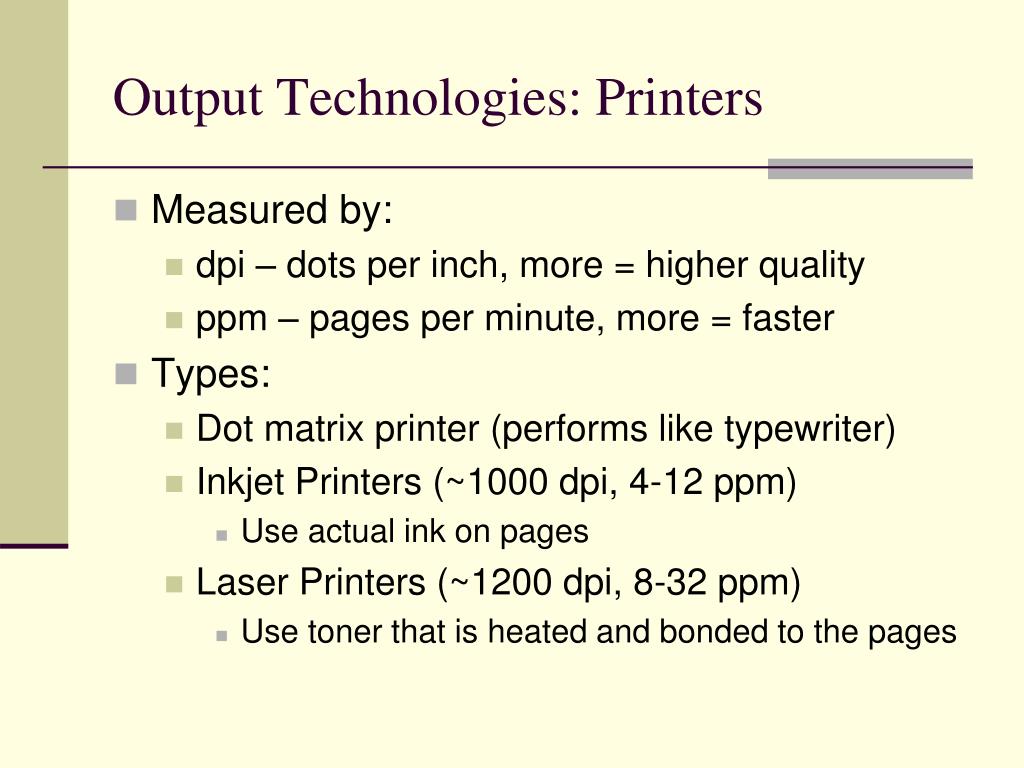

  9. Output Technologies: Printers • Measured by: • dpi – dots per inch, more = higher quality • ppm – pages per minute, more = faster • Types: • Dot matrix printer (performs like typewriter) • Inkjet Printers (~1000 dpi, 4-12 ppm) • Use actual ink on pages • Laser Printers (~1200 dpi, 8-32 ppm) • Use toner that is heated and bonded to the pages

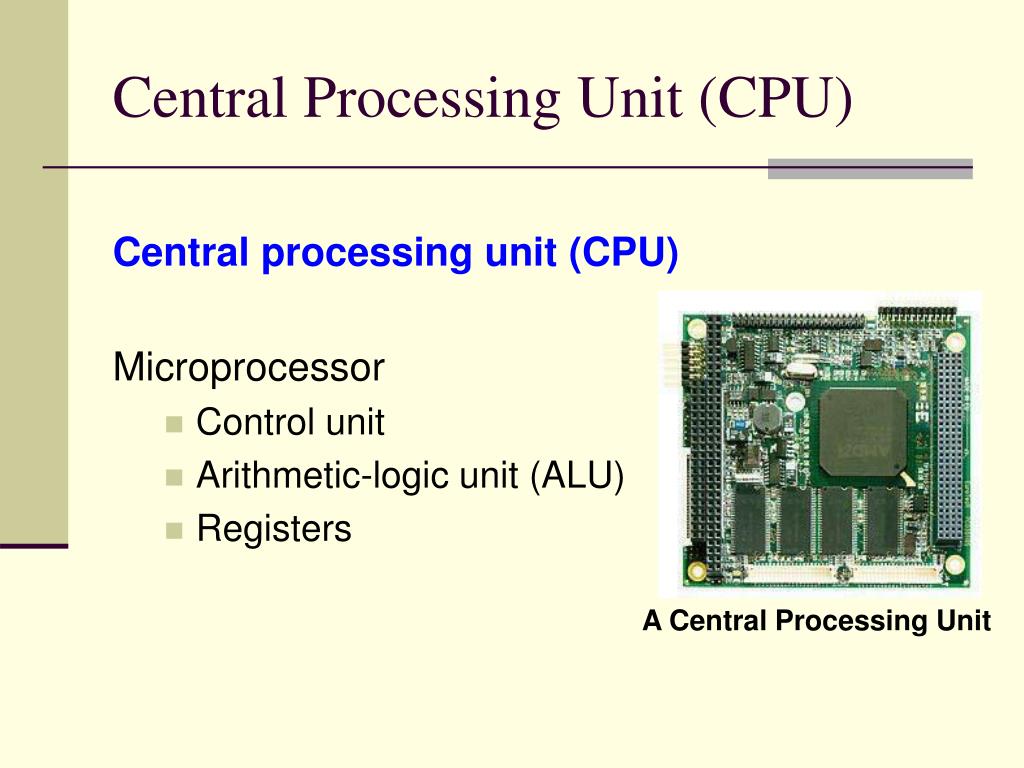

  10. Central Processing Unit (CPU) Central processing unit (CPU) Microprocessor • Control unit • Arithmetic-logic unit (ALU) • Registers A Central Processing Unit

  11. How the CPU Works

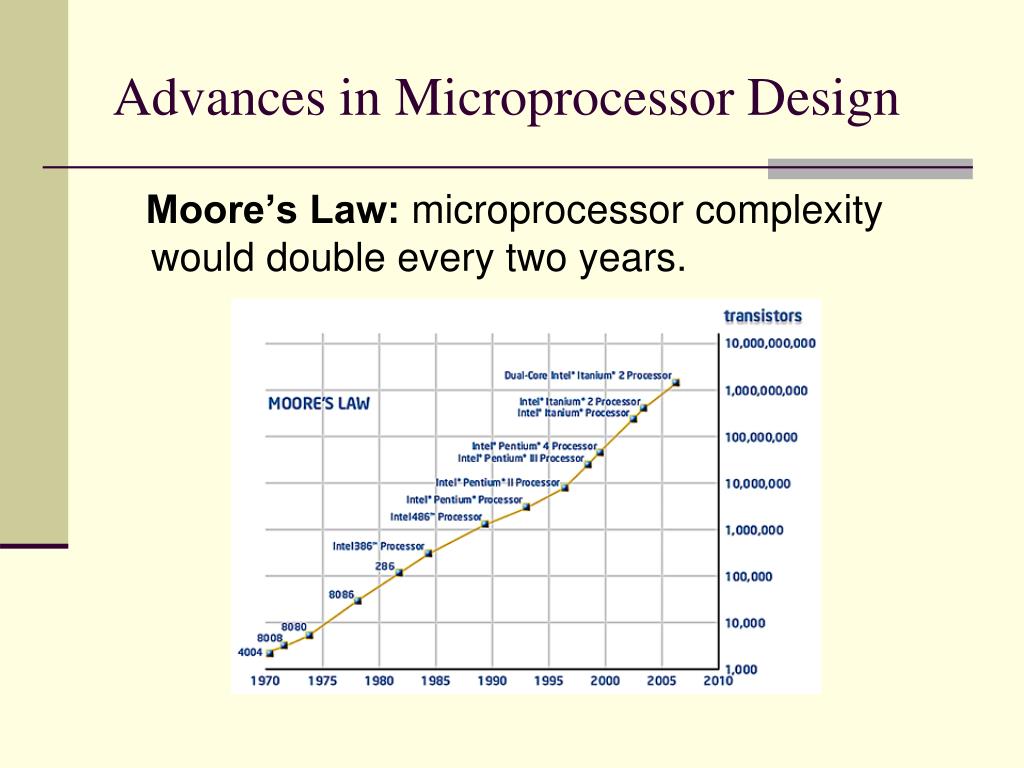

  12. Advances in Microprocessor Design Moore’s Law: microprocessor complexity would double every two years.

  13. Computer Memory Two basic categories of computer memory: • Primary Storage • Secondary Storage Evolution of Man and Storage

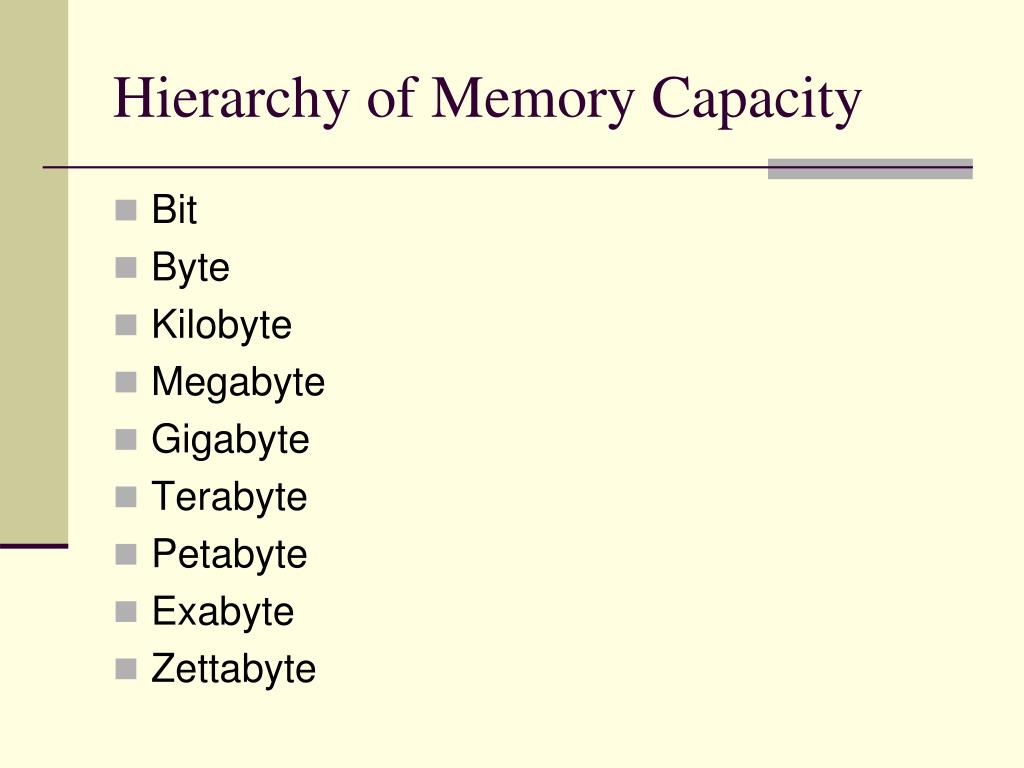

  14. Hierarchy of Memory Capacity • Bit • Byte • Kilobyte • Megabyte • Gigabyte • Terabyte • Petabyte • Exabyte • Zettabyte

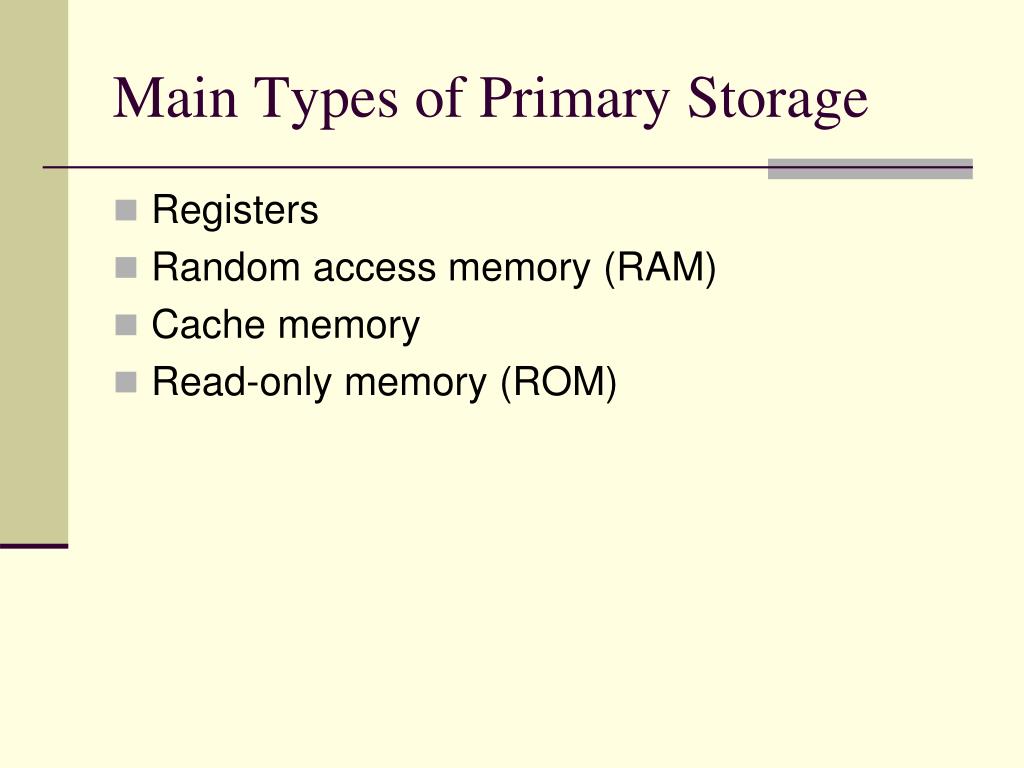

  15. Main Types of Primary Storage • Registers • Random access memory (RAM) • Cache memory • Read-only memory (ROM)

  16. Primary Storage RAM Register Cache

  17. Secondary Storage Memory capacity that can store very large amounts of data for extended periods of time. • Magnetic tape (sequential access) • Magnetic disks (direct access) • Optical storage (uses lasers) • Flash memory

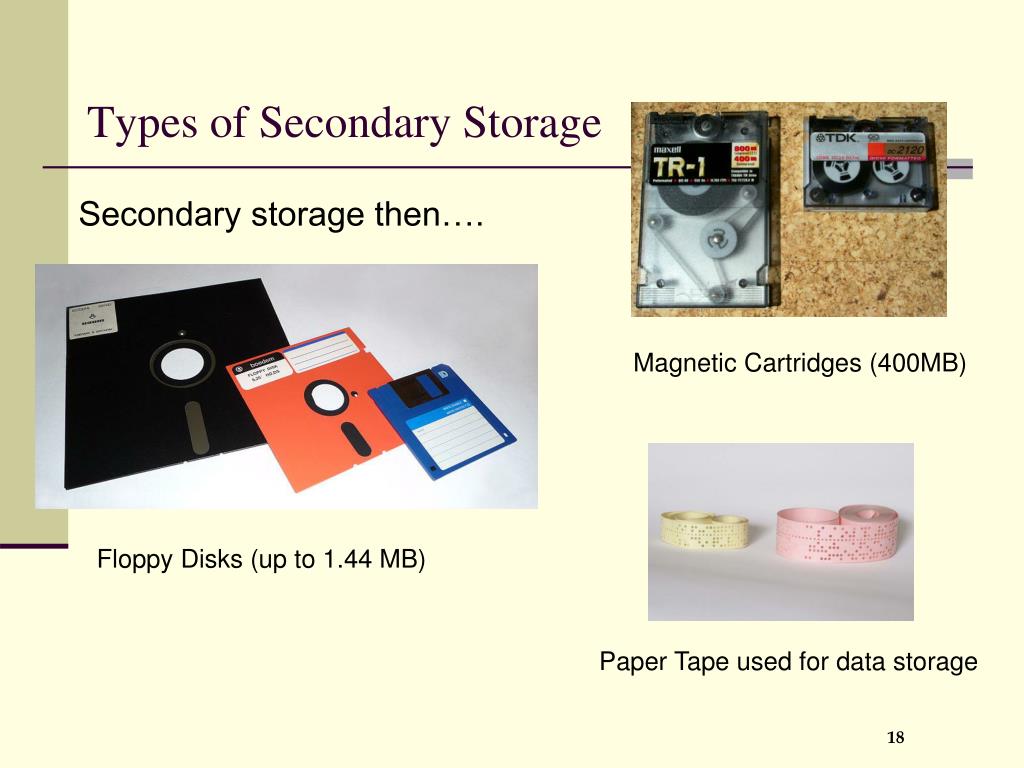

  18. Types of Secondary Storage Secondary storage then…. Magnetic Cartridges (400MB) Floppy Disks (up to 1.44 MB) Paper Tape used for data storage 18

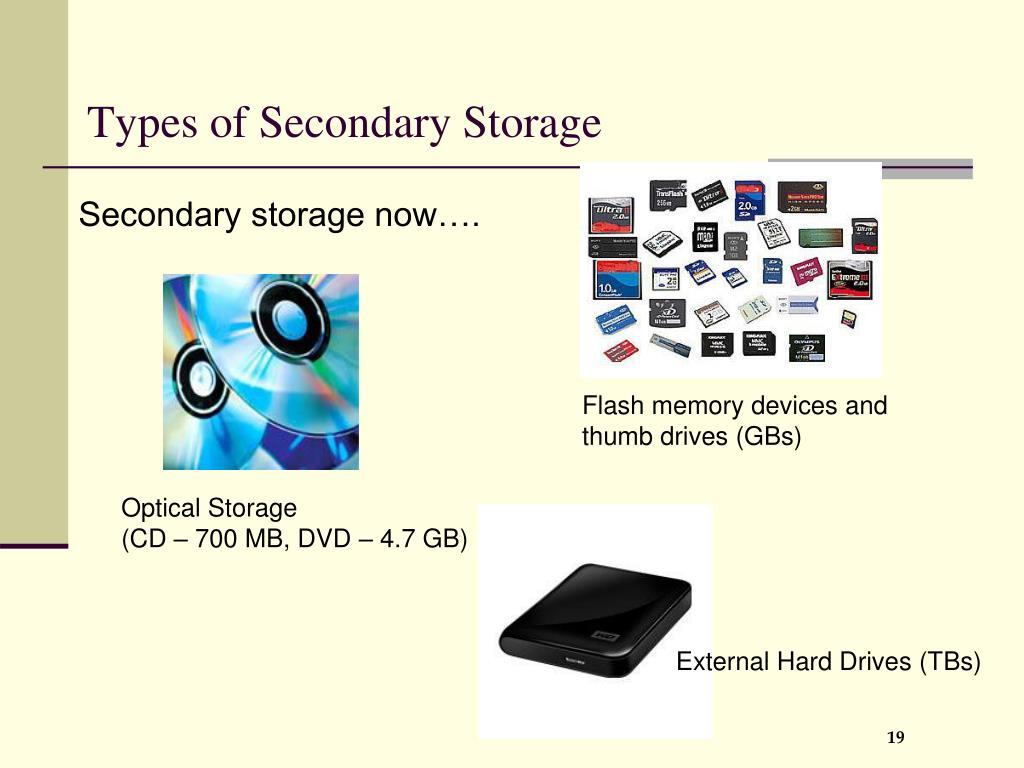

  19. Types of Secondary Storage Secondary storage now…. Flash memory devices and thumb drives (GBs) Optical Storage (CD – 700 MB, DVD – 4.7 GB) External Hard Drives (TBs) 19

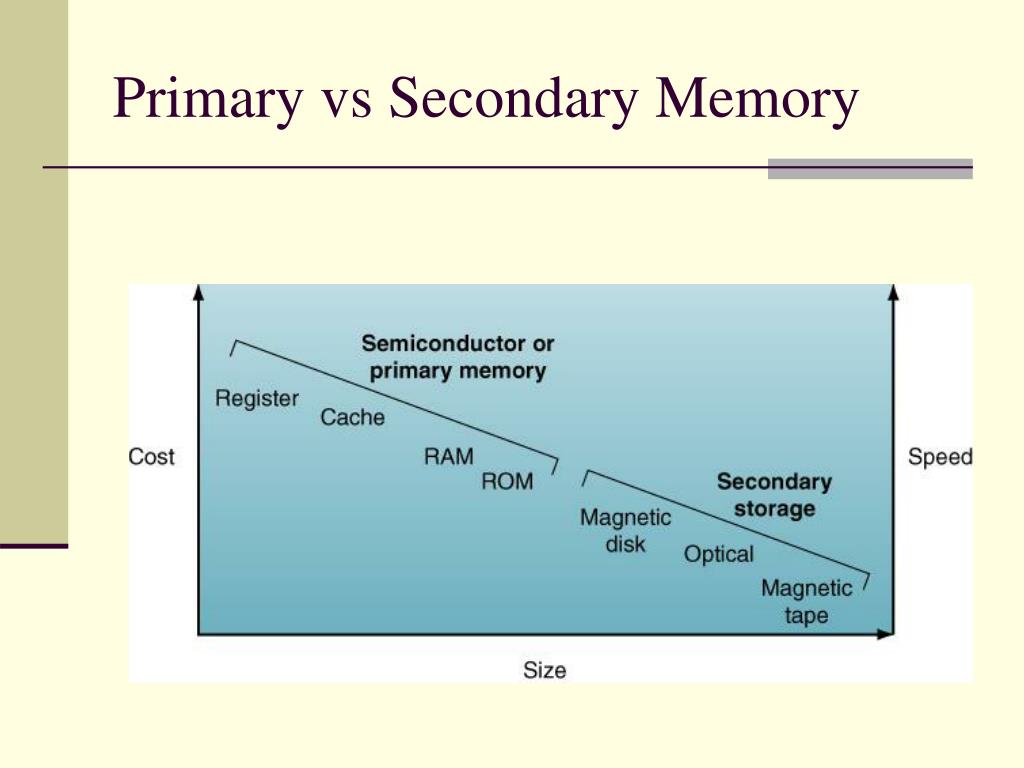

  20. Primary vs Secondary Memory

  21. Considerations for general PCs • Processor Speed (CPU) - Measured in GigaHertz (GHz), minimum: 2.4-3 GHz • RAM – measured in GigaBytes (GB), minimum: 4GB • More RAM = More programs you can run at the same time. • Hard Drive Capacity – measured in GigaBytes (GB), standard: 80-500GB • Monitors – measured in inches and resolution • Printers – measures in dpi and ppm

  22. Innovations in Hardware • Server Farms • Virtualization • Grid computing • Utility computing • Cloud computing

  23. Computer Hierarchy • Supercomputers • Mainframe Computers • Midrange Computers • Workstations • Notebooks and Desktop Computers • Ultra-mobile PCs
