Implicit Differentiation

Implicit Differentiation. An explicit equation is one that is solved for y. An implicit equation is one where the y ’s are sprinkled throughout the equation.

ace
Download Presentation

Implicit Differentiation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Implicit Differentiation An explicit equation is one that is solved for y. An implicit equation is one where the y’s are sprinkled throughout the equation. All the same rules for taking derivatives apply, but dy/dx is scattered throughout the derivative. An extra step, solving for dy/dx is needed to finish the problem.

  2. Let’s start by looking at an explicit equation and ease our way into implicit equations. The derivative looks like this. We should expect each term to have the same derivative, but since the equation has been scrambled, so should the derivative of the individual terms. Let’s rearrange the equation and see if it still makes sense. If I solve for dy/dx, I get

  3. Let’s bump it up a little and see if we still accept it. Since I have a times 3 in front of y, it should make sense that there will be a times 3 in front of dy/dx when I take the derivative. If I scramble it, it should still work—just like the last slide. Once again, we should expect the same terms—just in a different order. We can solve for dy/dx when we’re done.

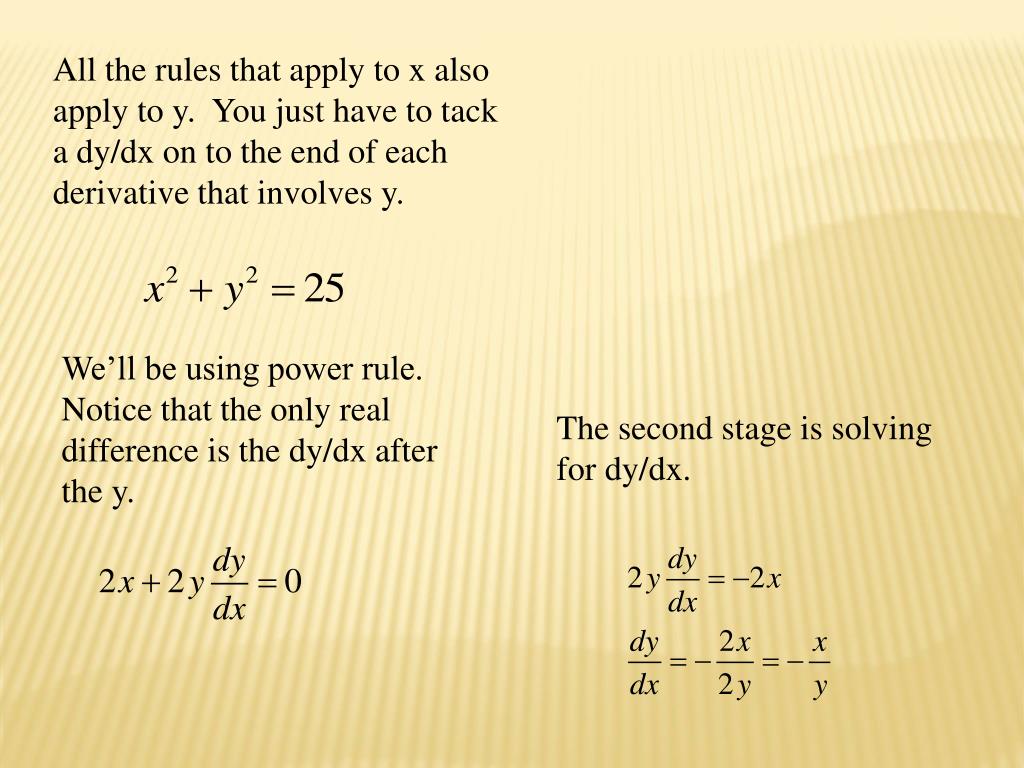

  4. All the rules that apply to x also apply to y. You just have to tack a dy/dx on to the end of each derivative that involves y. We’ll be using power rule. Notice that the only real difference is the dy/dx after the y. The second stage is solving for dy/dx.

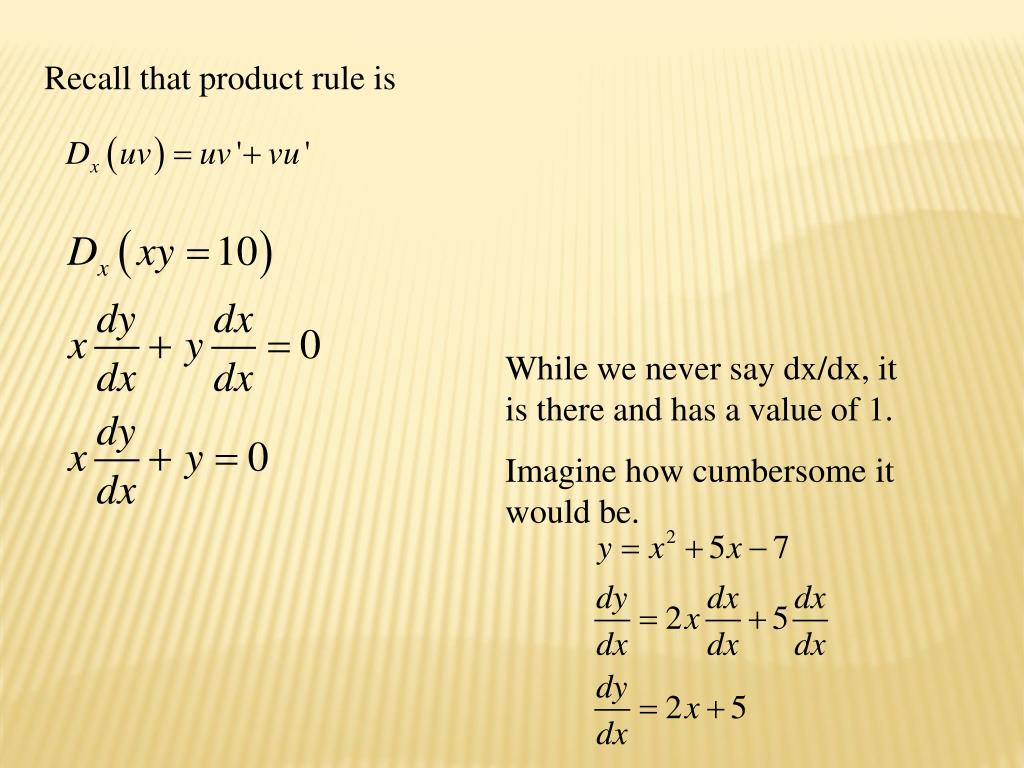

  5. Recall that product rule is While we never say dx/dx, it is there and has a value of 1. Imagine how cumbersome it would be.

  6. I’ve noticed students have difficulty when there’s a coefficient involved in product rule as this effectively makes 3 factors. You may either anchor the coefficient to the first factor, or factor it all the way out front. Note: if you have 3 factors that involve variables, you must group 2 of them and apply product rule a second time as part of the derivative—beyond the scope of this discussion. Anchored to x Factored out front

  7. Solving for dy/dx • The process for solving for dy/dx is parallel to the process for solving linear equations (it just looks harder). • Use distributive property to get rid of parentheses. It’s easier organize if you spread stuff out first. • Use addition and subtraction to move all dy/dx terms to one side and the rest of the stuff to the other. • Factor out dy/dx. While it may be huge, it is the coefficient for dy/dx. • Divide by the dy/dx coefficient.

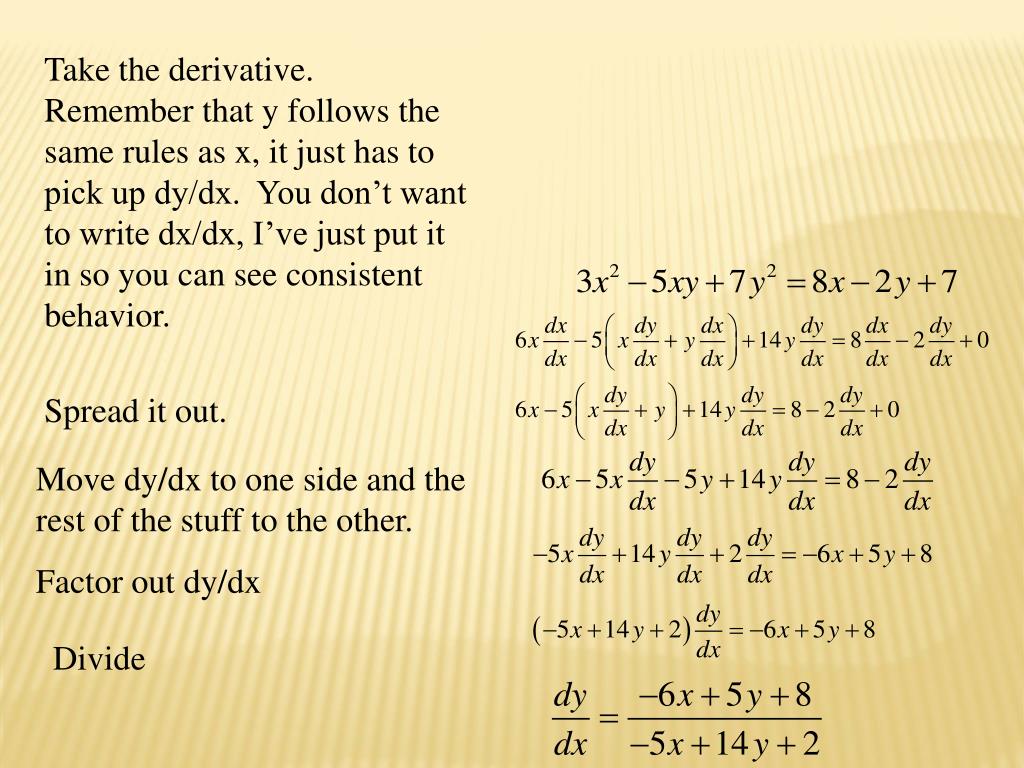

  8. Take the derivative. Remember that y follows the same rules as x, it just has to pick up dy/dx. You don’t want to write dx/dx, I’ve just put it in so you can see consistent behavior. Spread it out. Move dy/dx to one side and the rest of the stuff to the other. Factor out dy/dx Divide

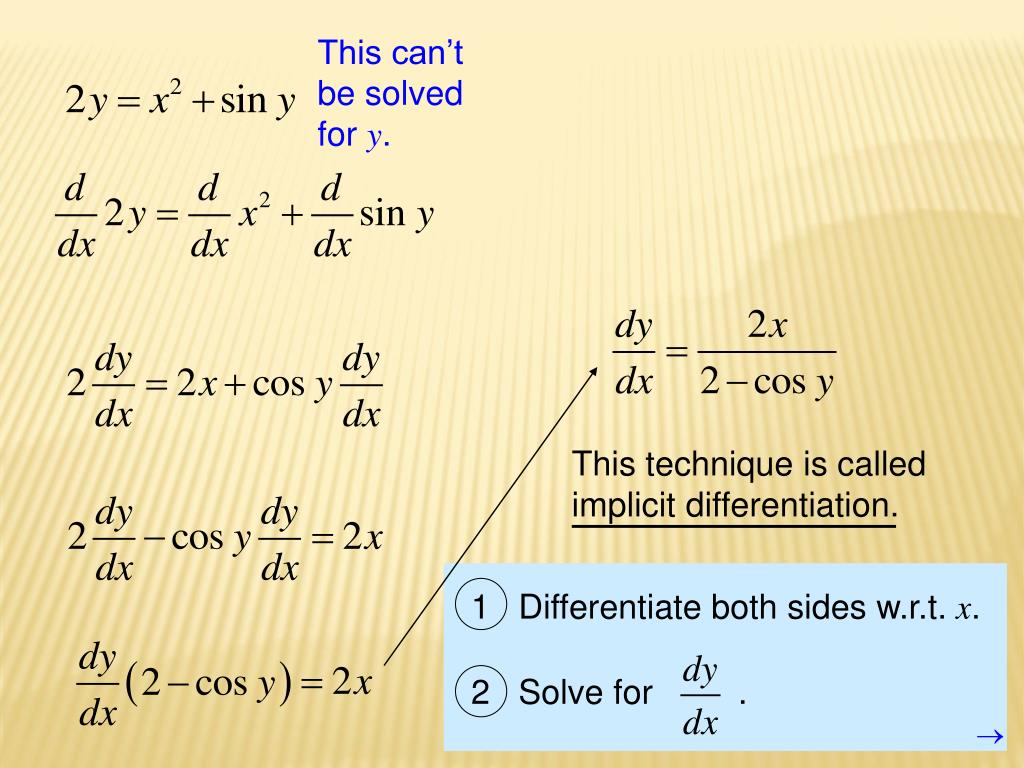

  9. 1 Differentiate both sides w.r.t. x. 2 Solve for . This can’t be solved for y. This technique is called implicit differentiation.

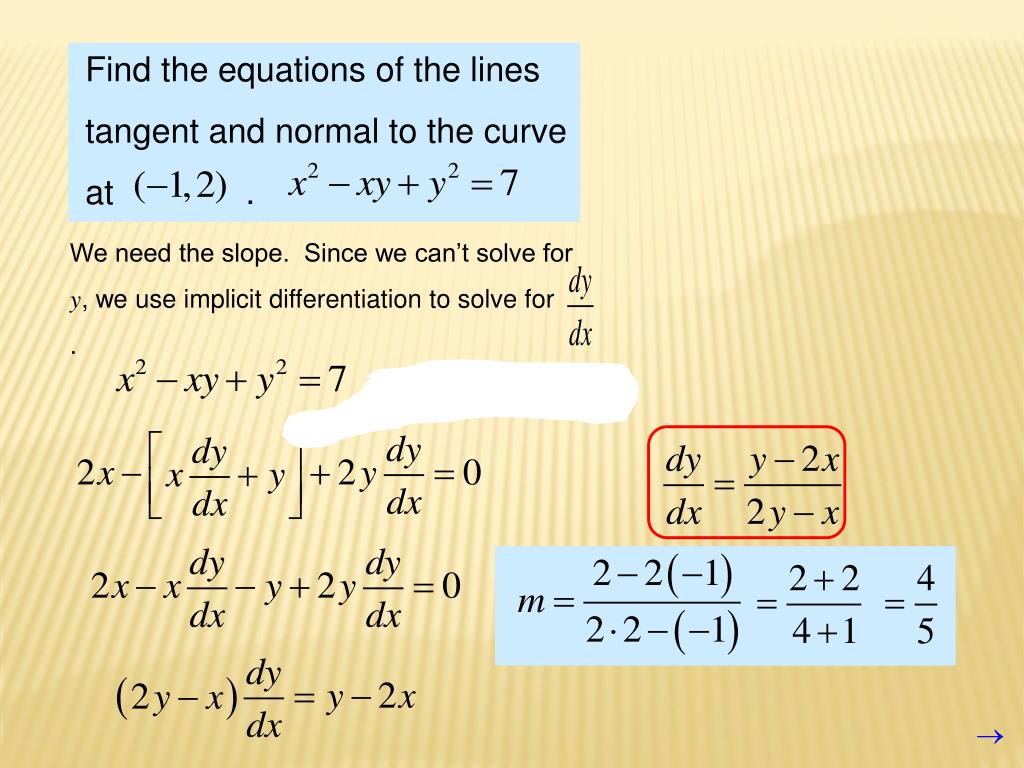

  10. We need the slope. Since we can’t solve for y, we use implicit differentiation to solve for . Find the equations of the lines tangent and normal to the curve at . Note product rule.

  11. Find the equations of the lines tangent and normal to the curve at . tangent: normal:

  12. Find if . Substitute back into the equation. Higher Order Derivatives
