FrSky S6R 6 channel Receiver with 3-axis Stabilization

Specifications<br><br>Model Name:S6R (6ch receiver built-in 3-axis gyro and 3-axis acceleration)<br><br>Dimension:47.42*23.84*14.7 mm (L*W*H)<br><br>Weight:12.1g<br><br>Number of Channel:6CH(1-6CH from conventional channel outputs)<br><br>With RSSI output on board:PWM voltage output(0~3.3V),100HZ,1500u00b1500uS

ada002
Download Presentation

FrSky S6R 6 channel Receiver with 3-axis Stabilization

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

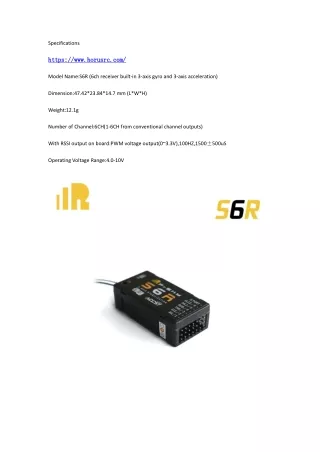

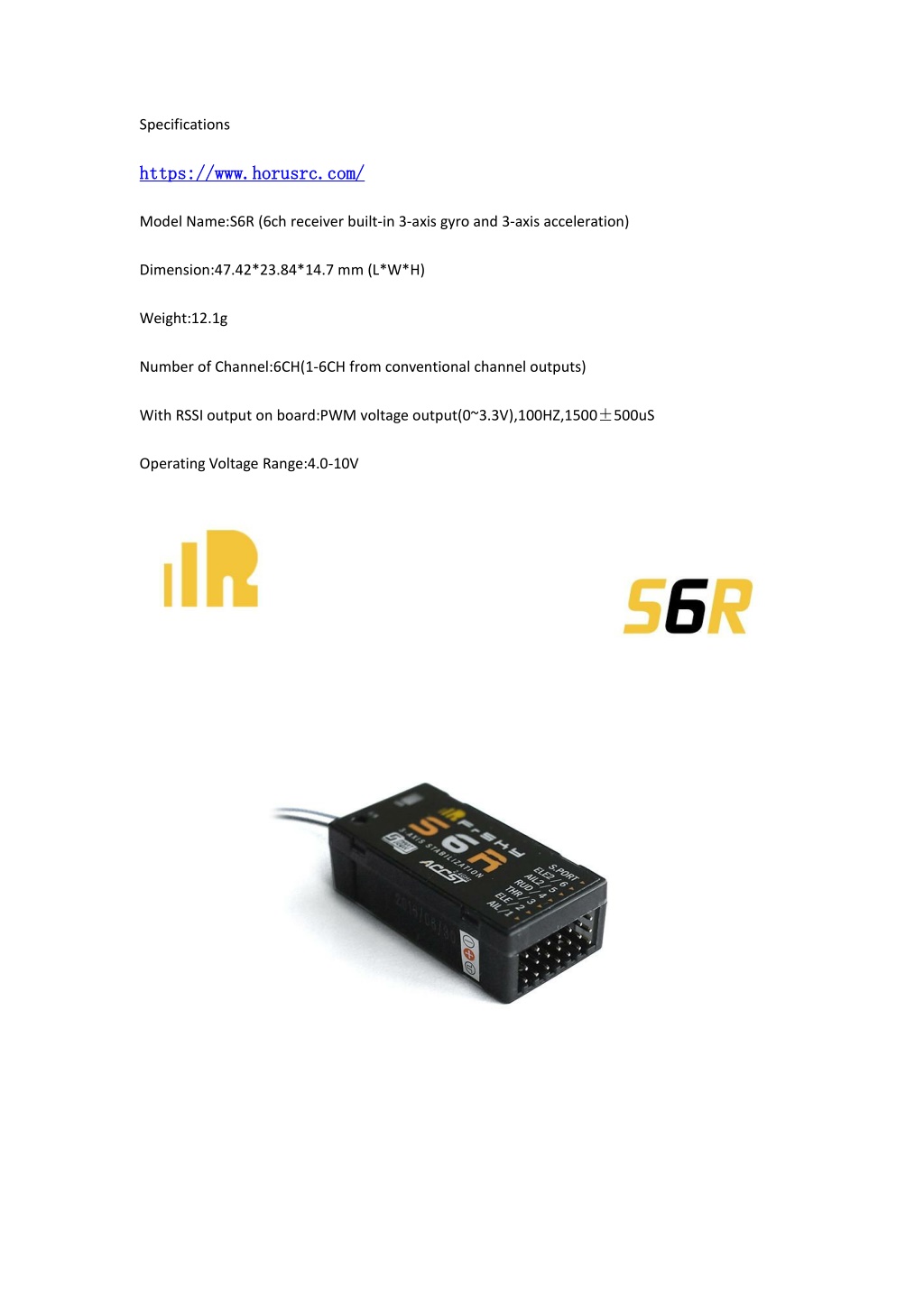

  1. Specifications https://www.horusrc.com/ https://www.horusrc.com/ Model Name:S6R (6ch receiver built-in 3-axis gyro and 3-axis acceleration) Dimension:47.42*23.84*14.7 mm (L*W*H) Weight:12.1g Number of Channel:6CH(1-6CH from conventional channel outputs) With RSSI output on board:PWM voltage output(0~3.3V),100HZ,1500±500uS Operating Voltage Range:4.0-10V

  2. Operation Current:100mA@5V Operating Range:full range Gyro Measurement Range:±2000dps Accelerometer Measurement Range:±4g Firmware Upgradeable Compatibility: Frsky DFT/DJT/DHT in D8_mode Frsky Taranis X9D Plus/X9E/Horus X12S/XJT in D8 mode Frsky Taranis X9D Plus/X9E/Horus X12S/XJT in D16 mode S6R-EU only works with Frsky Taranis X9D Plus-EU/X9E-EU/Horus X12S-EU/XJT-EU in D16-EU mode Features Built-in a three-axis gyro and three-axis accelerometer sensor module With RSSI PWM output (0~3.3V) on board Built-in battery voltage sensor Smart Port enable
