Business Modeling with UML & Rational Rose

1. Business Modelingwith UML & Rational Rose Robert C. Chi cnchi@iis.sinica.edu.tw Academia Sinica

2. Agenda • What is Business Modeling • Skills of Gathering Information • Notation of Business Modeling • Business Use Case Diagrams • Activity Diagrams • Conceptual Models • Summary

3. What is Business Modeling Understand the Current Situation

4. Forms & Documents Legacy System Problem to be Solved Current Workflow Customer’s Expectation Skills of Gathering Information • Gathering What? E.W.P.D.S.

5. C.A.K.E. Has Domain Knowledge Easy to Communicate Careful Active Skills of Gathering Information • Who is Qualified?

6. Skills of Gathering Information • How to Gather? • Interviews • Survey • Document Review • Observation • Brainstorming O.B.S.I.D.

7. Skills of Gathering Information • Interview • Before • Identify the Objectives • Schedule the Interview earlier • Identify the position & responsibilities of interviewees • During • Explain the objectives of interview • Record / Take notes during the interview • Don’t take more than 1 hour • After • Document all the relevant points that were gathered • Send the documentation to interviewee • Schedule another interview if it is needed.

8. Skills of Gathering Information • Survey • Before • Prepare the questionnaire • Identify respondents • During • Explain the objectives of this survey • Distribute the questionnaire • After • Analyze respondent’s answers

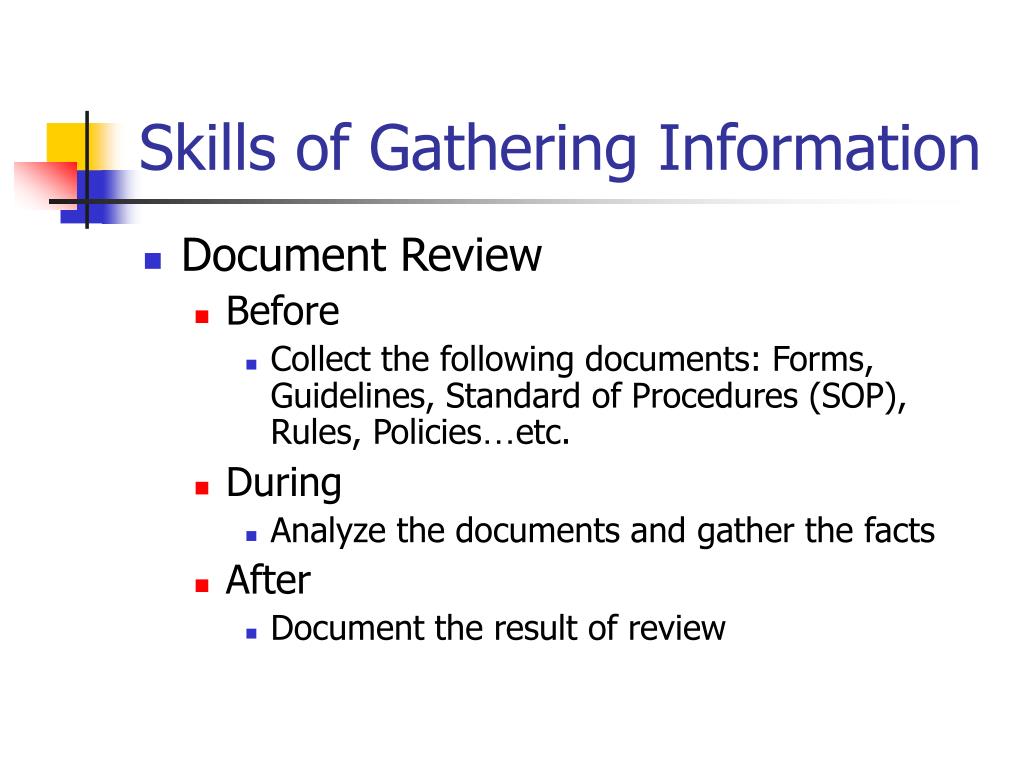

9. Skills of Gathering Information • Document Review • Before • Collect the following documents: Forms, Guidelines, Standard of Procedures (SOP), Rules, Policies…etc. • During • Analyze the documents and gather the facts • After • Document the result of review

10. Skills of Gathering Information • Observation • Before • Identify the user areas and processes to be observed • Obtain the proper management approval to carry out the observation • Obtain the names and titles of the key people that involved in the observation • Explain the purpose of the study • During • Familiarize yourself with the workplace being observed • Not the current organizational groupings • Observe the current manual and facilities in use. • Get the frequencies of each job duty. • Don’t comment on customer’s mode of operation currently • Observe the normal business operations & exceptions • Thanks people after the observations are completed • After • Document the results • Consolidate the results • Review the consolidated results with individual observed their managers

11. Skills of Gathering Information • Brain Storming • Before • Identify the objectives of brain storming meetings • Schedule the meeting and invite the relative persons • Prepare all the documentations for discussion • During • Explain the objectives of this meeting • Show & explain all the documents we have • Hold the meeting and don’t lose the focus • After • Document the results • Consolidate the results • Analyze the consolidate results

12. Notation of Business Modeling • Types of Business Modeling Notation • Traditional Flow Chart • Total Quality Management (TQM) Diagram • Process Workflow Diagram • Data Flow Diagram (DFD) • Unify Modeling Language (UML)

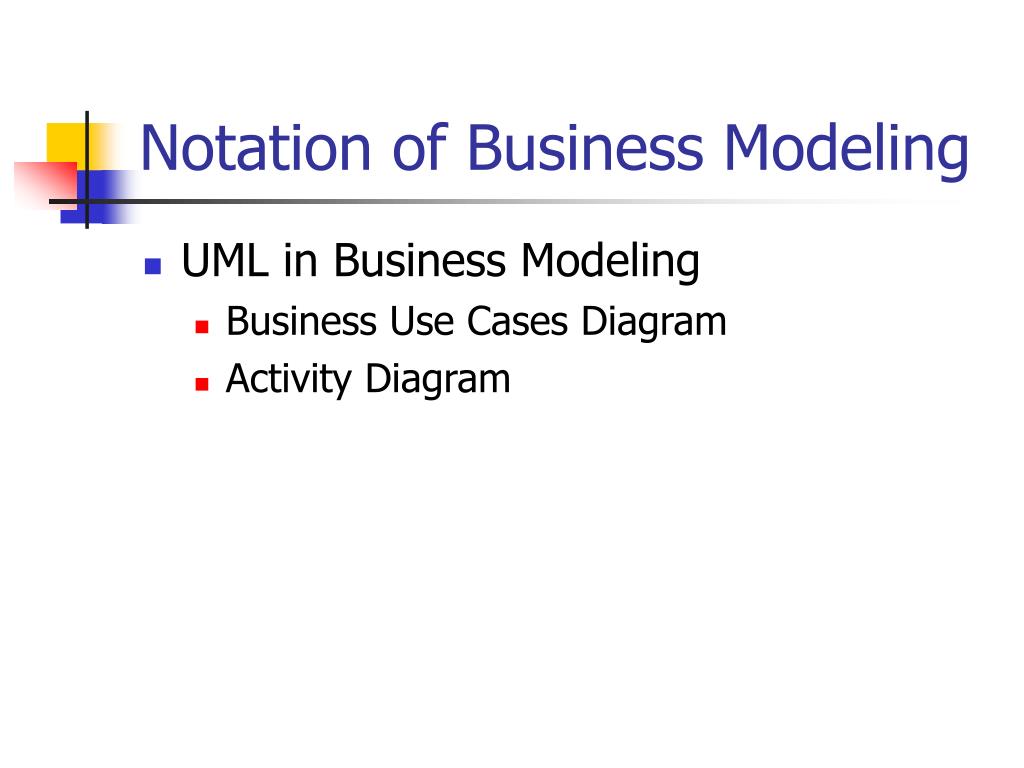

13. Notation of Business Modeling • UML in Business Modeling • Business Use Cases Diagram • Activity Diagram

14. Notation of Business Modeling • Business Use Case Diagram • Example:

15. Notation of Business Modeling • Activity Diagram • Example:

16. Business Use Case Diagram • What to be modeled? • People (Customer, Staff) • Group of People (Organization) • Things (Objects, Forms, Facilities) • Process • How to model • People : Customer  Business Actor • People : Staff  Business Worker • Group  Organization Unit • Things  Business Entity • Process  Business Use Case

17. Business Actor Business Worker Organization Unit Business Entity Business Use Case Business Use Case Diagram • Icons Introduction

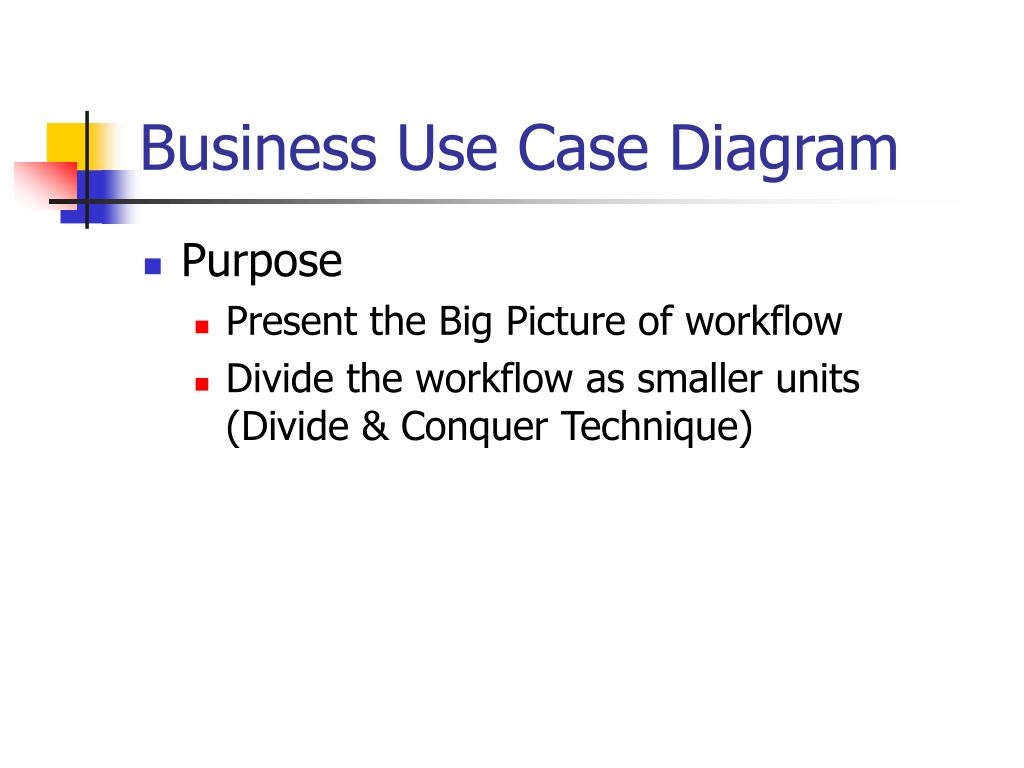

18. Business Use Case Diagram • Purpose • Present the Big Picture of workflow • Divide the workflow as smaller units(Divide & Conquer Technique)

19. Business Use Case Diagram • Case Study • “Mr. Delay Software Company” • Core Business • Accept the requests of customized software projects from customers • Problems • Lack of better & faster way to accept the requests from customers, dispatch tasks, and monitor the status • Expectations • A project managing system, which is a web-based system that can accept the request from Internet, manage the tasks, and check status any time.

20. Business Use Case Diagram • Interview with the Stakeholders • Customer will call Project Manager to request a new project • Project Manager will create the project, and the tasks list of the project. • Then project manager will schedule the tasks and assign proper workers to finish the tasks of project • The workers should report the status to project manager. • The customer, project manager and the workers can check tasks status any time.

21. Business Use Case Diagram • Results

22. Business Use Case Diagram • Best Practice • Use Rational Rose™ to do the Business Use Case Diagram of “Mr. Delay Software Company”

23. State Activity Start State Object General State End State Branch Activity Diagram • Purpose • To detail the flow of one business use case • Icons Introduction

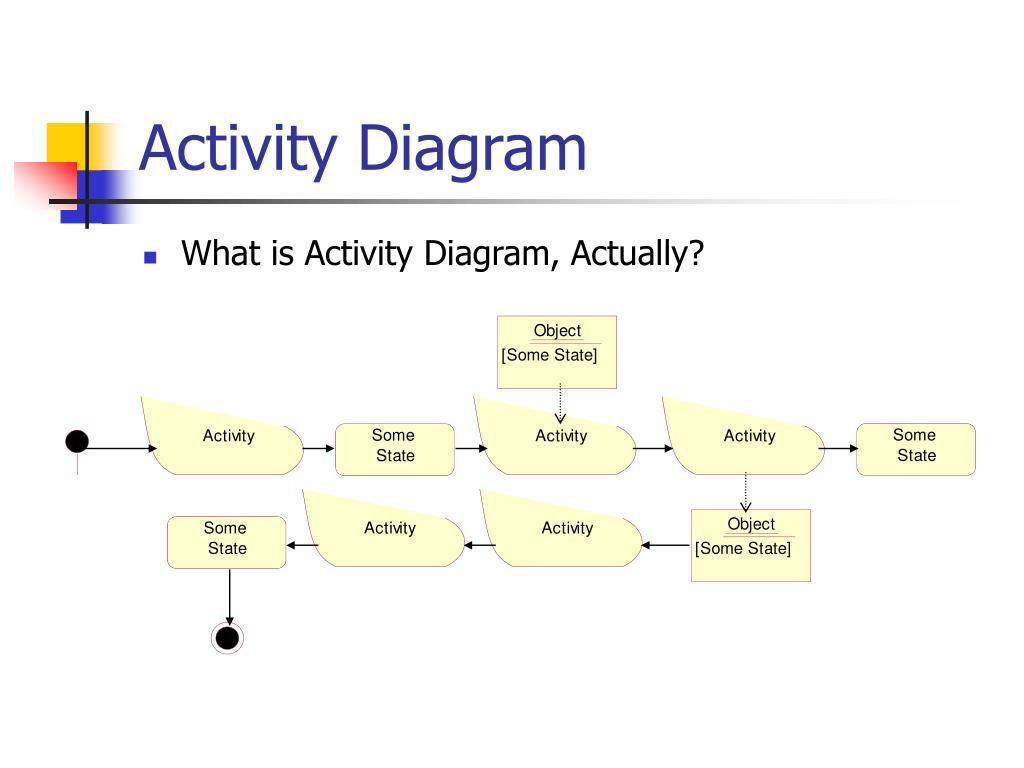

24. Activity Diagram • What is Activity Diagram, Actually?

25. Activity Diagram • Best Practice • Use Rational Rose™ to describe the flow of the business use case “Request Project”.

26. Conceptual Models • What is “Conceptual Models” • The model that illustrates meaningful concepts in a problem domain. • Provide a model to understand the problem domain quickly and easily

27. Conceptual Models • Example

28. Conceptual Models • Purpose • Provide a quick understand of the objects in the system • Note • Conceptual Model is a set of static structure diagrams in which no operations are defined • Conceptual Model is not formal constructive models • Conceptual Models can be done by Flow Analyst or System Analyst • Conceptual Model is not always required in developing cycle, it only needs when the concepts in the system are complex

29. Conceptual Models • Best Practices • Use Rational Rose™ to construct the conceptual models of “Mr. Delay Software Company”

30. Summary • The way to gather the workflow • Interview • Survey • Document Review • Observation • Brain Storming • Business Use Case Diagrams • The diagrams to divide the workflow as smaller units for better analysis • Activity Diagrams • The diagrams to detail the workflow of one use case • Conceptual Models • The models providing quick understand of system vocabularies
