  1. Enterprise Java Beans

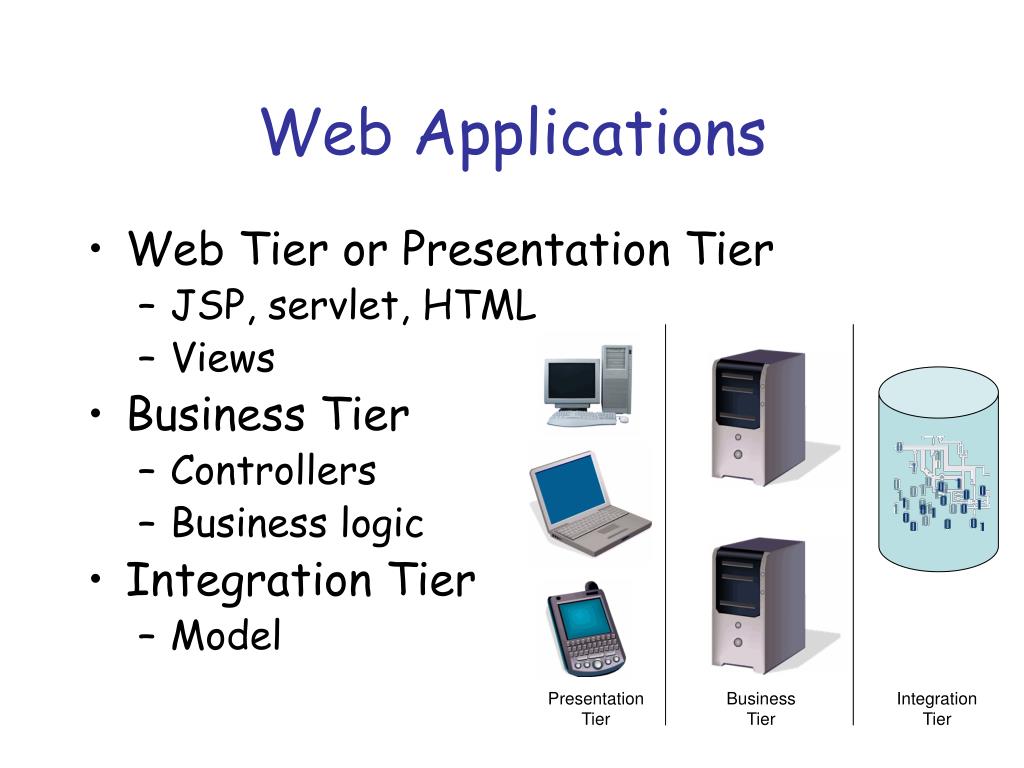

  2. Web Applications • Web Tier or Presentation Tier • JSP, servlet, HTML • Views • Business Tier • Controllers • Business logic • Integration Tier • Model Presentation Tier Business Tier Integration Tier

  3. Business Tier • Controller (MVC) • Business Logic • Business Methods • Data Transformations

  4. What didn’t we address? • Scalability • How do we scale servlets & beans, etc? • Distributed resources • How do we access? • Component Reuseability

  5. Enterprise Java Beans • Not Java beans! • Server-side component that encapsulates the business logic of an application. • i.e. orderProduct, transfer, deposit • Can be accessed remotely • Location transparent • Run inside a Container

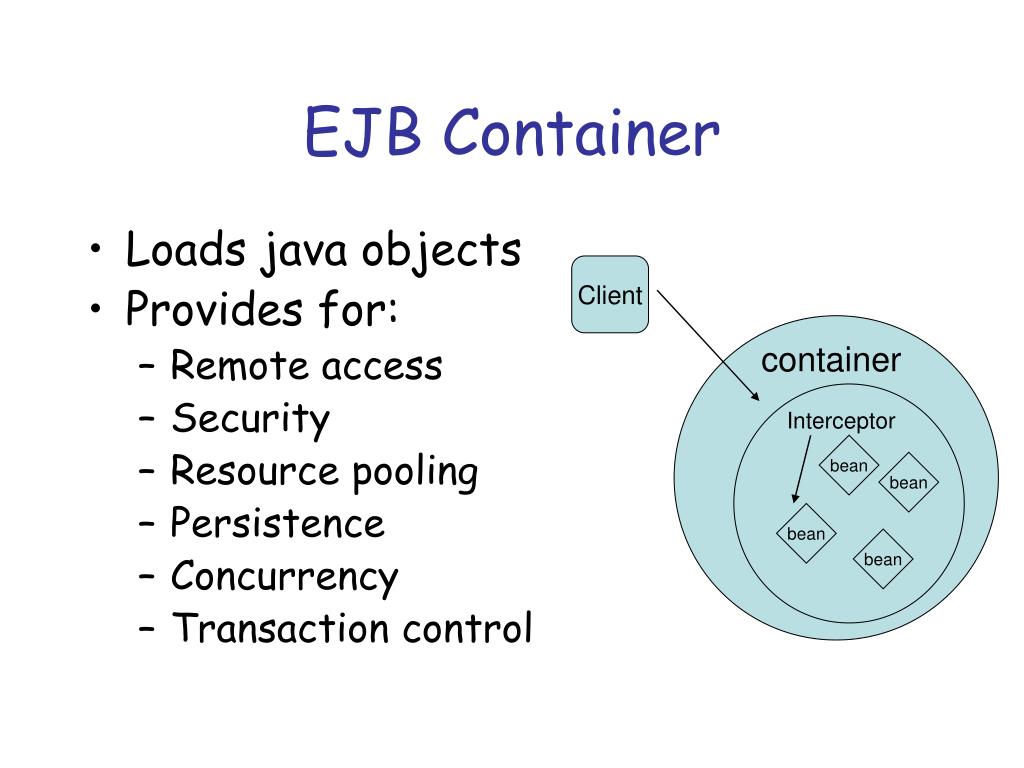

  6. EJB Container • Loads java objects • Provides for: • Remote access • Security • Resource pooling • Persistence • Concurrency • Transaction control Client container Interceptor bean bean bean bean

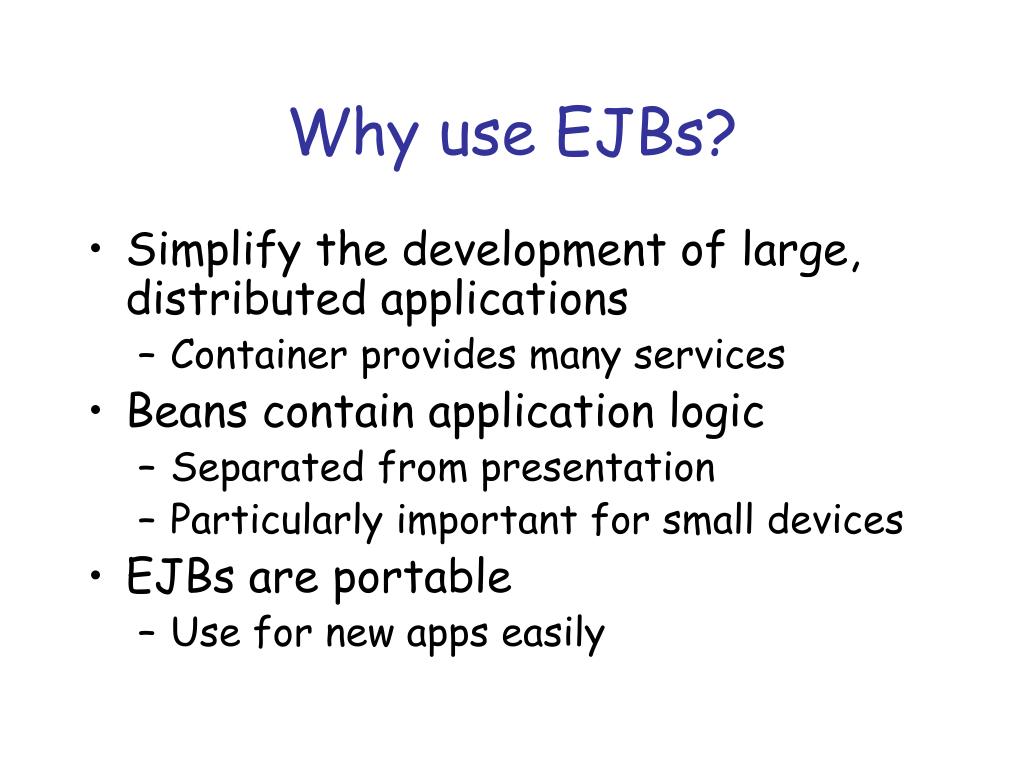

  7. Why use EJBs? • Simplify the development of large, distributed applications • Container provides many services • Beans contain application logic • Separated from presentation • Particularly important for small devices • EJBs are portable • Use for new apps easily

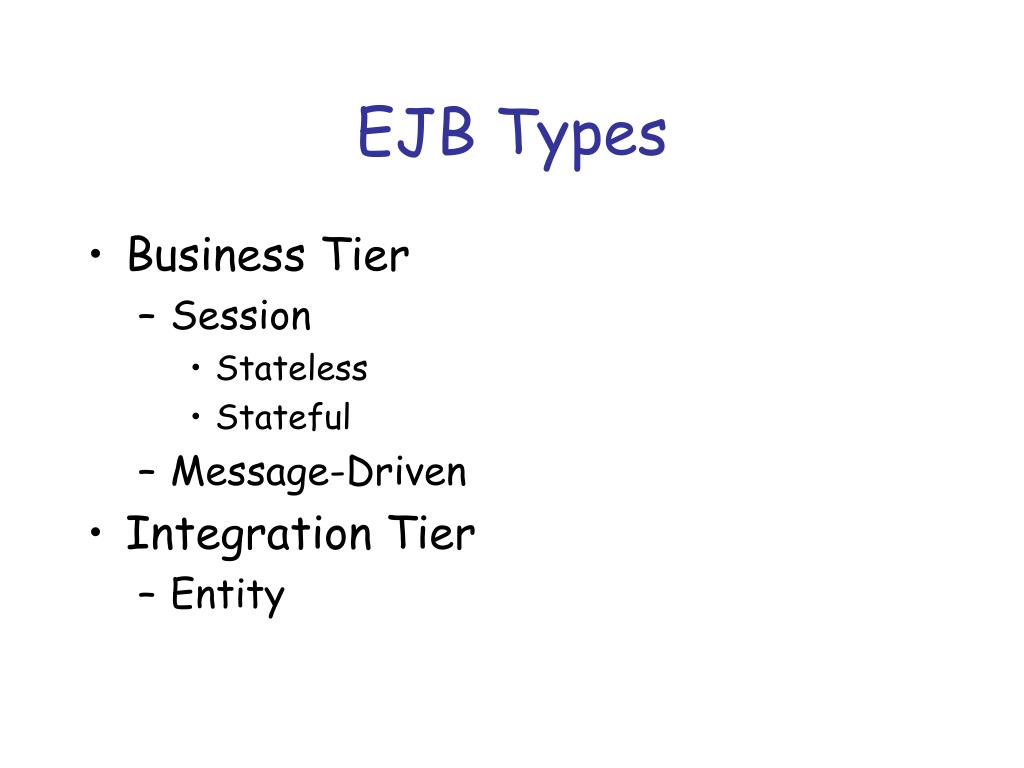

  8. EJB Types • Business Tier • Session • Stateless • Stateful • Message-Driven • Integration Tier • Entity

  9. Session Beans • Represent a single client inside the application server • Clients access the application by invoking a session bean’s methods • The session bean performs the work • Shields client from complexity by executing business tasks inside the application server

  10. Session Beans • Similar to an interactive session • Not shared - only one client • Not persistent • When the client terminates its connection, • The session bean appears to terminate • And is no longer associated with the client

  11. Stateful Session Beans • State consists of the values of instance variables • Often called the conversational state • State is retained for the duration of the session • Disappears when client terminates connection

  12. Stateful Session Beans • Stateful session beans are appropriate if: • A bean needs to be associated with a particular client through the life of the connection • The bean needs to hold information between method invocations • The bean manages work-flow of several enterprise beans • The bean mediates between the client and other components of the application

  13. Stateful Session Bean Life Cycle

  14. Stateless Session Beans • Does not maintain conversational state • When method is finished, state is not retained • All instances of stateless beans are equivalent • Pooled • Can support multiple clients • Can be used to implement a web service

  15. Stateless Session Beans • Choose session beans if: • No direct association between a client and a specific bean • The bean performs a self-contained and generic task • All the information the bean needs can be passed as arguments to the method • Example: • Transfer(amount, account1, account2) • MailConfirmation(ordernumber, emailaddress)

  16. Stateless Session Bean Life Cycle

  17. Message-Driven Beans • Responds to and processes messages • Normally acts as a JMS listener • Sent by any Java EE component • Can also process other types of messages • Not accessed through interfaces • When the message arrives, the container calls the bean’s onMessage method.

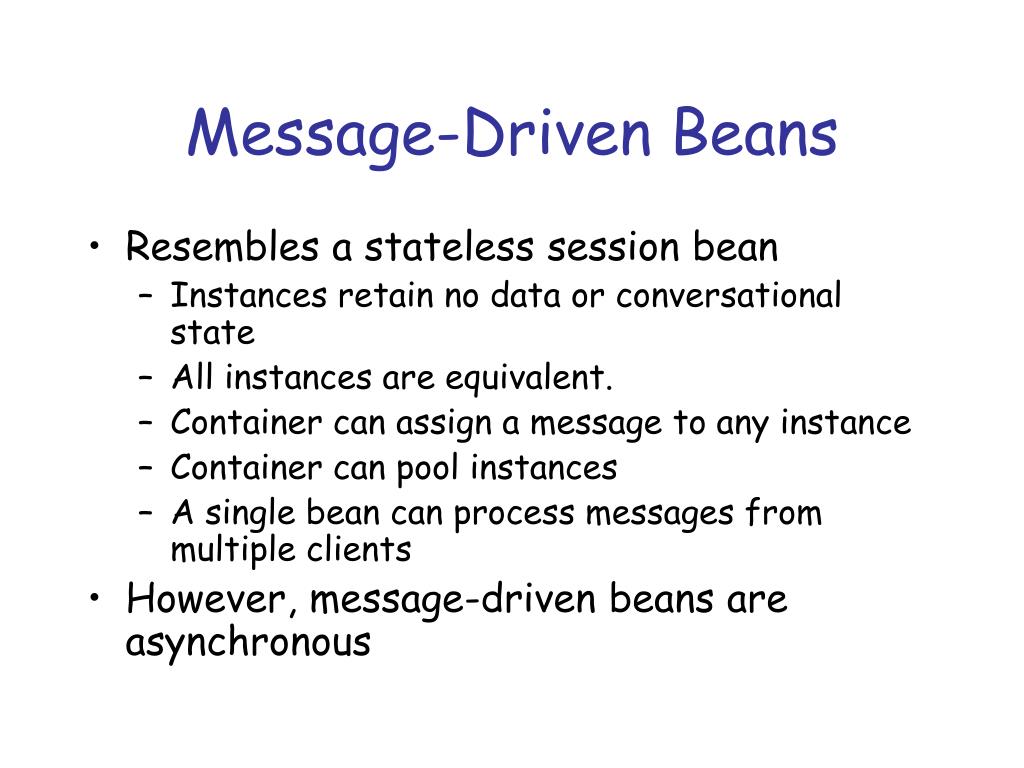

  18. Message-Driven Beans • Resembles a stateless session bean • Instances retain no data or conversational state • All instances are equivalent. • Container can assign a message to any instance • Container can pool instances • A single bean can process messages from multiple clients • However, message-driven beans are asynchronous

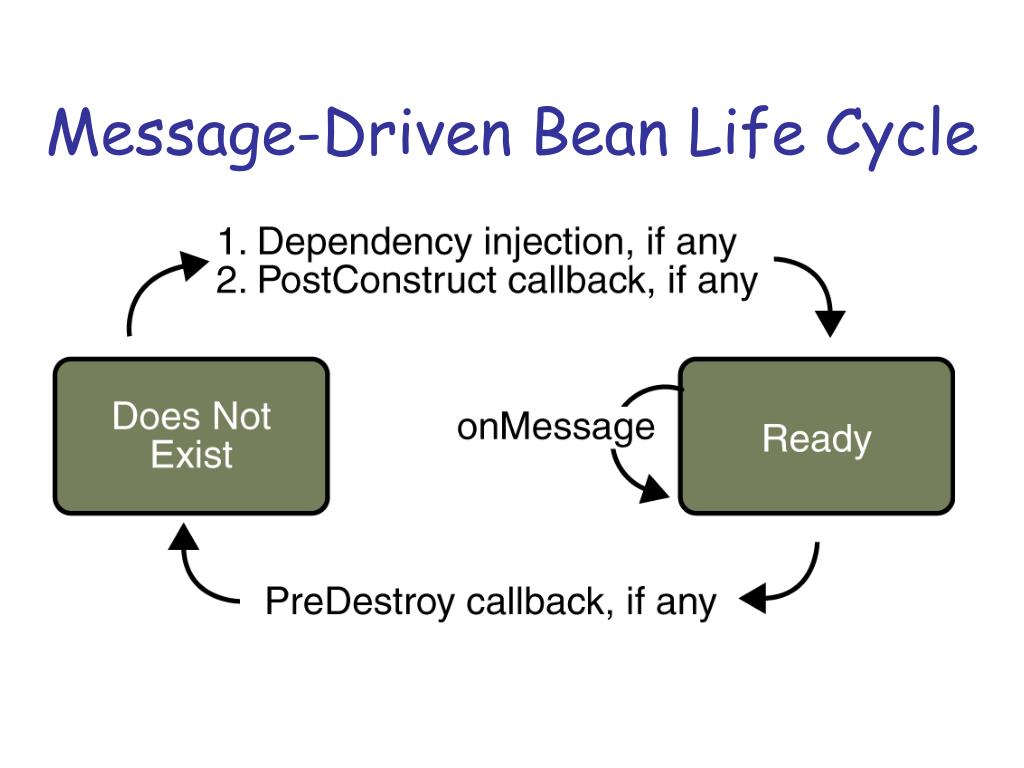

  19. Message-Driven Bean Life Cycle

  20. Entity Beans • A lightweight persistence domain object • Represents a table in a relational database • Each instance represents a row in the table • Persistent state is represented through persistent fields or properties • Object/relational mappings • Plain Old Java Object (POJO) with annotations

  21. Entity Beans • Managed by an EntityManager • The EntityManager API creates and removes persistent entity instances, finds entities by the entity's primary key, and allows queries to be run on entities. • EntityManagers may be container controlled or application controlled

  22. Questions to Ponder... • Entity bean, stateful session bean, stateless session bean? • object which requires access by multiple clients over its lifetime • object whose work accepts and returns all information in the call • object that must exist after server crash • object that must exist between method invocations • object that encapsulates a set of client actions to multiple beans

  23. Example Session BeanRemote Interface package com.sun.tutorial.javaee.ejb; import java.math.BigDecimal; import javax.ejb.Remote; @Remote() public interface Converter { public BigDecimal dollarToYen(BigDecimal dollars); public BigDecimal yenToEuro(BigDecimal yen); }

  24. Example Session BeanImplementation package com.sun.tutorial.javaee.ejb; import java.math.BigDecimal; import javax.ejb.*; @Stateless() public class ConverterBean implements Converter { private BigDecimal yenRate = new BigDecimal("115.3100"); private BigDecimal euroRate = new BigDecimal("0.0071"); public BigDecimal dollarToYen(BigDecimal dollars) { BigDecimal result = dollars.multiply(yenRate); return result.setScale(2, BigDecimal.ROUND_UP); } public BigDecimal yenToEuro(BigDecimal yen) { BigDecimal result = yen.multiply(euroRate); return result.setScale(2, BigDecimal.ROUND_UP); } }

  25. package com.sun.tutorial.javaee.ejb; import java.math.BigDecimal; import javax.ejb.EJB; public class ConverterClient { @EJB private static Converter converter; public ConverterClient(String[] args) {} public static void main(String[] args) { ConverterClient client = new ConverterClient(args); client.doConversion(); } public void doConversion() { try { BigDecimal param = new BigDecimal("100.00"); BigDecimal yenAmount = converter.dollarToYen(param); System.out.println("$" + param + " is " + yenAmount + " Yen."); BigDecimal euroAmount = converter.yenToEuro(yenAmount); System.out.println(yenAmount + " Yen is " + euroAmount + " Euro."); System.exit(0); } catch (Exception ex) { System.err.println("Caught an unexpected exception!"); ex.printStackTrace(); } } }

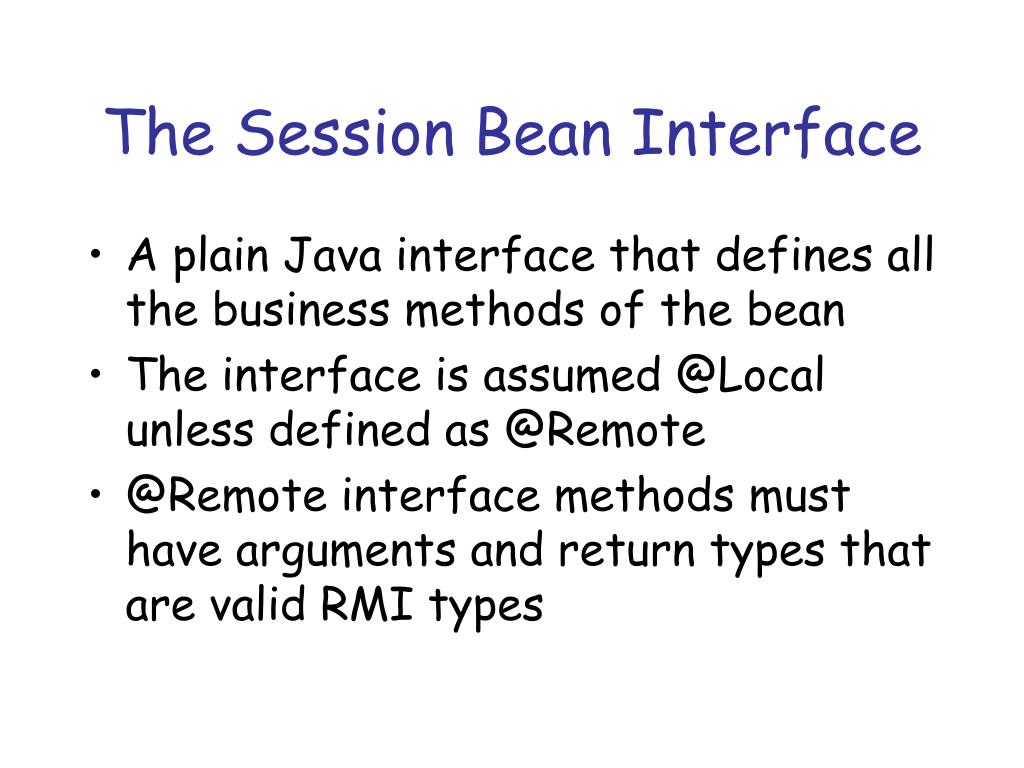

  26. The Session Bean Interface • A plain Java interface that defines all the business methods of the bean • The interface is assumed @Local unless defined as @Remote • @Remote interface methods must have arguments and return types that are valid RMI types

  27. package com.sun.tutorial.javaee.ejb; import java.util.List;import javax.ejb.Remote; @Remote public interface Cart { public void initialize(String person) throws BookException; public void initialize(String person, String id) throws BookException; public void addBook(String title); public void removeBook(String title) throws BookException; public List<String> getContents(); public void remove(); }

  28. Session Bean Implementation • Must implement the interface • Must be annotated @Stateful or @Stateless • @Stateful session beans may also: • Implement lifecycle callback methods @PostConstruct, @PreDestroy, @PostActivate, @PrePassivate • Implement any optional @Remove methods

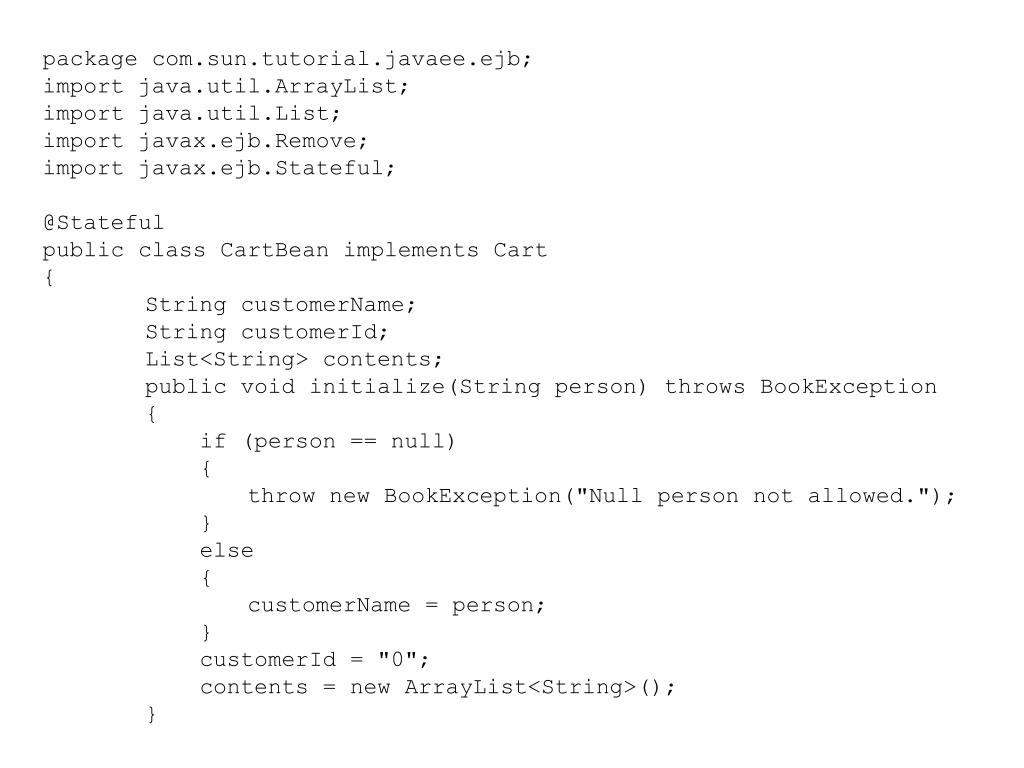

  29. package com.sun.tutorial.javaee.ejb; import java.util.ArrayList; import java.util.List; import javax.ejb.Remove; import javax.ejb.Stateful; @Stateful public class CartBean implements Cart { String customerName; String customerId; List<String> contents; public void initialize(String person) throws BookException { if (person == null) { throw new BookException("Null person not allowed."); } else { customerName = person; } customerId = "0"; contents = new ArrayList<String>(); }

  30. …… public List<String> getContents() { return contents; } @Remove public void remove() { contents = null; } }

  31. Lifecycle Callback Methods • Must be public, return void, and have no parameters • @PostConstruct methods • invoked by the container on newly constructed bean instances after all dependency injection has completed and before the first business method is invoked on the enterprise bean. • @PreDestroy methods • invoked after any method annotated @Remove has completed, and before the container removes the enterprise bean instance.

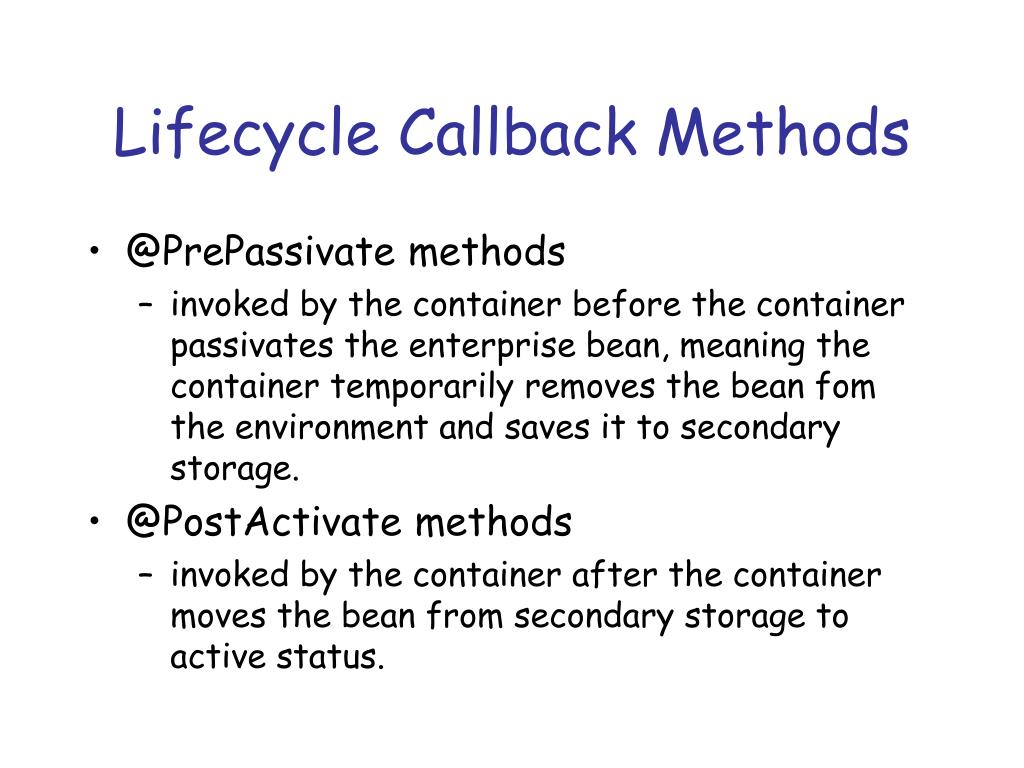

  32. Lifecycle Callback Methods • @PrePassivate methods • invoked by the container before the container passivates the enterprise bean, meaning the container temporarily removes the bean fom the environment and saves it to secondary storage. • @PostActivate methods • invoked by the container after the container moves the bean from secondary storage to active status.

  33. Business Methods • The signature of a business method must conform to these rules: • The method name must not begin with ejb • The access control modifier must be public. • If the bean allows remote access, the arguments and return types must be legal RMI types. • If the bean is a web service endpoint, the arguments and return types for the methods annotated @WebMethod must be legal types for JAX-WS. • The modifier must not be static or final. • In case of system-level errors, throw javax.ejb.EJBException

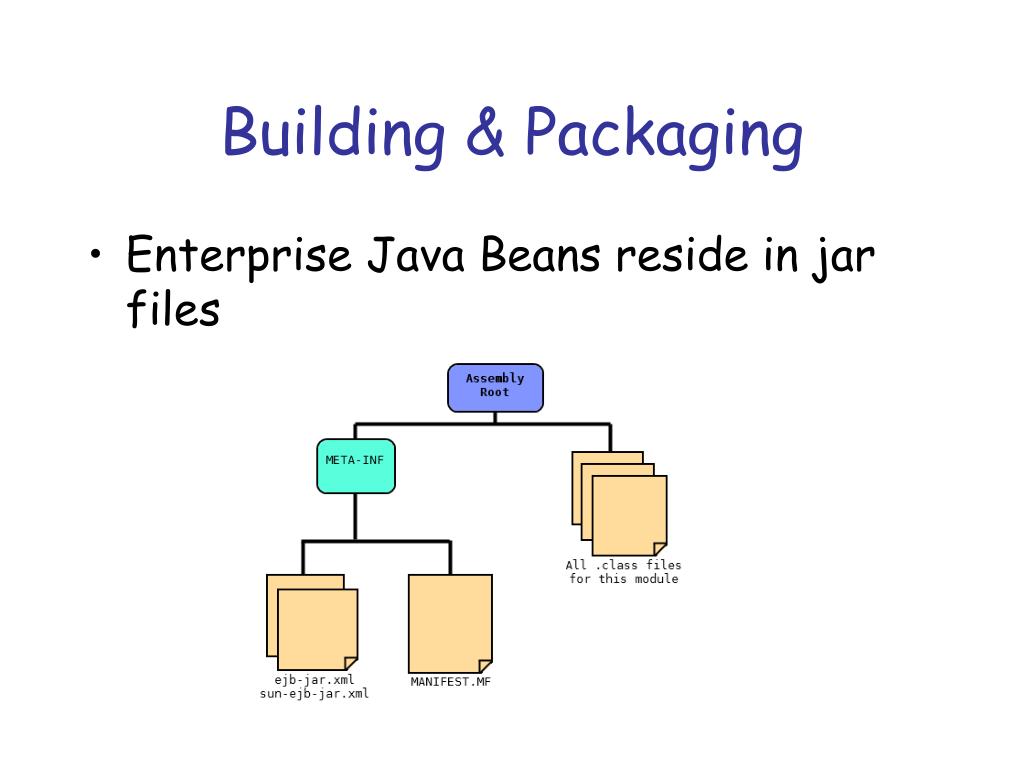

  34. Building & Packaging • Enterprise Java Beans reside in jar files

  35. Naming Conventions
