Chapter 14 The Brain and Cranial Nerves

Chapter 14 The Brain and Cranial Nerves. Largest organ in the body at almost 3 lb. Brain functions in sensations, memory, emotions, decision making, behavior. Principal Parts of the Brain. Cerebrum Diencephalon thalamus & hypothalamus Cerebellum Brainstem medulla, pons & midbrain.

adeleg
Download Presentation

Chapter 14 The Brain and Cranial Nerves

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

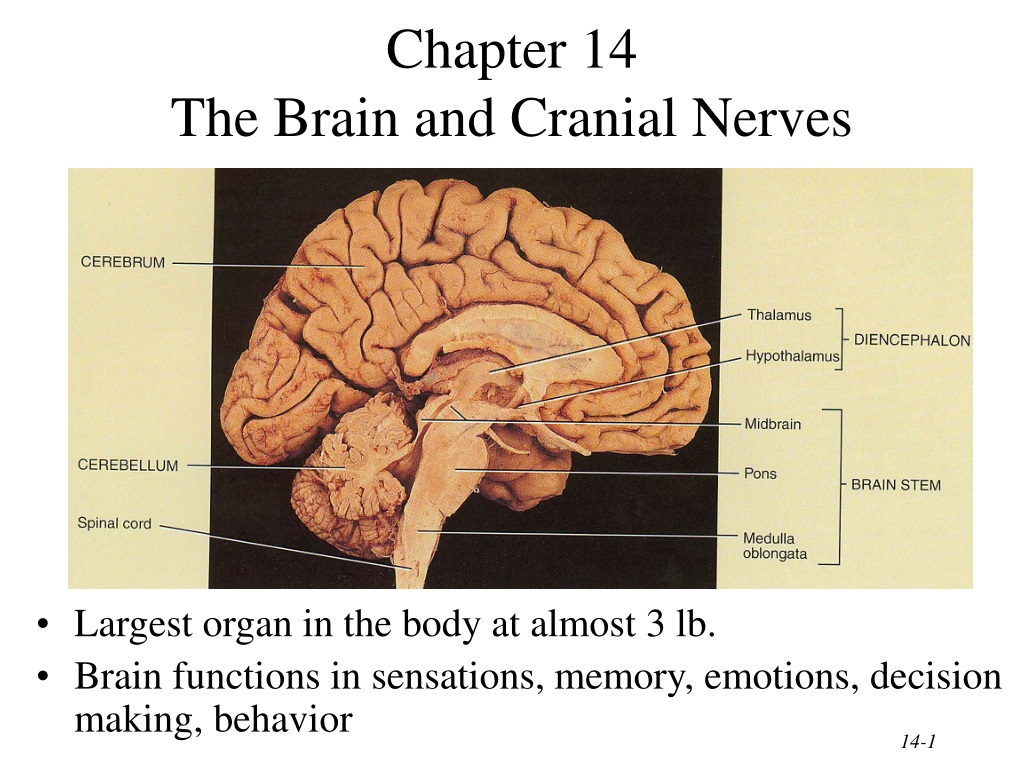

  1. Chapter 14The Brain and Cranial Nerves • Largest organ in the body at almost 3 lb. • Brain functions in sensations, memory, emotions, decision making, behavior

  2. Principal Parts of the Brain • Cerebrum • Diencephalon • thalamus & hypothalamus • Cerebellum • Brainstem • medulla, pons & midbrain

  3. Protective Coverings of the Brain • Bone, meninges & fluid • Meninges same as around the spinal cord • dura mater • arachnoid mater • pia mater • Dura mater extensions • falx cerebri • tentorium cerebelli • falx cerebelli

  4. Blood Supply to Brain • Arterial blood supply is branches from circle of Willis on base of brain (page 699) • Vessels on surface of brain----penetrate tissue • Uses 20% of our bodies oxygen & glucose needs • blood flow to an area increases with activity in that area • deprivation of O2 for 4 min does permanent injury • at that time, lysosome release enzymes • Blood-brain barrier (BBB) • protects cells from some toxins and pathogens • proteins & antibiotics can not pass but alcohol & anesthetics do • tight junctions seal together epithelial cells, continuous basement membrane, astrocyte processes covering capillaries

  5. Cerebrospinal Fluid (CSF) • 80-150 ml (3-5oz) • Clear liquid containing glucose, proteins, & ions • Functions • mechanical protection • floats brain & softens impact with bony walls • chemical protection • optimal ionic concentrations for action potentials • circulation • nutrients and waste products to and from bloodstream

  6. Origin of CSF • Choroid plexus = capillaries covered by ependymal cells • 2 lateral ventricles, one within each cerebral hemisphere • roof of 3rd ventricle • fourth ventricle

  7. Drainage of CSF from Ventricles • One median aperture & two lateral apertures allow CSF to exit from the interior of the brain

  8. Flow of Cerebrospinal Fluid

  9. Reabsorption of CSF • Reabsorbed through arachnoid villi • grapelike clusters of arachnoid penetrate dural venous sinus • 20 ml/hour reabsorption rate = same as production rate

  10. Hydrocephalus • Blockage of drainage of CSF (tumor, inflammation, developmental malformation, meningitis, hemorrhage or injury • Continued production cause an increase in pressure --- hydrocephalus • In newborn or fetus, the fontanels allow this internal pressure to cause expansion of the skull and damage to the brain tissue • Neurosurgeon implants a drain shunting the CSF to the veins of the neck or the abdomen

  11. Medulla Oblongata • Continuation of spinal cord • Ascending sensory tracts • Descending motor tracts • Nuclei of 5 cranial nerves • Cardiovascular center • force & rate of heart beat • diameter of blood vessels • Respiratory center • medullary rhythmicity area sets basic rhythm of breathing • Information in & out of cerebellum • Reflex centers for coughing, sneezing, swallowing etc

  12. Ventral Surface of Medulla Oblongata • Ventral surface bulge • pyramids • large motor tract • decussation of most fibers • left cortex controls right muscles • Olive = olivary nucleus • neurons send input to cerebellum • proprioceptive signals • gives precision to movements

  13. Dorsal Surface of Medulla Oblongata • Nucleus gracilis & nucleus cuneatus = sensory neurons • relay information to thalamus on opposite side of brain • 5 cranial nerves arise from medulla -- 8 thru 12

  14. XII = Hypoglossal Nerve • Controls muscles of tongue during speech and swallowing • Injury deviates tongue to injured side when protruded • Mixed, primarily motor

  15. XI = Spinal Accessory Nerve • Cranial portion • arises medulla • skeletal mm of throat & soft palate • Spinal portion • arises cervical spinal cord • sternocleidomastoid and trapezius mm.

  16. X = Vagus Nerve • Receives sensations from viscera • Controls cardiac muscle and smooth muscle of the viscera • Controls secretion of digestive fluids

  17. IX = Glossopharyngeal Nerve • Stylopharyngeus m. (lifts throat during swallowing) • Secretions of parotid gland • Somatic sensations & taste on posterior 1/3 of tongue

  18. VIII = Vestibulocochlear Nerve • Cochlear branch begins in medulla • receptors in cochlea • hearing • if damaged deafness or tinnitus (ringing) is produced • Vestibular branch begins in pons • receptors in vestibular apparatus • sense of balance • vertigo (feeling of rotation) • ataxia (lack of coordination)

  19. Injury to the Medulla • Hard blow to the back of the head may be fatal • Cranial nerve malfunctions on same side as injury;loss of sensation or paralysis of throat or tongue; irregularities in breathing and heart rhythm

  20. Pons • One inch long • White fiber tracts ascend and descend • Pneumotaxic & apneustic areas help control breathing • Middle cerebellar peduncles carry sensory info to the cerebellum • Cranial nerves 5 thru 7

  21. VII = Facial Nerve • Motor portion • facial muscles • salivary & nasal and oral mucous glands & tears • Sensory portion • taste buds on anterior 2/3’s of tongue

  22. VI = Abducens Nerve • Lateral rectus eye muscle

  23. V = Trigeminal Nerve • Motor portion • muscles of mastication • Sensory portion • touch, pain, & temperature receptors of the face • ophthalmic branch • maxillary branch • mandibular branch

  24. Midbrain • One inch in length • Extends from pons to diencephalon • Cerebral aqueduct connects 3rd ventricle above to 4th ventricle below

  25. Midbrain in Section • Cerebral peduncles---clusters of motor & sensory fibers • Substantia nigra---helps controls subconscious muscle activity • Red nucleus-- rich blood supply & iron-containing pigment • cortex & cerebellum coordinate muscular movements by sending information here from the cortex and cerebellum

  26. Dorsal Surface of Midbrain • Corpora quadrigemina = superior & inferior colliculi • coordinate eye movements with visual stimuli • coordinate head movements with auditory stimuli

  27. IV = Trochlear Nerve • Superior oblique eye muscle

  28. III = Oculomotor Nerve • Levator palpebrae raises eyelid (ptosis) • 4 extrinsic eye muscles • 2 intrinsic eye muscles • accomodation for near vision (changing shape of lens during reading) • constriction of pupil

  29. Reticular Formation • Scattered nuclei in medulla, pons & midbrain • Reticular activating system • alerts cerebral cortex to sensory signals (sound of alarm, flash light, smoke or intruder) to awaken from sleep • maintains consciousness & helps keep you awake with stimuli from ears, eyes, skin and muscles • Motor function is involvement with maintaining muscle tone

  30. Cerebellum • 2 cerebellar hemispheres and vermis (central area) • Function • correct voluntary muscle contraction and posture based on sensory data from body about actual movements • sense of equilibrium

  31. Cerebellum • Transverse fissure between cerebellum & cerebrum • Cerebellar cortex (folia) & central nuclei are grey matter • Arbor vitae = tree of life = white matter

  32. Cerebellar Peduncles • Superior, middle & inferior peduncles attach to brainstem • inferior carries sensory information from spinal cord • middle carries sensory fibers from cerebral cortex & basal ganglia • superior carries motor fibers that extend to motor control areas

  33. Diencephalon Surrounds 3rd Ventricle • Surrounds 3rd ventricle • Superior part of walls is thalamus • Inferior part of walls & floor is hypothalamus

  34. Thalamus • 1 inch long mass of gray mater in each half of brain (connected across the 3rd ventricle by intermediate mass) • Relay station for sensory information on way to cortex • Crude perception of some sensations

  35. Thalamic Nuclei • Nuclei have different roles • relays auditory and visual impulses, taste and somatic sensations • receives impulses from cerebellum or basal ganglia • anterior nucleus concerned with emotions, memory and acquisition of knowledge (cognition)

  36. Hypothalamus • Dozen or so nuclei in 4 major regions • mammillary bodies are relay station for olfactory reflexes;infundibulum suspends the pituitary gland • Major regulator of homeostasis • receives somatic and visceral input, taste, smell & hearing information; monitors osmotic pressure, temperature of blood

  37. Functions of Hypothalamus • Controls and integrates activities of the ANS which regulates smooth, cardiac muscle and glands • Synthesizes regulatory hormones that control the anterior pituitary • Contains cell bodies of axons that end in posterior pituitary where they secrete hormones • Regulates rage, aggression, pain, pleasure & arousal • Feeding, thirst & satiety centers • Controls body temperature • Regulates daily patterns of sleep

  38. Epithalamus • Pineal gland • endocrine gland the size of small pea • secretes melatonin during darkness • promotes sleepiness & sets biological clock • Habenular nuclei • emotional responses to odors

  39. Subthalamus & CVO • Subthalamus • small area just inferior to thalamus • work with basal ganglia, cerebrum & cerebellum to control body movements • Circumventricular organs • in walls of 3rd & 4th ventricles • monitor changes in blood chemistry because lack blood brain barrier (parts of hypothalamus, pineal & pituitary gland) • sites of entry of HIV virus into brain (dementia)

  40. Cerebrum (Cerebral Hemispheres) • Cerebral cortex is gray matteroverlying white matter • 2-4 mm thick containing billionsof cells • grew so quickly formed folds(gyri) and grooves (sulci or fissures) • Longitudinal fissure separates left & right cerebral hemispheres • Corpus callosum is band of white matter connecting left and right cerebral hemispheres • Each hemisphere is subdivided into 4 lobes

  41. Longitudinal fissure (green) Frontal lobe Central sulcus (yellow) precentral & postcentral gyrus Parietal lobe Parieto-occipital sulcus Occipital lobe Lateral sulcus (blue) Temporal lobe Insula Lobes and Fissures

  42. Insula within Lateral Fissure

  43. Cerebral White Matter • Association fibers between gyri in same hemisphere • Commissural fibers from one hemisphere to other • Projection fibers form descending & ascending tracts

  44. Basal Ganglia • Connections to red nucleus, substantia nigra & subthalamus • Input & output with cerebral cortex, thalamus & hypothalamus • Control large automatic movements of skeletal muscles

  45. Limbic System • Parahippocampal & cingulate gyri & hippocampus • Emotional brain--intense pleasure & intense pain • Strong emotions increase efficiency of memory

  46. Brain Injuries • Causes of damage • displacement or distortion of tissue at impact • increased intracranial pressure • infections • free radical damage after ischemia • Concussion---temporary loss of consciousness • headache, drowsiness, confusion, lack of concentration • Contusion--bruising of brain (less than 5 min unconsciousness but blood in CSF) • Laceration--tearing of brain (fracture or bullet) • increased intracranial pressure from hematoma

  47. Sensory Areas of Cerebral Cortex Receive sensory information from the thalamus Primary somatosensory area = postcentral gyrus = 1,2,3 Primary visual area = 17 Primary auditory area = 41 & 42 Primary gustatory area = 43

  48. Motor Areas of Cerebral Cortex • Voluntary motor initiation • Primary motor area = 4 = precentral gyrus • controls voluntary contractions of skeletal muscles on other side • Motor speech area = 44 = Broca’s area • production of speech -- control of tongue & airway

  49. Association Areas of Cerebral Cortex • Somatosensory area = 5 & 7 (integrate & interpret) • Visual association area = 18 & 19 (recognize & evaluate) • Auditory association area(Wernicke’s) = 22(words become speech) • Gnostic area = 5,7,39 & 40 (integrate all senses & respond) • Premotor area = 6 (learned skilled movements such as typing) • Frontal eye field =8 (scanning eye movements such as phone book)

  50. Aphasia • Language areas are located in the left cerebral hemisphere of most people • Inability to use or comprehend words = aphasia • nonfluent aphasia = inability to properly form words • know what want to say but can not speak • damage to Broca’s speech area • fluent aphasia = faulty understanding of spoken or written words • faulty understanding of spoken or written words • word deafness = an inability to understand spoken words • word blindness = an inability to understand written words • damage to common integrative area or auditory association area
