  1. Summary of Metadata Workshop Peter Hristov 28 February 2005 Alice Computing Day

  2. Metadata: Definition • Traditionally: • Metadata has been understood as “data about data” • Example(s): • A library catalogue contains information (metadata) about publications (data) • A file system maintains permissions (metadata) about files (data) • More definitions: try Google

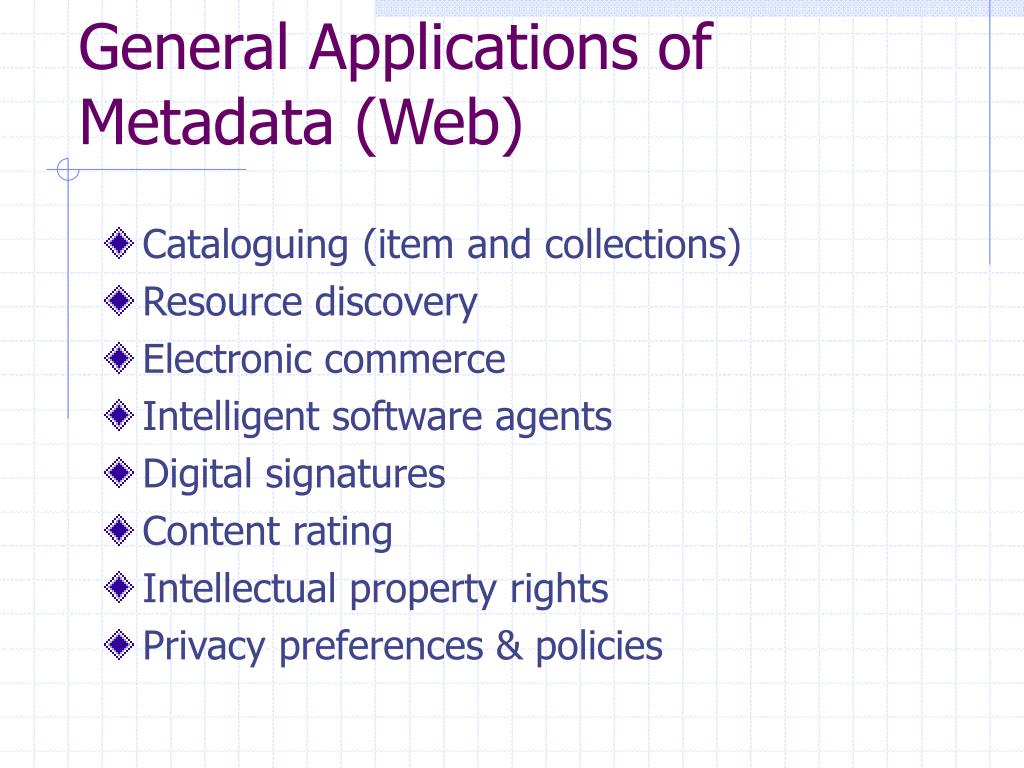

  3. General Applications of Metadata (Web) • Cataloguing (item and collections) • Resource discovery • Electronic commerce • Intelligent software agents • Digital signatures • Content rating • Intellectual property rights • Privacy preferences & policies

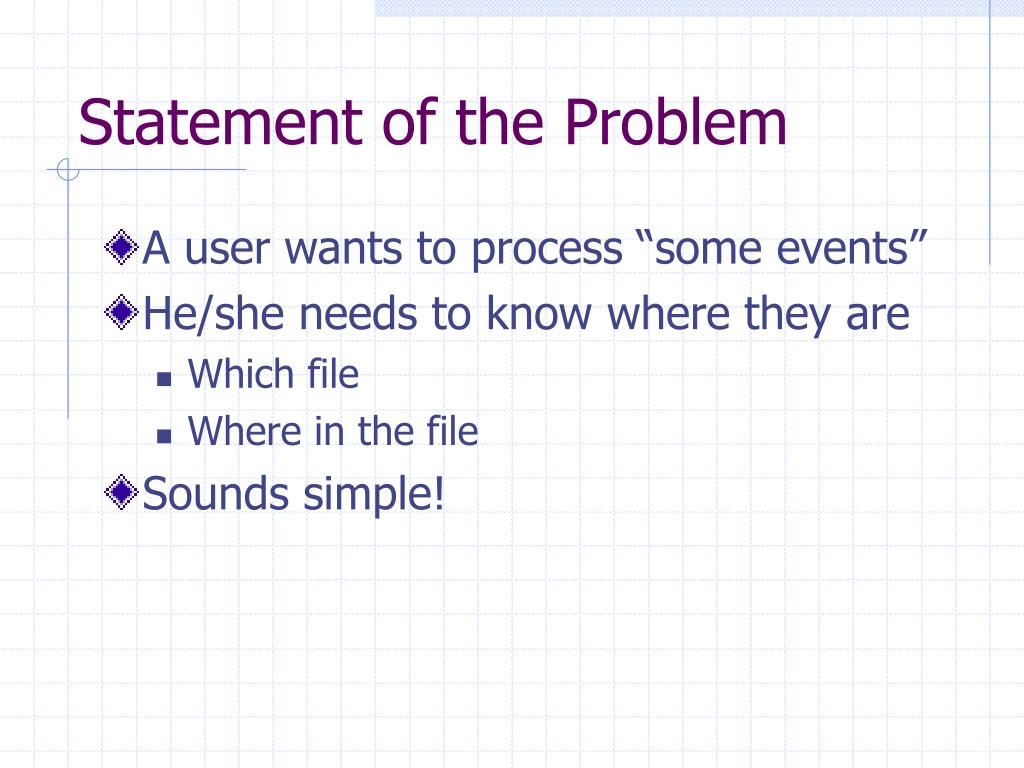

  4. Statement of the Problem • A user wants to process “some events” • He/she needs to know where they are • Which file • Where in the file • Sounds simple!

  5. Tools at Hand • In Grid file catalogues files may have metadata that identify a file • However we are not sure what the grid catalogue will look like in this moment • Given a ROOT file, a TRef allows us to “jump” directly to a given object

  6. General Idea on the Grid TAG Database Event catalogue File catalogue Local catalogue MD MD MD keys <guid> MD MD MD keys <guid> MD MD MD keys <guid> MD MD MD keys <guid> MD MD MD keys <guid> MD MD MD keys <guid> MD MD MD keys <guid> MD MD MD keys <guid> MD MD MD keys <guid> MD MD MD keys <guid> MD MD MD LFN SE <guid> MD MD MD LFN SE <guid> MD MD MD LFN SE <guid> MD MD MD LFN SE <guid> MD MD MD LFN SE <guid> MD MD MD LFN SE <guid> MD MD MD LFN SE <guid> MD MD MD LFN SE <guid> MD MD MD LFN SE <guid> MD MD MD LFN SE <guid> MD MD MD PFN <guid> MD MD MD PFN <guid> MD MD MD PFN <guid> MD MD MD PFN <guid> MD MD MD PFN <guid> MD MD MD PFN <guid> MD MD MD PFN <guid> MD MD MD PFN <guid> MD MD MD PFN <guid> MD MD MD PFN <guid>

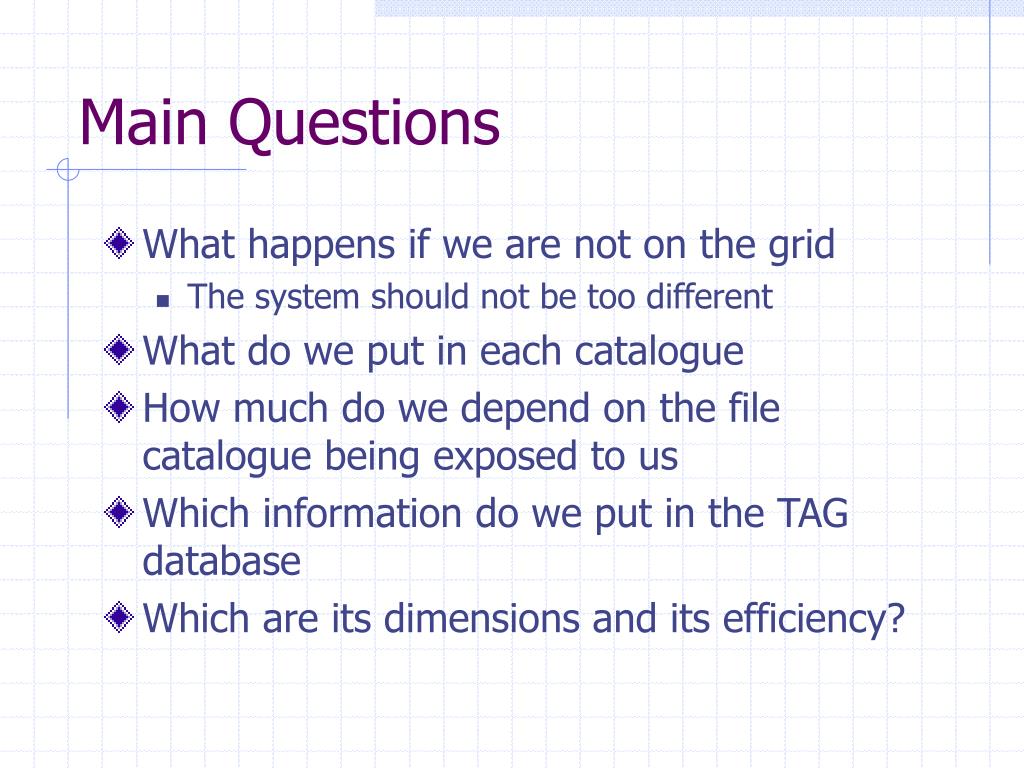

  7. Main Questions • What happens if we are not on the grid • The system should not be too different • What do we put in each catalogue • How much do we depend on the file catalogue being exposed to us • Which information do we put in the TAG database • Which are its dimensions and its efficiency?

  8. Event Model • RAW data; Written once, read (not too) many times. • Size: 1 – 50 MB per event, exist only one per event. • ESD; Written (not too) many times, read many times. • Size: ~ 1/10 of raw per event, exist only one per event. • AOD; Written many times, read many times. • Size: ~ 1/10 of ESD per event, exist many (~10) per event. … • Tag; Written (not too) many times, read many times. • Size: 100 B – 1 kb per event, exist many per event. • This is done for fast event data selection. • It’s not directly for analysis, histogram production etc. • Even (by chance) if the information is there you may do it. • For discussion. • Global experiment tags. • Physics working group tags. • User defined tags.

  9. Terminology Define common terms, first • Metadata: Key-Value pairsAny data necessary to work on the grid not living in the files • Entry: Entities to which metadata is attachedDenoted by a string, format like file-path in Unix, wild-cards allowed • Collection: Set of entriesCollections are themselves entries, think of Directories • Attribute: Name or key of piece of metadataAlphanumerical string with starting letter • Value: Value of an entry's attributePrintable ASCII string • Schema: Set of attributes of an entryClassifies types of entries: Collection's schema inherited by its entries • Storage Type: How back end stores a valueBack end may have different (SQL) datatypes than application • Transfer Type: How values are transferredValues are transported as printeable ASCII

  10. Event Metadata • Tag: event building and physics related information • Catalog information => how to retrieve the event • What else => links to another sources of information?

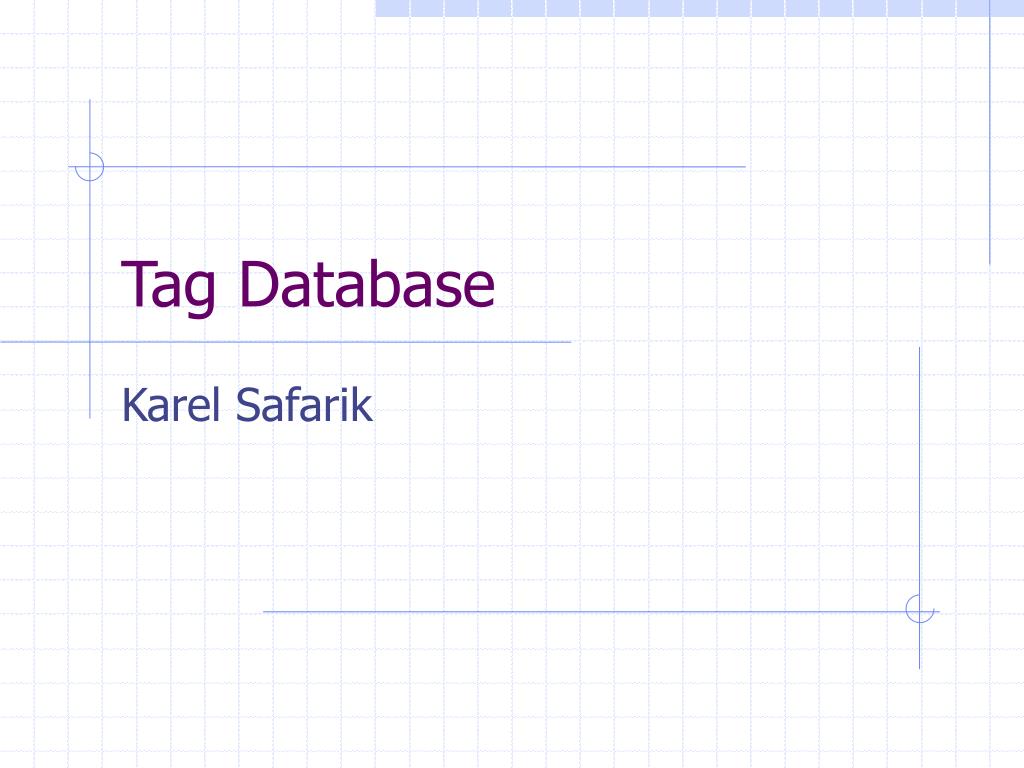

  11. Tag Database Karel Safarik

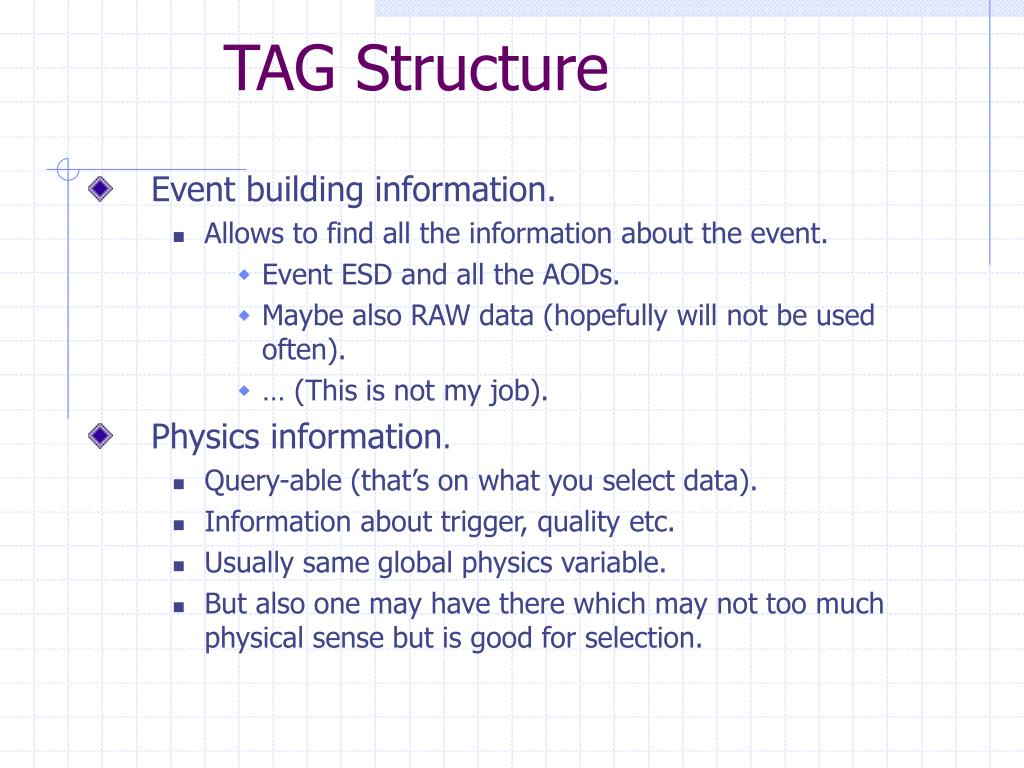

  12. TAG Structure • Event building information. • Allows to find all the information about the event. • Event ESD and all the AODs. • Maybe also RAW data (hopefully will not be used often). • … (This is not my job). • Physics information. • Query-able (that’s on what you select data). • Information about trigger, quality etc. • Usually same global physics variable. • But also one may have there which may not too much physical sense but is good for selection.

  13. TAG Size • Has to be reasonable to be able to query in reasonable time • Somewhere around disk size --- O(100GB) • Typical yearly number of events • 107 for heavy ion • 109 for pp • However • TAG size (in principle) is independent on multiplicity • But it is collision-system dependent, trigger dependent… • For heavy-ion: few kb gives few 10 GB • For pp: 100 B gives 100 GB • STAR: 500 physics tag fields in 0.5 kb (in average 1 par B)

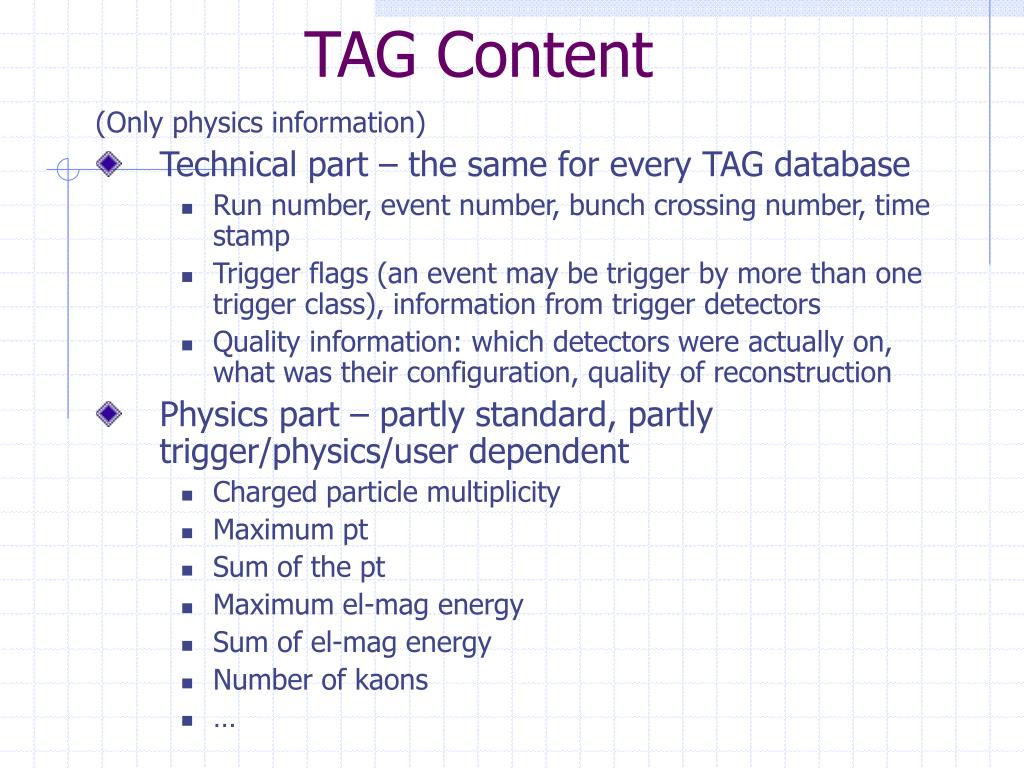

  14. TAG Content (Only physics information) • Technical part – the same for every TAG database • Run number, event number, bunch crossing number, time stamp • Trigger flags (an event may be trigger by more than one trigger class), information from trigger detectors • Quality information: which detectors were actually on, what was their configuration, quality of reconstruction • Physics part – partly standard, partly trigger/physics/user dependent • Charged particle multiplicity • Maximum pt • Sum of the pt • Maximum el-mag energy • Sum of el-mag energy • Number of kaons • …

  15. TAG Construction • Basic (experiment wide) TAG database • Written during reconstruction – ESD production • But it has also to navigate to (all ?) AOD (produced later) ? • There is part which is untouchable (nobody is allowed to modify) • There is part which maybe modified, as result of further analysis • From this one all other TAG databases start • The real content of definite instant of TAG database • Trigger dependent • Detector configuration dependent • Physics analysis dependent • Define the physics group TAG databases • Derived from experiment wide database • Maybe allow for user TAG databases • Derived from physics group database • Useful tag fields are then pushed up in this hierarchy

  16. TAG Conclusion • We have to define prototype of experiment-wide TAG database • Implement this in reconstruction program • Physics working group – to define physic group databases • Test the mechanism of inheritance from experiment-wide TAG database • Decide if the ‘event building’ information has to allow to navigate • To all the AODs • Or just to those created within that working group • When ?, who ?

  17. Metadata in CDC Fons Rademakers

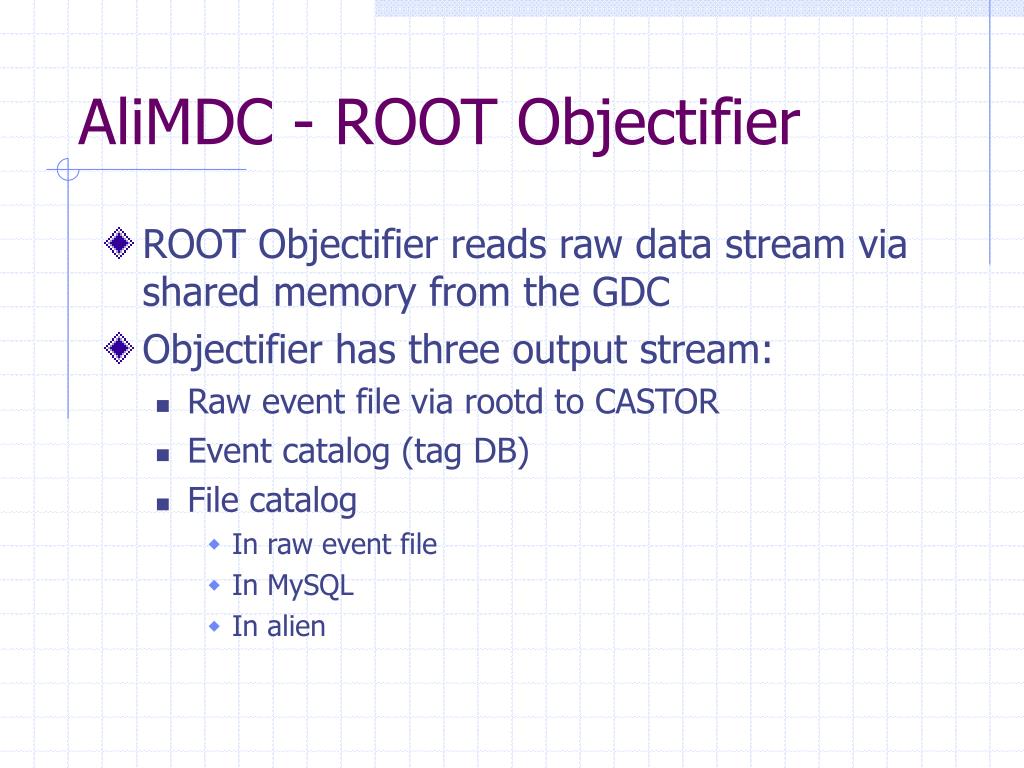

  18. AliMDC - ROOT Objectifier • ROOT Objectifier reads raw data stream via shared memory from the GDC • Objectifier has three output stream: • Raw event file via rootd to CASTOR • Event catalog (tag DB) • File catalog • In raw event file • In MySQL • In alien

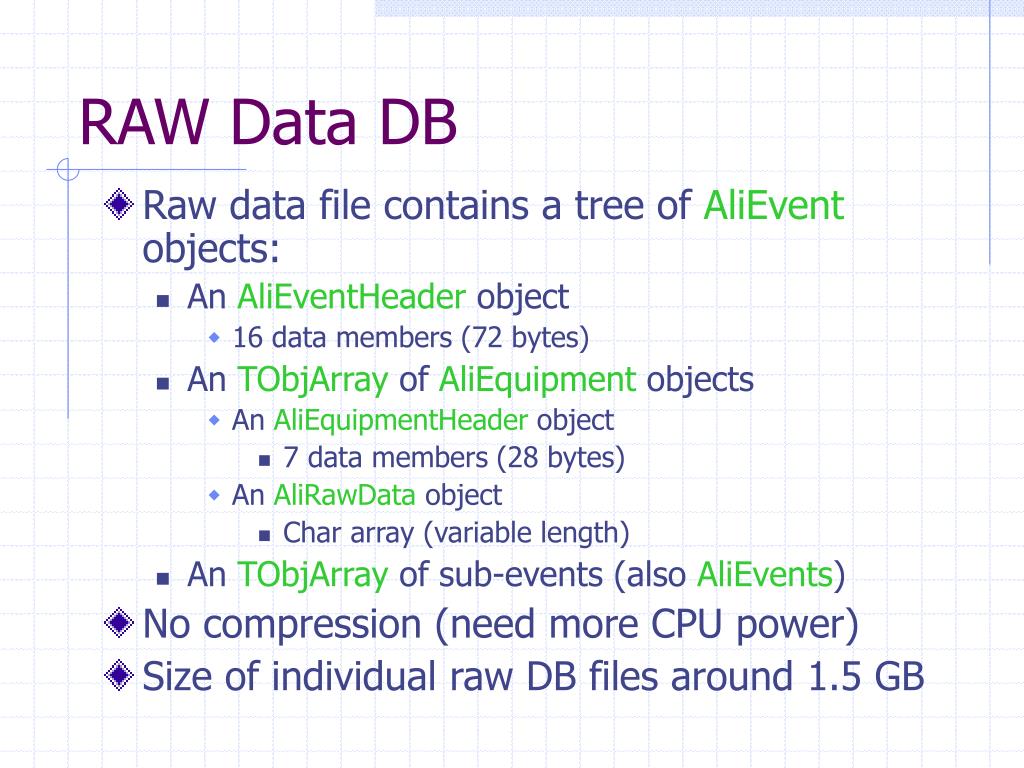

  19. RAW Data DB • Raw data file contains a tree of AliEvent objects: • An AliEventHeader object • 16 data members (72 bytes) • An TObjArray of AliEquipment objects • An AliEquipmentHeader object • 7 data members (28 bytes) • An AliRawData object • Char array (variable length) • An TObjArray of sub-events (also AliEvents) • No compression (need more CPU power) • Size of individual raw DB files around 1.5 GB

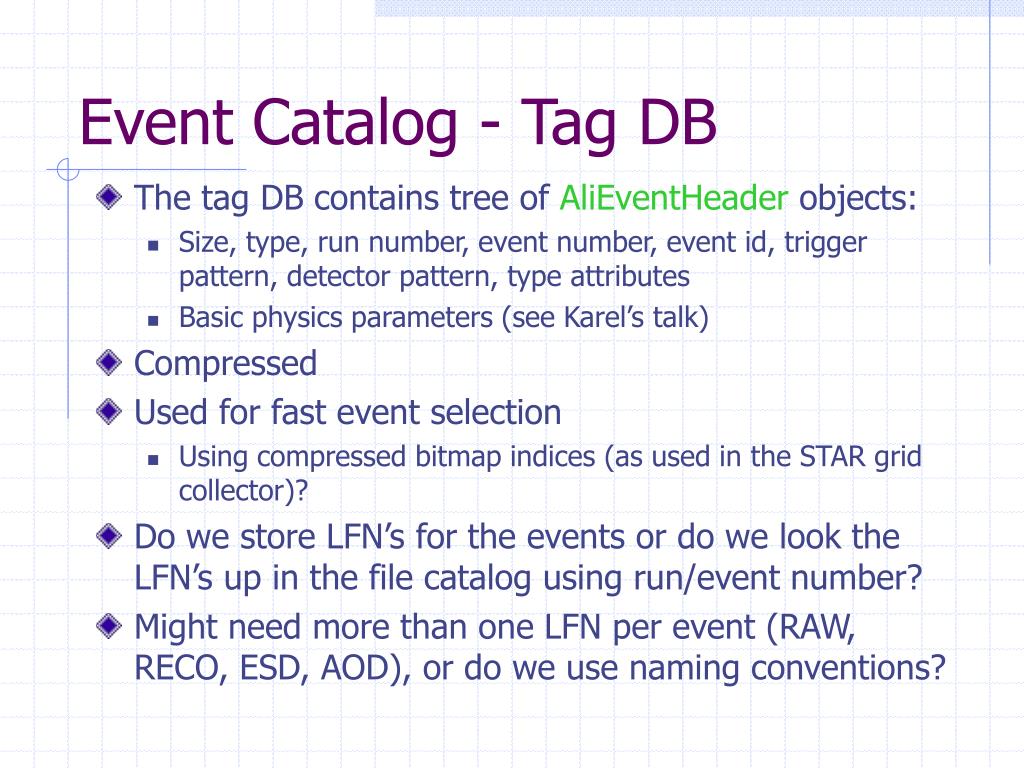

  20. Event Catalog - Tag DB • The tag DB contains tree of AliEventHeader objects: • Size, type, run number, event number, event id, trigger pattern, detector pattern, type attributes • Basic physics parameters (see Karel’s talk) • Compressed • Used for fast event selection • Using compressed bitmap indices (as used in the STAR grid collector)? • Do we store LFN’s for the events or do we look the LFN’s up in the file catalog using run/event number? • Might need more than one LFN per event (RAW, RECO, ESD, AOD), or do we use naming conventions?

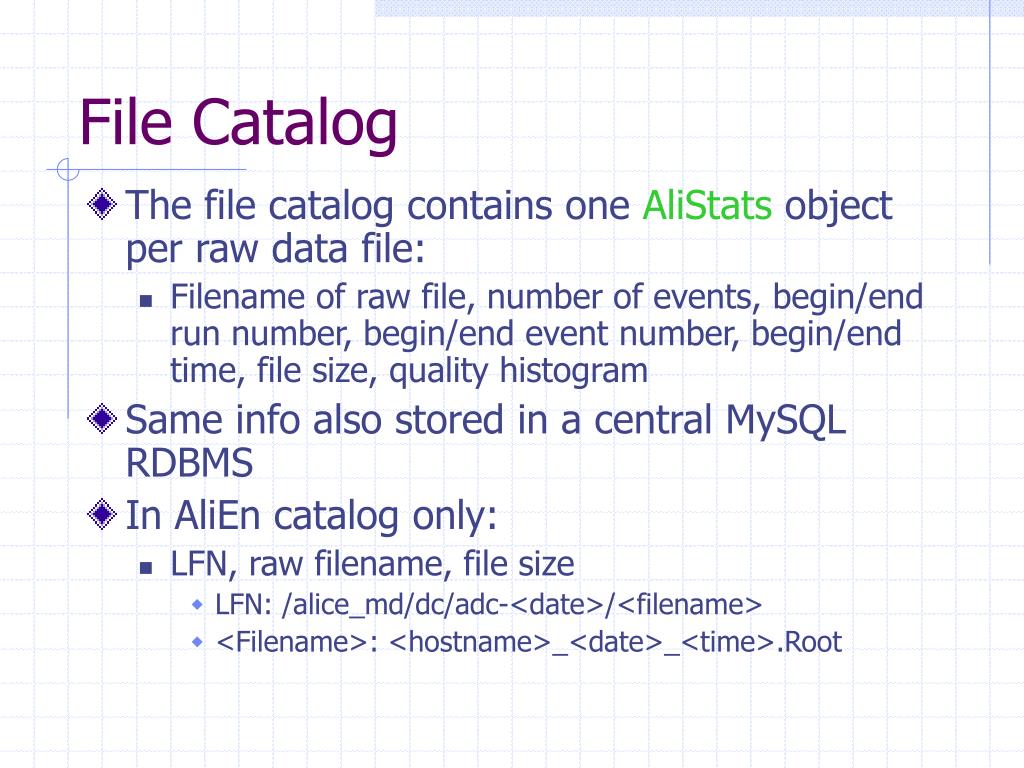

  21. File Catalog • The file catalog contains one AliStats object per raw data file: • Filename of raw file, number of events, begin/end run number, begin/end event number, begin/end time, file size, quality histogram • Same info also stored in a central MySQL RDBMS • In AliEn catalog only: • LFN, raw filename, file size • LFN: /alice_md/dc/adc-<date>/<filename> • <Filename>: <hostname>_<date>_<time>.Root

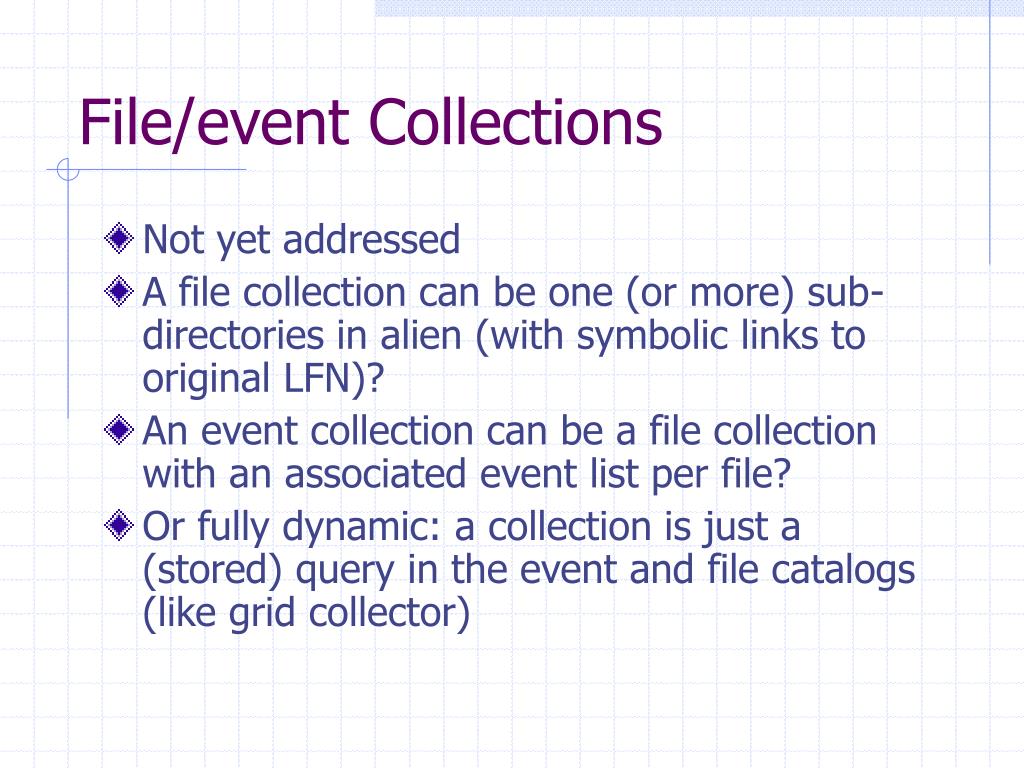

  22. File/event Collections • Not yet addressed • A file collection can be one (or more) sub-directories in alien (with symbolic links to original LFN)? • An event collection can be a file collection with an associated event list per file? • Or fully dynamic: a collection is just a (stored) query in the event and file catalogs (like grid collector)

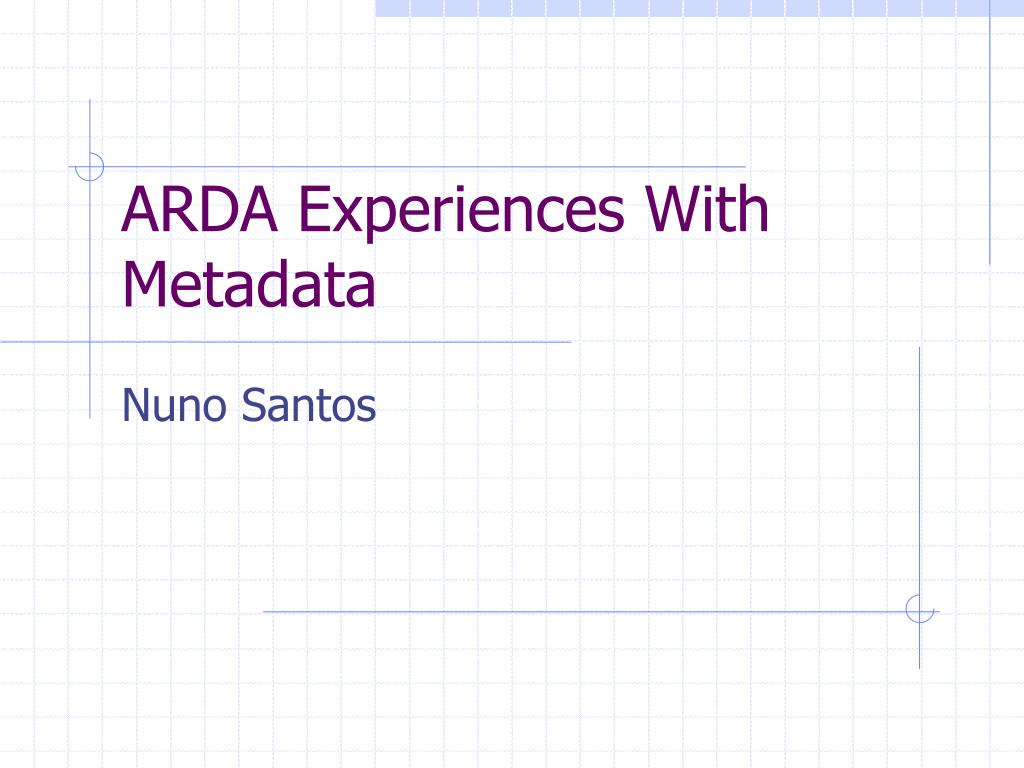

  23. ARDA Experiences With Metadata Nuno Santos

  24. Experience with Metadata • ARDA tested several Metadata solutions from the experiments: • LHCb Bookkeeping – XML-RPC with Oracle backend • CMS: RefDB - PHP in front of MySQL, giving back XML tables • Atlas: AMI - SOAP-Server in Java in front of MySQL • gLite (Alien Metadata) - Perl in front of MySQL parsing command, streaming back text • Tested performance, scalability and features => a lot of plots omitted, see the original presentation.

  25. Synthesis • Generally, the scalability is poor • Sending big responses in a single packet limits scalability • Use of SOAP and XML-RPC worsens the problem • Schema evolution not really supported • RefDB and Alien don't do schema evolution at all. • AMI, LHCb-Bookkeeping via admins adjusting tables. • No common Metadata interface Experience with existing Software Propose Generic Interface & Prototype as Proof-Of-Concept

  26. Design decisions • Metadata organized as a hierarchy - Collect objects with shared attributes into collections • Collections stored as a table - allows queries on SQL tables • Analogy to file system: • Collection <-> Directory • Entry <-> File • Abstract the backend – Allows supporting several backends. • PostgreSQL, MySQL, Oracle, filesystem… • Values restricted to ASCII strings • Backend is unknown • Scalability: • Transfer large responses in chunks, streaming from DB • Decreases server memory requirements, no need to store full response in memory • Implement also a non-SOAP protocol • Compare with SOAP. What is the performance price of SOAP?

  27. Conclusions on SOAP • Tests show: • SOAP performance is generally poor when compared to TCP streaming. • gSOAP is significantly faster than other toolkits. • Iterators (with stateful server) helps considerably – results returned in small chunks. • SOAP puts an additional load on server. • SOAP interoperability very problematic. • Writing an interoperable WSDL is hard. • Not all toolkits are mature.

  28. Conclusions • Many problems understood studying metadata implementations of experiments • Common requirements exist • ARDA proposes generic interface to metadata on Grid: • Retrieving/Updating of data • Hierarchical view • Schema discovery and management (discussed with gLite, GridPP, GAG, accepted by PTF) • Prototype with SOAP & streaming front end built • SOAP can be as fast as streaming in many cases • SOAP toolkits still immature • http://project-arda-dev.web.cern.ch/project-arda-dev/metadata/
