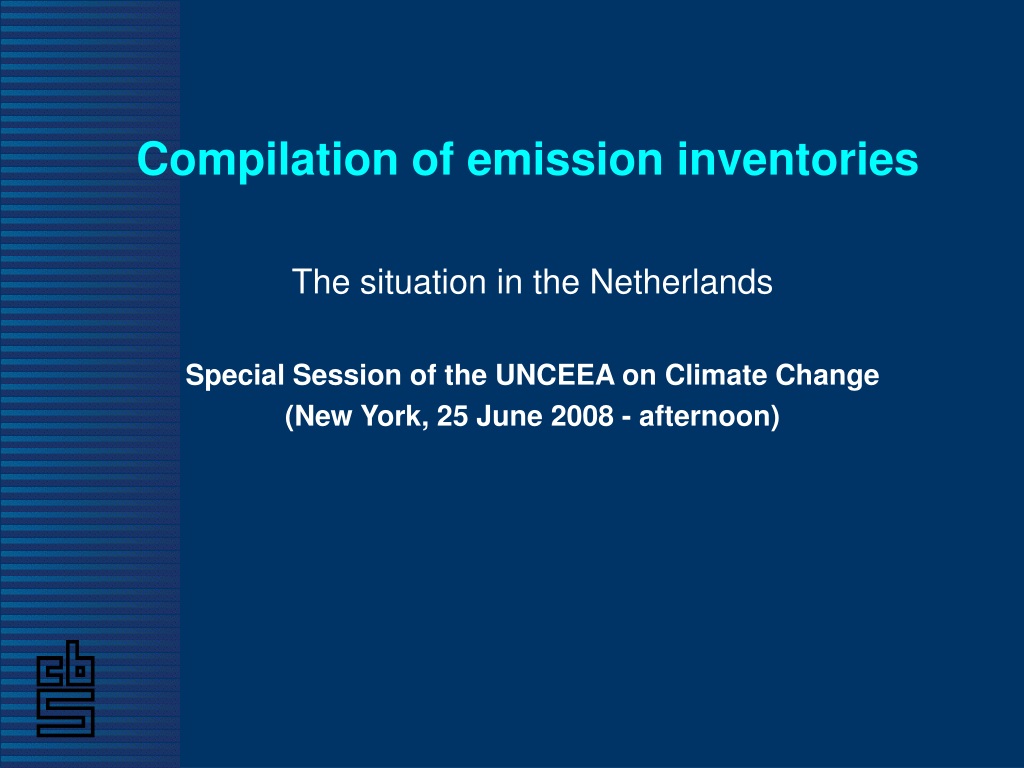

  1. Compilation of emission inventories The situation in the Netherlands Special Session of the UNCEEA on Climate Change (New York, 25 June 2008 - afternoon)

  2. Content • The Dutch Pollutant transfer and Emission Register (PRTR) • From the emission register to the environmental accounts • Bridge tables

  3. Dutch Pollutant transfer and Emission Register (PRTR) • Contains annual emission data on more than 350 pollutants to air, soil and water • Covers the whole process of • collection, processing and reporting of emission data in the Netherlands • Emissions of diffuse as well as point sources are collected in one central database

  4. Organisation Coordinated by the Netherlands Environmental Assessment Agency (MNP) on behalf of the Ministry of Housing, Spatial Planning and the Environment (VROM) and the Ministry of Transport, Public Works and Water Management (VenW). • VROM • TNO • Statistics Netherlands • MNP • LEI • RWS/RIZA Co-operation of number of institutes:

  5. Objectives • Annual monitoring of emissions to air, water and soil • Annual monitoring of waste • Environmental policy progress reporting • Official emission data transmissions to national and international bodies • Dissemination of emission data to the public and for research (dispersion modellers)

  6. Tasks • Storage of all emission data in one central database • Analysis of emission data with respect to pollutant, target sector, environmental theme and location • Assessment of structural trends based on subsequent inventory years and identifying consequences for environmental policy

  7. Operational procedures • Collection and processing of emission data are based on predefined technical guilelines: standard protocols. • For specfic areas, experts from participating organisations are represented in so-called task forces. • Formal agreement is based on general consensus (‘polder model’: no leading institute) • After intensive checking, data are authorized and stored in the central database • Subsequently, diffuse sources are spatially allocated (GIS)

  8. Components • More than 350 pollutants • Selected by following international reporting obligations: • Kyoto Protocol, • The Water Framework Directive, • The 'European Pollution Release and • Transfer Register' (E-PRTR) • Various UN and EU obligations • Some observed components are particularly relevant for national environmental policies

  9. Emission sources (I) • The emission sources are categorized according to the following • (sub) sectors, relevant to environmental policies: • Agriculture • Chemical industry • Construction • Consumers • Energy production • Refineries • Sewage and wastewater treatment • Trade and services • Transport and Waste disposal • Other industries • Nature • Other

  10. Emission sources (II) • Point sources:Geographically located, measured or calculated (per individual factory or installation, e.g. refineries, power plants) • 2) Diffuse sources:Geographically unlocated (only for relevant pollutants, e.g. fine dust, water pollutants) (e.g. agriculture or road traffic)

  11. Compartments • The emission register addresses five so-called compartments: • Air (emission to air) • Air IPCC (for polIutatants subject to IPPC reportings) • Soil (emissions to soil, including depositions) • Water (to sewage and surface water) • Load to surface water (‘net’ to surface water, after water purification)

  12. Sources of data in the central database

  13. Emission calculations • Reported point sources • Gross up system : upscaling to national level using production per industrial sector • Non industrial sources • Emission = Activity level x Emission factor (E=A*EF) • Data on Activities are based on national statistics. Emission factors are based on measurements and calculations of a model or (the international) literature.

  14. Dimensions of emissions in the central database 12 sectors X 5 5 x 5 km 1990 - 2007 350

  15. From emission register to the environmental accounts • Classification: sector → NACE 2-digit • Adding international transport by residents • Subtracting foreign transport on inland territory

  16. Classification of industries (I) • Emission registerSources classified by sectors: industry, agriculture, energy suppliers, sometimes NACE-coding is present • Environmental accounts • Classification by NACE 2-digit, following the standard National accounts tables by industry, breakdown by 58 industries + households (2) = 60 activities

  17. Classification of industries (II) • Allocating emissions to nace-codes by using additional sources: • Some examples: • Heating (combustion of gas) all services: monetary data on gas use from national accounts • Agriculture: e.g. agriculture statistics, land use data, production of manure • Specific (water) emissions by industry: labour force data or business surveys

  18. Classification of industries (III) • Mobile sources in emission register: no allocation to NACE present in the Emission Register •  Monetary data on fuel consumption from National accounts are used to distribute emissions from mobile sources to industries

  19. Adding international transport • Adding emissions by transport by residents abroad • Substracting emissions by non-residents on national territory Sources: transport statistics, National account data

  20. Three definitions for CO2 emissions • According to IPCC • Actual emissions • According to environmental accounts

  21. (1) IPCC definitions • Emission from the national territory • Short cyclic CO2 (combustion of biomass) is excluded • Transport emissions are calculated according to the total of supplied motorfuels, regardsless the location where the consumption of fuels occurs • Emissions from International transport are excluded • No temperature correction

  22. (2) Actual emissions • The actual emissions from the national territory • Transport: emissions from the national territory, • regardless where the fuel was obtained • All CO2 emission caused by human activites are • included (short cyclic CO2) • International transport: only emissions within • national boundaries • No temperature correction

  23. (3) environmental accounts, NA based definition • Emissions calculated according to actual emissions and resident principle • Adding emissions by residents in ROW • Substracting emissions by non-residents on national territory

  24. Bridge table

  25. Greenhouse gas emissions in the Netherlands

  26. Structural decomposition analyses greenhouse gas emissions
