日期 : 2005/10/05

Oct 06, 2014

140 likes | 263 Views

進度報告. 日期 : 2005/10/05. 找到 NC - NgO, CN - NgO ( Ng = Ar, Kr ) 的 TS 找到 OBO - NgO (Ng = Ar, Kr) 的 TS. Cl - NgO. NC - NgO. CN - NgO. NC - ArO. CN - ArO. OHNgO -. OBO - NgO. OBO - NgO TS. Calculated transition state geometry for the FNgO-  OF - + Ng reaction at various levels.

afia

Download Presentation

日期 : 2005/10/05

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

進度報告 日期: 2005/10/05 • 找到NC-NgO, CN-NgO ( Ng = Ar, Kr )的TS • 找到OBO-NgO (Ng = Ar, Kr)的TS

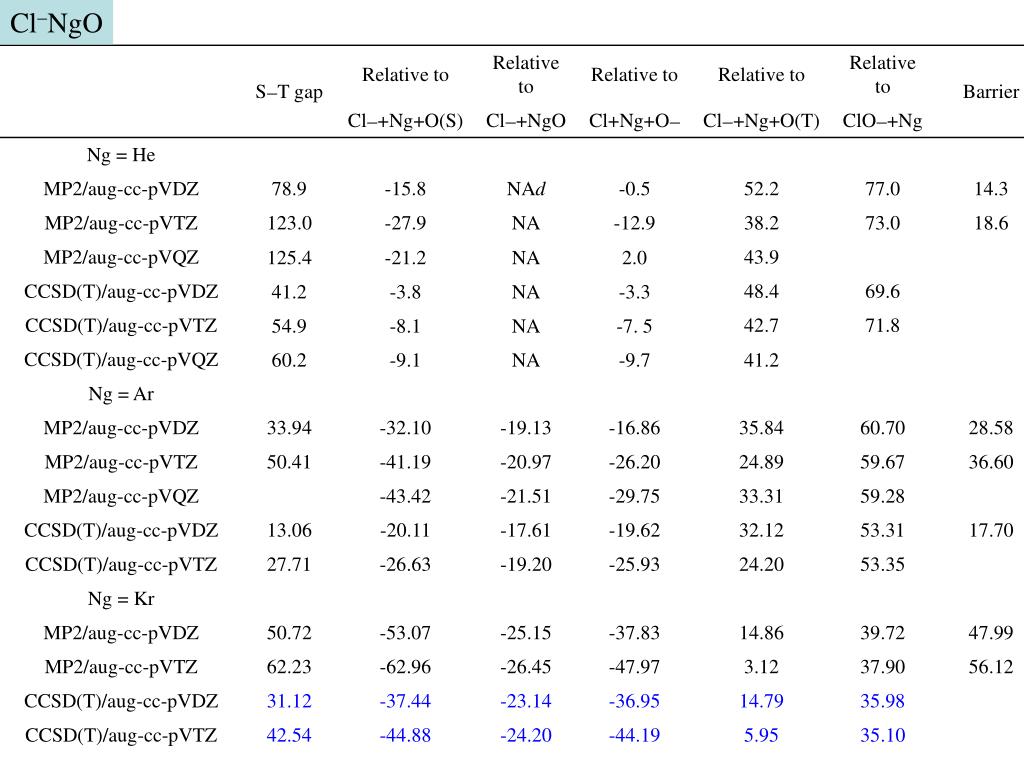

Cl-NgO

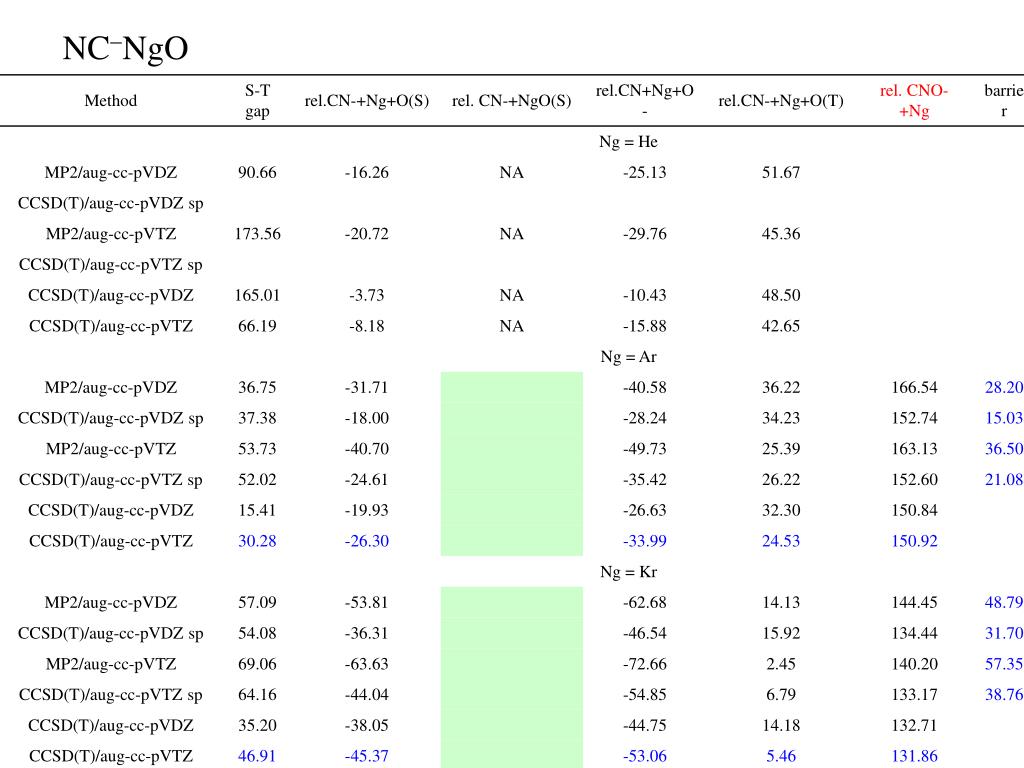

NC-NgO

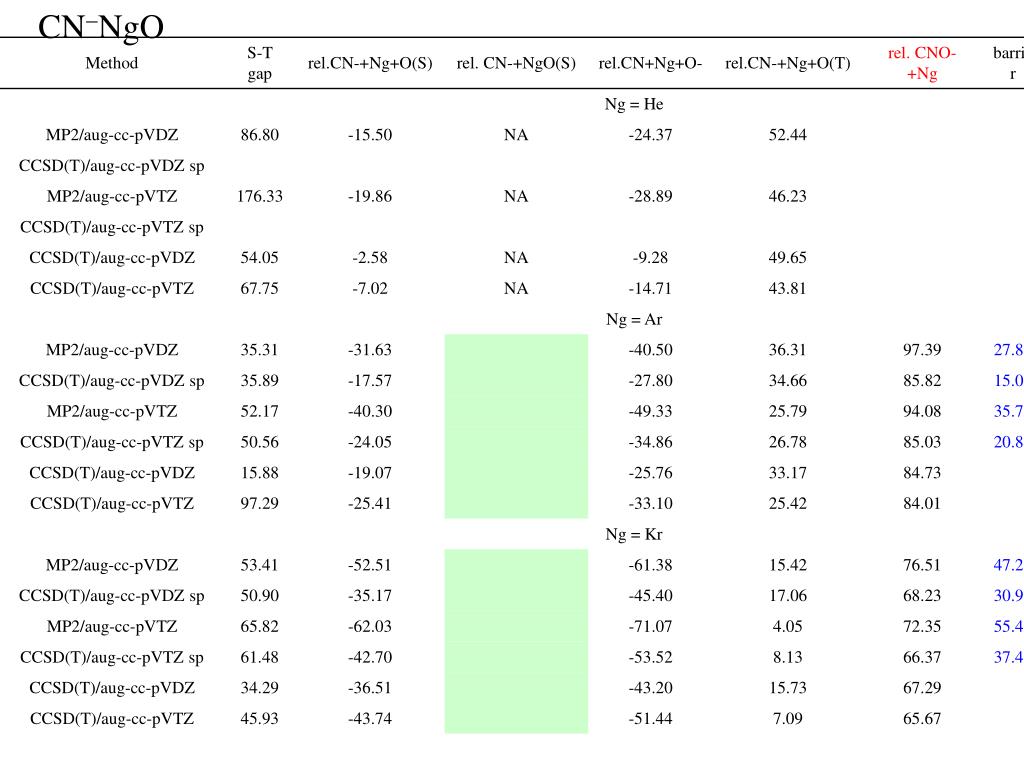

CN-NgO

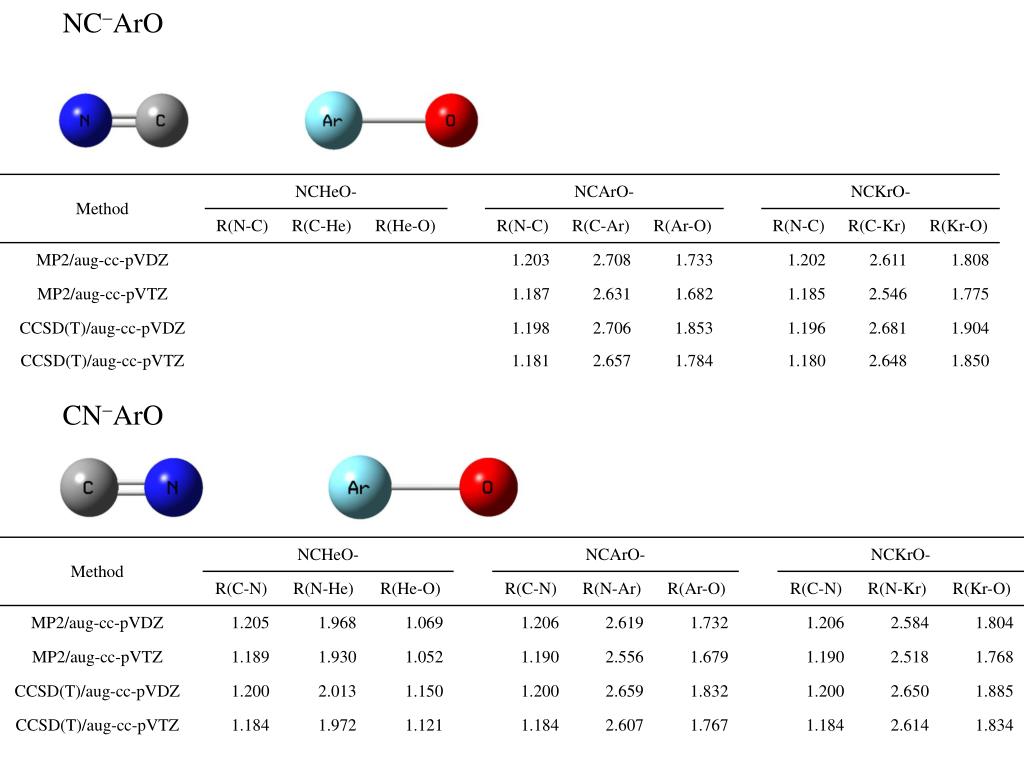

NC-ArO CN-ArO

OHNgO -

OBO-NgO

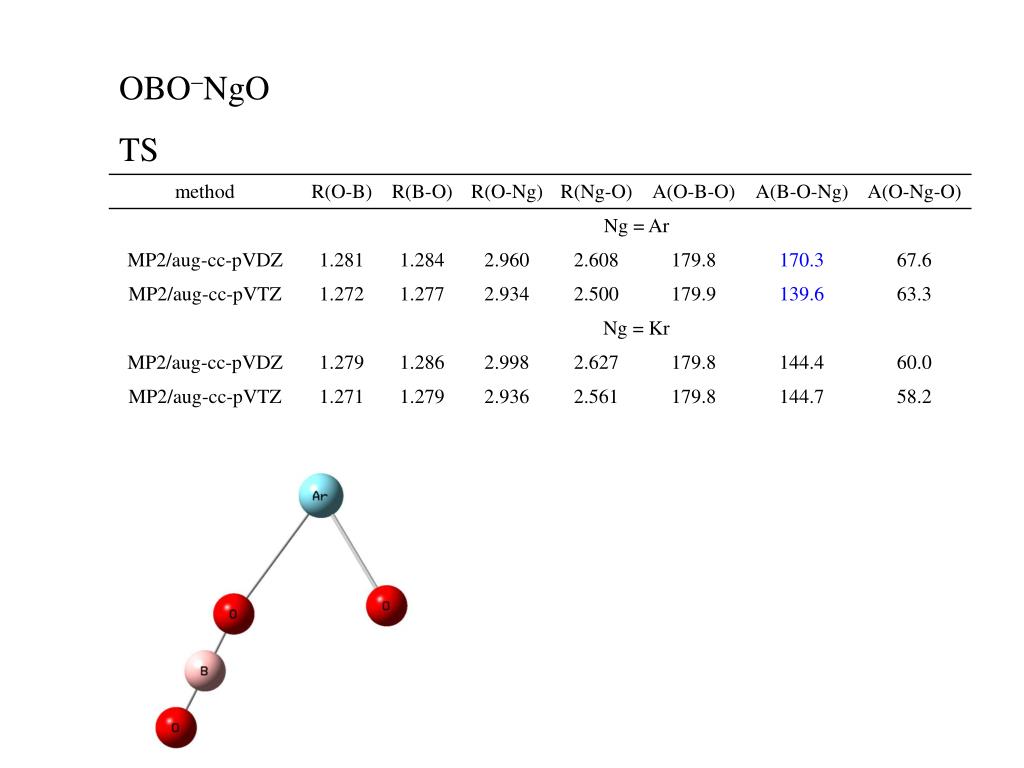

OBO-NgO TS

Calculated transition state geometry for the FNgO-  OF- + Ng reaction at various levels. The bond lengths are in angstroms and the bond angles in degrees.
