  1. Intersection sight triangle CE480 Avd. Highway Design AfshinKarimi Francisco Perez

  2. Right Turn from the Minor Road • A departure sight Triangle would be use. • One Triangle from the left of the stop car on the minor road. • The intersection sight distance is determined similar to case B1. • However you use different time gaps (tg).

  3. Equations • For b: • For a: • a = 14.5 + .5Lw

  4. Time Gaps for Case B2

  5. Design Intersection Sight Distance

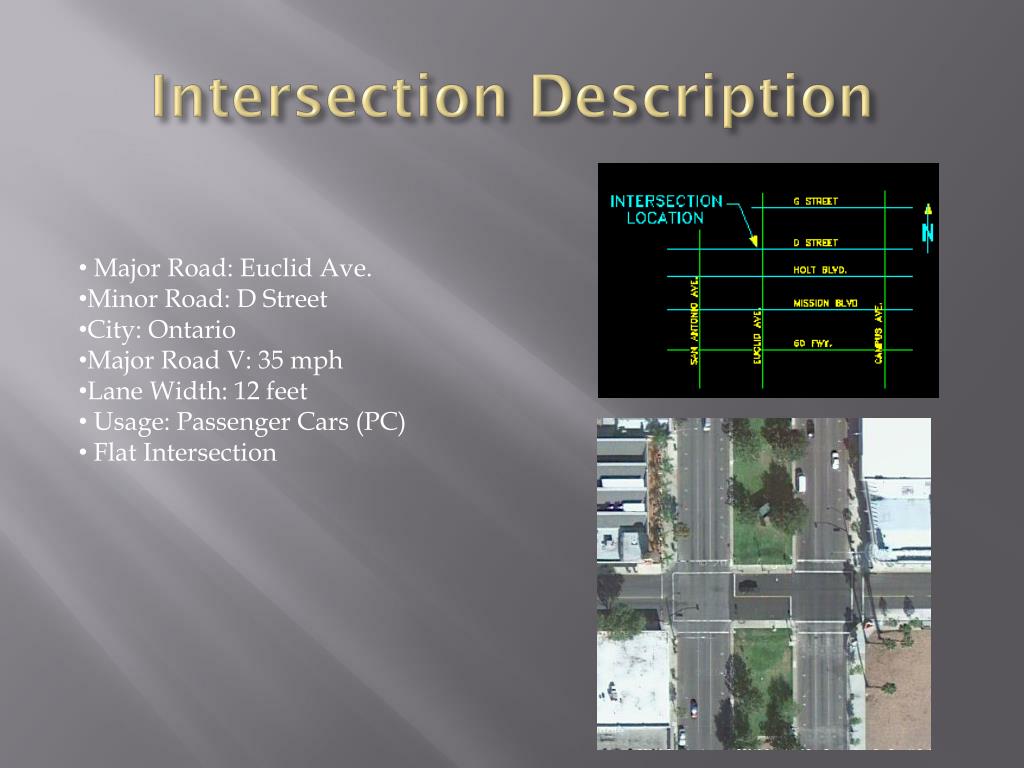

  6. Intersection Description • Major Road: Euclid Ave. • Minor Road: D Street • City: Ontario • Major Road V: 35 mph • Lane Width: 12 feet • Usage: Passenger Cars (PC) • Flat Intersection

  7. Intersection Sight Distance
