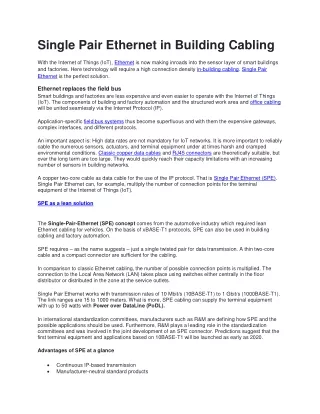

Single Pair Ethernet in Building Cabling

1. Single Pair Ethernet in Building Cabling With the Internet of Things (IoT), Ethernet is now making inroads into the sensor layer of smart buildings and factories. Here technology will require a high connection density in-building cabling. Single Pair Ethernet is the perfect solution. Ethernet replaces the field bus Smart buildings and factories are less expensive and even easier to operate with the Internet of Things (IoT). The components of building and factory automation and the structured work area and office cabling will be united seamlessly via the Internet Protocol (IP). Application-specific field bus systems thus become superfluous and with them the expensive gateways, complex interfaces, and different protocols. An important aspect is: High data rates are not mandatory for IoT networks. It is more important to reliably cable the numerous sensors, actuators, and terminal equipment under at times harsh and cramped environmental conditions. Classic copper data cables and RJ45 connectors are theoretically suitable, but over the long term are too large. They would quickly reach their capacity limitations with an increasing number of sensors in building networks. A copper two-core cable as data cable for the use of the IP protocol. That is Single Pair Ethernet (SPE). Single Pair Ethernet can, for example, multiply the number of connection points for the terminal equipment of the Internet of Things (IoT). SPE as a lean solution The Single-Pair-Ethernet (SPE) concept comes from the automotive industry which required lean Ethernet cabling for vehicles. On the basis of xBASE-T1 protocols, SPE can also be used in building cabling and factory automation. SPE requires – as the name suggests – just a single twisted pair for data transmission. A thin two-core cable and a compact connector are sufficient for the cabling. In comparison to classic Ethernet cabling, the number of possible connection points is multiplied. The connection to the Local Area Network (LAN) takes place using switches either centrally in the floor distributor or distributed in the zone at the service outlets. Single Pair Ethernet works with transmission rates of 10 Mbit/s (10BASE-T1) to 1 Gbit/s (1000BASE-T1). The link ranges are 15 to 1000 meters. What is more, SPE cabling can supply the terminal equipment with up to 50 watts with Power over DataLine (PoDL). In international standardization committees, manufacturers such as R&M are defining how SPE and the possible applications should be used. Furthermore, R&M plays a leading role in the standardization committees and was involved in the joint development of an SPE connector. Predictions suggest that the first terminal equipment and applications based on 10BASE-T1 will be launched as early as 2020. Advantages of SPE at a glance   Continuous IP-based transmission Manufacturer-neutral standard products

2.         Field bus systems no longer necessary Synergies reduce operating expenses Inexpensive, lean, light cables Space-saving and cables quick to lay Higher connection density than with RJ45 Transmission rates to Gbit/s Range up to one kilometer Remote power supply over cables Visit https://aic.in/ for ABB Mini Contactors India, Automotive Cables India, SPD Protective Device, ABB Moulded Case Circuit Breakers, Residential Current Devices India, Line Protection Devices, Air Circuit Breaker Suppliers India, ACB Switchgear, ACB Switchgear Suppliers in India, Switch Gear India, MCCB Switchgear Suppliers India, Soft Starters India, ABB Soft Starters, PSE Soft Starters India, MCR Converter.
