Cable Tray Layout

Cable Tray Layout. 4’. Wolf. Table 1. 8’. 12’. Legend CAS-SB (Splice Hanger) CAC-HTD12B (Tee Connection) C4ADB09-12 (Data-Track). 4’. 6’. Cobra. Table 2. Monkey. 12’. 8’. 5’. 4’. Table 3. 10’. 8’. Components. Components. Components. Price Estimates.

ailsa
Download Presentation

Cable Tray Layout

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

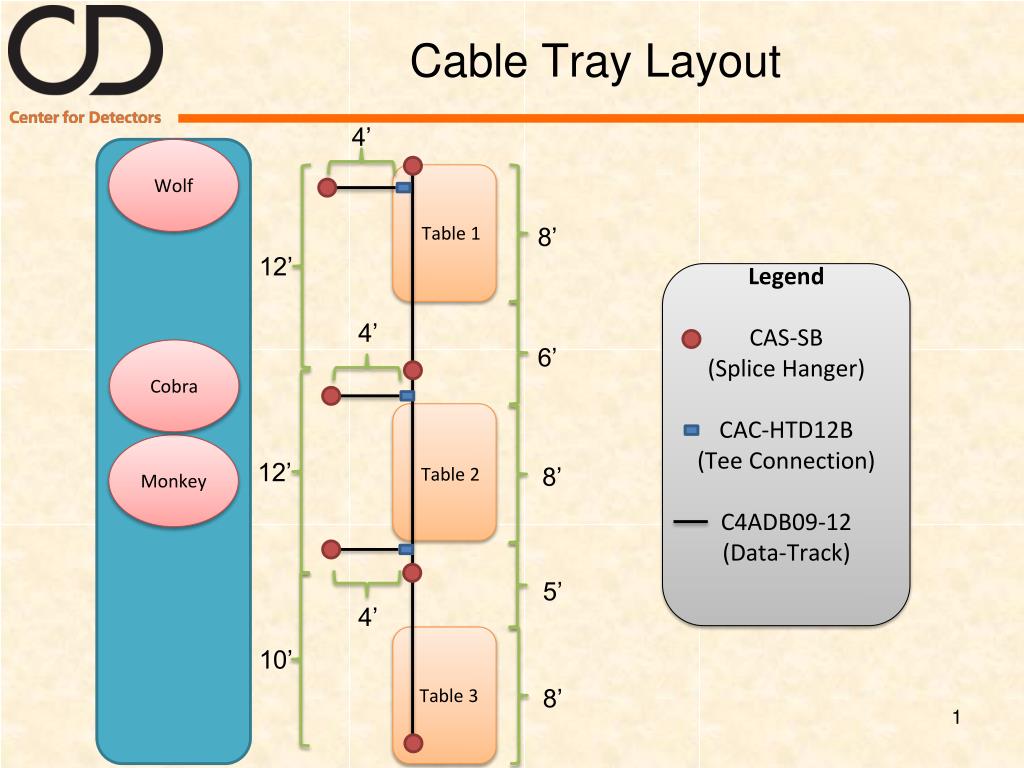

  1. Cable Tray Layout 4’ Wolf Table 1 8’ 12’ Legend CAS-SB (Splice Hanger) CAC-HTD12B (Tee Connection) C4ADB09-12 (Data-Track) 4’ 6’ Cobra Table 2 Monkey 12’ 8’ 5’ 4’ Table 3 10’ 8’

  2. Components

  3. Components

  4. Components

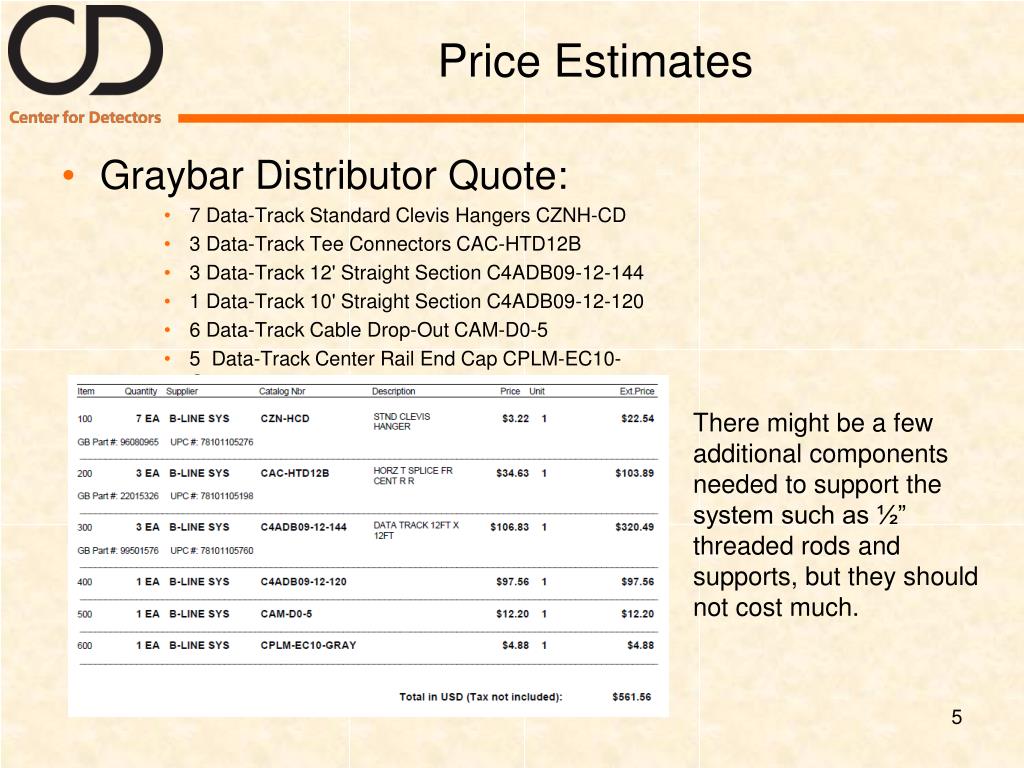

  5. Price Estimates • Graybar Distributor Quote: • 7 Data-Track Standard Clevis Hangers CZNH-CD • 3 Data-Track Tee Connectors CAC-HTD12B • 3 Data-Track 12' Straight Section C4ADB09-12-144 • 1 Data-Track 10' Straight Section C4ADB09-12-120 • 6 Data-Track Cable Drop-Out CAM-D0-5 • 5  Data-Track Center Rail End Cap CPLM-EC10-Gray There might be a few additional components needed to support the system such as ½” threaded rods and supports, but they should not cost much.

  6. Price Estimates • Research Computing Laboratory FMS Quote: • $2800 • 30 feet of MonoSystems Mono-Tray Center Spine Cable Tray • Support was two threaded rods connected with a support beam which the tray sat on. • They went completely through FMS and told them what they wanted and O’Connell Electric priced everything.
