Pin Out 1 – Audio In 2 – Microphone Ground 3 – Push To Talk 4 – 9600 Baud Packet Out

1/8 “ Phone Jack. T. R. DIN. 3. 1. 5. 4. 2. 1. 5. 6. 2. 4. 3. APRS Harness. For TR-7850 and TR-7950. DIN Leads 1 – Microphone Audio 2 – Ground 3 – PTT 4 – Receive Audio 5 – Squelch input. TNC-2. Pin Out 1 – Audio In 2 – Microphone Ground 3 – Push To Talk

ailsa
Download Presentation

Pin Out 1 – Audio In 2 – Microphone Ground 3 – Push To Talk 4 – 9600 Baud Packet Out

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

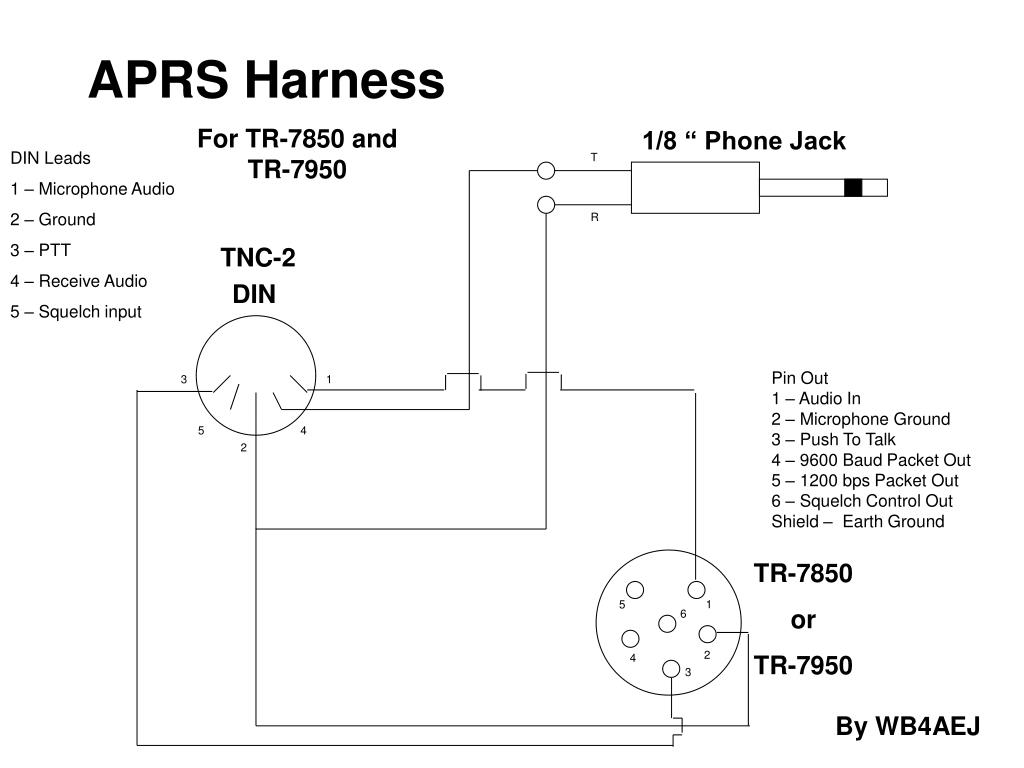

  1. 1/8 “ Phone Jack T R DIN 3 1 5 4 2 1 5 6 2 4 3 APRS Harness For TR-7850 and TR-7950 DIN Leads 1 – Microphone Audio 2 – Ground 3 – PTT 4 – Receive Audio 5 – Squelch input TNC-2 Pin Out 1 – Audio In 2 – Microphone Ground 3 – Push To Talk 4 – 9600 Baud Packet Out 5 – 1200 bps Packet Out 6 – Squelch Control Out Shield – Earth Ground TR-7850 or TR-7950 By WB4AEJ

  2. 1/8 “ Phone Jack T R DIN 3 1 5 4 2 7 1 8 6 2 5 3 4 APRS Harness For TM-211A TNC-2 Pint Out 1 – TX Audio In 2 – PTT 3 – Down 4 – Up 5 – 8 VDC 6 – RX Audio Out 7 – Microphone Ground 8 – Ground DIN Leads 1 – Microphone Audio 2 – Ground 3 – PTT 4 – Receive Audio 5 – Squelch input TM-211A By WB4AEJ

  3. 1/8 “ Phone Jack T R DIN 3 1 5 4 2 1 5 6 2 4 3 7 1 8 6 2 5 3 4 APRS Harness TNC-2 MFJ 1270B TNC-2 DIN Leads 1 – Microphone Audio 2 – Ground 3 – PTT 4 – Receive Audio 5 – Squelch input
