Binary Ionic Compounds

Binary Ionic Compounds. Naming and Writing formulas. Ionic Compounds:. Formed by combining a cation with an anion . Held together by an ionic bond The attractive force between ions of opposite charge. Crystal lattice structure: Repeating ordered pattern of positive and negative ions

alban
Download Presentation

Binary Ionic Compounds

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Binary Ionic Compounds Naming and Writing formulas

  2. Ionic Compounds: • Formed by combining a cationwith an anion. • Held together by an ionic bond • The attractive force between ions of opposite charge. • Crystal lattice structure: • Repeating ordered pattern of positive and negative ions • Represented by a formula unit • Displays the lowest ratio of ions in the crystal • Example: CaCl2

  3. Example of a crystal structure

  4. Forming Cations and anions • Cation: Positively charged ion formed by an atom losing one or more electrons; usually a metal • Example: calcium loses two electron. • Anion: Negatively charged ion formed by an atom gaining one or more electrons; usually a nonmetal. • Example: chlorine gains one electron.

  5. Learning Check: • Determine the number of electrons either lost or gained when forming the following ions: • S-2 • Na+1 • Al+3 • Br-1 • N-3 • Are the ions listed above cations or anions? • 1. • 2. • 3. • 4. • 5.

  6. Naming Binary ionic compounds • Binary = 2 elements (metal w/ one nonmetal) • Step #1: • Name the cation first. • Step #2: • Name the anion using the –ide ending. • Example: • 1) BaF2 • Barium fluoride • *subscript does not effect the naming

  7. Learning Check • Answers: • Sodium oxide • Magnesium iodide • Calcium bromide • Lithium sulfide • Name the following ionic compounds: a. NaO b. MgI2 c. CaBr2 d. Li2S

  8. Writing Formulas Binary Ionic Formulas

  9. How do we know the Ion’s Charge? • Group 1 = +1 • Group 2 = +2 • Group 13 = +3 • Group 15 Nonmetals = -3 • Group 16 Nonmetals = -2 • Group 17 = -1 • For Groups 3 -12 and Sn & Pb: • Roman Numerals equal positive charge • Example: Iron (III) = Fe+3 • Copper (II) = Cu +2

  10. Goal = Balance charges • The sum of the positive charges must equal the sum of the negative charges. • Overall charge equals zero! • Example: • Why is calcium chloride’s formula CaCl2 not just CaCl? • Ca+2 • Cl-1 • You need 2(-1) chloride ions to balance the 1(+2) calcium ion.

  11. Writing formulas • Example: • Magnesium fluoride • Write formulas for ions with charges. • Cation first, anion second. • Check to see if charges are balanced • Add subscripts to balance charges if necessary. • Always need lowest ratio of ions

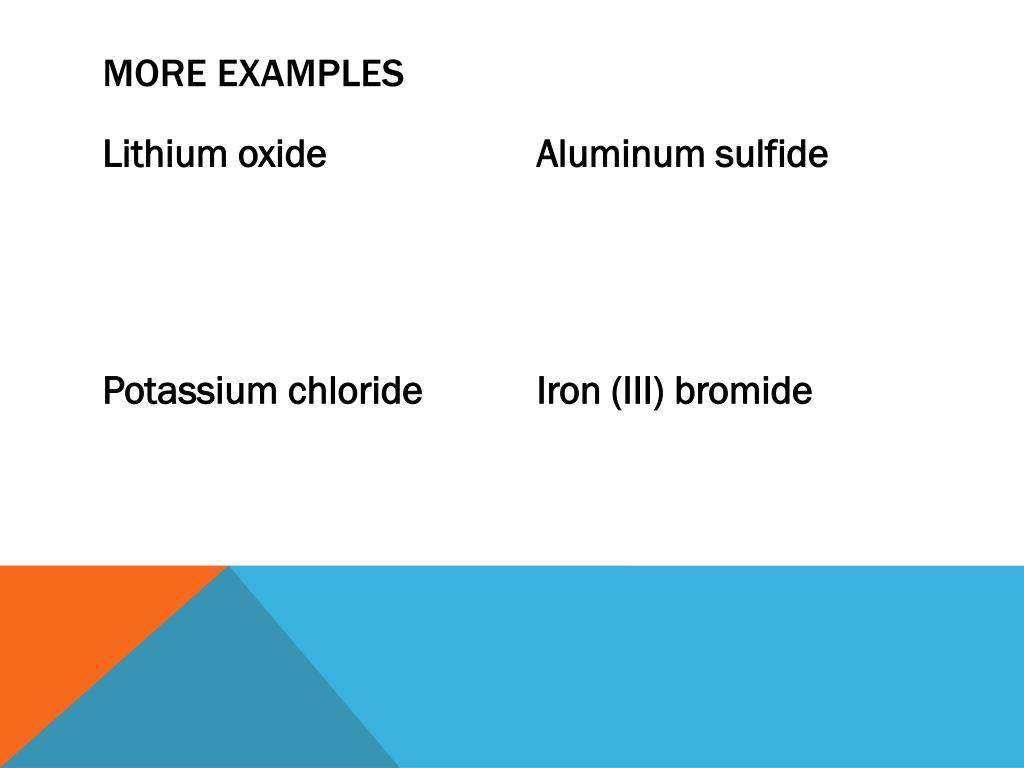

  12. More examples • Aluminum sulfide • Iron (III) bromide • Lithium oxide • Potassium chloride

  13. Learning Check • Write the formulas for the following binary ionic compounds: • Manganese (III) oxide • Strontium sulfide • Calcium iodide • Chromium (VI) fluoride

  14. Learning Check Answers • Manganese (III) oxide • Mn2O3 • 2. Strontium sulfide • SrS • 3. Calcium iodide • CaI2 • 4. Chromium (VI) fluoride • CrF6
