  1. Thanks to the Susan Harwood Program Grant

  2. Excavation Safety Competent Person Training Program Part 2

  3. Protective Systems Shoring Shielding Sloping

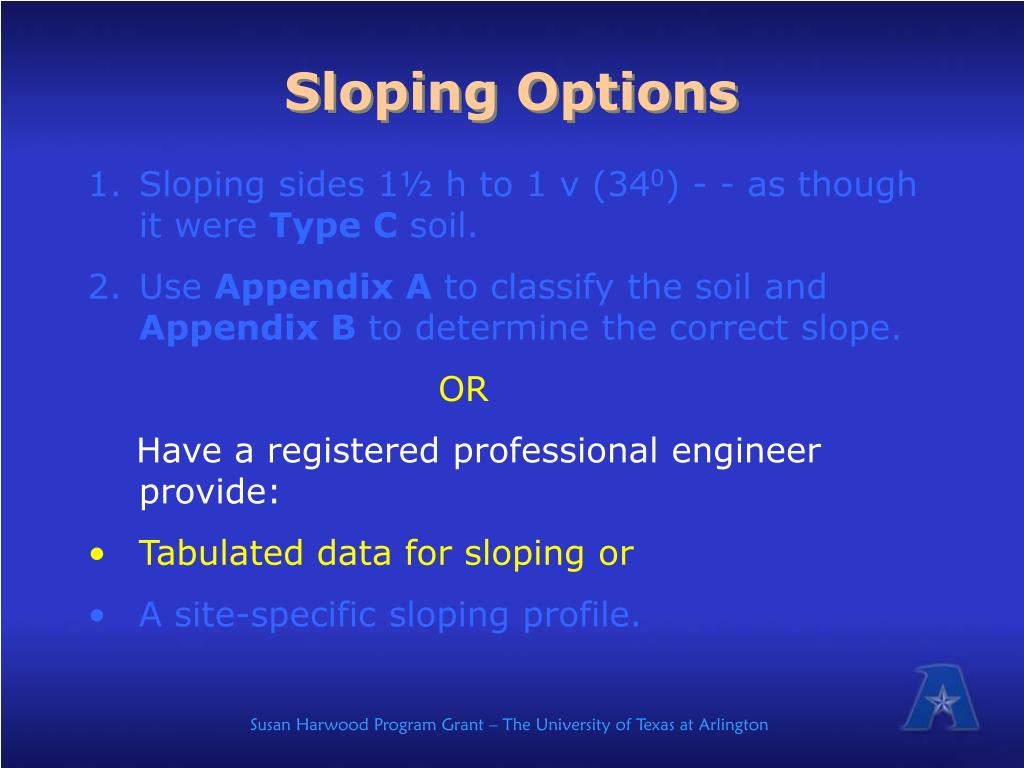

  4. Sloping Options • Sloping sides 1½ h to 1 v (340) - - as though it were Type C soil. • Use Appendix A to classify the soil and Appendix B to determine the correct slope. • OR • Have a registered professional engineer provide: • Tabulated data for sloping or • A site-specific sloping profile.

  5. Sloping Options • Sloping sides 1½ h to 1 v (340) - - as though it were Type C soil. • Use Appendix A to classify the soil and Appendix B to determine the correct slope. • OR • Have a registered professional engineer provide: • Tabulated data for sloping or • A site-specific sloping profile.

  6. Sloping Options • Sloping sides 1½ h to 1 v (340) - - as though it were Type C soil. • Use Appendix A to classify the soil and Appendix B to determine the correct slope. • OR • Have a registered professional engineer provide: • Tabulated data for sloping or • A site-specific sloping profile.

  7. Sloping Options • Sloping sides 1½ h to 1 v (340) - - as though it were Type C soil. • Use Appendix A to classify the soil and Appendix B to determine the correct slope. • OR • Have a registered professional engineer provide: • Tabulated data for sloping or • A site-specific sloping profile.

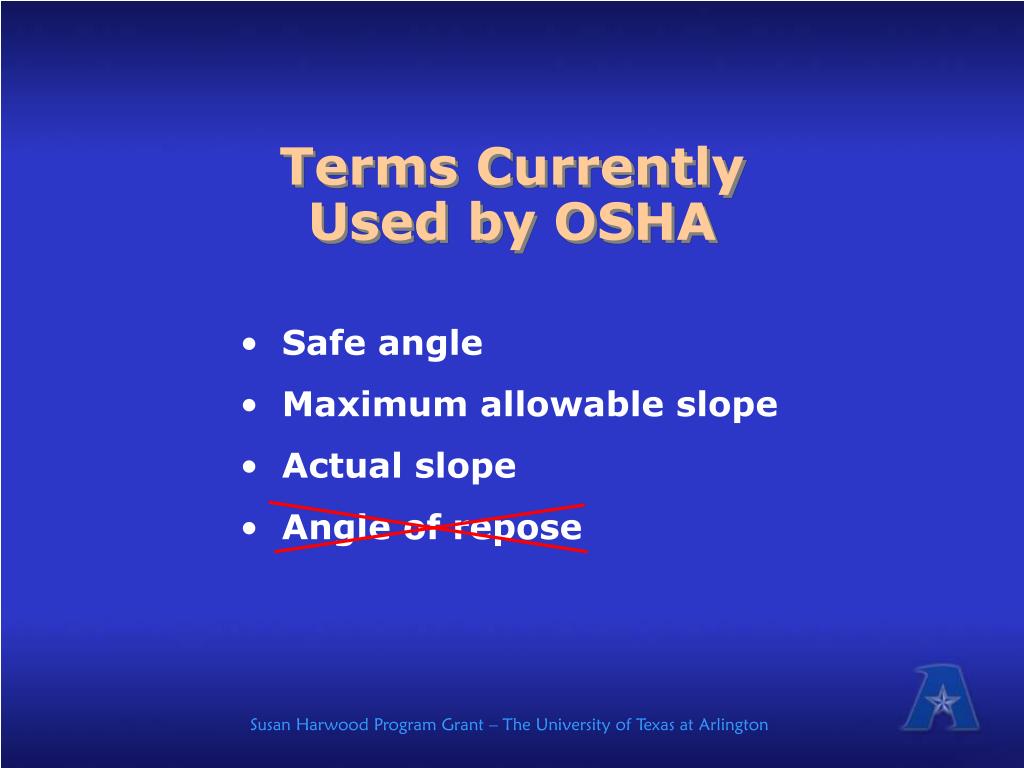

  8. Terms Currently Used by OSHA • Safe angle • Maximum allowable slope • Actual slope • Angle of repose

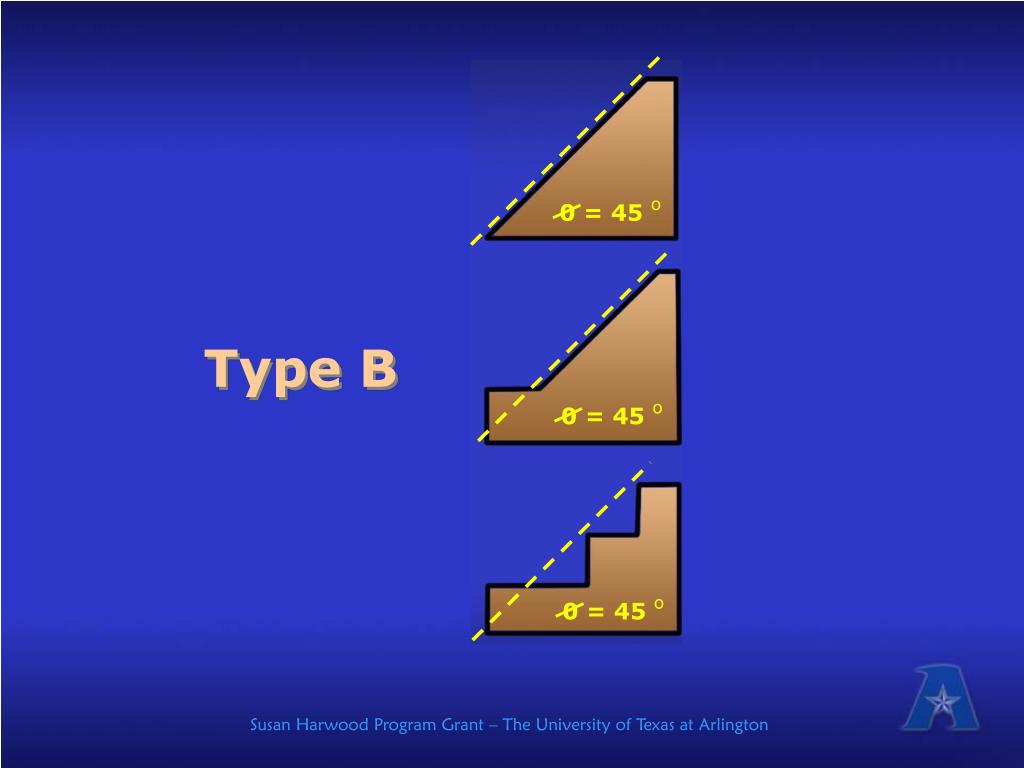

  9. o o o 0 = 45 0 = 45 0 = 45 Type B

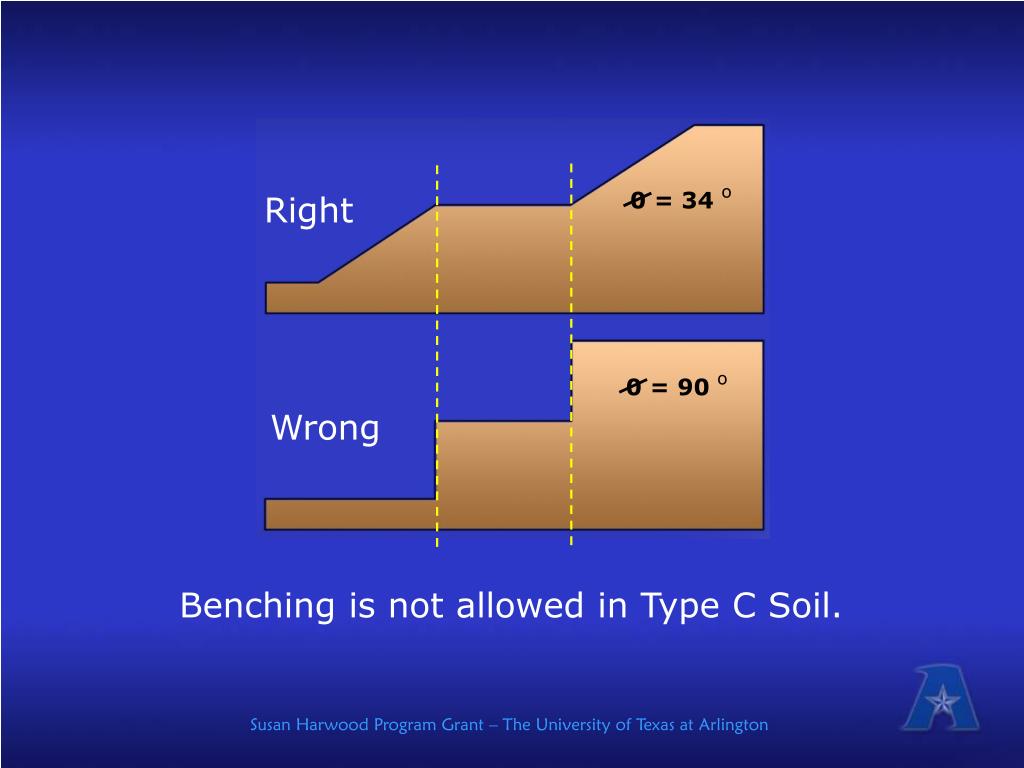

  10. o 0 = 34 Right o 0 = 90 Wrong Benching is not allowed in Type C Soil.

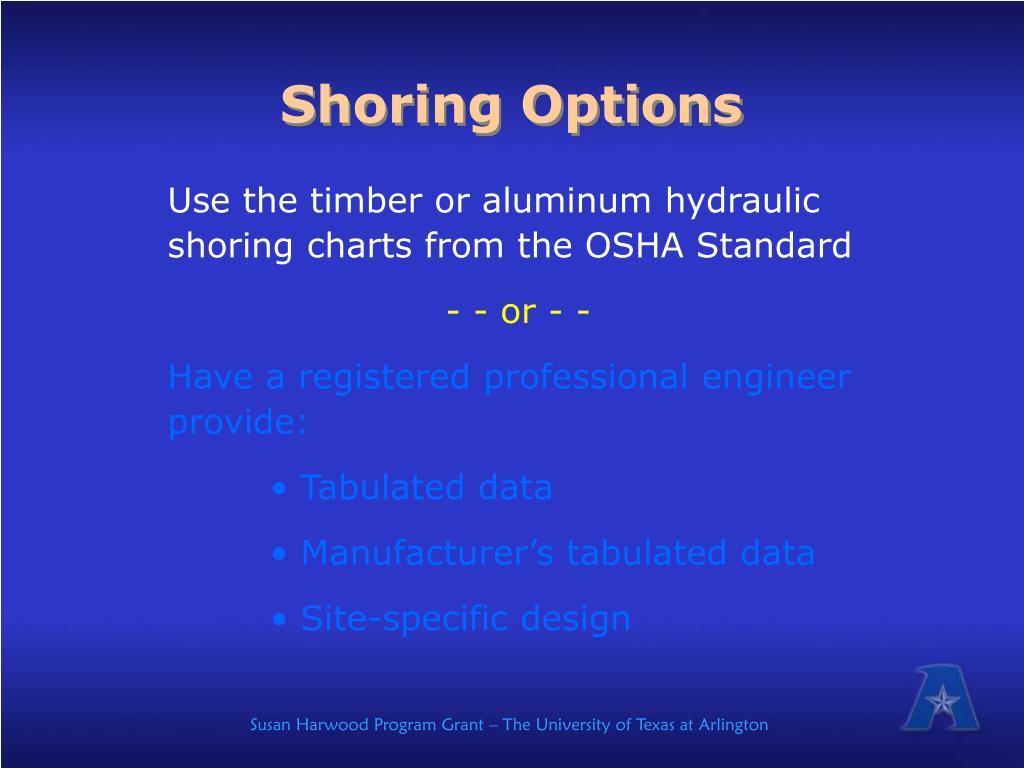

  11. Shoring Options • Use the timber or aluminum hydraulic shoring charts from the OSHA Standard • - - or - - • Have a registered professional engineer provide: • Tabulated data • Manufacturer’s tabulated data • Site-specific design

  12. Shoring Options • Use the timber or aluminum hydraulic shoring charts from the OSHA Standard • - - or - - • Have a registered professional engineer provide: • Tabulated data • Manufacturer’s tabulated data • Site-specific design

  13. Shoring Options • Use the timber or aluminum hydraulic shoring charts from the OSHA Standard • - - or - - • Have a registered professional engineer provide: • Tabulated data • Manufacturer’s tabulated data • Site-specific design

  14. Shoring Options • Use the timber or aluminum hydraulic shoring charts from the OSHA Standard • - - or - - • Have a registered professional engineer provide: • Tabulated data • Manufacturer’s tabulated data • Site-specific design

  15. Overloading Do not exceed allowable surcharge loads.

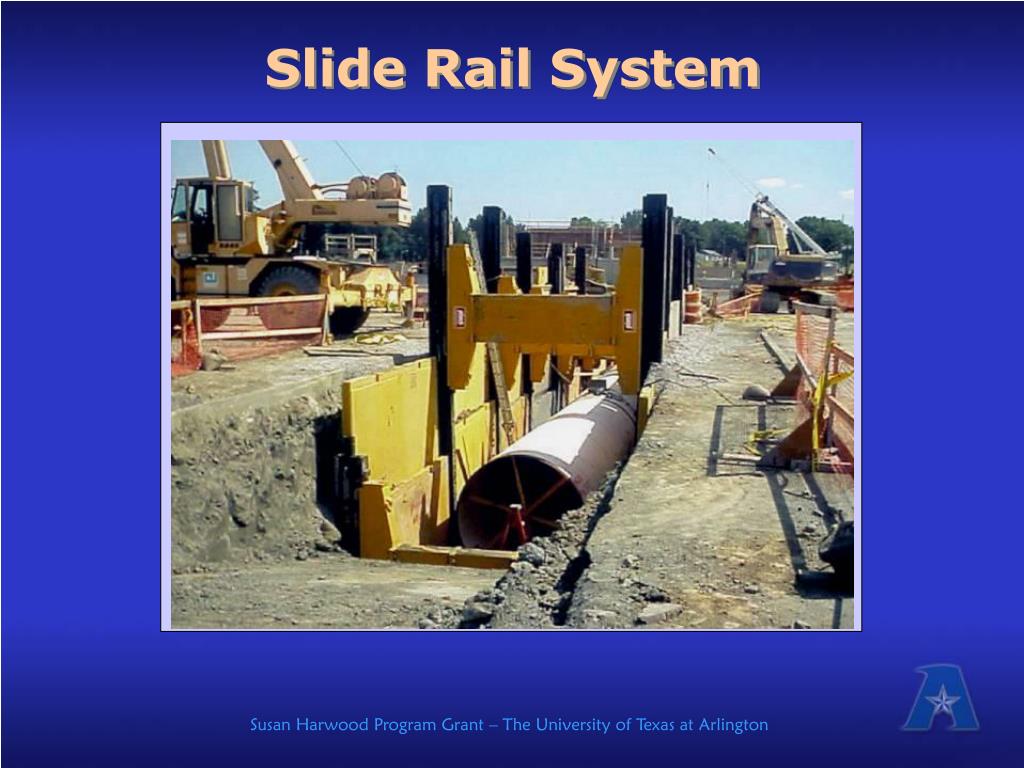

  16. Slide Rail System

  17. Slide Rail System

  18. Installation of a Vertical Shore

  19. Installation of a Vertical Shore

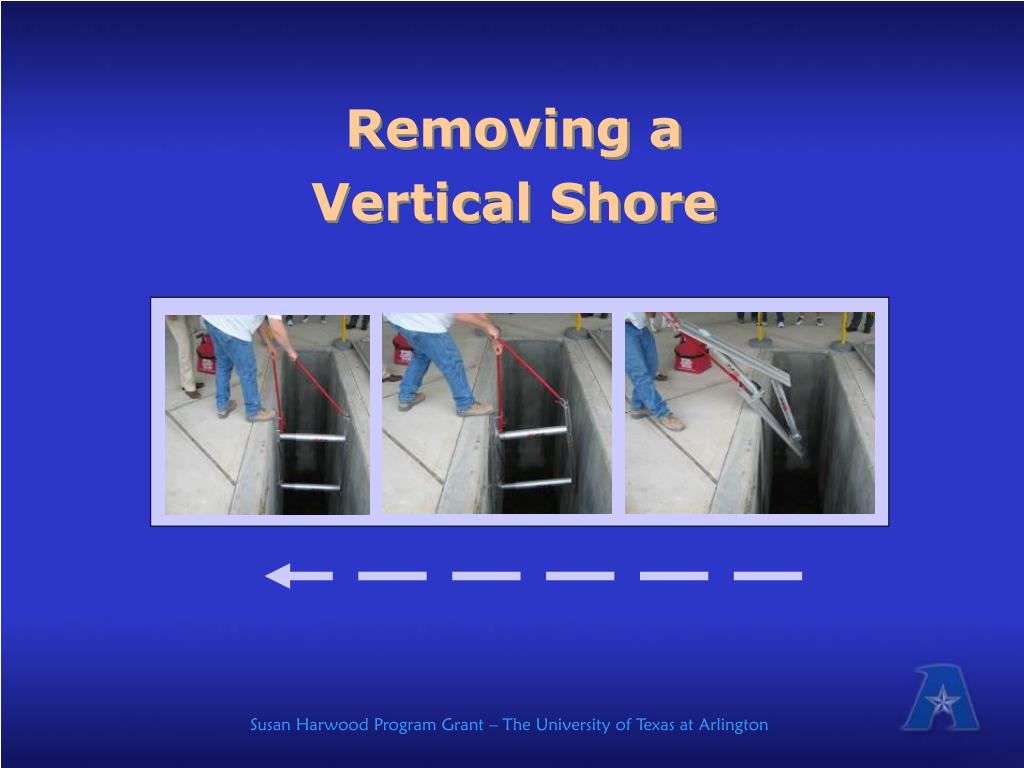

  20. Removing a Vertical Shore

  21. Environmentally Friendly Shoring Fluid
