  1. Kernel Methods Arie Nakhmani

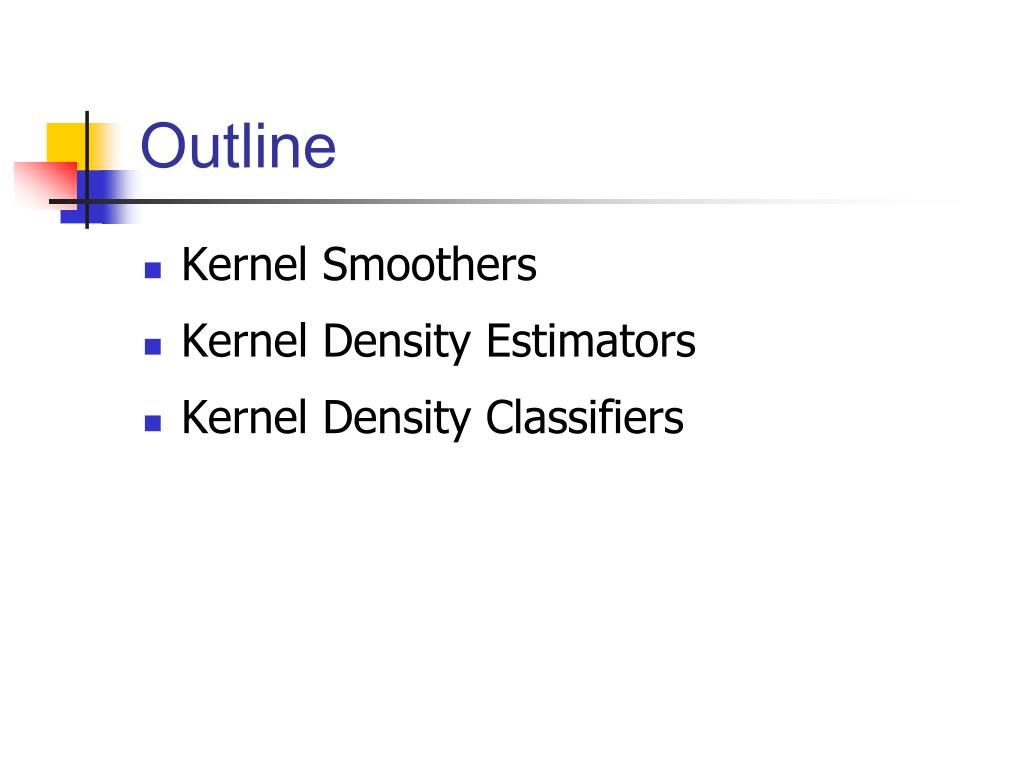

  2. Outline • Kernel Smoothers • Kernel Density Estimators • Kernel Density Classifiers

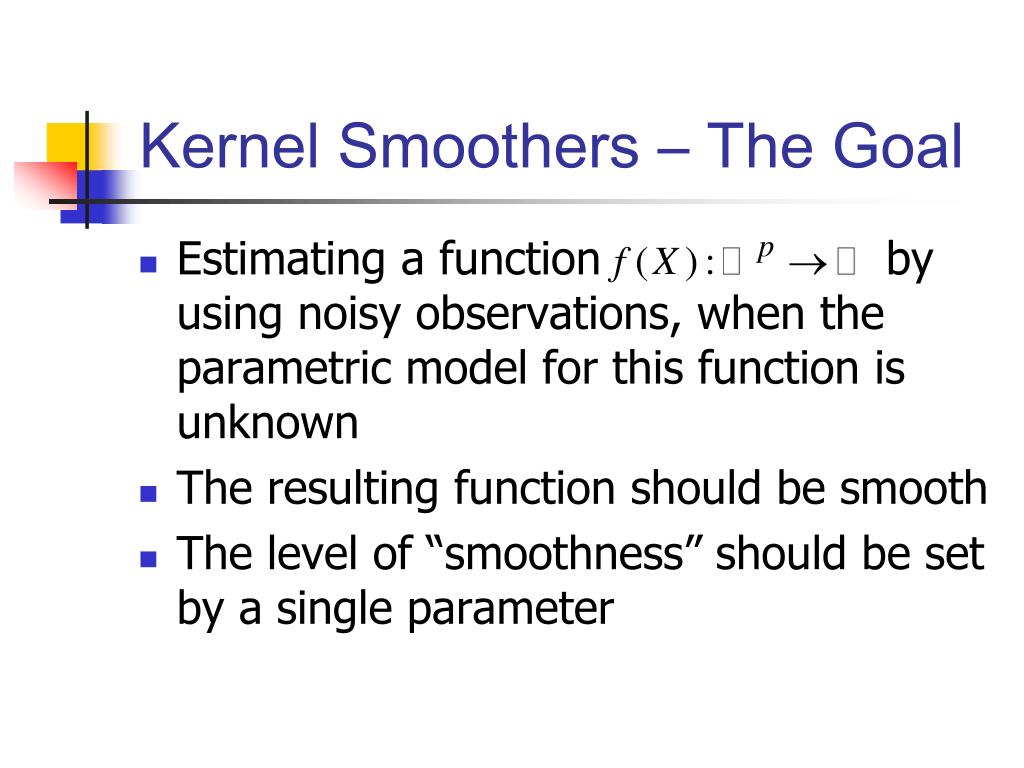

  3. Kernel Smoothers – The Goal • Estimating a function by using noisy observations, when the parametric model for this function is unknown • The resulting function should be smooth • The level of “smoothness” should be set by a single parameter

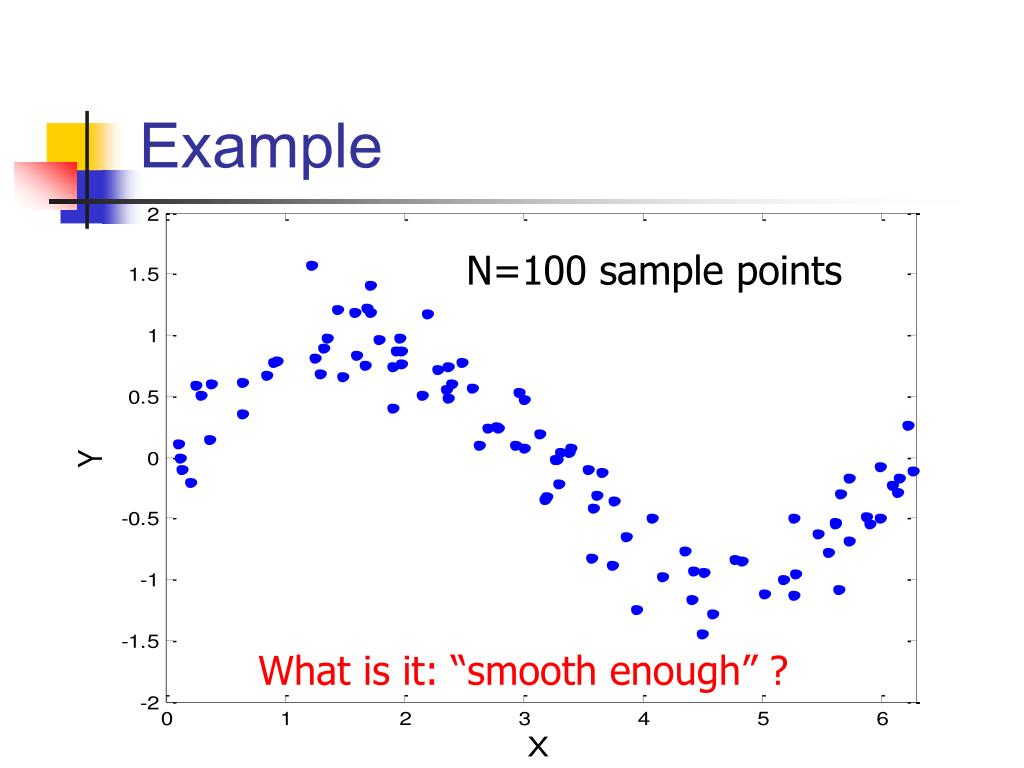

  4. Example N=100 sample points What is it: “smooth enough” ?

  5. Example N=100 sample points

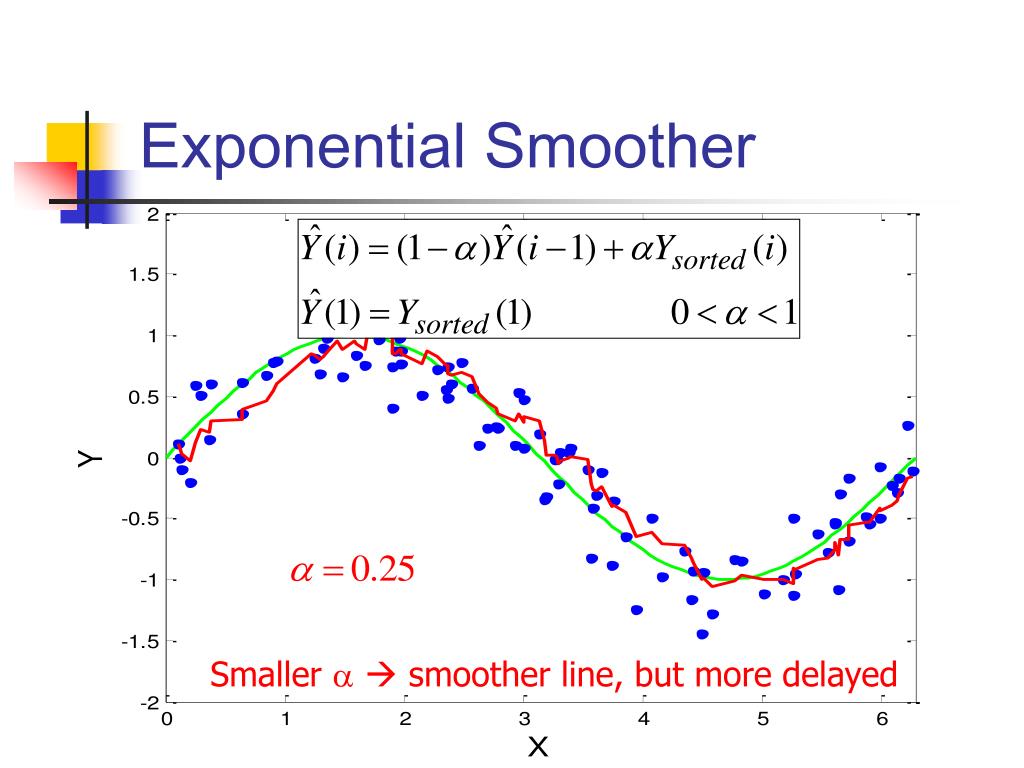

  6. Exponential Smoother Smaller a smoother line, but more delayed

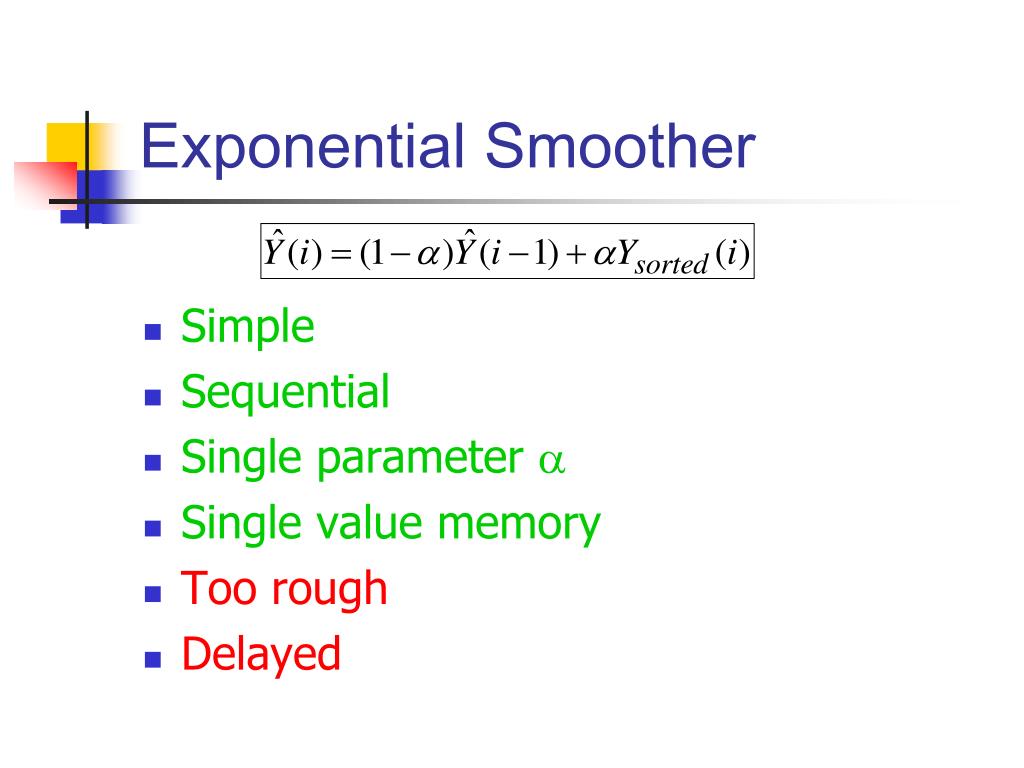

  7. Exponential Smoother • Simple • Sequential • Single parameter a • Single value memory • Too rough • Delayed

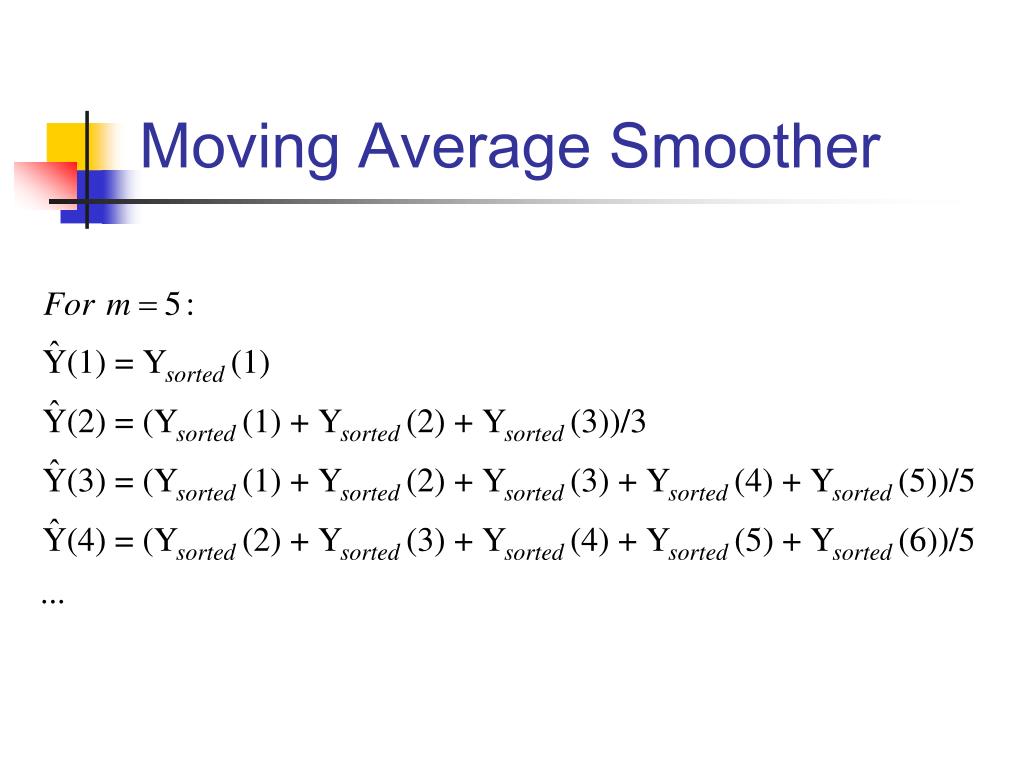

  8. Moving Average Smoother

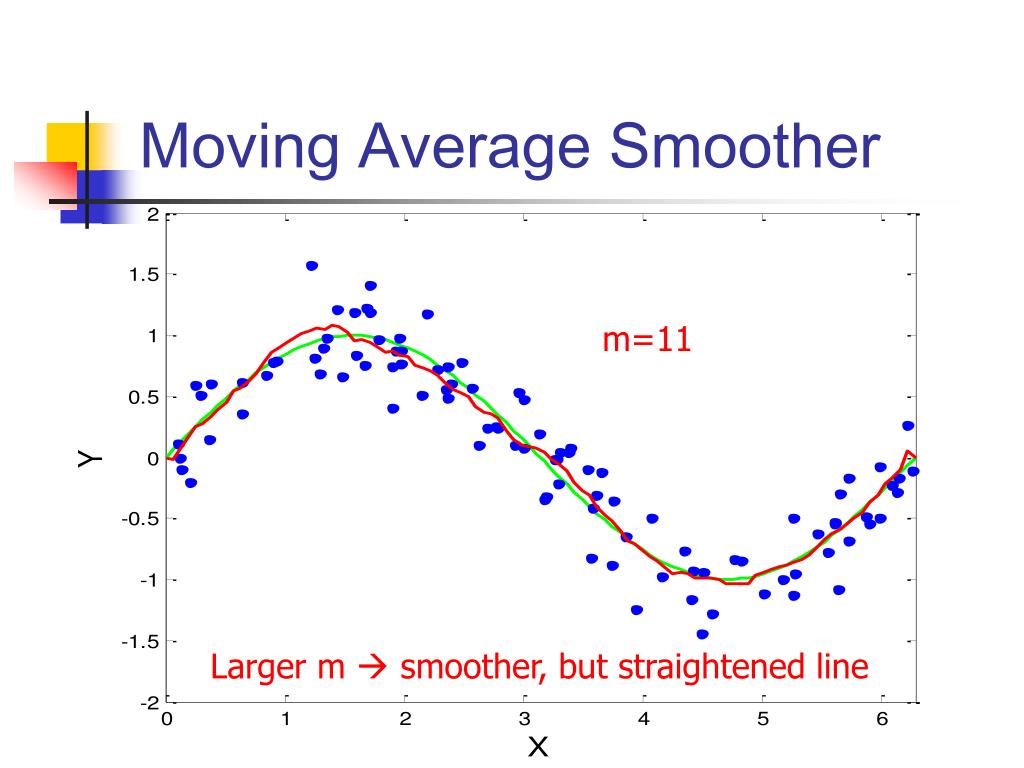

  9. Moving Average Smoother m=11 Larger m  smoother, but straightened line

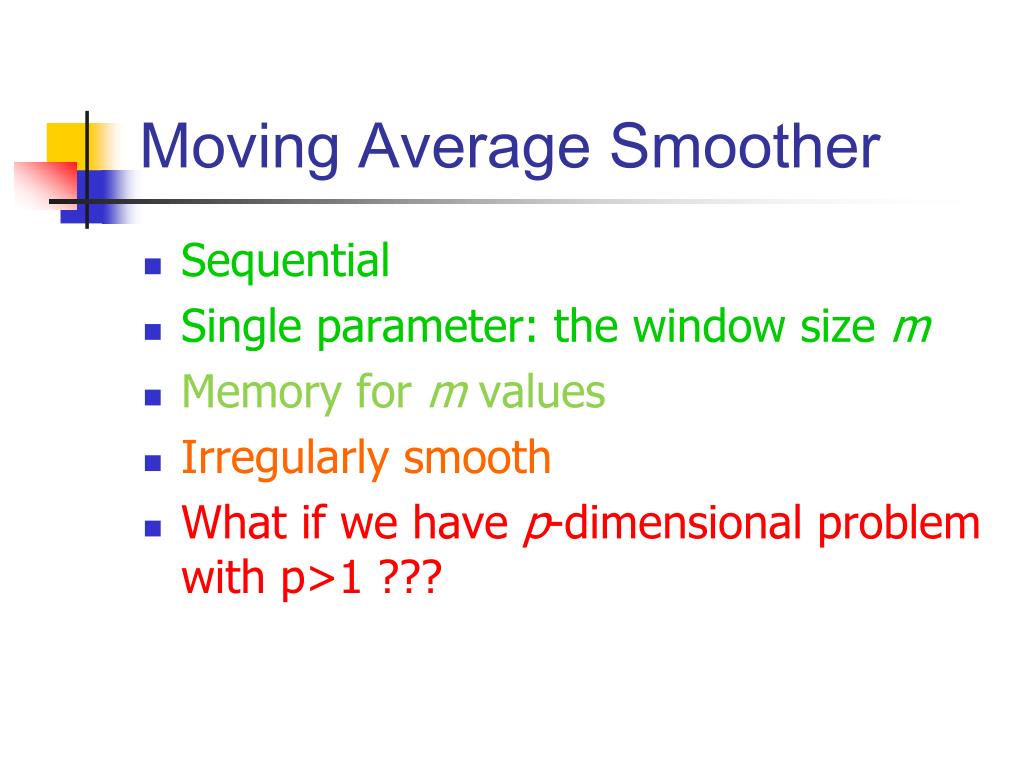

  10. Moving Average Smoother • Sequential • Single parameter: the window size m • Memory for m values • Irregularly smooth • What if we have p-dimensional problem with p>1 ???

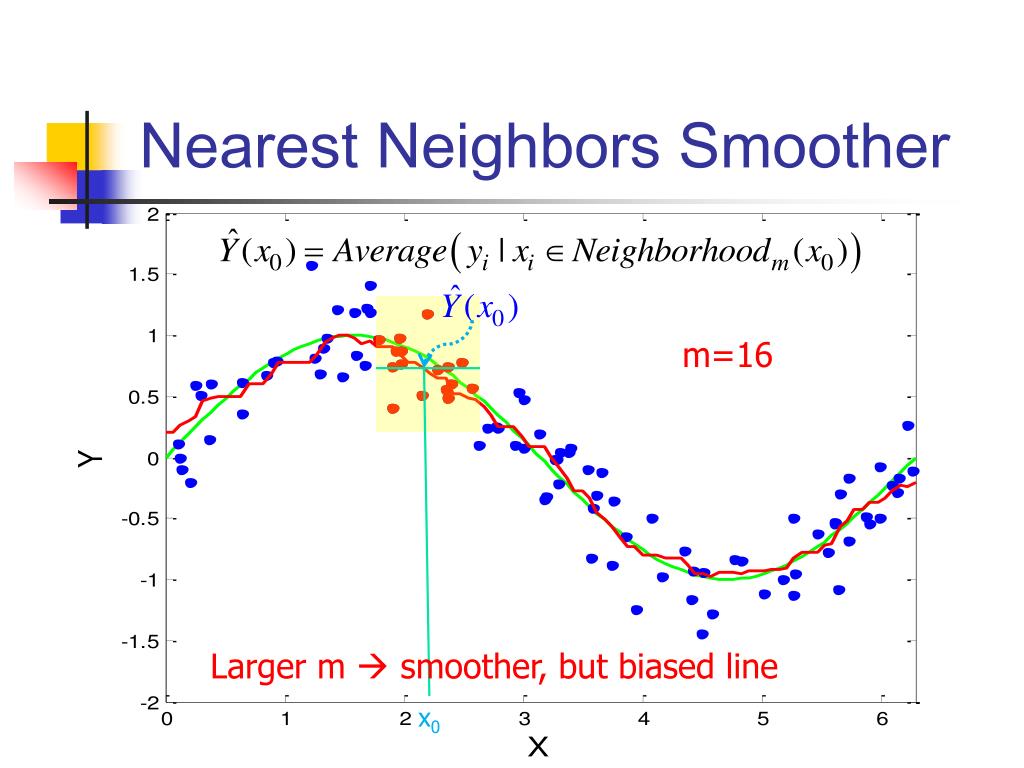

  11. Nearest Neighbors Smoother m=16 Larger m  smoother, but biased line x0

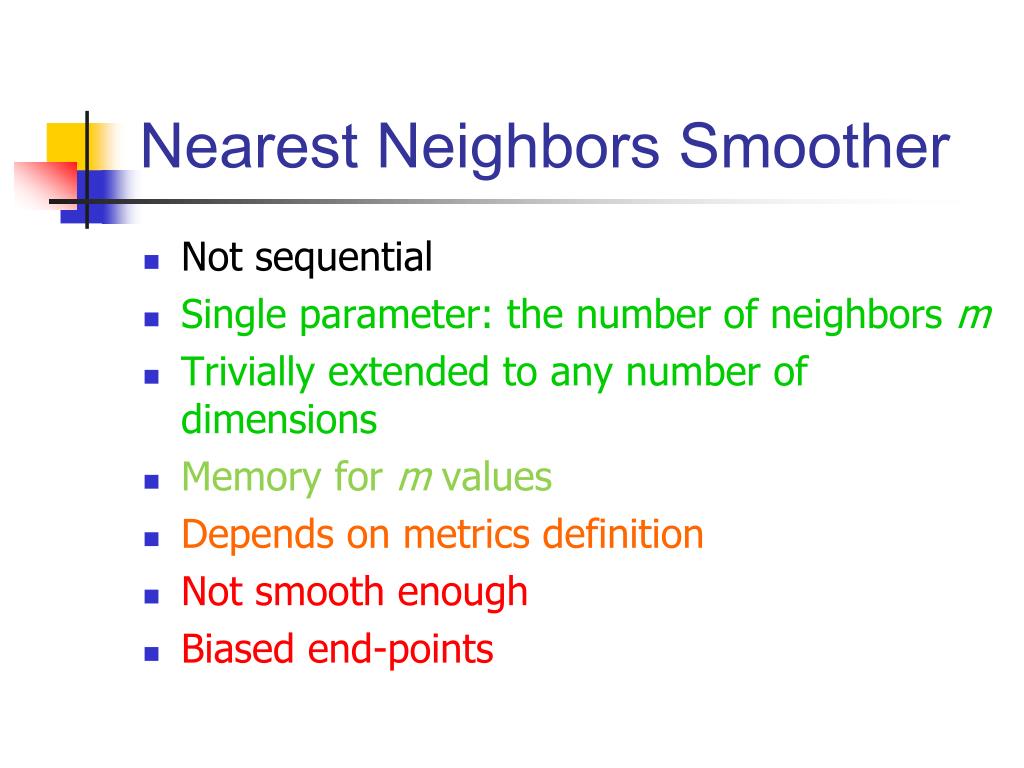

  12. Nearest Neighbors Smoother • Not sequential • Single parameter: the number of neighbors m • Trivially extended to any number of dimensions • Memory for m values • Depends on metrics definition • Not smooth enough • Biased end-points

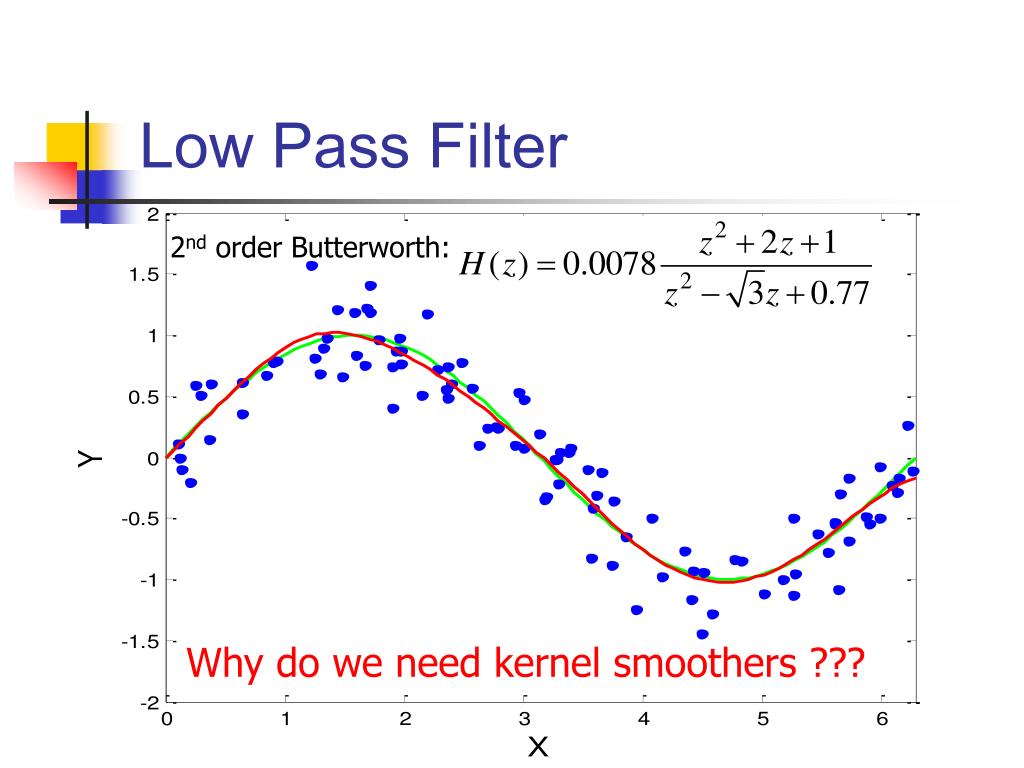

  13. Low Pass Filter 2nd order Butterworth: Why do we need kernel smoothers ???

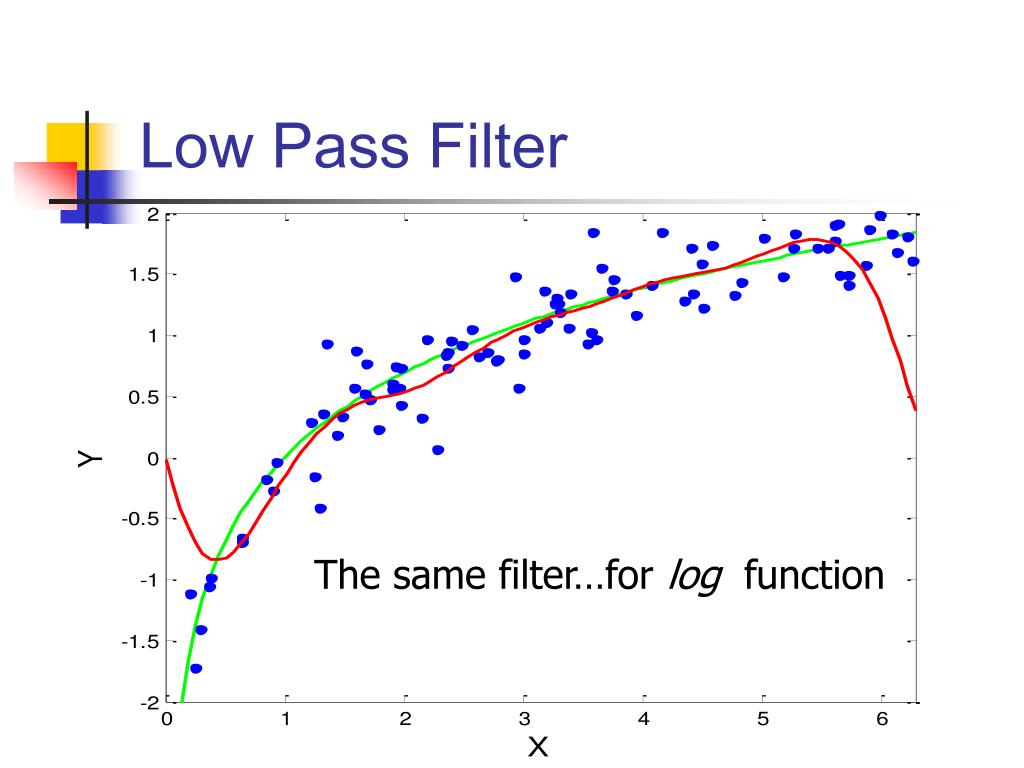

  14. Low Pass Filter The same filter…for log function

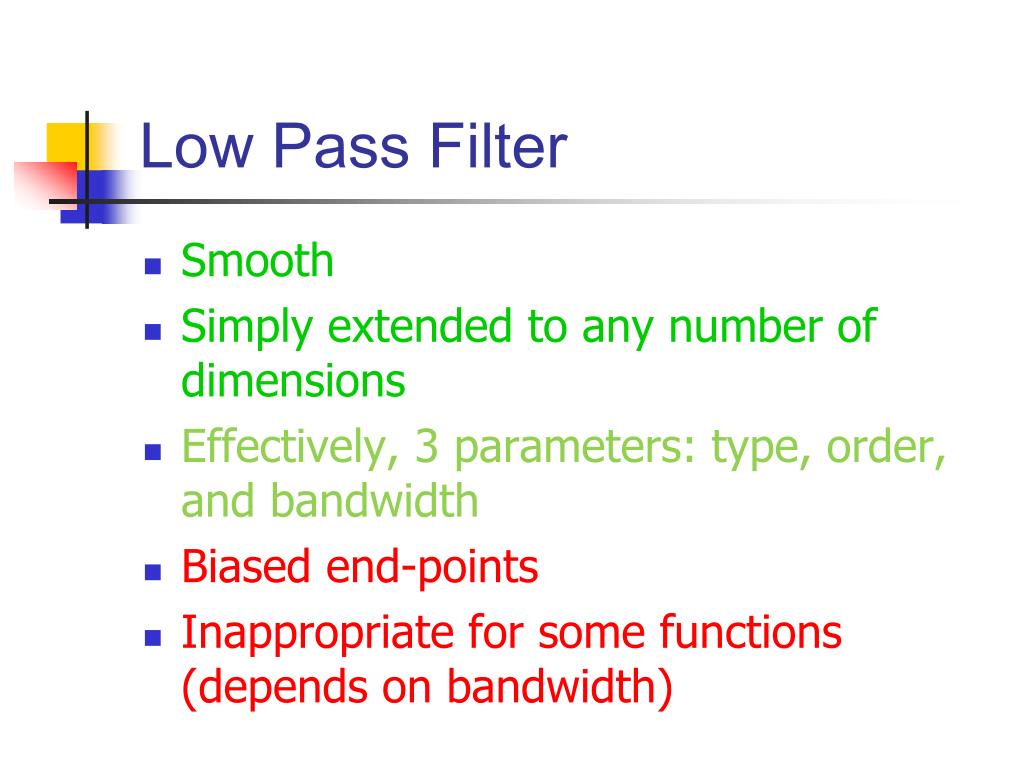

  15. Low Pass Filter • Smooth • Simply extended to any number of dimensions • Effectively, 3 parameters: type, order, and bandwidth • Biased end-points • Inappropriate for some functions (depends on bandwidth)

  16. Kernel Average Smoother x0

  17. Kernel Average Smoother • Nadaraya-Watson kernel-weighted average: with the kernel: • for Nearest Neighbor Smoother • for Locally Weighted Average t

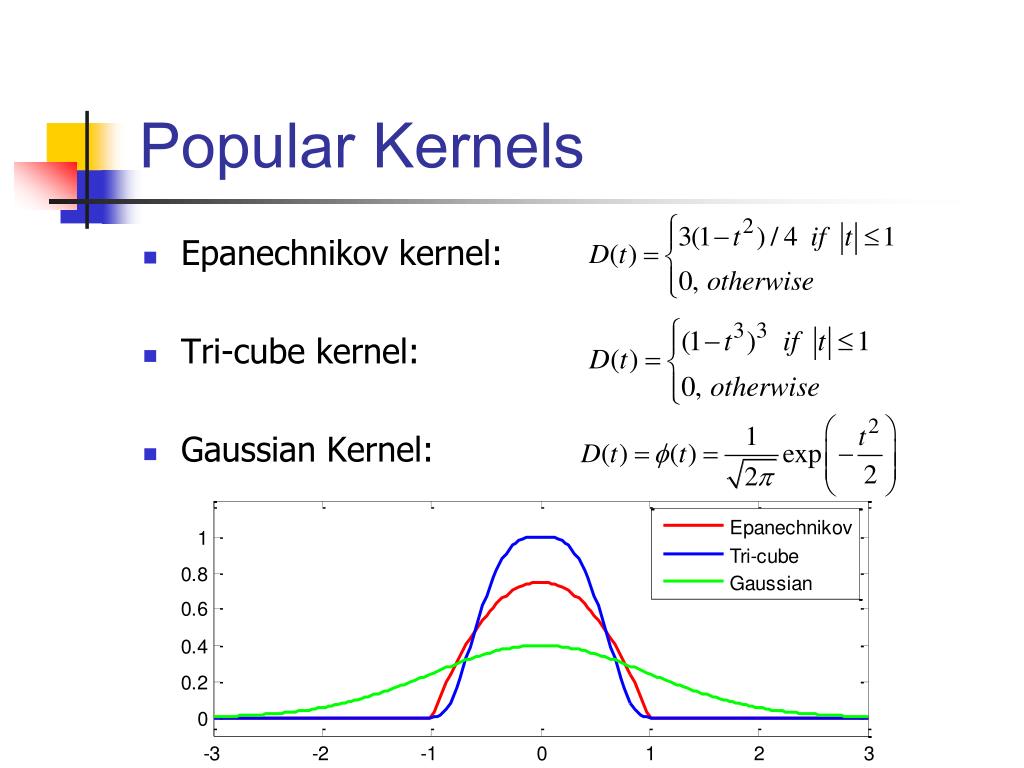

  18. Popular Kernels • Epanechnikov kernel: • Tri-cube kernel: • Gaussian Kernel:

  19. Non-Symmetric Kernel • Kernel example: Which kernel is that ???

  20. Kernel Average Smoother • Single parameter: window width • Smooth • Trivially extended to any number of dimensions • Memory-based method – little or no training is required • Depends on metrics definition • Biased end-points

  21. Local Linear Regression • Kernel-weighted average minimizes: • Local linear regression minimizes:

  22. Local Linear Regression • Solution: where: • Other representation: equivalent kernel

  23. Local Linear Regression x0

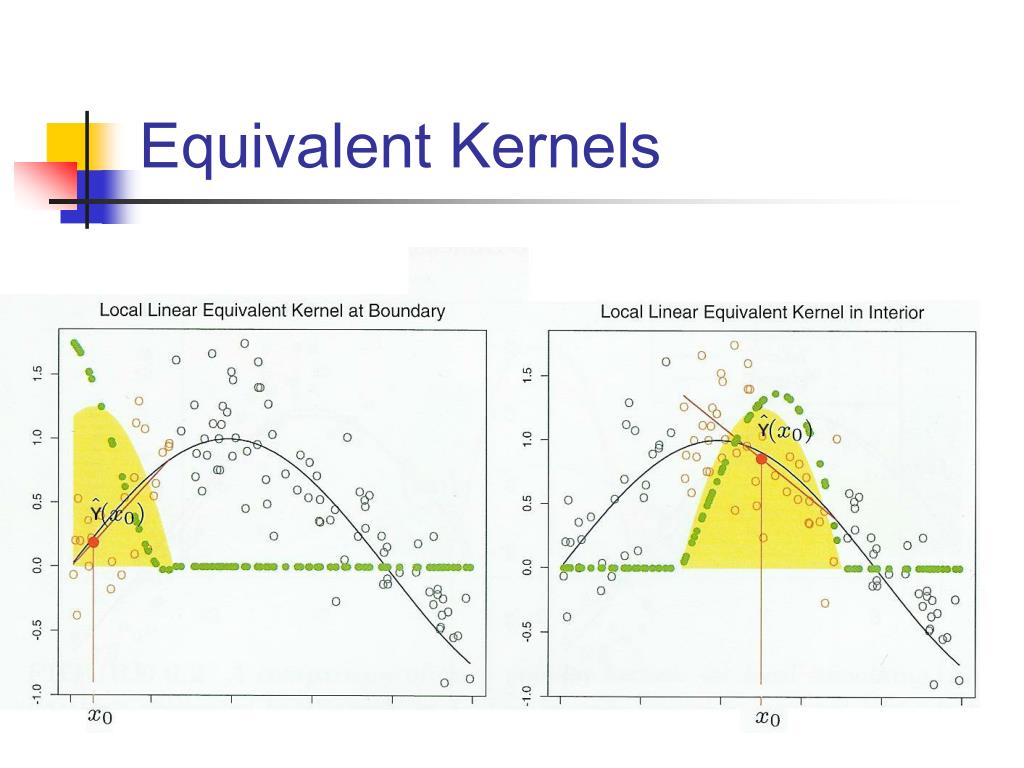

  24. Equivalent Kernels

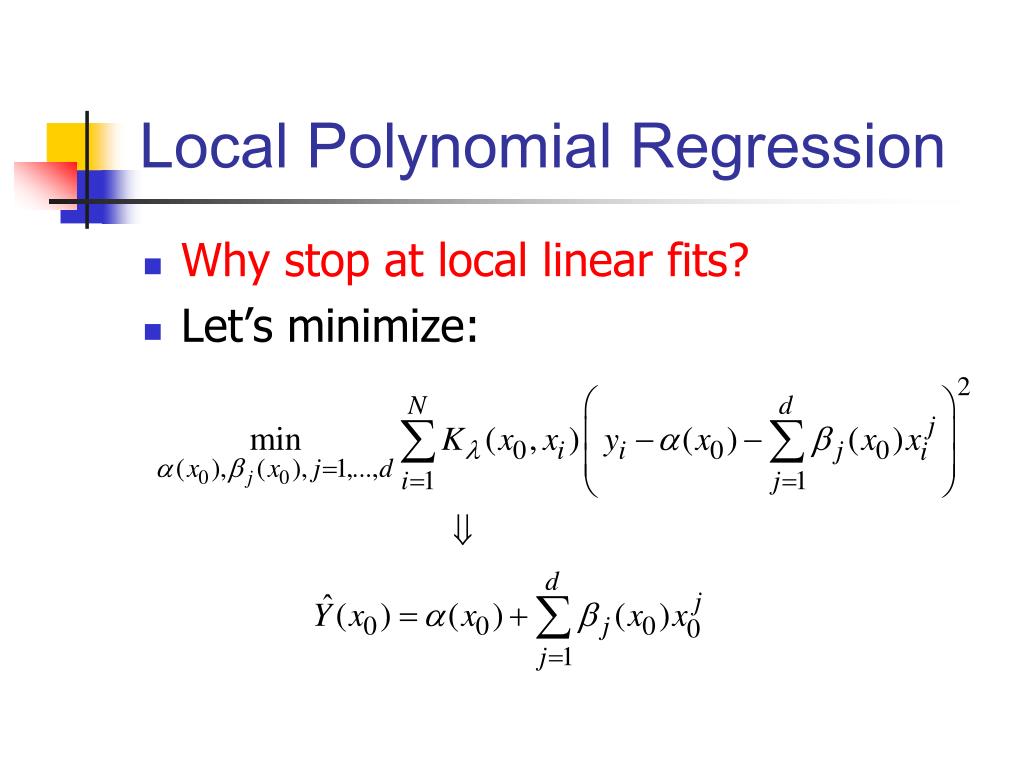

  25. Local Polynomial Regression • Why stop at local linear fits? • Let’s minimize:

  26. Local Polynomial Regression

  27. Variance Compromise

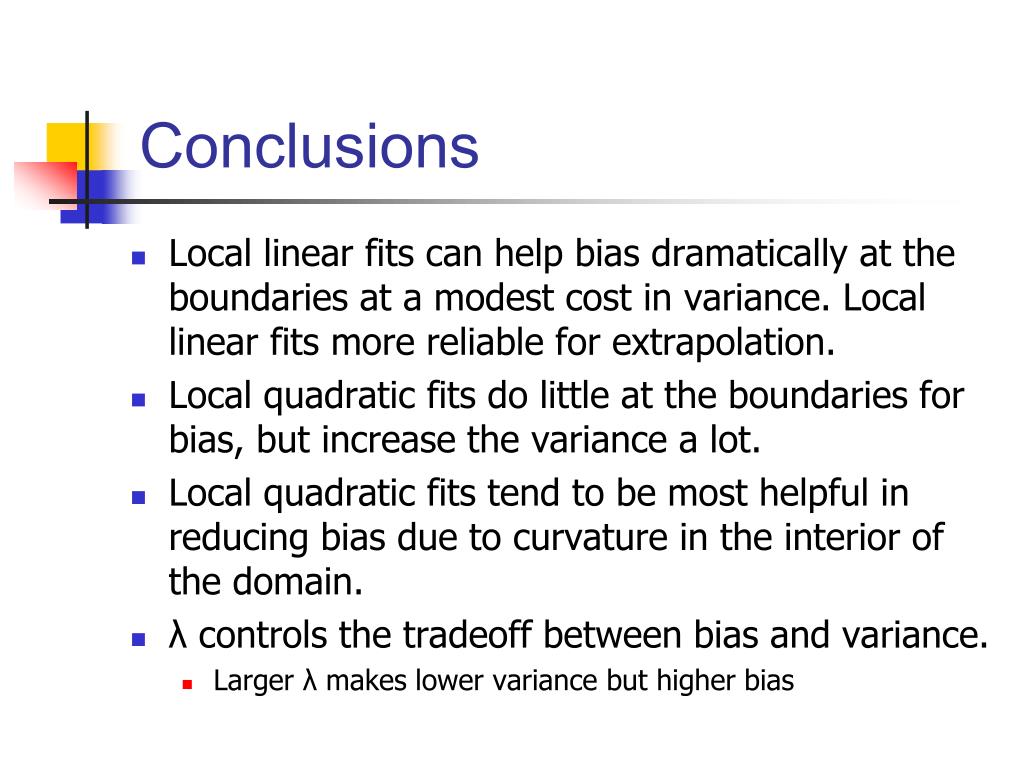

  28. Conclusions • Local linear fits can help bias dramatically at the boundaries at a modest cost in variance. Local linear fits more reliable for extrapolation. • Local quadratic fits do little at the boundaries for bias, but increase the variance a lot. • Local quadratic fits tend to be most helpful in reducing bias due to curvature in the interior of the domain. • λ controls the tradeoff between bias and variance. • Larger λ makes lower variance but higher bias

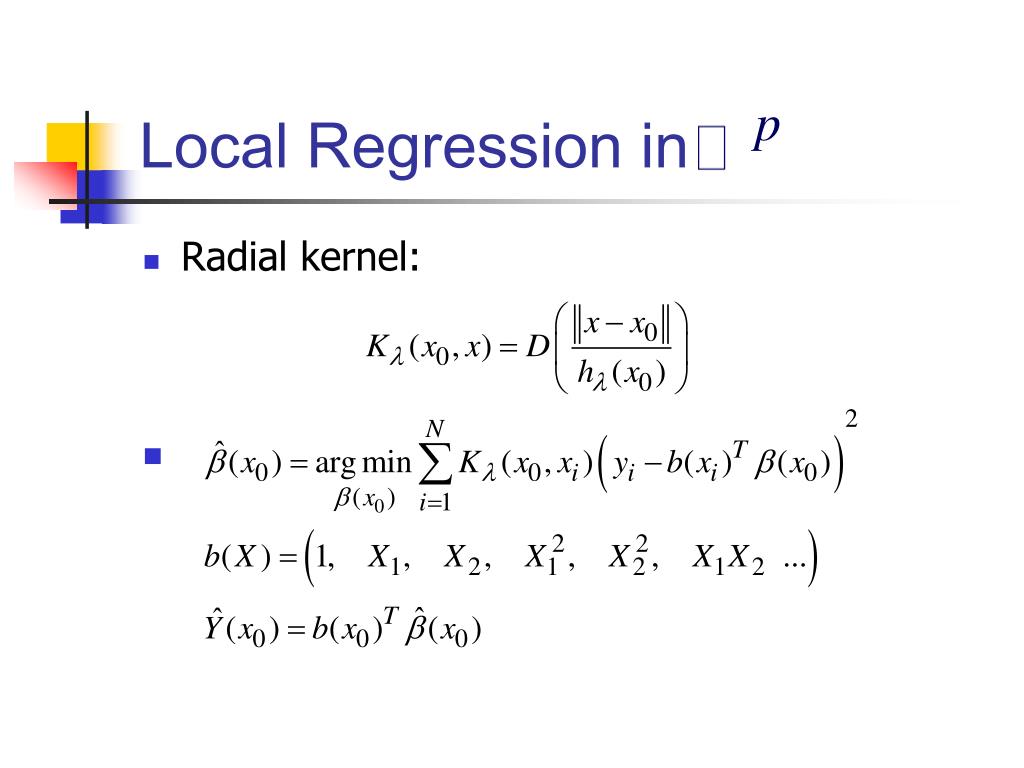

  29. Local Regression in • Radial kernel:

  30. Popular Kernels • Epanechnikov kernel • Tri-cube kernel • Gaussian kernel

  31. Example

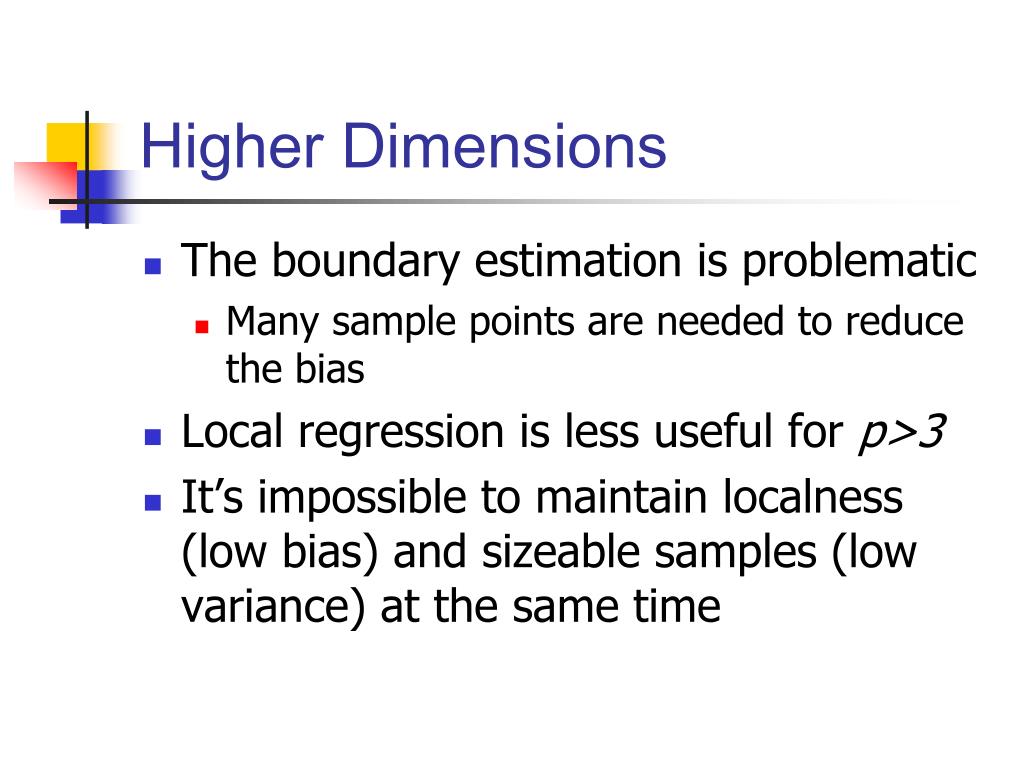

  32. Higher Dimensions • The boundary estimation is problematic • Many sample points are needed to reduce the bias • Local regression is less useful for p>3 • It’s impossible to maintain localness (low bias) and sizeable samples (low variance) at the same time

  33. Structured Kernels • Non-radial kernel: • Coordinates or directions can be downgraded or omitted by imposing restrictions on A. • Covariance can be used to adapt a metric A. (related to Mahalanobis distance) • Projection-pursuit model

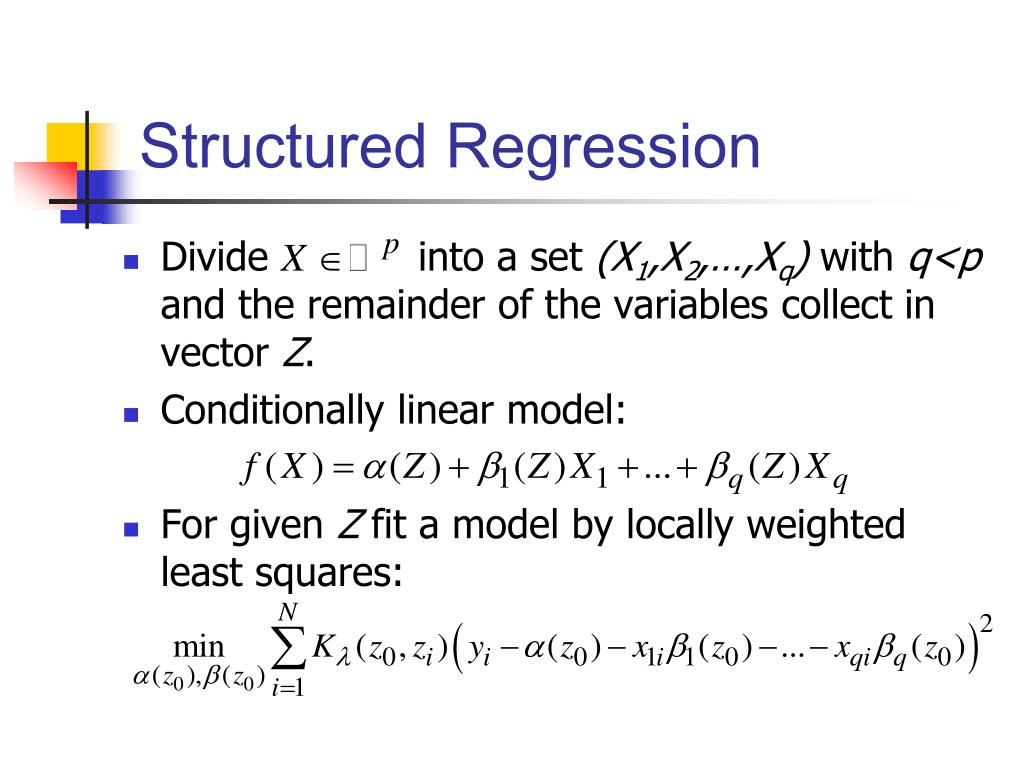

  34. Structured Regression • Divide into a set (X1,X2,…,Xq) with q<p and the remainder of the variables collect in vector Z. • Conditionally linear model: • For given Z fit a model by locally weighted least squares:

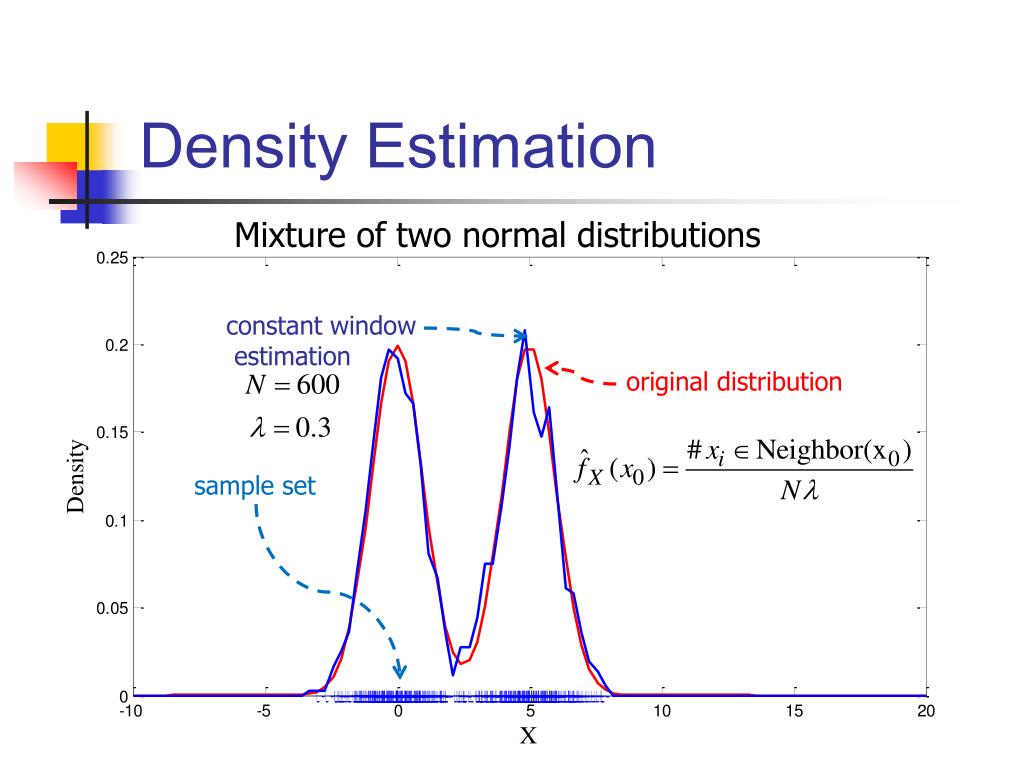

  35. Density Estimation Mixture of two normal distributions constant window estimation original distribution sample set

  36. Kernel Density Estimation Smooth Parzen estimate:

  37. Comparison Mixture of two normal distributions Usually Bandwidth  selection is more important than kernel function selection

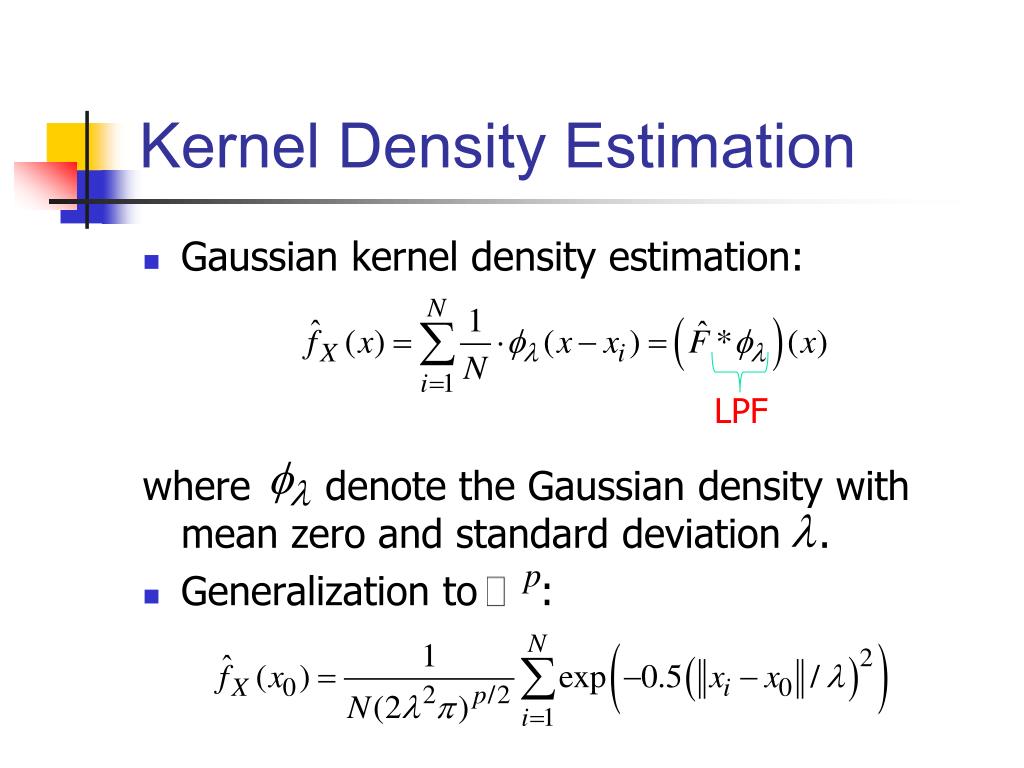

  38. Kernel Density Estimation • Gaussian kernel density estimation: where denote the Gaussian density with mean zero and standard deviation . • Generalization to : LPF

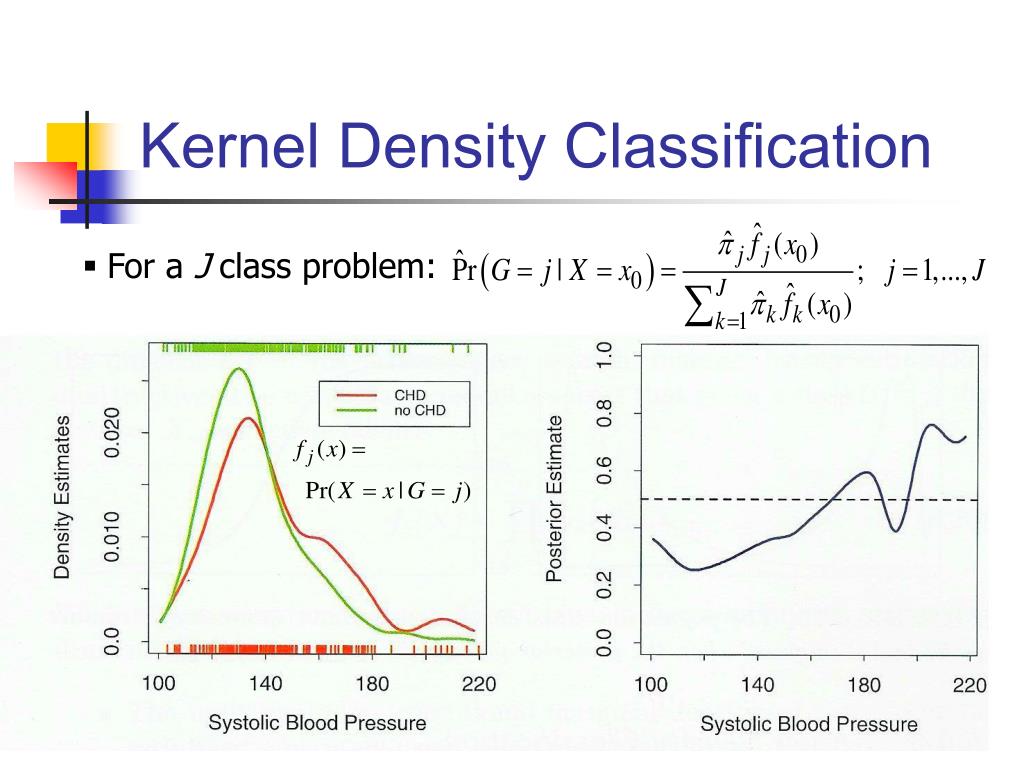

  39. Kernel Density Classification • For a J class problem:

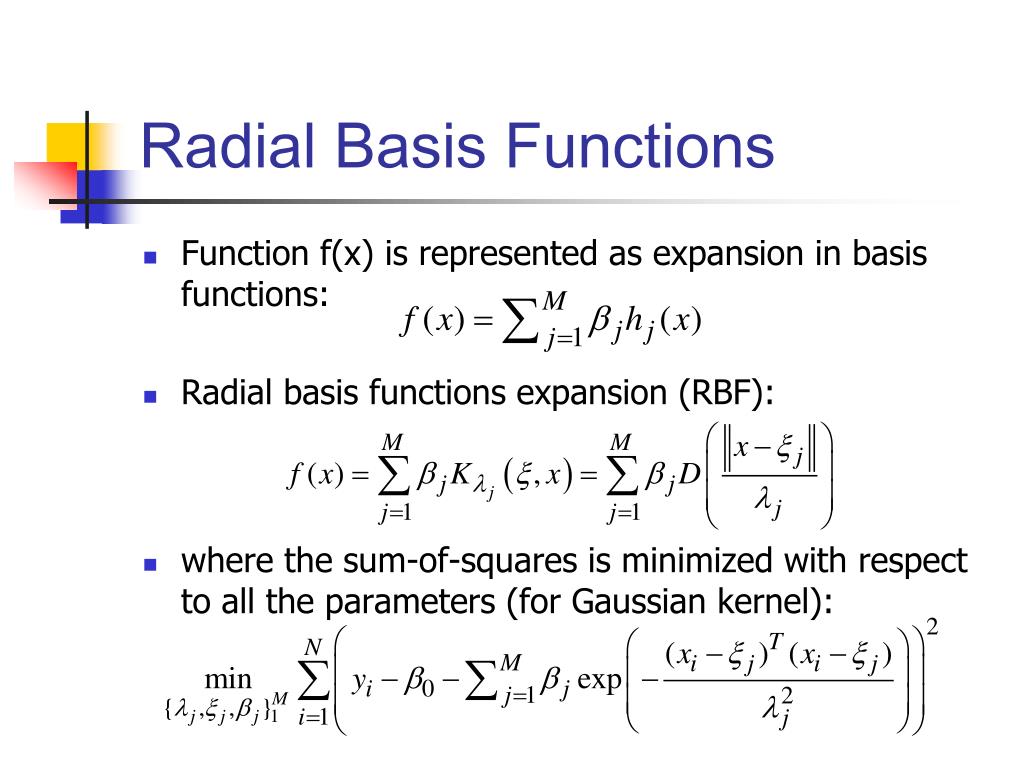

  40. Radial Basis Functions • Function f(x) is represented as expansion in basis functions: • Radial basis functions expansion (RBF): • where the sum-of-squares is minimized with respect to all the parameters (for Gaussian kernel):

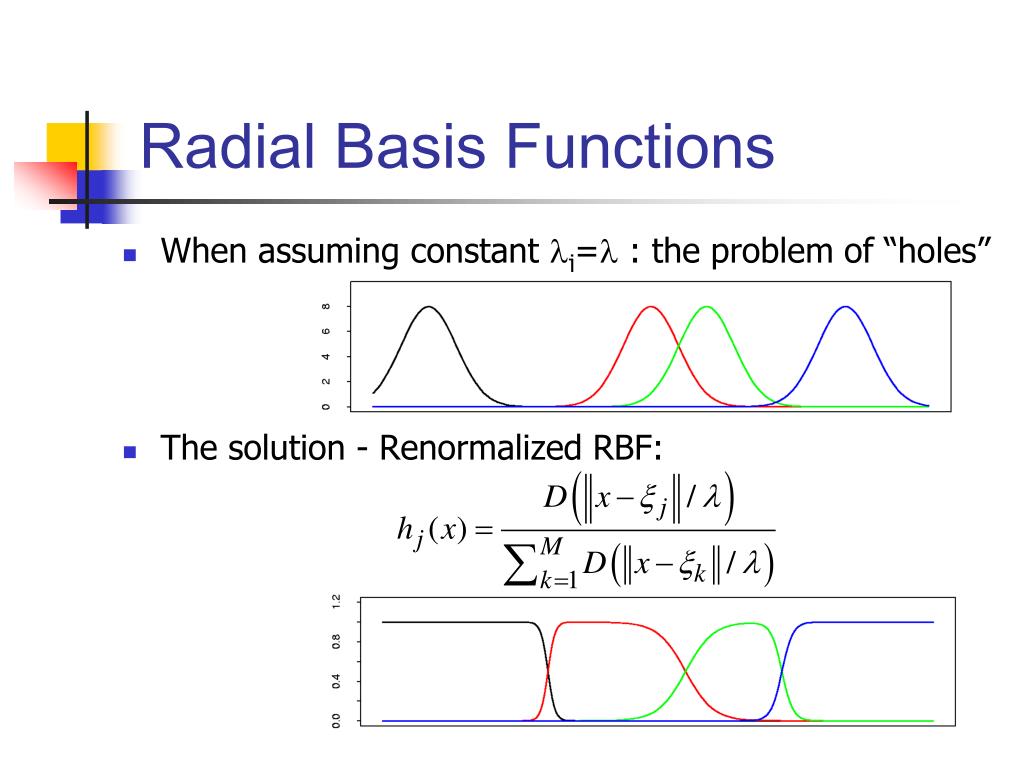

  41. Radial Basis Functions • When assuming constant lj=l : the problem of “holes” • The solution - Renormalized RBF:

  42. Additional Applications • Local likelihood • Mixture models for density estimation and classification • Mean-shift

  43. Conclusions • Memory-based methods: the model is the entire training data set • Infeasible for many real-time applications • Provides good smoothing result for arbitrary sampled function • Appropriate for interpolation and extrapolation • When the model is known, better use another fitting methods
