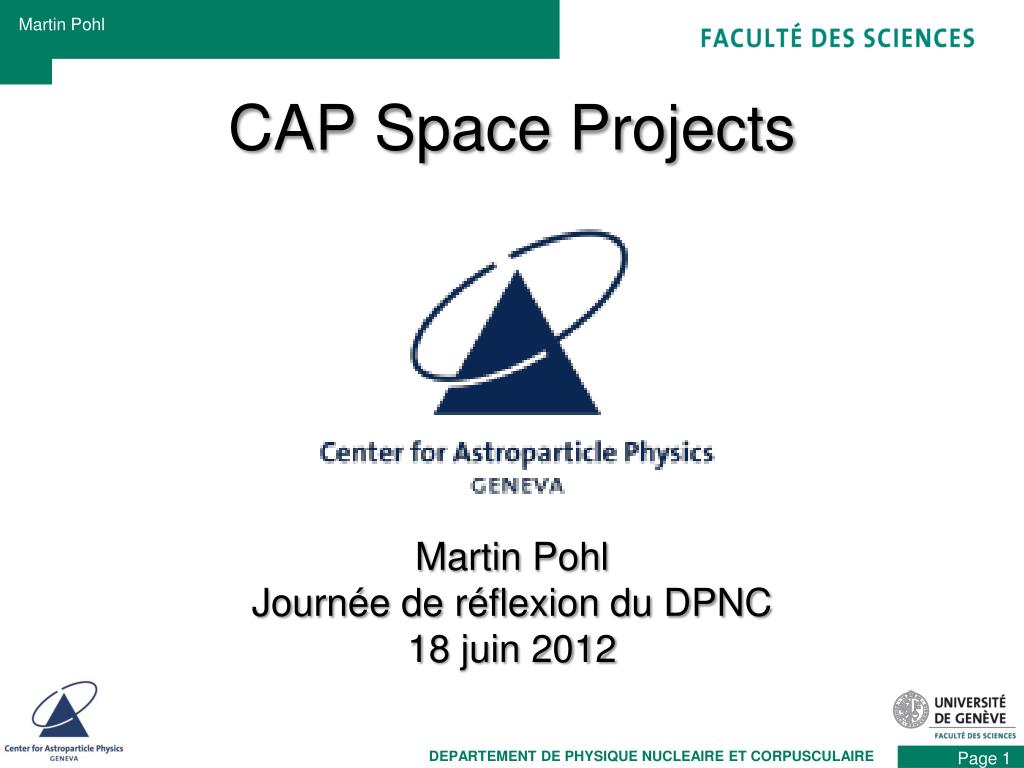

  1. CAP Space Projects Martin Pohl Journée de réflexion du DPNC 18 juin 2012

  2. CAP Genève Science Physique des astro-particules: • Rayons X, photons, rayons cosmiques • Neutrinos, ondes gravitationnelles • Sources astronomiques et cosmologiques • Accélération et propagation • Sources non conventionnelles: matière noire, énergie sombre Convergence intellectuelle et technologique Astrophysique de haute énergie Cosmologie Physique des particules

  3. INTEGRAL Instrumentation ATLAS AMS FUTURE: Cherenkov Telescope Array CTA

  4. CAP Genève • Membres fondateurs: Thierry Courvoisier (ISDC, Observatoire), Ruth Durrer (DPT), MicheleMaggiore (DPT), Martin Pohl (DPNC) • Ouvert à tous les chercheurs de ce domaine, de l’Université de Genève et des autres acteurs de la région (CERN, EPFL etc.) • Fonctions: • Forum d’échange scientifique • Projets d’intérêt commun, existants (INTEGRAL, AMS, POLAR, ASTRO-H…) et futurs (EUCLID, CTA…) • Réunions mensuelles, revue des projets communs • Dissémination de résultats, séminaires et conférences • Ressources: • Ressources existants des partenaires (UniGe, SNF, SSO etc.) • Postes COB • Minuscule budget de fonctionnement • Pas de nouvelle structure administrative

  5. CAP Genève Space Projects • Data taking phase: • Integral: data center at ISDC ESA • AMS on ISS: AIV at DPNC, complete integration, operation and data center at CERN NASA • Construction phase: • POLAR, polarimeter for Tiangong 2, CAP + PSI GESSA • ASTRO-H, filter wheel mechanism, CAP + RUAG JAXA • Assessment and definition phase: • JEM-EUSO on ISS JAXA • LOFT (M3 candidate) ESA • DAMPE GESSA • Conceptual design phase: • HERD (next step beyond AMS and FERMI) GESSA • All phases, all major players

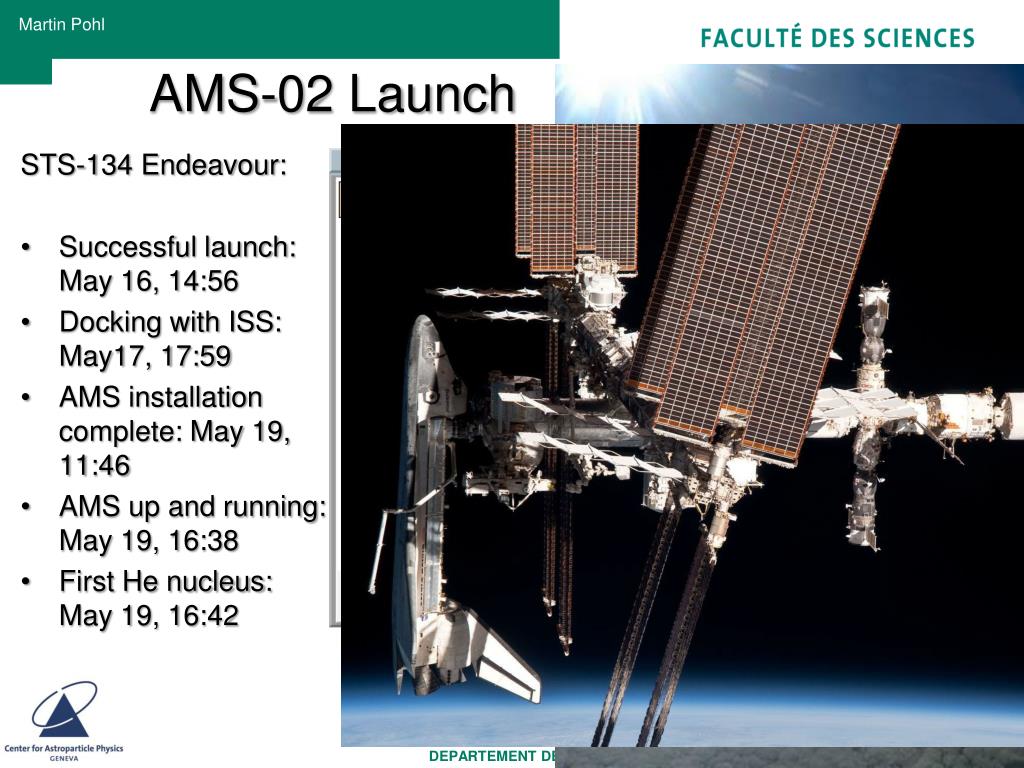

  6. AMS-02 Launch STS-134 Endeavour: • Successful launch: May 16, 14:56 • Docking with ISS: May17, 17:59 • AMS installation complete: May 19, 11:46 • AMS up and running: May 19, 16:38 • First He nucleus: May 19, 16:42

  7. POLAR Instrument Polarimeter: • Photon polarisation from GRB • Hard x-rays, 50 keV < Eγ < 500 keV • FoV 30% of sky • Flight opportunity TG2 (n.e.t. 2014) OBOX (Europe): • 5x5 modules in carbon fibre box • Central trigger and power supplies IBOX (China): • Space craft interfaces • Central computer

  8. Tiangong Mission Progress • 29 Sep. 2011: Tiangong 1 launched onboard Changzheng 2F-T1 vehicle • 360km near circular orbit • Controlled descent to a 343km near-circular orbit under atmospheric drag • 30 Oct. 2011: 180° turn with its docking port pointing backwards • 2 Nov. 2011: First docking with unmanned Shenzhou 8 spacecraft, two vehicles flew connected in orbit for 10 days • 17 Nov. 2011: Shenzhou 8 returned to Earth • 16 June 2012: Shenzhou 9 manned mission to Tiangong 1

  9. POLAR OBOX Interface connectors CFRP Top Cover 25 modules POLAR module Electronic board housing OBOX Base Plate • 25 modules (64 bars each) • Bar length: 176 mm • FEE included in the module • Load factor to be applied: ~ 20g • Temperature range: [-40°C,+50°C] • Weight: 30 kg, power: 50W • Dimension: 250 x 450 x 450 mm3 Back plate

  10. POLAR Module CFRP socket (1mm thick carbon prepreg) Back seal End Cap 64 Bars PMT FEE Baffles FEE EQM version (with PSI in Zurich)

  11. LOFT • ESA M3 mission candidate • Science: X-ray transients (BH, NS etc.) • Currently in assessment phase • Study lead: SRON (NL), CAP Genève • Downselection mid 2013 • Phase A/B 2013-15 • Phase C/D 2015-20 • Flight ~2022

  12. Silicon Drift Detector • Few channels/surface • 3D readout, HV along sensor • Low input C, low noise • Design property of INFN • Manufacturers: • Canberra (for LHC) • FBK Trento • CSEM

  13. HERD for China’s Space Station Charge detector: 2-layered Si+PIN. Charge measurement Shower Tracker: W+scintillation fibers Nucleon Tracker: scintillation fibers. ECAL: lepton calorimeter. e/γ energy. HCAL: hadron calorimeter. e/p discrimination and CR composition. PWO or BGO W+ CsI(Na) + Fiber + ICCD Neutron detector: B-doped plastic scintillator for delayed signals. Enhanced e/p discrimination.

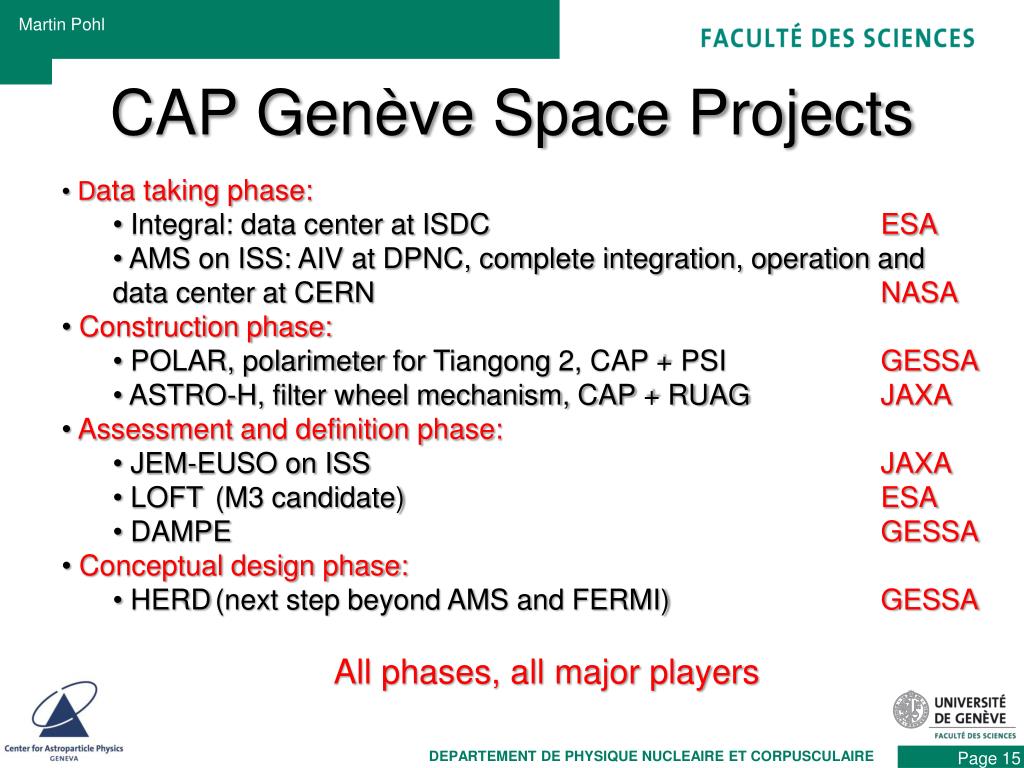

  14. CAP Genève Space Projects • Data taking phase: • Integral: data center at ISDC ESA • AMS on ISS: AIV at DPNC, complete integration, operation and data center at CERN NASA • Construction phase: • POLAR, polarimeter for Tiangong 2, CAP + PSI GESSA • ASTRO-H, filter wheel mechanism, CAP + RUAG JAXA • Assessment and definition phase: • JEM-EUSO on ISS JAXA • LOFT (M3 candidate) ESA • DAMPE GESSA • Conceptual design phase: • HERD (next step beyond AMS and FERMI) GESSA • All phases, all major players
