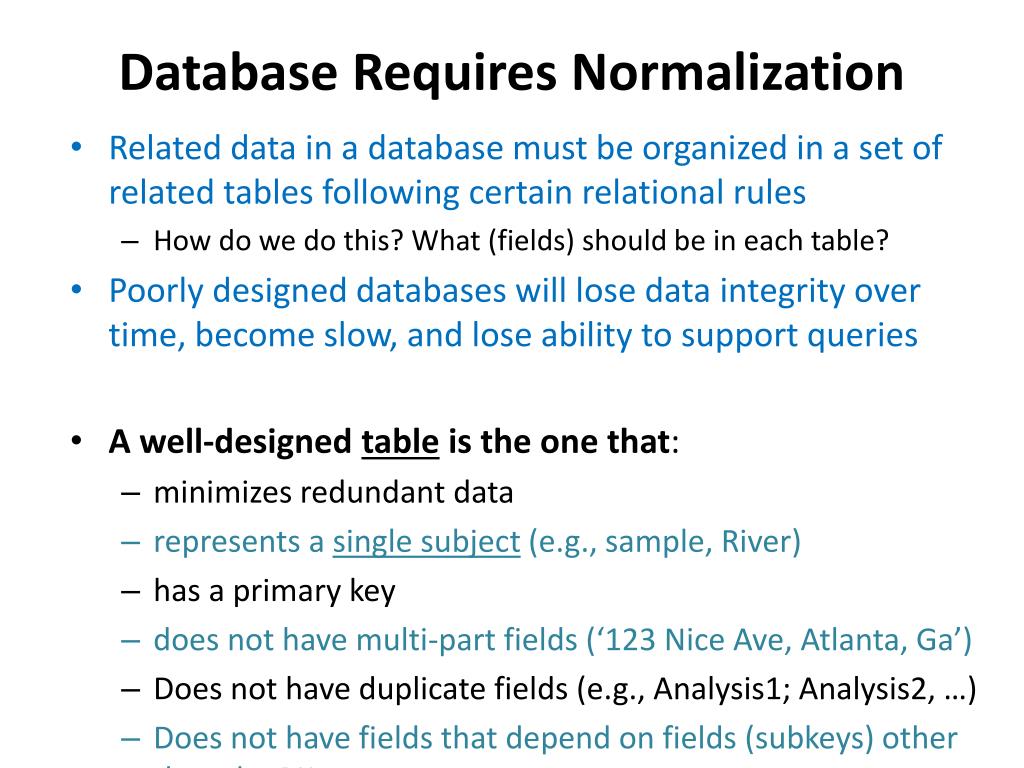

  1. Database Requires Normalization • Related data in a database must be organized in a set of related tables following certain relational rules • How do we do this? What (fields) should be in each table? • Poorly designed databases will lose data integrity over time, become slow, and lose ability to support queries • A well-designed table is the one that: • minimizes redundant data • represents a single subject (e.g., sample, River) • has a primary key • does not have multi-part fields (‘123 Nice Ave, Atlanta, Ga’) • Does not have duplicate fields (e.g., Analysis1; Analysis2, …) • Does not have fields that depend on fields (subkeys) other than the PK

  2. Normalization • Is the gradual and sequential process of efficiently organizing unstructured data in a database that follows the rules listed in the previous slide • Normalization commonly involves following three schemes (in order): • First, Second, and Third Normal Form, or: 1NF, 2NF, 3NF • This is commonly done during early stages of modeling on UML class diagrams • The next slide shows a database in just one un-normalized table with lots of problems!

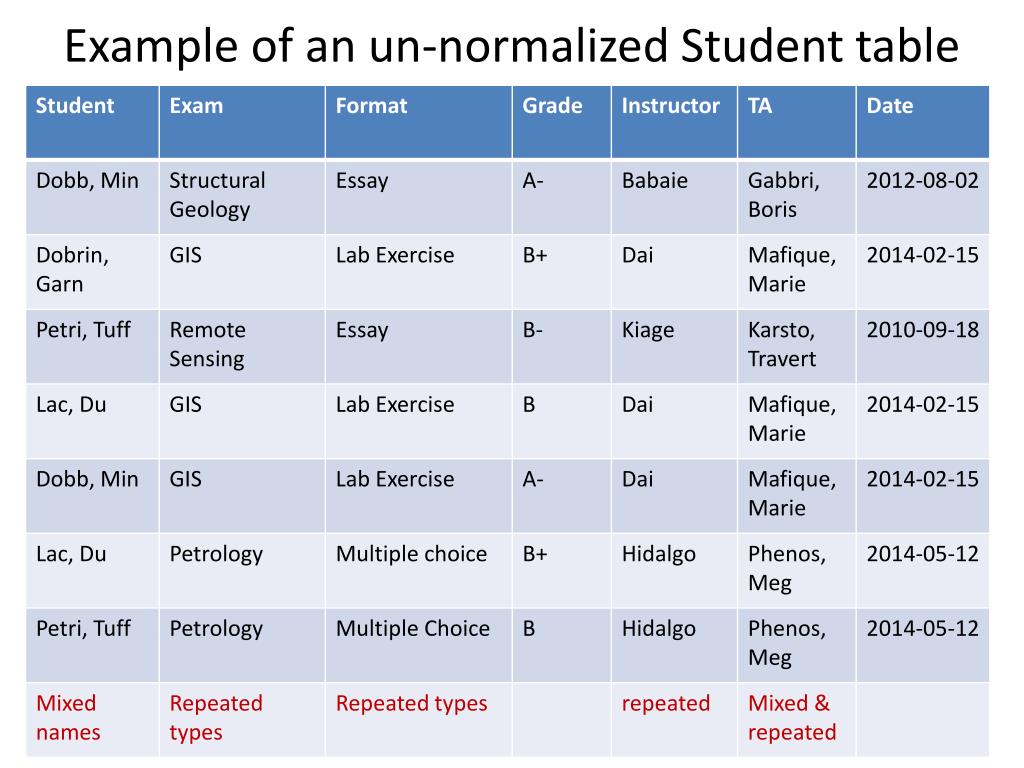

  3. Example of an un-normalized Student table

  4. Goal of Normalization • Eliminate redundant (duplication of) data (which make database large, inefficient, and slow) which in turn prevents data manipulation (insert, delete, update) anomalies and loss of data integrity • If there are duplicate data in different rows, changes that happen in different places may not be the same (can make mistake entering data) • We want the change to happen in one place (one row) and then propagate throughout • Redundancy reduces flexibility • Redundancy creates insert, delete, and update anomalies. • Cannot change the name of MafiqueMarie to Basique Marie if she marries in one row Cannot insert a new instructor since we do not have a table for instructors • Cannot delete a row without deleting other information

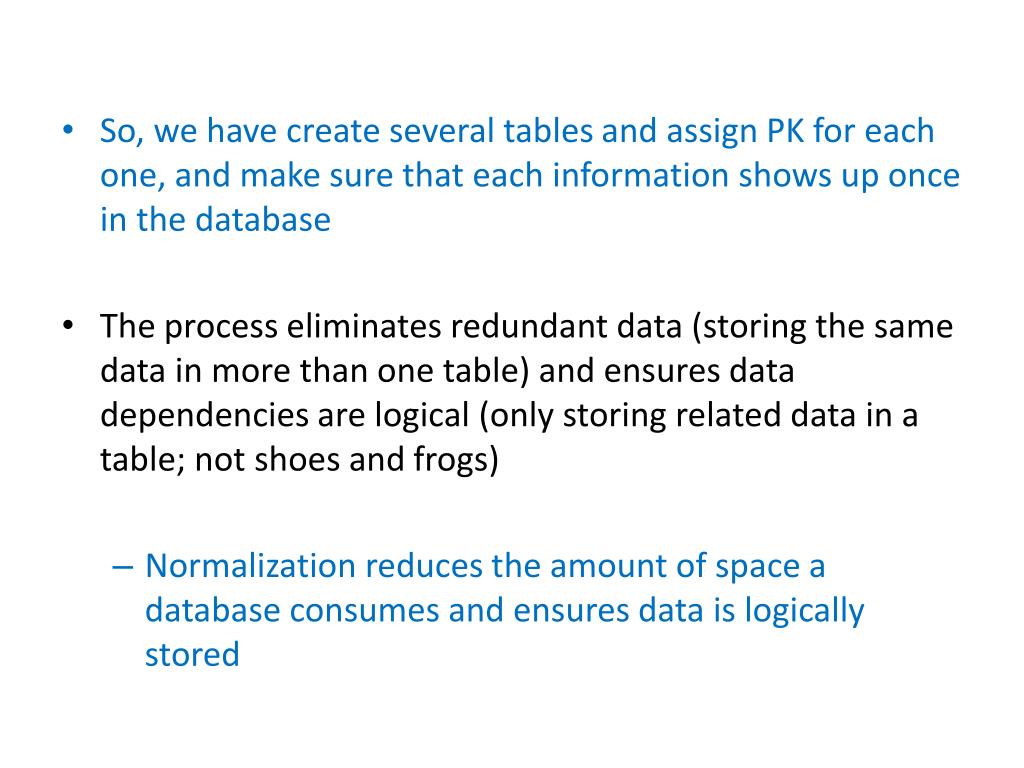

  5. So, we have create several tables and assign PK for each one, and make sure that each information shows up once in the database • The process eliminates redundant data (storing the same data in more than one table) and ensures data dependencies are logical (only storing related data in a table; not shoes and frogs) • Normalization reduces the amount of space a database consumes and ensures data is logically stored

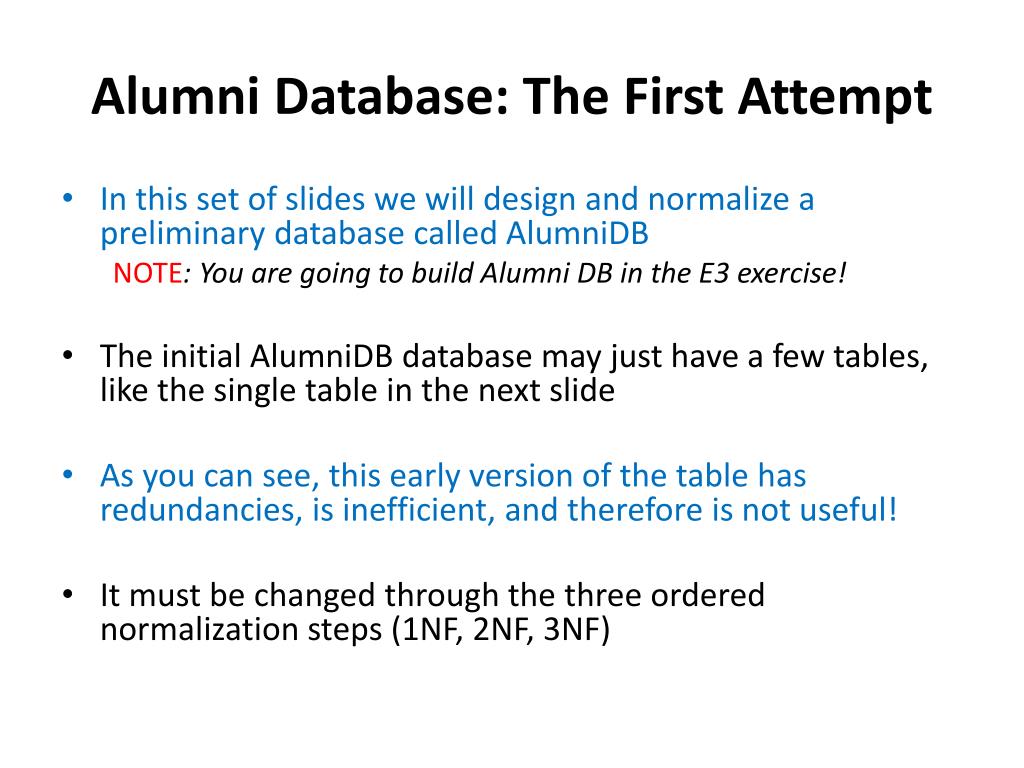

  6. Alumni Database: The First Attempt • In this set of slides we will design and normalize a preliminary database called AlumniDB NOTE: You are going to build Alumni DB in the E3 exercise! • The initial AlumniDBdatabase may just have a few tables, like the single table in the next slide • As you can see, this early version of the table has redundancies, is inefficient, and therefore is not useful! • It must be changed through the three ordered normalization steps (1NF, 2NF, 3NF)

  7. Alumni Table First Version: Inefficient There are a few problems with this table (see items in red font)! It needs to go through the 1NF (see next slide)

  8. First Normal Form (1NF) • 1NF deals with duplicative data across multiple columns! • NOTE: The two phone columns have the same type of data • 1NF sets the very basic rules to make sure that: • Separate tables are created for each group of related data (e.g., IsotopicAge, Fold, Rock), i.e., each table should represent a distinct entity (or subject)

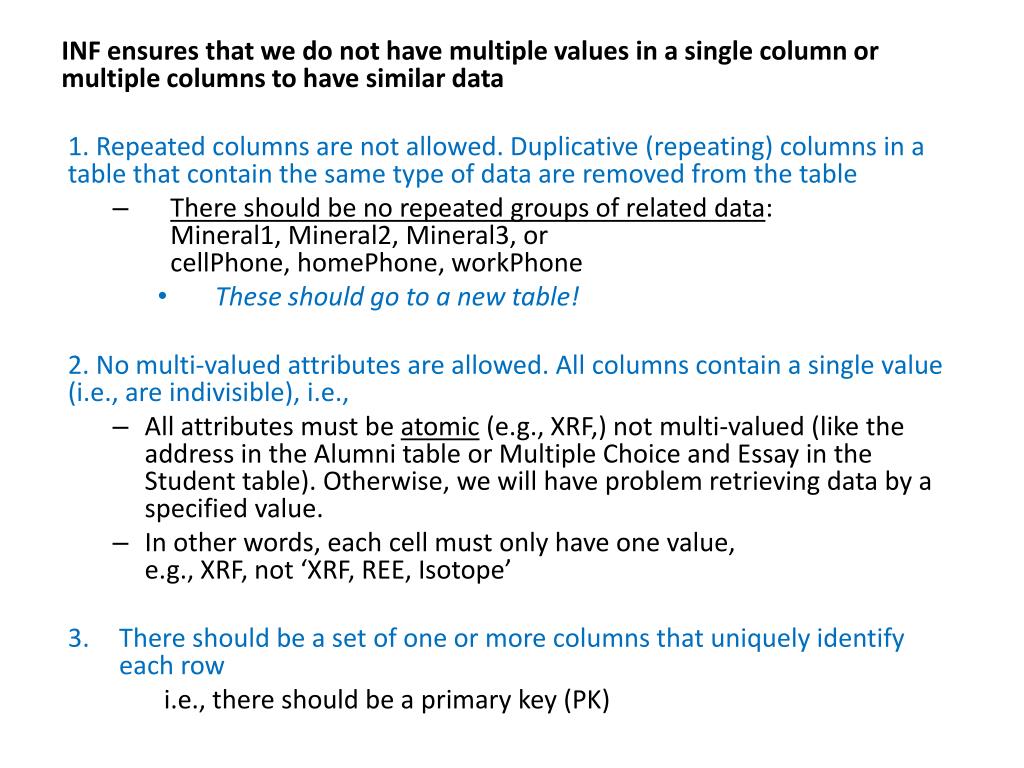

  9. INF ensures that we do not have multiple values in a single column or multiple columns to have similar data 1. Repeated columns are not allowed. Duplicative (repeating) columns in a table that contain the same type of data are removed from the table • There should be no repeated groups of related data: Mineral1, Mineral2, Mineral3, or cellPhone, homePhone, workPhone • These should go to a new table! 2. No multi-valued attributes are allowed. All columns contain a single value (i.e., are indivisible), i.e., • All attributes must be atomic (e.g., XRF,) not multi-valued (like the address in the Alumni table or Multiple Choice and Essay in the Student table). Otherwise, we will have problem retrieving data by a specified value. • In other words, each cell must only have one value, e.g., XRF, not ‘XRF, REE, Isotope’ • There should be a set of one or more columns that uniquely identify each row i.e., there should be a primary key (PK)

  10. The Alumni table is NOT in First Normal Form (1NF) Problems with 1NF: Violates rule: “There should be no repeating columns” We have repeating data types (workPhone and Cellphone) Violates rule: “Each column must have a single value” There are two current jobs given for some people. The Address field is complex Violates rule : “There must be a primary key to uniquely identify rows” There is none!

  11. Eliminate partial dependencies • Non-key columns must refer to the entire composite key, not just part of it. • For example, the PK in the Student table (copied in next slide) is the composite (Student, Exam). • The Format column depends on (i.e., is an attribute of) the Exam, not on the Student. This means that data belong to another table • This is taken care of by the 2NF

  12. Example of an un-normalized Student table

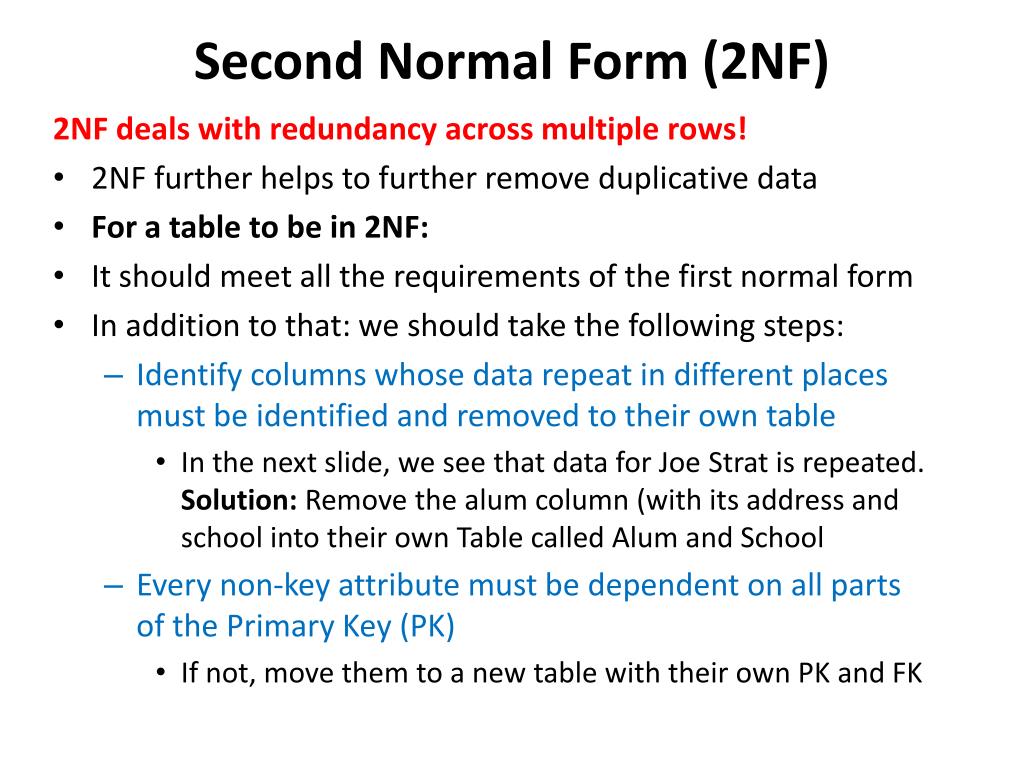

  13. Second Normal Form (2NF) 2NF deals with redundancy across multiple rows! • 2NF further helps to further remove duplicative data • For a table to be in 2NF: • It should meet all the requirements of the first normal form • In addition to that: we should take the following steps: • Identify columns whose data repeat in different places must be identified and removed to their own table • In the next slide, we see that data for Joe Strat is repeated. Solution: Remove the alum column (with its address and school into their own Table called Alum and School • Every non-key attribute must be dependent on all parts of the Primary Key (PK) • If not, move them to a new table with theirown PK and FK

  14. Alumni Table: Modified; Satisfies 1NF This table is in First Normal Form (1NF); But, table is NOT in 2NF The Job, GradSchool, and phones are removed to their own tables because they are not dependent on the PK (alum_id). Records for Joe Strat and Univ. of VA are repeated! Remove everything except Alum data (keep GradYear) in new tables Add first_name, last_name, etc. for the Alumni Table

  15. Eliminate transitive dependencies • If a non-key column refers not to (i.e., is independent of) the PK but to another column, it should be removed to an another table. • For example, the TA column in the Student table does not depend on the PK (Student, Exam); it depends on the Instructor column. • TA is removed to the Instructor table

  16. Third Normal Form (3NF) • Third normal form is about dependency • For a table to be in the 3NF: • It must meet all the requirements of the 2NF, and: • Every non-key attribute must be mutually independent • Changing one non-key column should not change the other columns If it does, remove the interdependent attributes • No transitive functional dependencies • Remove columns that are not dependent upon the primary key, and depend on other columns • Remove columns that their values depend on columns other than the PK • This means: we have to remove the subkeys • Create new tables • Assign new primary keys and foreign keys after changes

  17. 3NF… • There should be no partial functional dependencies • If x  y, i.e., x functionally determines y, and y is functionally dependent on x, then given x, we can find y. • Example, in the Address table, given the nine-digit zip code, we can find city and state because they are functionally dependent on the zip code. The opposite is not true, given a city we cannot find the zip code (Note: some cities have several zip codes) • By definition, a super key (e.g., primary key) functionally determines all other attributes in the table • The zip code is a subkey(not a superkey) because it only determine the city and state part of the Address table not the other attributes

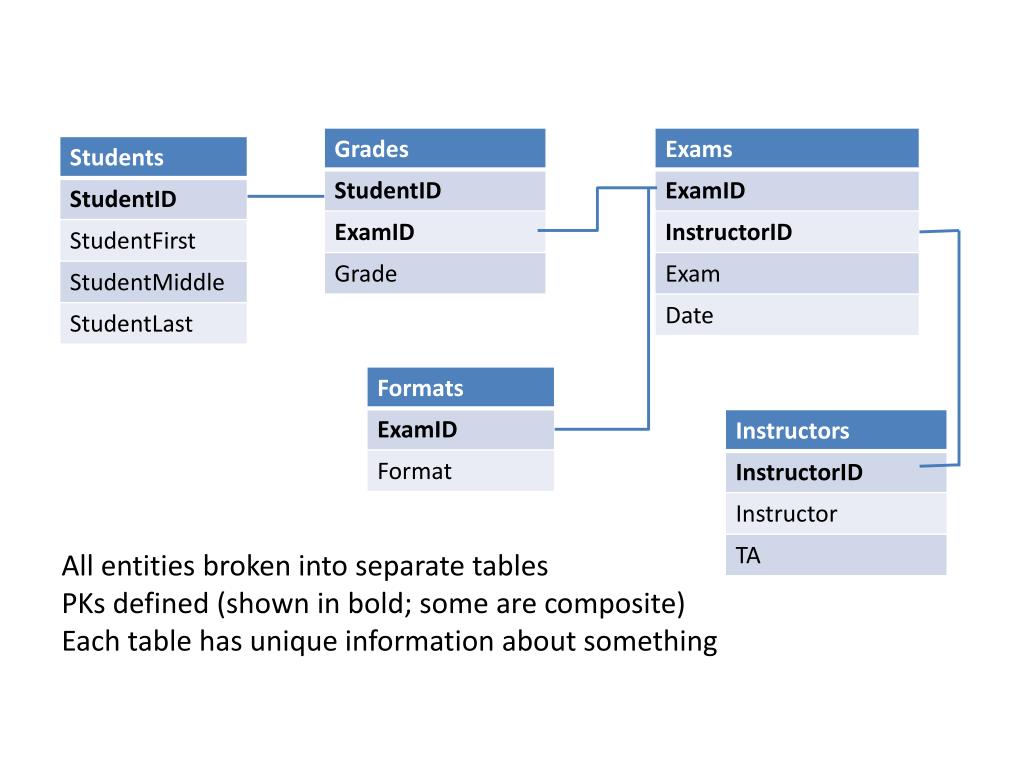

  18. All entities broken into separate tablesPKs defined (shown in bold; some are composite)Each table has unique information about something

  19. Alumni Table, modified again: Satisfies 2NF This table is in Second Normal Form (2NF) But Not in 3NF: There is a subkey (zip code) upon which the city and state depend. Zip code is not a PK. We remove the subkey and put it in a new table We break the Address data into the following tables: ZipCodes, Cities, and States because these do not relate to any specific alum. However, these are directly related to each other (street address relies on city, city on state)

  20. To take care of the partial functional dependency issue take 3 steps: • Remove all the attributes that depend on the subkey from the table (e.g., city and State from Address table) • Move them into a new table (e.g., call it ZipLocations with zipCode, city, and state attributes • Keep a copy of the subkey attribute (i.e., zipCode) in the original table as a foreign key • The address table now has firstname, lastname, street (these 3 make the PK), and zipCode (as FK to the other table). • Summary: Subkeys always result in redundant data and must be removed! • In other words, remove subsets of data that apply to multiple rows of a table and place them in separate tables • i.e., remove duplicative data • For example, break address into its independent constituents that do not depend on each other • Create relationships between these new tables and their predecessors through the use of foreign keys

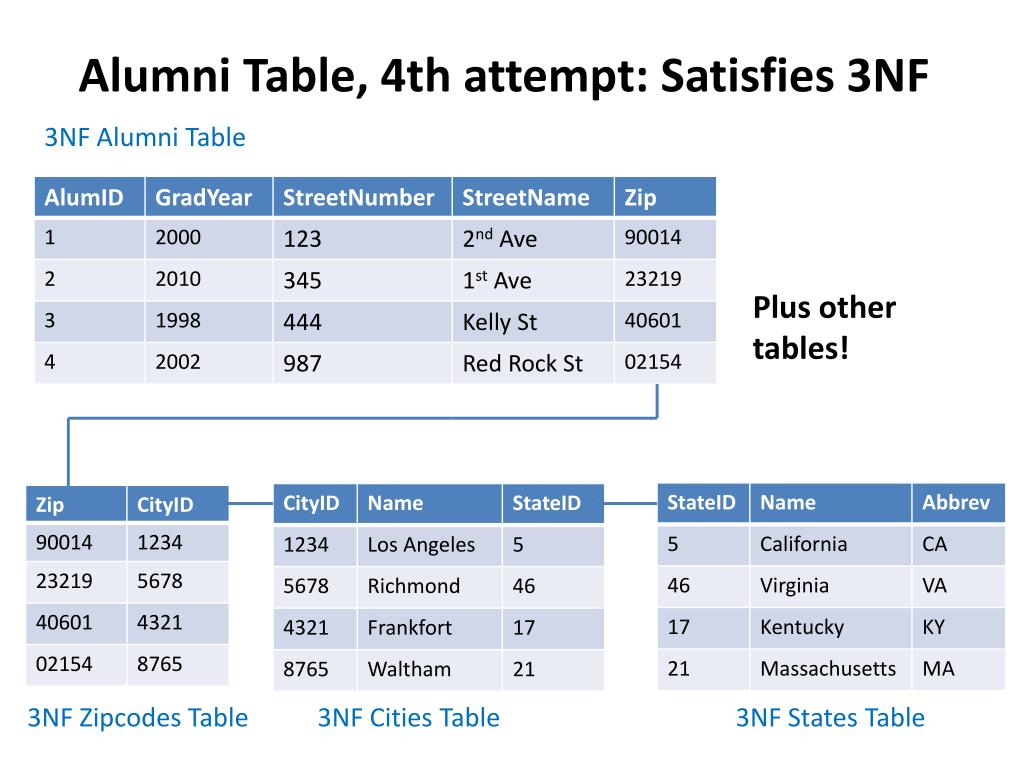

  21. Alumni Table, 4th attempt: Satisfies 3NF Plus other tables! 3NF Alumni Table 3NF Zipcodes Table 3NF Cities Table 3NF States Table

  22. Fourth Normal Form (4NF) • Normalizing a database to the 3NF is usually sufficient • The fourth normal form (4NF) has one additional requirement • Meet all the requirements of the third normal form • A relation is in 4NF if it has no multi-valued dependencies

  23. Practice • Read Chapter 6 of the Ullman textbook, and follow the steps given in the book to design and normalize the Books Database described in the book with the four tables (and their attributes) shown on page 176. • Use MySQL Workbench to make the Books database
