Presentation Transcript

  1. OTIS « Simple and effective » OTIS ELEVATOR COMPANY

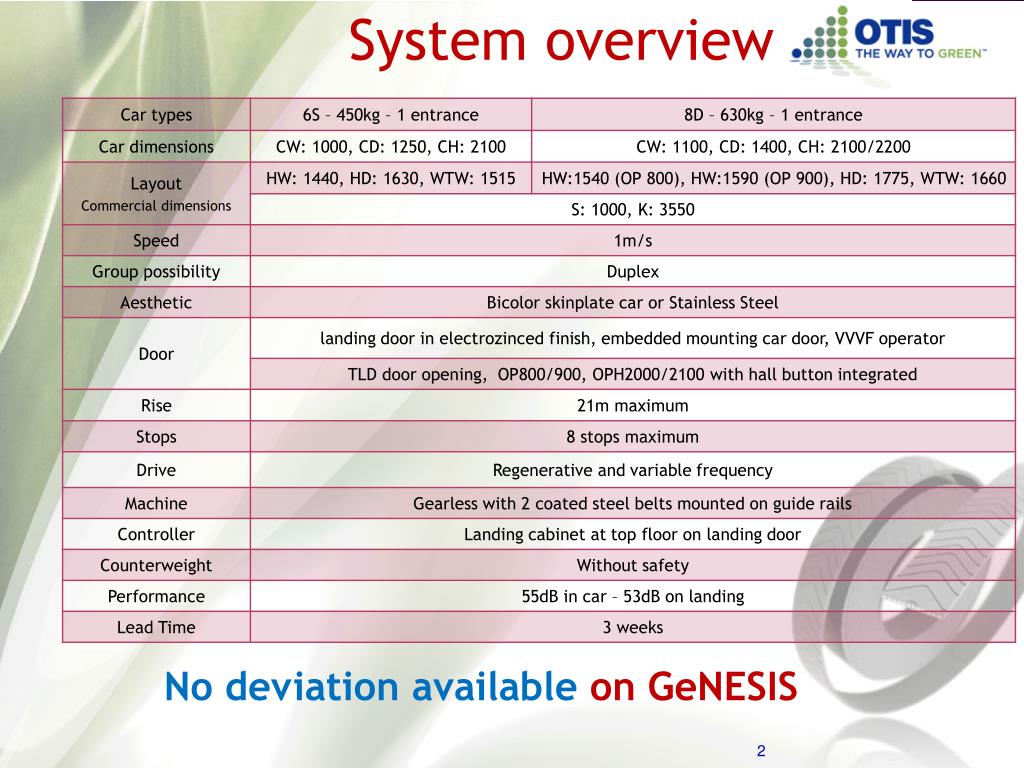

  2. System overview No deviation availableon GeNESIS

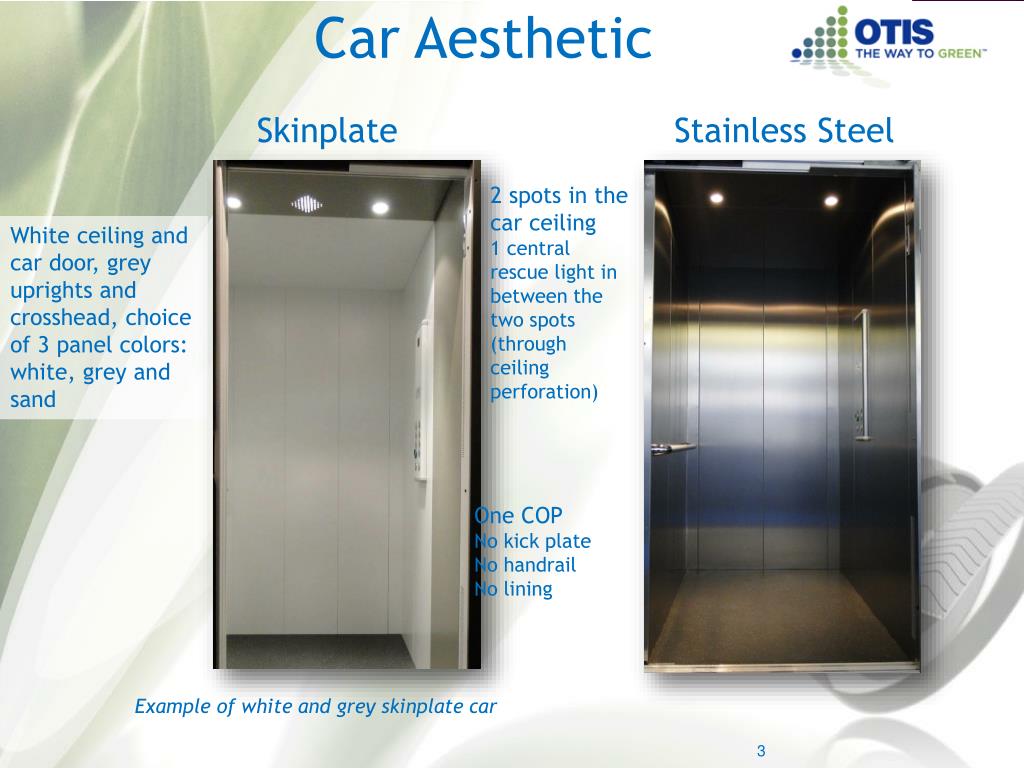

  3. Car Aesthetic Skinplate Stainless Steel 2 spots in the car ceiling 1 central rescue light in between the two spots (through ceiling perforation) White ceiling and car door, grey uprights and crosshead, choice of 3 panel colors: white, grey and sand One COP No kick plate No handrail No lining Example of white and grey skinplate car

  4. Car Aesthetic COP Car Operating Panel Stainless Steel White Skinplate CPI15 is only provided if the option DISAB is chosen. Flooring Grey rubber car flooring 2mm thick with small colored rubber particles embedded Engraved data plate Floor marking is integrated in car buttons. Only 25 mm thick

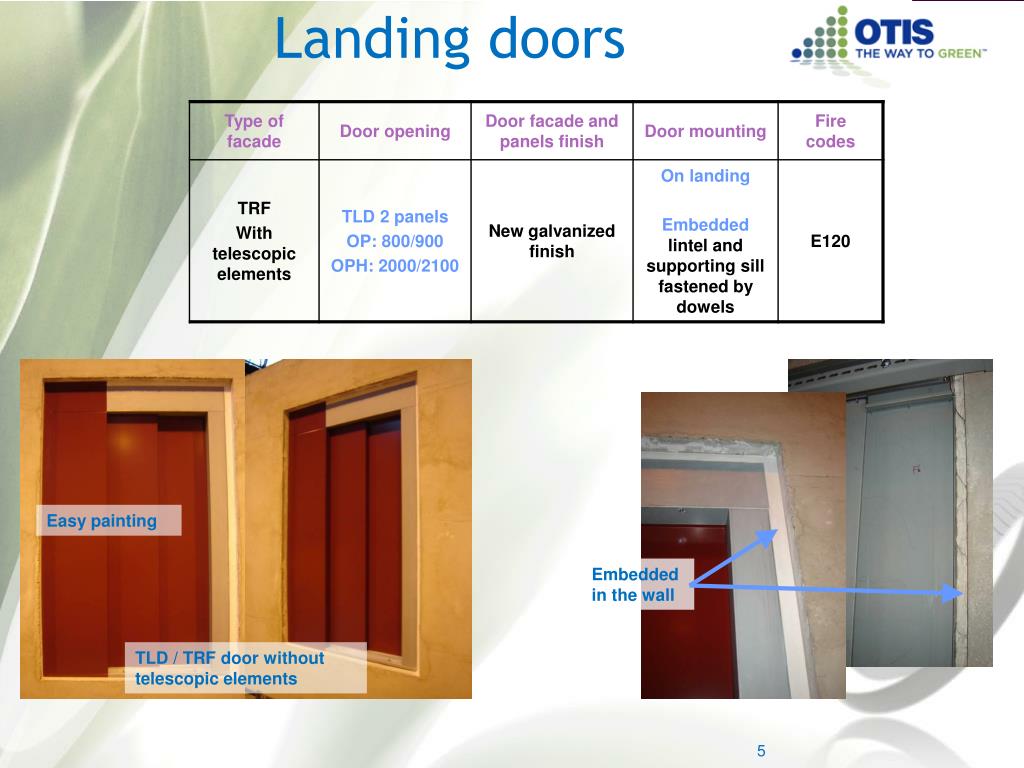

  5. Landing doors Easy painting Embedded in the wall TLD / TRF door without telescopic elements

  6. Options

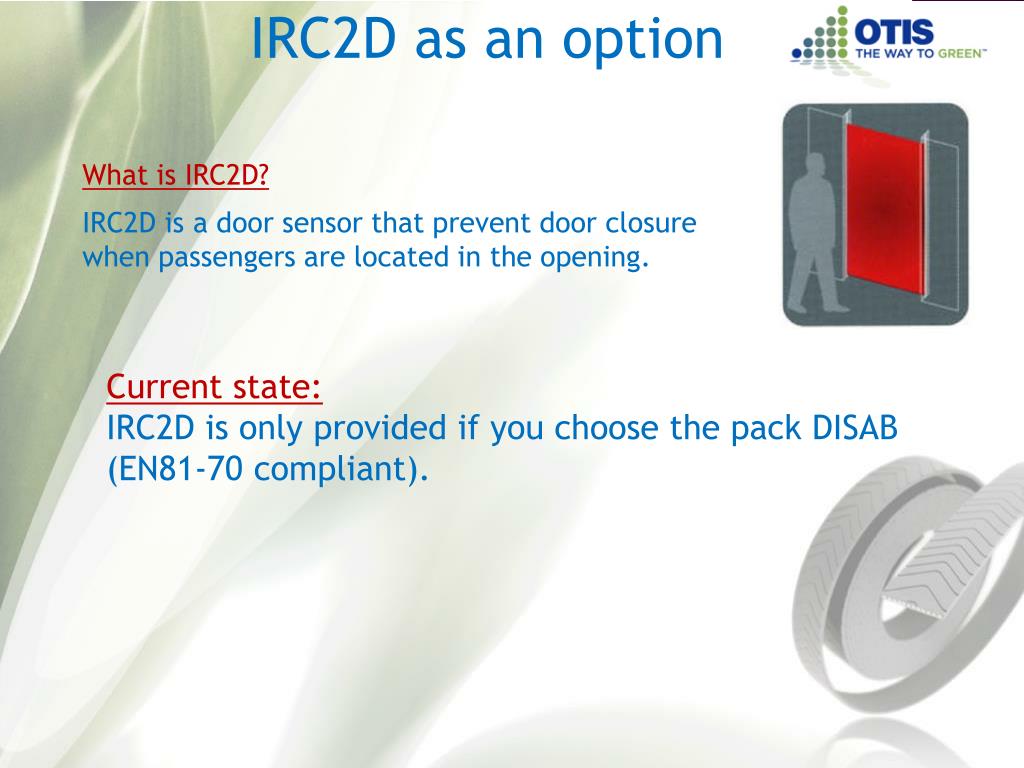

  7. IRC2D as an option What is IRC2D? IRC2D is a door sensor that prevent door closure when passengers are located in the opening. Current state: IRC2D is only provided if you choose the pack DISAB (EN81-70 compliant).

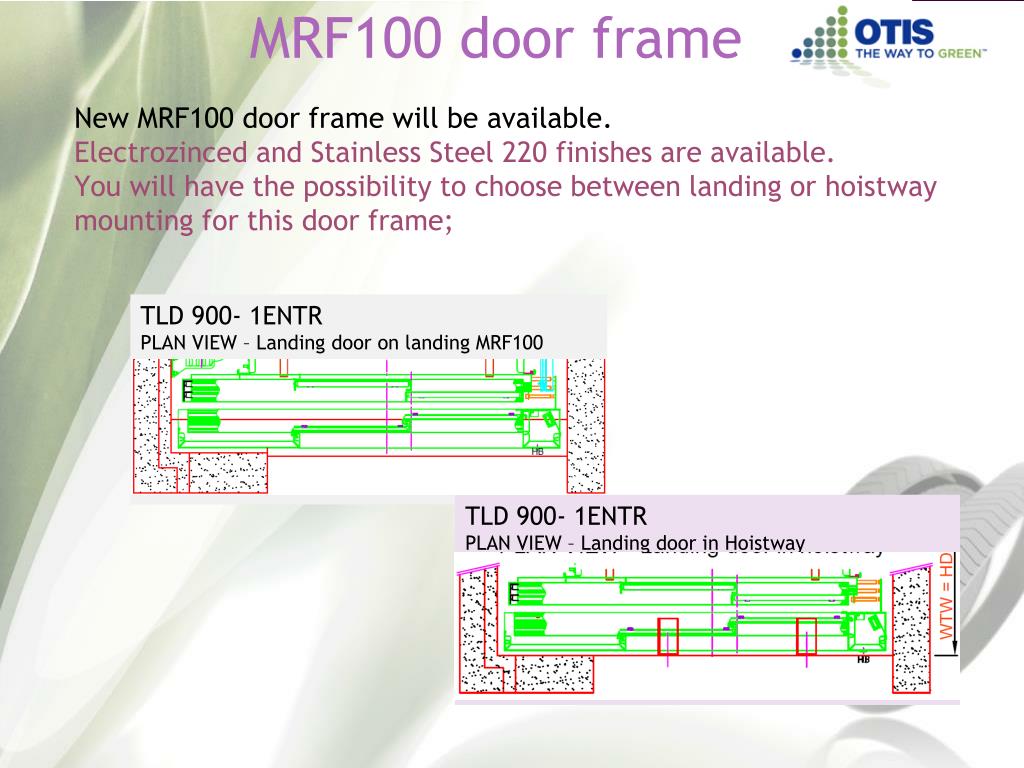

  8. MRF100 door frame New MRF100 door frame will be available. Electrozinced and Stainless Steel 220 finishes are available. You will have the possibility to choose between landing or hoistway mounting for this door frame; TLD 900- 1ENTR PLAN VIEW – Landing door on landing MRF100 TLD 900- 1ENTR PLAN VIEW – Landing door in Hoistway

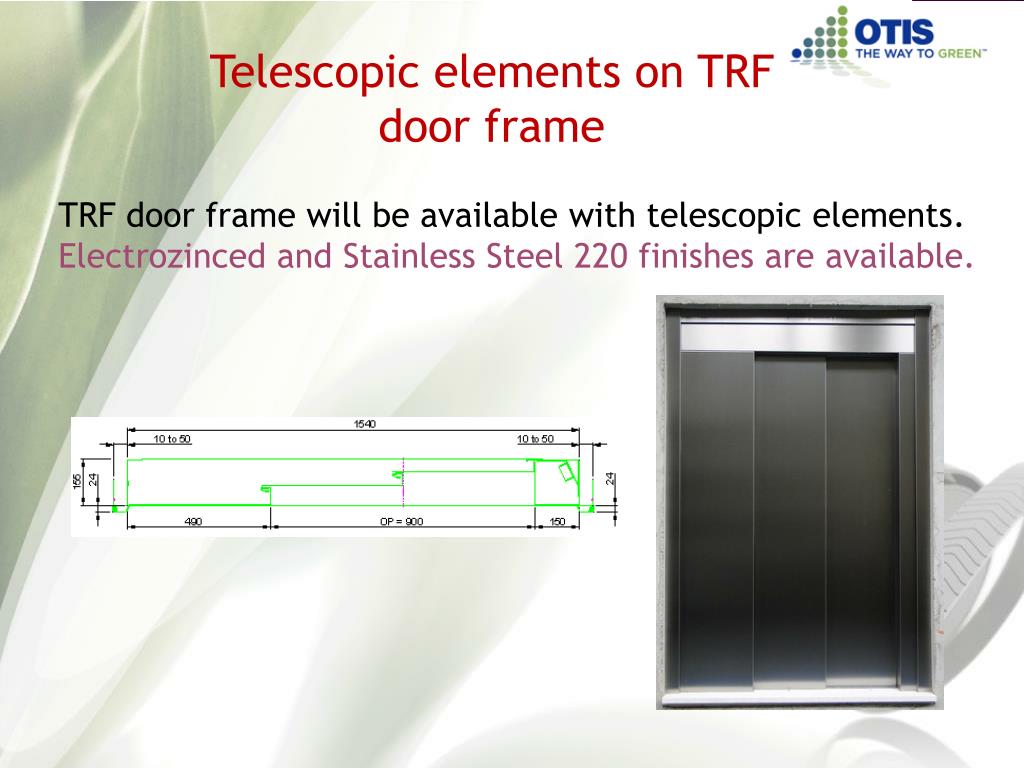

  9. Telescopic elements on TRF door frame TRF door frame will be available with telescopic elements. Electrozinced and Stainless Steel 220 finishes are available.
