  1. Web Services Basic Training Srinivas Kandula Vijayan Srinivasan

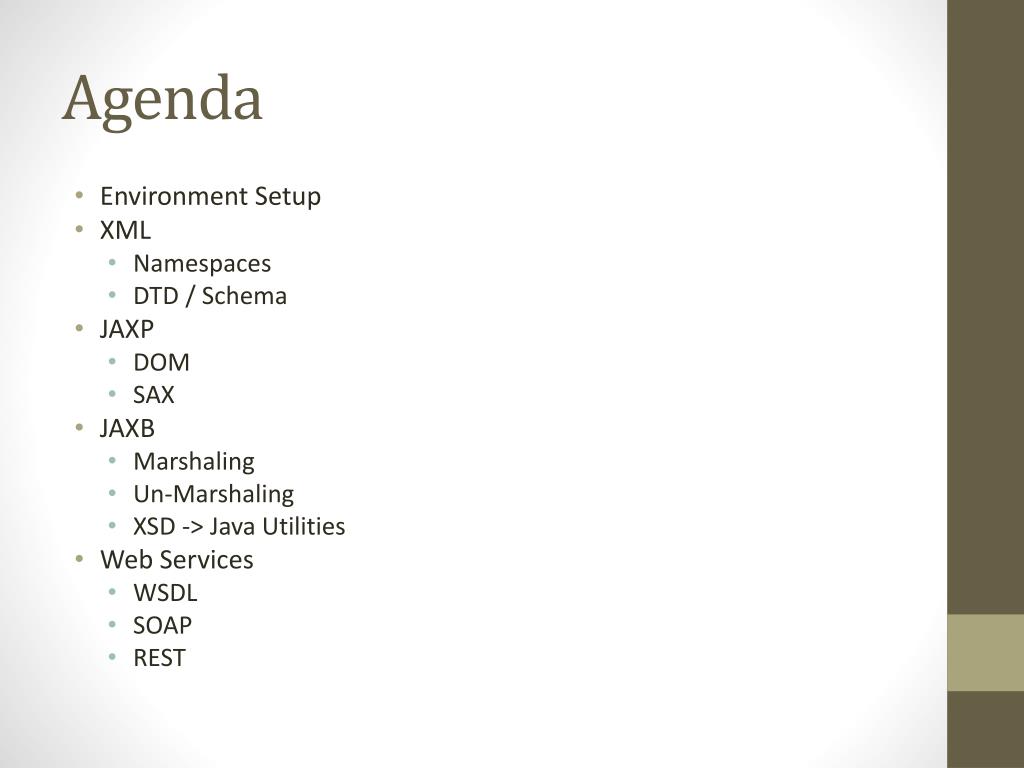

  2. Agenda • Environment Setup • XML • Namespaces • DTD / Schema • JAXP • DOM • SAX • JAXB • Marshaling • Un-Marshaling • XSD -> Java Utilities • Web Services • WSDL • SOAP • REST

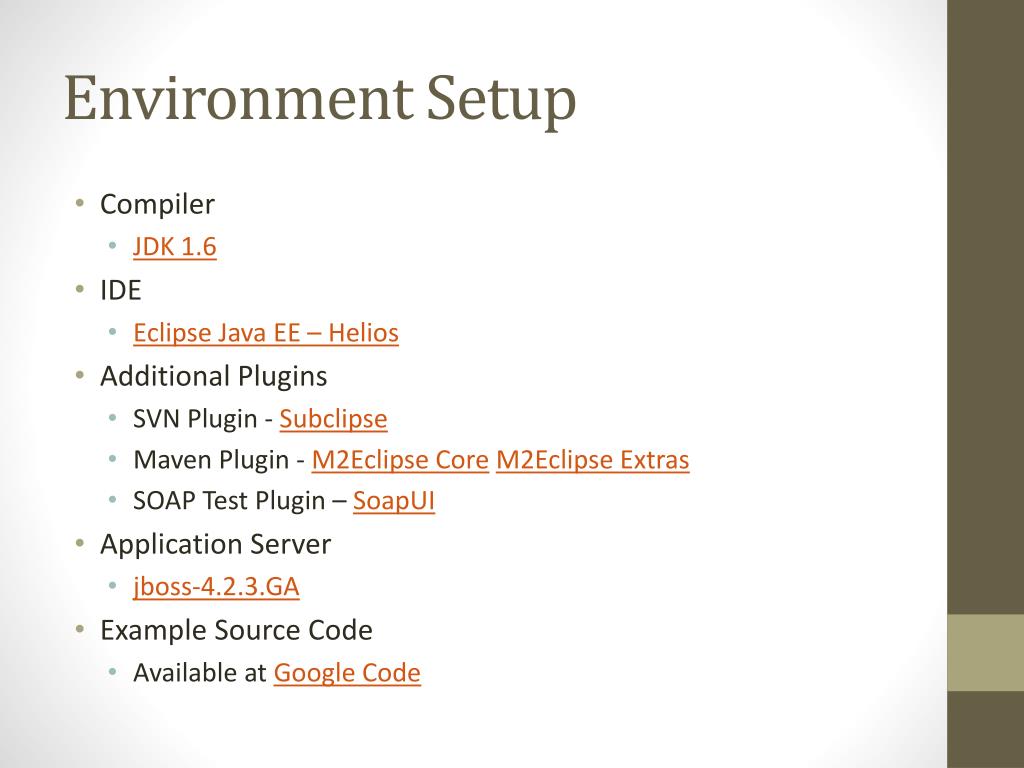

  3. Environment Setup • Compiler • JDK 1.6 • IDE • Eclipse Java EE – Helios • Additional Plugins • SVN Plugin - Subclipse • Maven Plugin - M2Eclipse CoreM2Eclipse Extras • SOAP Test Plugin – SoapUI • Application Server • jboss-4.2.3.GA • Example Source Code • Available at Google Code

  4. XML What is XML? • XML stands for EXtensible Markup Language • XML is a markup language much like HTML • XML was designed to carry data, not to display data • XML is a W3C Recommendation Pros • Platform and system independent • XML tags are not predefined. You must define your own tags • XML is designed to be self-descriptive • Validations are possible through DTD and XML Schema • Many Built-In Parsers are available in almost all popular languages Cons • Self-descriptive nature results a bigger payload compare to its competitive formats • JSON • YAML

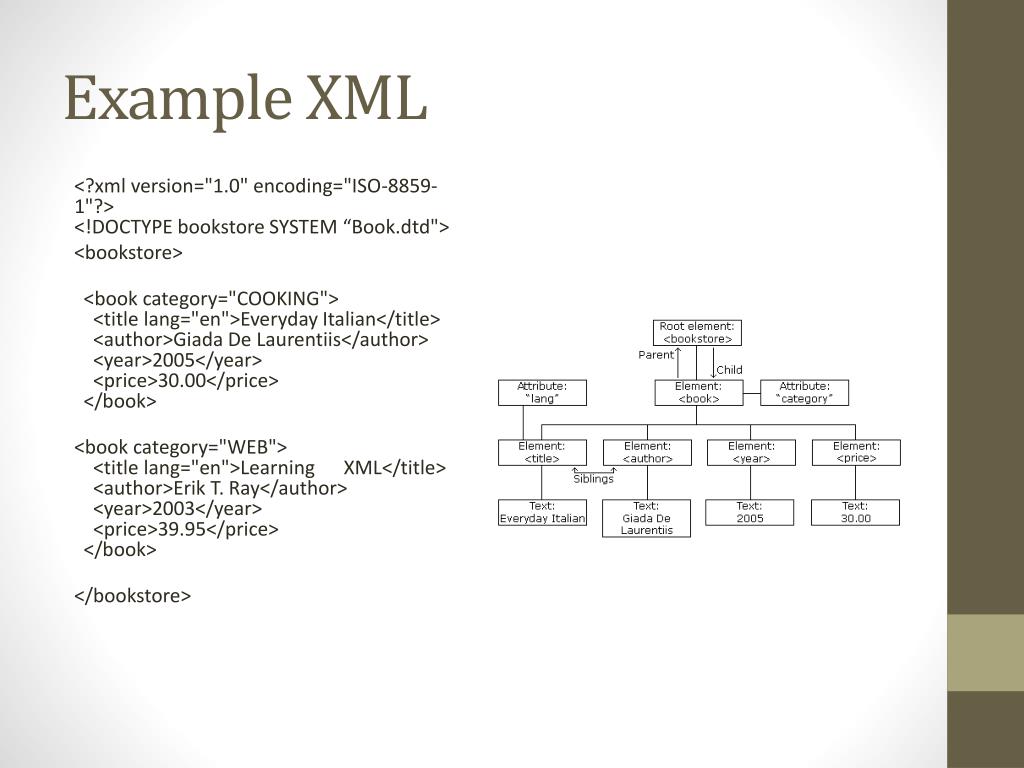

  5. Example XML <?xml version="1.0" encoding="ISO-8859-1"?><!DOCTYPE bookstore SYSTEM “Book.dtd"> <bookstore>   <book category="COOKING">    <title lang="en">Everyday Italian</title>    <author>Giada De Laurentiis</author>    <year>2005</year>    <price>30.00</price>  </book> <book category="WEB">    <title lang="en">Learning XML</title>    <author>Erik T. Ray</author>    <year>2003</year>    <price>39.95</price>  </book> </bookstore>

  6. DTD • DTD • The purpose of a DTD (Document Type Definition) is to define the legal building blocks of an XML document. • A DTD defines the document structure with a list of legal elements and attributes. <!DOCTYPE bookstore[ <!ELEMENT bookstore(book*)> <!ELEMENT book(title, author, year, price)><!ELEMENT title(#PCDATA)><!ELEMENT author(#PCDATA)><!ELEMENT year(#PCDATA)><!ELEMENT price(#PCDATA)> <!ATTLIST book category CDATA #REQUIRED><!ATTLIST title lang CDATA #IMPLIED> ]>

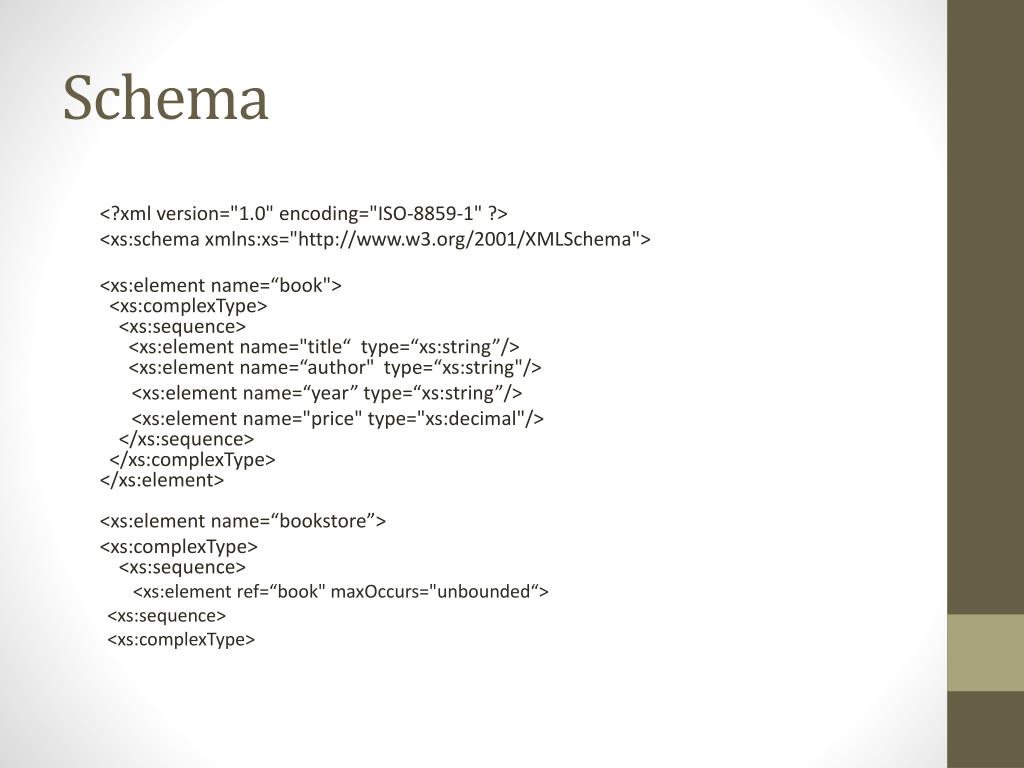

  7. Schema <?xmlversion="1.0" encoding="ISO-8859-1" ?> <xs:schemaxmlns:xs="http://www.w3.org/2001/XMLSchema"> <xs:element name=“book">  <xs:complexType>    <xs:sequence>      <xs:element name="title“ type=“xs:string”/>      <xs:element name=“author" type=“xs:string"/>       <xs:element name=“year” type=“xs:string”/>       <xs:element name="price" type="xs:decimal"/>    </xs:sequence>  </xs:complexType></xs:element><xs:element name=“bookstore”> <xs:complexType>    <xs:sequence> <xs:element ref=“book" maxOccurs="unbounded“> <xs:sequence> <xs:complexType>

  8. JAXP • Java API for XML Processing • JAXP enables applications to parse, transform, validate and query XML documents using an API • JAXP provides API which is independent of a particular XML processor implementation • Parser can be changed without recompiling the code using set of system properties • SAX • DOM • XSD • XSL • XPATH

  9. SAX • SAX stand for Simple API for XML • SAX is an event-driven, serial-access mechanism for accessing/processing XML documents • Parser triggers the Callback’s: startElement(), characters(), endElement() etc., while parsing the xml document. • Steps involved in Parsing XML file using SAX • Create a SAX Parser instance • Register callback implementation and implement the callbacks • Fastest and least memory-intensive • This is used only if we want to read data and have the application act on it

  10. Sample SAX import java.io.File; import javax.xml.parsers.FactoryConfigurationError; import javax.xml.parsers.ParserConfigurationException; import javax.xml.parsers.SAXParser; import javax.xml.parsers.SAXParserFactory; publicclass TestSAXParsing { publicstaticvoid main(String[] args) { try { // Get SAX Parser Factory SAXParserFactory factory = SAXParserFactory.newInstance(); // Turn on validation, and turn off namespaces factory.setValidating(true); factory.setNamespaceAware(false); SAXParser parser = factory.newSAXParser(); parser.parse(new File("books.xml"), new MyHandler()); } catch (ParserConfigurationException e) { System.out.println("The underlying parser does not support " + " the requested features."); } catch (FactoryConfigurationError e) { System.out.println("Error occurred obtaining SAX Parser Factory."); } catch (Exception e) { e.printStackTrace(); } } }

  11. MyHandler import org.xml.sax.Attributes; import org.xml.sax.SAXException; import org.xml.sax.helpers.DefaultHandler; publicclass MyHandler extends DefaultHandler { publicvoid startDocument() throws SAXException { } publicvoid endDocument() throws SAXException { } publicvoid startElement(String namespaceURI, String localName, String qName, Attributes attributes) { System.out.print(qName + ":"); } publicvoid endElement(String name) throws SAXException { System.out.println(); } publicvoid characters(char buf[], int offset, int len) throws SAXException { String s = new String(buf, offset, len); System.out.print(s); } }

  12. DOM • DOM stands for Document Object Model • A DOM for XML is an object model that exposes the contents of an XML document • Behind the scene it uses SAX Parser to construct the DOM Object • Mainly used when you want to manipulate the XML content during runtime • DOM can be memory intensive when it comes to very large XML document

  13. Sample DOM publicclassDOMParser { publicstaticvoid main(String[] args) { Document document=parse("books.xml"); Node node=document.getDocumentElement(); print(node,0); } privatestaticvoid print(Node node, int level) { if(node.getNodeType()==3){ return; } for(inti=0;i<level;i++){ System.out.print("\t"); } System.out.println(node.getNodeName()); if(node.hasChildNodes()){ NodeListnodeList=node.getChildNodes(); for(inti=0;i<nodeList.getLength();i++){ print(nodeList.item(i),level+1); } } } }

  14. Sample DOM publicstatic Document parse(String fileName) { Document document = null; // Initiate DocumentBuilderFactory DocumentBuilderFactory factory = DocumentBuilderFactory.newInstance(); // To get a validating parser factory.setValidating(false); // To get one that understands namespaces factory.setNamespaceAware(true); try { // Get DocumentBuilder DocumentBuilder builder = factory.newDocumentBuilder(); // Parse and load into memory the Document document = builder.parse( new File(fileName)); return document; } catch (SAXParseException e) { e.printStackTrace(); } catch (SAXException e) { e.printStackTrace(); } catch (ParserConfigurationException e) { e.printStackTrace(); } catch (IOException e) { e.printStackTrace(); } returnnull; }

  15. JAXB • Framework for processing XML documents • Mandates Schema for XML document • Convert Java objects to XML and Vice versa. • Generate the Java type information (Classes) using Binding compiler (xjc) for accessing elements, attributes and other content in a typesafe way. • JAXWS uses JAXB internally for message parsing

  16. JAXB Binding Process Steps 1 2 4 3

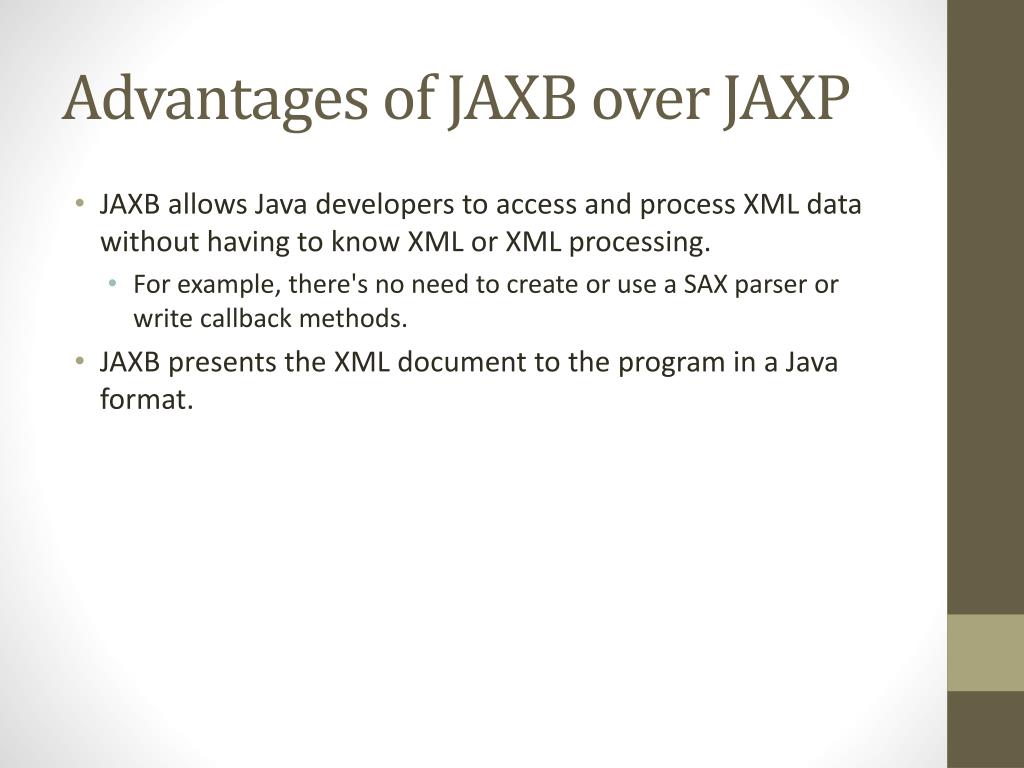

  17. Advantages of JAXB over JAXP • JAXB allows Java developers to access and process XML data without having to know XML or XML processing. • For example, there's no need to create or use a SAX parser or write callback methods. • JAXB presents the XML document to the program in a Java format.

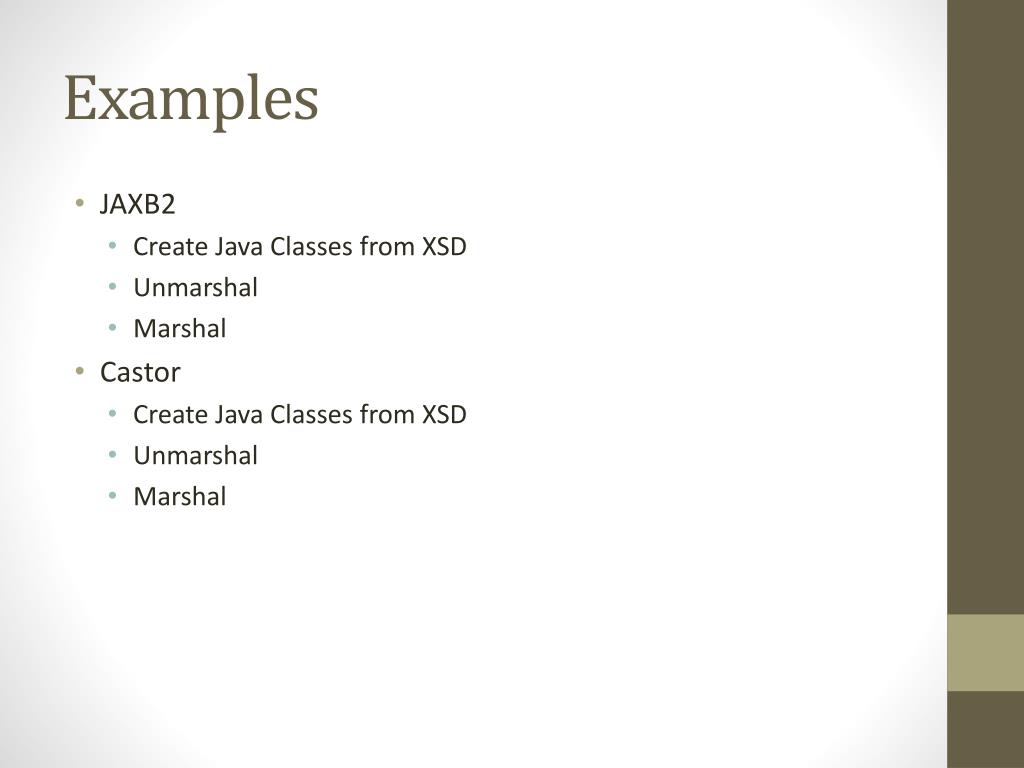

  18. Examples • JAXB2 • Create Java Classes from XSD • Unmarshal • Marshal • Castor • Create Java Classes from XSD • Unmarshal • Marshal

  19. Comparisons • JAXB • Standard from Sun • No Reflection • Better performance • Castor • Nonstandard • Uses reflection • Can be used for any POJO • Better Memory Management

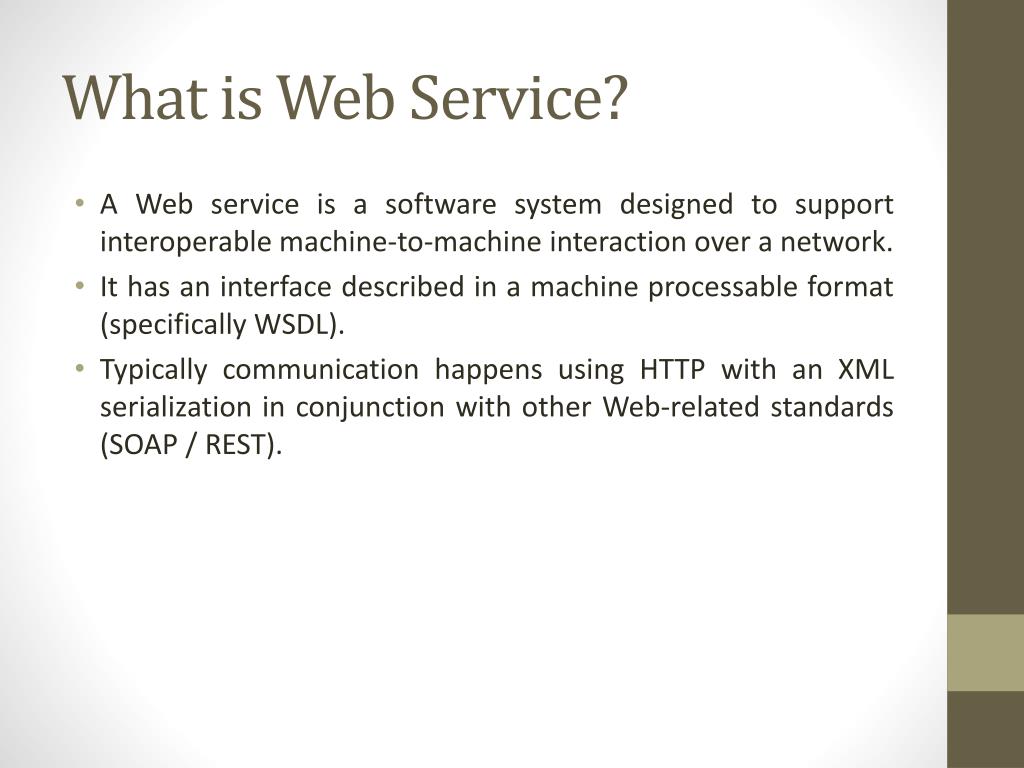

  20. What is Web Service? • A Web service is a software system designed to support interoperable machine-to-machine interaction over a network. • It has an interface described in a machine processable format (specifically WSDL). • Typically communication happens using HTTP with an XML serialization in conjunction with other Web-related standards (SOAP / REST).

  21. Client – Service Communication Client Service SOAP JAX-WS Runtime JAX-WS Runtime

  22. An Example • The client program bundles the Holiday request information into a SOAP message. • This SOAP message is sent to the Web Service as the body of an HTTP POST request. • The Holiday Web Service unpacks the SOAP request and converts it into a command that the application can understand. The application processes the information as required and creates response with the details of the Holiday. • Next, the Web Service packages up the response into another SOAP message, which it sends back to the client program in response to its HTTP request. • The client program unpacks the SOAP message to obtain the results of the Holiday.

  23. WSDL • WSDL stands for Web Services Definition Language • WSDL describes following aspect of service endpoints • Allowed operations • Return values of the operations • Data types of the service parameters

  24. UDDI • The Universal Description, Discovery, and Integration (UDDI) standard for publishing and discovering information about web services. • UDDI is a single conceptual registry distributed among many nodes that replicate the participating businesses' data with one another. • It attempted to cover both the business and development aspects of publishing and locating information associated with a piece of software on a global scale. • UDDI is similar to an Internet search engine for business processes.

  25. Cont.. • Service provider describes its service using WSDL. This definition is published to a directory of services. • Service consumer issues one or more queries to the directory to locate a service and determine how to communicate with that service. • Part of the WSDL provided by the service provider is passed to the service consumer. This tells the service consumer what the requests and responses are for the service provider. • The service consumer uses the WSDL to send a request to the service provider. • The service provider provides the expected response to the service consumer.

  26. Advantages of Web services • Application can be broken into smaller and loosely coupled programs. • Standardized and well-defined interfaces. • Loosely coupled programs makes the architecture very extensible • Increases interoperability, resulting in lower maintanancecosts • Increases reusability

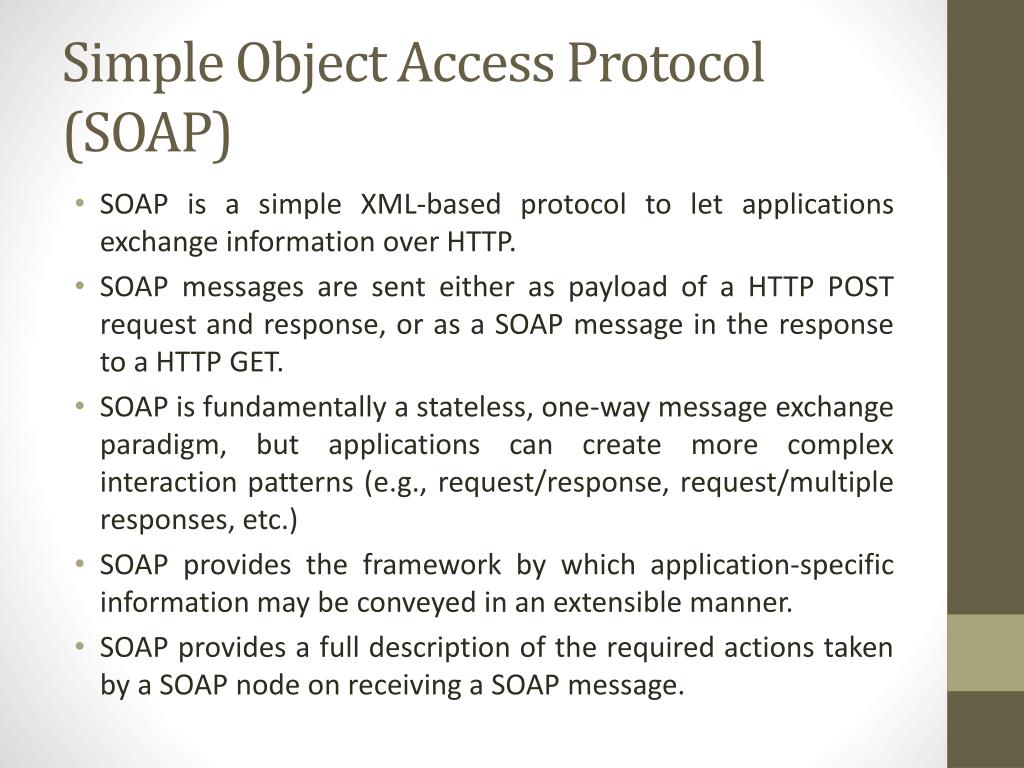

  27. Simple Object Access Protocol (SOAP) • SOAP is a simple XML-based protocol to let applications exchange information over HTTP. • SOAP messages are sent either as payload of a HTTP POST request and response, or as a SOAP message in the response to a HTTP GET. • SOAP is fundamentally a stateless, one-way message exchange paradigm, but applications can create more complex interaction patterns (e.g., request/response, request/multiple responses, etc.) • SOAP provides the framework by which application-specific information may be conveyed in an extensible manner. • SOAP provides a full description of the required actions taken by a SOAP node on receiving a SOAP message.

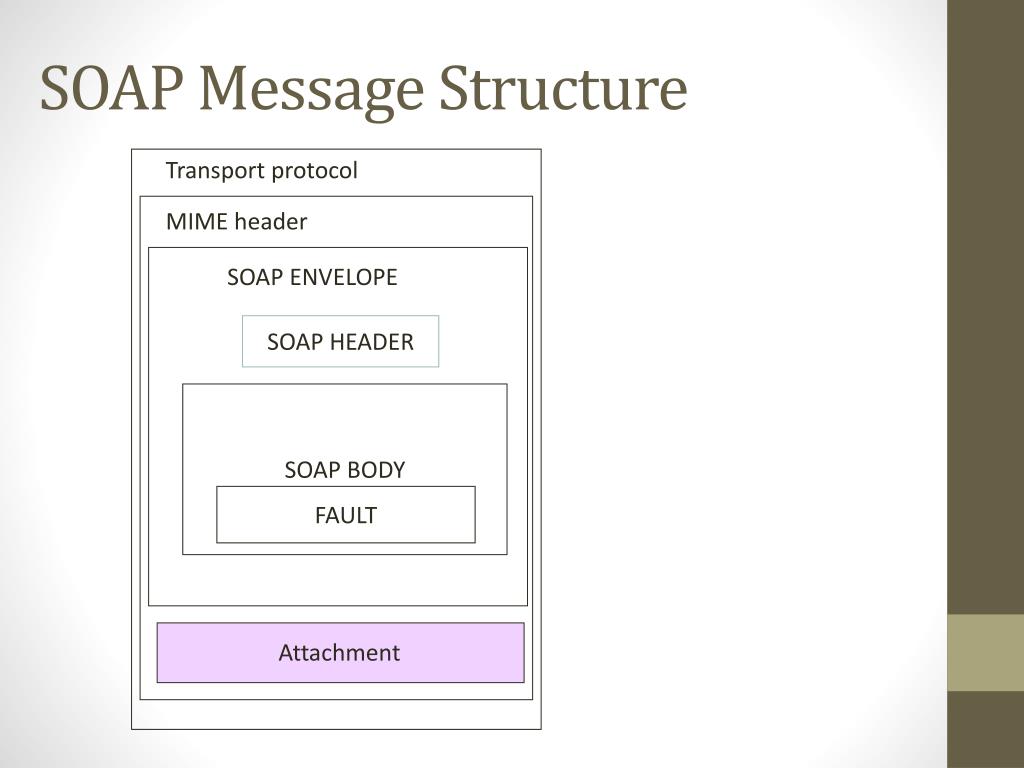

  28. SOAP Message Structure Transport protocol MIME header SOAP ENVELOPE SOAP HEADER SOAP BODY FAULT Attachment

  29. JAX-WS • Java API for XML Web Services • It is a technology/API for building web services and clients that communicate using SOAP messages over HTTP • The runtime system converts the API calls and responses to and from SOAP messages • It enables clients to invoke web services developed across heterogeneous platforms. Likewise, JAX-WS web service endpoints can be invoked by heterogeneous clients. • Requires SOAP and WSDL standards for this cross-platform interoperability

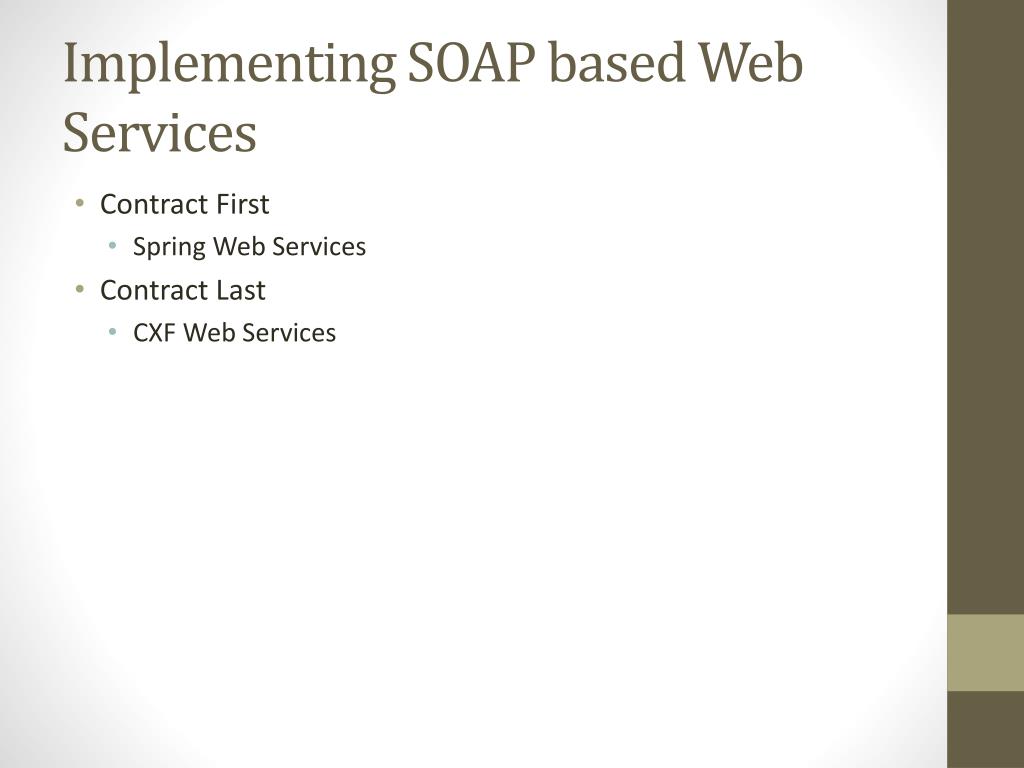

  30. Implementing SOAP based Web Services • Contract First • Spring Web Services • Contract Last • CXF Web Services

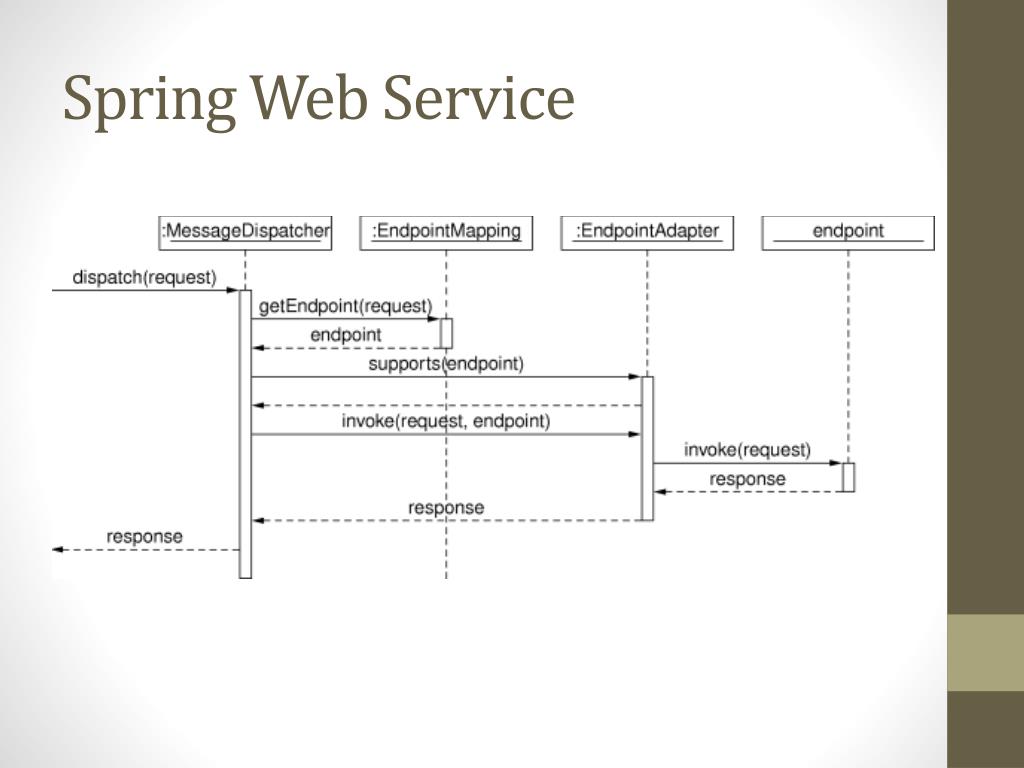

  31. Spring Web Service

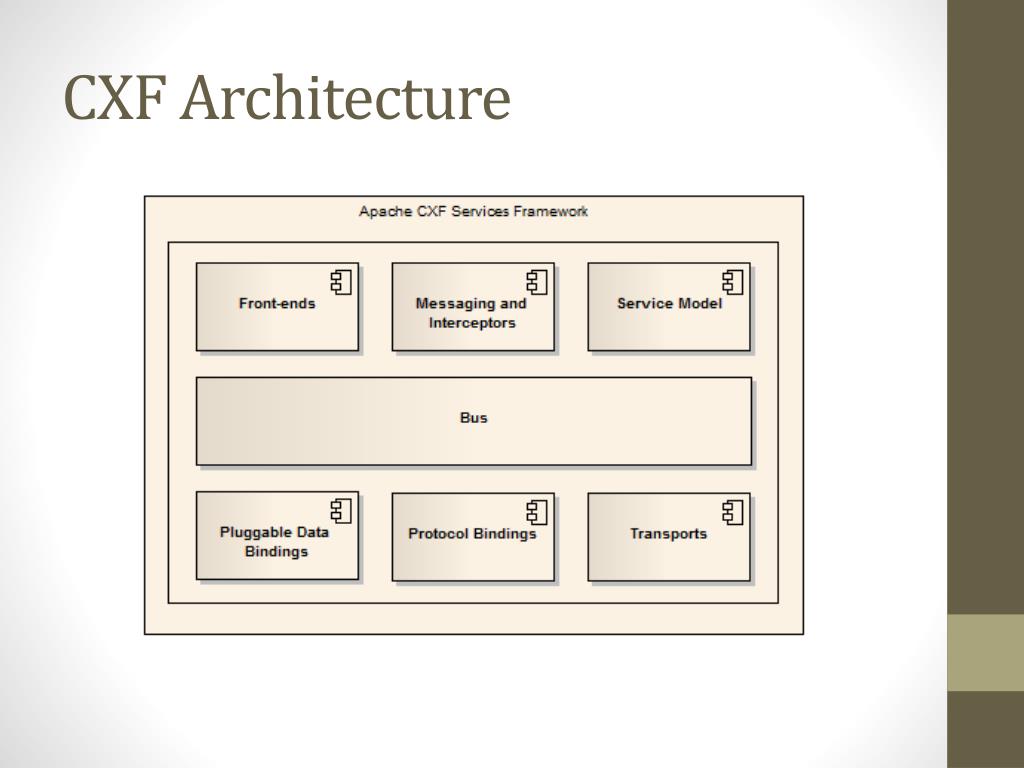

  32. CXF Architecture

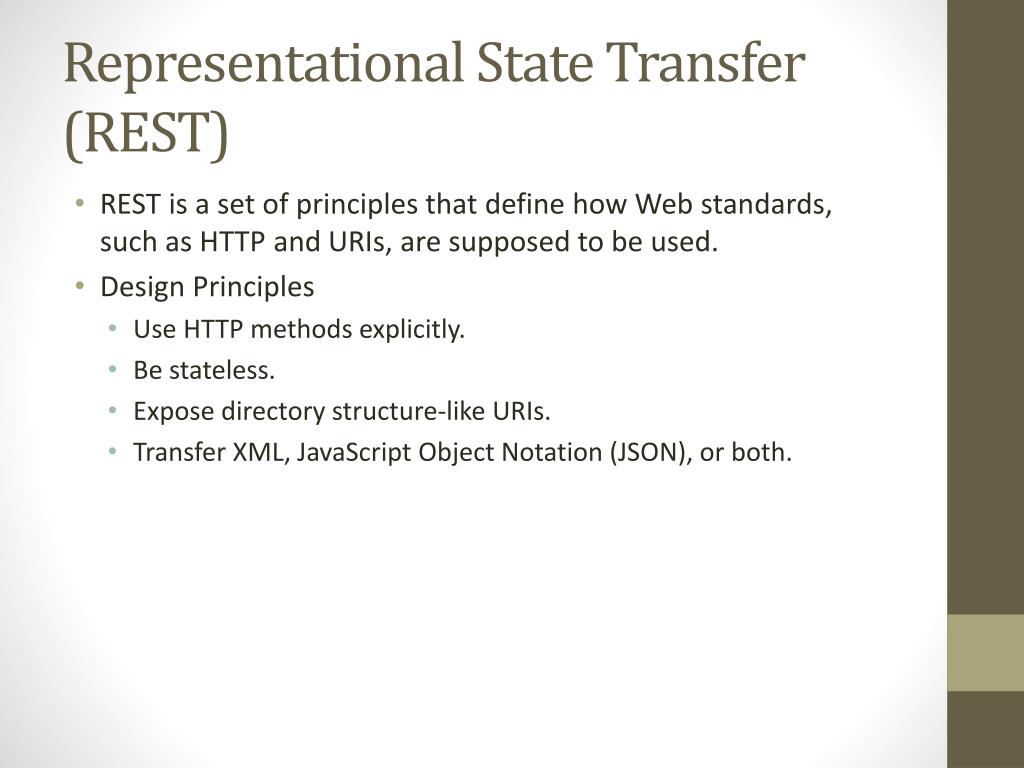

  33. Representational State Transfer (REST) • REST is a set of principles that define how Web standards, such as HTTP and URIs, are supposed to be used. • Design Principles • Use HTTP methods explicitly. • Be stateless. • Expose directory structure-like URIs. • Transfer XML, JavaScript Object Notation (JSON), or both.

  34. REST Example • To Create a resource on the server POST /users HTTP/1.1 Host: Host: myserver Content-Type: application/xml <?xml version="1.0"?> <user> <name>RAM</name> </user> • To Retrieve a resource on server GET /users/Robert HTTP/1.1 Host: myserver Accept: application/xml

  35. Cont… • HTTP PUT request PUT /users/Robert HTTP/1.1 Host: myserver Content-Type: application/xml <?xml version="1.0"?> <user> <name>Bob</name> </user> • HTTP Delete request DELETE /users/Robert HTTP/1.1 Host: myserver

  36. References • http://cxf.apache.org/docs/writing-a-service-with-spring.html • http://static.springsource.org/spring-ws/sites/1.5/reference/html/tutorial.html • http://www.w3schools.com/ • http://cxf.apache.org/docs/cxf-architecture.html

  37. Question/Answer

  38. Thank You !
