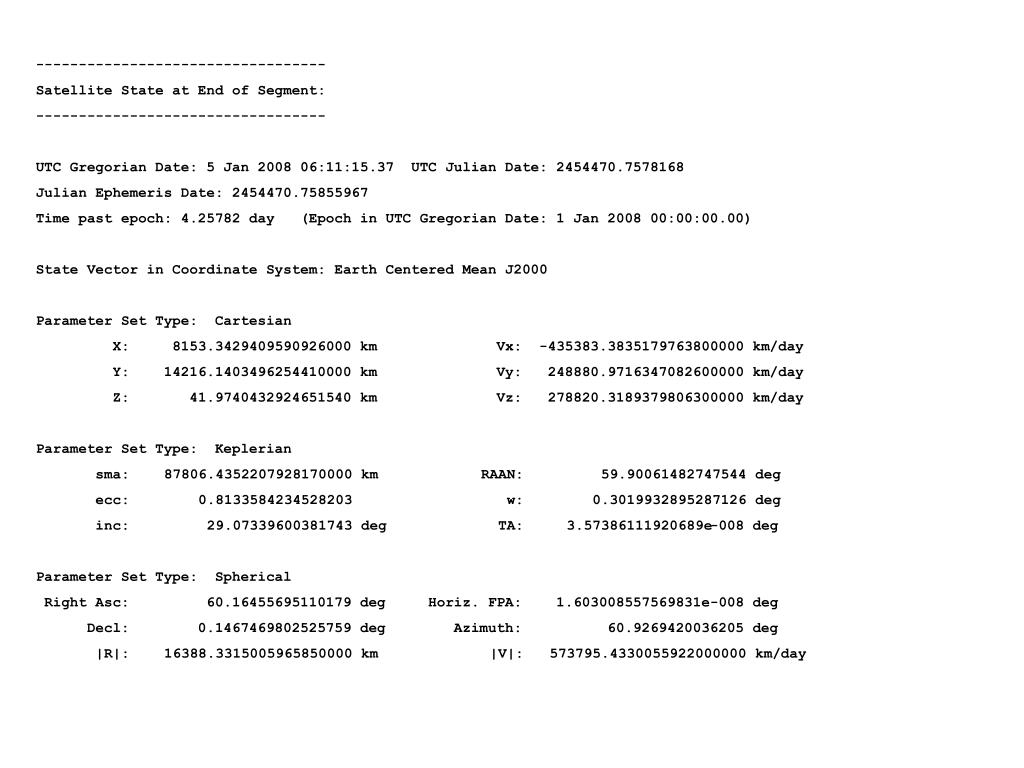

  1. ---------------------------------- Satellite State at End of Segment: ---------------------------------- UTC Gregorian Date: 5 Jan 2008 06:11:15.37 UTC Julian Date: 2454470.7578168 Julian Ephemeris Date: 2454470.75855967 Time past epoch: 4.25782 day (Epoch in UTC Gregorian Date: 1 Jan 2008 00:00:00.00) State Vector in Coordinate System: Earth Centered Mean J2000 Parameter Set Type: Cartesian X: 8153.3429409590926000 km Vx: -435383.3835179763800000 km/day Y: 14216.1403496254410000 km Vy: 248880.9716347082600000 km/day Z: 41.9740432924651540 km Vz: 278820.3189379806300000 km/day Parameter Set Type: Keplerian sma: 87806.4352207928170000 km RAAN: 59.90061482747544 deg ecc: 0.8133584234528203 w: 0.3019932895287126 deg inc: 29.07339600381743 deg TA: 3.57386111920689e-008 deg Parameter Set Type: Spherical Right Asc: 60.16455695110179 deg Horiz. FPA: 1.603008557569831e-008 deg Decl: 0.1467469802525759 deg Azimuth: 60.9269420036205 deg |R|: 16388.3315005965850000 km |V|: 573795.4330055922000000 km/day

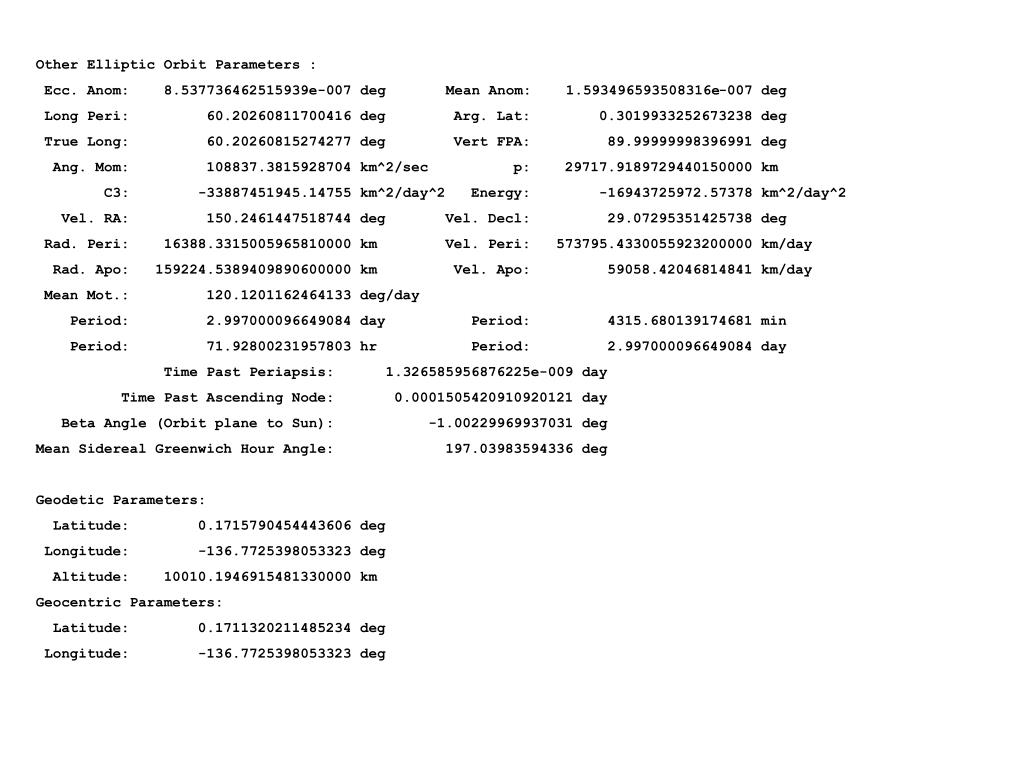

  2. Other Elliptic Orbit Parameters : Ecc. Anom: 8.537736462515939e-007 deg Mean Anom: 1.593496593508316e-007 deg Long Peri: 60.20260811700416 deg Arg. Lat: 0.3019933252673238 deg True Long: 60.20260815274277 deg Vert FPA: 89.99999998396991 deg Ang. Mom: 108837.3815928704 km^2/sec p: 29717.9189729440150000 km C3: -33887451945.14755 km^2/day^2 Energy: -16943725972.57378 km^2/day^2 Vel. RA: 150.2461447518744 deg Vel. Decl: 29.07295351425738 deg Rad. Peri: 16388.3315005965810000 km Vel. Peri: 573795.4330055923200000 km/day Rad. Apo: 159224.5389409890600000 km Vel. Apo: 59058.42046814841 km/day Mean Mot.: 120.1201162464133 deg/day Period: 2.997000096649084 day Period: 4315.680139174681 min Period: 71.92800231957803 hr Period: 2.997000096649084 day Time Past Periapsis: 1.326585956876225e-009 day Time Past Ascending Node: 0.0001505420910920121 day Beta Angle (Orbit plane to Sun): -1.00229969937031 deg Mean Sidereal Greenwich Hour Angle: 197.03983594336 deg Geodetic Parameters: Latitude: 0.1715790454443606 deg Longitude: -136.7725398053323 deg Altitude: 10010.1946915481330000 km Geocentric Parameters: Latitude: 0.1711320211485234 deg Longitude: -136.7725398053323 deg
