Coulomb’s Law Did everyone read their Book??? Mastering physics registration?

Coulomb’s Law Did everyone read their Book??? Mastering physics registration?. Wimhurst machine. pop-bottle machine demo. blues from Wimhust. Reds from Wimhust. Zap. Zap. Zap. zap. zap. zap. zap. STOP !!. Coulomb’s Law al l’experiment. Make all in the same way.

amena
Download Presentation

Coulomb’s Law Did everyone read their Book??? Mastering physics registration?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

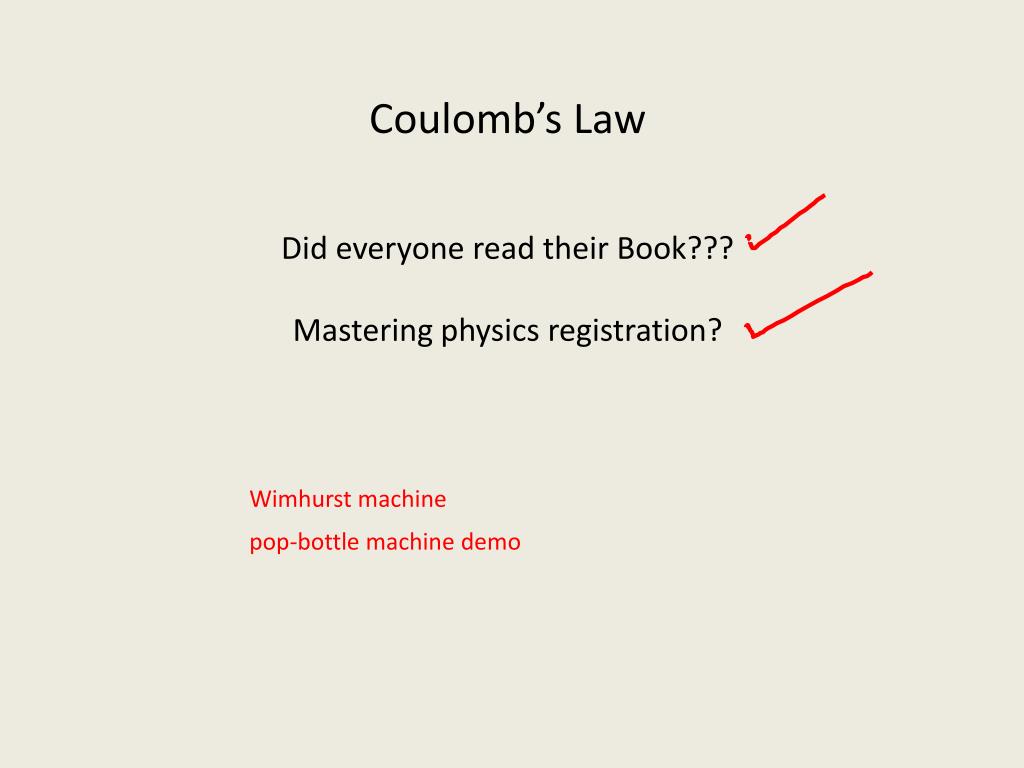

  1. Coulomb’s Law Did everyone read their Book??? Mastering physics registration? Wimhurst machine pop-bottle machine demo

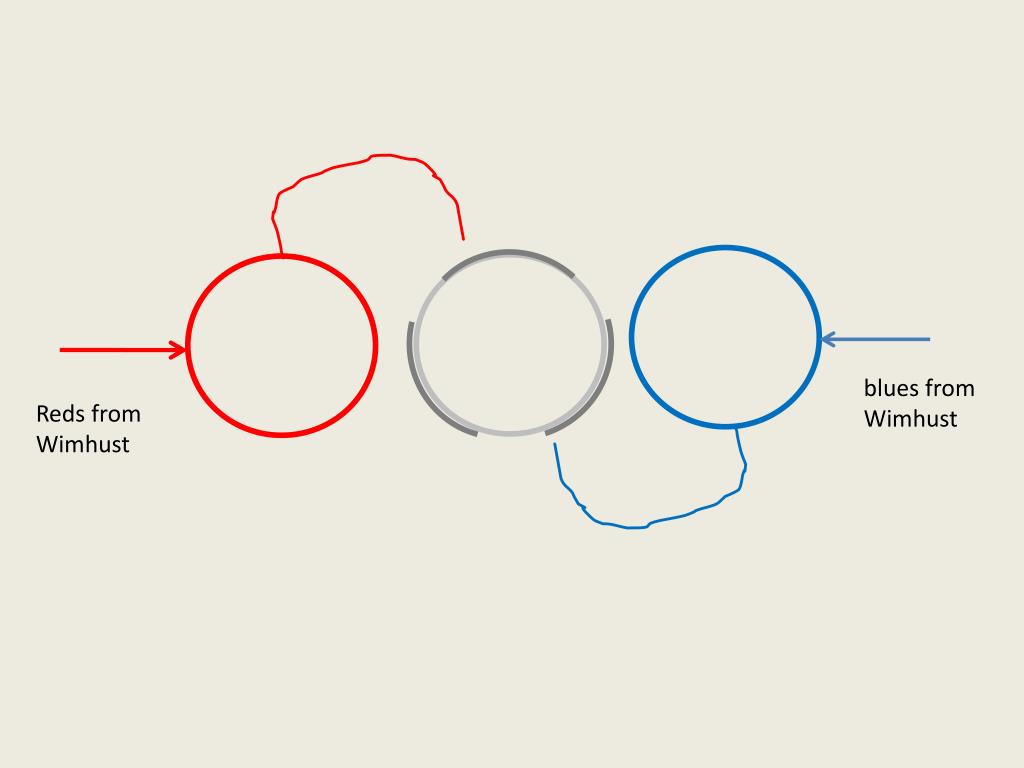

  2. blues from Wimhust Reds from Wimhust

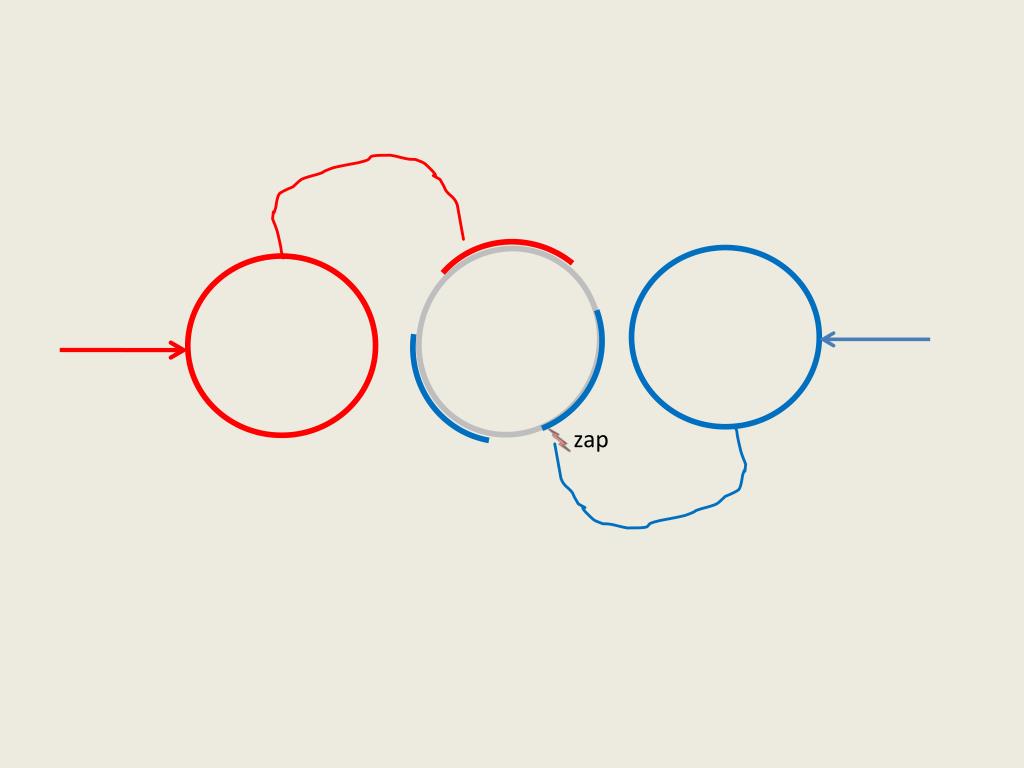

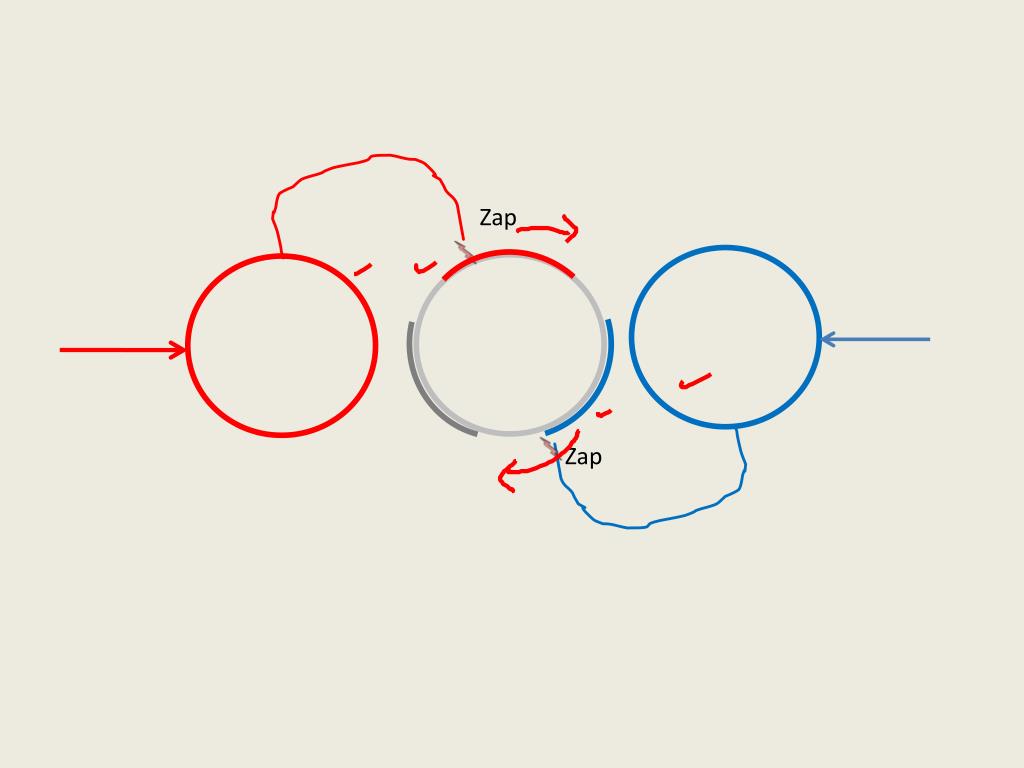

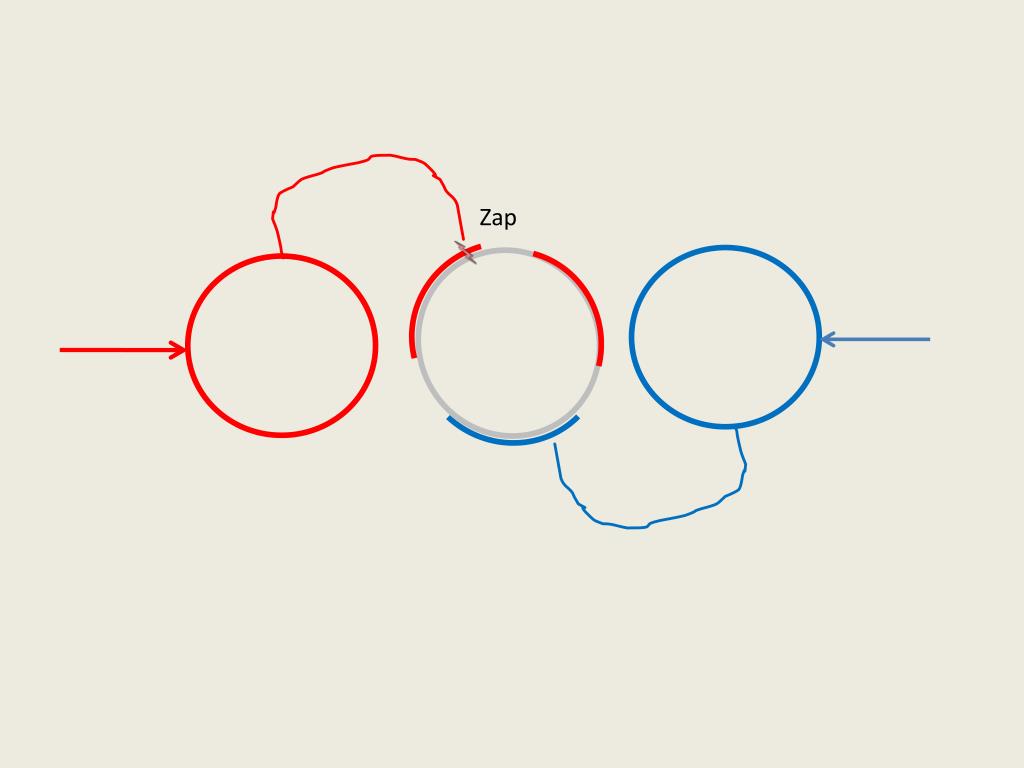

  3. Zap Zap

  4. Zap

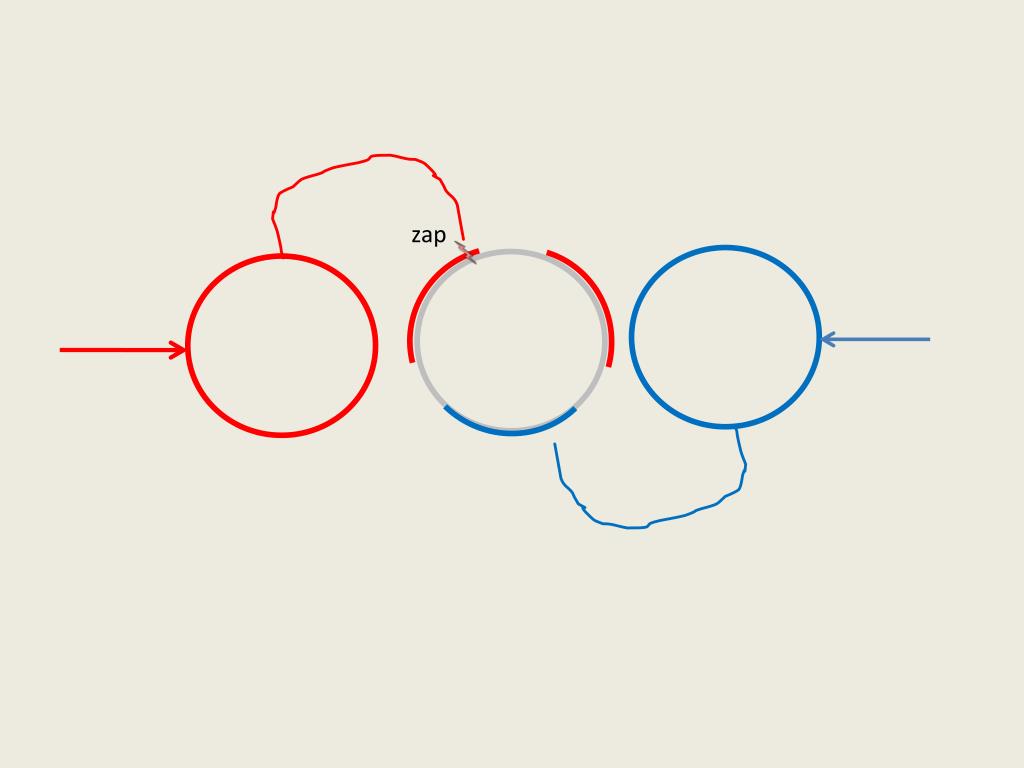

  5. zap

  6. zap

  7. zap

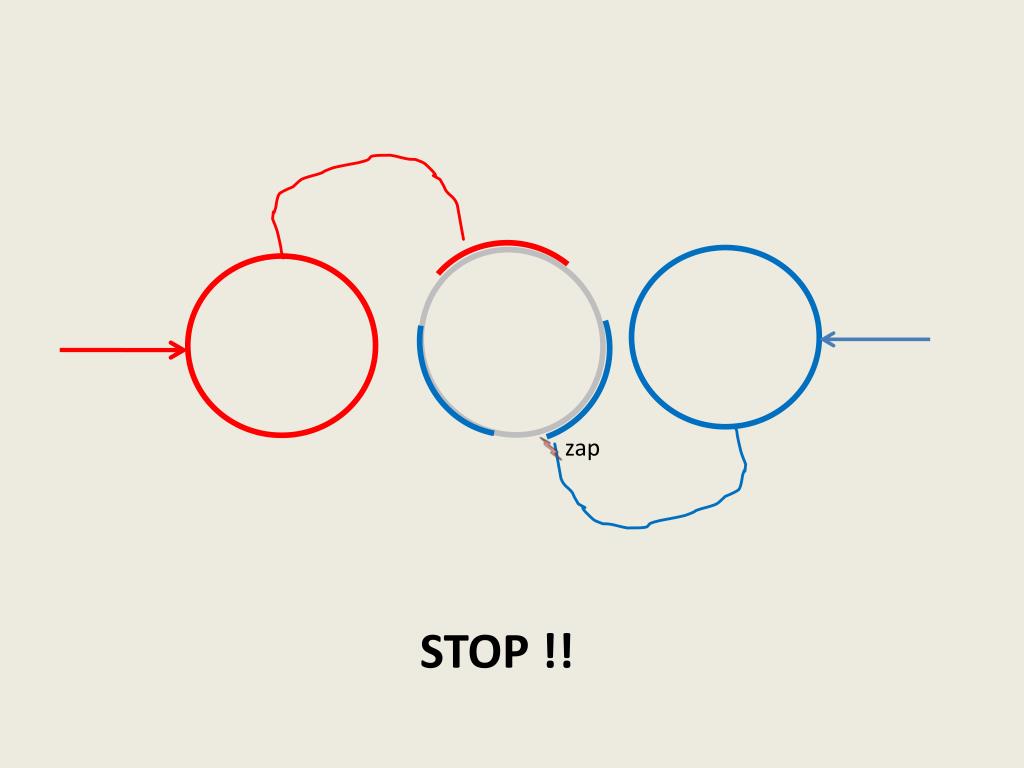

  8. zap STOP !!

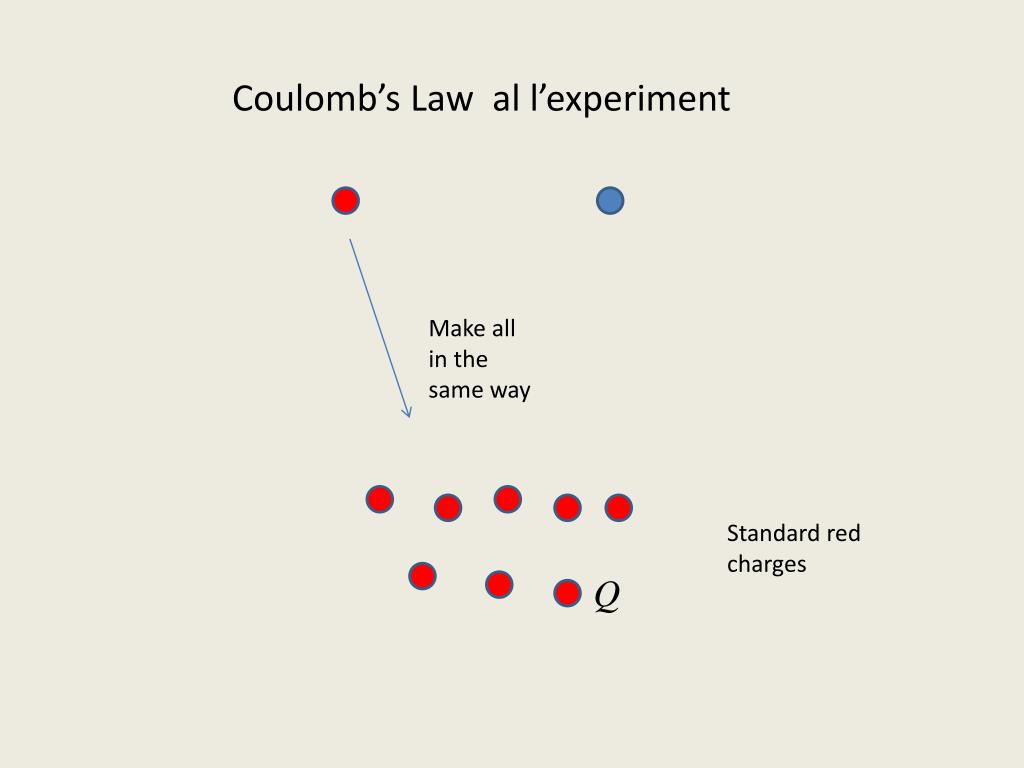

  9. Coulomb’s Law al l’experiment Make all in the same way Standard red charges

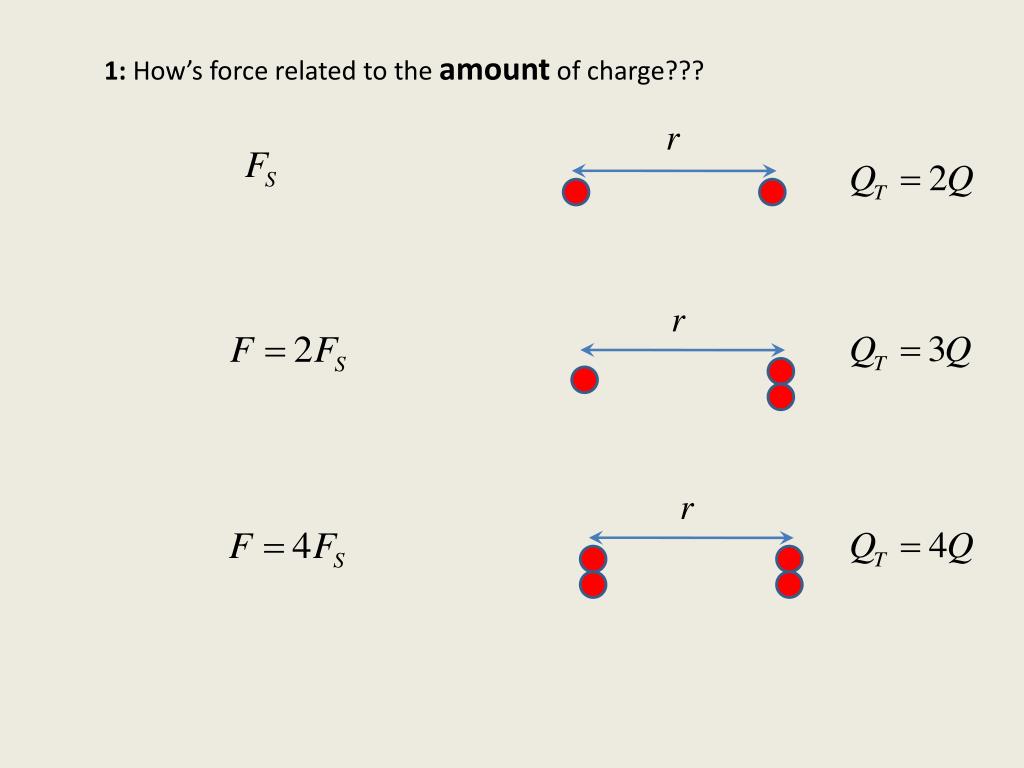

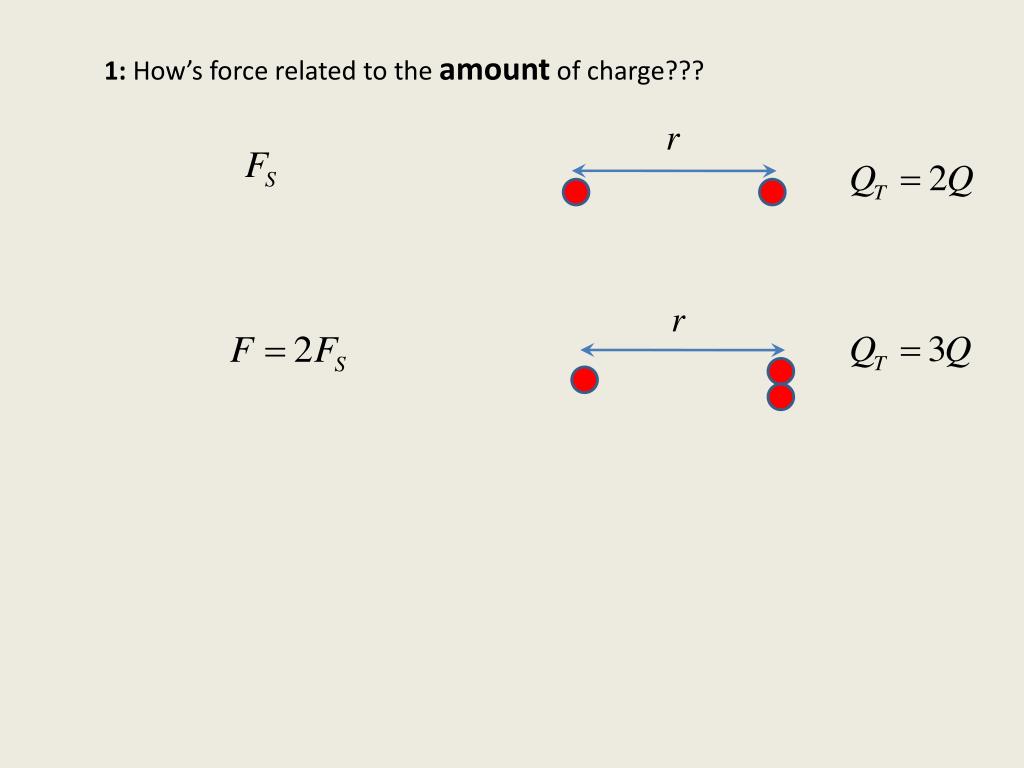

  10. 1: How’s force related to the amount of charge???

  11. 1: How’s force related to the amount of charge???

  12. 1: How’s force related to the amount of charge???

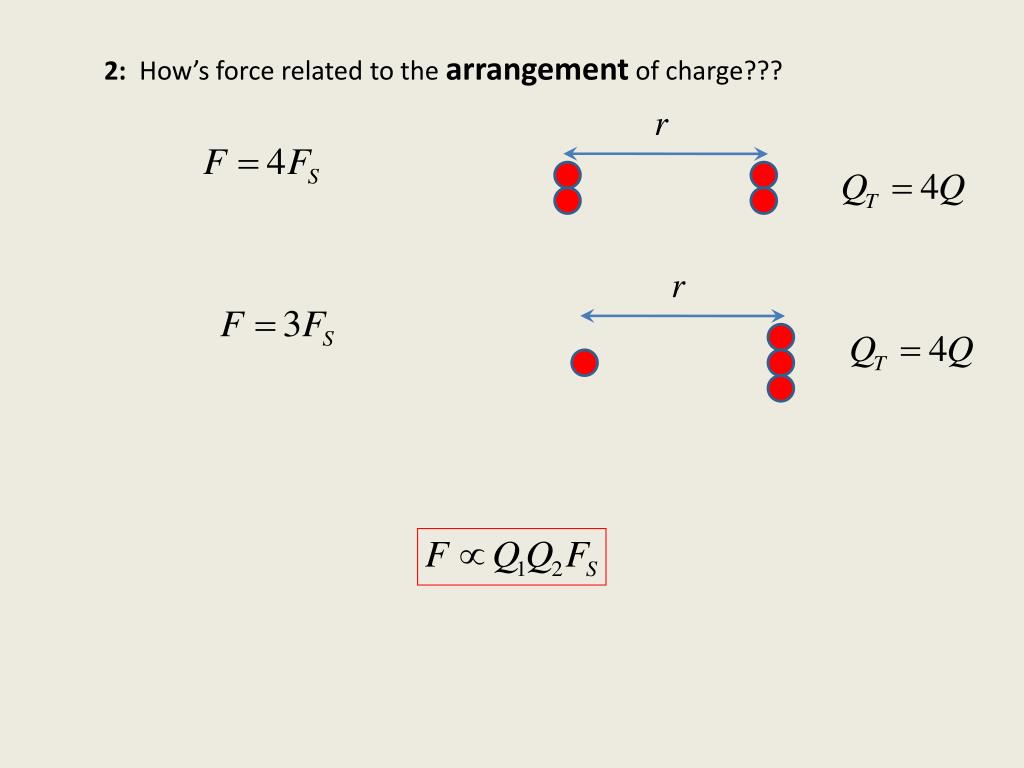

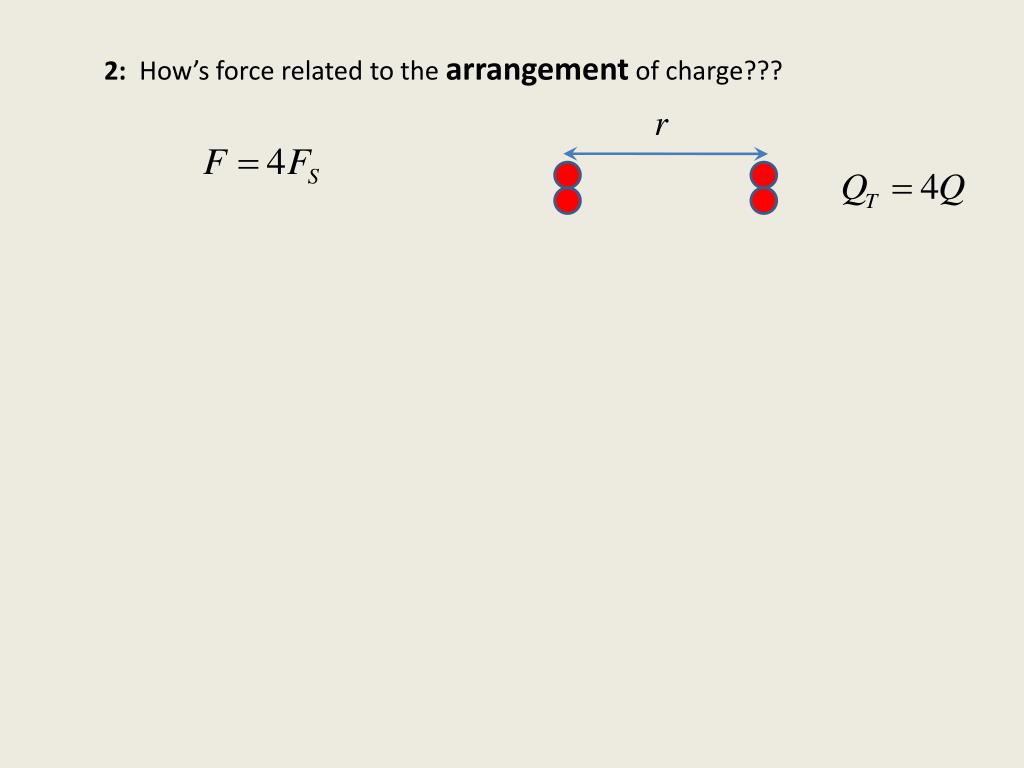

  13. 2: How’s force related to the arrangement of charge???

  14. 2: How’s force related to the arrangement of charge???

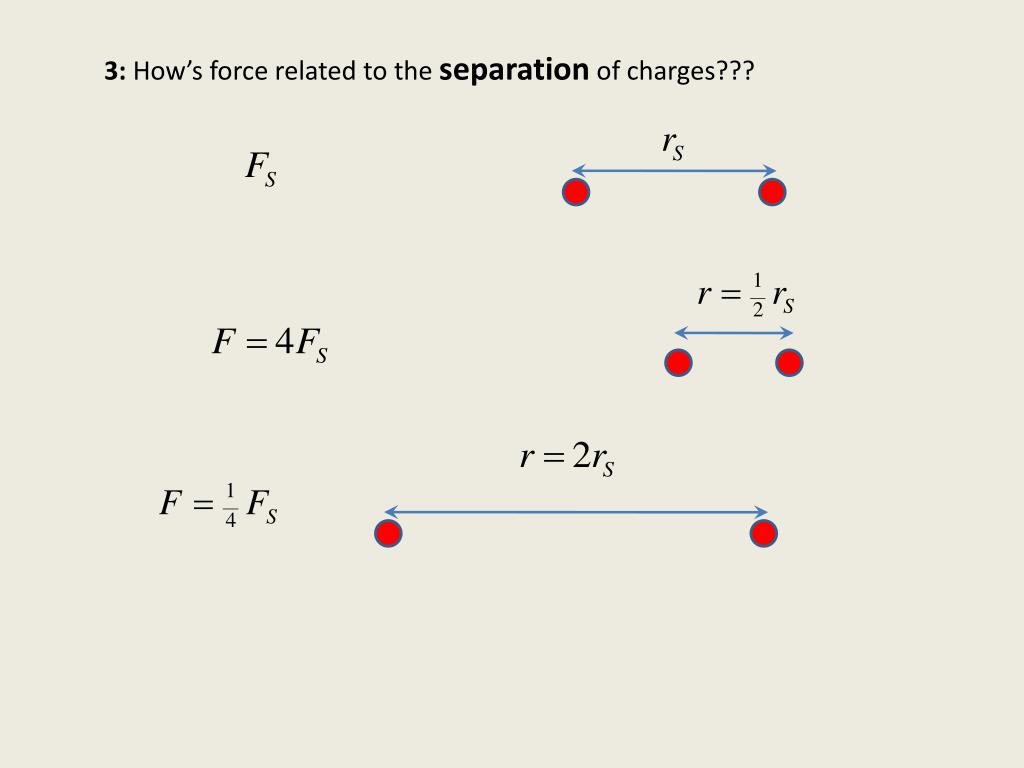

  15. 3: How’s force related to theseparationof charges???

  16. 3: How’s force related to theseparationof charges???

  17. 3: How’s force related to theseparationof charges???

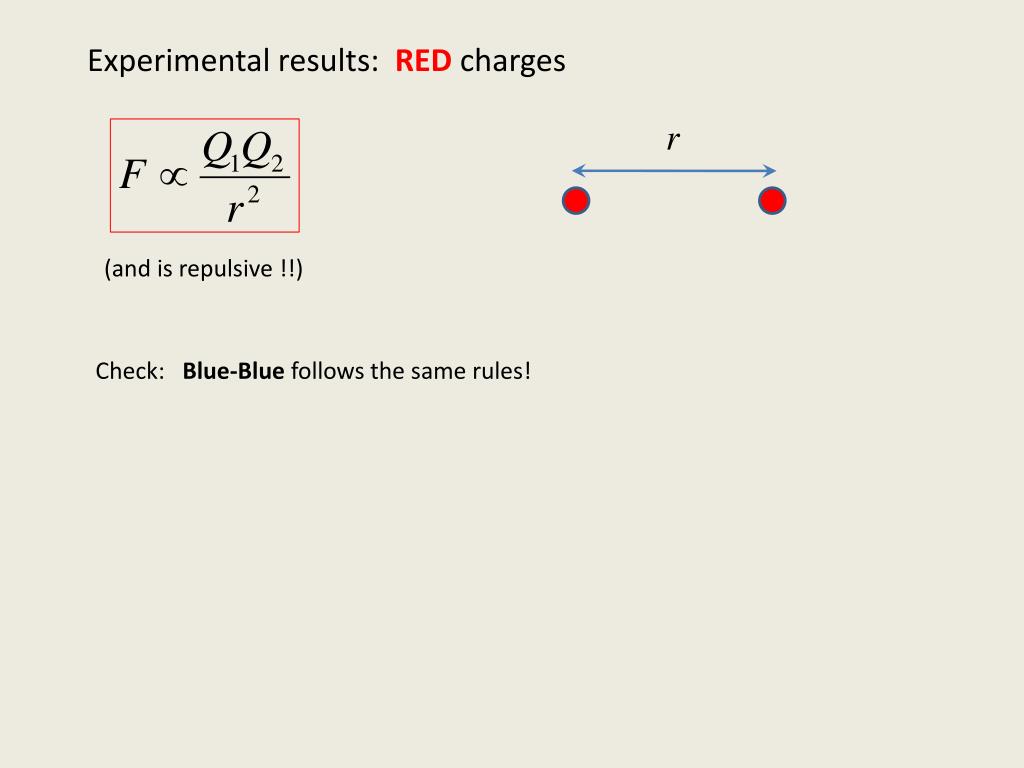

  18. Experimental results: RED charges (and is repulsive !!) Check: Blue-Blue follows the same rules!

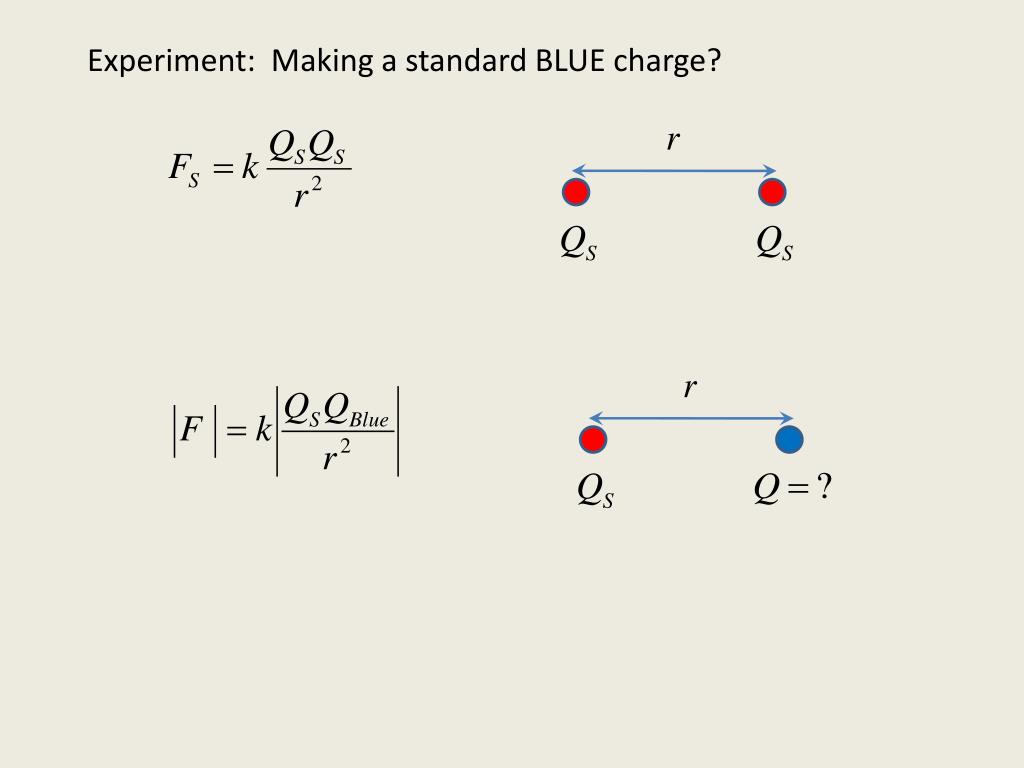

  19. Experiment: Making a standardBLUE charge?

  20. Experiment: Making a standard BLUE charge?

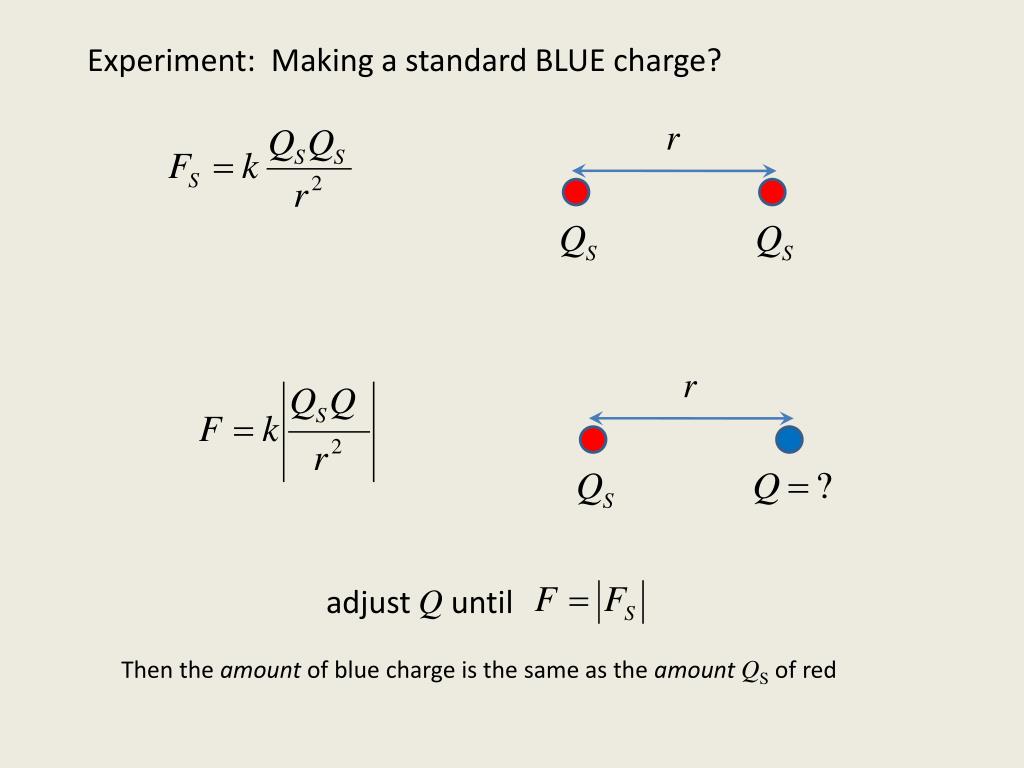

  21. Experiment: Making a standard BLUE charge? adjust Quntil Then the amount of blue charge is the same as the amountQS of red

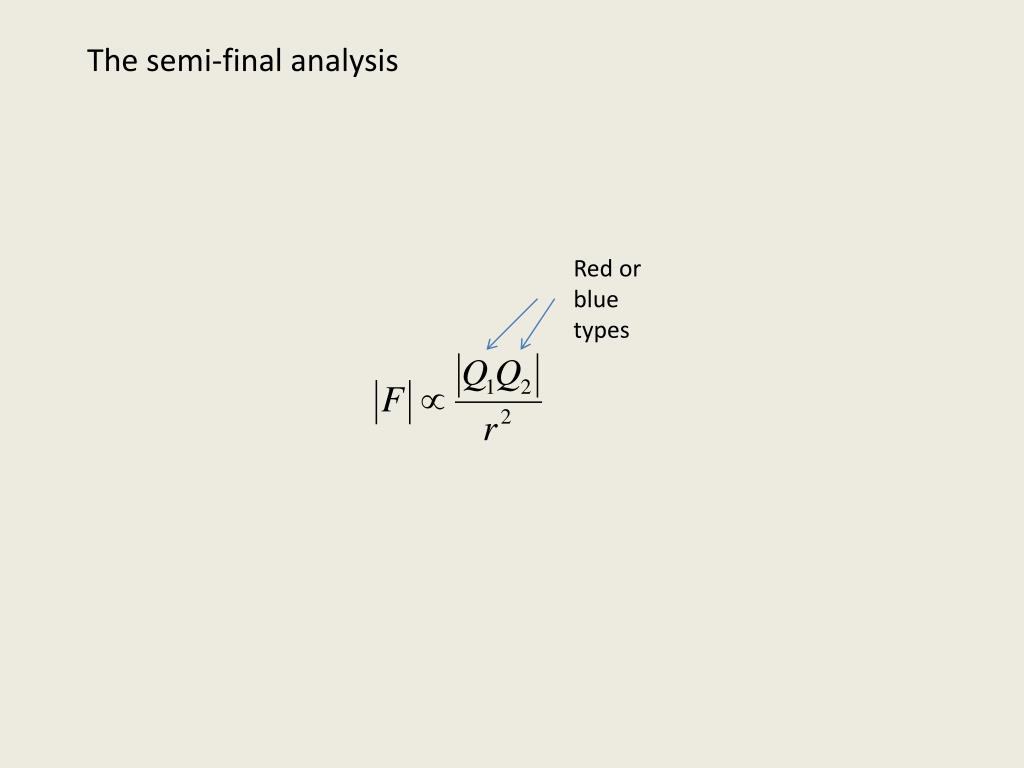

  22. The semi-final analysis Red or blue types

  23. The final analysis Red or blue types

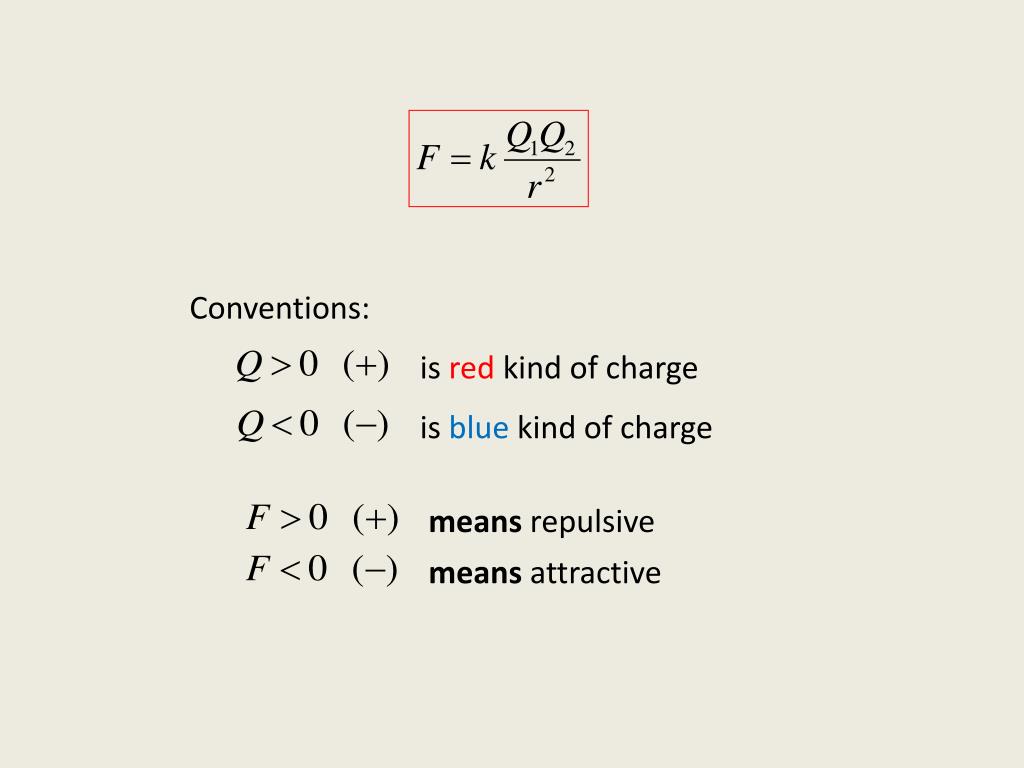

  24. Conventions: is red kind of charge is blue kind of charge means repulsive means attractive

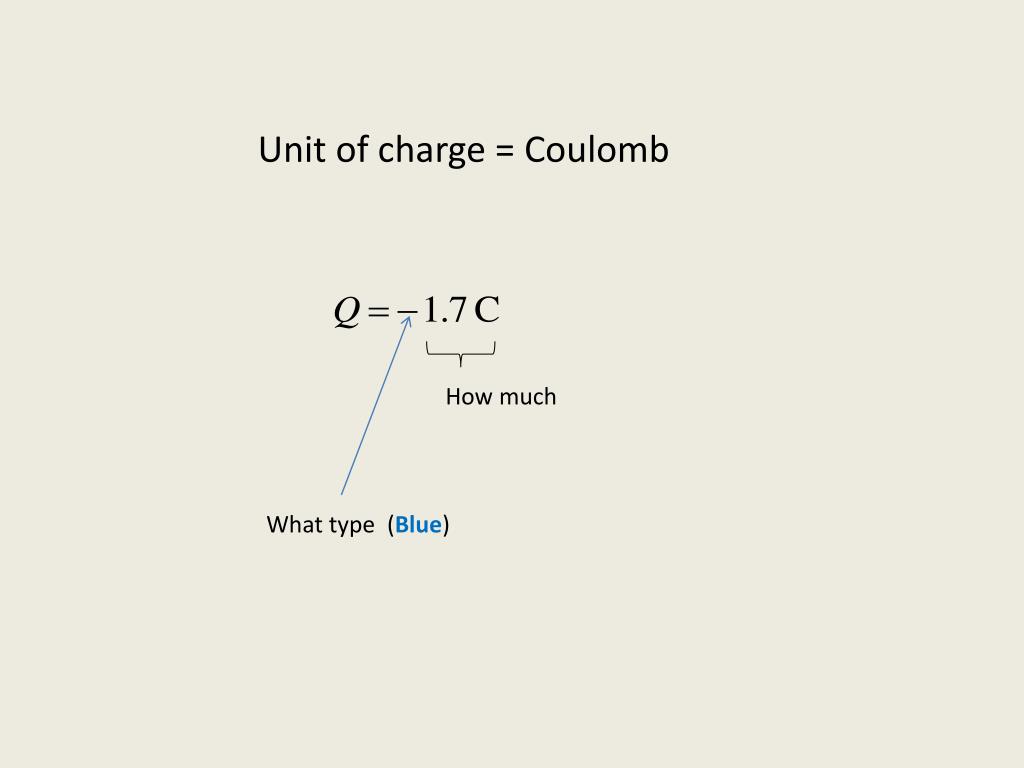

  25. Unit of charge = Coulomb How much What type (Blue)

  26. Experiment →

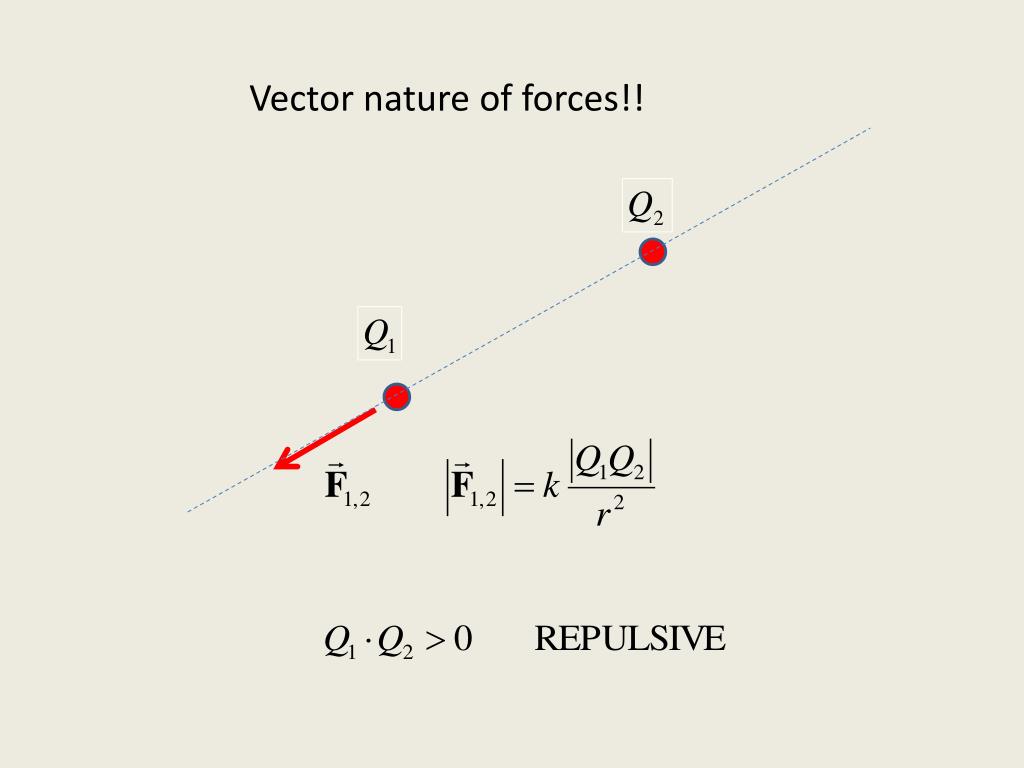

  27. Vector nature of forces!!

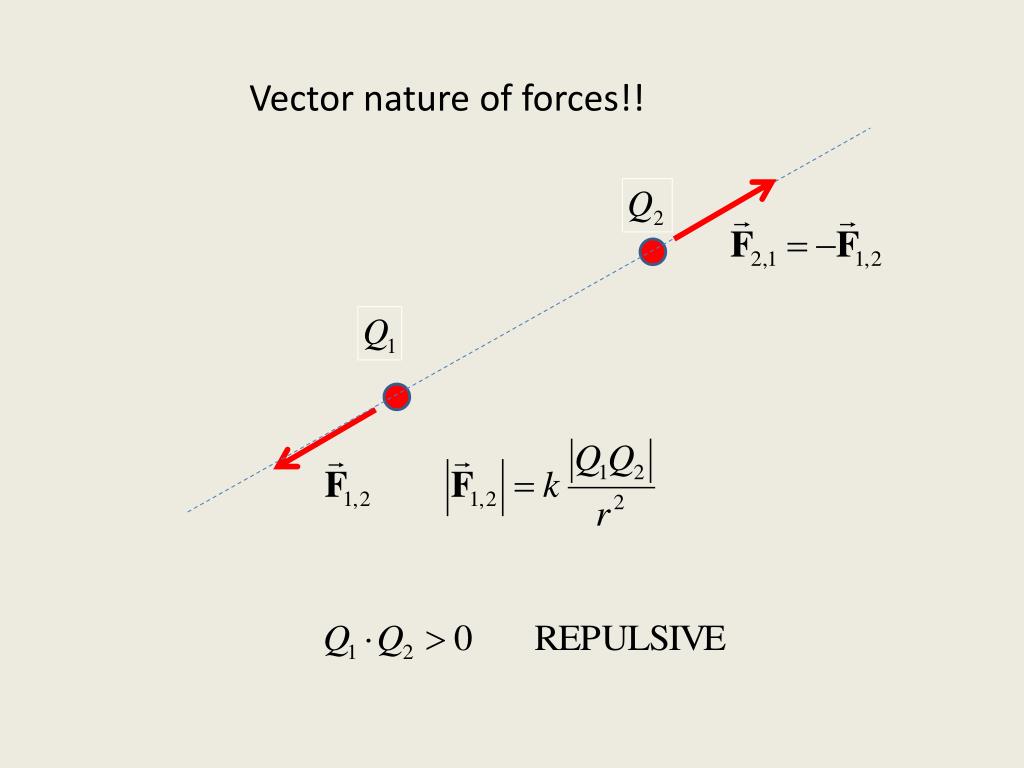

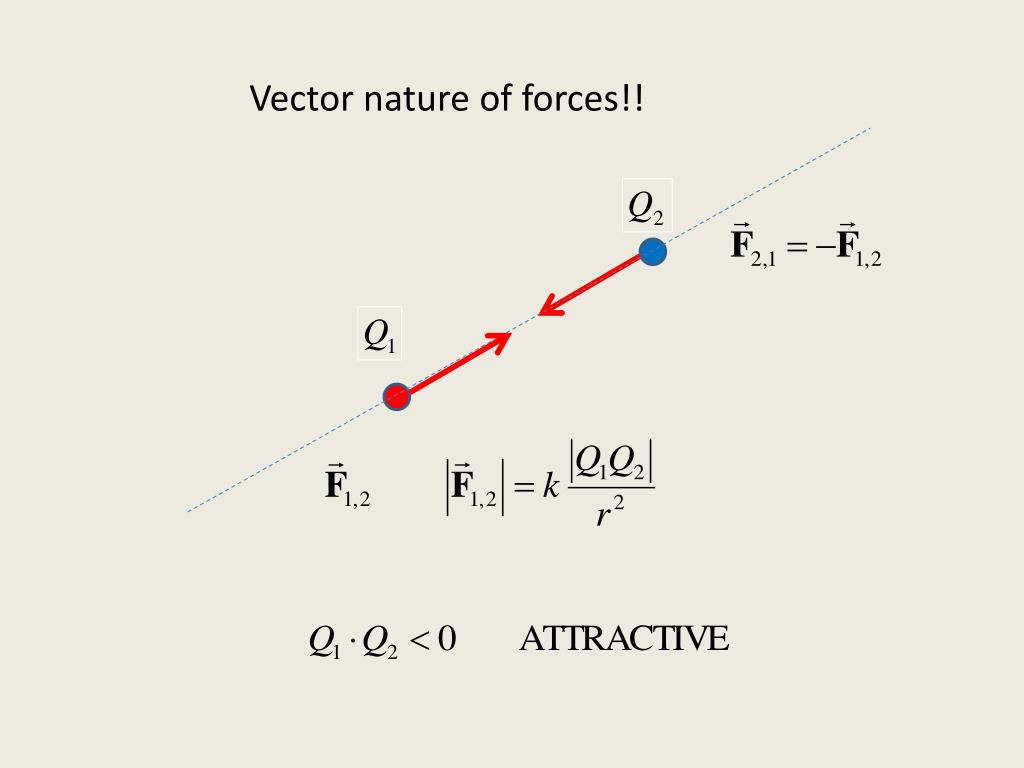

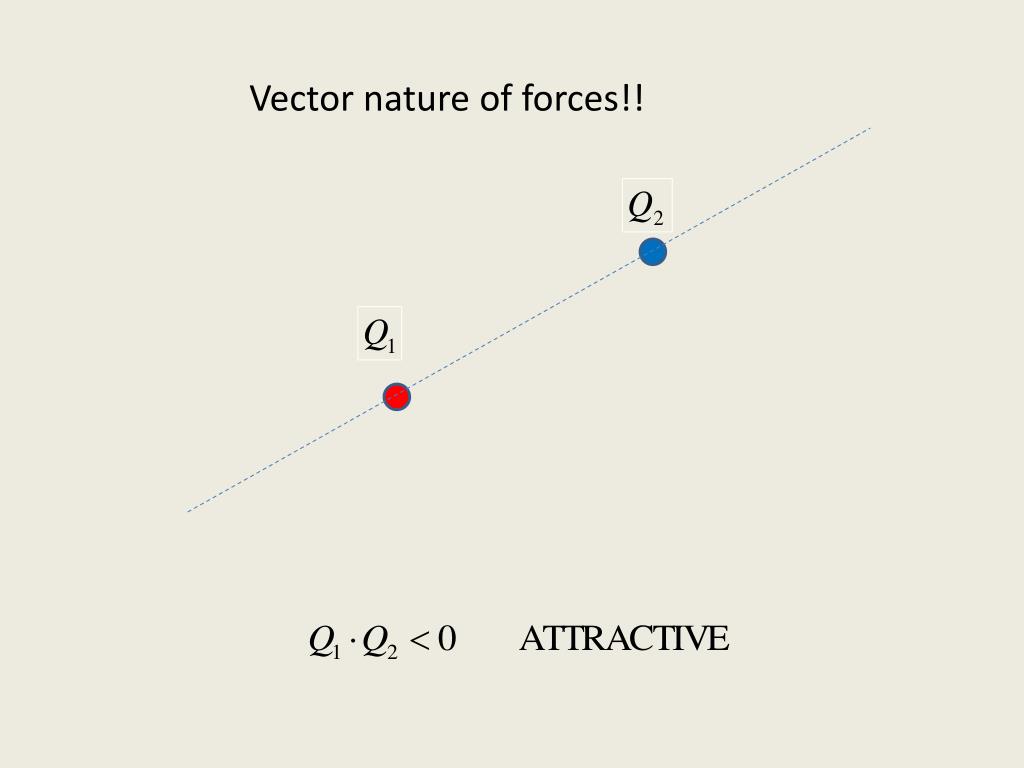

  28. Vector nature of forces!!

  29. Vector nature of forces!!

  30. Vector nature of forces!!

  31. Vector nature of forces!!

  32. Vector nature of forces!!

  33. Vector nature of forces!!

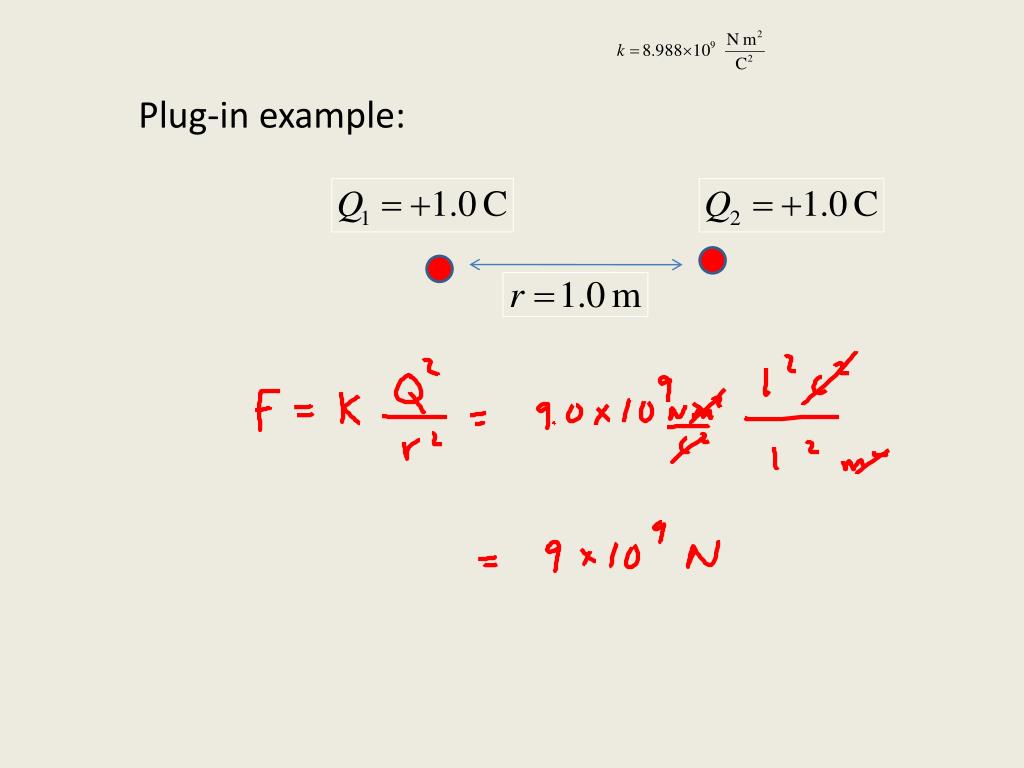

  34. Plug-in example:

  35. Nimitz-class super carrier’s weight? Displacement ≈ 102,000 tons ≈ 9×108 N Force between two 1-C Charges separated by One meter Weight of ten of these aircraft carriers ≈

  36. Lesson: a Coulomb is a lot of charge! How much charge (Q) required to provide F = 1 N at a separation of 1 cm ? Next page!

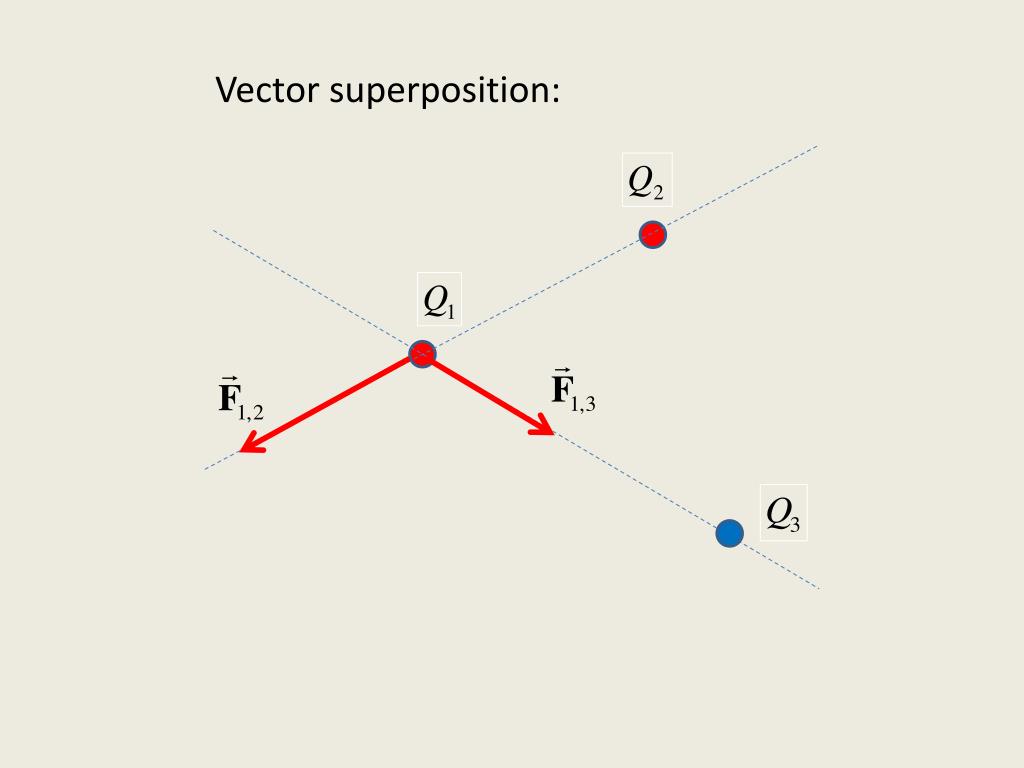

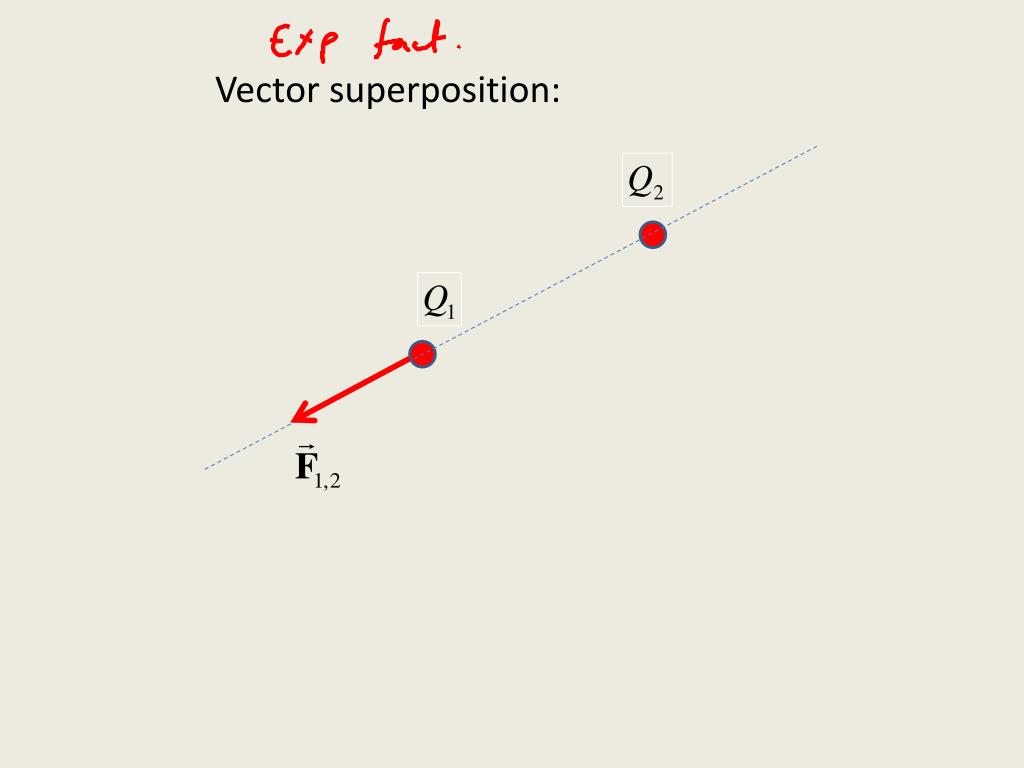

  37. Vector superposition:

  38. Vector superposition:

  39. Vector superposition:

  40. Number example 1.50 cm Net force on this charge? 2.00 cm

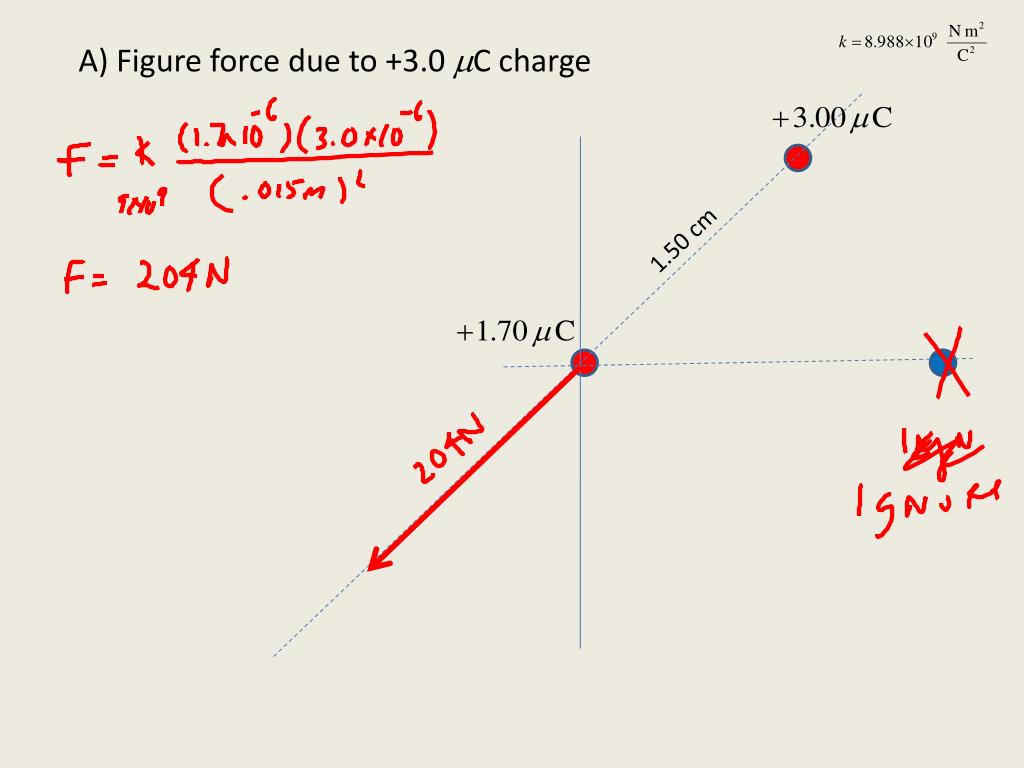

  41. A) Figure force due to +3.0 mC charge 1.50 cm

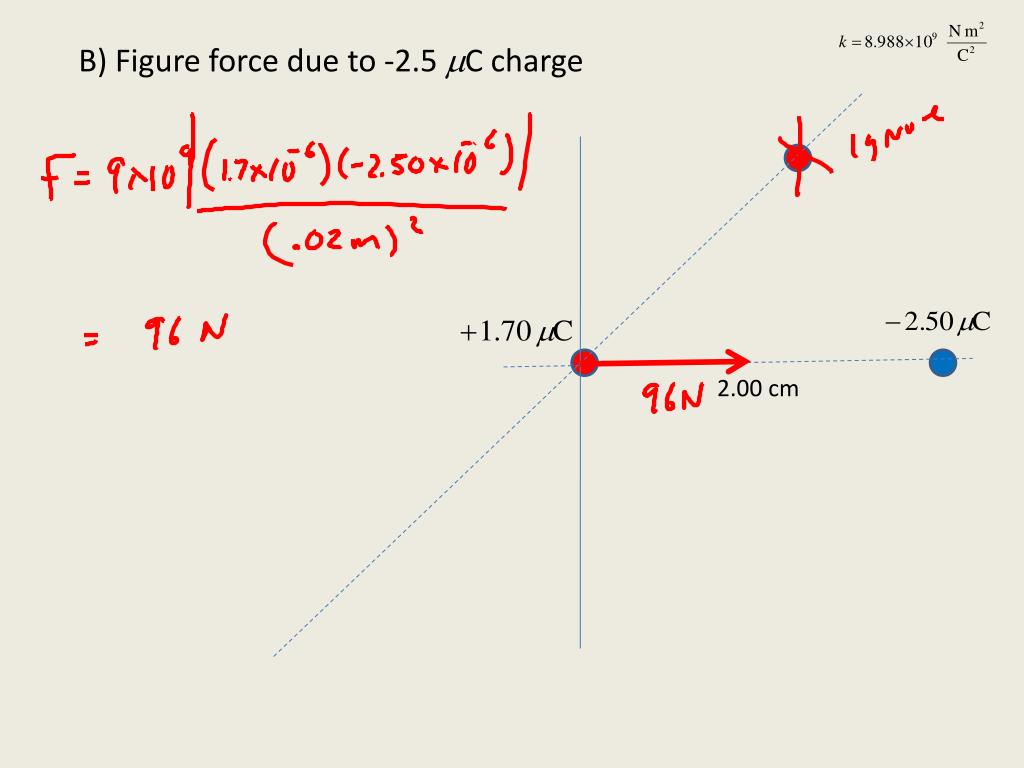

  42. B) Figure force due to -2.5 mC charge 2.00 cm

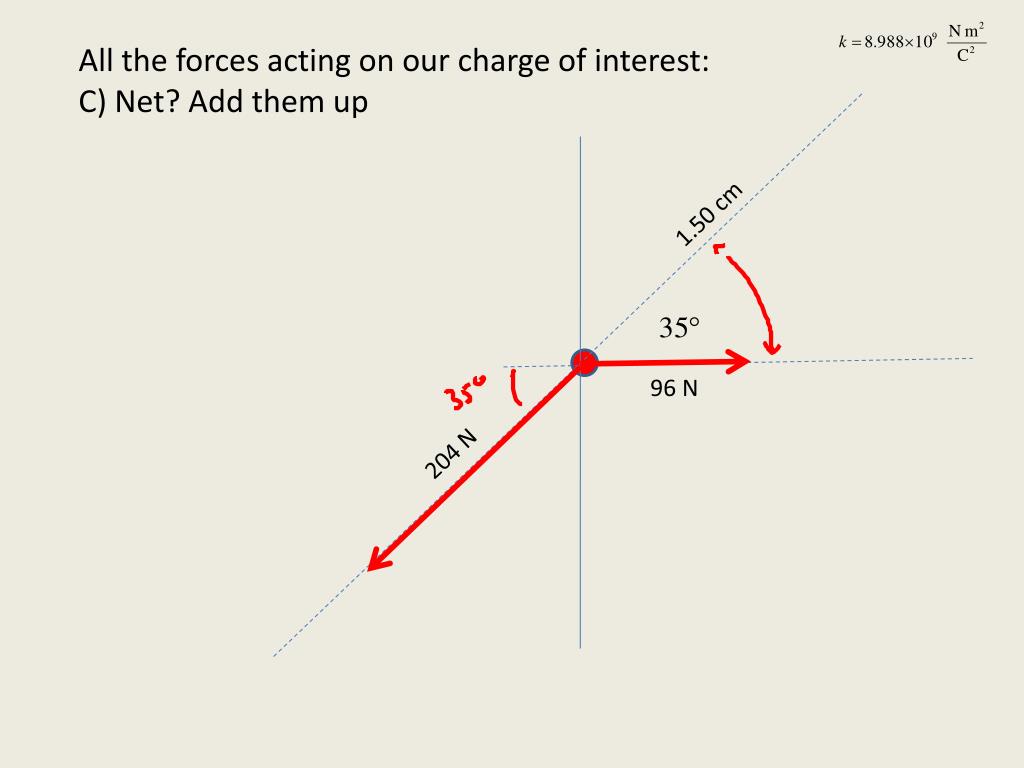

  43. All the forces acting on our charge of interest: C) Net? Add them up 1.50 cm 96 N 204 N
