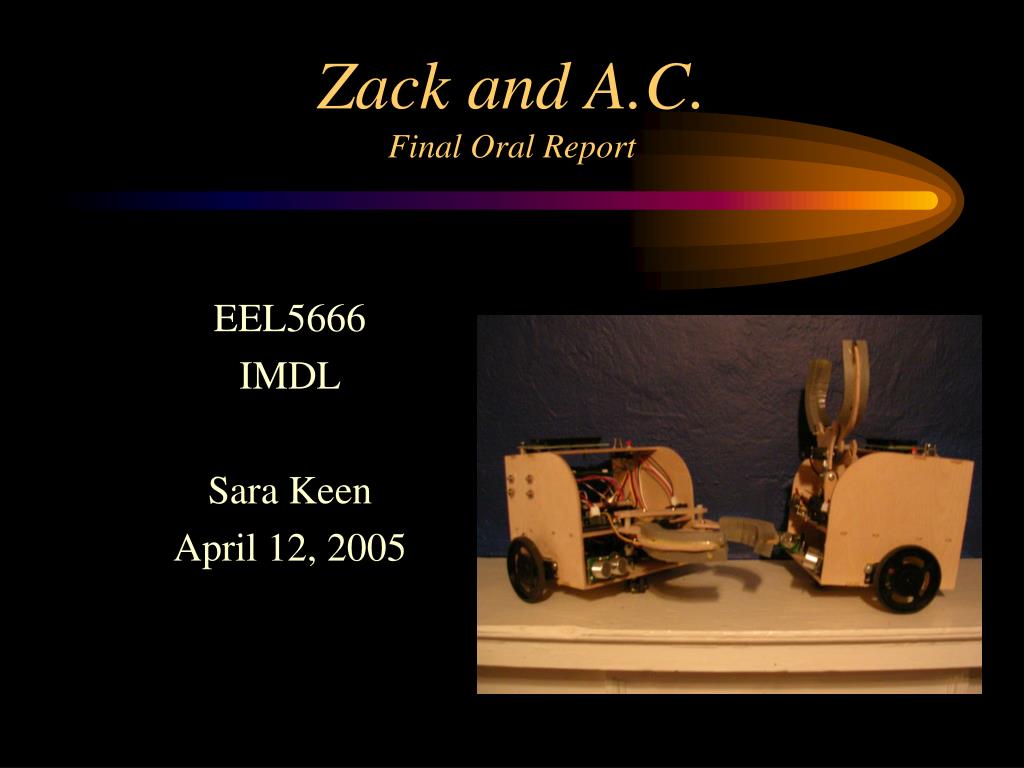

  1. Zack and A.C.Final Oral Report EEL5666 IMDL Sara Keen April 12, 2005

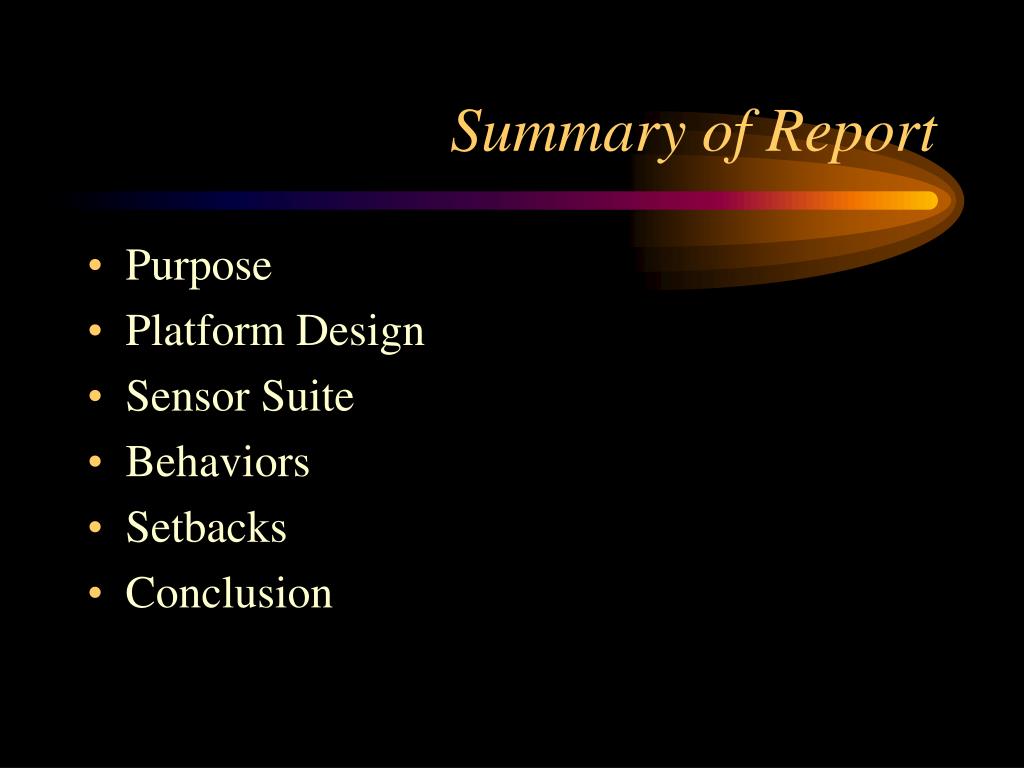

  2. Summary of Report • Purpose • Platform Design • Sensor Suite • Behaviors • Setbacks • Conclusion

  3. Purpose • Duplicity • Cooperation • Efficiency • Group Behaviors

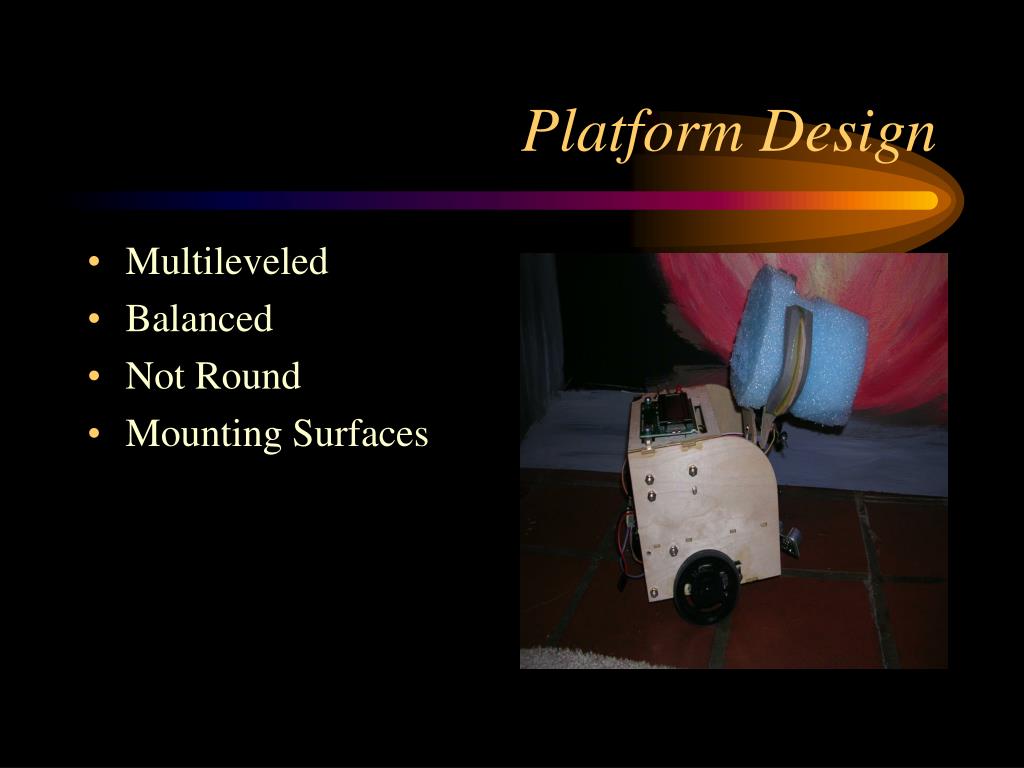

  4. Platform Design • Multileveled • Balanced • Not Round • Mounting Surfaces

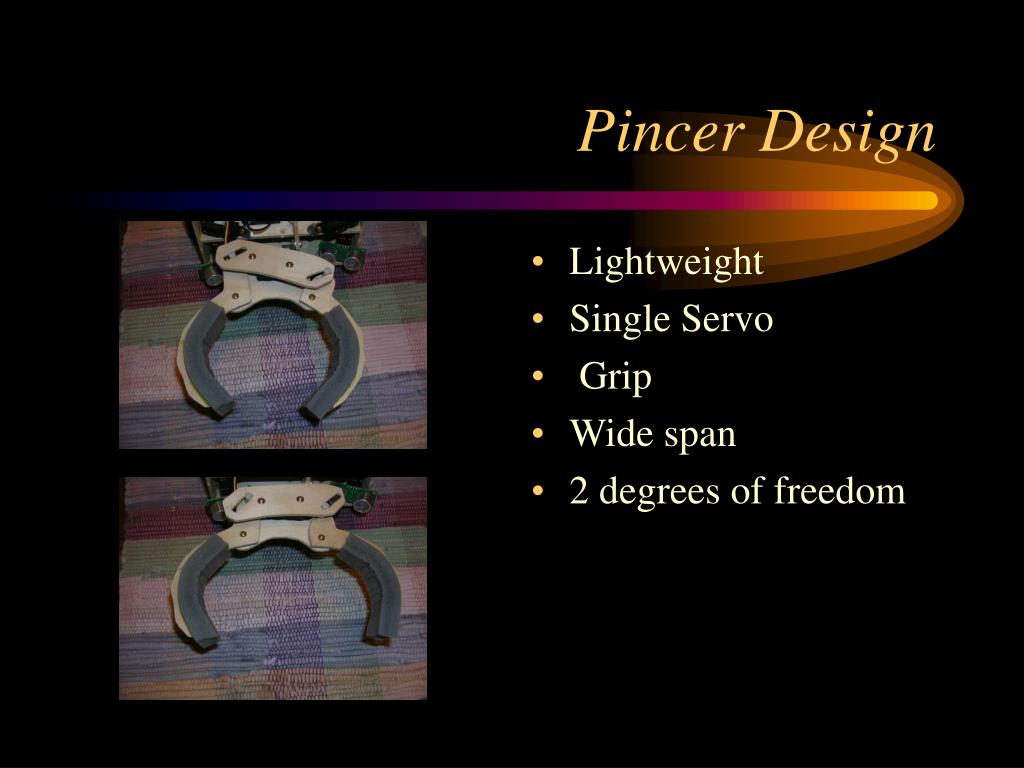

  5. Pincer Design • Lightweight • Single Servo • Grip • Wide span • 2 degrees of freedom

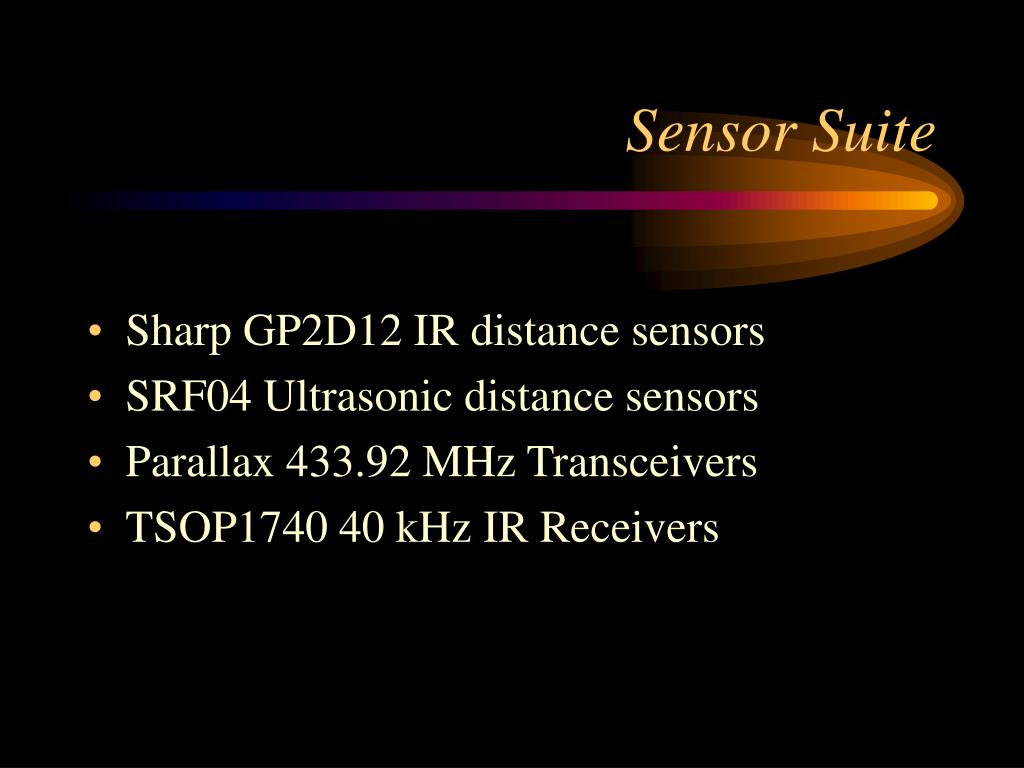

  6. Sensor Suite • Sharp GP2D12 IR distance sensors • SRF04 Ultrasonic distance sensors • Parallax 433.92 MHz Transceivers • TSOP1740 40 kHz IR Receivers

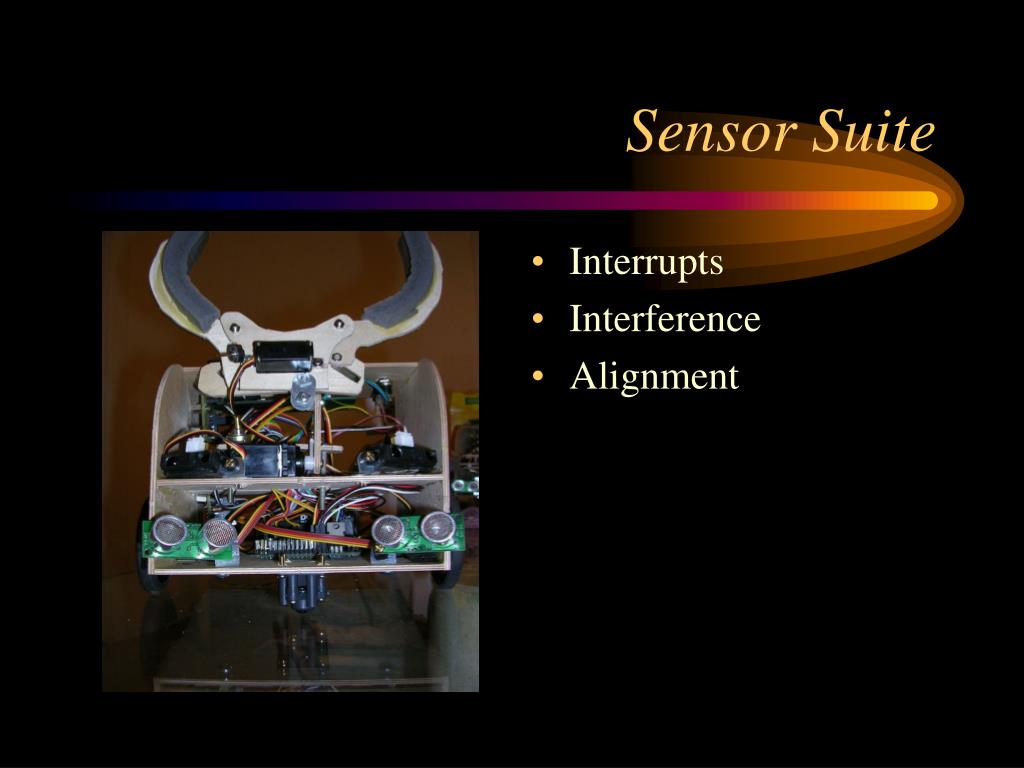

  7. Sensor Suite • Interrupts • Interference • Alignment

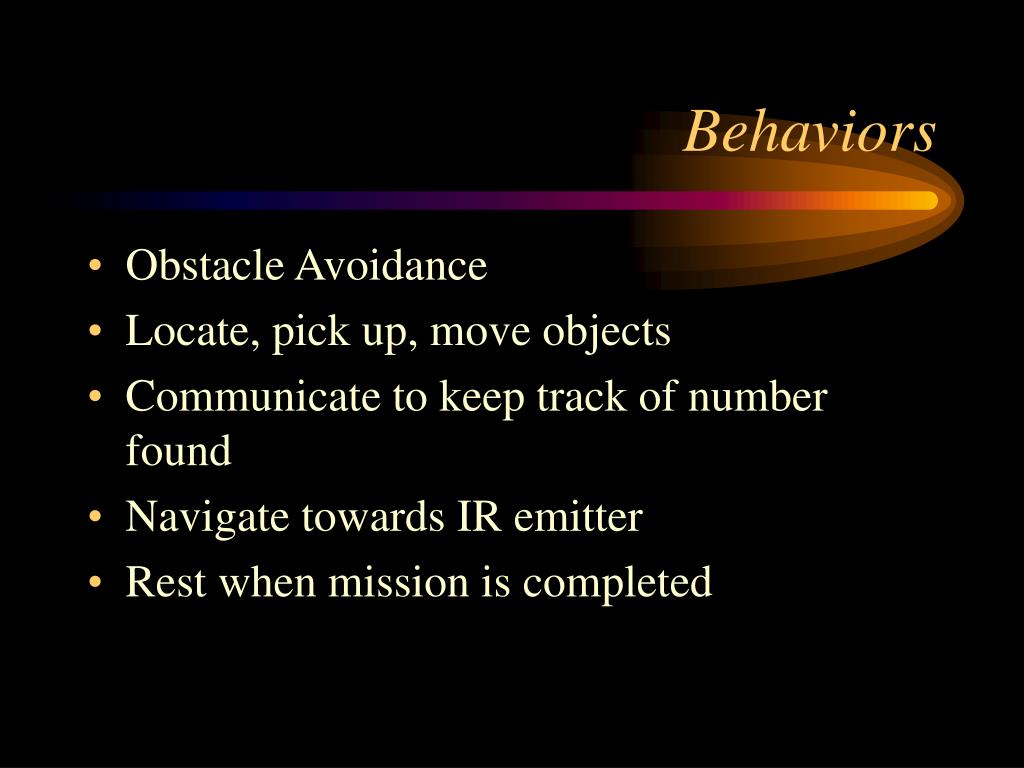

  8. Behaviors • Obstacle Avoidance • Locate, pick up, move objects • Communicate to keep track of number found • Navigate towards IR emitter • Rest when mission is completed

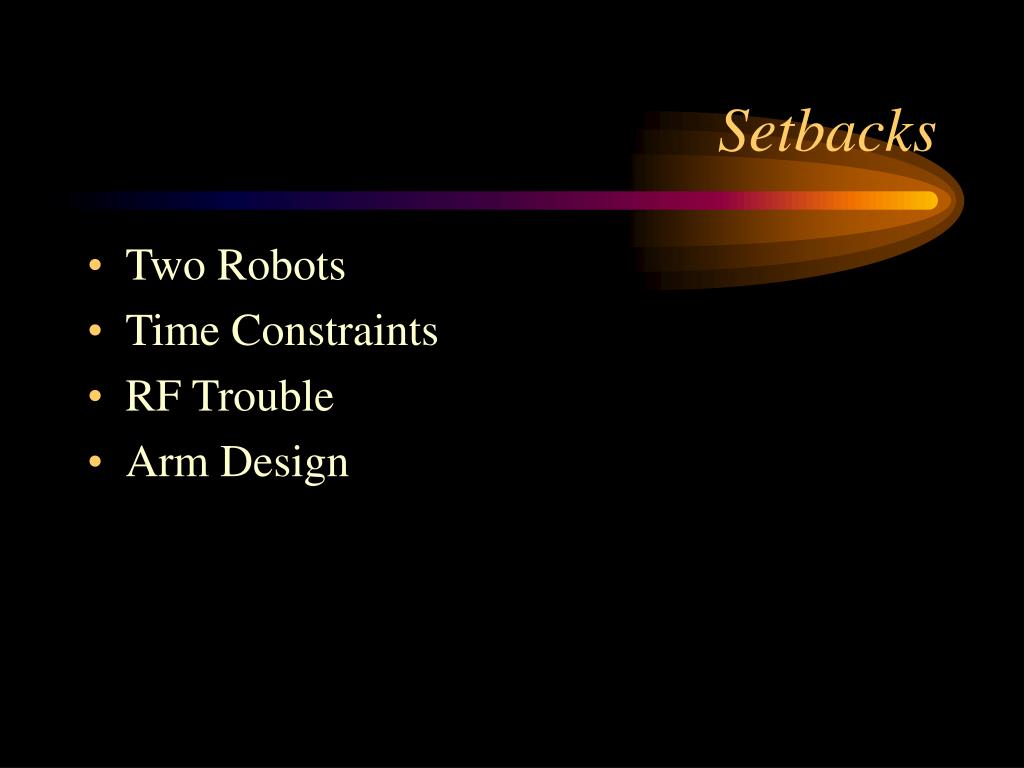

  9. Setbacks • Two Robots • Time Constraints • RF Trouble • Arm Design

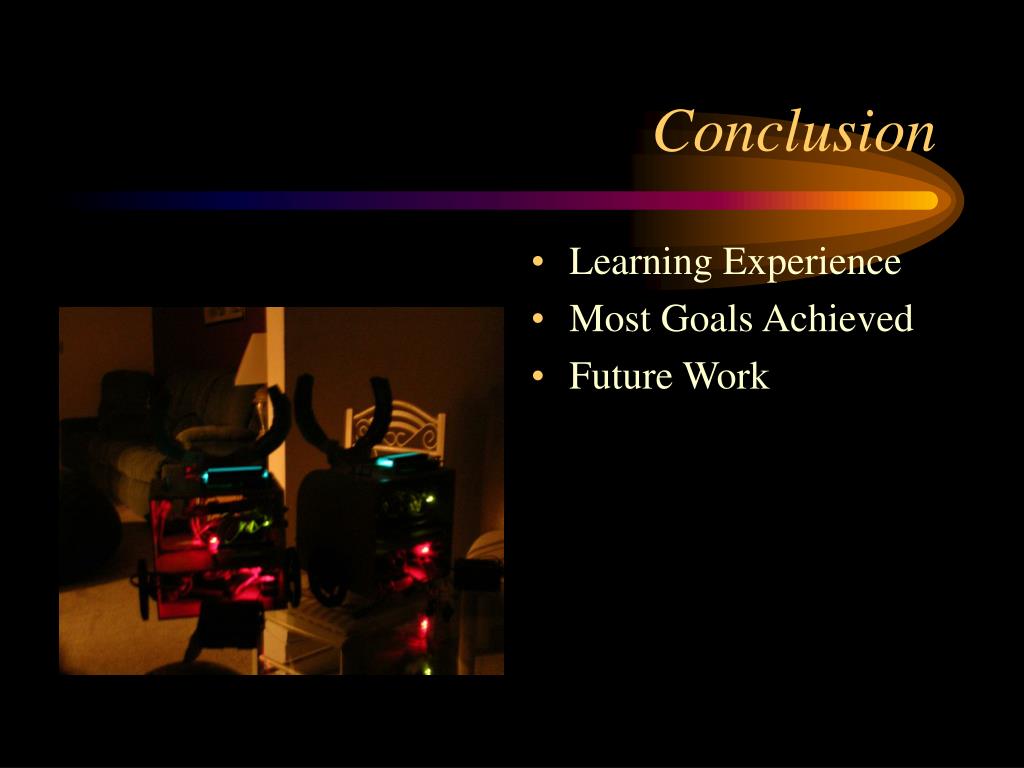

  10. Conclusion • Learning Experience • Most Goals Achieved • Future Work
