  1. OS Labs 2/25/08 Frans Kaashoek MIT kaashoek@mit.edu

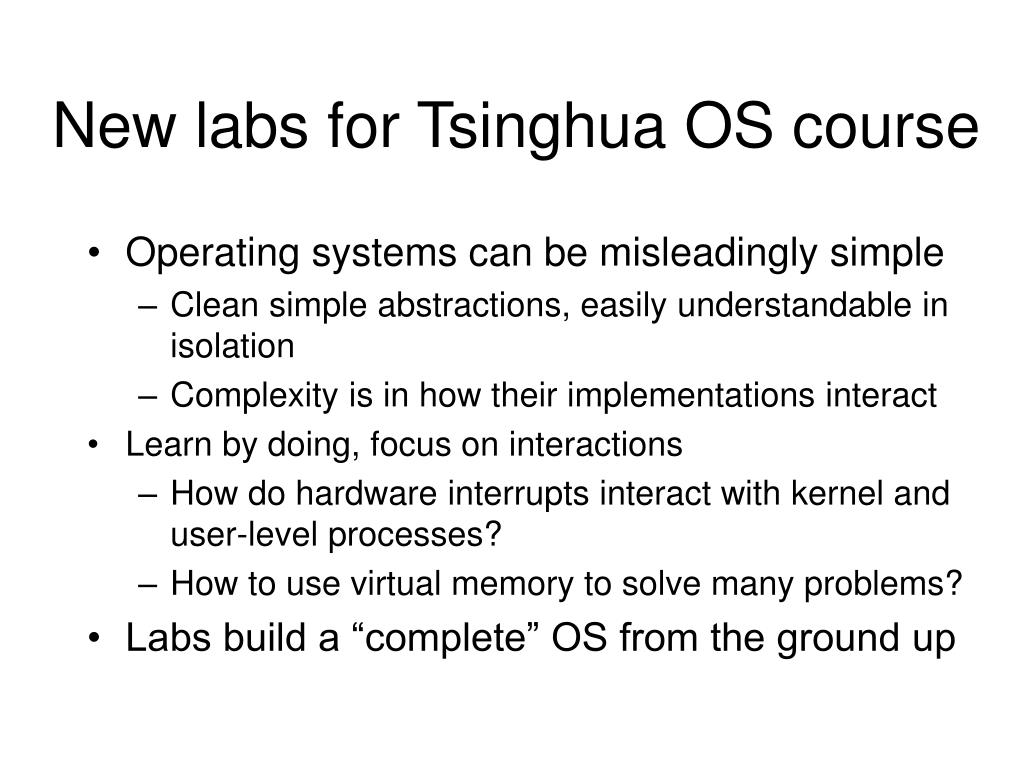

  2. New labs for Tsinghua OS course • Operating systems can be misleadingly simple • Clean simple abstractions, easily understandable in isolation • Complexity is in how their implementations interact • Learn by doing, focus on interactions • How do hardware interrupts interact with kernel and user-level processes? • How to use virtual memory to solve many problems? • Labs build a “complete” OS from the ground up

  3. Why might you care? • Perhaps you will build an OS • Perhaps you will design hardware • Or write a device driver, network stack, or a file system • Or need to diagnose application bugs or performance • Or you just want to know how computers work • Or you just want to have fun programming

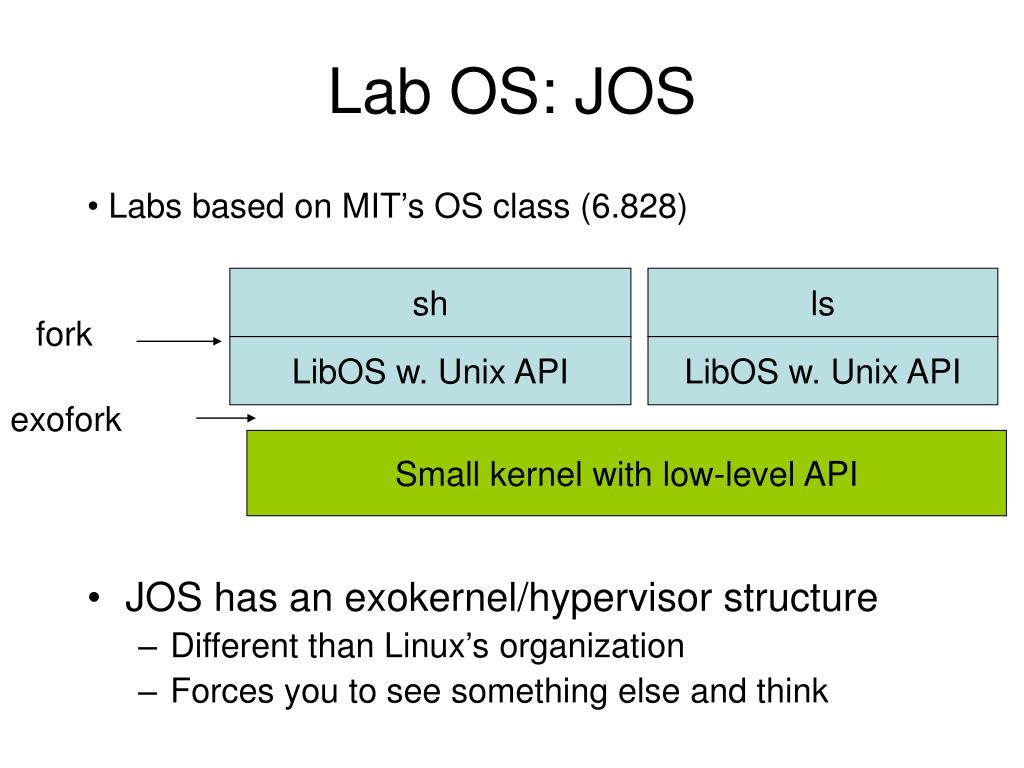

  4. Lab OS: JOS • Labs based on MIT’s OS class (6.828) • JOS has an exokernel/hypervisor structure • Different than Linux’s organization • Forces you to see something else and think sh ls fork LibOS w. Unix API LibOS w. Unix API exofork Small kernel with low-level API

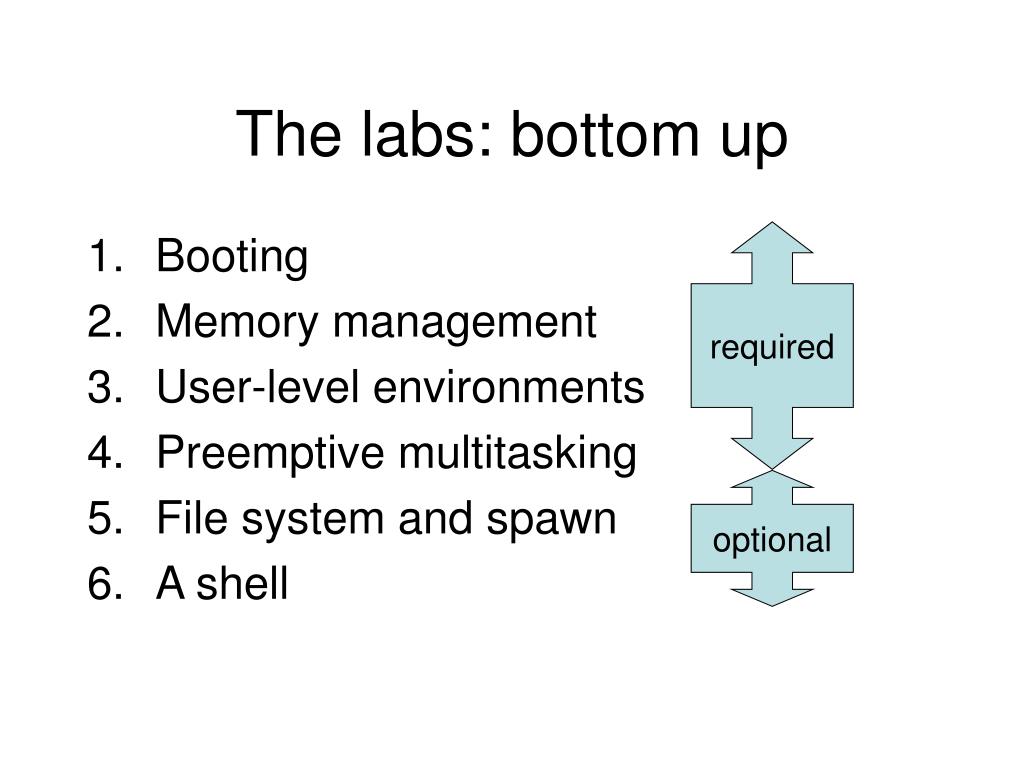

  5. The labs: bottom up • Booting • Memory management • User-level environments • Preemptive multitasking • File system and spawn • A shell required optional

  6. Development environment • Tools: gcc, make, etc. • Target hardware platform: x86 PC • For debugging: bochs and qemu • Lab assigments come with tests • Details at course web pages

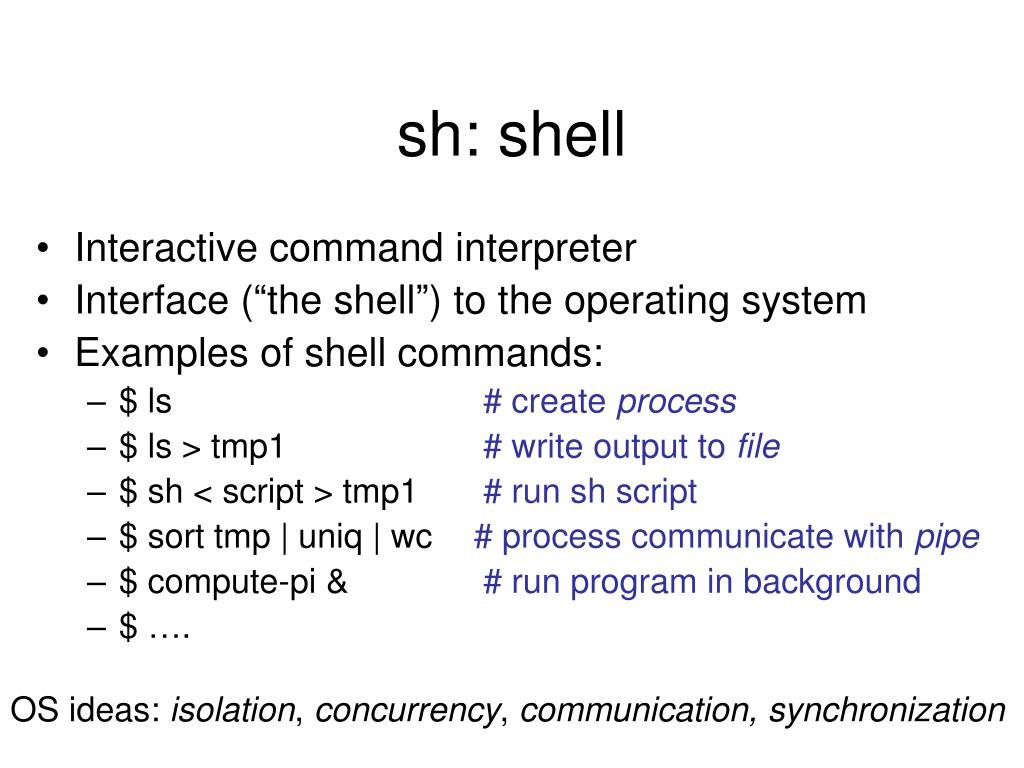

  7. sh: shell • Interactive command interpreter • Interface (“the shell”) to the operating system • Examples of shell commands: • $ ls # create process • $ ls > tmp1 # write output to file • $ sh < script > tmp1 # run sh script • $ sort tmp | uniq | wc # process communicate with pipe • $ compute-pi & # run program in background • $ …. OS ideas: isolation, concurrency, communication, synchronization

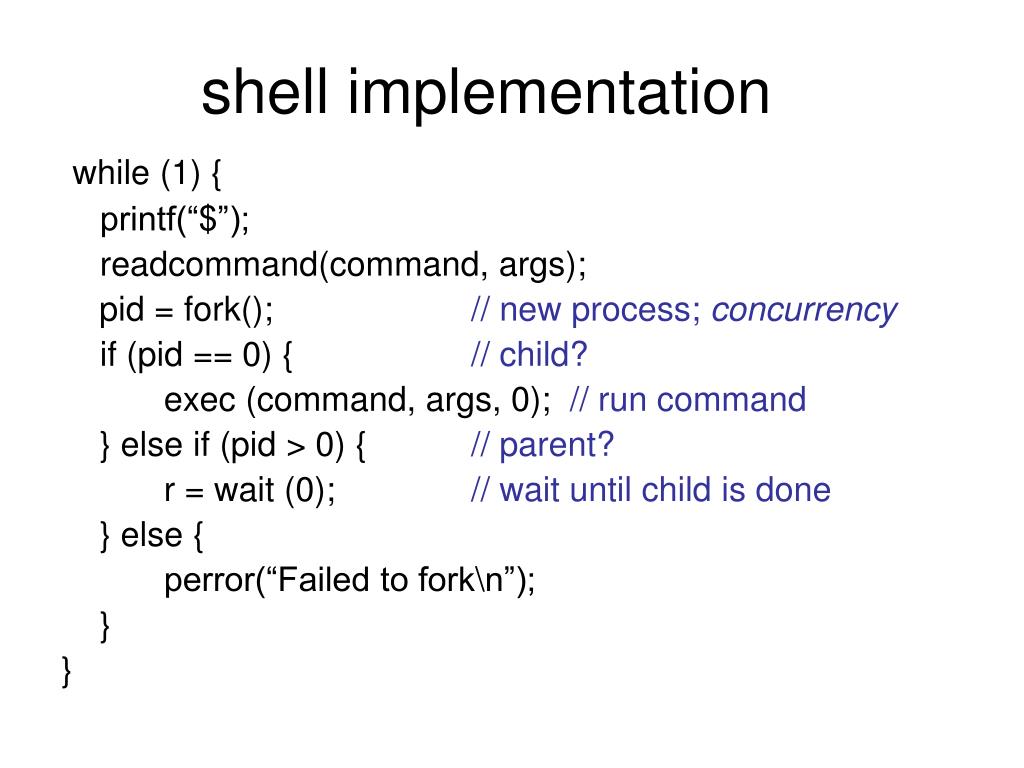

  8. shell implementation while (1) { printf(“$”); readcommand(command, args); pid = fork(); // new process; concurrency if (pid == 0) { // child? exec (command, args, 0); // run command } else if (pid > 0) { // parent? r = wait (0); // wait until child is done } else { perror(“Failed to fork\n”); } }

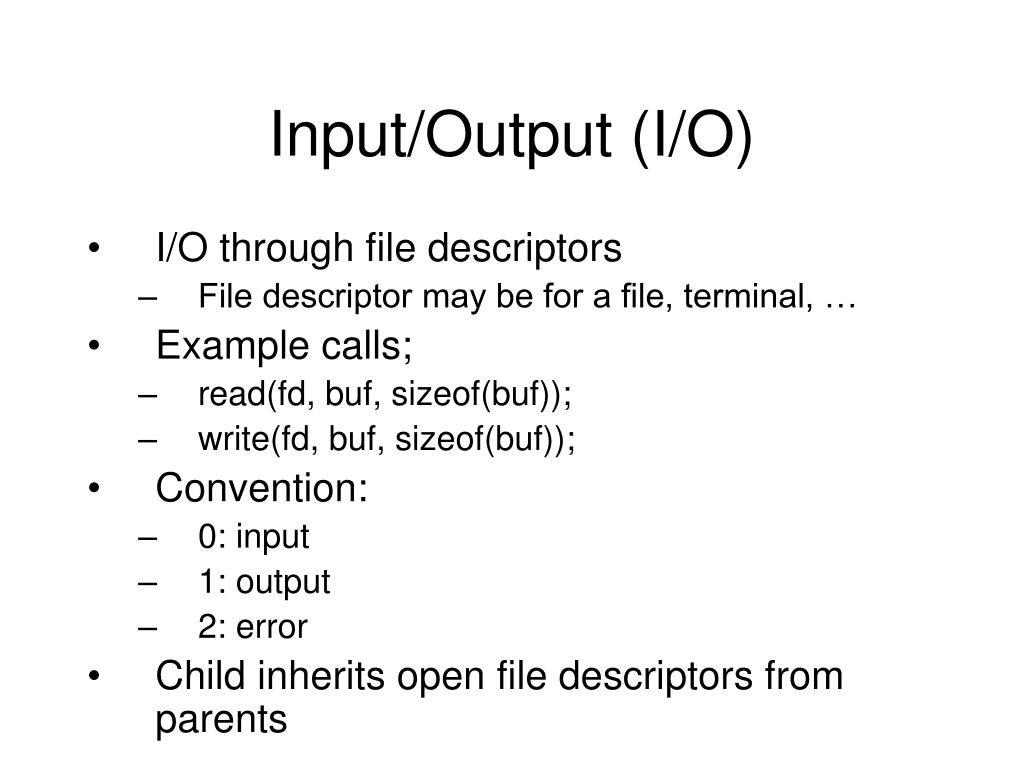

  9. Input/Output (I/O) • I/O through file descriptors • File descriptor may be for a file, terminal, … • Example calls; • read(fd, buf, sizeof(buf)); • write(fd, buf, sizeof(buf)); • Convention: • 0: input • 1: output • 2: error • Child inherits open file descriptors from parents

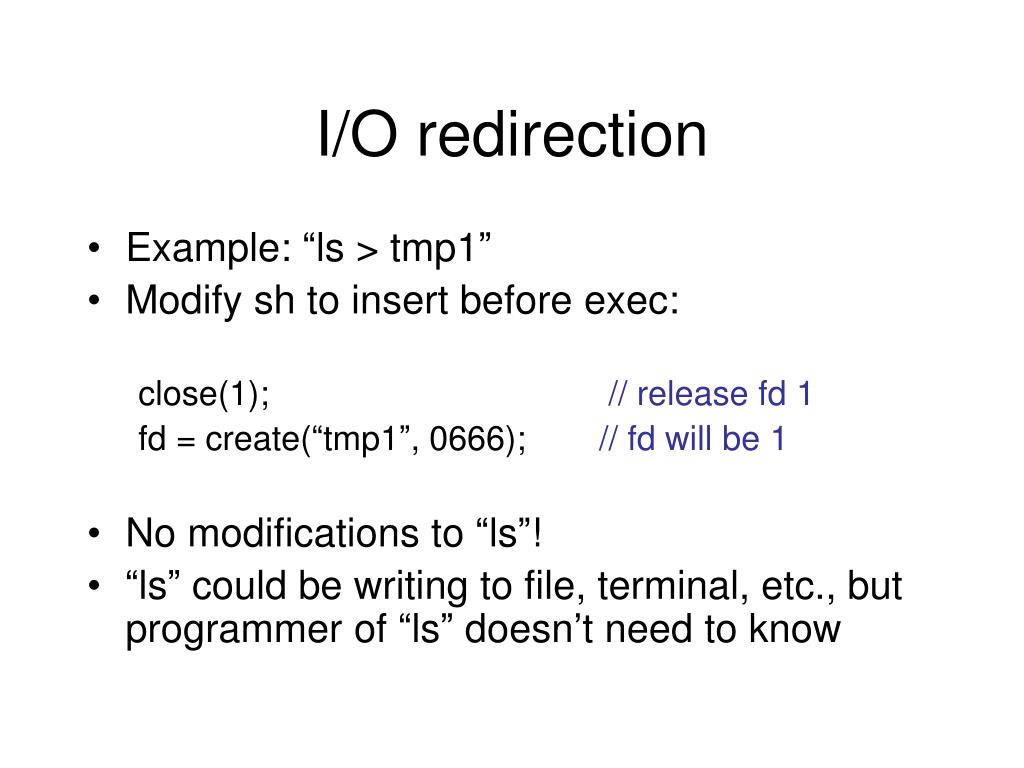

  10. I/O redirection • Example: “ls > tmp1” • Modify sh to insert before exec: close(1); // release fd 1 fd = create(“tmp1”, 0666); // fd will be 1 • No modifications to “ls”! • “ls” could be writing to file, terminal, etc., but programmer of “ls” doesn’t need to know

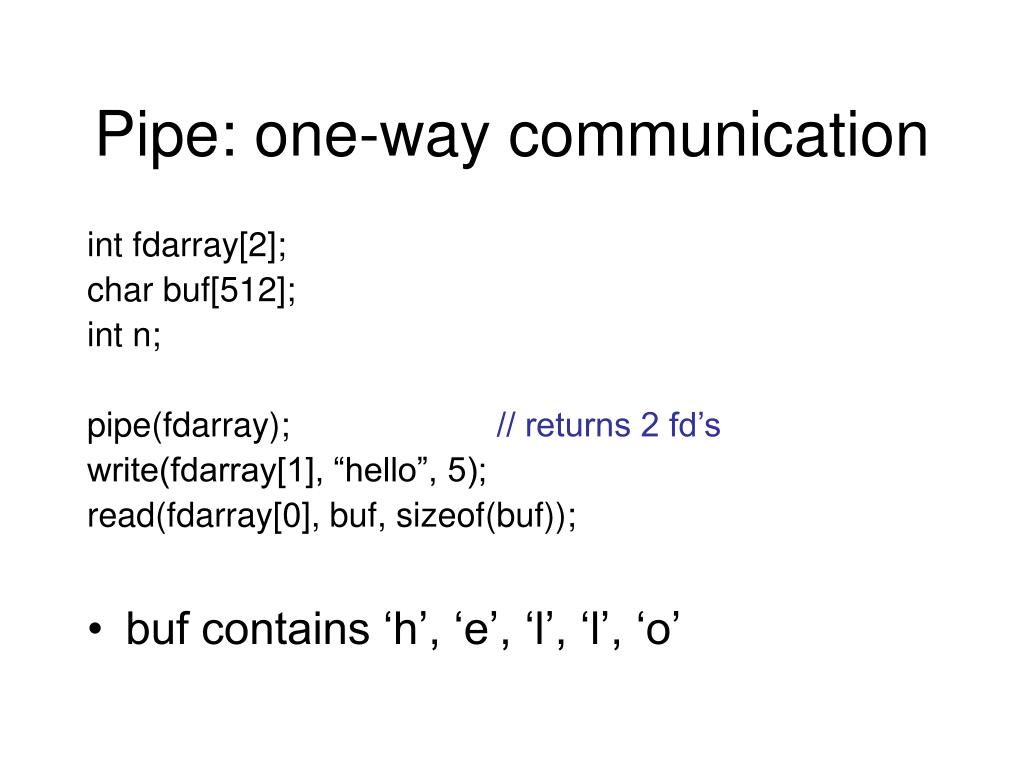

  11. Pipe: one-way communication int fdarray[2]; char buf[512]; int n; pipe(fdarray); // returns 2 fd’s write(fdarray[1], “hello”, 5); read(fdarray[0], buf, sizeof(buf)); • buf contains ‘h’, ‘e’, ‘l’, ‘l’, ‘o’

  12. Pipe between parent & child int fdarray[2]; char buf[512]; int n, pid; pipe(fdarray); pid = fork(); if(pid > 0) { write(fdarray[1], "hello", 5); } else { n = read(fdarray[0], buf, sizeof(buf)); } • Synchronization between parent and child • read blocks until there is data • How does the shell implement “a | b”?

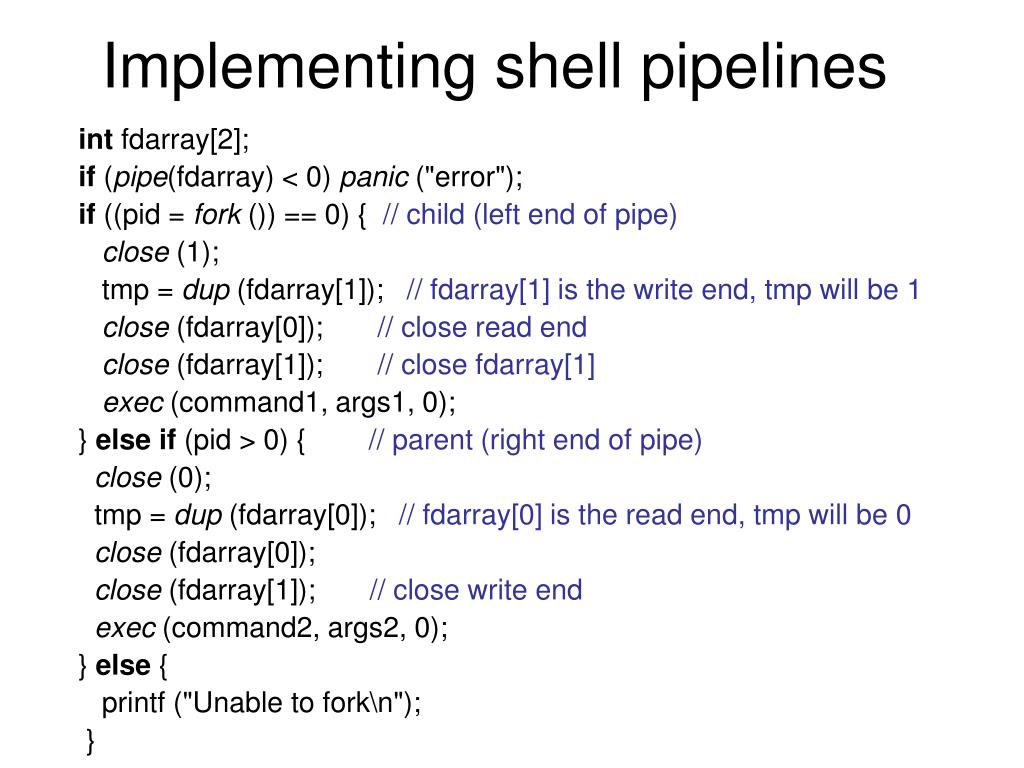

  13. Implementing shell pipelines int fdarray[2]; if (pipe(fdarray) < 0) panic ("error"); if ((pid = fork ()) == 0) { // child (left end of pipe) close (1); tmp = dup (fdarray[1]); // fdarray[1] is the write end, tmp will be 1 close (fdarray[0]); // close read end close (fdarray[1]); // close fdarray[1] exec (command1, args1, 0); } else if (pid > 0) { // parent (right end of pipe) close (0); tmp = dup (fdarray[0]); // fdarray[0] is the read end, tmp will be 0 close (fdarray[0]); close (fdarray[1]); // close write end exec (command2, args2, 0); } else { printf ("Unable to fork\n"); }

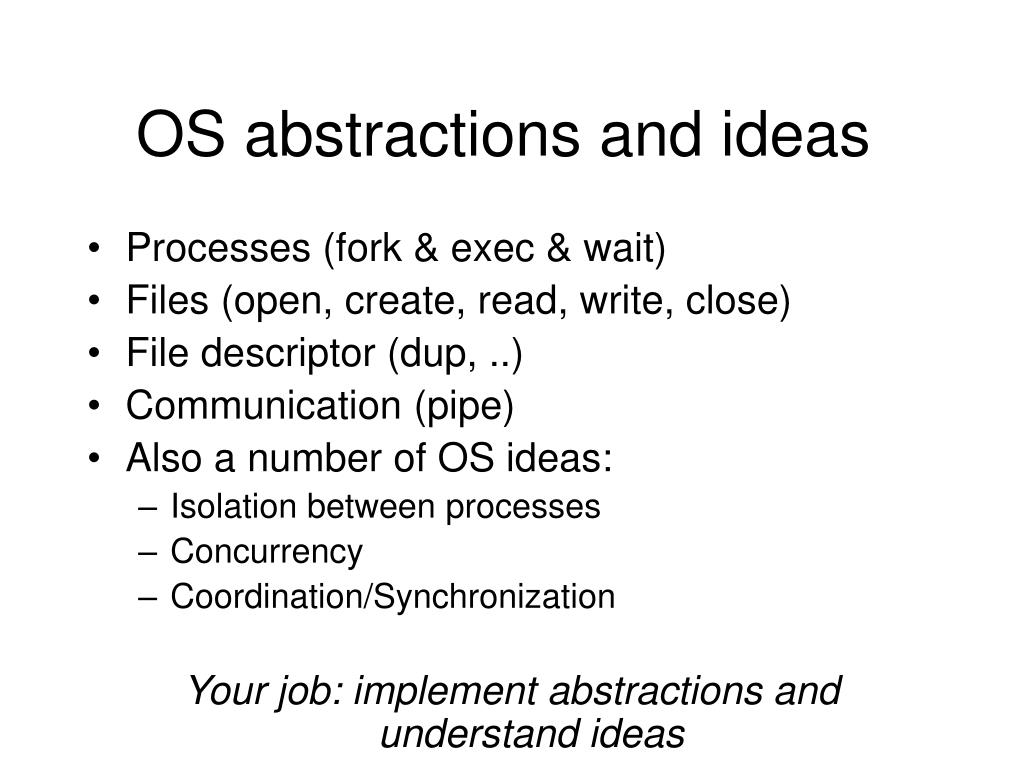

  14. OS abstractions and ideas • Processes (fork & exec & wait) • Files (open, create, read, write, close) • File descriptor (dup, ..) • Communication (pipe) • Also a number of OS ideas: • Isolation between processes • Concurrency • Coordination/Synchronization Your job: implement abstractions and understand ideas

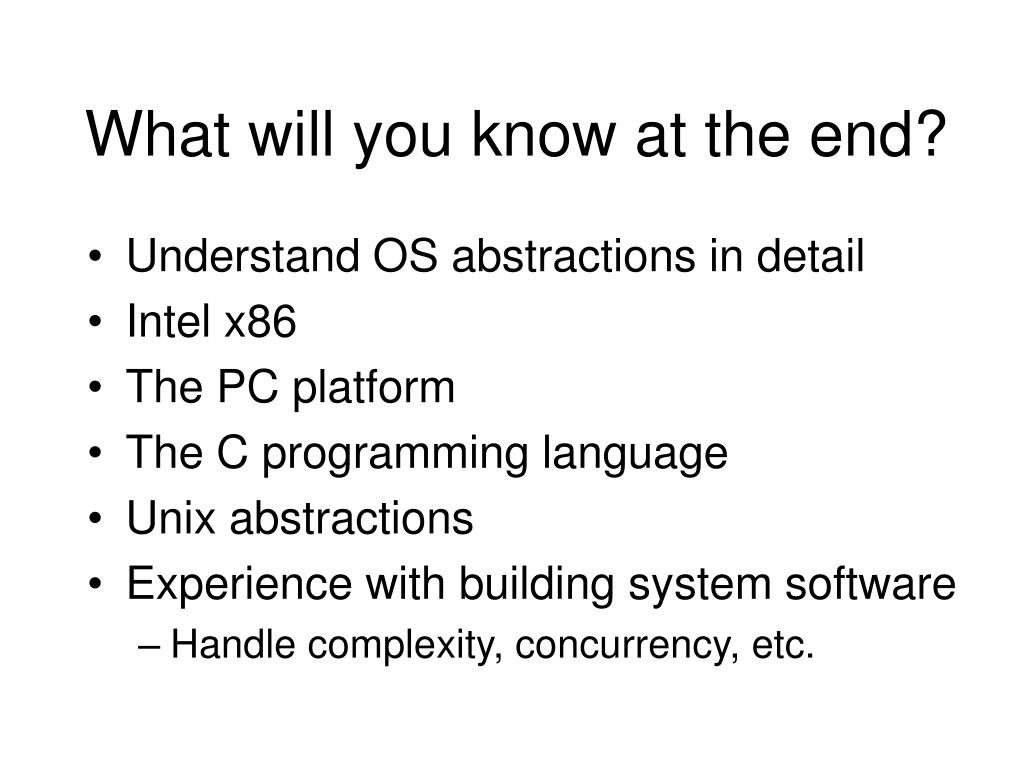

  15. What will you know at the end? • Understand OS abstractions in detail • Intel x86 • The PC platform • The C programming language • Unix abstractions • Experience with building system software • Handle complexity, concurrency, etc.

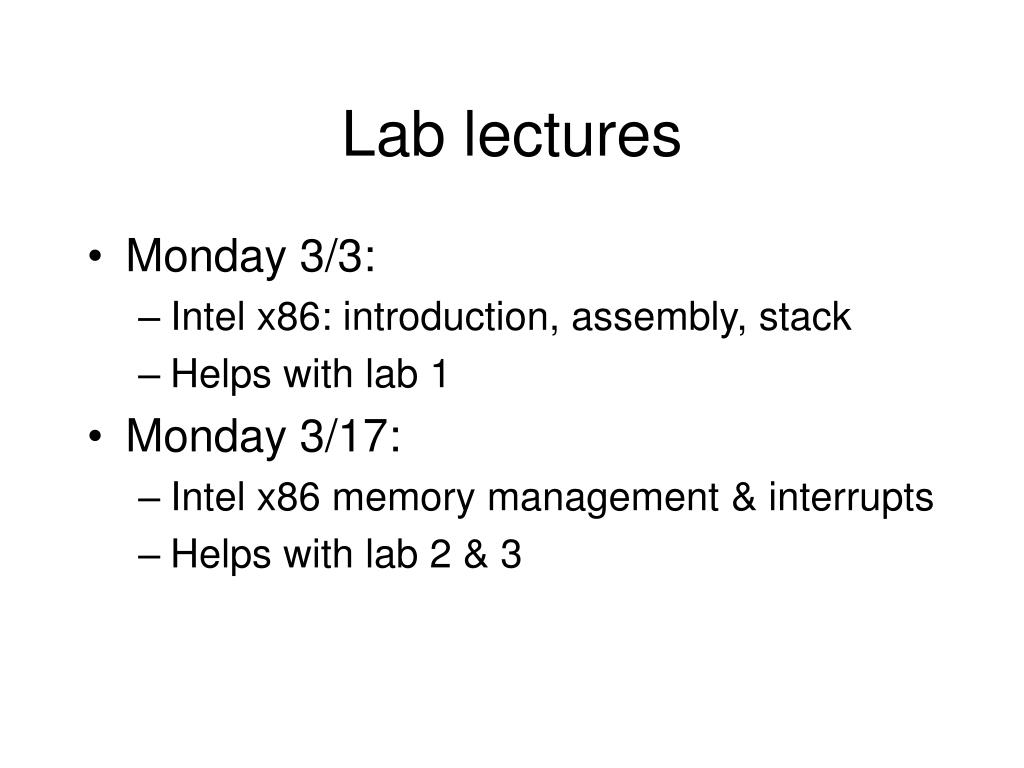

  16. Lab lectures • Monday 3/3: • Intel x86: introduction, assembly, stack • Helps with lab 1 • Monday 3/17: • Intel x86 memory management & interrupts • Helps with lab 2 & 3

  17. Bonus lectures: special topics • OS architecture • Virtual machines • File systems • Security • Multicore • Finding errors in OSes Some Wednesdays; see schedule

  18. Have fun!
