  1. Chapter 3: Image Restoration Noise Removal Using Spatial Filters

  2. Overview • Spatial filters can be used to remove various types of noise in digital images. • These spatial filters typically operate on small neighborhood, between 3x3 to 11x11. • We will use the degradation model defined before, but we assume that h(r,c) causes no degradation.

  3. Overview • Therefore, corruption on the image is only caused by additive noise, n(r,c). • d(r,c) = I(r,c) + n(r,c) • There are two primary categories of spatial filters for noise removal. • Order filters: arrange the pixels from smallest to largest and select the “correct” value. • Mean filters: calculate the average value.

  4. Overview • The mean filters work best with gaussian or uniform noise. • The order filters work best with salt-and-pepper, negative exponential, or Rayleigh noise. • The mean filters are essentially low pass filters: • They tend to blur the edges or details.

  5. Overview • The order filters are nonlinear filters: • The results are sometimes unpredictable. • In general, there is a tradeoff between preservation of image detail and noise elimination. • In practical applications, a good approach is to use an adaptive filter (a filter that can adapt itself to the underlying pixel values).

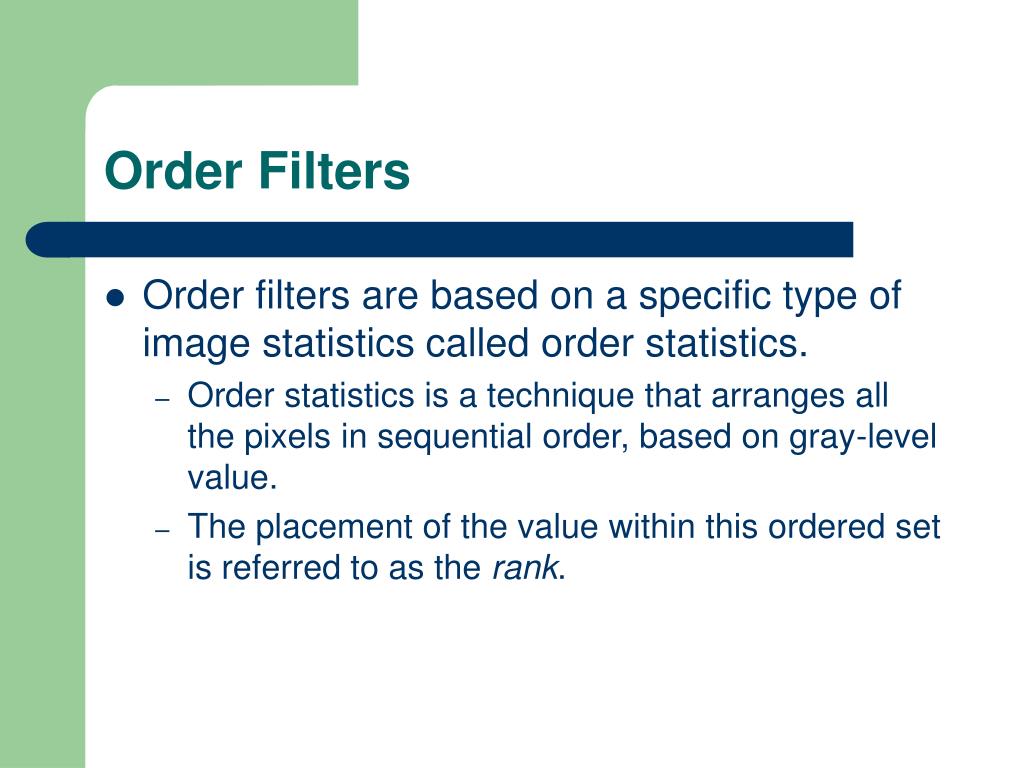

  6. Order Filters • Order filters are based on a specific type of image statistics called order statistics. • Order statistics is a technique that arranges all the pixels in sequential order, based on gray-level value. • The placement of the value within this ordered set is referred to as the rank.

  7. Order Filters • Given an NxN window, the pixel values can be ordered from smallest to largest as follows: • I1 I2 I3..... IN2 • Where {I1,I2,I3,.....,IN2} are the gray-level values of the subset of pixels in the image, that are in the NxN window. • Different types of order filters select different values from the ordered pixel list.

  8. Order Filters • Median filter: • Select the middle pixel value from the ordered set. • Used to remove salt-and-pepper noise. • Maximum filter: • Select the highest pixel value from the ordered set. • Remove pepper-type noise.

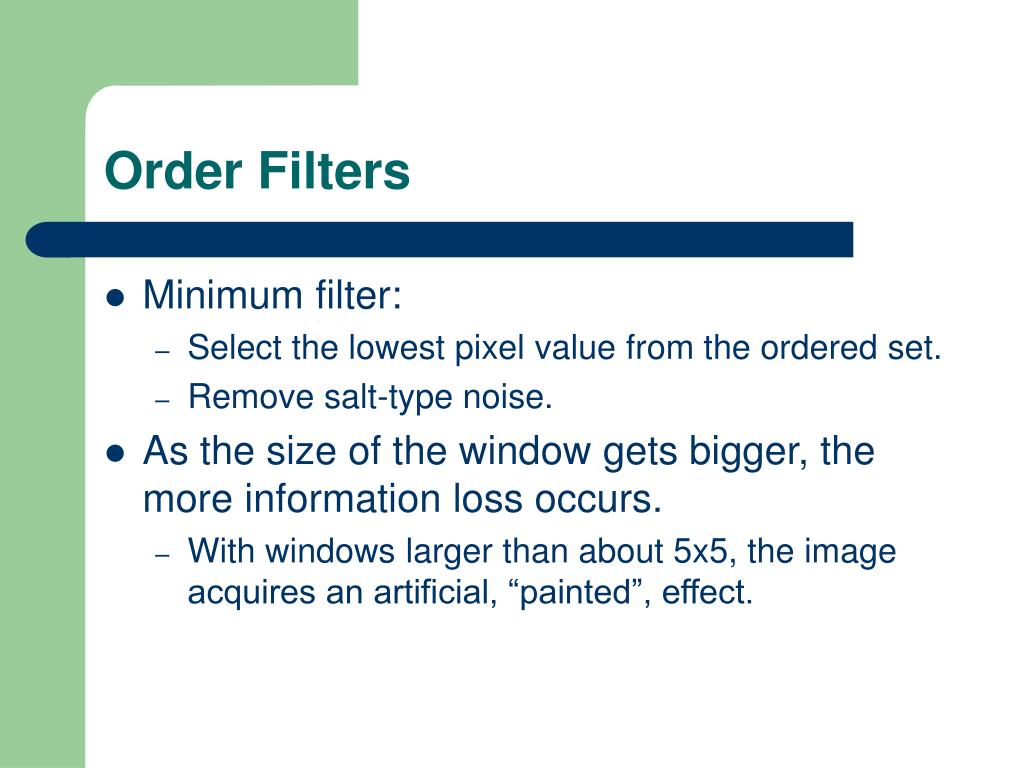

  9. Order Filters • Minimum filter: • Select the lowest pixel value from the ordered set. • Remove salt-type noise. • As the size of the window gets bigger, the more information loss occurs. • With windows larger than about 5x5, the image acquires an artificial, “painted”, effect.

  10. Order Filters Minimum Filter Image with salt noise Probability = .04 Result of minimum filtering Mask 3 x 3

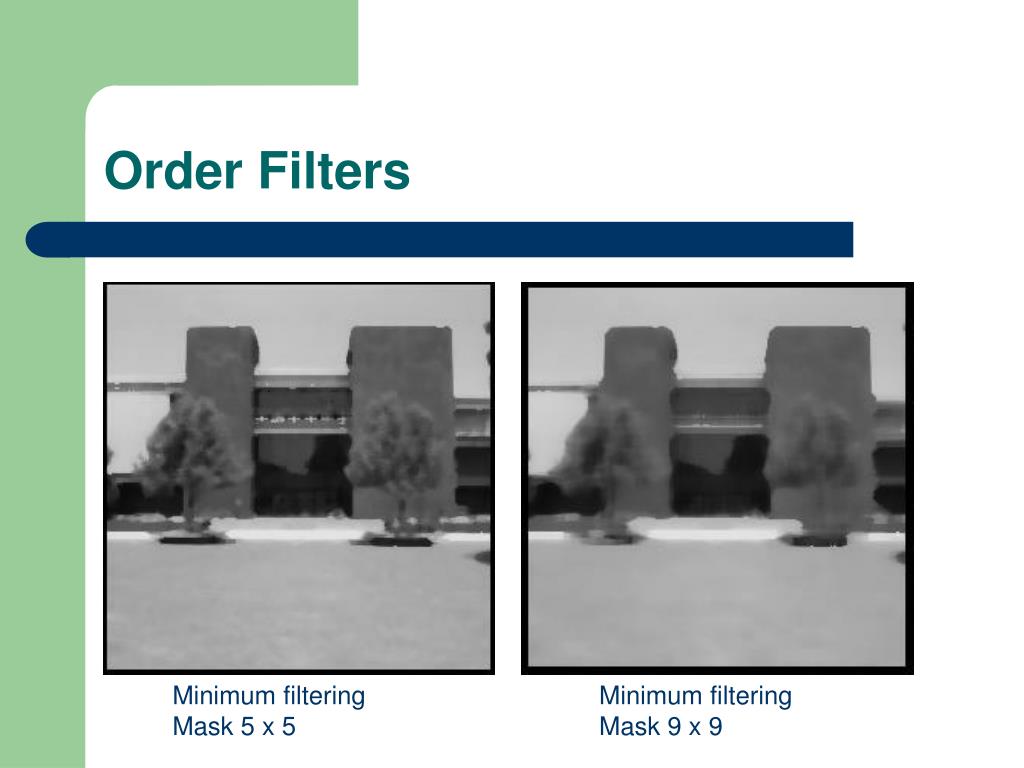

  11. Order Filters Minimum filtering Mask 5 x 5 Minimum filtering Mask 9 x 9

  12. Order Filters Maximum Filter Maximum filtering Mask 3 x 3 Image with pepper noise Probability = .04

  13. Order Filters Maximum filtering Mask 9 x 9 Maximum filtering Mask 5 x 5

  14. Order Filters • Order filters can also be defined to select a specific pixel rank within the ordered set. • For example, we may find the second highest value is the better choice than the maximum value for certain pepper noise. • This type of ordered selection is application specific. • Minimum filter tend to darken the image and maximum filter tend to brighten the image.

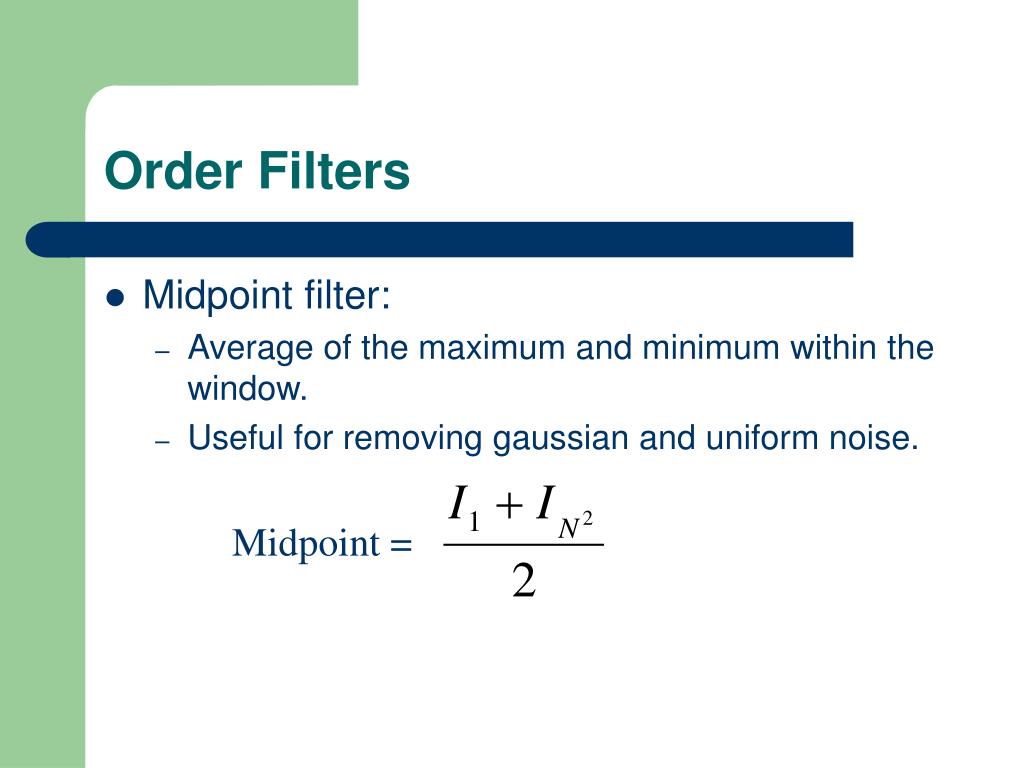

  15. Midpoint = Order Filters • Midpoint filter: • Average of the maximum and minimum within the window. • Useful for removing gaussian and uniform noise.

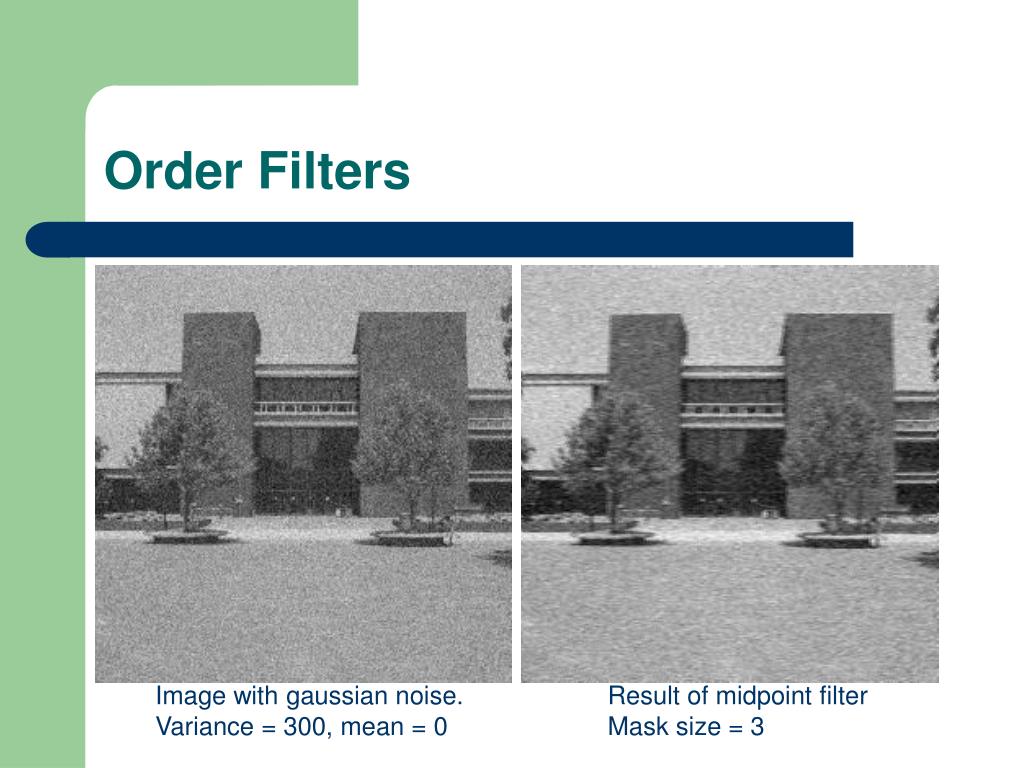

  16. Order Filters Image with gaussian noise. Variance = 300, mean = 0 Result of midpoint filter Mask size = 3

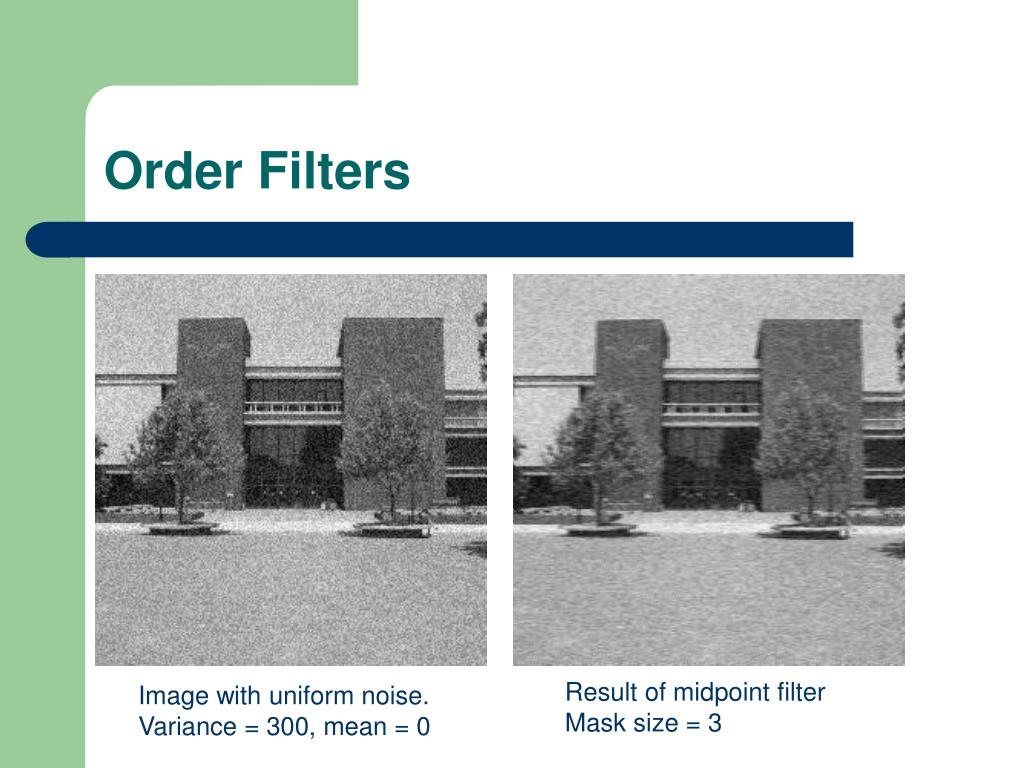

  17. Order Filters Result of midpoint filter Mask size = 3 Image with uniform noise. Variance = 300, mean = 0

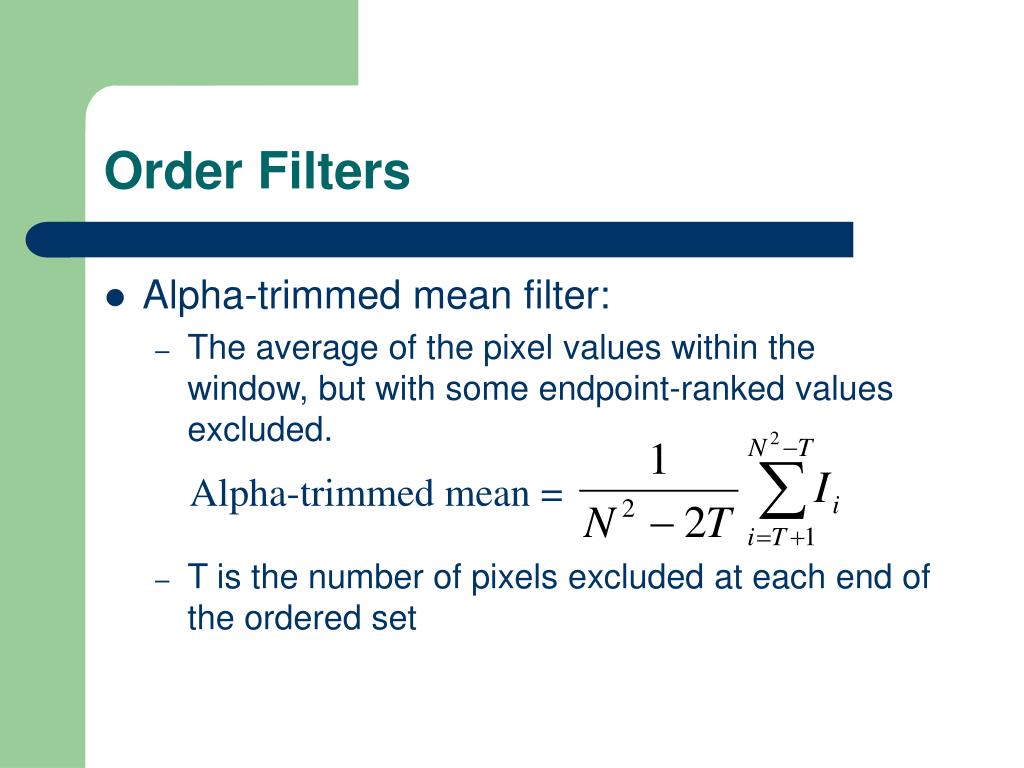

  18. Alpha-trimmed mean = Order Filters • Alpha-trimmed mean filter: • The average of the pixel values within the window, but with some endpoint-ranked values excluded. • T is the number of pixels excluded at each end of the ordered set

  19. Order Filters • The alpha-trimmed mean filter ranges from a mean to median filter, depending on the value selected for the T parameter. • If T = 0,  mean filter. • If T = (N2 – 1) / 2,  median filter. • The alpha-trimmed mean filter is useful for images containing multiple types of noise. • Example: Gaussian + salt-and-pepper.

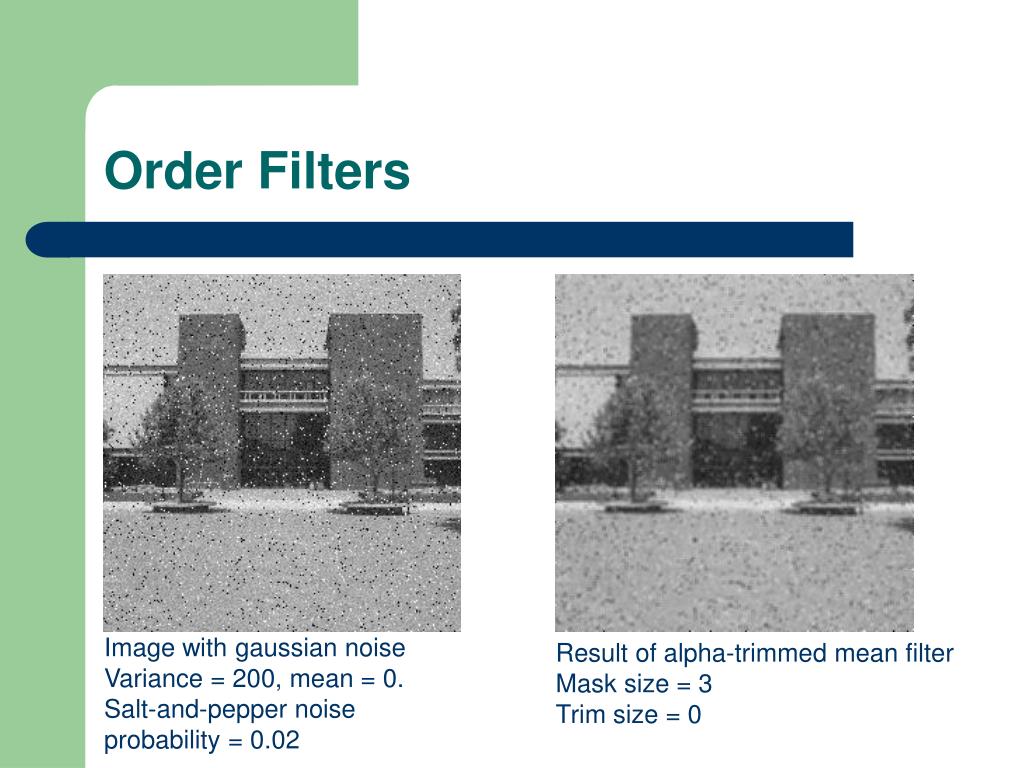

  20. Order Filters Image with gaussian noise Variance = 200, mean = 0. Salt-and-pepper noise probability = 0.02 Result of alpha-trimmed mean filter Mask size = 3 Trim size = 0

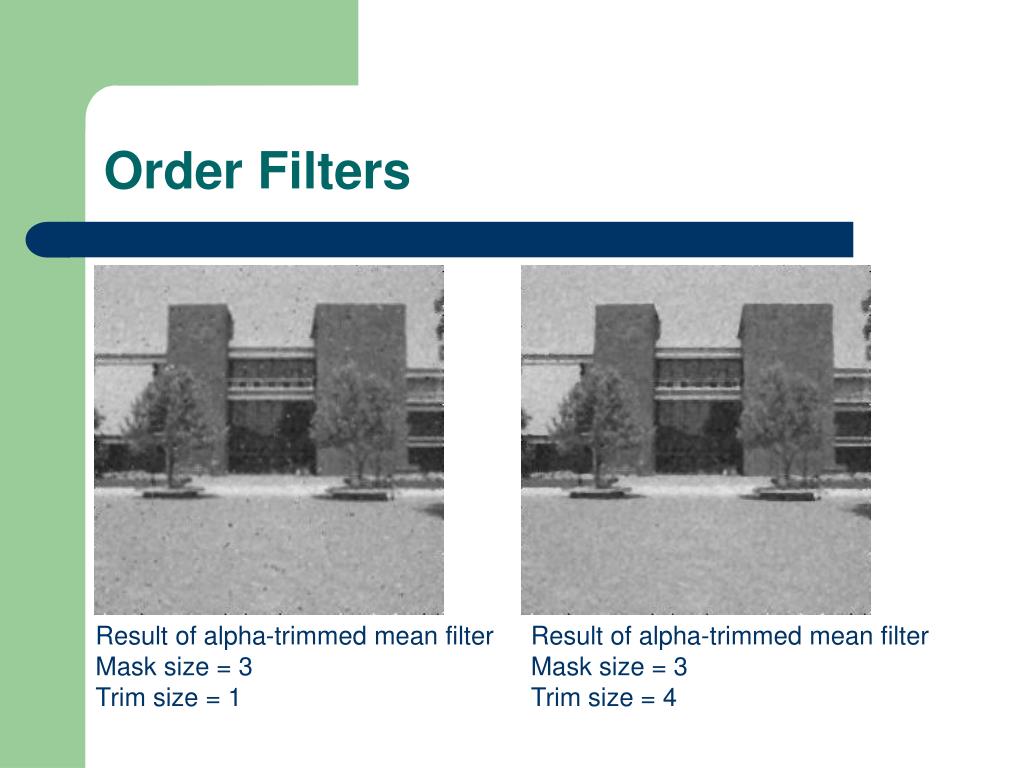

  21. Order Filters Result of alpha-trimmed mean filter Mask size = 3 Trim size = 1 Result of alpha-trimmed mean filter Mask size = 3 Trim size = 4

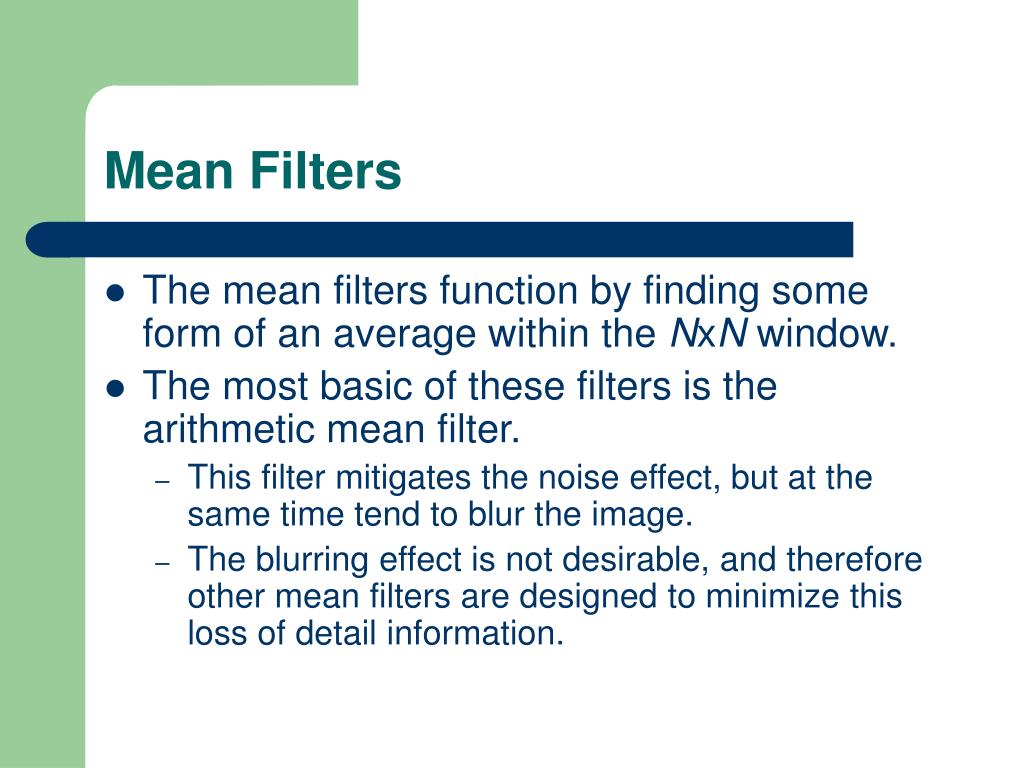

  22. Mean Filters • The mean filters function by finding some form of an average within the NxN window. • The most basic of these filters is the arithmetic mean filter. • This filter mitigates the noise effect, but at the same time tend to blur the image. • The blurring effect is not desirable, and therefore other mean filters are designed to minimize this loss of detail information.

  23. Arithmetic Mean = Mean Filters • Arithmetic mean filter: • Find the arithmetic average of the pixel values in the window. • Smooth out local variations in an image. • Tend to blur the image. • Works best with gaussian and uniform noise.

  24. Mean Filters Image with gaussian noise Variance=300, mean = 0 Result of arithmetic mean filter Mask size = 3

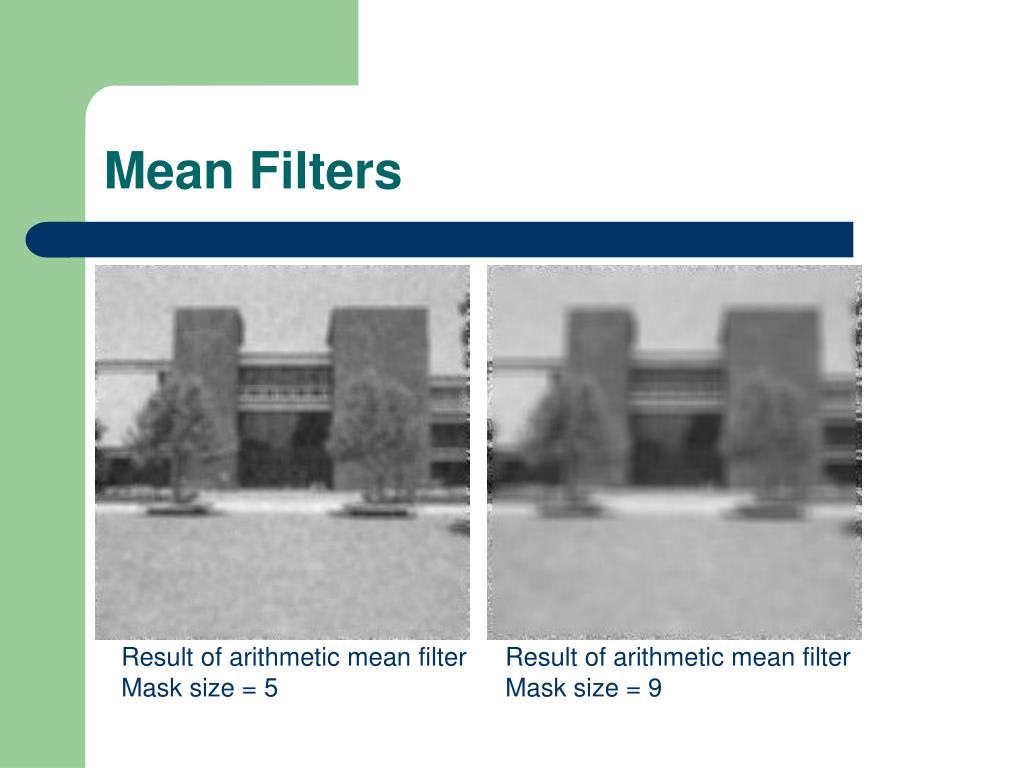

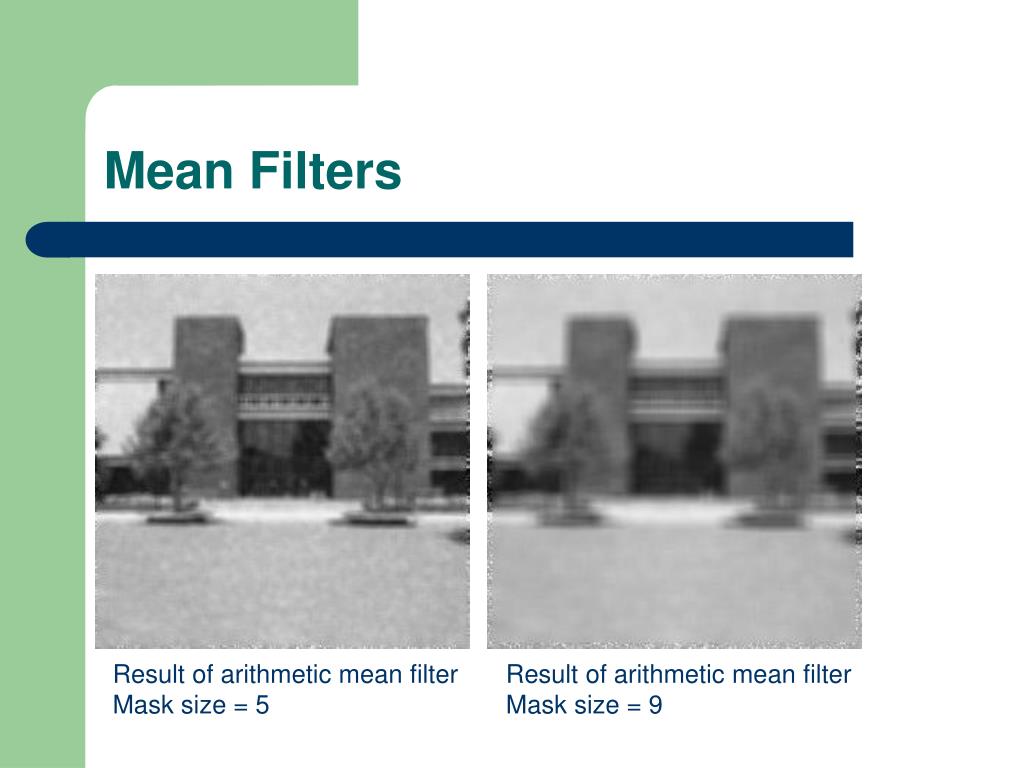

  25. Mean Filters Result of arithmetic mean filter Mask size = 5 Result of arithmetic mean filter Mask size = 9

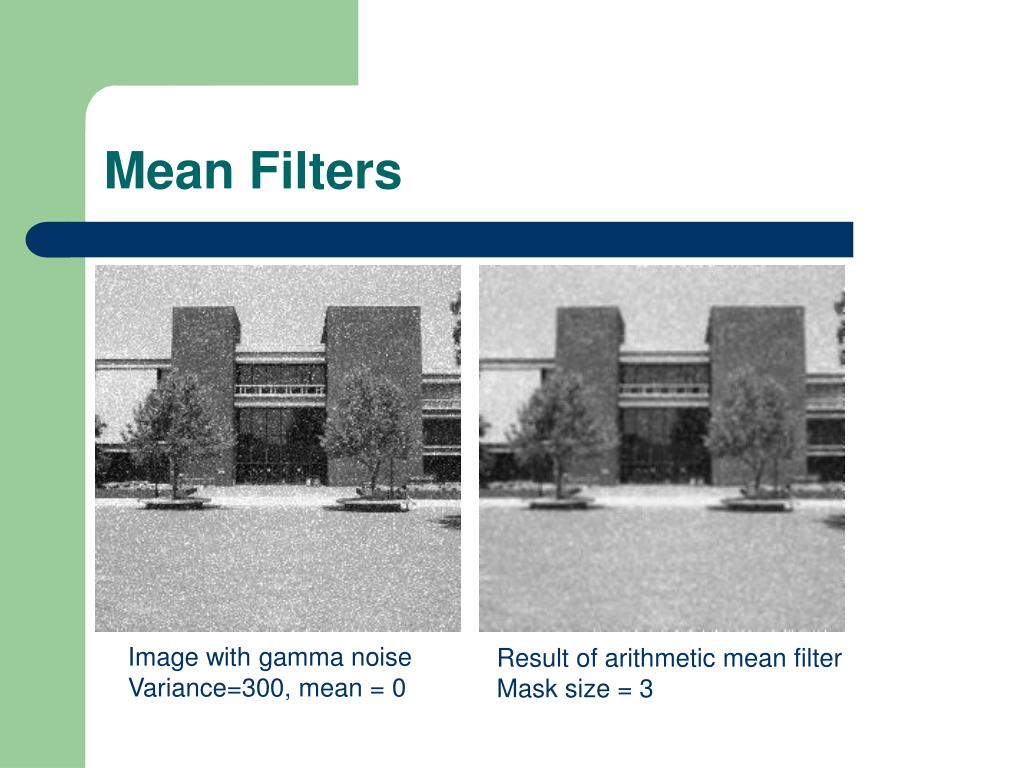

  26. Mean Filters Image with gamma noise Variance=300, mean = 0 Result of arithmetic mean filter Mask size = 3

  27. Mean Filters Result of arithmetic mean filter Mask size = 5 Result of arithmetic mean filter Mask size = 9

  28. Contra-Harmonic Mean = Mean Filters • Contra-harmonic mean filter: • Works for salt OR pepper noise, depending on the filter order R. • Negative R  Eliminate salt-type noise. • Positive R  Eliminate pepper-type noise.

  29. Mean Filters Image with salt noise Probability = .04 Result of contra-harmonic filter Mask size = 3; order = 0

  30. Mean Filters Result of contra-harmonic filter Mask size = 3; order = -1 Result of contra-harmonic filter Mask size = 3; order = -5

  31. Mean Filters Image with pepper noise Probability = .04 Result of contra-harmonic filter Mask size = 3; order = 0

  32. Mean Filters Result of contra harmonic filter Mask size = 3; order = +5 Result of contra harmonic filter Mask size = 3; order = +1

  33. Geometric Mean = Mean Filters • Geometric mean filter: • Works best with gaussian noise. • Retains detail better than arithmetic mean filter. • Ineffective in the presence of pepper noise (if very low values present in the window, the equation will return a very small number).

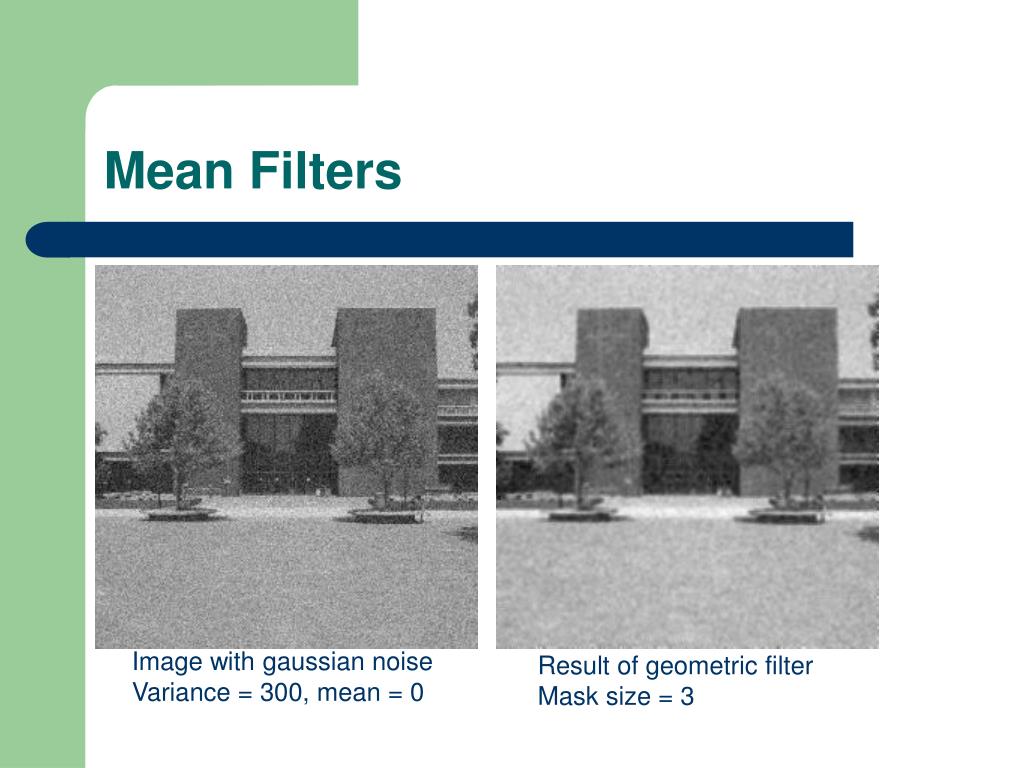

  34. Mean Filters Image with gaussian noise Variance = 300, mean = 0 Result of geometric filter Mask size = 3

  35. Mean Filters Image with pepper noise Probability = .04 Result of geometric filter Mask size = 3

  36. Mean Filters Image with salt noise Probability=.04 Result of geometric filter Mask size = 3

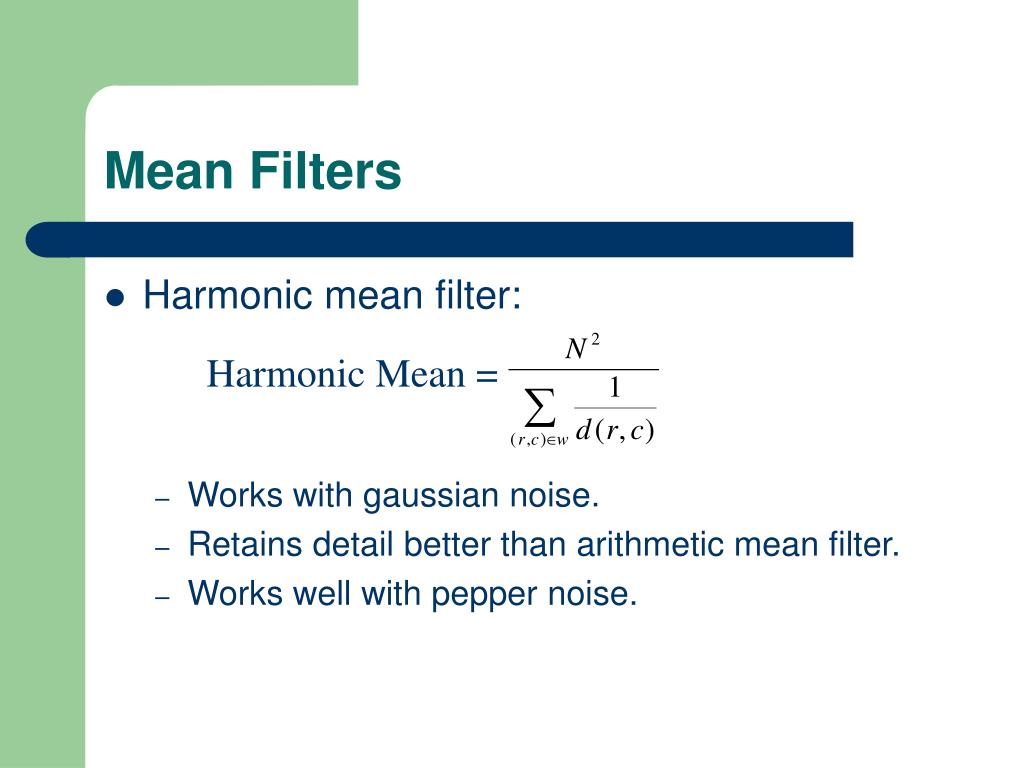

  37. Harmonic Mean = Mean Filters • Harmonic mean filter: • Works with gaussian noise. • Retains detail better than arithmetic mean filter. • Works well with pepper noise.

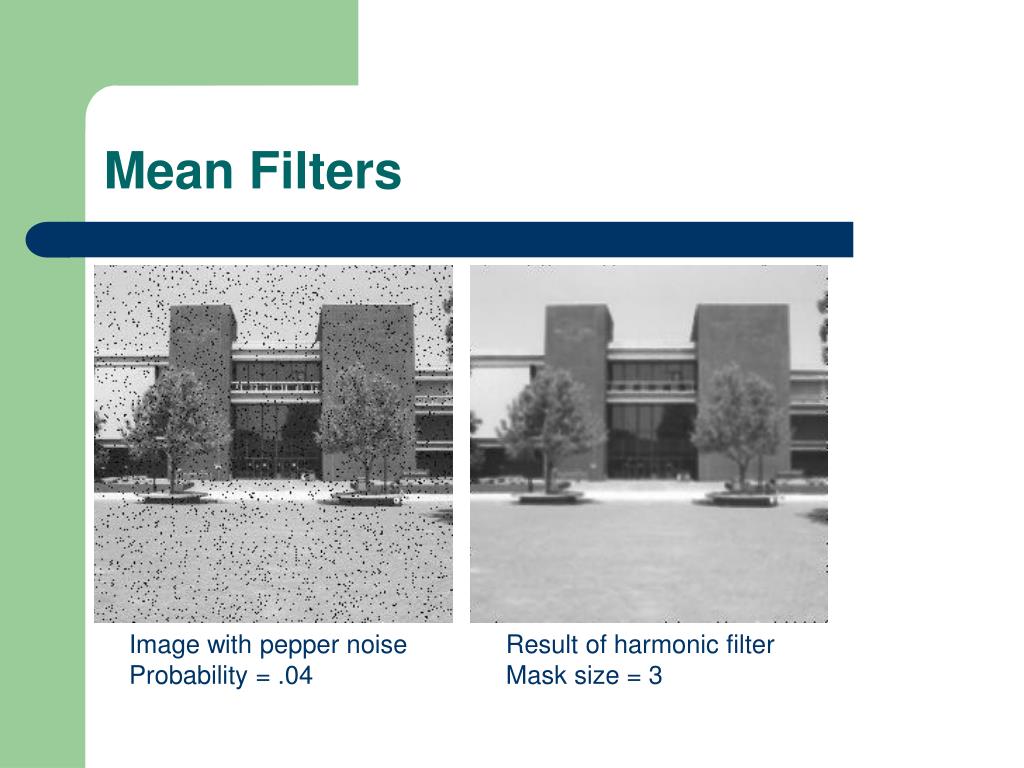

  38. Mean Filters Image with pepper noise Probability = .04 Result of harmonic filter Mask size = 3

  39. Mean Filters Image with salt noise Probability=.04 Result of harmonic filter Mask size = 3

  40. Yp Mean = Mean Filters • Yp mean filter: • Remove salt noise for negative values of P. • Remove pepper noise for positive values of P.

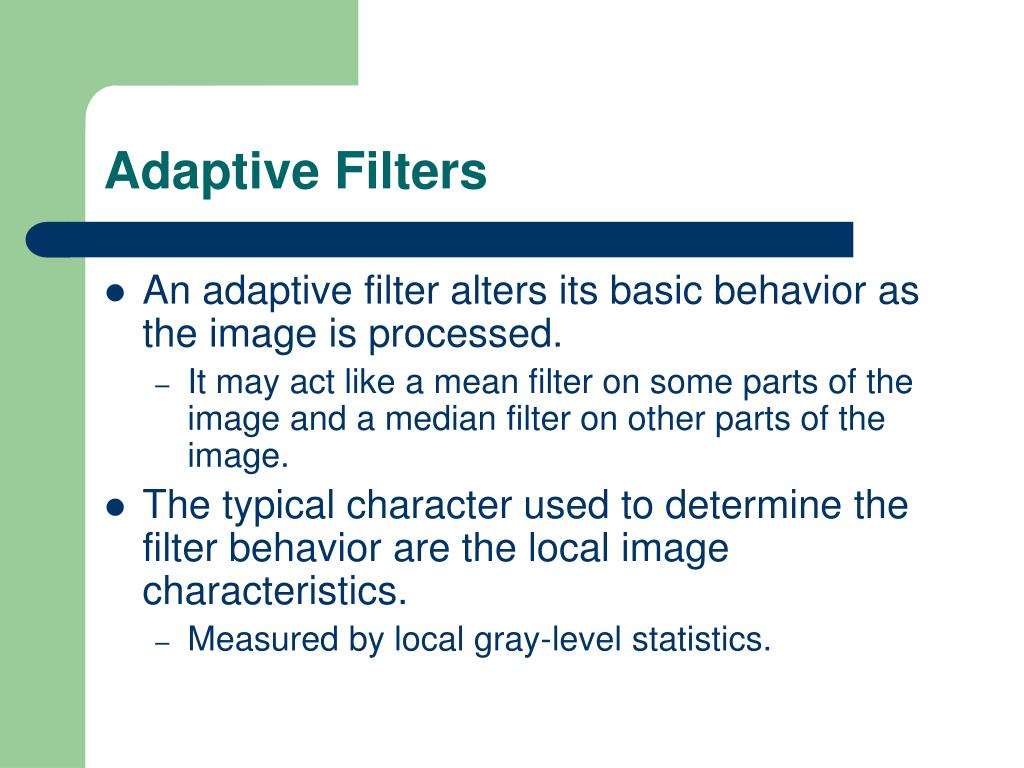

  41. Adaptive Filters • An adaptive filter alters its basic behavior as the image is processed. • It may act like a mean filter on some parts of the image and a median filter on other parts of the image. • The typical character used to determine the filter behavior are the local image characteristics. • Measured by local gray-level statistics.

  42. MMSE = Adaptive Filters • The minimum mean-square error (MMSE) filter is a good example of an adaptive filter. • σn2 = noise variance. • σl2 = local variance (in the window). • ml = local mean (average in the window).

  43. Adaptive Filters • MMSE filter exhibits varying behavior based on local image statistics: • No noise  variance = 0  equation returns original image. • Regions with fairly constant value (no edge/details)  noise variance == local variance  equation reduces to mean filter. • Regions with high details (edges)  local variance >> noise variance  equation returns values close to original image.

  44. Adaptive Filters • In general, MMSE filter modifies the image based on the noise to local variance ratio. • High ratio implies the existence of noise in the window, and therefore the filter returns primarily the local average to reduce the noise. • Low ratio implies high local detail, therefore the filter returns more of the original unfiltered image to preserve the detail.

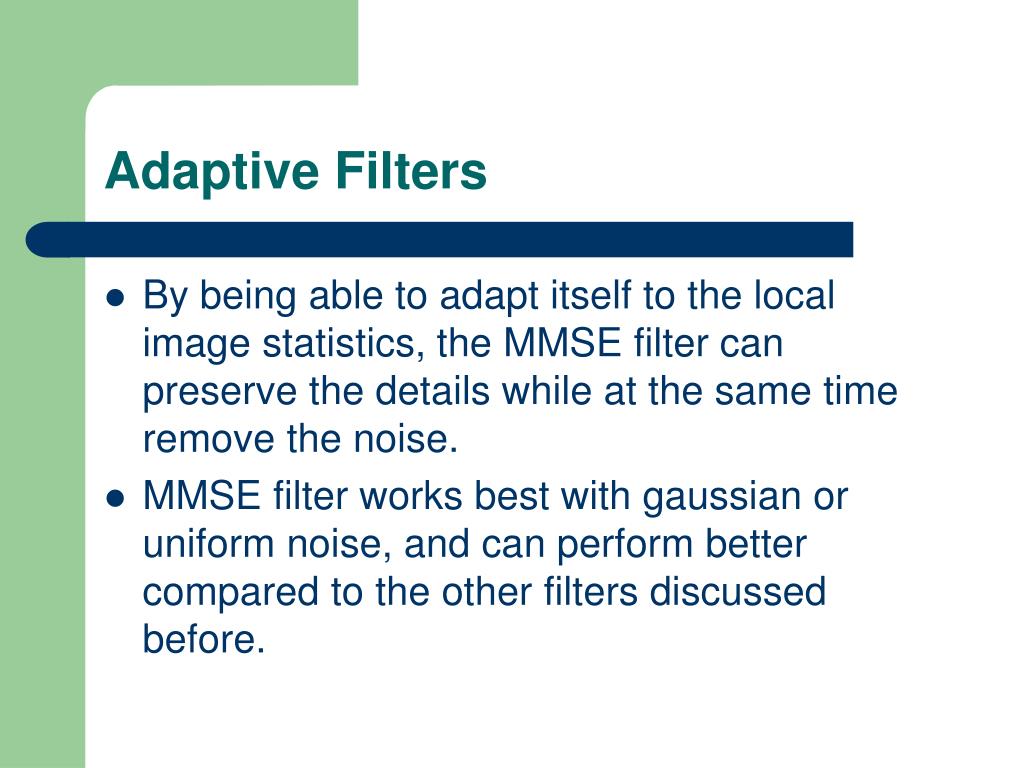

  45. Adaptive Filters • By being able to adapt itself to the local image statistics, the MMSE filter can preserve the details while at the same time remove the noise. • MMSE filter works best with gaussian or uniform noise, and can perform better compared to the other filters discussed before.

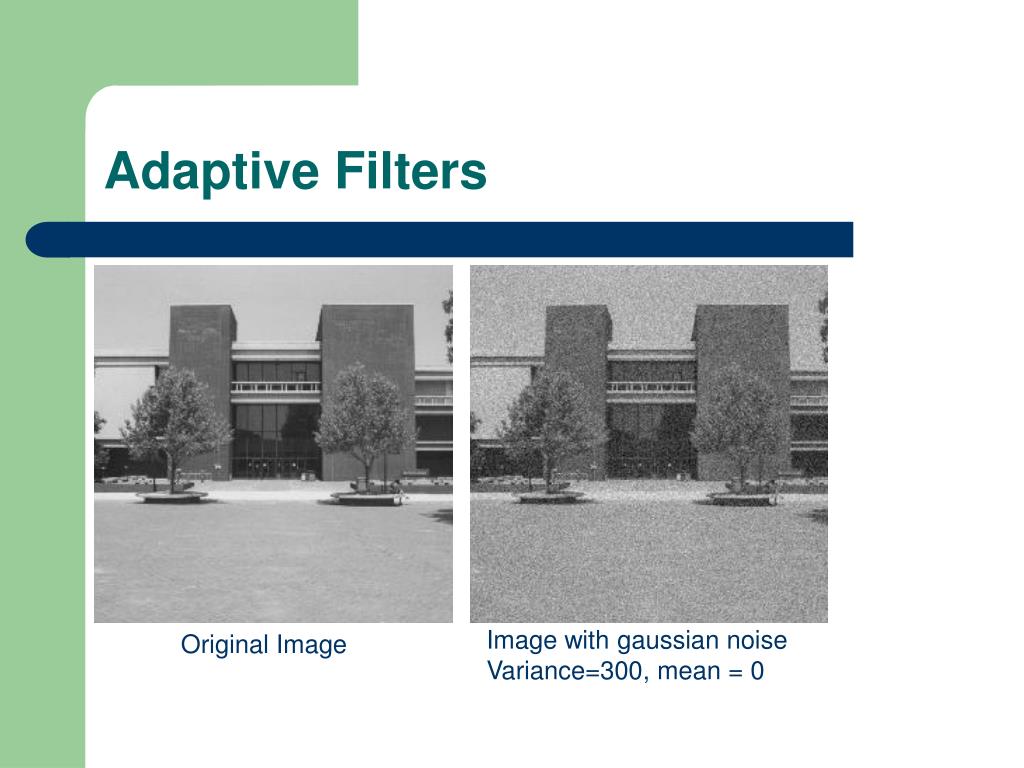

  46. Adaptive Filters Image with gaussian noise Variance=300, mean = 0 Original Image

  47. Adaptive Filters Result of MMSE Mask size = 5 Result of MMSE Mask size = 3

  48. Adaptive Filters Result of MMSE Mask size = 9 Result of MMSE Mask size = 7
