  1. New EOL & NVH Machine T/Oreport 2011. 05.24

  2. Table of contents 1. Executive Summary2. Machine Introduction 1) Machine Lay-out 2) Machine Specification3. Try out results 1) Oil Pump Performance Test 2) NVH Test 1

  3. 1. Excutive summary ▶ R&R for performance test results were good. Oil pump performance test results between new and current EOL tester were very similar in Flow 1 and Flow 3. (Over 70%)▶ R&R for NVH test results were good. NVH ‘A’ & ‘B’ test results between new and current NVH tester were good enough for production. In case of NVH ‘C’ value, MKL need more investigation. Because current ATW NVH tester does not have good R&R result for NVH ‘C’.▶ MKL is going to run new EOL & NVH tester to test retest & reworked parts from 27th of May. 2

  4. 2. Machine Introduction 1) Machine Lay-Out NVH Result EOL Result Test Oil Tank Control Pannel Inside of machine Main PC Part Loading 3

  5. 2) Machine Specification-. Machine size (WXLXH) : 1,600 X 2,600 X 2,000 mm-. Main Power : 440V 3 phase, Air pressure 6 bar, Main Hyd. power 70 bar-. Test oil tank capacity : 120 liter-. Loading/Unloading : Manual-. Cycle time : currently about 80 sec.(EOL 50 sec, NVH 30 sec)-. Others : Bar code reader, Data storage, Pressure control valve, Flow meter, Pressure sensor, Accelerometer for NVH test 4

  6. 3. T/O Results 1) Oil Pump Performance Test 1-1) R&R Result ※ 0 ~ 10 % : Good, 10%~30% : Acceptable, 30% ~ : Need to improvement 5

  7. 1-1-1) MPI R&R Data (Flow 1) 6

  8. 1-1-2) MPI R&R Data (Pressure 2 - Deadhead) 7

  9. 1-1-3) MPI R&R Data (Flow 3) 8

  10. 1-1-4) GDI R&R Data (Flow 1) 9

  11. 1-1-5) GDI R&R Data (Pressure 2 - Deadhead) 10

  12. 1-1-6) GDI R&R Data (Flow 3) 11

  13. 1-2) Correlation between New and current machine.(vs. Line #1) 1-2-1) MPI BSM New Old FLOW 1 : 74 % PRESSURE 2 – 71 % FLOW 3 – 83 % 12

  14. 1-2-2) GDI BSM New Old FLOW 1 : 70 % Pressure 2 – Below 1% But all results are in spec. FLOW 3 : 70 % 13

  15. 2) NVH Test 2-1) R&R Result ※ 0 ~ 10 % : Good, 10%~30% : Acceptable, 30% ~ : Need to improvement 14

  16. 2-1-1) R&R Data (NVH ‘C’) 15

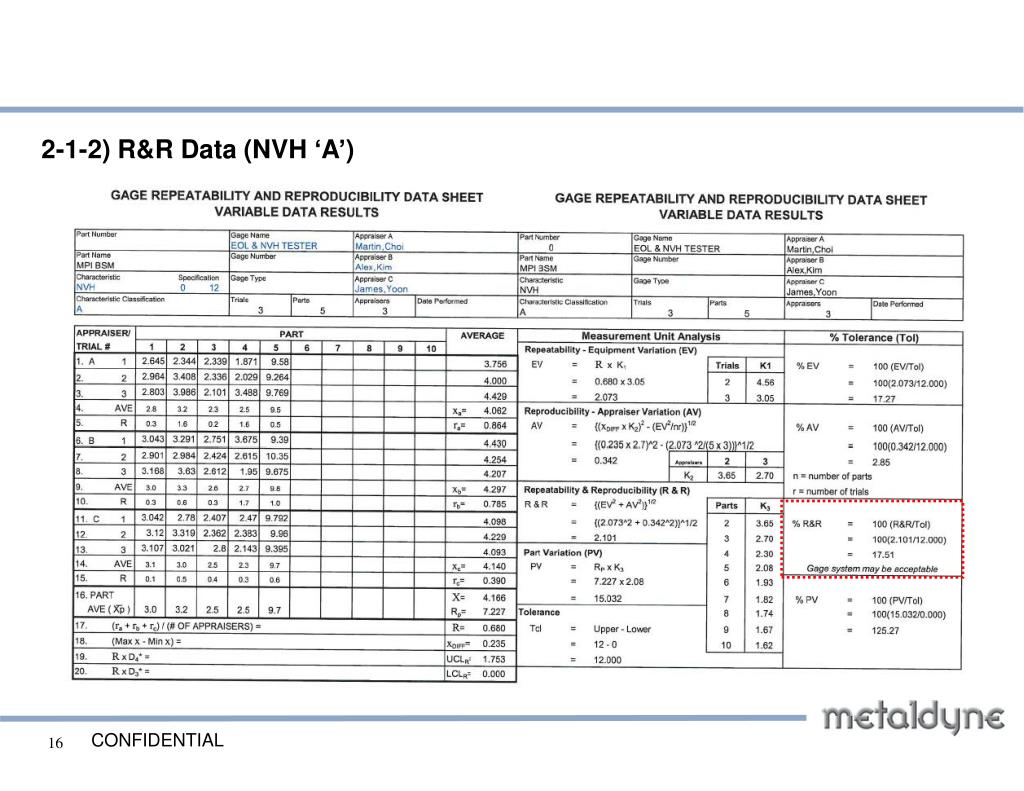

  17. 2-1-2) R&R Data (NVH ‘A’) 16

  18. 2-1-3) R&R Data (NVH ‘B’) 17

  19. 2-2) Correlation between New and current machine.(vs Line #2) 18
