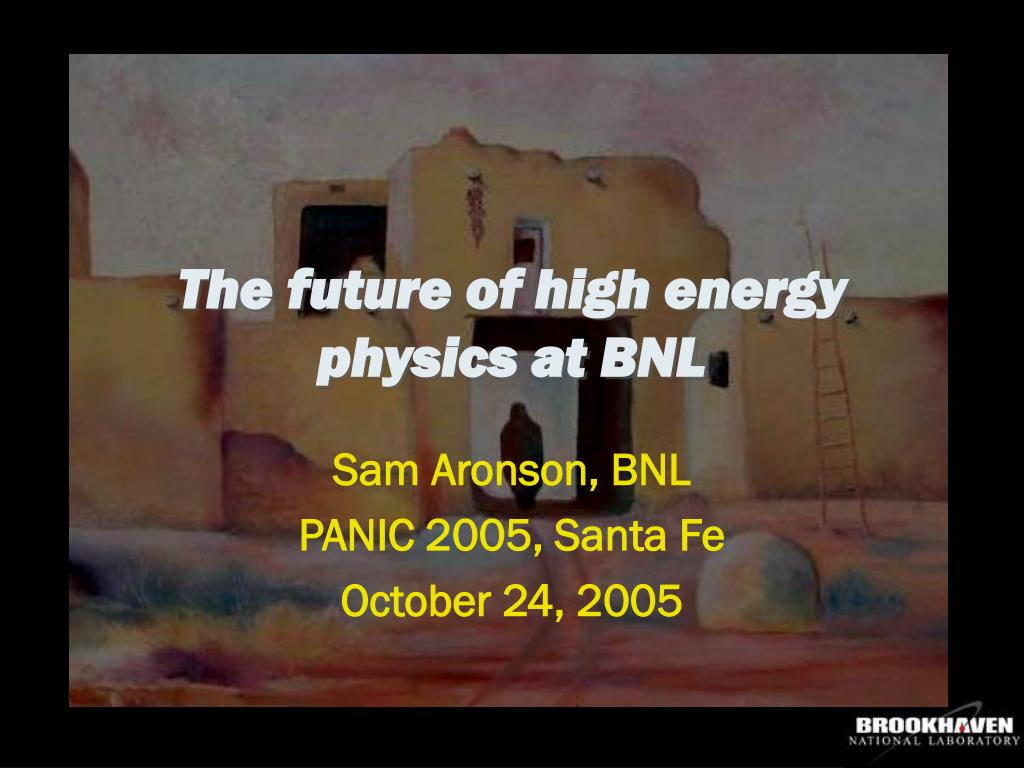

  1. The future of high energy physics at BNL Sam Aronson, BNL PANIC 2005, Santa Fe October 24, 2005 S. Aronson 10/24/05

  2. high energy nuclear and particle physics @ BNL • RHIC & its evolution • Collider & neutrino physics • Non-accelerator physics • Particle physics agenda re-engineered following the termination of RSVP S. Aronson 10/24/05

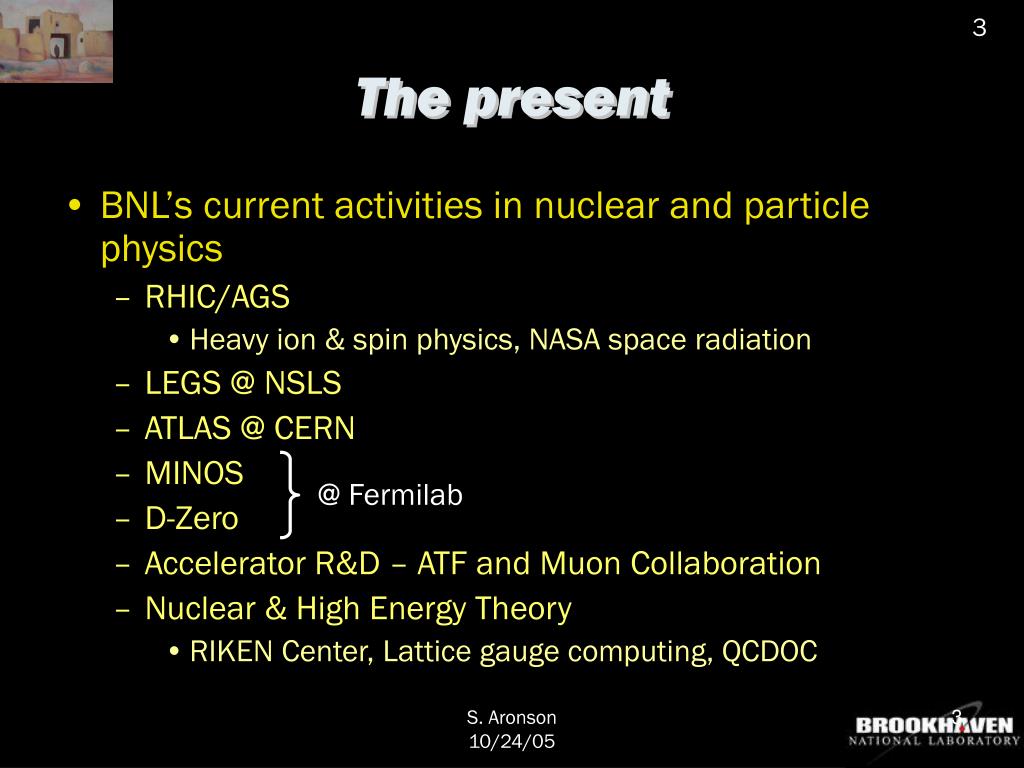

  3. The present • BNL’s current activities in nuclear and particle physics • RHIC/AGS • Heavy ion & spin physics, NASA space radiation • LEGS @ NSLS • ATLAS @ CERN • MINOS • D-Zero • Accelerator R&D – ATF and Muon Collaboration • Nuclear & High Energy Theory • RIKEN Center, Lattice gauge computing, QCDOC @ Fermilab S. Aronson 10/24/05

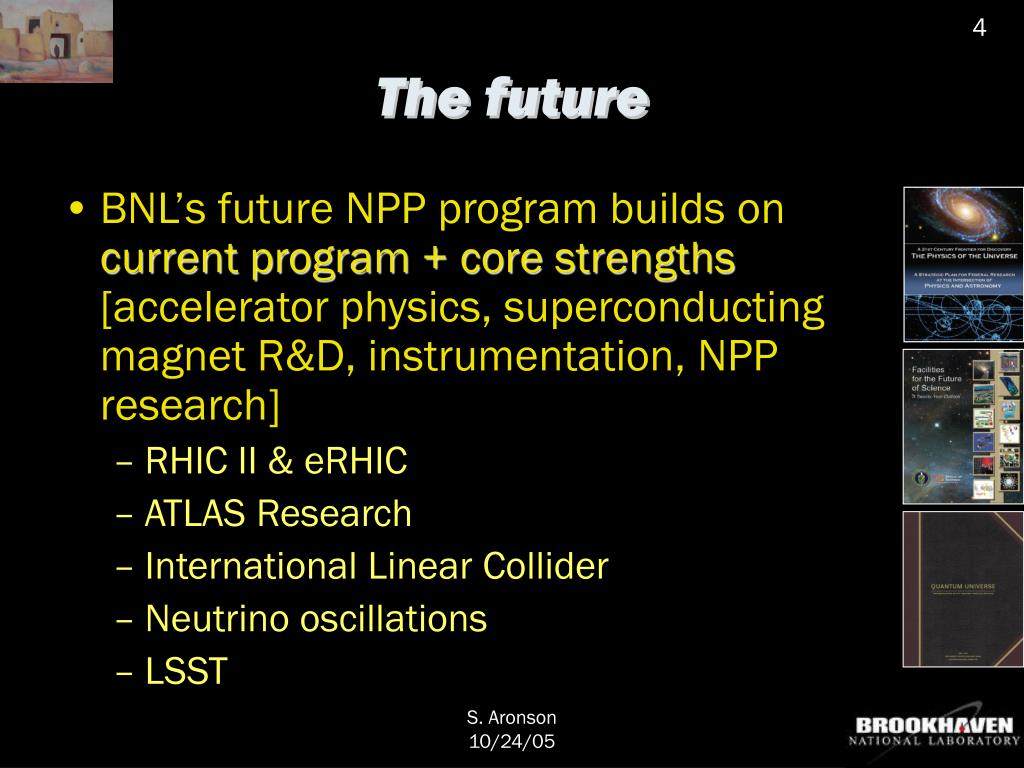

  4. The future • BNL’s future NPP program builds on current program + core strengths [accelerator physics, superconducting magnet R&D, instrumentation, NPP research] • RHIC II & eRHIC • ATLAS Research • International Linear Collider • Neutrino oscillations • LSST S. Aronson 10/24/05

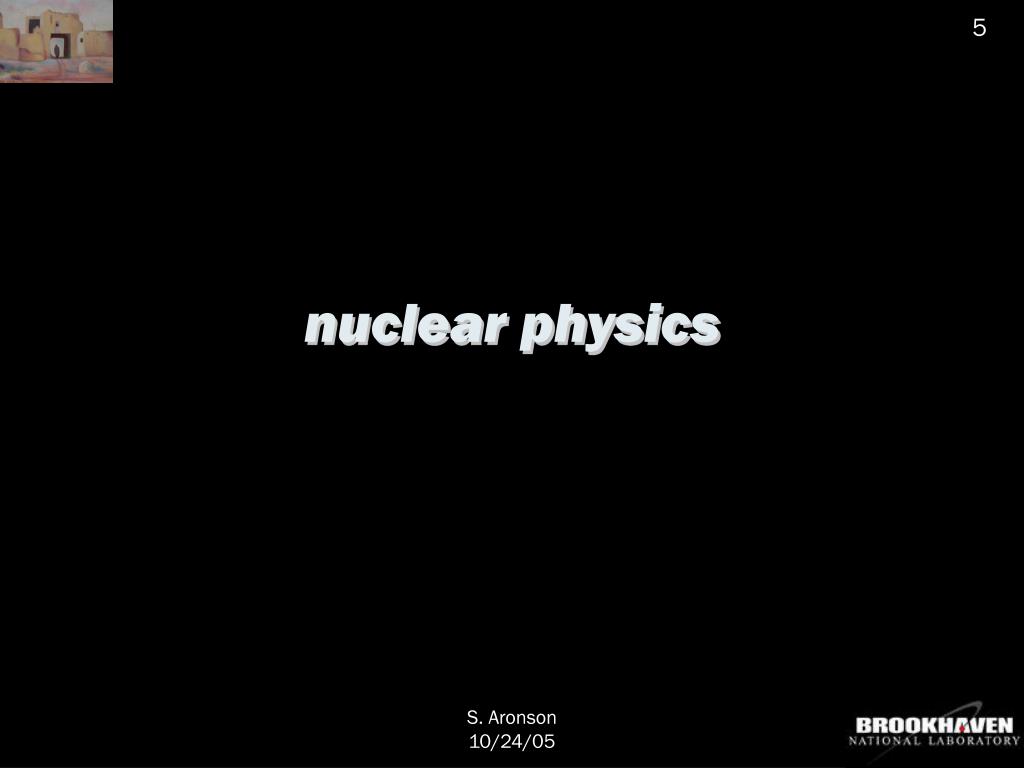

  5. nuclear physics S. Aronson 10/24/05

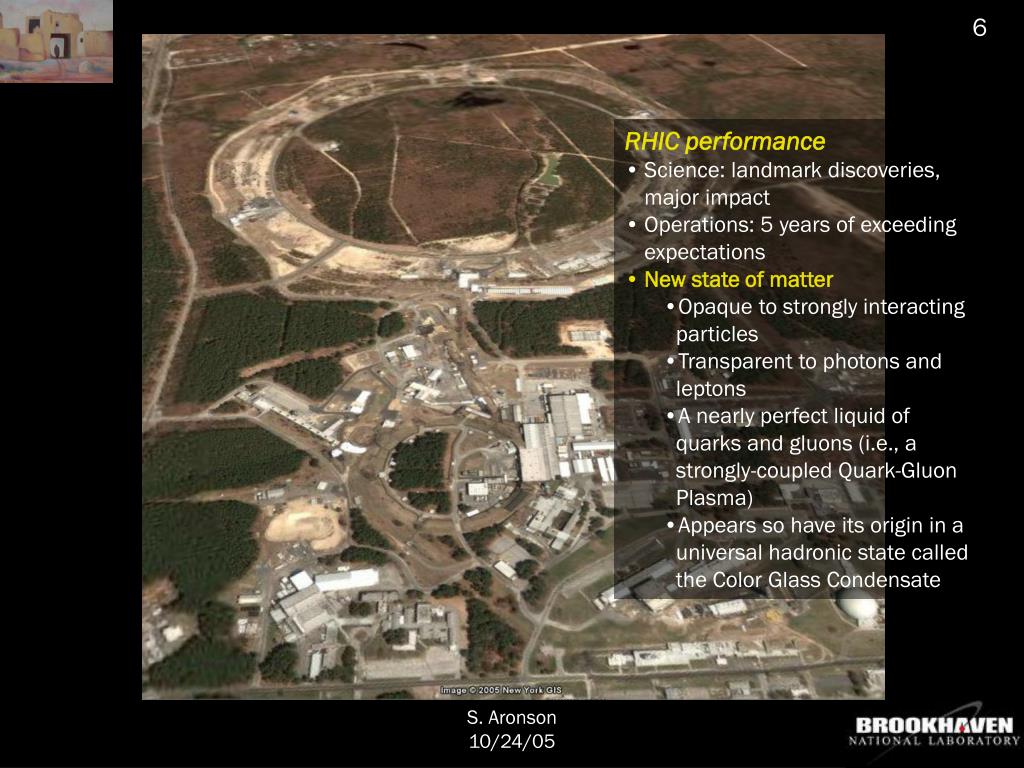

  6. RHIC performance • Science: landmark discoveries, major impact • Operations: 5 years of exceeding expectations • New state of matter • Opaque to strongly interacting particles • Transparent to photons and leptons • A nearly perfect liquid of quarks and gluons (i.e., a strongly-coupled Quark-Gluon Plasma) • Appears so have its origin in a universal hadronic state called the Color Glass Condensate S. Aronson 10/24/05

  7. STAR Preliminary Latest RHIC Results • Big parton energy loss, no photon energy loss • Jet quenching: reemergence of the away side jet • Suppression and flow of heavy quarks (via electrons) • Charmonium suppression • Thermal photon production S. Aronson 10/24/05

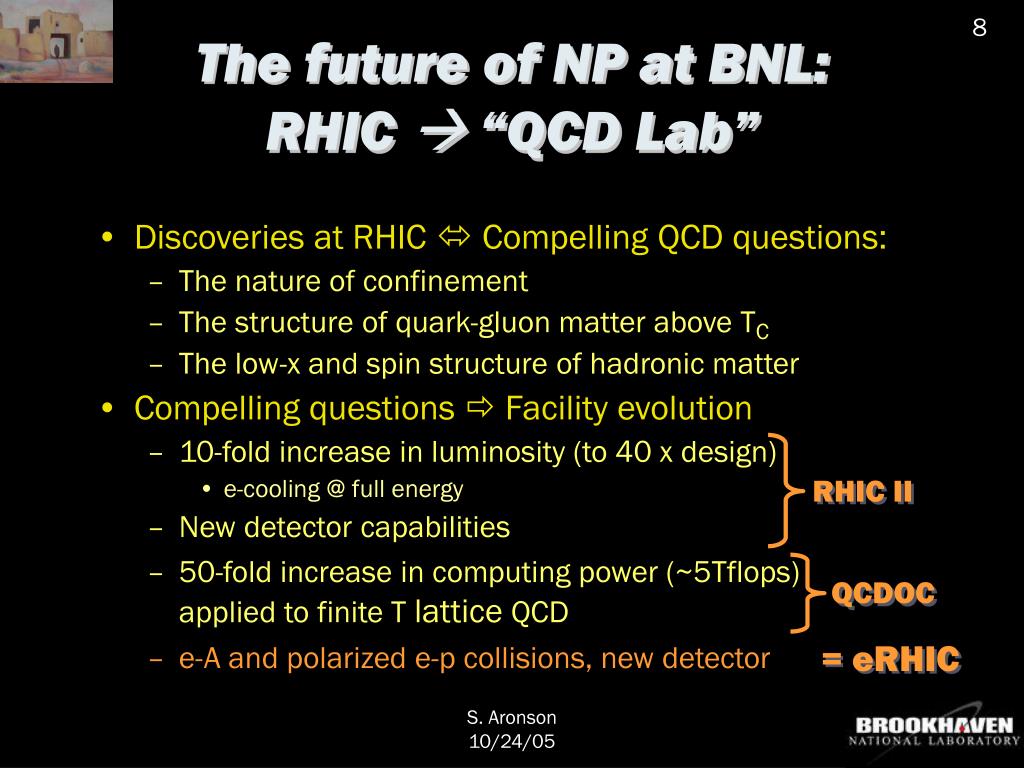

  8. RHIC II QCDOC The future of NP at BNL:RHIC  “QCD Lab” • Discoveries at RHIC  Compelling QCD questions: • The nature of confinement • The structure of quark-gluon matter above TC • The low-x and spin structure of hadronic matter • Compelling questions  Facilityevolution • 10-fold increase in luminosity (to 40 x design) • e-cooling @ full energy • New detector capabilities • 50-fold increase in computing power (~5Tflops) applied to finite T lattice QCD • e-A and polarized e-p collisions, new detector = eRHIC S. Aronson 10/24/05

  9. RHIC – achieved parameters [best store or week] *Blue ring avg. pol. 49%, Yellow ring avg. pol. 44% RHIC accelerated polarized protons to Ebeam = 210 GeV @ 30% pol. This year L storeavg.goals (prior to e-cooling): Au-Au = 81026, p-p = 651030, @ 70% pol. S. Aronson 10/24/05

  10. Gun Z-bend merger ERL ←Compressor Stretcher→ Cooling solenoids in RHIC rings RHIC Luminosities with e-Cooling R&D ERL @ BNL Gold collisions (sNN =200 GeV): w/o e-cooling with e-cooling Emittance (95%) pmm 15  40 15  3 Beta function at IR [m] 1.0 1.0  0.5 Number of bunches 112 112 Bunch population [109] 1 1  0.3 Beam-beam parameter per IR 0.0016 0.004 Peak luminosity [1026 cm-2 s-1] 32 90 Average luminosity [1026 cm-2 s-1] 8 70 S. Aronson 10/24/05 demonstrated by JLab for IR FEL (50 MeV, 5 mA)

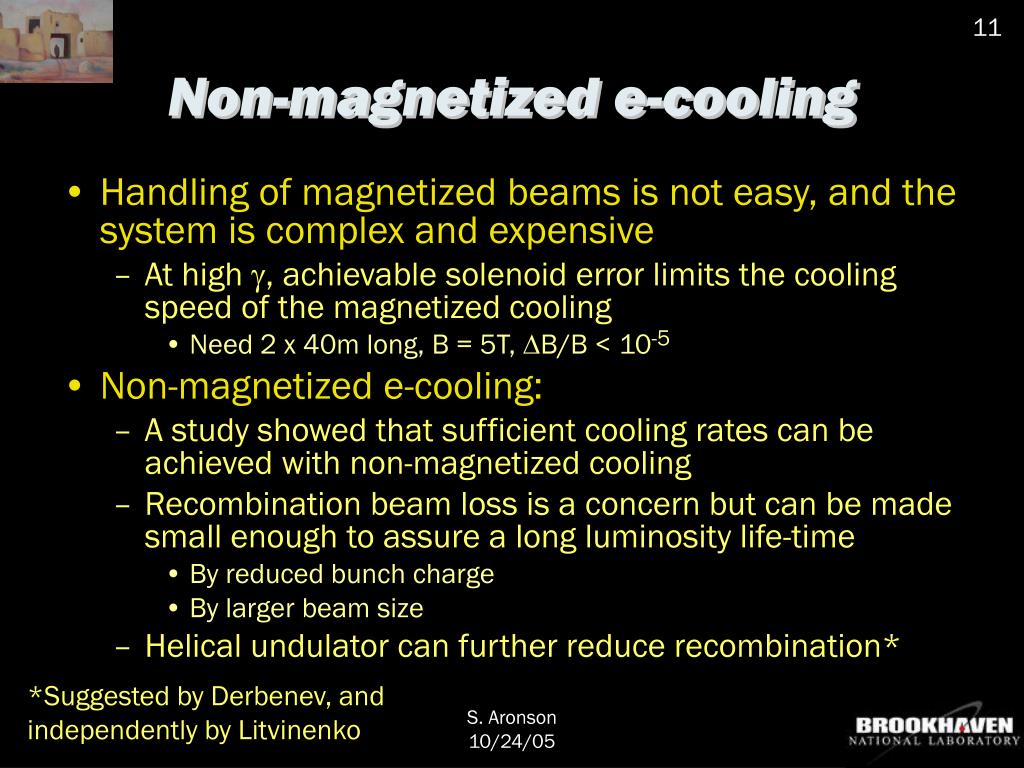

  11. Non-magnetized e-cooling • Handling of magnetized beams is not easy, and the system is complex and expensive • At high , achievable solenoid error limits the cooling speed of the magnetized cooling • Need 2 x 40m long, B = 5T, B/B < 10-5 • Non-magnetized e-cooling: • A study showed that sufficient cooling rates can be achieved with non-magnetized cooling • Recombination beam loss is a concern but can be made small enough to assure a long luminosity life-time • By reduced bunch charge • By larger beam size • Helical undulator can further reduce recombination* *Suggested by Derbenev, and independently by Litvinenko S. Aronson 10/24/05

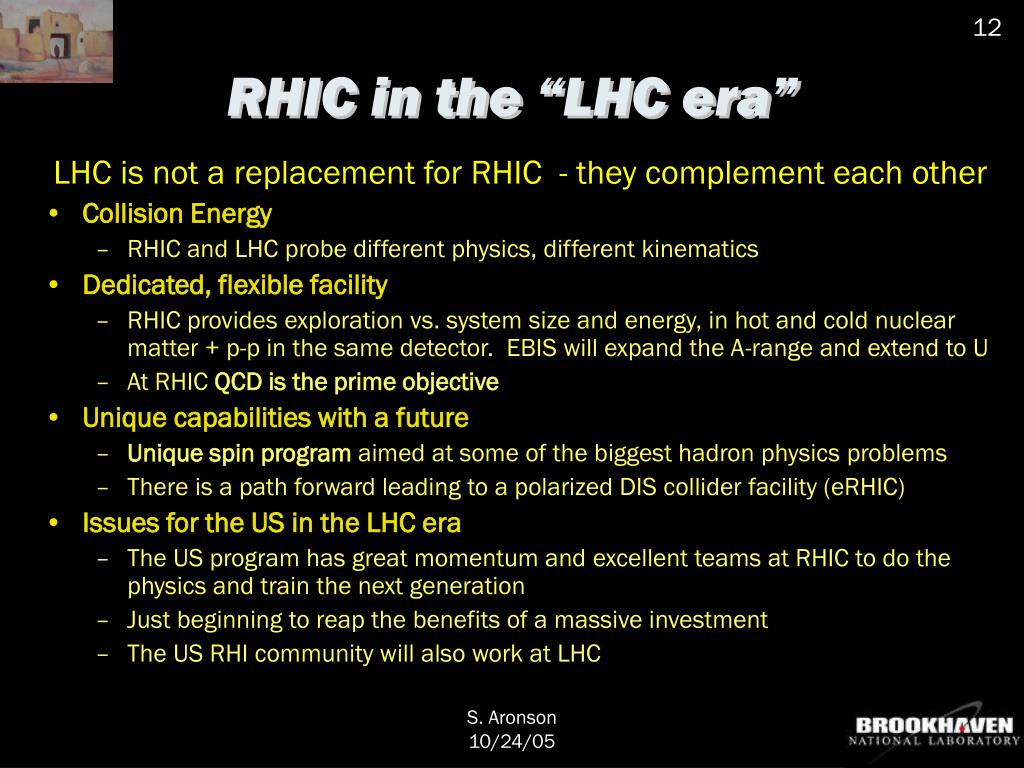

  12. RHIC in the “LHC era” LHC is not a replacement for RHIC - they complement each other • Collision Energy • RHIC and LHC probe different physics, different kinematics • Dedicated, flexible facility • RHIC provides exploration vs. system size and energy, in hot and cold nuclear matter + p-p in the same detector. EBIS will expand the A-range and extend to U • At RHIC QCD is the prime objective • Unique capabilities with a future • Unique spin program aimed at some of the biggest hadron physics problems • There is a path forward leading to a polarized DIS collider facility (eRHIC) • Issues for the US in the LHC era • The US program has great momentum and excellent teams at RHIC to do the physics and train the next generation • Just beginning to reap the benefits of a massive investment • The US RHI community will also work at LHC S. Aronson 10/24/05

  13. eRHIC at BNL The compelling questions for eRHIC: • What is the nature of confinement and of hadronization in nuclei (compared to nucleons)? • What is the structure of the saturated gluon state at low x in hadrons? • What is the role of spin in DIS in nucleons and nuclei? Need a precision tool to probe these fundamental and universal aspects of QCD: eRHIC • Collide High energy & intensity polarized e (or e+) with A, p • A new detector for e-p & e-A physics Ep = 250 GeV (~50-250 GeV) EXISTS EA = 100 GeV/A (~ 10-100 GeV/A) EXISTS Ee = 10 GeV (~5-10 GeV) TO BE BUILT S. Aronson 10/24/05

  14. eRHIC design concepts Standard ring-ring design Alternative linac-ring design simpler IR design, multiple IRs possible Ee ~ 20 GeV possible higher luminosity possible more expensive S. Aronson 10/24/05

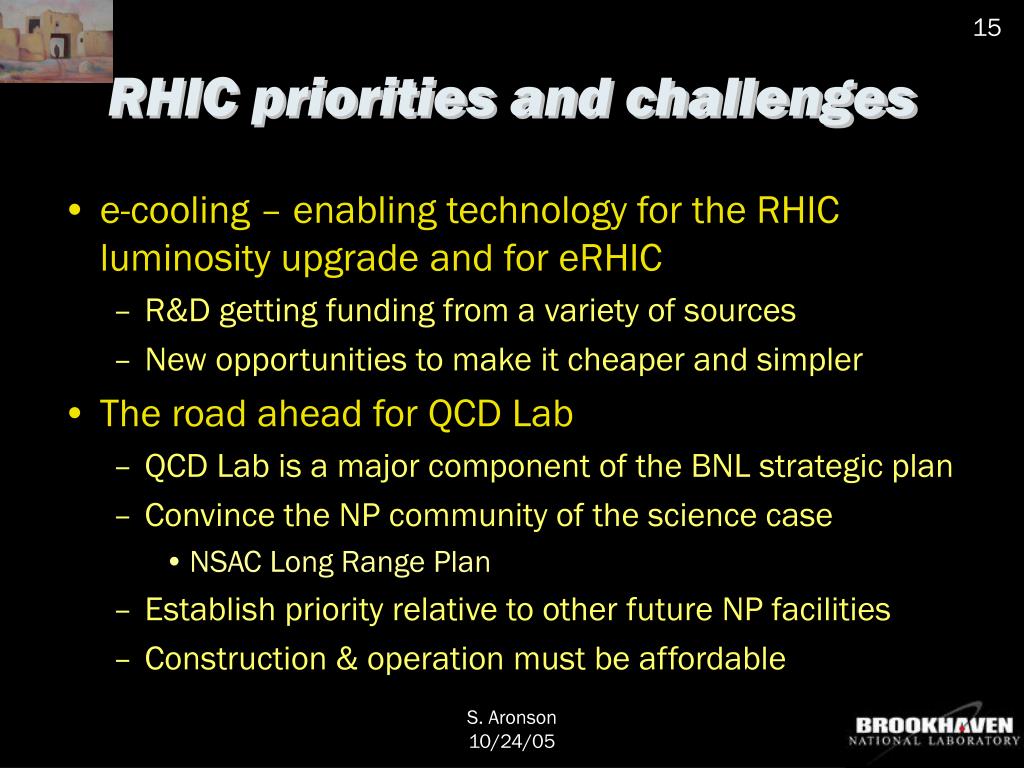

  15. RHIC priorities and challenges • e-cooling – enabling technology for the RHIC luminosity upgrade and for eRHIC • R&D getting funding from a variety of sources • New opportunities to make it cheaper and simpler • The road ahead for QCD Lab • QCD Lab is a major component of the BNL strategic plan • Convince the NP community of the science case • NSAC Long Range Plan • Establish priority relative to other future NP facilities • Construction & operation must be affordable S. Aronson 10/24/05

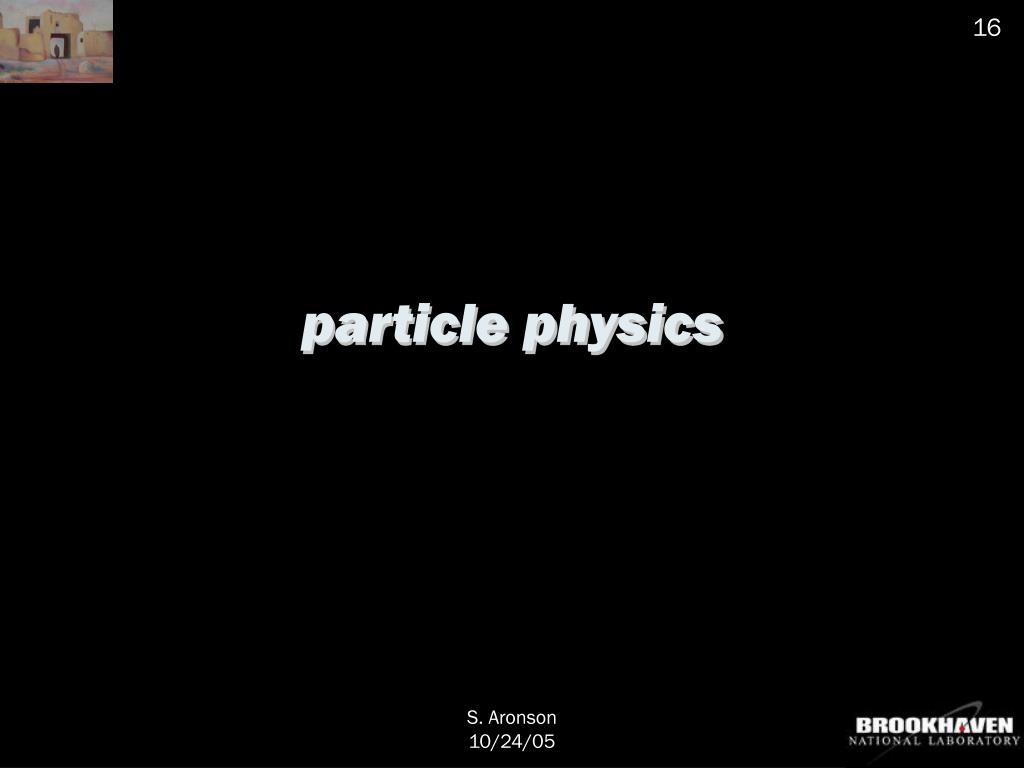

  16. particle physics S. Aronson 10/24/05

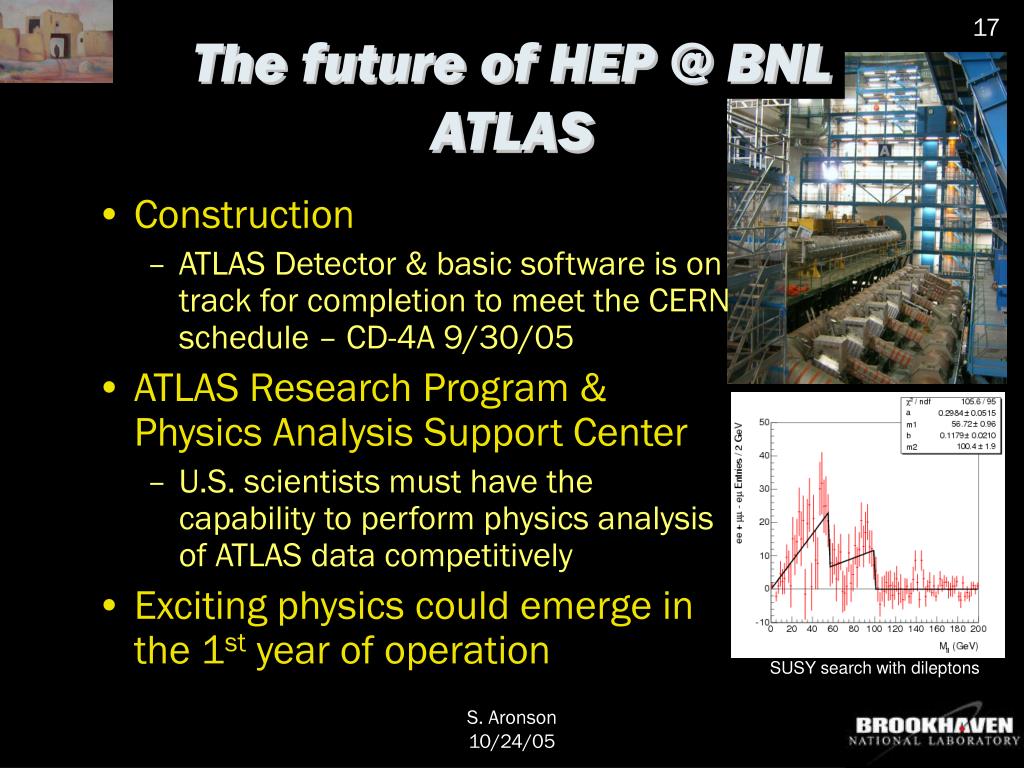

  17. The future of HEP @ BNLATLAS • Construction • ATLAS Detector & basic software is on track for completion to meet the CERN schedule – CD-4A 9/30/05 • ATLAS Research Program & Physics Analysis Support Center • U.S. scientists must have the capability to perform physics analysis of ATLAS data competitively • Exciting physics could emerge in the 1st year of operation SUSY search with dileptons S. Aronson 10/24/05

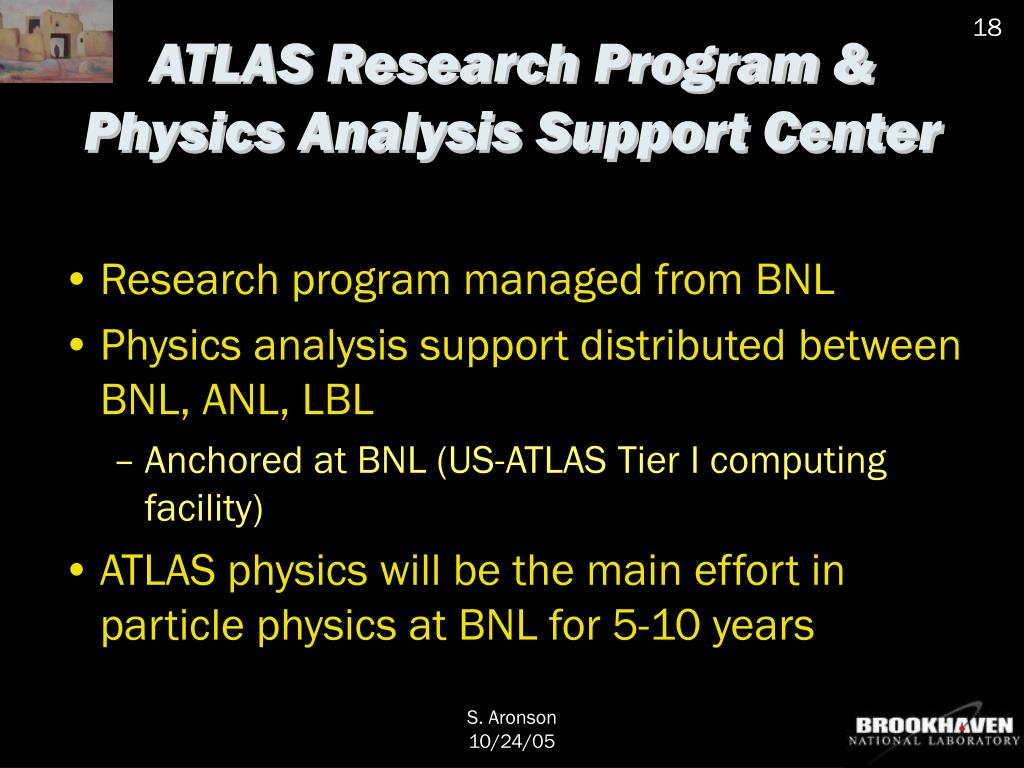

  18. ATLAS Research Program & Physics Analysis Support Center • Research program managed from BNL • Physics analysis support distributed between BNL, ANL, LBL • Anchored at BNL (US-ATLAS Tier I computing facility) • ATLAS physics will be the main effort in particle physics at BNL for 5-10 years S. Aronson 10/24/05

  19. International Linear Collider • Ongoing effort on accelerator R&D in the Superconducting Magnet Division • Direct wind technology  final focus system • Supported in part by BNL director’s funds • Planning on increased support from ILC R&D • Detector R&D • Traditional strengths (calorimetry, FEE, etc.) • Effort from generic detector R&D + RSVP  ILC S. Aronson 10/24/05

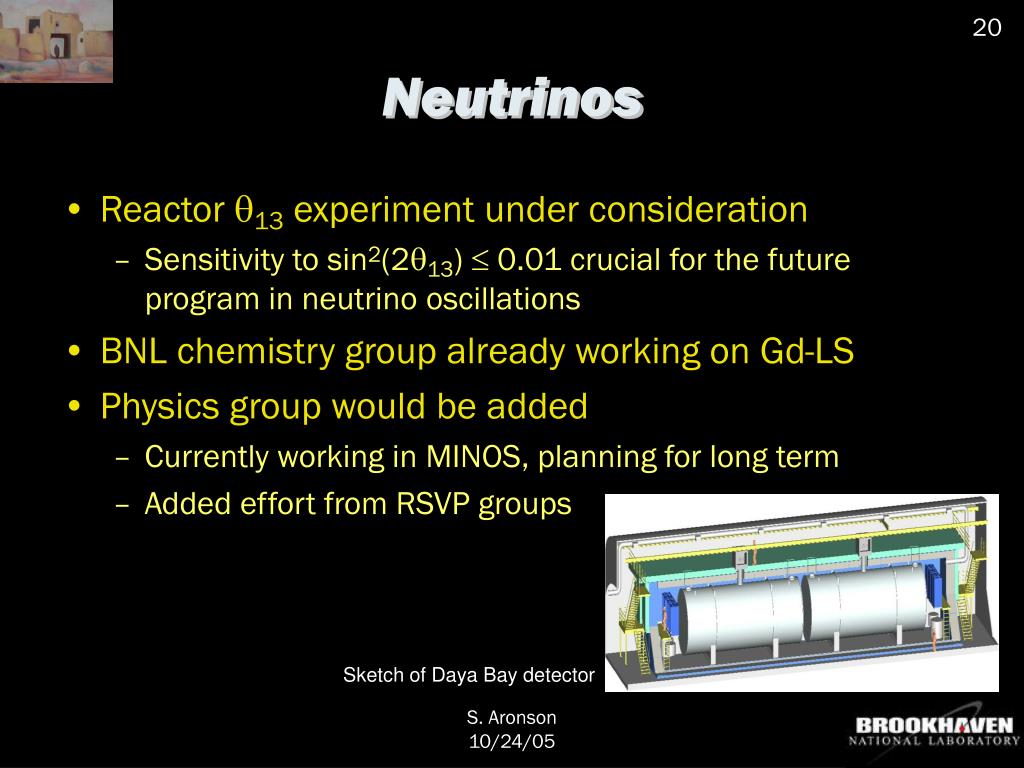

  20. Neutrinos • Reactor q13 experiment under consideration • Sensitivity to sin2(2q13)  0.01 crucial for the future program in neutrino oscillations • BNL chemistry group already working on Gd-LS • Physics group would be added • Currently working in MINOS, planning for long term • Added effort from RSVP groups Sketch of Daya Bay detector S. Aronson 10/24/05

  21. Very Long BaselineNeutrino Oscillations • ~ 1 MW proton driver  n super beam •  400 kTon detector in DUSEL • Beam & detector R&D proposals • Discussions with Fermilab S. Aronson 10/24/05

  22. Accelerator Test Facility • The ATF is a proposal-driven, advisory committee reviewed, USER FACILITY for long-term R&D into the Physics of Beams. • The ATF features: • High brightness electron gun (World record in beam brightness) • 75 Mev Linac • High power lasers beam-synchronized at the picosec level • 4 beam lines + controls • The ATF serves National Labs, universities, industry and international collaborations (~2 PhD / year) • In-house R&D on photoinjectors, lasers, diagnostics, ... (~3 Phys. Rev. X / year) • Support from HEP and BES. S. Aronson 10/24/05

  23. Advanced Accelerator R&D • Liquid Mercury Target Experiment at CERN • Demonstrate jet in a magnetic field and high intensity targeting • Design studies of Neutrino Factories • Since the initial study the performance has been improved by a factor of 12 and the cost reduced by a factor of 40%. • World Design Study • The main simulation tool (ICOOL) written and maintained at BNL • Develop And Demonstrate Ionization Cooling • Prototype hardware production • MICE experiment at the Rutherford lab S. Aronson 10/24/05

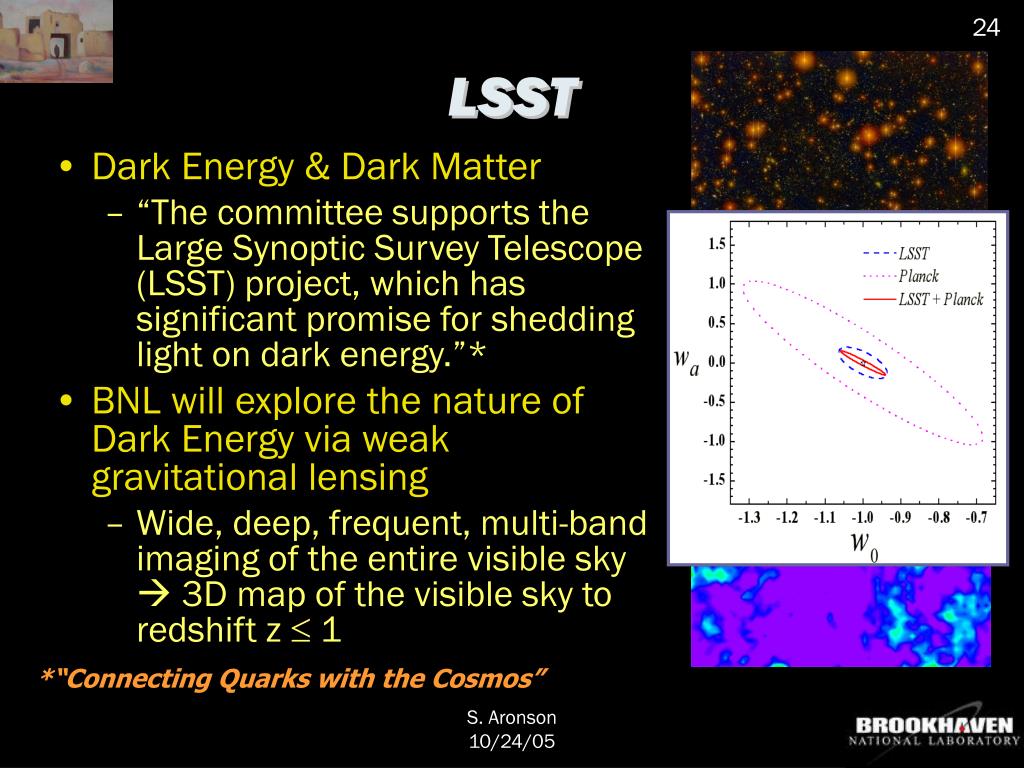

  24. LSST • Dark Energy & Dark Matter • “The committee supports the Large Synoptic Survey Telescope (LSST) project, which has significant promise for shedding light on dark energy.”* • BNL will explore the nature of Dark Energy via weak gravitational lensing • Wide, deep, frequent, multi-band imaging of the entire visible sky  3D map of the visible sky to redshift z  1 *“Connecting Quarks with the Cosmos” S. Aronson 10/24/05

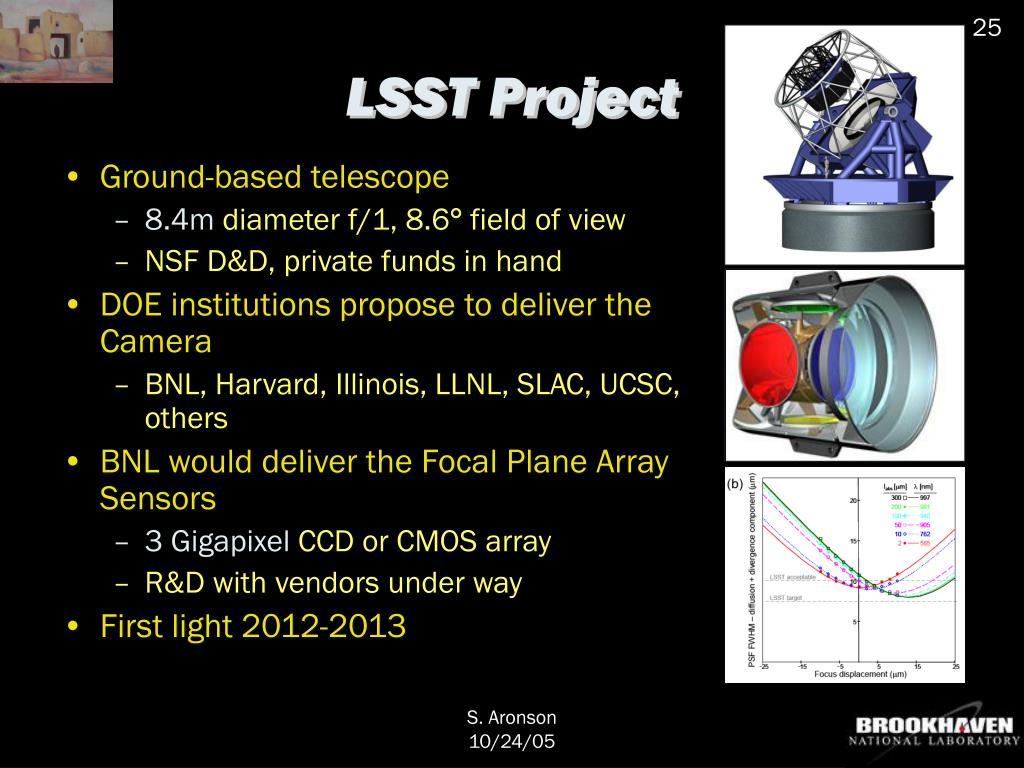

  25. LSST Project • Ground-based telescope • 8.4m diameter f/1, 8.6 field of view • NSF D&D, private funds in hand • DOE institutions propose to deliver the Camera • BNL, Harvard, Illinois, LLNL, SLAC, UCSC, others • BNL would deliver the Focal Plane Array Sensors • 3 Gigapixel CCD or CMOS array • R&D with vendors under way • First light 2012-2013 S. Aronson 10/24/05

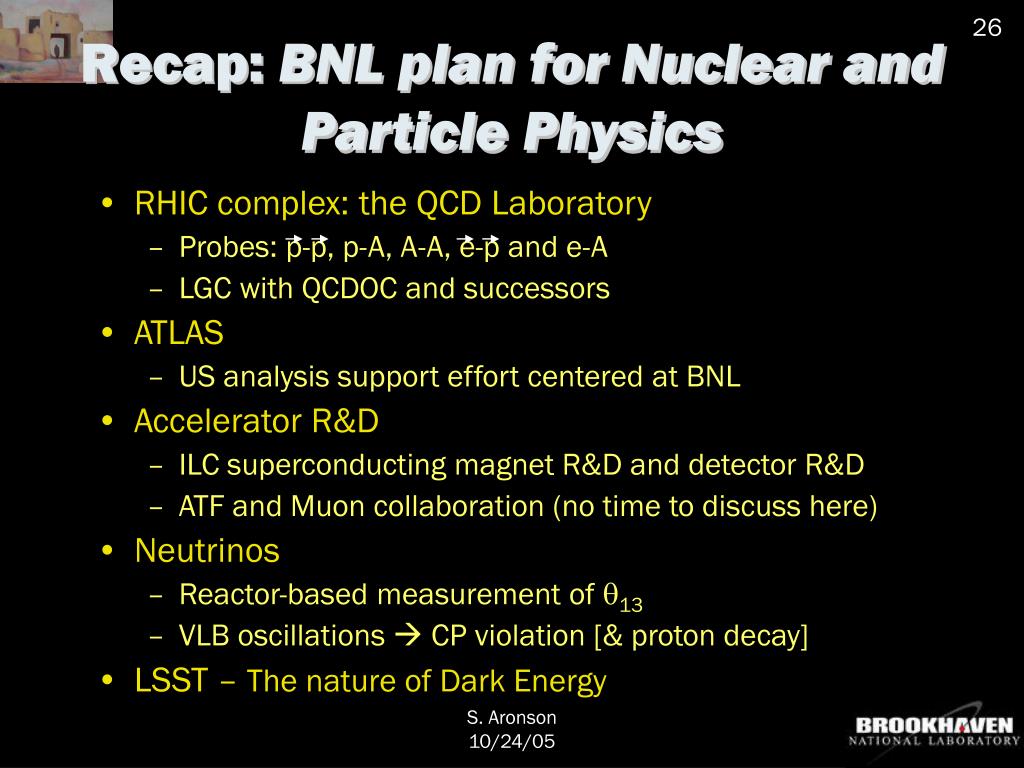

  26. Recap: BNL plan for Nuclear and Particle Physics • RHIC complex: the QCD Laboratory • Probes: p-p, p-A, A-A, e-p and e-A • LGC with QCDOC and successors • ATLAS • US analysis support effort centered at BNL • Accelerator R&D • ILC superconducting magnet R&D and detector R&D • ATF and Muon collaboration (no time to discuss here) • Neutrinos • Reactor-based measurement of q13 • VLB oscillations  CP violation [& proton decay] • LSST – The nature of Dark Energy S. Aronson 10/24/05

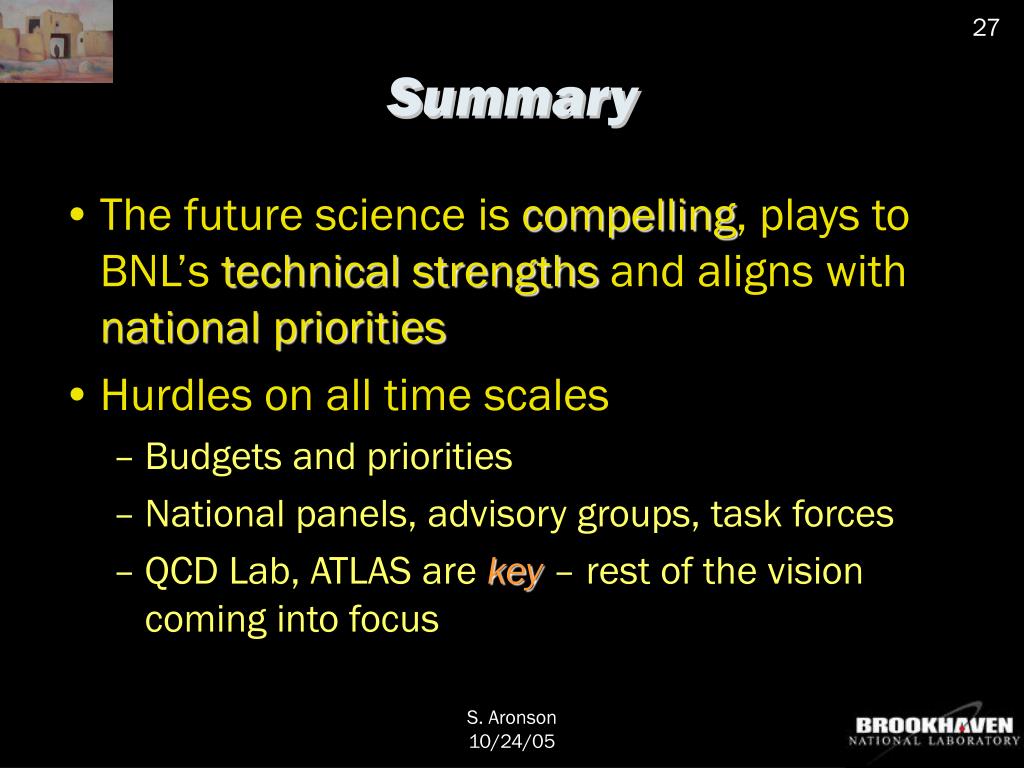

  27. Summary • The future science is compelling, plays to BNL’s technical strengths and aligns with national priorities • Hurdles on all time scales • Budgets and priorities • National panels, advisory groups, task forces • QCD Lab, ATLAS are key – rest of the vision coming into focus S. Aronson 10/24/05
