Linguistics 187/287 Week 6 Generation Term-rewrite System Machine Translation Martin Forst, Ron Kaplan, and Tracy King

Generation • Parsing: string to analysis • Generation: analysis to string • What type of input? • How to generate

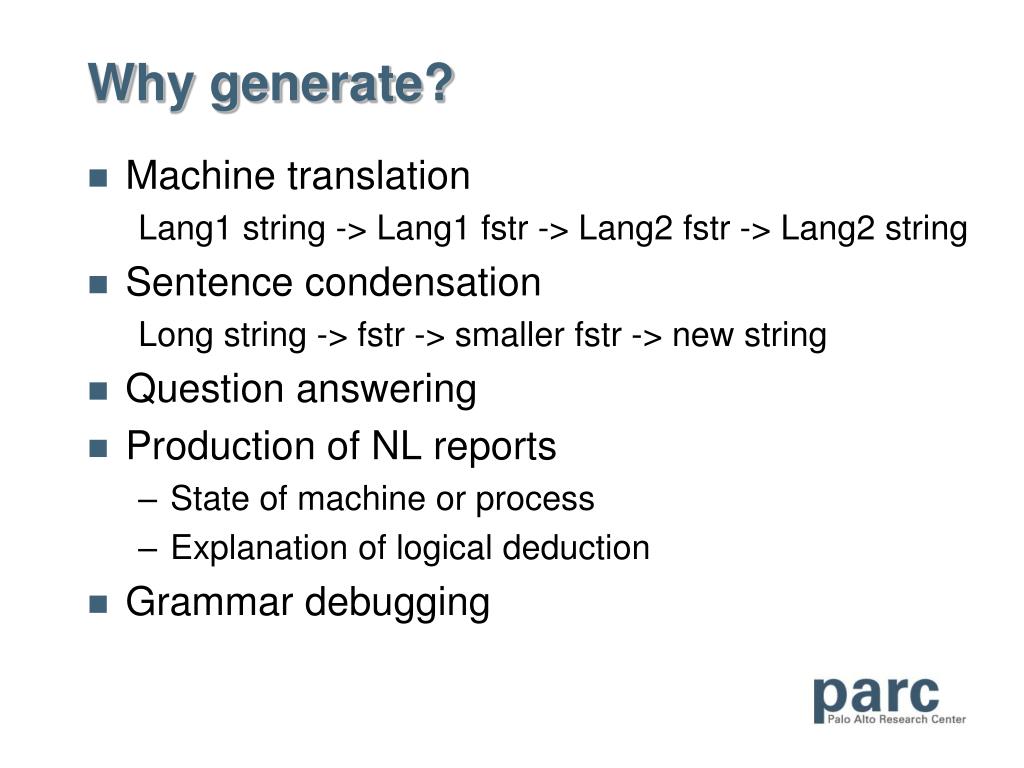

Why generate? • Machine translation Lang1 string -> Lang1 fstr -> Lang2 fstr -> Lang2 string • Sentence condensation Long string -> fstr -> smaller fstr -> new string • Question answering • Production of NL reports • State of machine or process • Explanation of logical deduction • Grammar debugging

F-structures as input • Use f-structures as input to the generator • May parse sentences that shouldn’t be generated • May want to constrain number of generated options • Input f-structure may be underspecified

XLE generator • Use the same grammar for parsing and generation • Advantages • maintainability • write rules and lexicons once • But • special generation tokenizer • different OT ranking

Generation tokenizer/morphology • White space • Parsing: multiple white space becomes a single TB John appears. -> John TB appears TB . TB • Generation: single TB becomes a single space (or nothing) John TB appears TB . TB -> John appears. *John appears . • Suppress variant forms • Parse both favor and favour • Generate only one

Morphconfig for parsing & generation STANDARD ENGLISH MOPRHOLOGY (1.0) TOKENIZE: P!eng.tok.parse.fst G!eng.tok.gen.fst ANALYZE: eng.infl-morph.fst G!amerbritfilter.fst G!amergen.fst ----

Reversing the parsing grammar • The parsing grammar can be used directly as a generator • Adapt the grammar with a special OT ranking GENOPTIMALITYORDER • Why do this? • parse ungrammatical input • have too many options

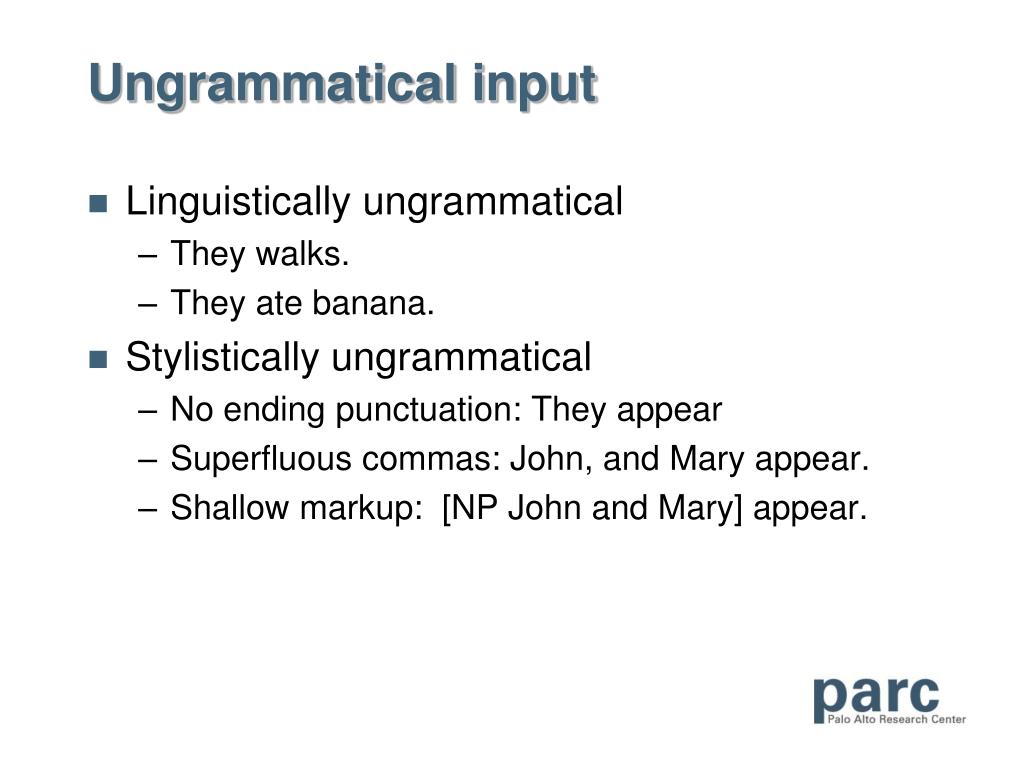

Ungrammatical input • Linguistically ungrammatical • They walks. • They ate banana. • Stylistically ungrammatical • No ending punctuation: They appear • Superfluous commas: John, and Mary appear. • Shallow markup: [NP John and Mary] appear.

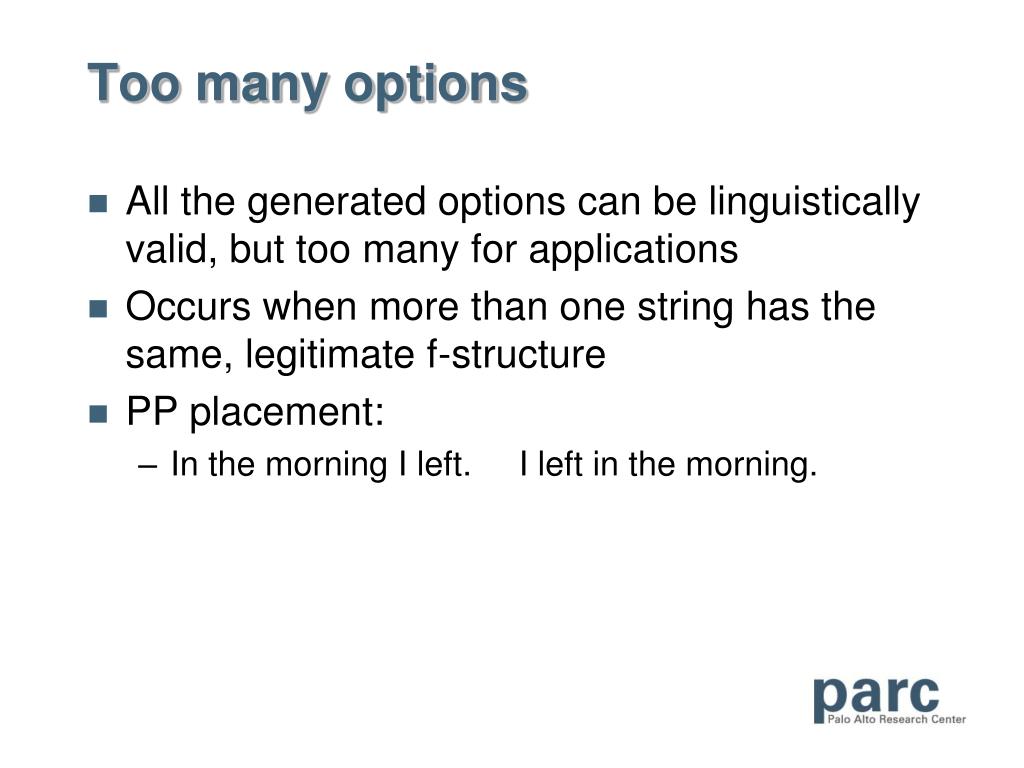

Too many options • All the generated options can be linguistically valid, but too many for applications • Occurs when more than one string has the same, legitimate f-structure • PP placement: • In the morning I left. I left in the morning.

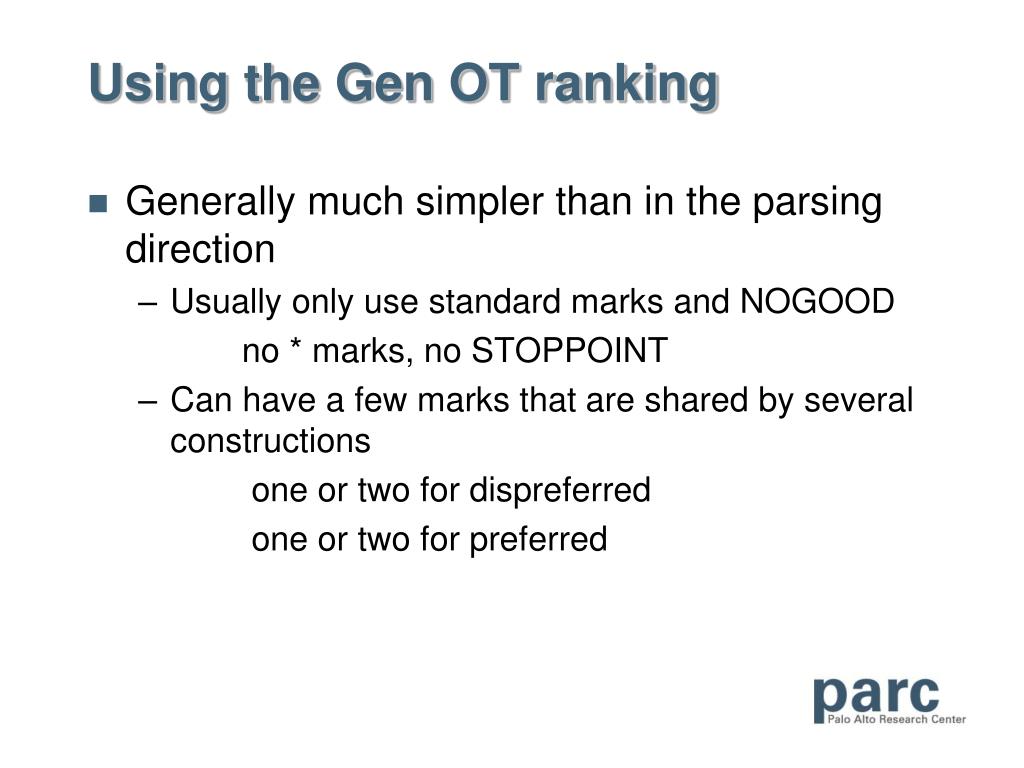

Using the Gen OT ranking • Generally much simpler than in the parsing direction • Usually only use standard marks and NOGOOD no * marks, no STOPPOINT • Can have a few marks that are shared by several constructions one or two for dispreferred one or two for preferred

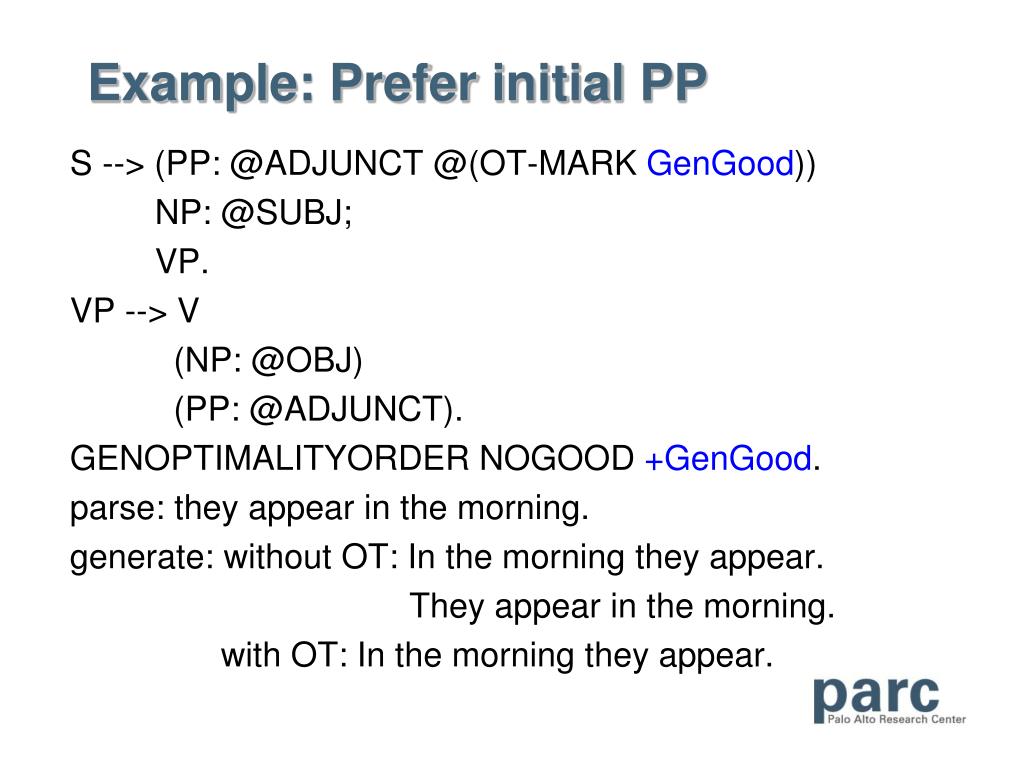

Example: Prefer initial PP S --> (PP: @ADJUNCT @(OT-MARK GenGood)) NP: @SUBJ; VP. VP --> V (NP: @OBJ) (PP: @ADJUNCT). GENOPTIMALITYORDER NOGOOD +GenGood. parse: they appear in the morning. generate: without OT: In the morning they appear. They appear in the morning. with OT: In the morning they appear.

Debugging the generator • When generating from an f-structure produced by the same grammar, XLE should always generate • Unless: • OT marks block the only possible string • something is wrong with the tokenizer/morphology regenerate-morphemes: if this gets a string the tokenizer/morphology is not the problem • Hard to debug: XLE has robustness features to help

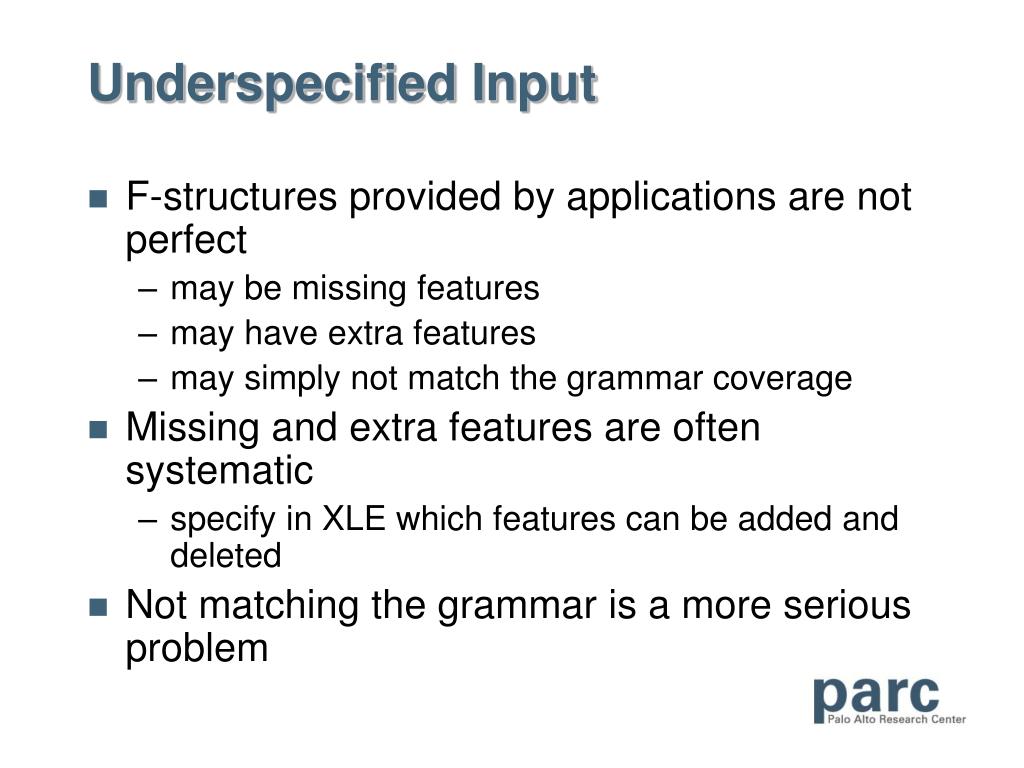

Underspecified Input • F-structures provided by applications are not perfect • may be missing features • may have extra features • may simply not match the grammar coverage • Missing and extra features are often systematic • specify in XLE which features can be added and deleted • Not matching the grammar is a more serious problem

Adding features • English to French translation: • English nouns have no gender • French nouns need gender • Soln: have XLE add gender the French morphology will control the value • Specify additions in xlerc: • set-gen-addsadd "GEND" • can add multiple features: set-gen-adds add "GEND CASE PCASE" • XLE will optionally insert the feature Note: Unconstrained additions make generation undecidable

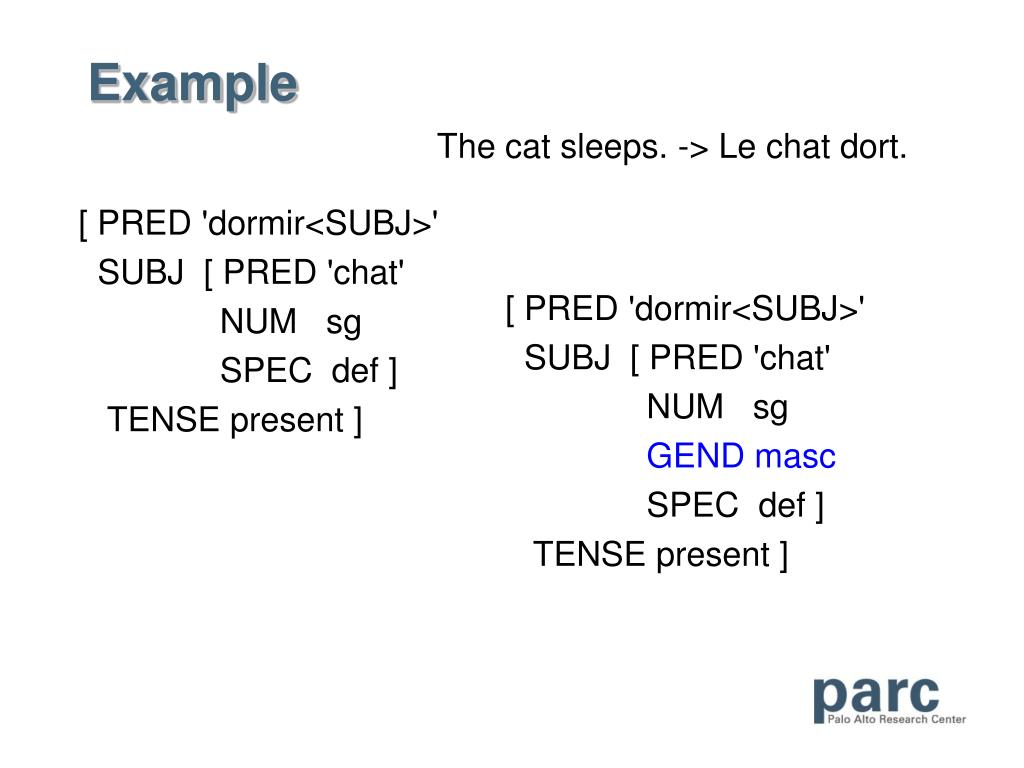

Example The cat sleeps. -> Le chat dort. [ PRED 'dormir<SUBJ>' SUBJ [ PRED 'chat' NUM sg SPEC def ] TENSE present ] [ PRED 'dormir<SUBJ>' SUBJ [ PRED 'chat' NUM sg GEND masc SPEC def ] TENSE present ]

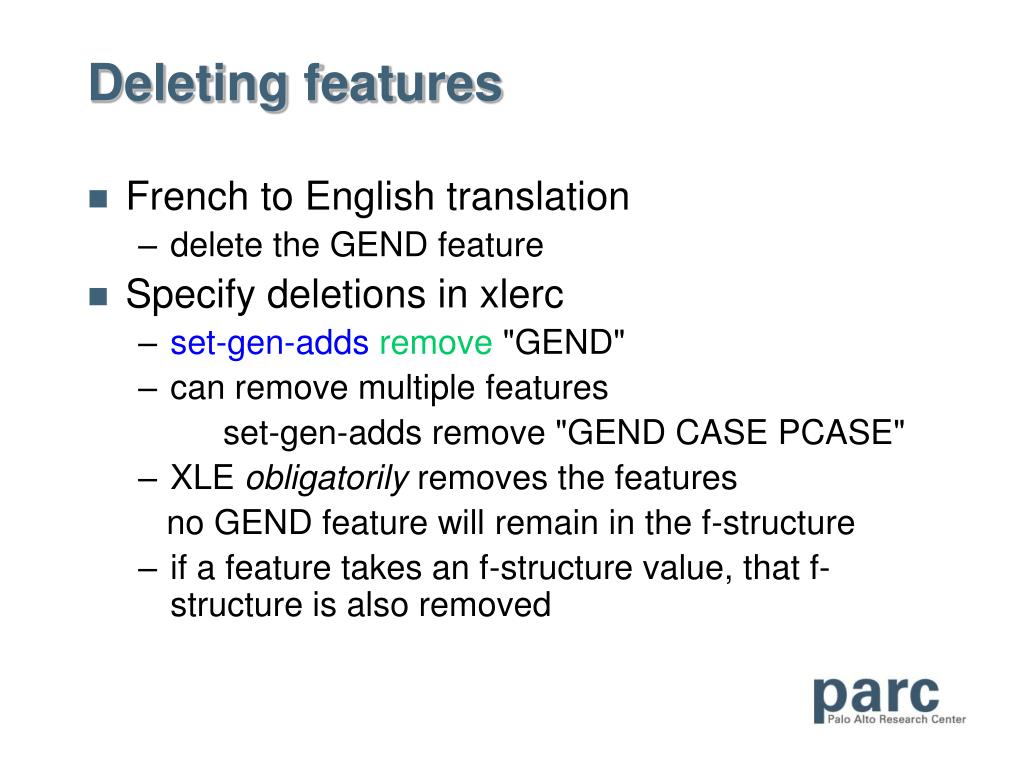

Deleting features • French to English translation • delete the GEND feature • Specify deletions in xlerc • set-gen-addsremove "GEND" • can remove multiple features set-gen-adds remove "GEND CASE PCASE" • XLE obligatorily removes the features no GEND feature will remain in the f-structure • if a feature takes an f-structure value, that f-structure is also removed

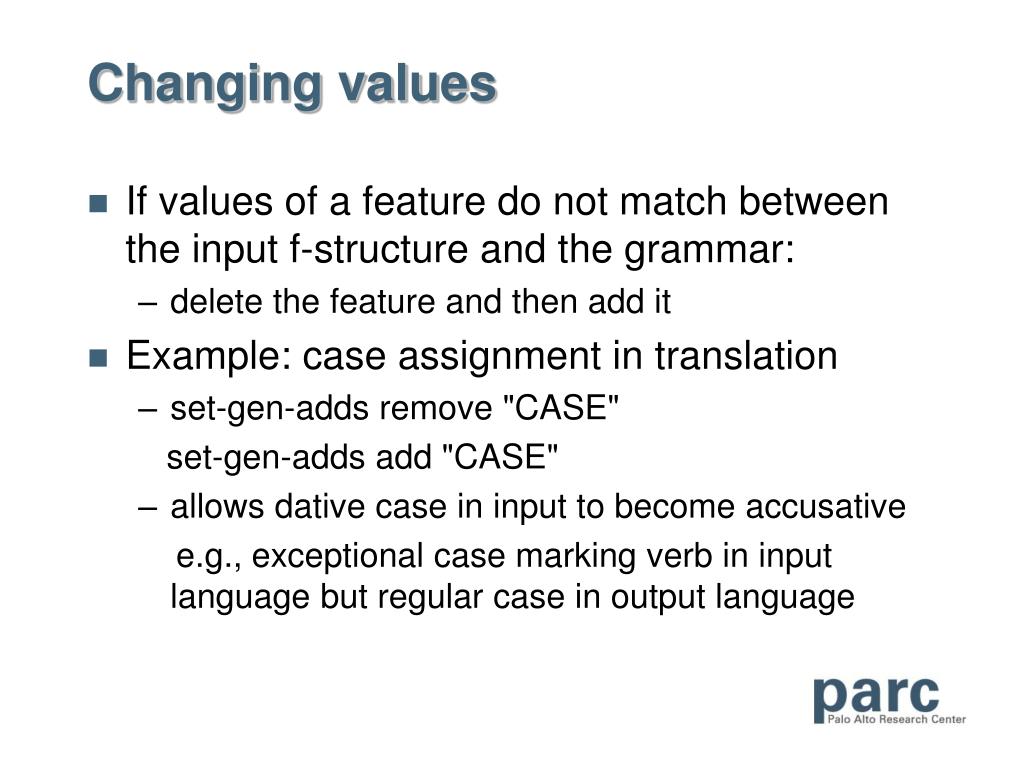

Changing values • If values of a feature do not match between the input f-structure and the grammar: • delete the feature and then add it • Example: case assignment in translation • set-gen-adds remove "CASE" set-gen-adds add "CASE" • allows dative case in input to become accusative e.g., exceptional case marking verb in input language but regular case in output language

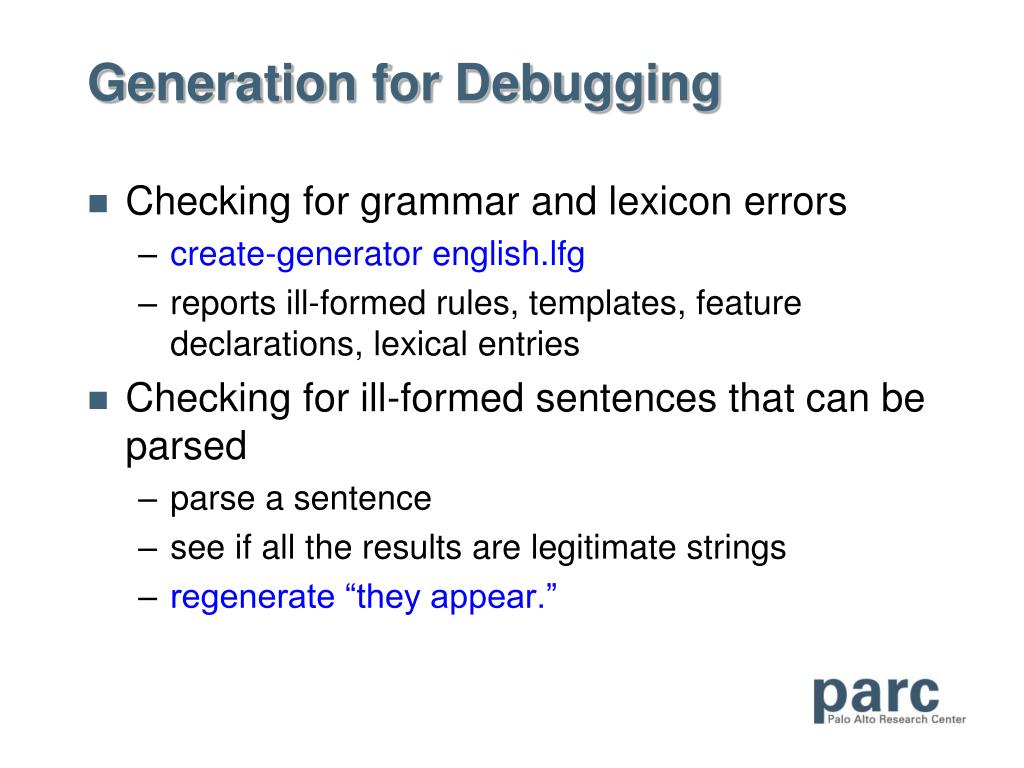

Generation for Debugging • Checking for grammar and lexicon errors • create-generator english.lfg • reports ill-formed rules, templates, feature declarations, lexical entries • Checking for ill-formed sentences that can be parsed • parse a sentence • see if all the results are legitimate strings • regenerate “they appear.”

Rewriting/Transfer System

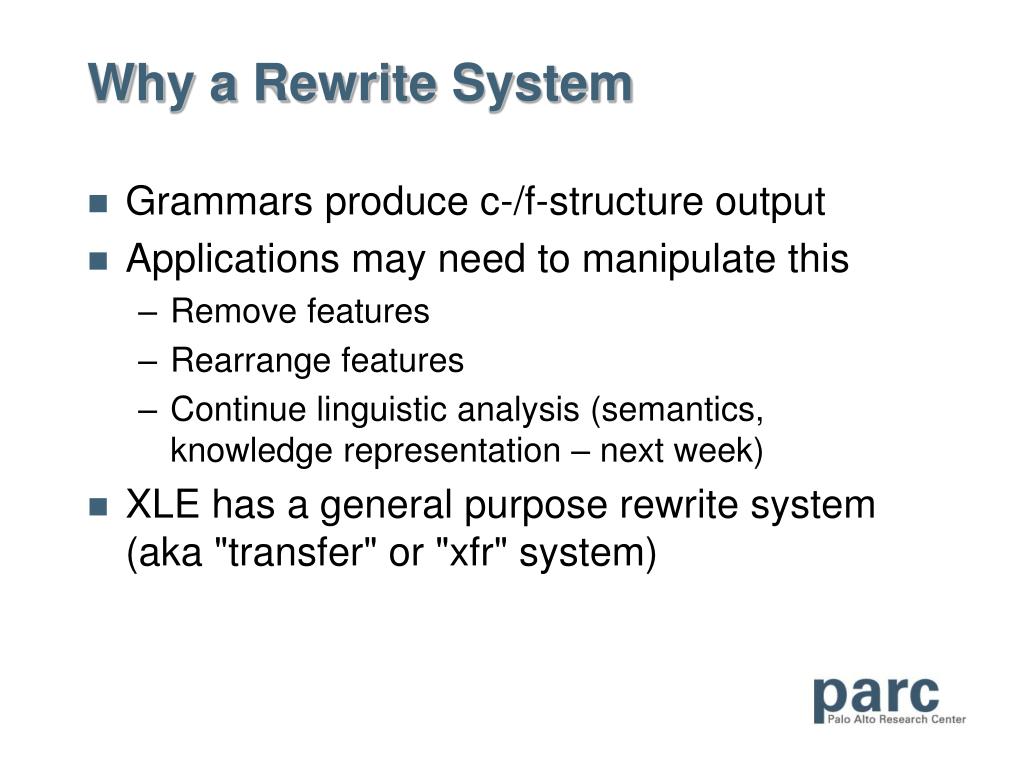

Why a Rewrite System • Grammars produce c-/f-structure output • Applications may need to manipulate this • Remove features • Rearrange features • Continue linguistic analysis (semantics, knowledge representation – next week) • XLE has a general purpose rewrite system (aka "transfer" or "xfr" system)

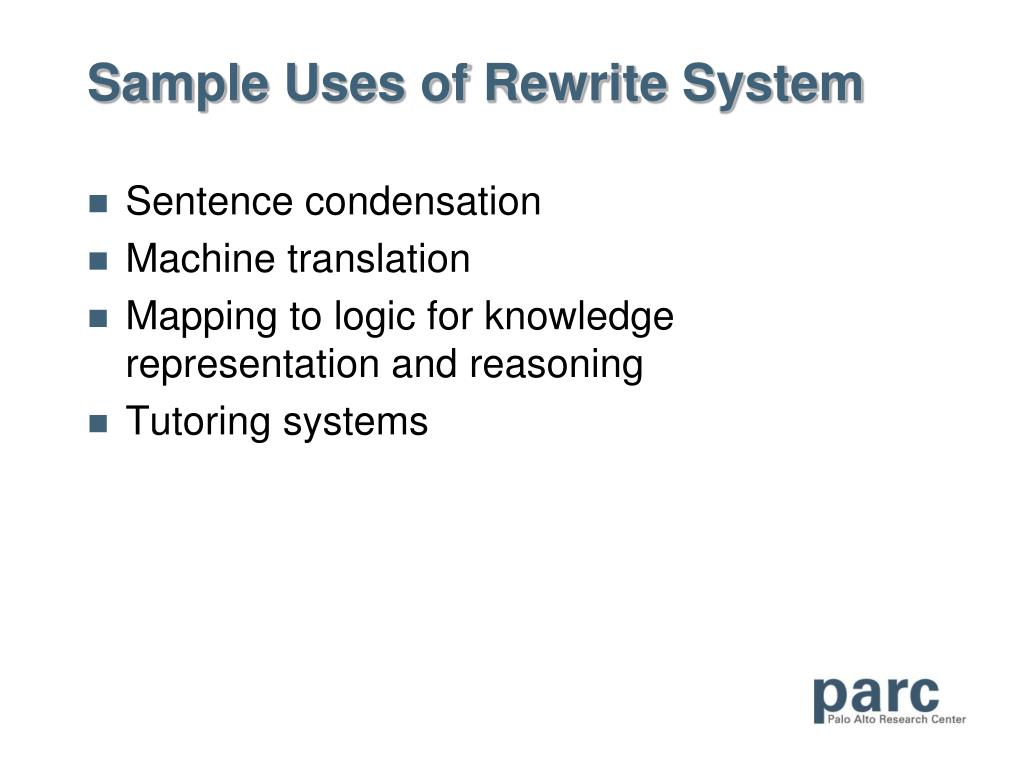

Sample Uses of Rewrite System • Sentence condensation • Machine translation • Mapping to logic for knowledge representation and reasoning • Tutoring systems

What does the system do? • Input: set of "facts" • Apply a set of ordered rules to the facts • this gradually changes the set of input facts • Output: new set of facts • Rewrite system uses the same ambiguity management as XLE • can efficiently rewrite packed structures, maintaining the packing

Example F-structure Facts PERS(var(1),3) PRED(var(1),girl) CASE(var(1),nom) NTYPE(var(1),common) NUM(var(1),pl) SUBJ(var(0),var(1)) PRED(var(0),laugh) TNS-ASP(var(0),var(2)) TENSE(var(2),pres) arg(var(0),1,var(1)) lex_id(var(0),1) lex_id(var(1),0) • F-structures get var(#) • Special arg facts • lex_id for each PRED • Facts have two arguments (except arg) • Rewrite system allows for any number of arguments

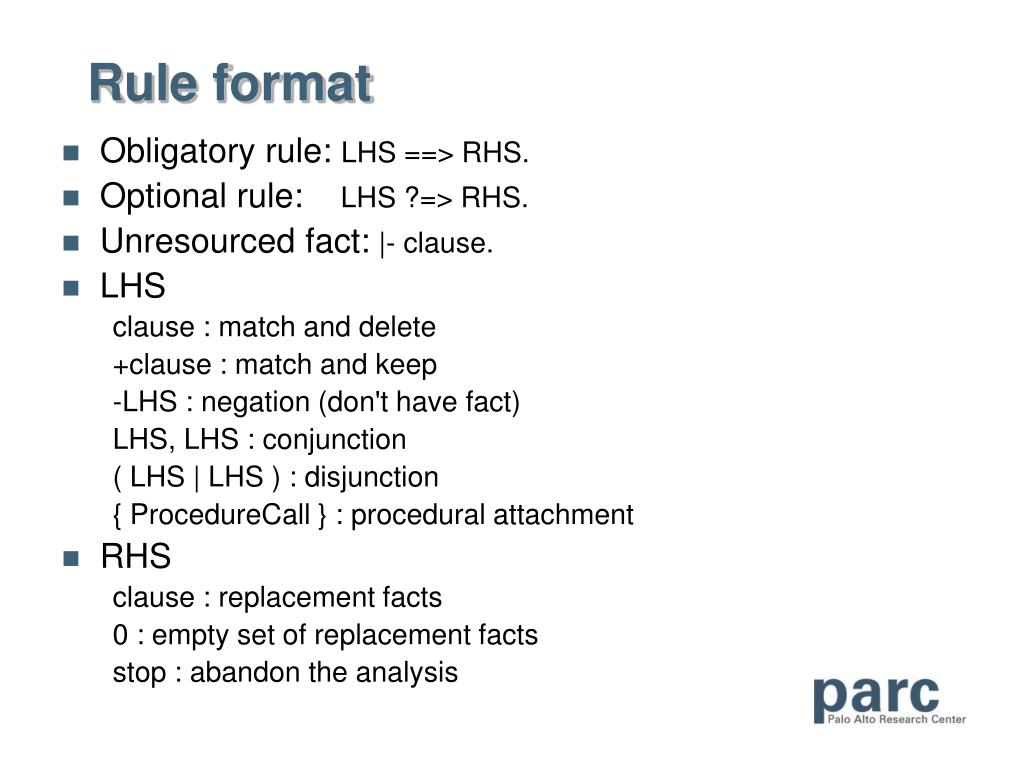

Rule format • Obligatory rule: LHS ==> RHS. • Optional rule: LHS ?=> RHS. • Unresourced fact: |- clause. • LHS clause : match and delete +clause : match and keep -LHS : negation (don't have fact) LHS, LHS : conjunction ( LHS | LHS ) : disjunction { ProcedureCall } : procedural attachment • RHS clause : replacement facts 0 : empty set of replacement facts stop : abandon the analysis

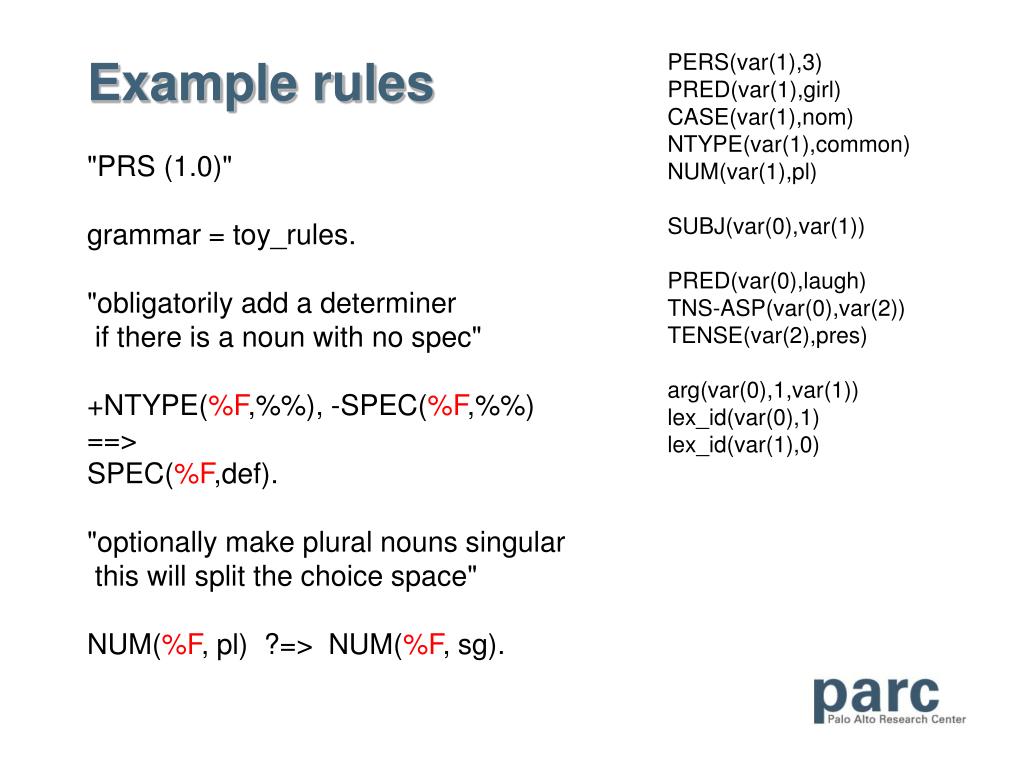

Example rules PERS(var(1),3) PRED(var(1),girl) CASE(var(1),nom) NTYPE(var(1),common) NUM(var(1),pl) SUBJ(var(0),var(1)) PRED(var(0),laugh) TNS-ASP(var(0),var(2)) TENSE(var(2),pres) arg(var(0),1,var(1)) lex_id(var(0),1) lex_id(var(1),0) "PRS (1.0)" grammar = toy_rules. "obligatorily add a determiner if there is a noun with no spec" +NTYPE(%F,%%), -SPEC(%F,%%) ==> SPEC(%F,def). "optionally make plural nouns singular this will split the choice space" NUM(%F, pl) ?=> NUM(%F, sg).

Example Obligatory Rule PERS(var(1),3) PRED(var(1),girl) CASE(var(1),nom) NTYPE(var(1),common) NUM(var(1),pl) SUBJ(var(0),var(1)) PRED(var(0),laugh) TNS-ASP(var(0),var(2)) TENSE(var(2),pres) arg(var(0),1,var(1)) lex_id(var(0),1) lex_id(var(1),0) "obligatorily add a determiner if there is a noun with no spec" +NTYPE(%F,%%), -SPEC(%F,%%) ==> SPEC(%F,def). Output facts: all the input facts plus: SPEC(var(1),def)

Example Optional Rule "optionally make plural nouns singular this will split the choice space" NUM(%F, pl) ?=> NUM(%F, sg). PERS(var(1),3) PRED(var(1),girl) CASE(var(1),nom) NTYPE(var(1),common) NUM(var(1),pl) SPEC(var(1),def) SUBJ(var(0),var(1)) PRED(var(0),laugh) TNS-ASP(var(0),var(2)) TENSE(var(2),pres) arg(var(0),1,var(1)) lex_id(var(0),1) lex_id(var(1),0) Output facts: all the input facts plus choice split: A1: NUM(var(1),pl) A2: NUM(var(1),sg)

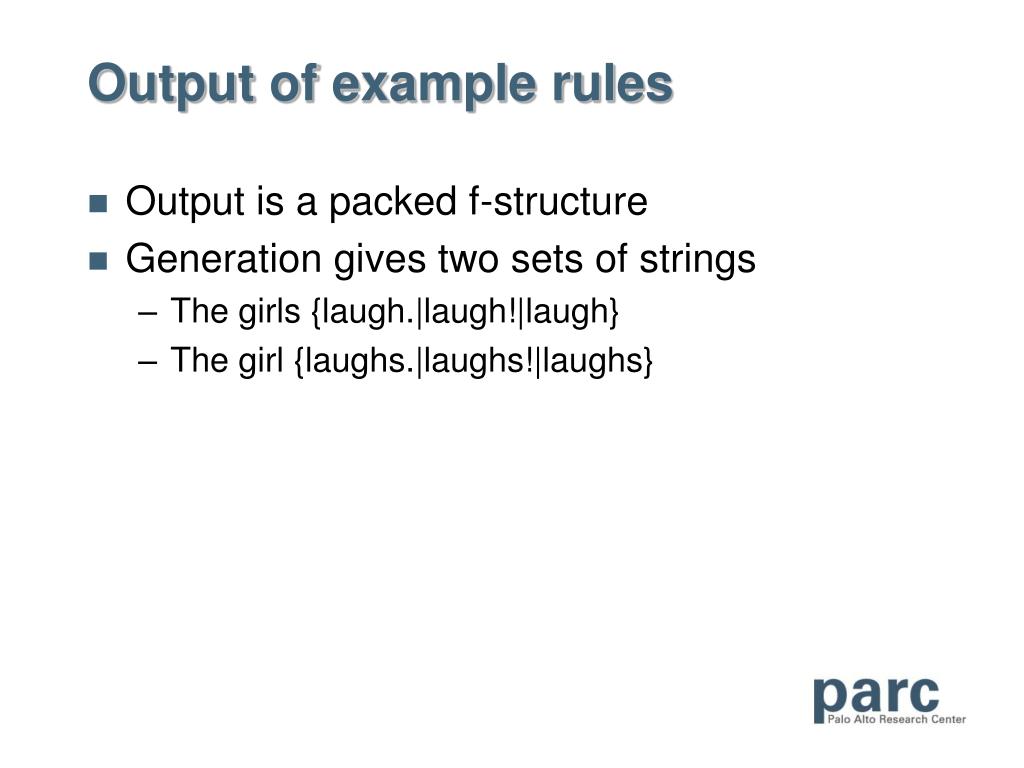

Output of example rules • Output is a packed f-structure • Generation gives two sets of strings • The girls {laugh.|laugh!|laugh} • The girl {laughs.|laughs!|laughs}

Manipulating sets • Sets are represented with an in_set feature • He laughs in the park with the telescope ADJUNCT(var(0),var(2)) in_set(var(4),var(2)) in_set(var(5),var(2)) PRED(var(4),in) PRED(var(5),with) • Might want to optionally remove adjuncts • but not negation

Example Adjunct Deletion Rules "optionally remove member of adjunct set" +ADJUNCT(%%, %AdjSet), in_set(%Adj, %AdjSet), -PRED(%Adj, not) ?=> 0. "obligatorily remove adjunct with nothing in it" ADJUNCT(%%, %Adj), -in_set(%%,%Adj) ==> 0. He laughs with the telescope in the park. He laughs in the park with the telescope He laughs with the telescope. He laughs in the park. He laughs.

Manipulating PREDs • Changing the value of a PRED is easy • PRED(%F,girl) ==> PRED(%F,boy). • Changing the argument structure is trickier • Make any changes to the grammatical functions • Make the arg facts correlate with these

Example Passive Rule "make actives passive make the subject NULL; make the object the subject; put in features" SUBJ( %Verb, %Subj), arg( %Verb, %Num, %Subj), OBJ( %Verb, %Obj), CASE( %Obj, acc) ==> SUBJ( %Verb, %Obj), arg( %Verb, %Num, NULL), CASE( %Obj, nom), PASSIVE( %Verb, +), VFORM( %Verb, pass). the girls saw the monkeys ==> The monkeys were seen. in the park the girls saw the monkeys ==> In the park the monkeys were seen.

Templates and Macros • Rules can be encoded as templates n2n(%Eng,%Frn) :: PRED(%F,%Eng), +NTYPE(%F,%%) ==> PRED(%F,%Frn). @n2n(man, homme). @n2n(woman, femme). • Macros encode groups of clauses/facts sg_noun(%F) := +NTYPE(%F,%%), +NUM(%F,sg). @sg_noun(%F), -SPEC(%F) ==> SPEC(%F,def).

Unresourced Facts • Facts can be stipulated in the rules and refered to • Often used as a lexicon of information not encoded in the f-structure • For example, list of days and months for manipulation of dates |- day(Monday). |- day(Tuesday). etc. |- month(January). |- month(February). etc. +PRED(%F,%Pred), ( day(%Pred) | month(%Pred) ) ==> …

Rule Ordering • Rewrite rules are ordered (unlike LFG syntax rules but like finite-state rules) • Output of rule1 is input to rule2 • Output of rule2 is input to rule3 • This allows for feeding and bleeding • Feeding: insert facts used by later rules • Bleeding: remove facts needed by later rules • Can make debugging challenging

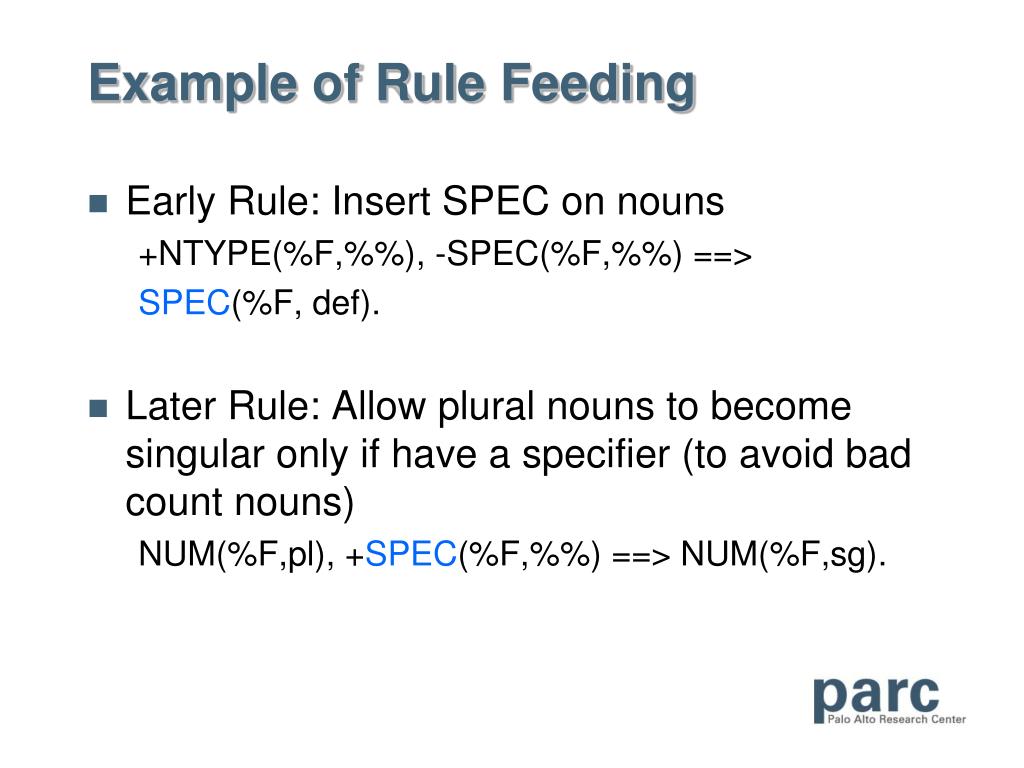

Example of Rule Feeding • Early Rule: Insert SPEC on nouns +NTYPE(%F,%%), -SPEC(%F,%%) ==> SPEC(%F, def). • Later Rule: Allow plural nouns to become singular only if have a specifier (to avoid bad count nouns) NUM(%F,pl), +SPEC(%F,%%) ==> NUM(%F,sg).

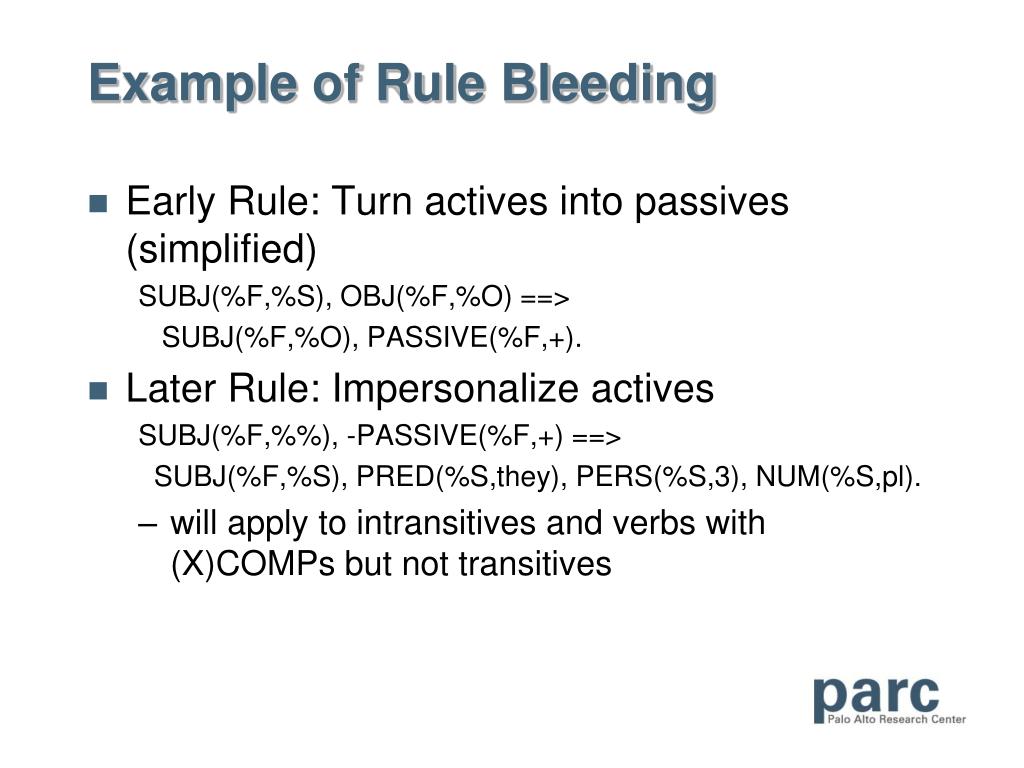

Example of Rule Bleeding • Early Rule: Turn actives into passives (simplified) SUBJ(%F,%S), OBJ(%F,%O) ==> SUBJ(%F,%O), PASSIVE(%F,+). • Later Rule: Impersonalize actives SUBJ(%F,%%), -PASSIVE(%F,+) ==> SUBJ(%F,%S), PRED(%S,they), PERS(%S,3), NUM(%S,pl). • will apply to intransitives and verbs with (X)COMPs but not transitives

Debugging • XLE command line:tdbg • steps through rules stating how they apply ============================================ Rule 1: +(NTYPE(%F,A)), -(SPEC(%F,B)) ==>SPEC(%F,def) File /tilde/thking/courses/ling187/hws/thk.pl, lines 4-10 Rule 1 matches: [+(2)] NTYPE(var(1),common) 1 --> SPEC(var(1),def) ============================================ Rule 2: NUM(%F,pl) ?=>NUM(%F,sg) File /tilde/thking/courses/ling187/hws/thk.pl, lines 11-17 Rule 2 matches: [3] NUM(var(1),pl) 1 --> NUM(var(1),sg) ============================================ Rule 5: SUBJ(%Verb,%Subj), arg(%Verb,%Num,%Subj), OBJ(%Verb,%Obj), CASE(%Obj,acc) ==>SUBJ(%Verb,%Obj), arg(%Verb,%Num,NULL), CASE(%Obj,nom), PASSIVE(%Verb,+), VFORM(%Verb,pass) File /tilde/thking/courses/ling187/hws/thk.pl, lines 28-37 Rule does not apply girls laughed

Running the Rewrite System • create-transfer : adds menu items • load-transfer-rules FILE : loads rules from file • f-str window under commands has: • transfer : prints output of rules in XLE window • translate : runs output through generator • Need to do (where path is $XLEPATH/lib): setenv LD_LIBRARY_PATH /afs/ir.stanford.edu/data/linguistics/XLE/SunOS/lib

Rewrite Summary • The XLE rewrite system lets you manipulate the output of parsing • Creates versions of output suitable for applications • Can involve significant reprocessing • Rules are ordered • Ambiguity management is as with parsing

Grammatical Machine Translation Stefan Riezler & John Maxwell

Target Source Transfer Translation System + Lots of statistics Translationrules XLEParsing XLEGeneration F-structures F-structures. GermanLFG English LFG

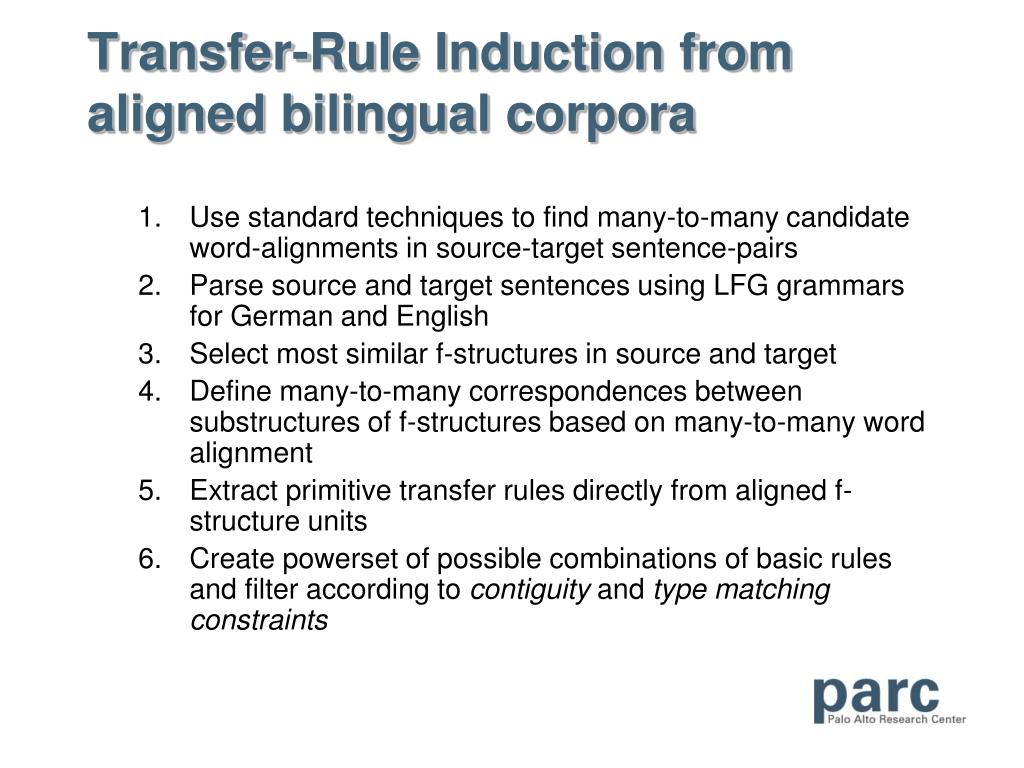

Transfer-Rule Induction from aligned bilingual corpora • Use standard techniques to find many-to-many candidate word-alignments in source-target sentence-pairs • Parse source and target sentences using LFG grammars for German and English • Select most similar f-structures in source and target • Define many-to-many correspondences between substructures of f-structures based on many-to-many word alignment • Extract primitive transfer rules directly from aligned f-structure units • Create powerset of possible combinations of basic rules and filter according to contiguity and type matching constraints

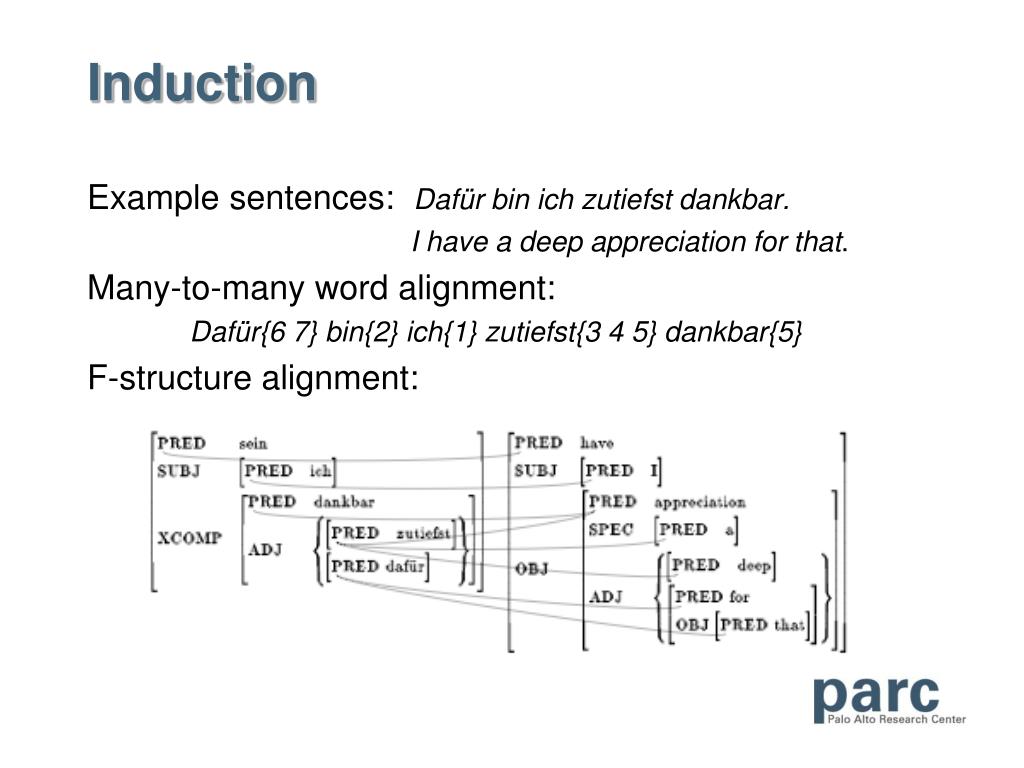

Induction Example sentences: Dafür bin ich zutiefst dankbar. I have a deep appreciation for that. Many-to-many word alignment: Dafür{6 7} bin{2} ich{1} zutiefst{3 4 5} dankbar{5} F-structure alignment:

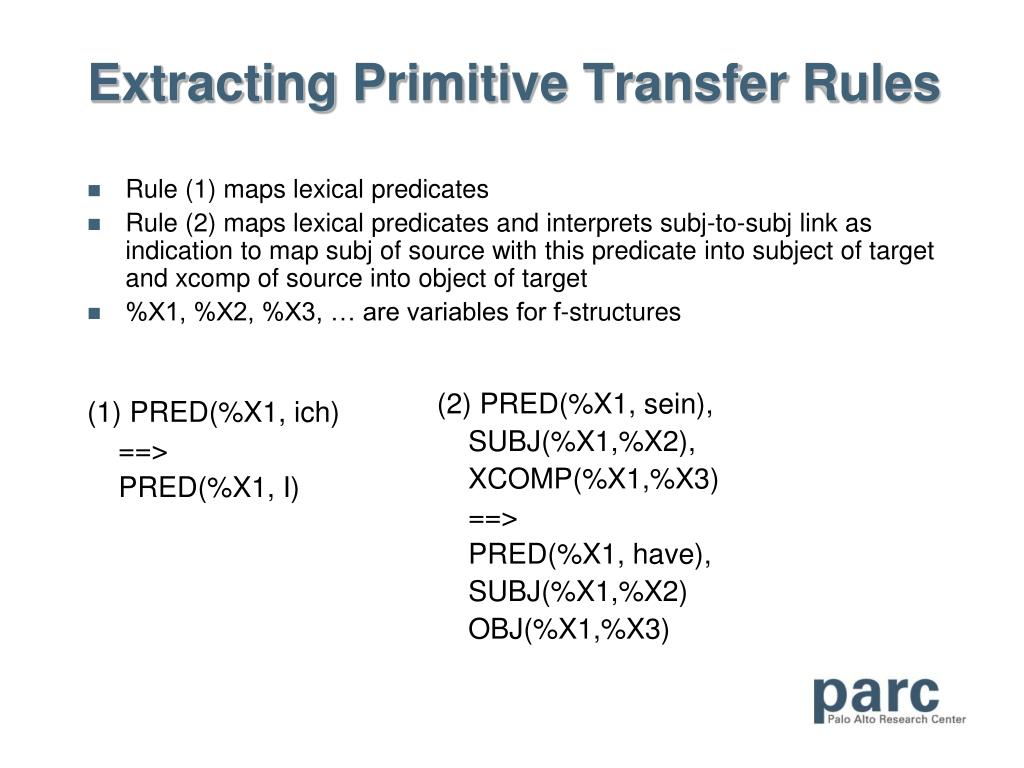

Extracting Primitive Transfer Rules • Rule (1) maps lexical predicates • Rule (2) maps lexical predicates and interprets subj-to-subj link as indication to map subj of source with this predicate into subject of target and xcomp of source into object of target • %X1, %X2, %X3, … are variables for f-structures (2) PRED(%X1, sein), SUBJ(%X1,%X2), XCOMP(%X1,%X3) ==> PRED(%X1, have), SUBJ(%X1,%X2) OBJ(%X1,%X3) (1) PRED(%X1, ich) ==> PRED(%X1, I)

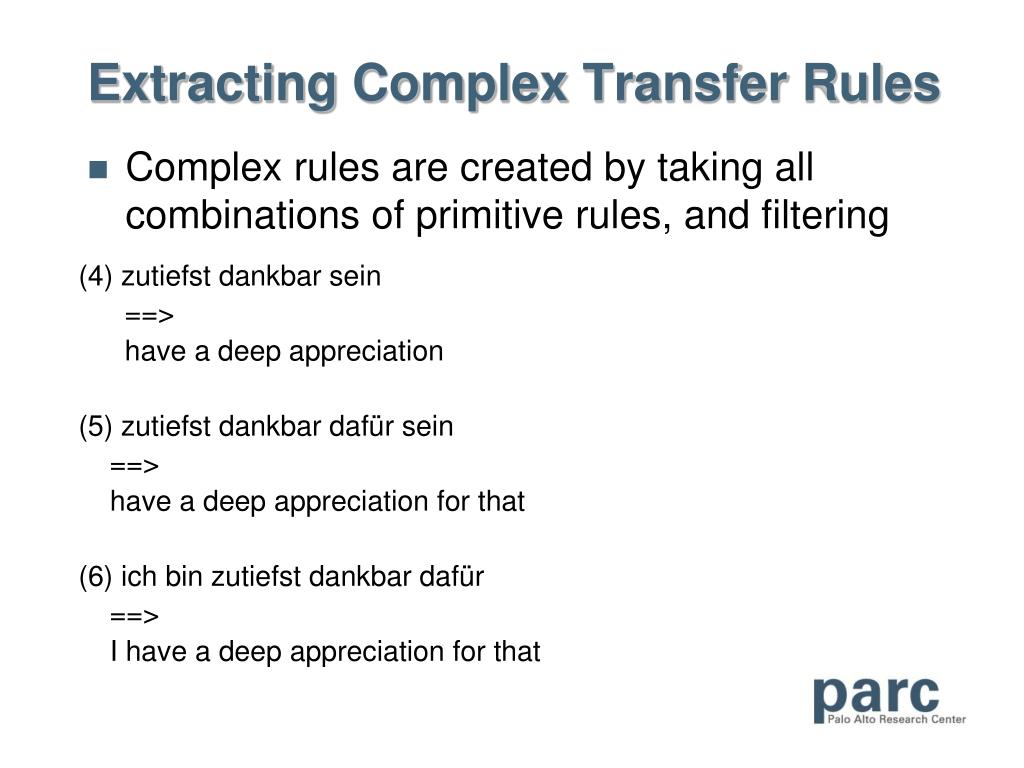

Extracting Complex Transfer Rules • Complex rules are created by taking all combinations of primitive rules, and filtering (4) zutiefst dankbar sein ==> have a deep appreciation (5) zutiefst dankbar dafür sein ==> have a deep appreciation for that (6) ich bin zutiefst dankbar dafür ==> I have a deep appreciation for that

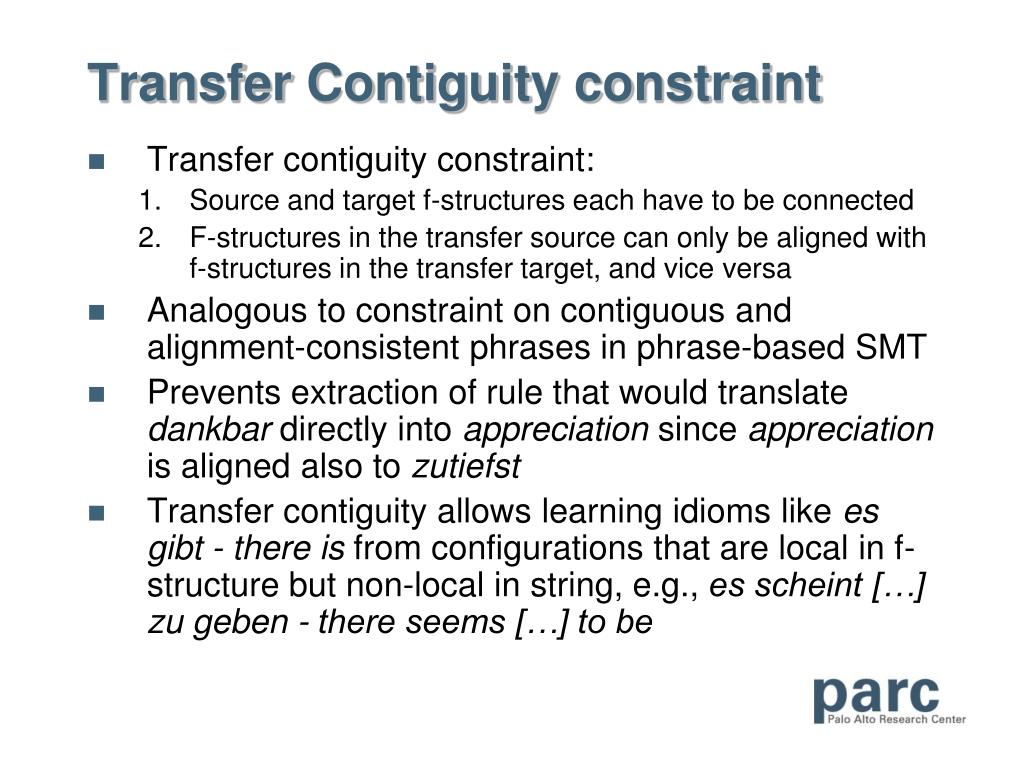

Transfer Contiguity constraint • Transfer contiguity constraint: • Source and target f-structures each have to be connected • F-structures in the transfer source can only be aligned with f-structures in the transfer target, and vice versa • Analogous to constraint on contiguous and alignment-consistent phrases in phrase-based SMT • Prevents extraction of rule that would translate dankbar directly into appreciation since appreciation is aligned also to zutiefst • Transfer contiguity allows learning idioms like es gibt - there is from configurations that are local in f-structure but non-local in string, e.g., es scheint […] zu geben - there seems […] to be

Linguistic Filters on Transfer Rules • Morphological stemming of PRED values • (Optional) filtering of f-structure snippets based on consistency of linguistic categories • Extraction of snippet that translates zutiefstdankbar into a deep appreciation maps incompatible categories adjectival and nominal; valid in string-based world • Translation of sein to have might be discarded because of adjectival vs. nominal types of their arguments • Larger rule mapping zutiefst dankbar sein to have a deep appreciation is ok since verbal types match

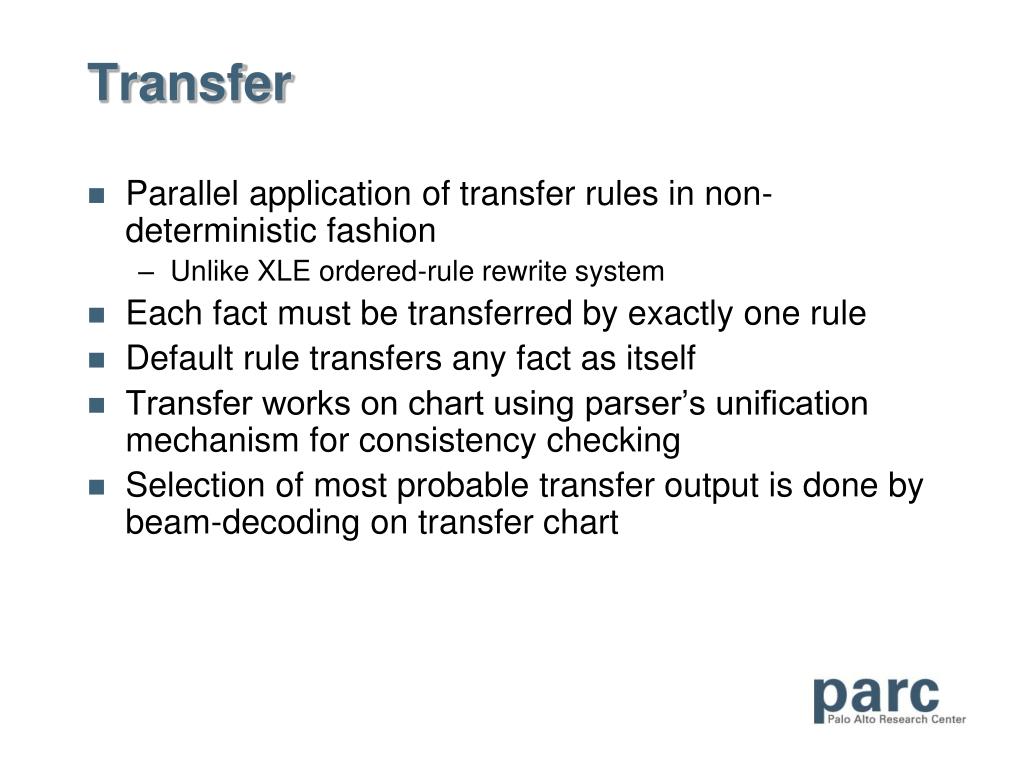

Transfer • Parallel application of transfer rules in non-deterministic fashion • Unlike XLE ordered-rule rewrite system • Each fact must be transferred by exactly one rule • Default rule transfers any fact as itself • Transfer works on chart using parser’s unification mechanism for consistency checking • Selection of most probable transfer output is done by beam-decoding on transfer chart
