  1. Modular Heap Analysis Of Higher Order Programs RavichandhranMadhavan+ * GanesanRamalingam* KapilVaswani * * Microsoft Research India + EPFL, Switzerland

  2. Goal 1: Analyze Modularly • Compute succinct summaries for procedures • Summaries: total functions approximating the relational semantics Input State Output States

  3. Goal 2: Track Heap Information • The summary of a procedure should capture the transformation of the input mutable heap Goal 3: Analyze HO programs • Should be able to summarize higher order procedures • Input state includes data as well as code

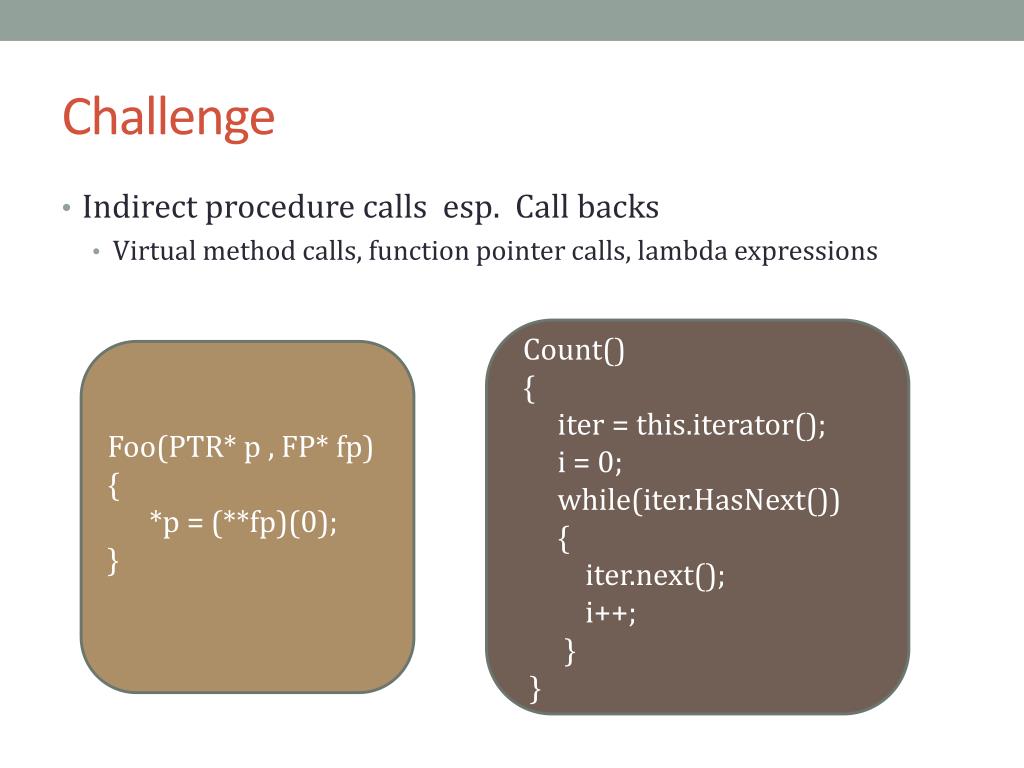

  4. Challenge • Indirect procedure calls esp. Call backs • Virtual method calls, function pointer calls, lambda expressions Count() { iter= this.iterator(); i= 0; while(iter.HasNext()) { iter.next(); i++; } } Foo(PTR* p , FP* fp) { *p = (**fp)(0); }

  5. Challenge • All widely used languages support Higher Order constructs But how do existing modular analyses handle them ?

  6. A Common Hack • Estimate the targets of the indirect calls through an inexpensive analysis E.g. • CHA, RTI analysis for OO programs • Light weight pointer analysis … • Construct a conservative call graph • Analyze bottom up

  7. Limitations of the Hack • Over-approximated targets • A call-graph is necessarily context insensitivefor HO programs A A’s context D C B E B’s context

  8. Limitations of the Hack • Inability to construct client independent summaries C2() { Foo(m2) } m1() { … } C1() { Foo(m1); } m2() { … } Foo(FP* fp) { (*fp)(…); } Resolved to m1 Summary:

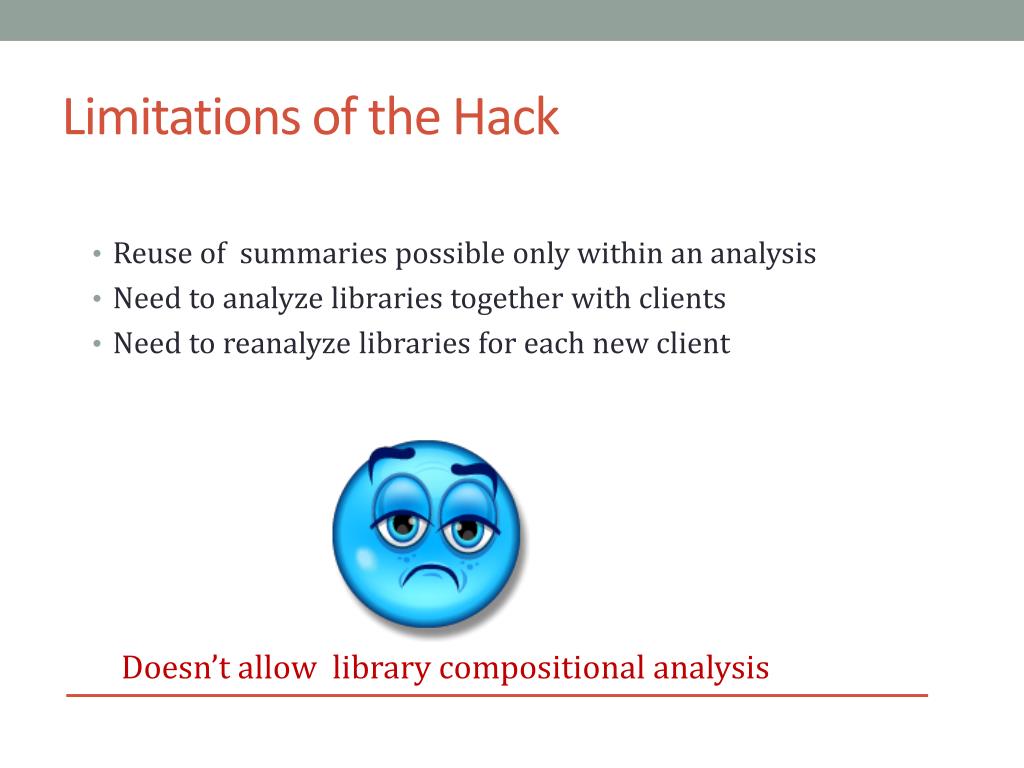

  9. Limitations of the Hack • Reuse of summaries possible only within an analysis • Need to analyze libraries together with clients • Need to reanalyze libraries for each new client Doesn’t allow library compositional analysis

  10. Our approach • Use existing techniques for summarizing first-order code segments: • [Whaley, Salcianu, Rinard, OOPSLA ‘99, VMCAI ’04] • [Madhavan et al., SAS ‘11] • Retain the call backs in the summaries

  11. Our approach • Perform as much simplification as possible without the knowledge of the calling context • Eliminate fully resolved calls from the summaries Enables efficient library compositional analysis

  12. Illustration 1 2 3 *fp(a,b) 5 4 6 7

  13. Illustration 1 2 3 *fp(a,b) 5 4 6 7

  14. Illustration 1 3 *fp(a,b) 5 6 7

  15. Illustration 1 3 *fp(a,b) 5 7

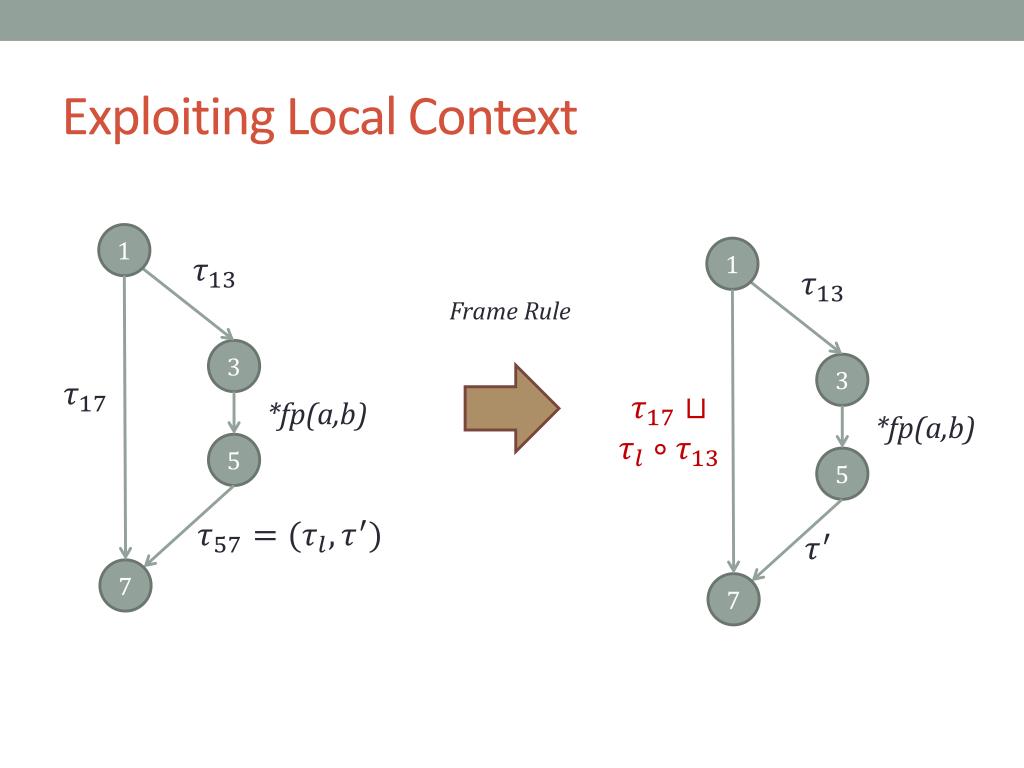

  16. Exploiting Local Context 1 1 Frame Rule 3 3 *fp(a,b) *fp(a,b) 5 5 7 7

  17. Exploiting Local Context 1 1 Frame Rule 3 3 *fp(a,b) *fp(a,b) 5 5 7 7

  18. Flow Insensitive Abstraction 1 1 3 3 *fp(a,b) *fp(a,b) 5 5 7 7

  19. Flow Insensitive Abstraction 1 2 3 HO summary = First order summary + set of call backs 4

  20. Composition Operation 1 5 2 6 3 7 ID 4 8

  21. Composition Operation 1 2 3 4 ID 5 6 7 8

  22. Composition Operation • where , is the composed abstract state • When the first order summaries (and hence composition) are isotonic:

  23. Handling Direct Calls • Handle direct calls via summary composition Call backs in the callee are inlined in the caller

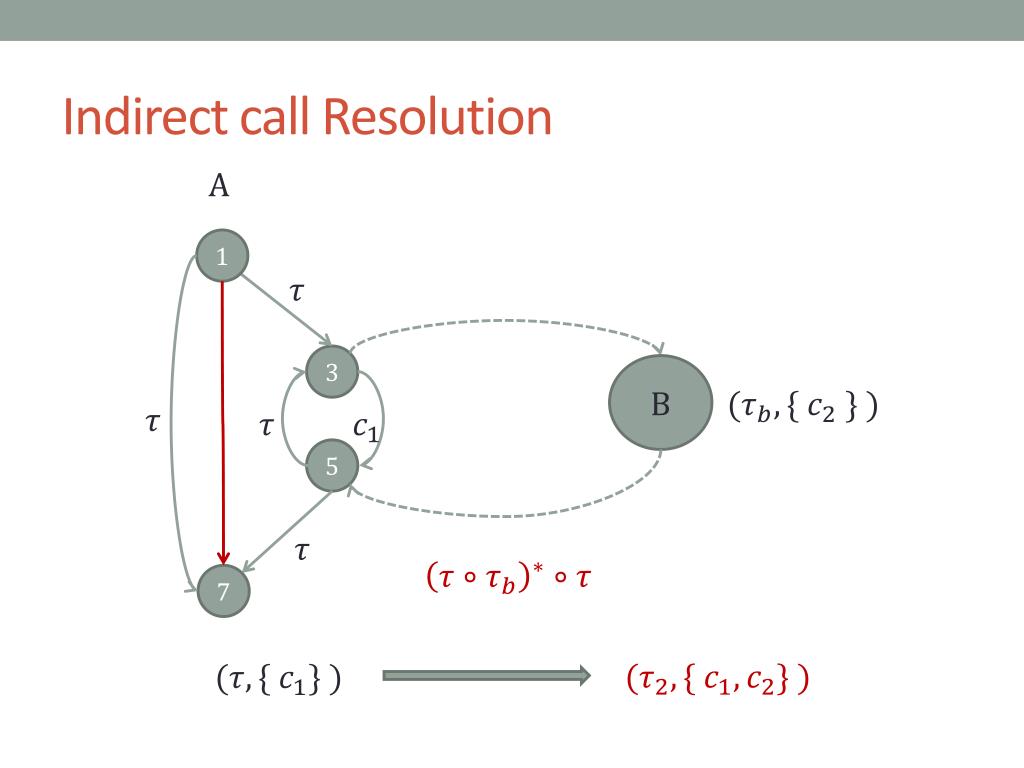

  24. Indirect call Resolution A 1 3 B 5 7

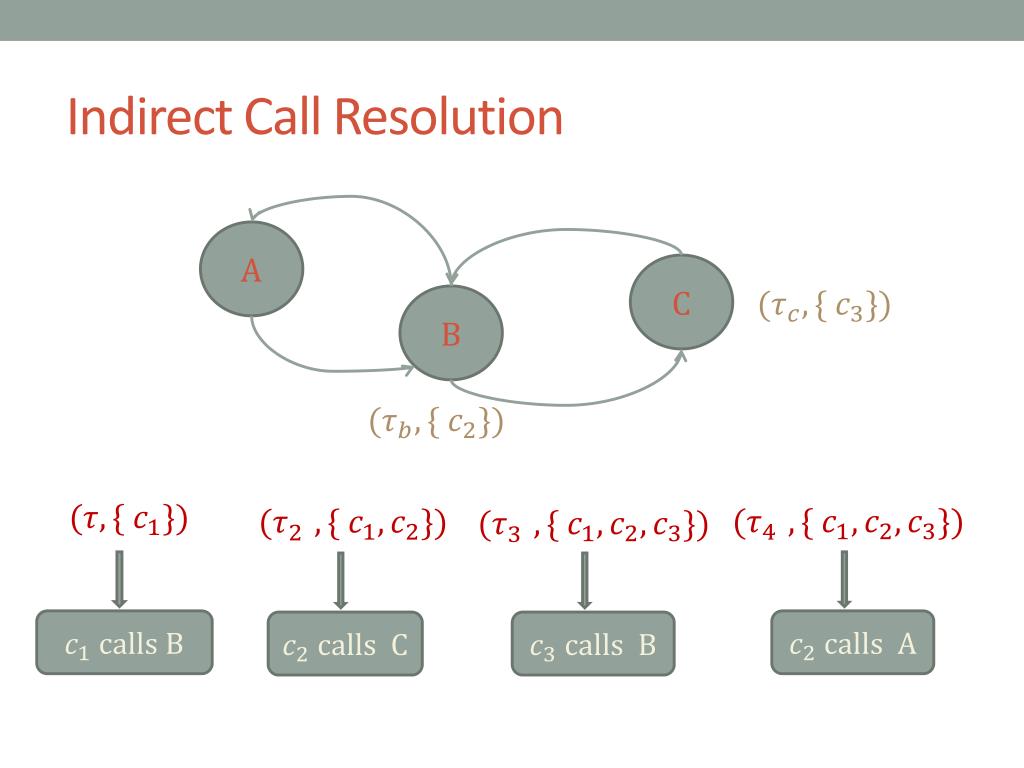

  25. Indirect Call Resolution A C B calls B calls C calls B calls A

  26. Indirect Call Resolution A C B ….. Fixed point

  27. Eliminating resolved calls Resolved calls *fp2 *fp1 … … Foo Bar (b) and are unreachable from prestate and other call backs (a) is Non escaping. Unreachable from indirect calls and prestate

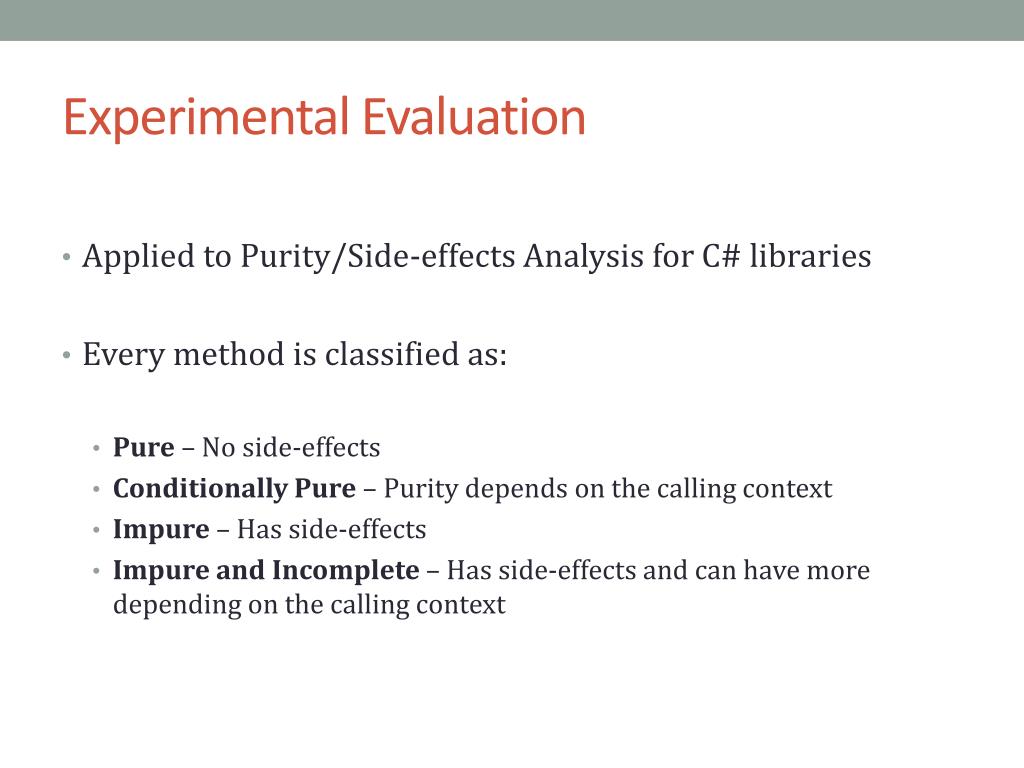

  28. Experimental Evaluation • Applied to Purity/Side-effects Analysis for C# libraries • Every method is classified as: • Pure – No side-effects • Conditionally Pure – Purity depends on the calling context • Impure – Has side-effects • Impure and Incomplete – Has side-effects and can have more depending on the calling context

  29. Experimental Results 15 – 30% 2 – 27 min 10 – 20% 20 – 30%

  30. Analysis Statistics 2 – 4 10 – 33 %

  31. Comparison with CHA CG based Bottom up Analysis

  32. Conclusion • A principled approach • Formalized as an Abstract Interpretation • A generic theory agnostic to the underlying compositional heap analysis • Gotowww.rise4fun.com/seal for a hands-on experience
