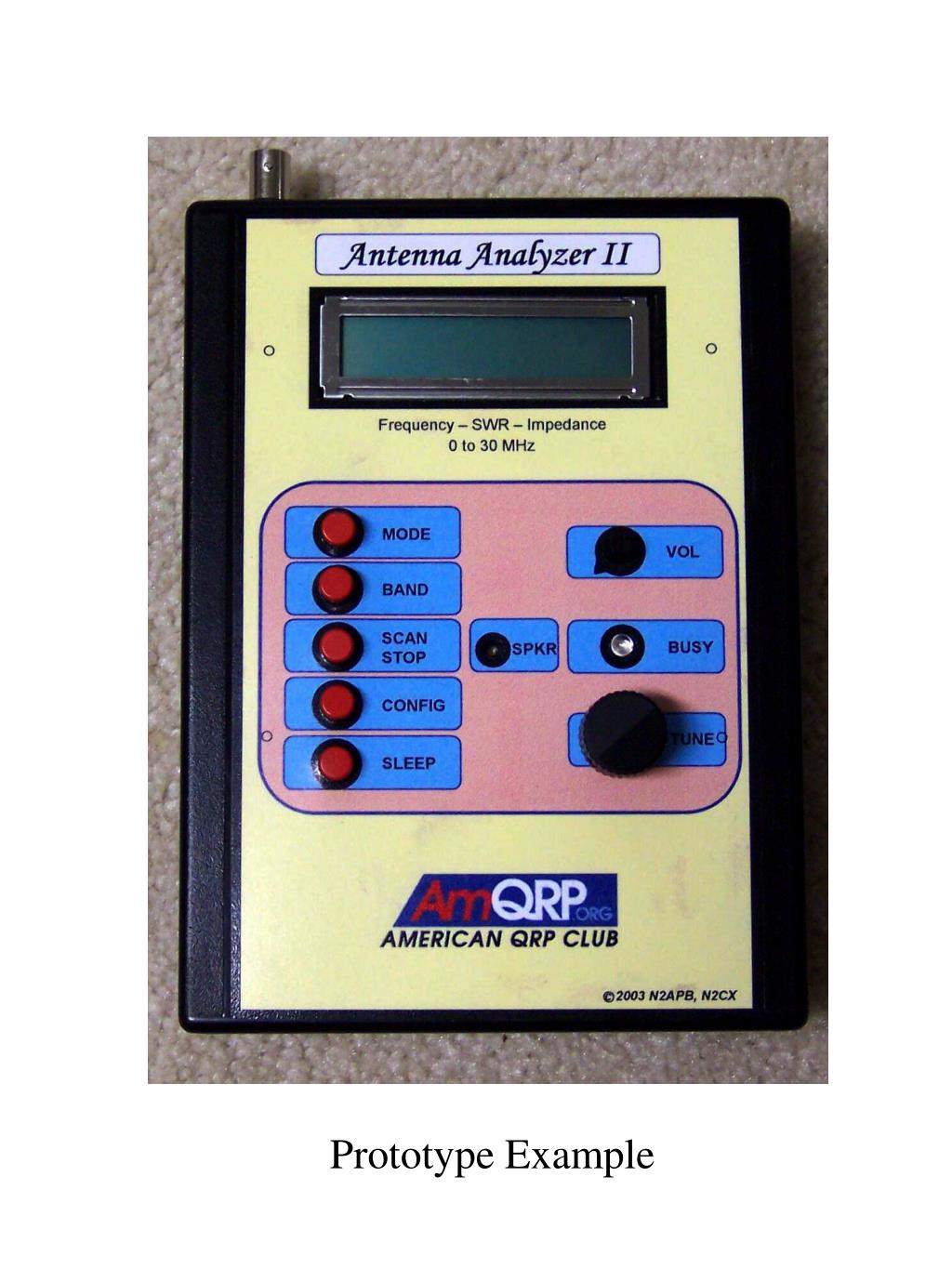

Antenna Analyst. AA-908. MODE. VOL. BAND. SCAN. BUSY. CONFIG. T U N E. SLEEP. c 2004 N2APB, N2CX. Use this object to convert red and pale blue to white. Prototype Example. Keybd Serial Port Paddle Aux Antenna.
E N D

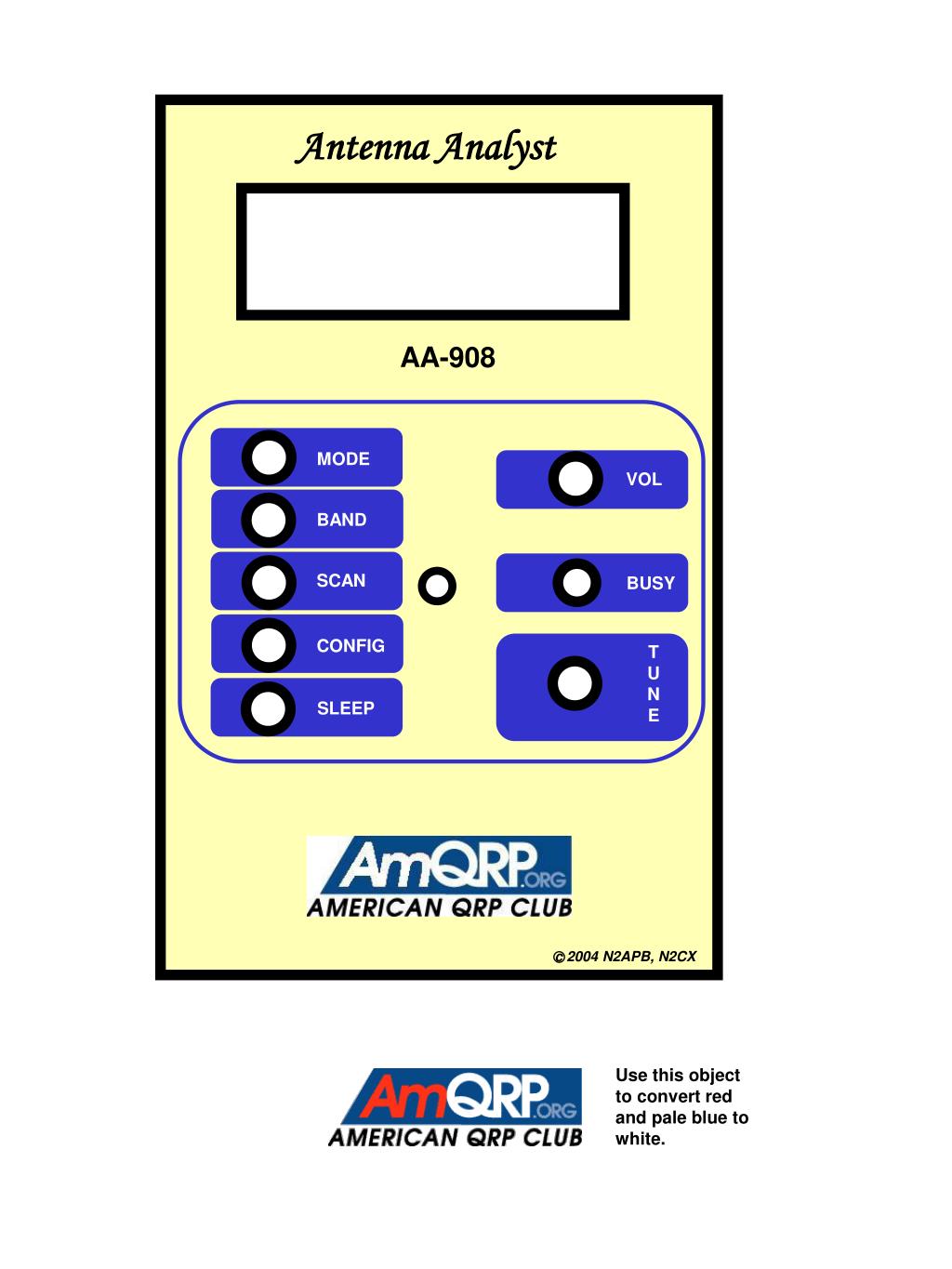

Antenna Analyst AA-908 MODE VOL BAND SCAN BUSY CONFIG T U N E SLEEP c 2004 N2APB, N2CX Use this object to convert red and pale blue to white.

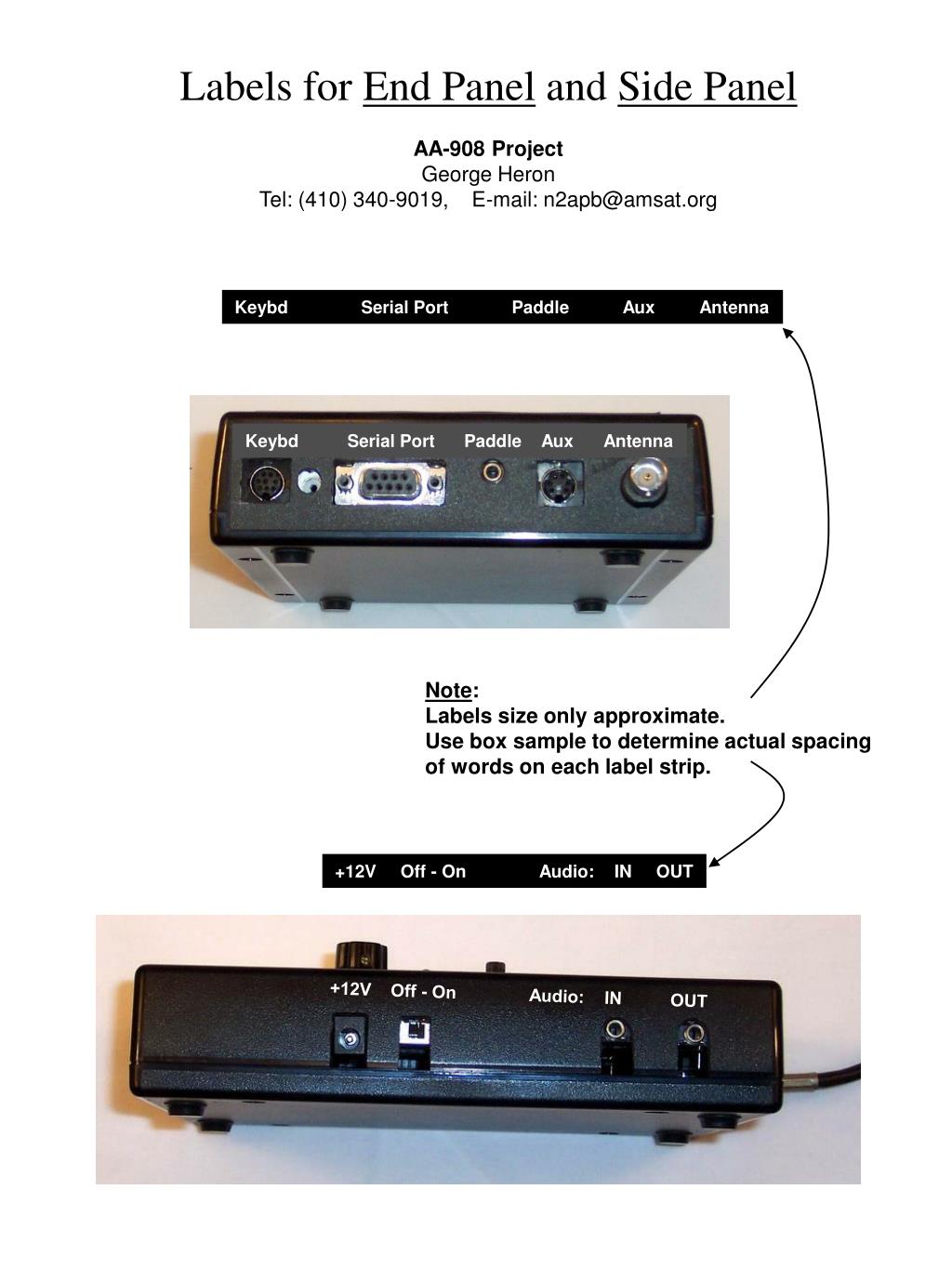

Keybd Serial Port Paddle Aux Antenna +12V Off - On Audio: IN OUT Labels for End Panel and Side Panel AA-908 Project George Heron Tel: (410) 340-9019, E-mail: n2apb@amsat.org Keybd Serial Port Paddle Aux Antenna Note: Labels size only approximate. Use box sample to determine actual spacing of words on each label strip. +12V Off - On Audio: IN OUT
