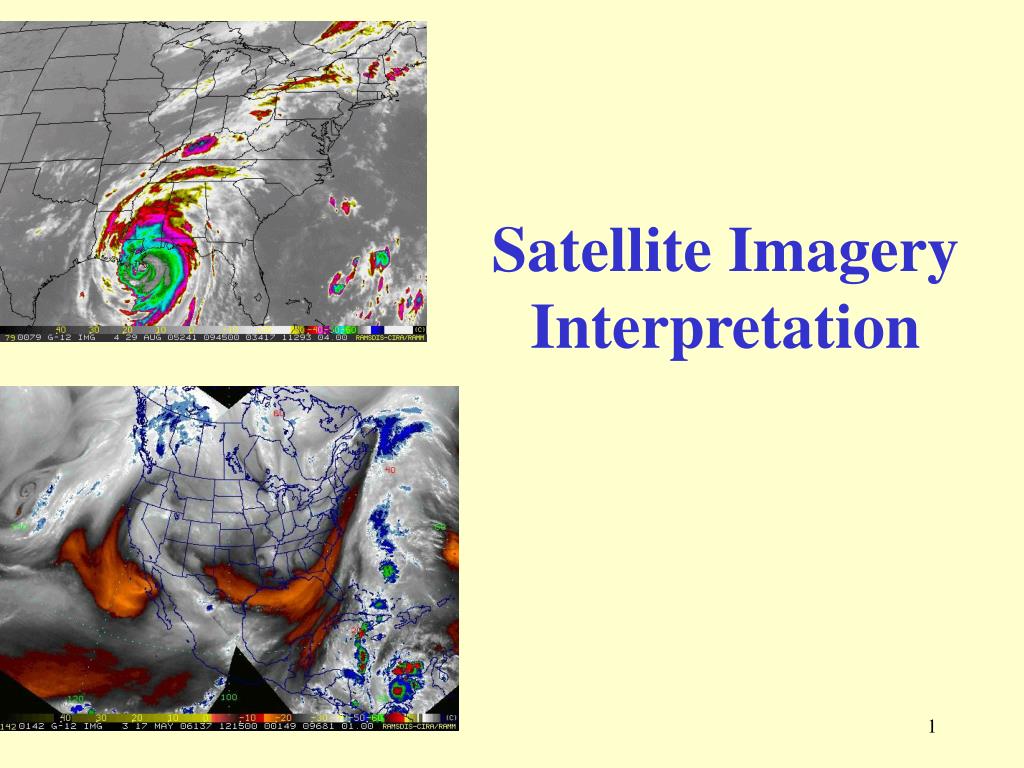

  1. Satellite Imagery Interpretation

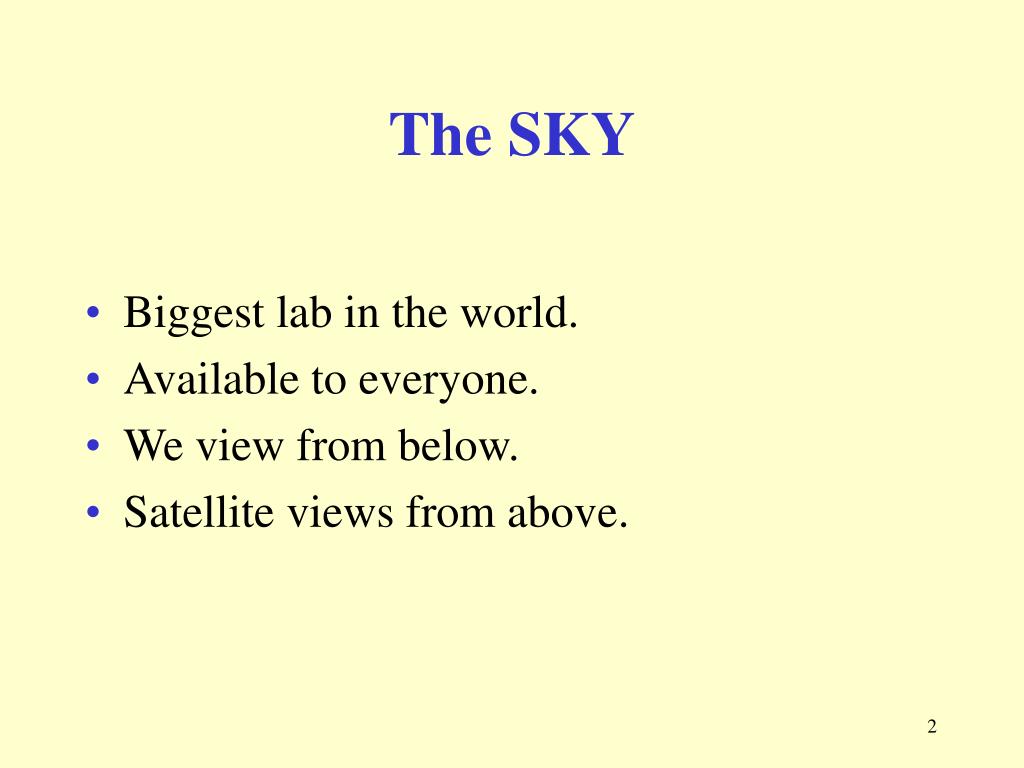

  2. The SKY • Biggest lab in the world. • Available to everyone. • We view from below. • Satellite views from above.

  3. Why Are Satellites Important? • Monitor atmosphere, land surface, and oceans at multiple scales using a single instrument. • Consistent global, high-resolution coverage over oceans, rugged terrain, and sparsely populated regions. • Another observed data set in forecasters toolbox to help solve meteorology and hydrology problems.

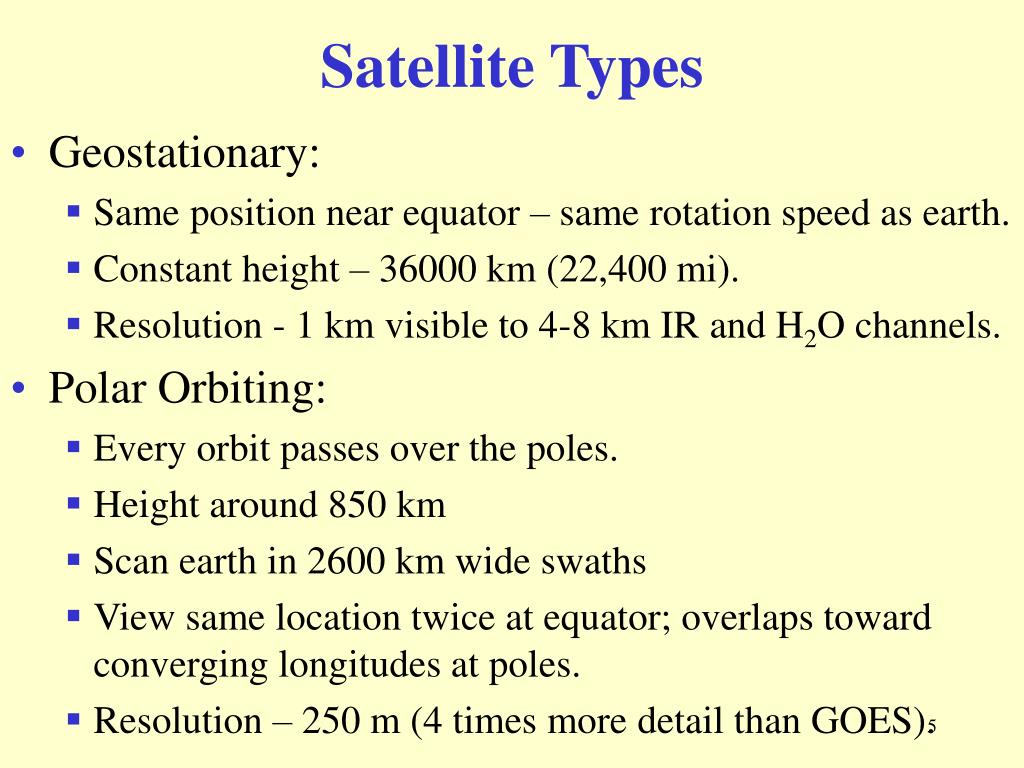

  4. Satellite Types • Geostationary: • Same position near equator – same rotation speed as earth. • Constant height – 36000 km (22,400 mi). • Resolution - 1 km visible to 4-8 km IR and H2O channels. • Polar Orbiting: • Every orbit passes over the poles. • Height around 850 km • Scan earth in 2600 km wide swaths • View same location twice at equator; overlaps toward converging longitudes at poles. • Resolution – 250 m (4 times more detail than GOES).

  5. Geostationary Satellite View

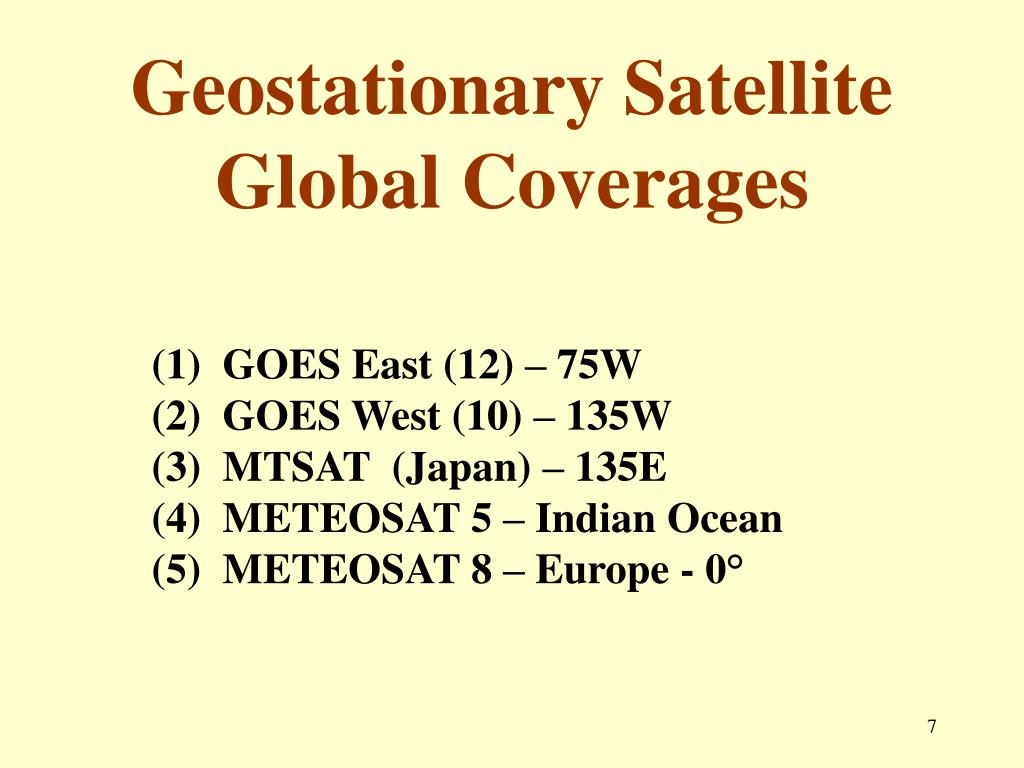

  6. Geostationary SatelliteGlobal Coverages (1) GOES East (12) – 75W (2) GOES West (10) – 135W (3) MTSAT (Japan) – 135E (4) METEOSAT 5 – Indian Ocean (5) METEOSAT 8 – Europe - 0°

  7. Geostationary Satellite View

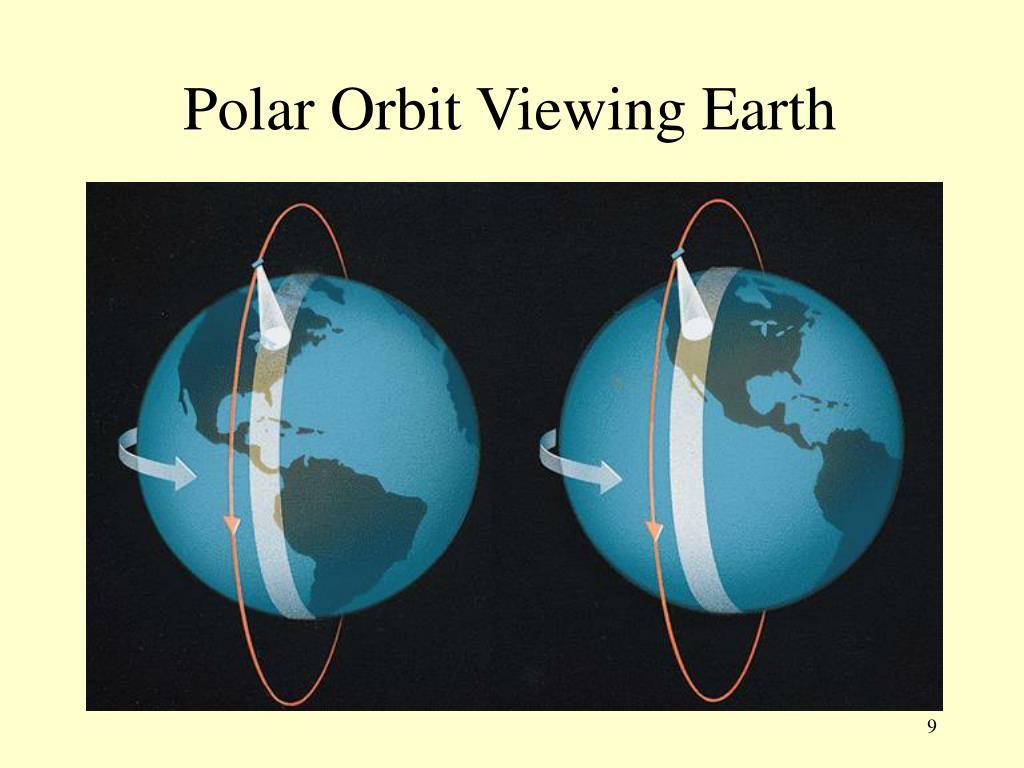

  8. Polar Orbit Viewing Earth

  9. Satellite Radiometers • Measure radiation of different wavelengths in discrete intervals • Intervals are called windows, channels or spectral bands • GOES measures five spectral bands; one visible and four IR • Use mirrors to scan a region • Transmit digital data to earth for processing

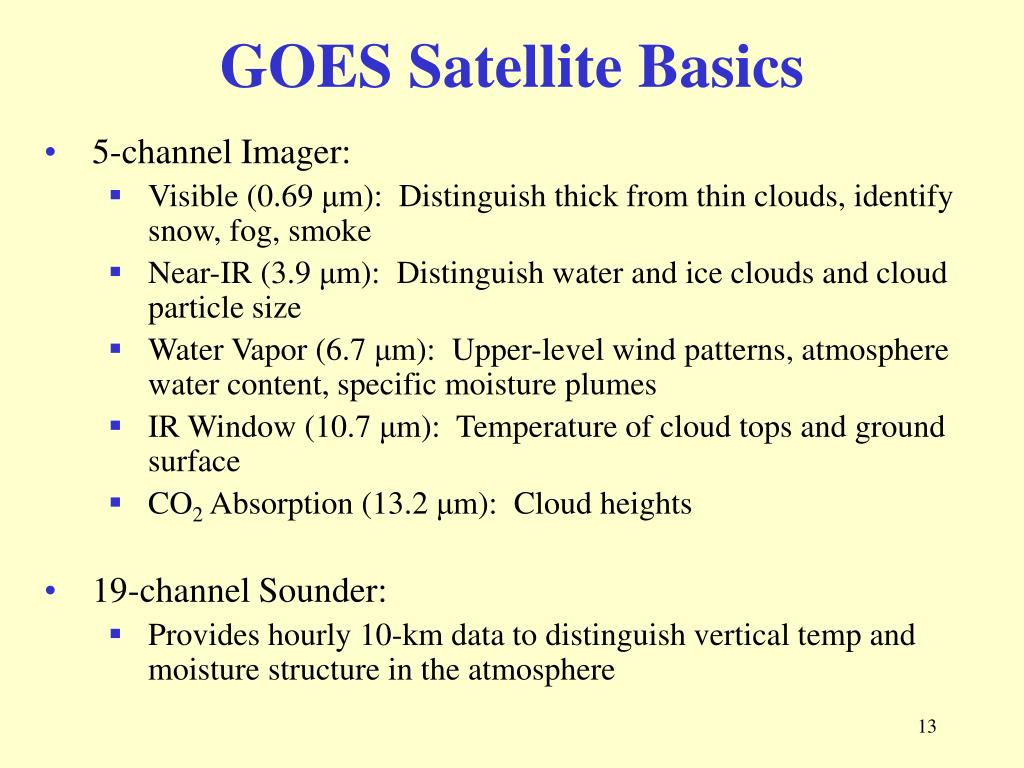

  10. GOES Satellite Basics • 5-channel Imager: • Visible (0.69 μm): Distinguish thick from thin clouds, identify snow, fog, smoke • Near-IR (3.9 μm): Distinguish water and ice clouds and cloud particle size • Water Vapor (6.7 μm): Upper-level wind patterns, atmosphere water content, specific moisture plumes • IR Window (10.7 μm): Temperature of cloud tops and ground surface • CO2 Absorption (13.2 μm): Cloud heights • 19-channel Sounder: • Provides hourly 10-km data to distinguish vertical temp and moisture structure in the atmosphere

  11. Albedo • Fraction of total radiation reflected by an object (surface). • Varies according to: • Cloud cover • Particles in air • Angle of sun’s rays • Types of surface

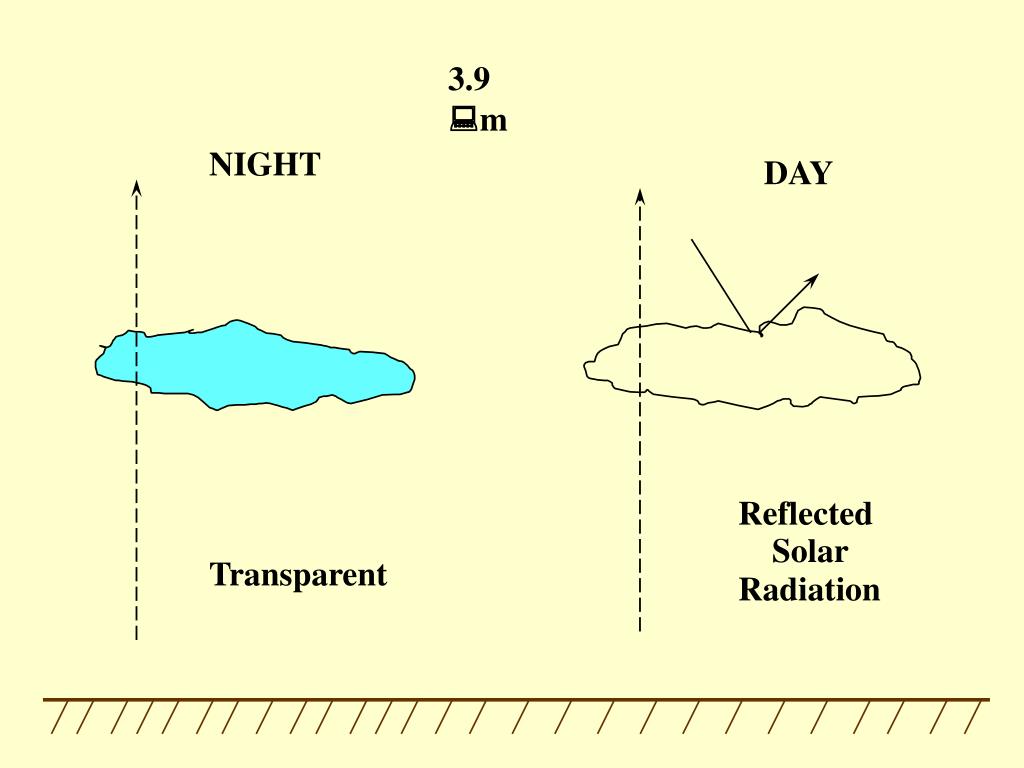

  12. 3.9 :m NIGHT DAY Reflected Solar Radiation Transparent

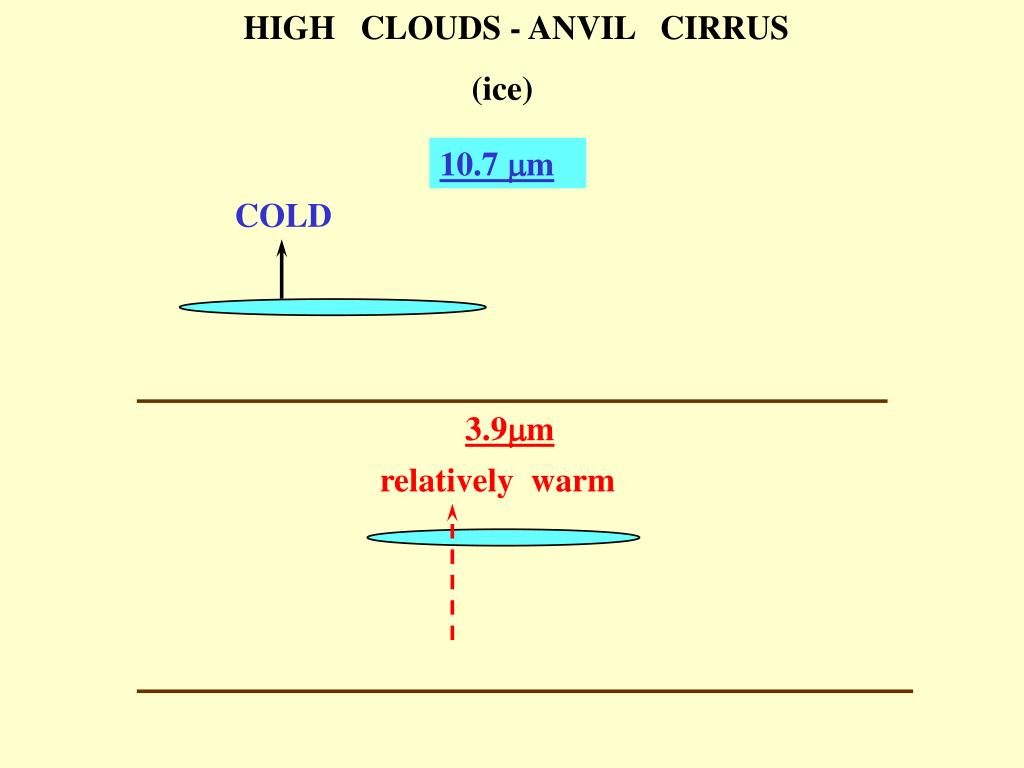

  13. HIGH CLOUDS - ANVIL CIRRUS (ice) 10.7 mm COLD 3.9mm relatively warm

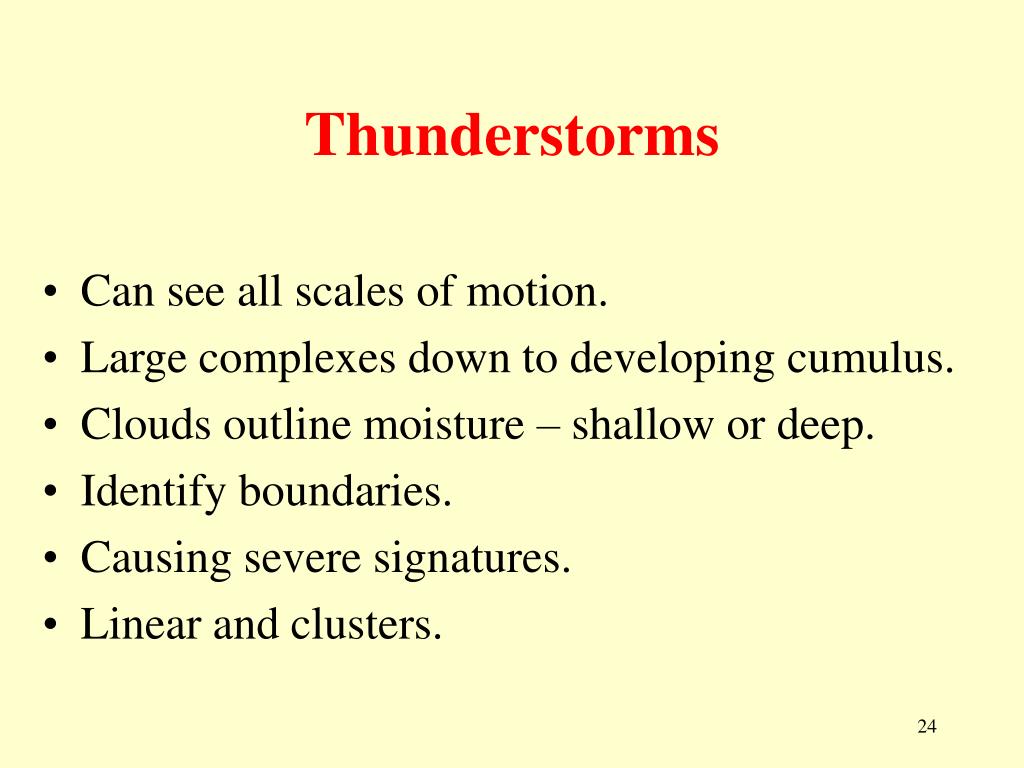

  14. Thunderstorms • Can see all scales of motion. • Large complexes down to developing cumulus. • Clouds outline moisture – shallow or deep. • Identify boundaries. • Causing severe signatures. • Linear and clusters.

  15. Three biggest tornadoes in Kiowa county. 2nd formed just east of Greensburg and quickly grew to 2 mi in width! At least 2 smaller "satellite“ tornadoes with the 1st tornado that formed S of Greensburg.

  16. S Florida’s Furiously Full Calendar! 13 14 Aug. Charlie Steve Leach Frances Frances Ivan Jeanne Jeanne

  17. Steve Leach Courtesy: Palm Beach Post

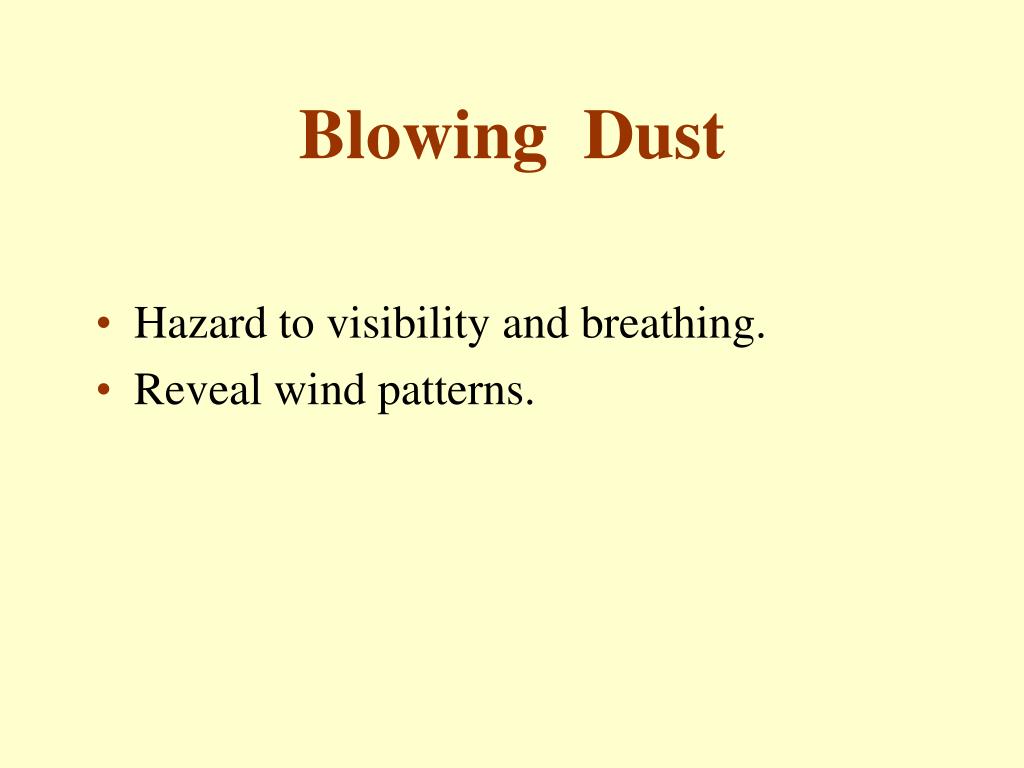

  18. Blowing Dust • Hazard to visibility and breathing. • Reveal wind patterns.

  19. Blowing Saharan Dust observed from SeaWifs: February 26, 2000

  20. MODIS Visible from Terra for 3-3-2004 D U S T F R O N T moderate resolution imaging Spectroradiometer

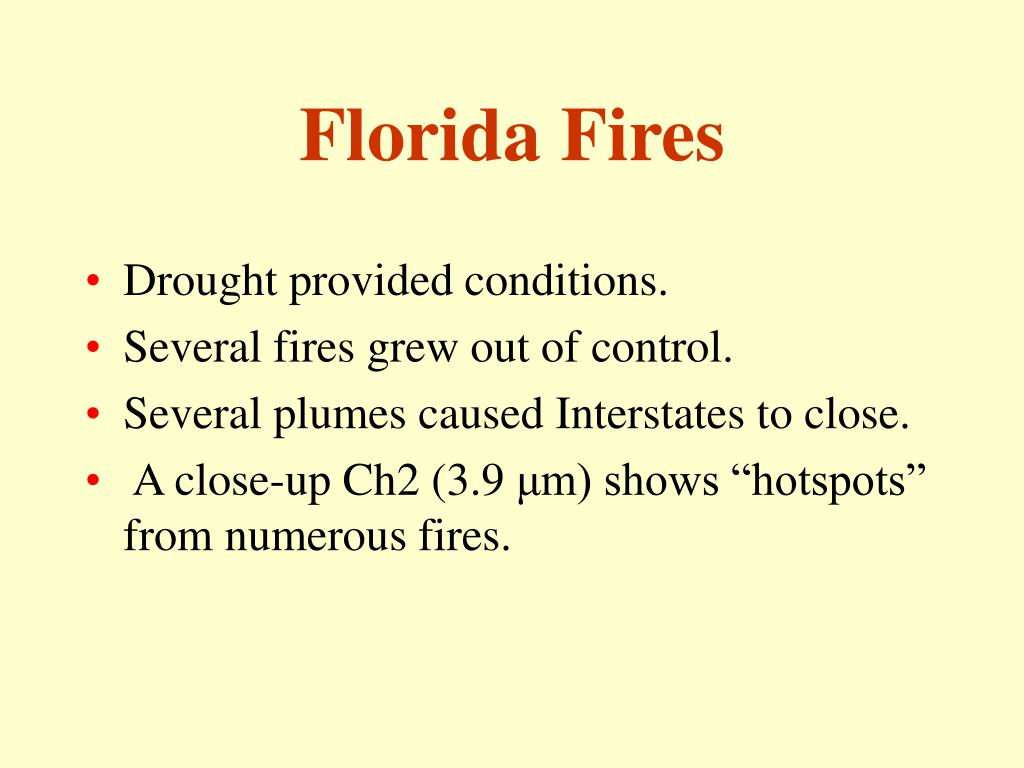

  21. Florida Fires • Drought provided conditions. • Several fires grew out of control. • Several plumes caused Interstates to close. • A close-up Ch2 (3.9 μm) shows “hotspots” from numerous fires.

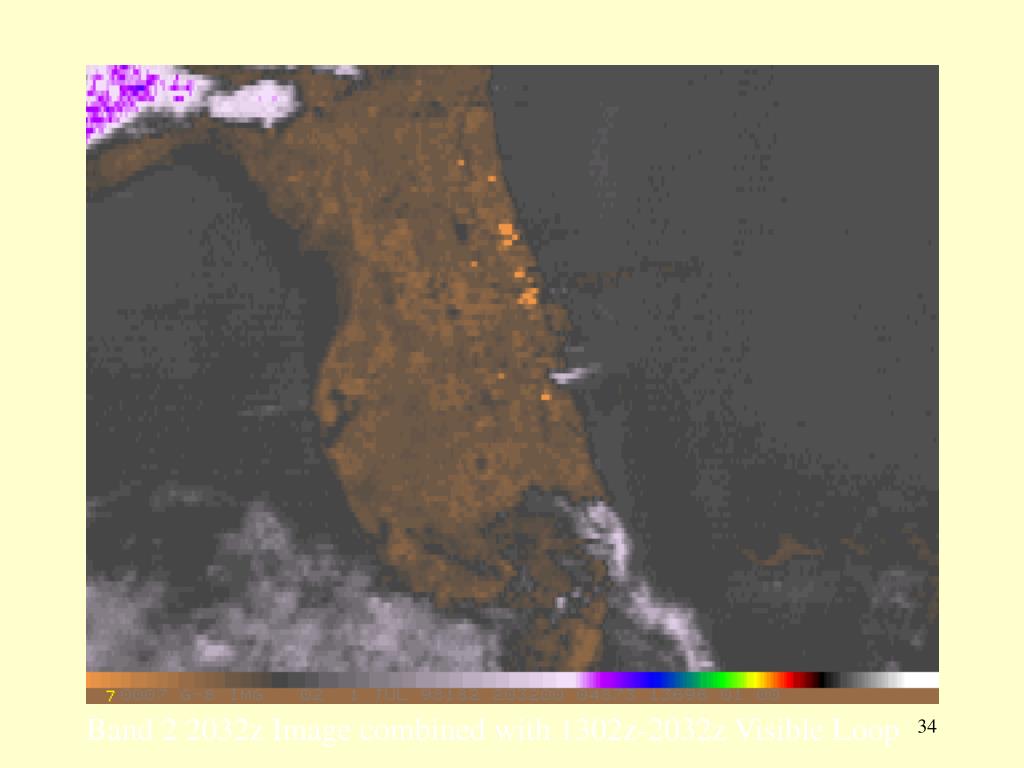

  22. Band 2 2032z Image combined with 1302z-2032z Visible Loop

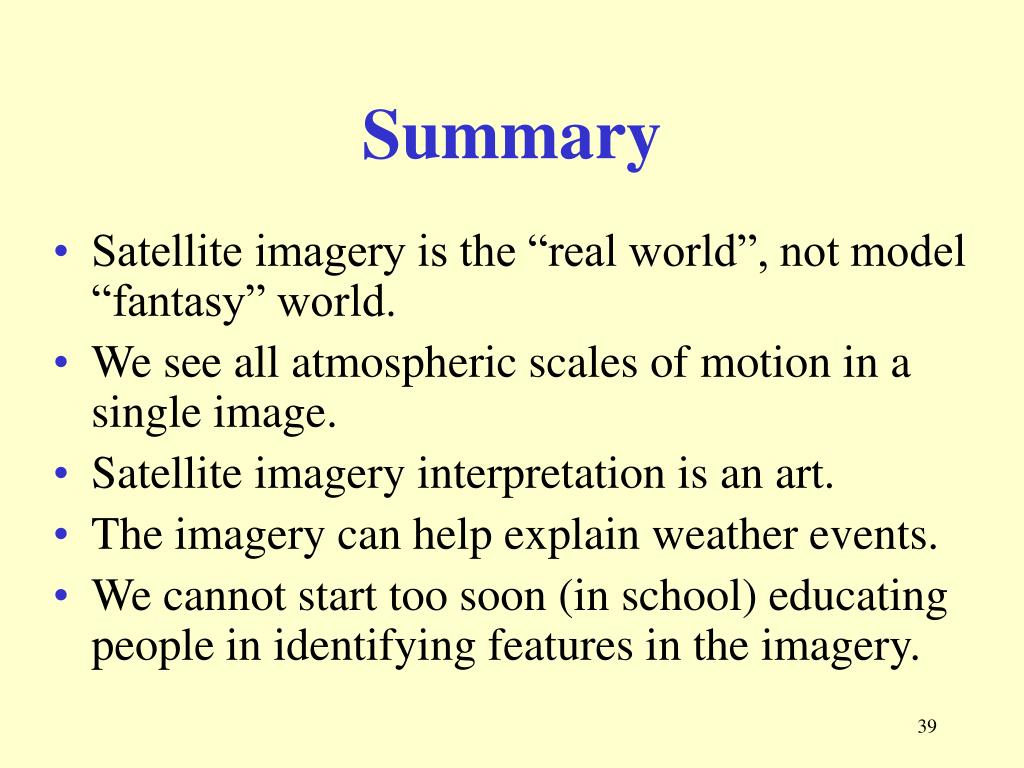

  23. Summary • Satellite imagery is the “real world”, not model “fantasy” world. • We see all atmospheric scales of motion in a single image. • Satellite imagery interpretation is an art. • The imagery can help explain weather events. • We cannot start too soon (in school) educating people in identifying features in the imagery.

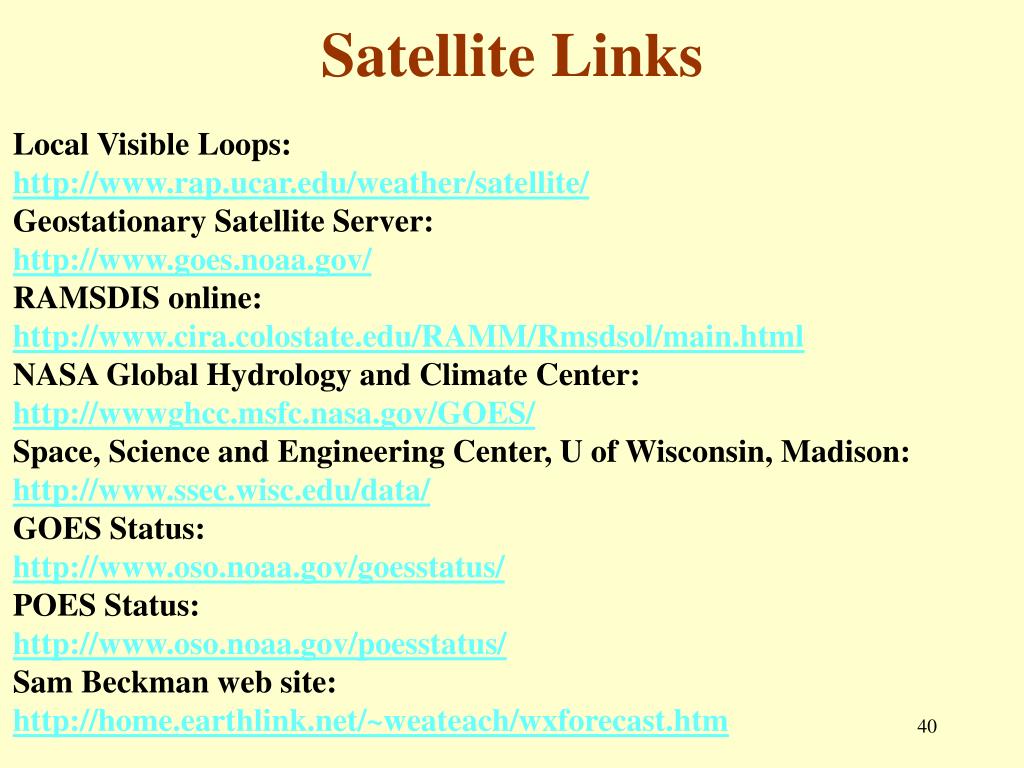

  24. Satellite Links Local Visible Loops: http://www.rap.ucar.edu/weather/satellite/ Geostationary Satellite Server: http://www.goes.noaa.gov/ RAMSDIS online: http://www.cira.colostate.edu/RAMM/Rmsdsol/main.html NASA Global Hydrology and Climate Center: http://wwwghcc.msfc.nasa.gov/GOES/ Space, Science and Engineering Center, U of Wisconsin, Madison: http://www.ssec.wisc.edu/data/ GOES Status: http://www.oso.noaa.gov/goesstatus/ POES Status: http://www.oso.noaa.gov/poesstatus/ Sam Beckman web site: http://home.earthlink.net/~weateach/wxforecast.htm
