Achondroplasia: Dwarfism

Achondroplasia: Dwarfism. Kelly LaBarre. Clinical Features. Achondroplasia literally means “without cartilage formation.” Presents clinically as a long narrow trunk with short extremities, large head with frontal bossing, hypoplasia of the midface, and trident configuration of the hands.

arlo
Download Presentation

Achondroplasia: Dwarfism

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Achondroplasia: Dwarfism Kelly LaBarre

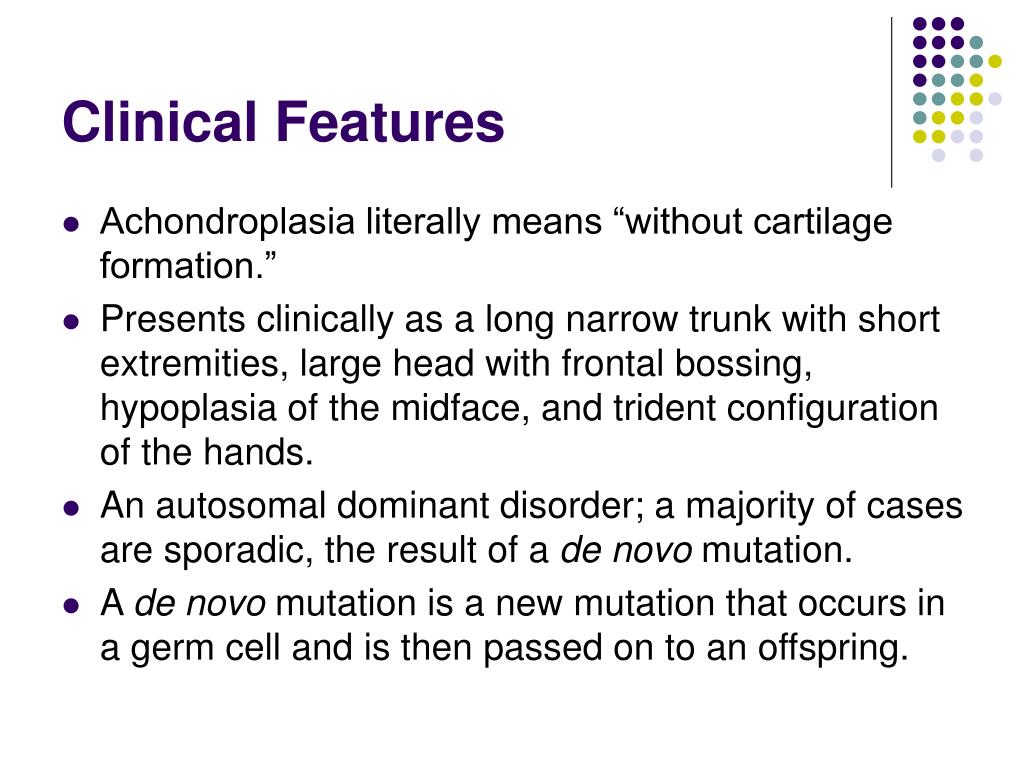

  2. Clinical Features • Achondroplasia literally means “without cartilage formation.” • Presents clinically as a long narrow trunk with short extremities, large head with frontal bossing, hypoplasia of the midface, and trident configuration of the hands. • An autosomal dominant disorder; a majority of cases are sporadic, the result of a de novo mutation. • A de novo mutation is a new mutation that occurs in a germ cell and is then passed on to an offspring.

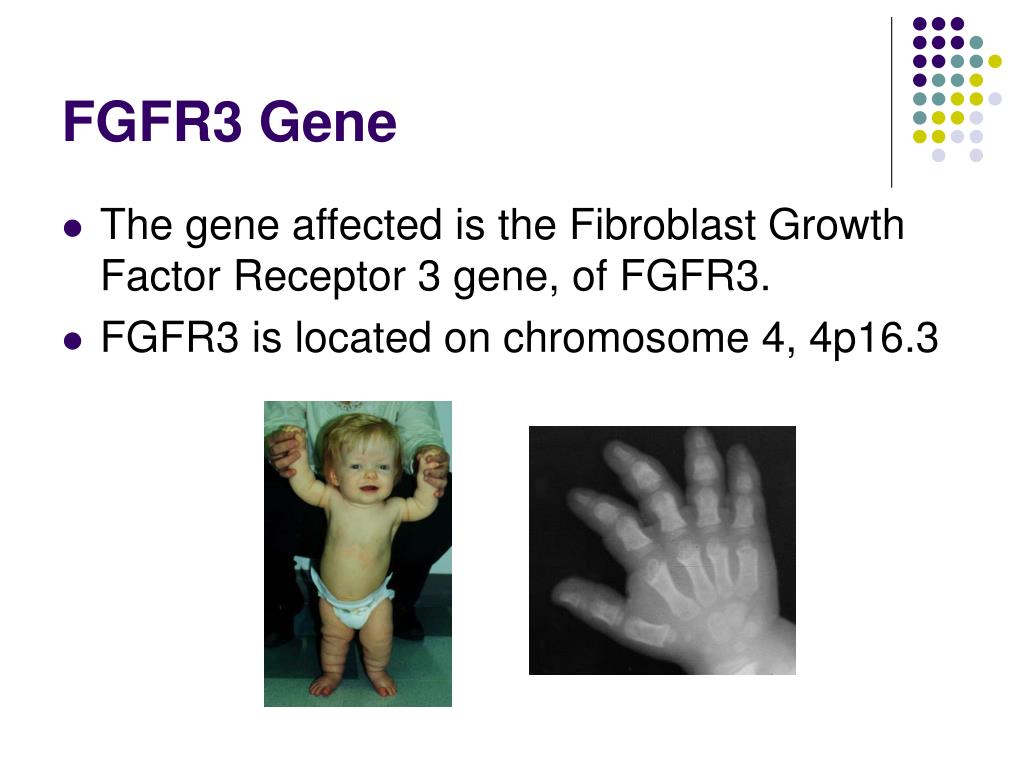

  3. FGFR3 Gene • The gene affected is the Fibroblast Growth Factor Receptor 3 gene, of FGFR3. • FGFR3 is located on chromosome 4, 4p16.3

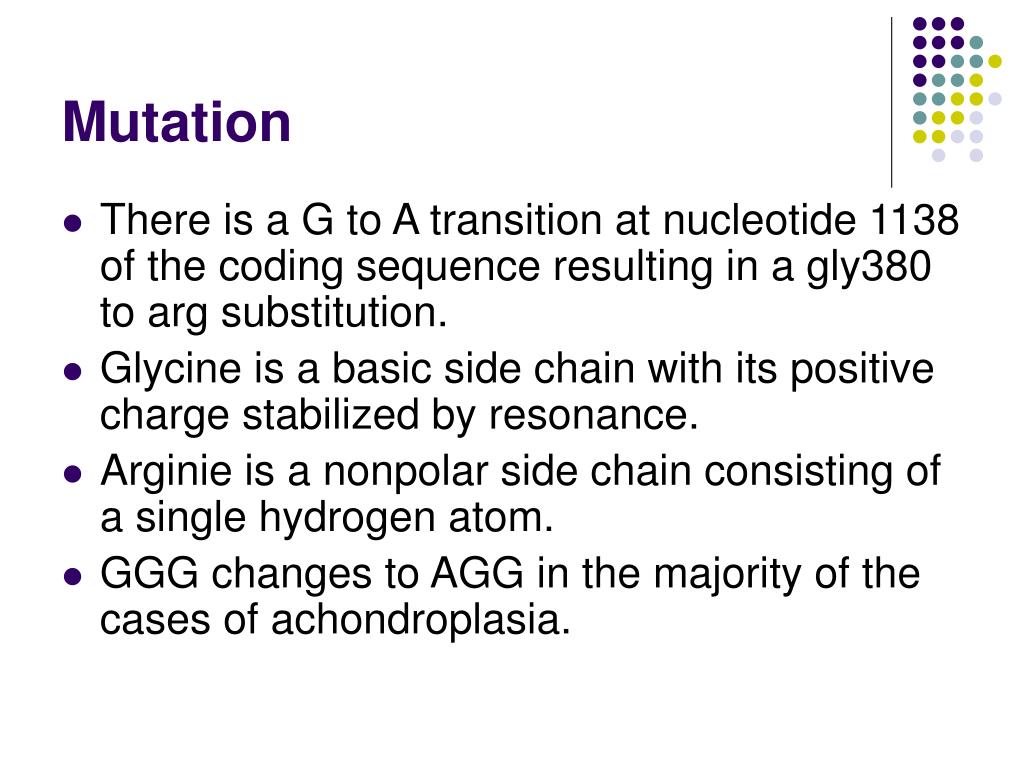

  4. Mutation • There is a G to A transition at nucleotide 1138 of the coding sequence resulting in a gly380 to arg substitution. • Glycine is a basic side chain with its positive charge stabilized by resonance. • Arginie is a nonpolar side chain consisting of a single hydrogen atom. • GGG changes to AGG in the majority of the cases of achondroplasia.

  5. Protein Function • These proteins play a role in several important cellular processes, including regulation of cell growth and division, determination of cell type, formation of blood vessels, wound healing, and embryo development. • FGFR3 is a transmembrane protein. • The FGFR3 protein is involved in the development and maintenance of bone and brain tissue. Researchers believe that this receptor regulates bone growth by limiting the formation of bone from cartilage in the long bones.

  6. Conserved Domains Most of the sections of the conserved domains are tyrosine kinases, which are enzymes that can transfer a phosphate group from ATP to a tyrosine residue in a protein. This is important because FGFR3 is a transmembrane protein that can interact outside the cell to create a cascade of events inside. The remainder of the conserved domains are immunoglobulin chains.

  7. 3D Representation This is an FGFR1 molecule, the alpha chain is white and the beta chain is blue. It has similar function but different structure than FGFR3. At the 380 position it has a glutamine, which would change to asparganine with the point mutation, but this is not what causes achondroplasia.

  8. Aberrant Function • The glycine to arginine switch in the protein structure can create, obviously, large problems. • Since the glycine side chain is so much smaller and without a charge, the binding sites and structure of the final protein are altered. glycine arginine

  9. Why? The normal function of FGFR3 is to slow down the formation of bone by inhibiting the proliferation of chondrocytes, the cells that produce cartilage. The mutation increases the activity of FGFR3, severely limiting bone growth. The mutant receptors actually work better than the wild-type.

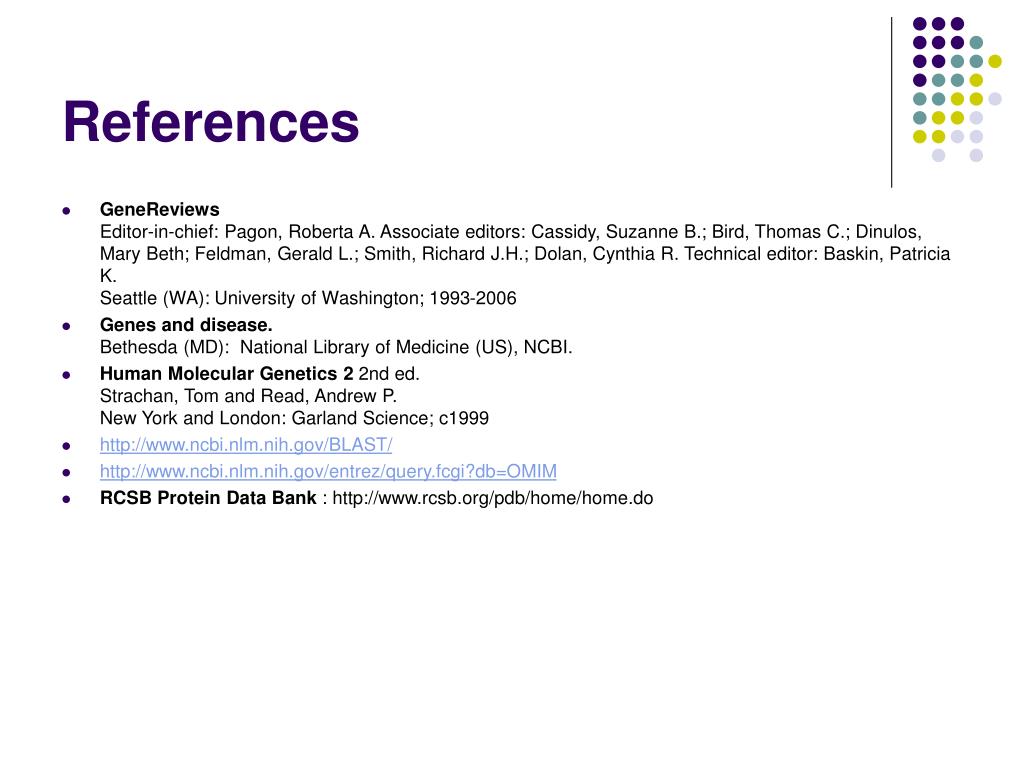

  10. References • GeneReviewsEditor-in-chief: Pagon, Roberta A. Associate editors: Cassidy, Suzanne B.; Bird, Thomas C.; Dinulos, Mary Beth; Feldman, Gerald L.; Smith, Richard J.H.; Dolan, Cynthia R. Technical editor: Baskin, Patricia K. Seattle (WA): University of Washington; 1993-2006 • Genes and disease.Bethesda (MD): National Library of Medicine (US), NCBI. • Human Molecular Genetics 2 2nd ed. Strachan, Tom and Read, Andrew P. New York and London: Garland Science; c1999 • http://www.ncbi.nlm.nih.gov/BLAST/ • http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=OMIM • RCSB Protein Data Bank : http://www.rcsb.org/pdb/home/home.do
