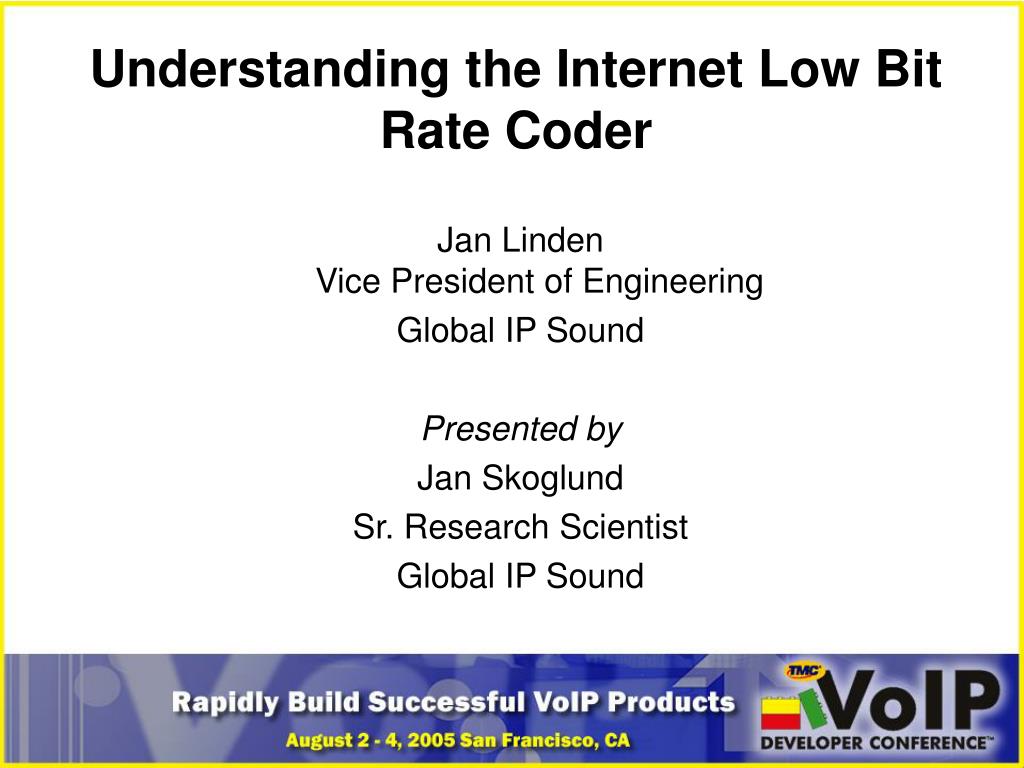

  1. Understanding the Internet Low Bit Rate Coder Jan LindenVice President of Engineering Global IP Sound Presented by Jan Skoglund Sr. Research Scientist Global IP Sound

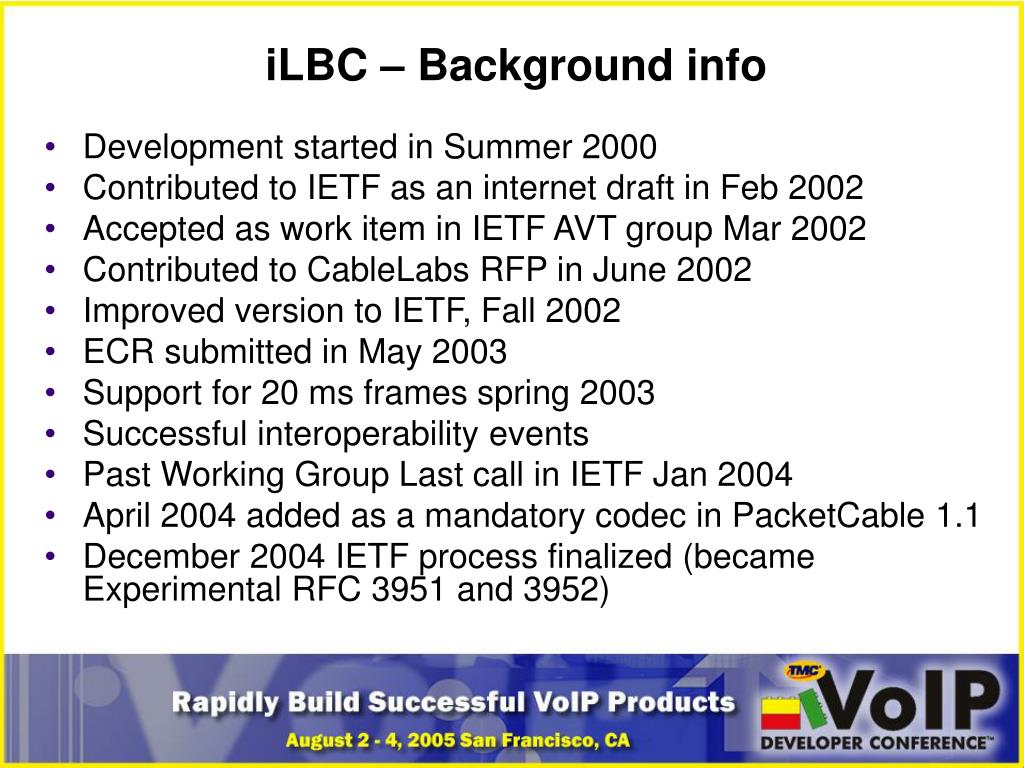

  2. iLBC – Background info • Development started in Summer 2000 • Contributed to IETF as an internet draft in Feb 2002 • Accepted as work item in IETF AVT group Mar 2002 • Contributed to CableLabs RFP in June 2002 • Improved version to IETF, Fall 2002 • ECR submitted in May 2003 • Support for 20 ms frames spring 2003 • Successful interoperability events • Past Working Group Last call in IETF Jan 2004 • April 2004 added as a mandatory codec in PacketCable 1.1 • December 2004 IETF process finalized (became Experimental RFC 3951 and 3952)

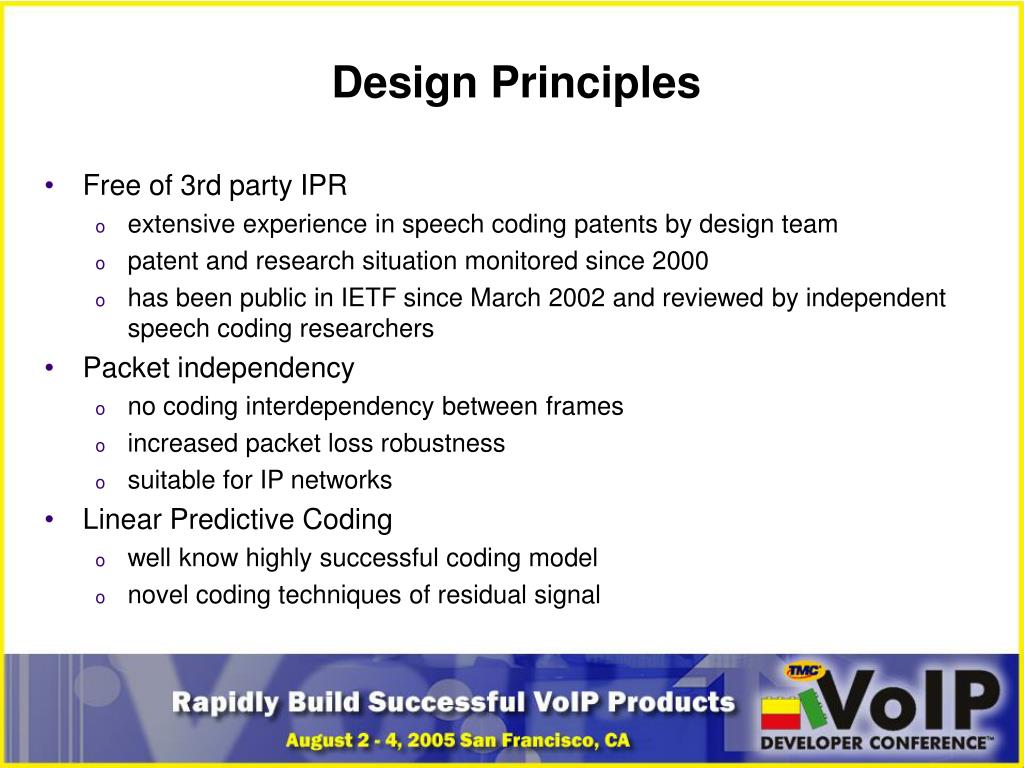

  3. Design Principles • Free of 3rd party IPR • extensive experience in speech coding patents by design team • patent and research situation monitored since 2000 • has been public in IETF since March 2002 and reviewed by independent speech coding researchers • Packet independency • no coding interdependency between frames • increased packet loss robustness • suitable for IP networks • Linear Predictive Coding • well know highly successful coding model • novel coding techniques of residual signal

  4. iLBC Features • Sampling Rate: 8 kHz • Supports 30 ms and 20 ms speech frame modes • Bitrate • 13.3 kbps (399 bits, packetized in 50 bytes) for 30 ms frames • 15.2 kbps (303 bits, packetized in 38 bytes) for 20 ms frames • Computational complexity (TI C54x) • 30 ms frames: appr. 18 MIPS/channel • 20 ms frames: appr. 15 MIPS/channel • Memory • 400 Words/channel state memory (RAM) • less than 4 kWords table memory (ROM) • Stack and program memory requirements similar to other low bit rate codecs (e.g. G.729A)

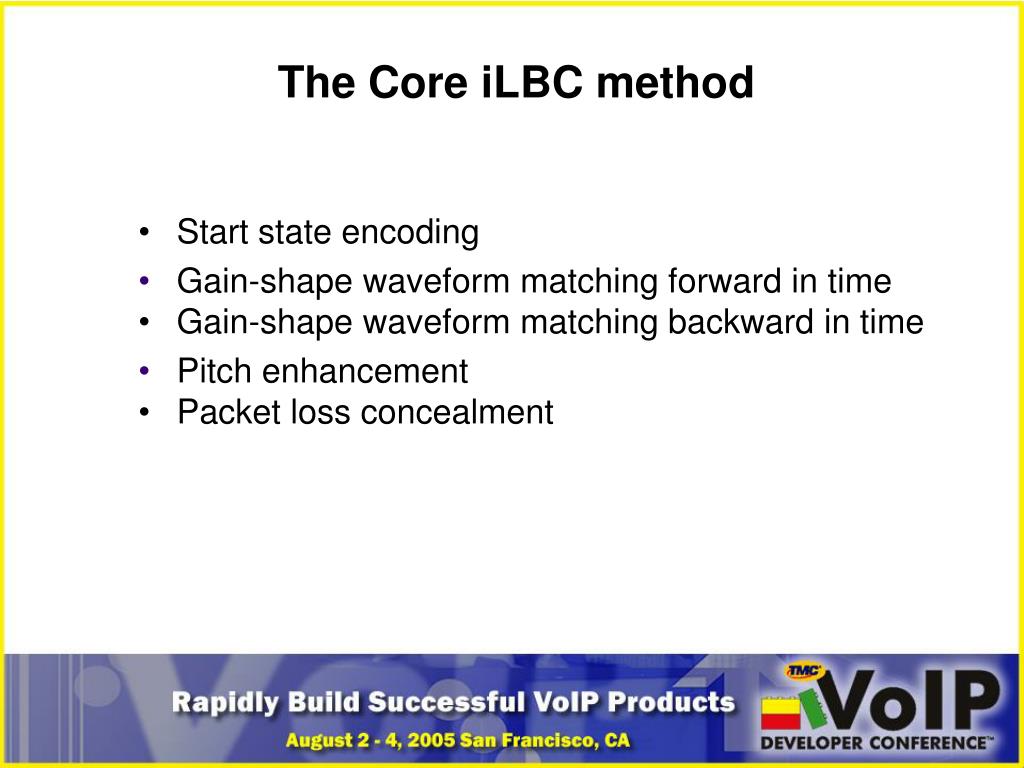

  5. The Core iLBC method • Start state encoding • Gain-shape waveform matching forward in time • Gain-shape waveform matching backward in time • Pitch enhancement • Packet loss concealment

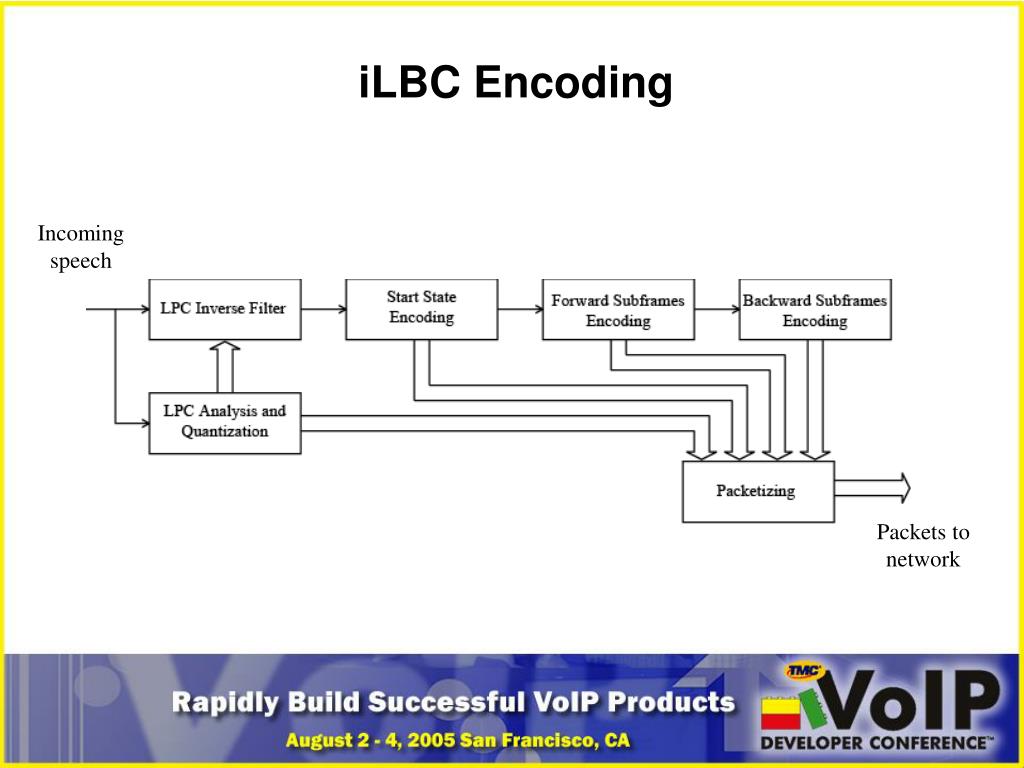

  6. iLBC Encoding Incoming speech Packets to network

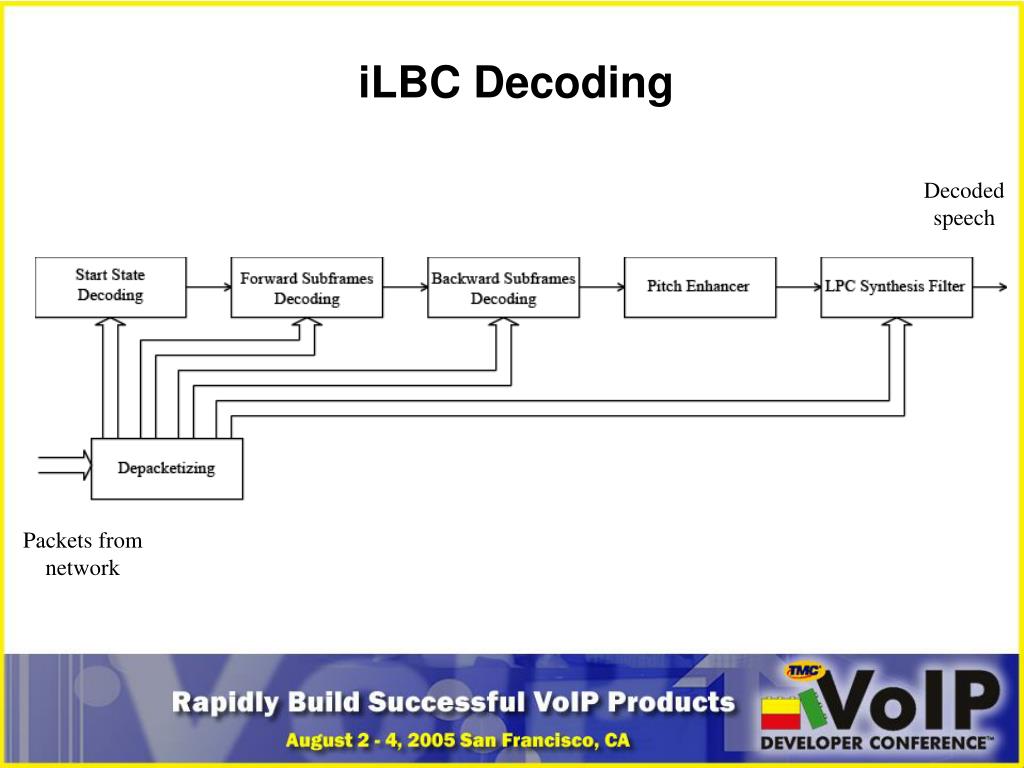

  7. iLBC Decoding Decoded speech Packets from network

  8. 20 ms vs 30 ms sub-blocks • 20 ms frame size mode - 4 sub-blocks with the total length of 160 samples • 30 ms frame size mode - 6 sub-blocks with the total length of 240 samples

  9. 240 samples encoded to 399 bits = 13.3 kbit/s (50 oct) 20 ms vs 30 ms mode – bit allocation 160 samples encoded to 303 bits = 15.2 kbit/s (38 oct)

  10. Advantage over CELP original iLBC g729 g723 State recovery PLC

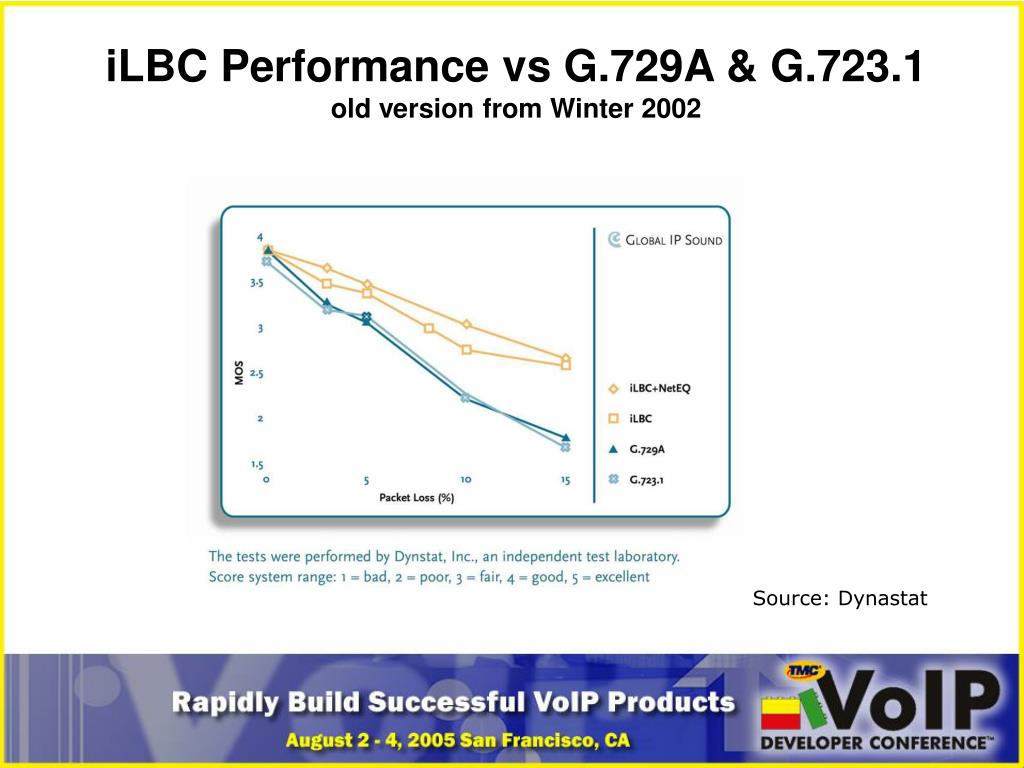

  11. iLBC Performance vs G.729A & G.723.1old version from Winter 2002 Source: Dynastat

  12. iLBC Performance • Equivalent or slightly lower performance than G.729E in clean. • Improved robustness to packet loss compared to G.729E. • iLBC showed better than G.728 in other testing.

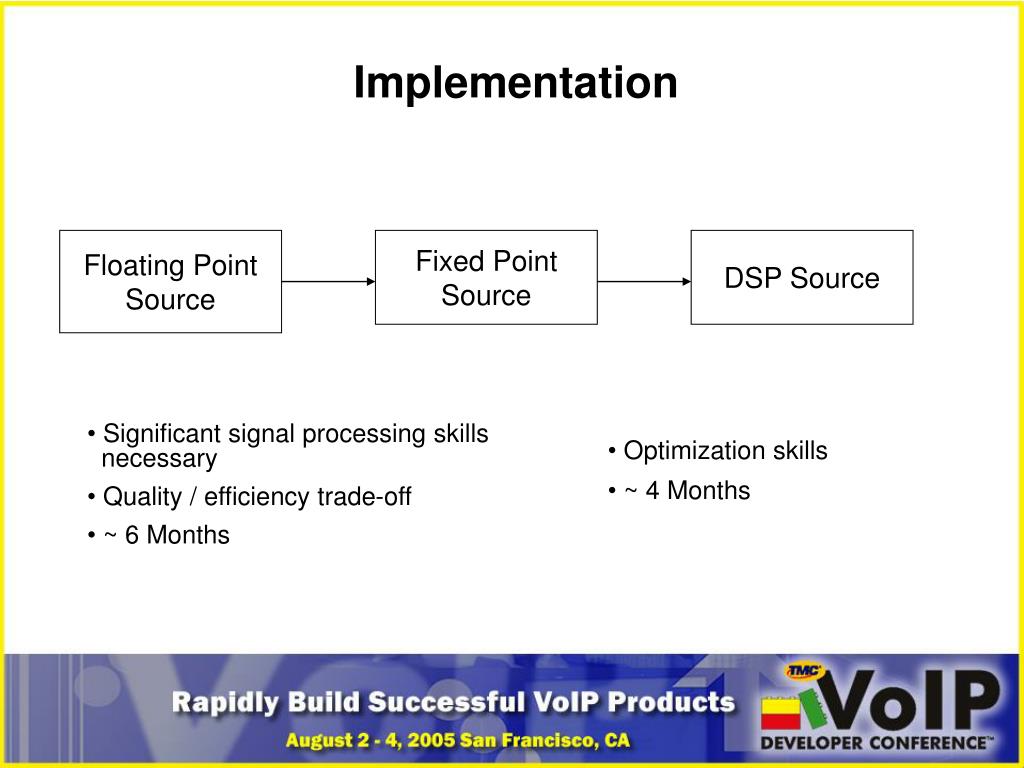

  13. Fixed Point Source Floating Point Source DSP Source Implementation • Significant signal processing skills necessary • Quality / efficiency trade-off • ~ 6 Months • Optimization skills • ~ 4 Months

  14. iLBC Specifications • Available in floating point , fixed point ANSI C, TIc54x, TIc55x, TIc64x,… • Supports 20 and 30 ms speech frames • Algorithmic delay: Same as frame size • Sampling Rate: 8 kHz • Bit rate: 13.333 kpbs for 30ms and 15.2 kpbs for 20ms Memory in kWord16
