  1. Manufacturing Process - F r y p a n - Noh Seung Yoon Jung Yeon Wook

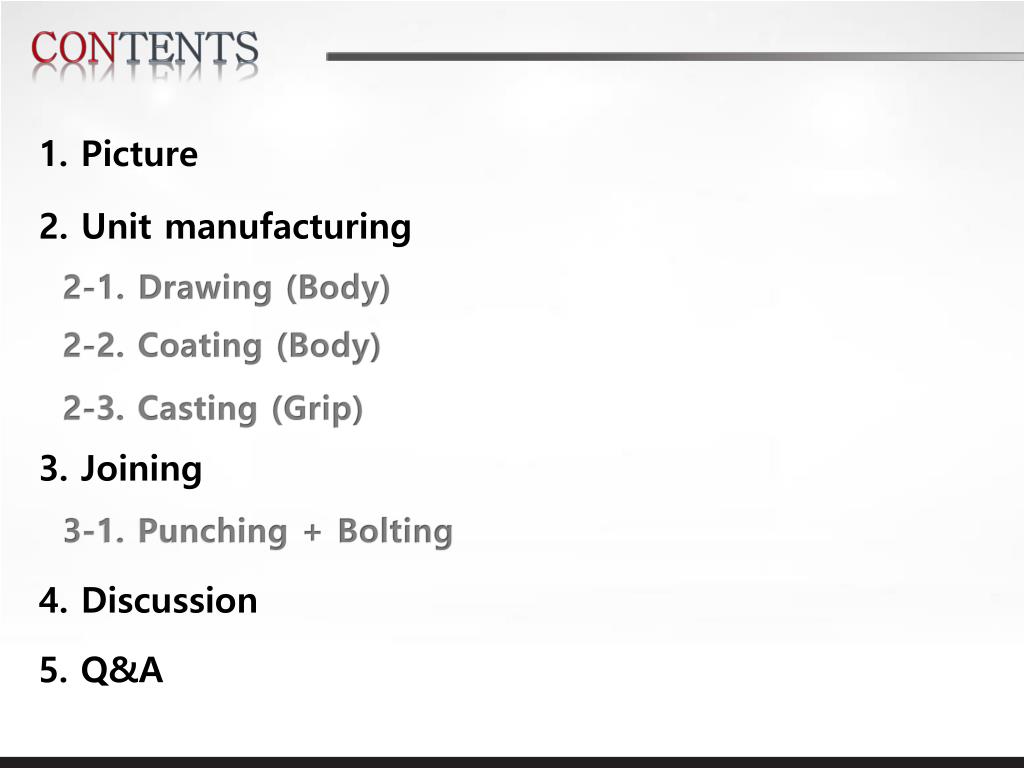

  2. Contents 1. Picture 2. Unit manufacturing 2-1. Drawing (Body) 2-2. Coating (Body) 2-3. Casting (Grip) 3. Joining 3-1. Punching + Bolting 4. Discussion 5. Q&A

  3. Picture Frypan is one of the kitchen apliances, which is using oil

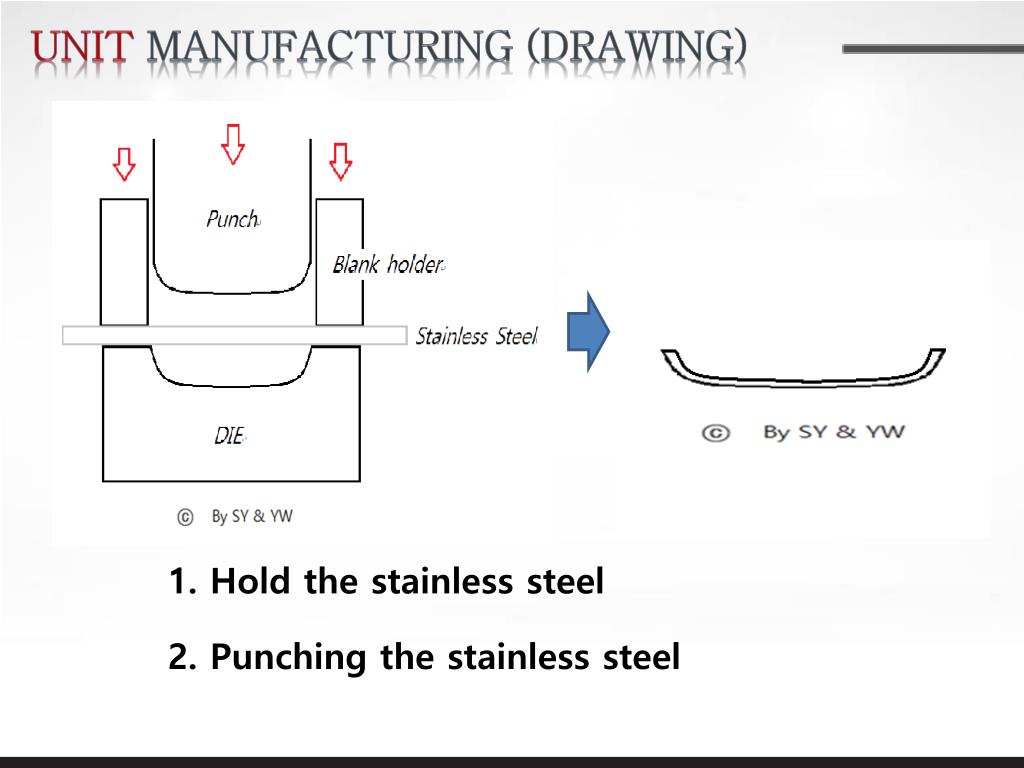

  4. Unit manufacturing (Drawing) 1. Hold the stainless steel 2. Punching the stainless steel

  5. Unit manufacturing (Coating)

  6. Unit manufacturing (casting) 1. Heating the plastic 2. Pouring the molten plastic 3. Cooling the plastic

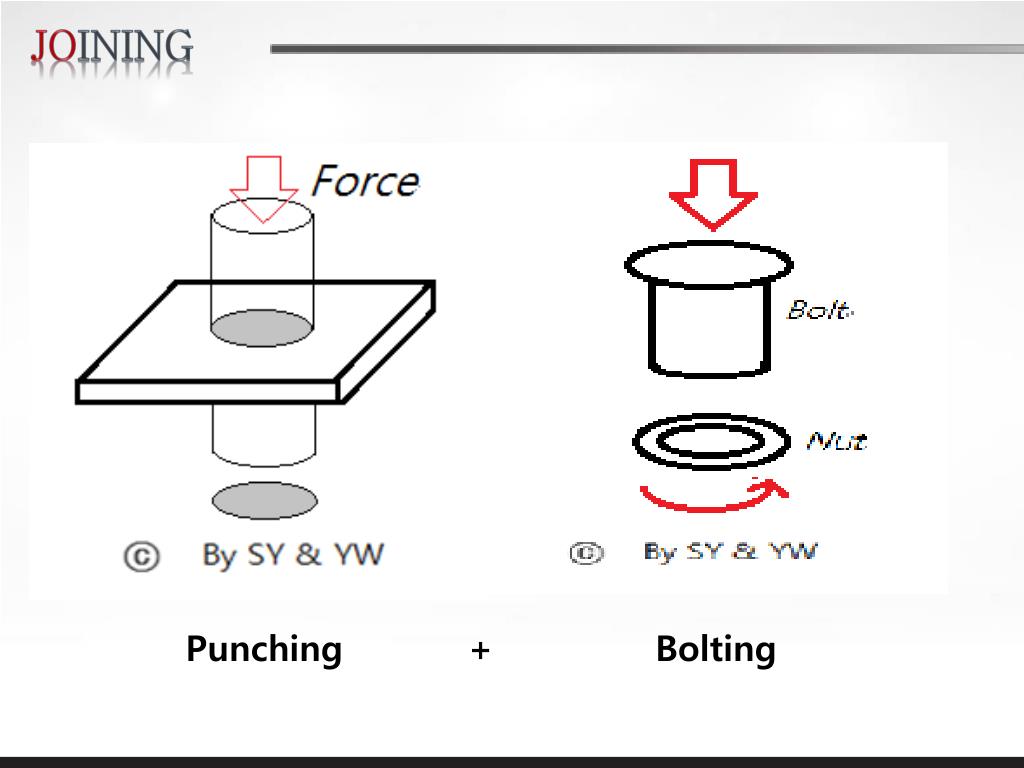

  7. Joining Punching + Bolting

  8. Discussion Drawing is suitable for mass production!!

  9. Q & A The End Thank you!!
