  1. 2011 TyreCheck 1

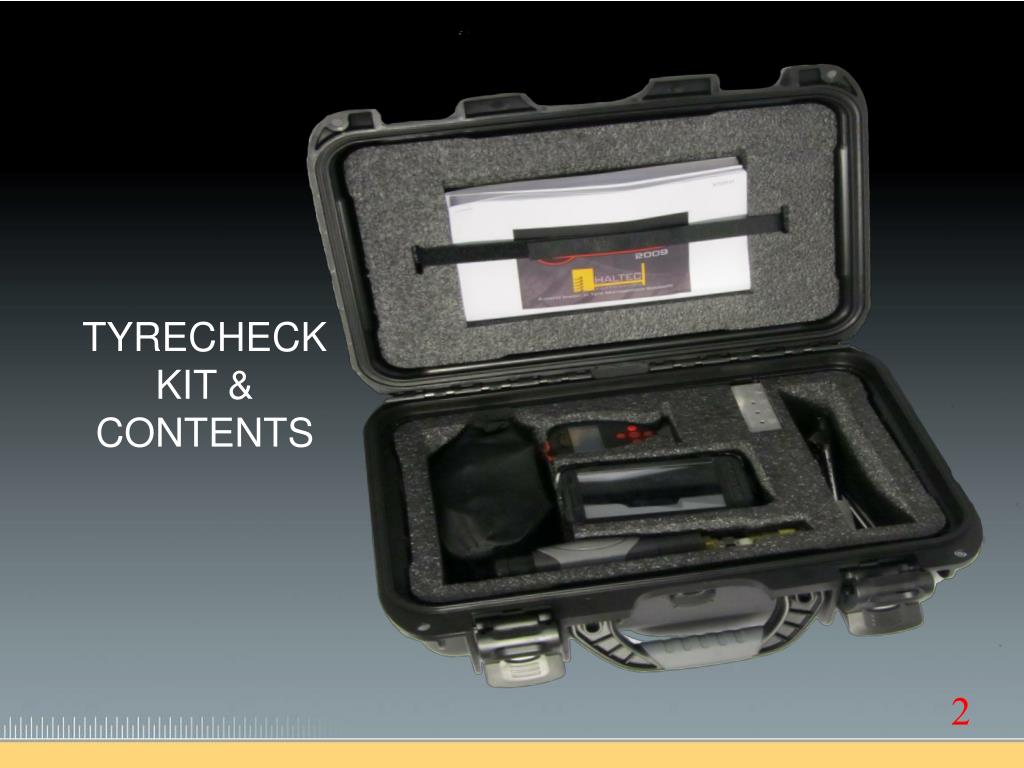

  2. TYRECHECK KIT & CONTENTS

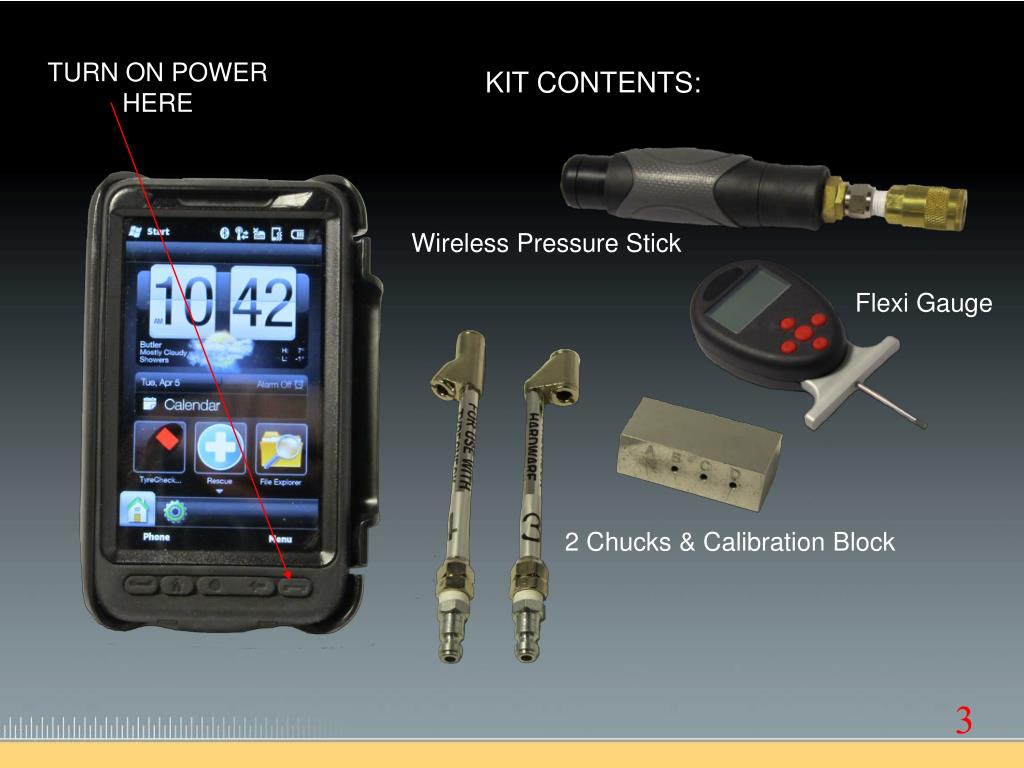

  3. TURN ON POWER HERE KIT CONTENTS: Wireless Pressure Stick Flexi Gauge 2 Chucks & Calibration Block

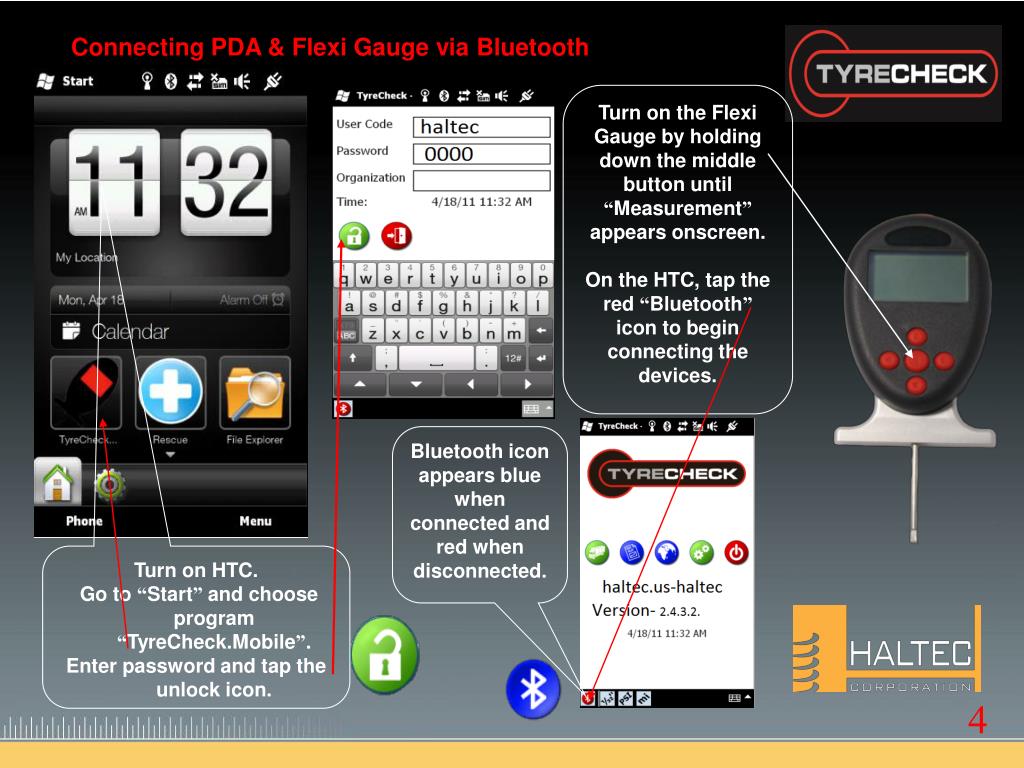

  4. Connecting PDA & Flexi Gauge via Bluetooth Turnon the Flexi Gauge by holding down the middle button until “Measurement” appears onscreen. On the HTC, tap the red “Bluetooth” icon to begin connecting the devices. Bluetooth icon appears blue when connected and red when disconnected. Turn on HTC. Go to “Start” and choose program “TyreCheck.Mobile”. Enter password and tap the unlock icon.

  5. Connecting PDA & Flexi Gauge via Bluetooth First screen displays available devices. Choose the device to connect to the HTC and select the left/right arrow icon. Exit Icon Bluetooth Icon The screen will read “Connecting”. This changes to “Connected” . Once connected you will see the Bluetooth icon and an image of the device. Use the Exit icon to return to the previous screen. Flexi Gauge Image

  6. Completing Inspections Tap the single bus icon from the Main Menu Screen. This will bring up the Fleet Screen. Choose your fleet from the drop down menu. This icon brings up your keyboard.

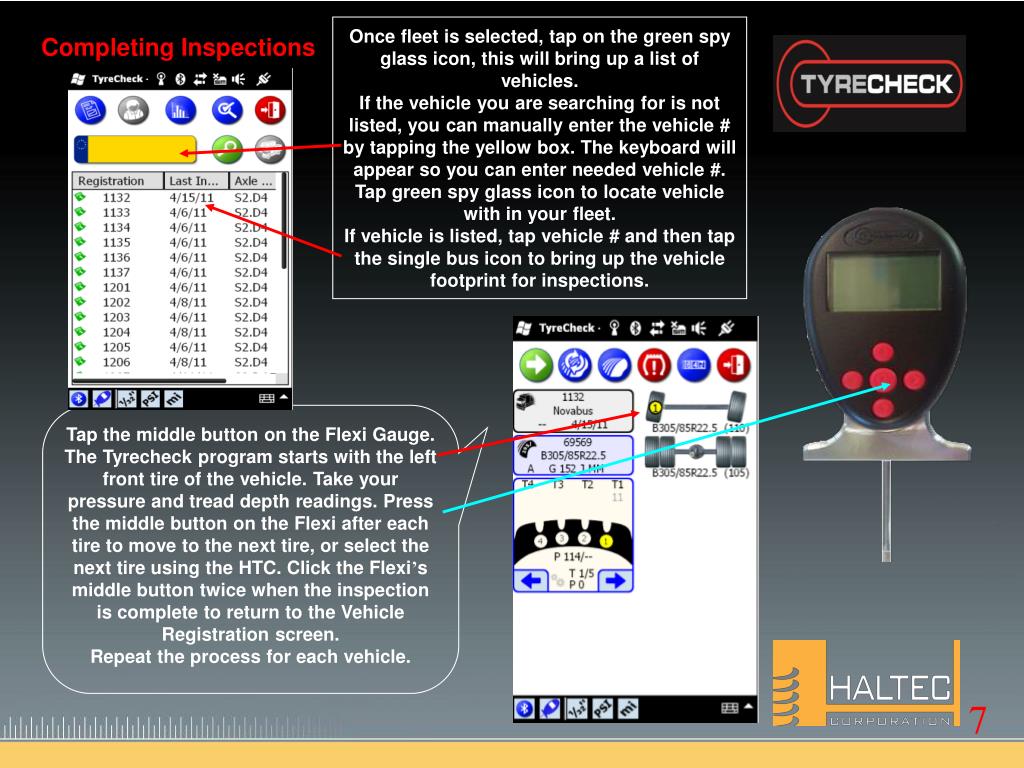

  7. Once fleet is selected, tap on the green spy glass icon, this will bring up a list of vehicles. If the vehicle you are searching for is not listed, you can manually enter the vehicle # by tapping the yellow box. The keyboard will appear so you can enter needed vehicle #. Tap green spy glass icon to locate vehicle with in your fleet. If vehicle is listed, tap vehicle # and then tap the single bus icon to bring up the vehicle footprint for inspections. Completing Inspections Tap the middle button on the Flexi Gauge. The Tyrecheck program starts with the left front tire of the vehicle. Take your pressure and tread depth readings. Press the middle button on the Flexi after each tire to move to the next tire, or select the next tire using the HTC. Click the Flexi’s middle button twice when the inspection is complete to return to the Vehicle Registration screen. Repeat the process for each vehicle.

  8. TyreCheck Flexi Gauge Mini USB Connection for charging Hold down center button to turn on and off Large display which lights up when measurement is taken Double Click to toggle between measurement mode and setup mode Stable footing to enable accurate tread readings When in Setup Mode use the Navigation Keys to move around the menus Spring loaded Tread reading needle, to allow for repeatable readings

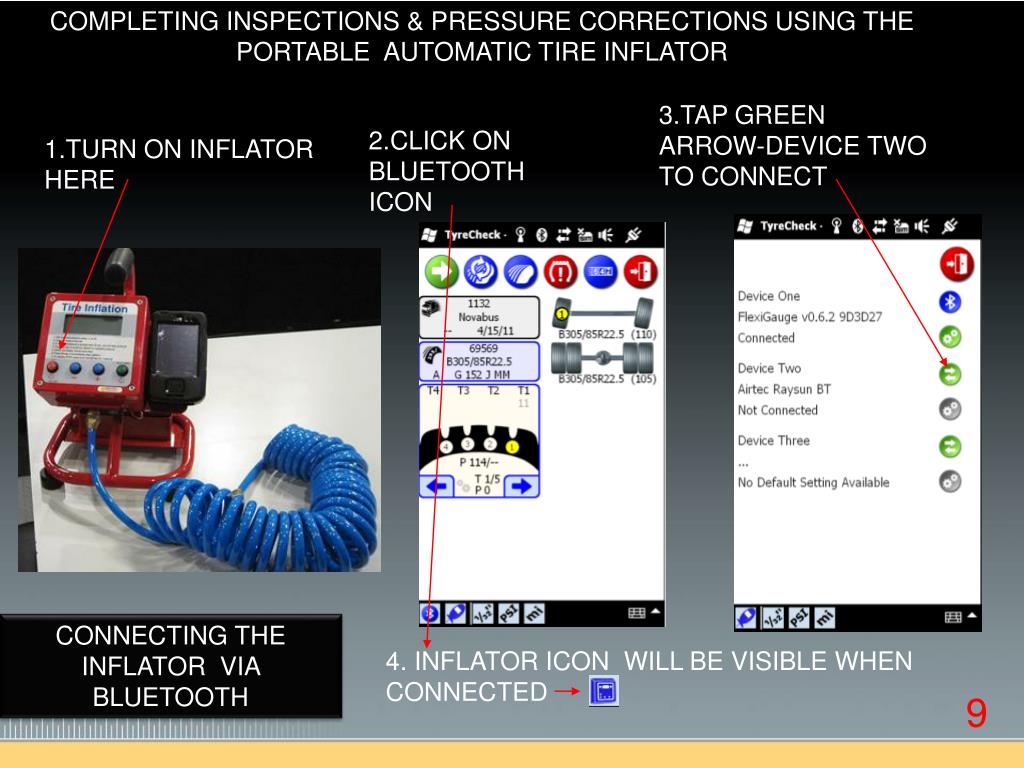

  9. COMPLETING INSPECTIONS & PRESSURE CORRECTIONS USING THE PORTABLE AUTOMATIC TIRE INFLATOR 3.TAP GREEN ARROW-DEVICE TWO TO CONNECT 2.CLICK ON BLUETOOTH ICON 1.TURN ON INFLATOR HERE CONNECTING THE INFLATOR VIA BLUETOOTH 4. INFLATOR ICON WILL BE VISIBLE WHEN CONNECTED

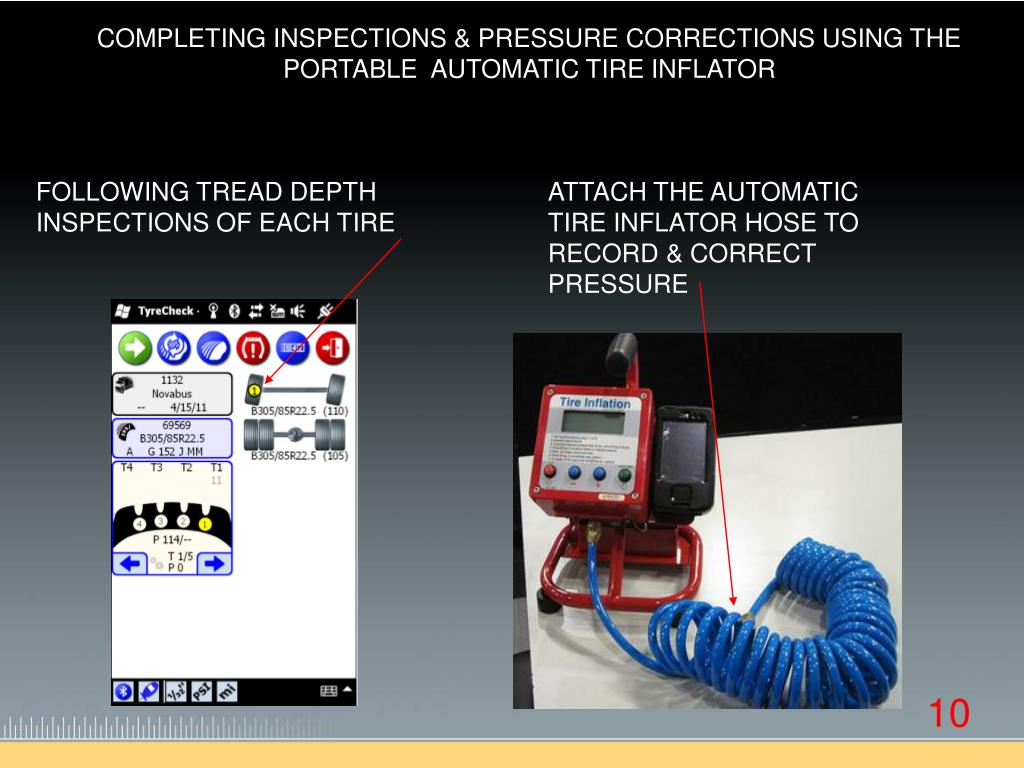

  10. COMPLETING INSPECTIONS & PRESSURE CORRECTIONS USING THE PORTABLE AUTOMATIC TIRE INFLATOR FOLLOWING TREAD DEPTH INSPECTIONS OF EACH TIRE ATTACH THE AUTOMATIC TIRE INFLATOR HOSE TO RECORD & CORRECT PRESSURE

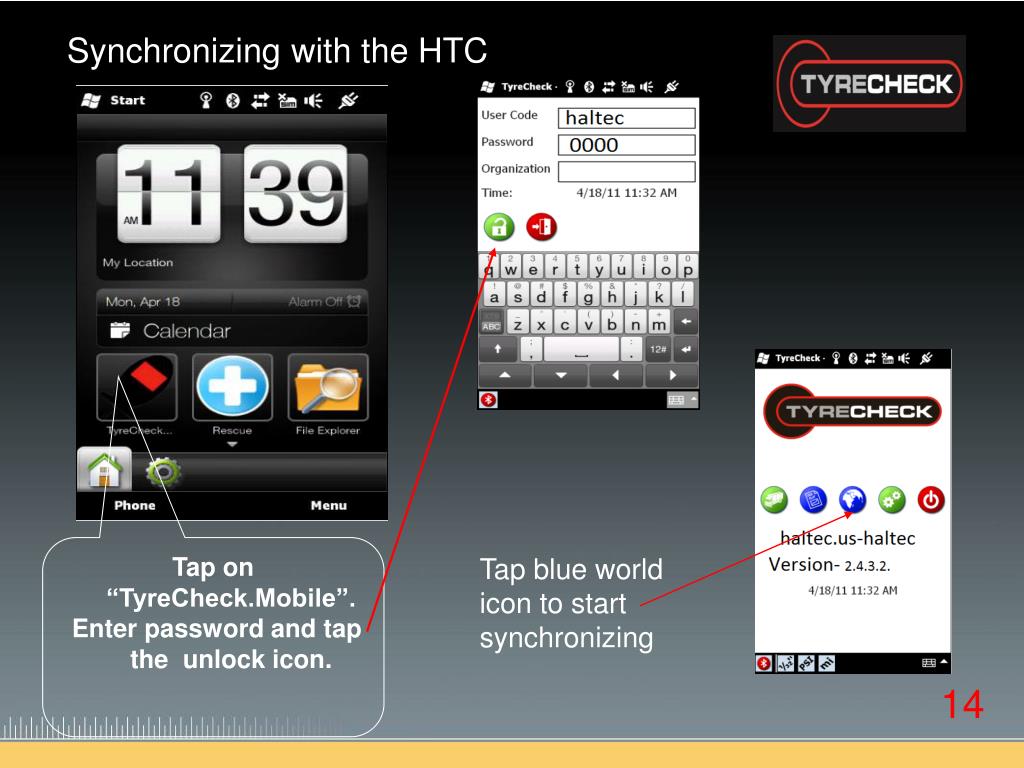

  11. Synchronizing with the HTC Tap on “TyreCheck.Mobile”. Enter password and tap the unlock icon. Tap blue world icon to start synchronizing 14

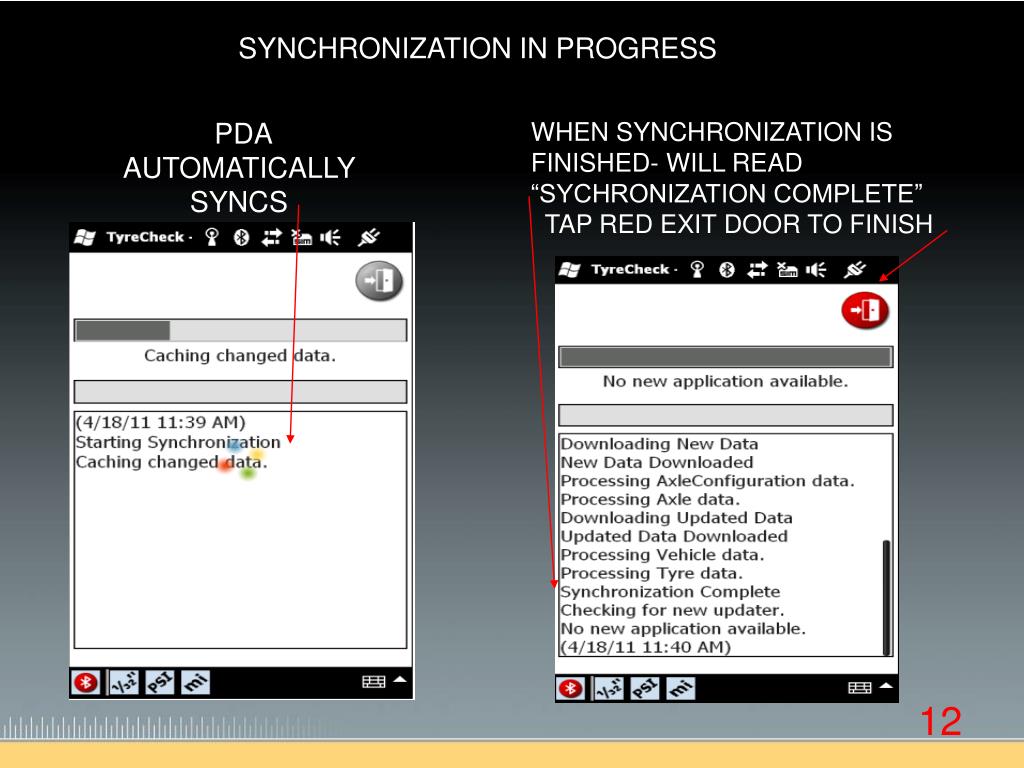

  12. SYNCHRONIZATION IN PROGRESS PDA AUTOMATICALLY SYNCS WHEN SYNCHRONIZATION IS FINISHED- WILL READ “SYCHRONIZATION COMPLETE” TAP RED EXIT DOOR TO FINISH

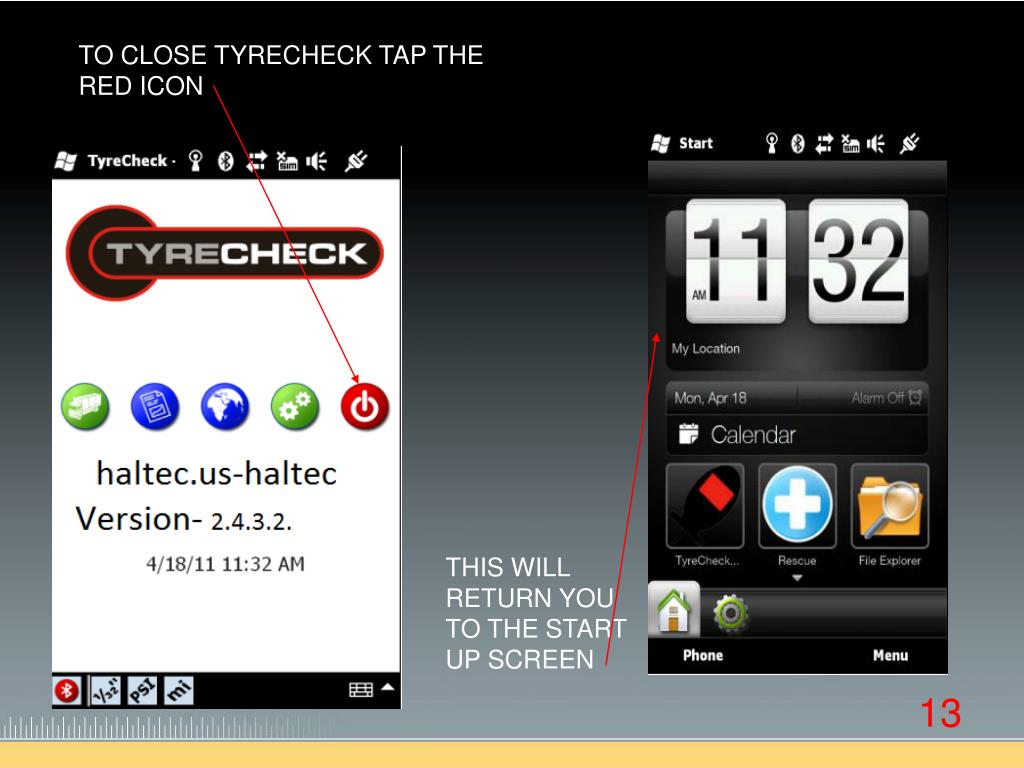

  13. TO CLOSE TYRECHECK TAP THE RED ICON THIS WILL RETURN YOU TO THE START UP SCREEN

  14. Haltec Corp. Contacts: Toll Free-800.321.6471 Ken Coyne-Office: 330.222.150 Ext.219 Cell:330.310.3510 Kyle Captain-Cell: 304.208.7782 Mike Caron-Office: 330.222.1501 Ext.254 Cell: 330.651.6899 Ryan Stuver-Office: 330.222.1501 Ext. 257 Cell: 330.277.6426 Alex Austin-Office:330.222.1501 Ext. 255
