  1. Epson TM-T20 Release: 01.03.2009 EPSON Europe B.V.

  2. Ease of use • The drop–in concept follows the standards that Epson has set in the industry with TM-T PoS printers

  3. Easy installation • Compact design with fixed USB or serial interface. AC adapter is built in (cannot be removed). DK AC USB Not possible to directly connect customer display to T20External buzzer (available as option) can be connected to DK

  4. Flexible mounting • Vertical and horizontal setting, with or w/o stand, built in or wall hanging • Even if it is installed horizontally with its back directly against the wall, its cover can be opened, so no extra space is needed. • By attaching the wall hanging bracket to the bottom, TM-T20 can be set with its front perpendicularly for installation to other devices.

  5. Wall mounting bracket included • To ensure consistency of the installation the TM-T20 can be installed vertical as well. Adjustment of the near end sensor and sticking the included label to the panel is all which is needed to be done. • For kitchens, an external buzzer is available

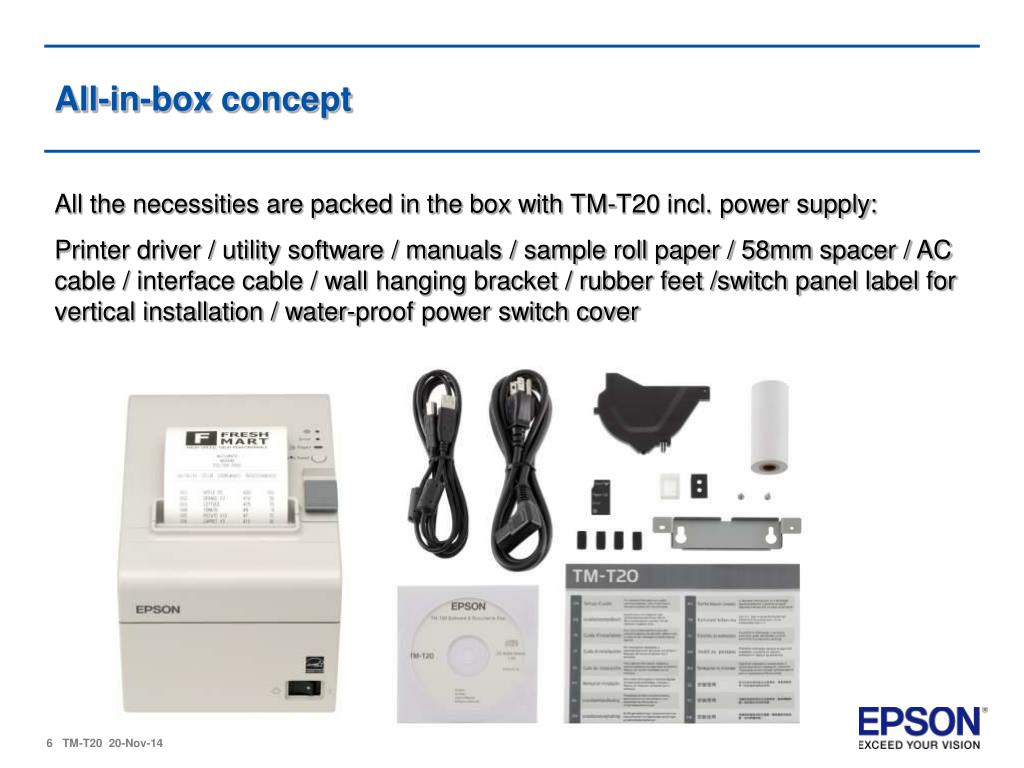

  6. All-in-box concept • All the necessities are packed in the box with TM-T20 incl. power supply: • Printer driver / utility software / manuals / sample roll paper / 58mm spacer / AC cable / interface cable / wall hanging bracket / rubber feet /switch panel label for vertical installation / water-proof power switch cover

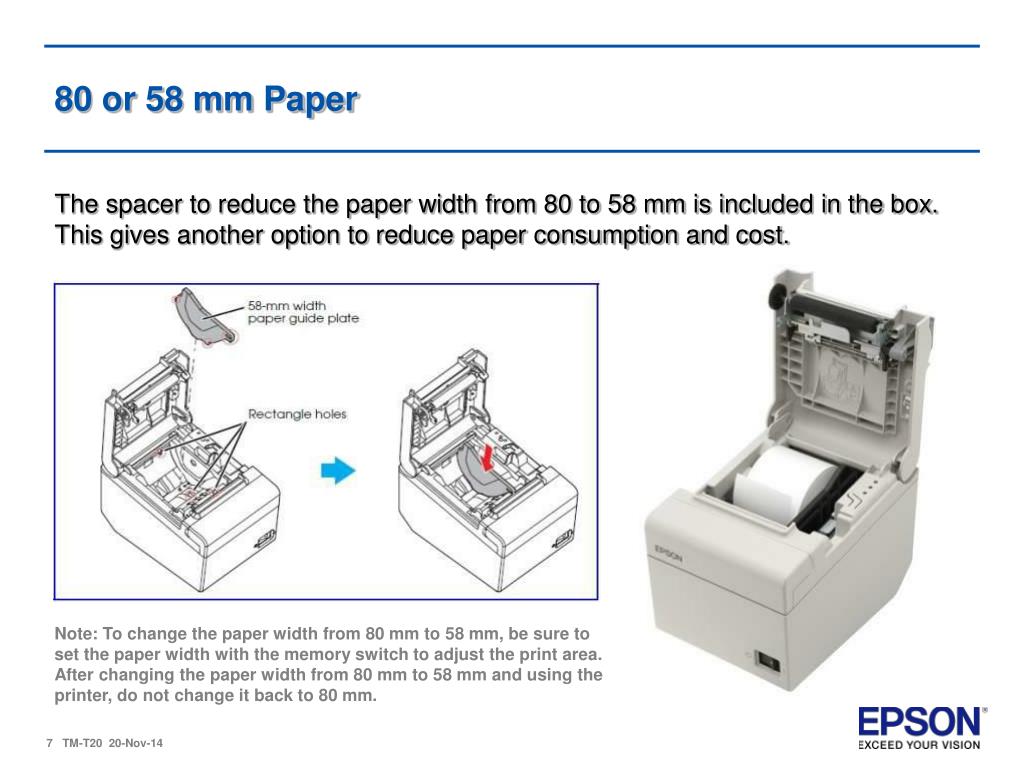

  7. 80 or 58 mm Paper • The spacer to reduce the paper width from 80 to 58 mm is included in the box. This gives another option to reduce paper consumption and cost. • Note: To change the paper width from 80 mm to 58 mm, be sure to set the paper width with the memory switch to adjust the print area. After changing the paper width from 80 mm to 58 mm and using the printer, do not change it back to 80 mm.

  8. 4. TM-T20 Internal Features

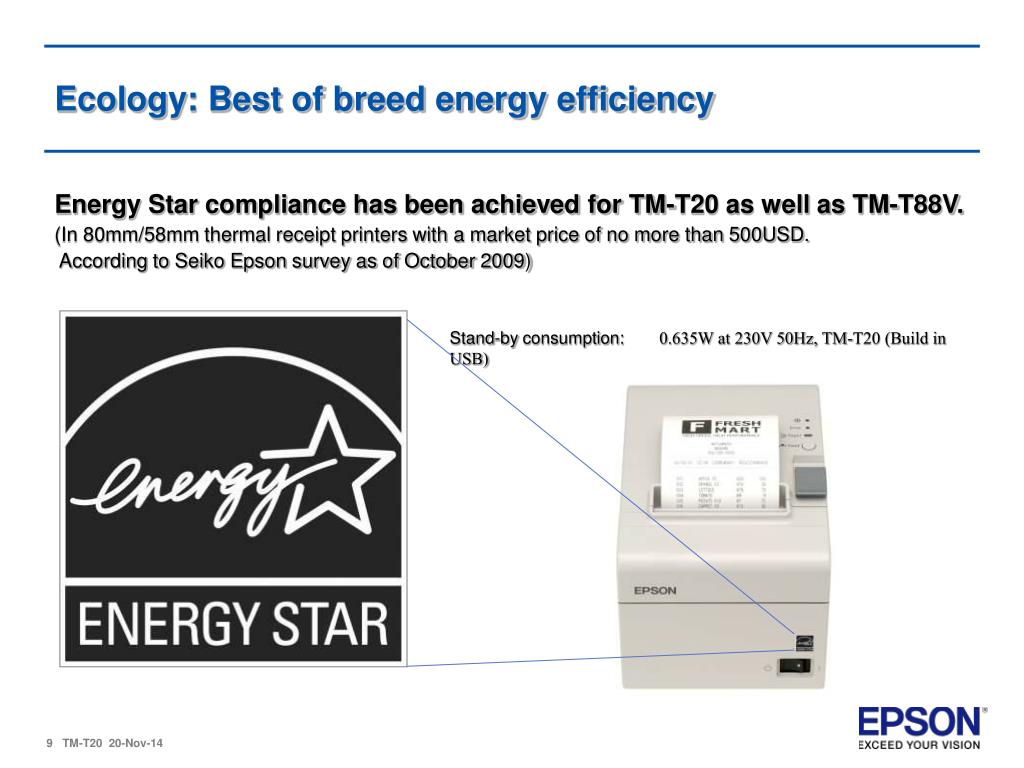

  9. Ecology: Best of breed energy efficiency Energy Star compliance has been achieved for TM-T20 as well as TM-T88V.(In 80mm/58mm thermal receipt printers with a market price of no more than 500USD. According to Seiko Epson survey as of October 2009) Stand-by consumption:0.635W at 230V 50Hz, TM-T20 (Build in USB)

  10. Automatic speed adjustment function Thanks to high level synchronizing control of the interface communication speed and printing speed, Epson has realized smooth logo printing and pattern printing. This is especially effective in cases of serial connections with slow communication speeds. TM-T20 Uniform printing with no irregularity. Competitors Printing is irregular.

  11. Easy set-up Packed with DVD-ROM. Installer, tools and documents are provided in the DVD-ROM. Sample pictures

  12. Customers Application on Windows OS Customers Application on Windows OS Virtual Parallel port Virtual Serial port LPT COM Virtual port driver USB USB TM-T20 Virtual port driver Serial and Parallel virtual port drivers are provided. Customer who want to use USB Interface can use virtual serial or parallel port without changing application.

  13. 42 column mode Migrate path from competitor printers, which supports 180dpi print emulation.

  14. Print speed 150 mm/s EPSON internal Epson TM-T20 Star TSP-100 Bixolon SRP-350 Sewoo WTP-150 125mm/s 150mm/s

  15. Reliable EPSON internal Based on the highest level reliability in the industry, TCO are low. 2 years standard commercial warranty. Can be extended by TBD. TM-T20 MCBF Printhead Autocutter

  16. Paper jam handling EPSON internal In the event of unexpected paper jams, the internal structure is designed to prevent the abnormal cutting of receipts, etc. Midstream receipt cutting Star TSP-700II Midstream receipt cutting Note: Paper jam normally does not happen for less than 150mm receipts Bixolon SRP-350plus

  17. 5. TM-T20 Specs

  18. or serial IF Basic specs

  19. What‘s in the box • TM-T20 ECW or EDG • Built-in AC adapter • AC cable (220V or 240V) • Interface cable (USB cable (1.8m) or Serial cable (2m)) • Wall hanging bracket • Spacer (for 80mm -> 58mm) • Rubber feet • Switch panel for vertical installation • Water-proof power switch cover • Sample paper roll • 2 years warranty document • DVD with driver, utilities and user manual • Standard Factory Options • Color (EDG/ECW) • IF (USB or Serial) • Accessories/ Options • External Buzzer (From August 2010)

  20. External buzzer • Compatibility: • Only T20 and T88V • Colour: • EDG only • Availability • From August 2010 onwards • Connection • Connect to DK connector of TM printer • Set up • Attach to TM printer by using the packaged fastener tape • Tone • 5 patterns + error pattern + paper-end pattern (7 patterns) • Volume • Adjustable by knob • Beep by command • Beep 7 patterns by exclusive command for TM • Independent beep • Beep independently at the time of error/paper-end (Memory Switch setting) • Combination beep • Combination with A/C command, DK command (Memory Switch setting) • Remarks • Not available with DK (can not use 2 way connector) • Can not change the buzzer pattern (7 patterns only) • Available for TM-T88V and TM-T20 (standard model)

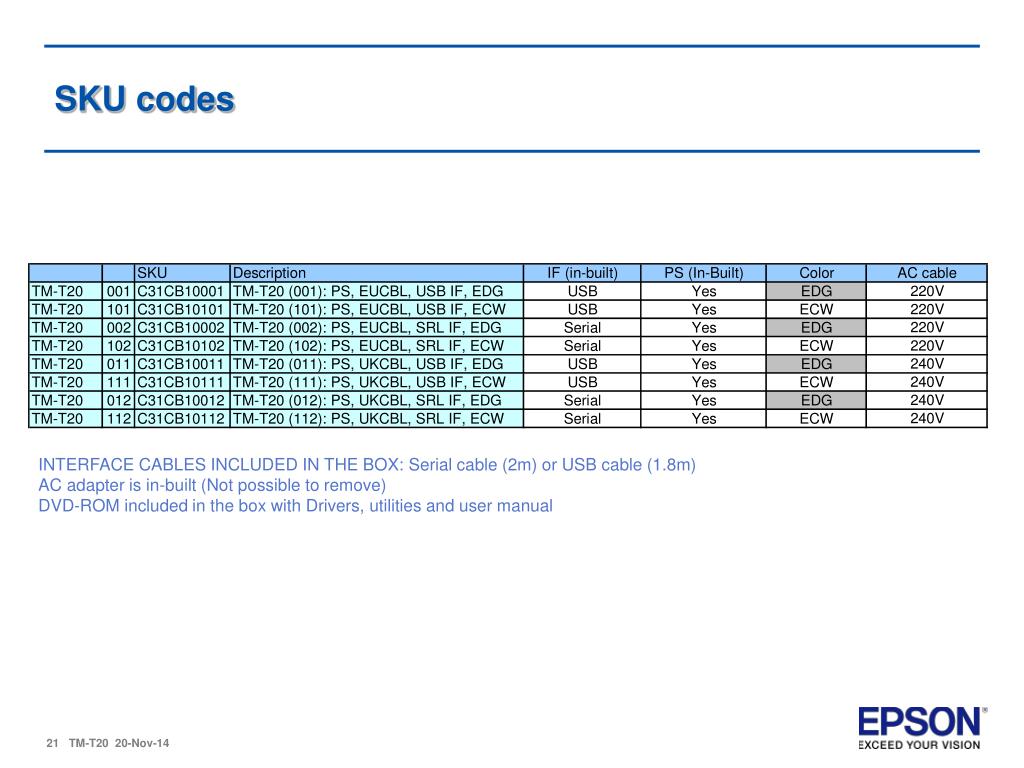

  21. SKU codes INTERFACE CABLES INCLUDED IN THE BOX: Serial cable (2m) or USB cable (1.8m) AC adapter is in-built (Not possible to remove) DVD-ROM included in the box with Drivers, utilities and user manual

  22. Thank you!
