  1. Ionic Bonding Chapter 6.1

  2. Electron Configuration • An elements ability to bond depends on its electron configuration. • Specifically, the outermost electrons determine if an atom will react

  3. iClicker Question • What is the name of the electrons on the highest energy level. • Ground State Electrons • Valence Electrons • Ionized Electrons • Active Electrons • Transfer Electrons

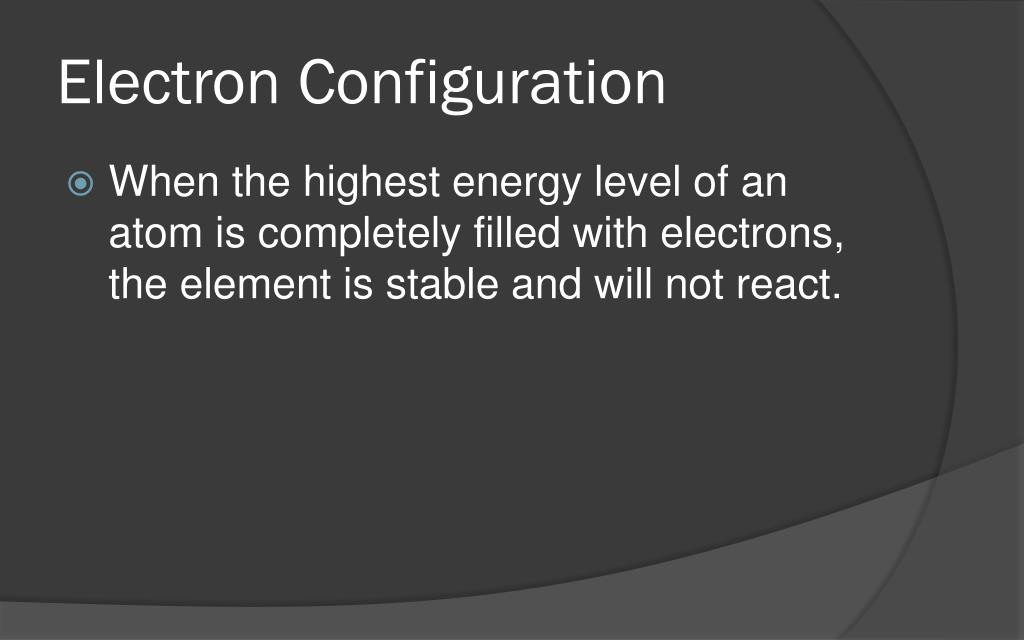

  4. Electron Configuration • When the highest energy level of an atom is completely filled with electrons, the element is stable and will not react.

  5. iClicker Question • Which group on the periodic table has filled outer shells and will not react. • Alkali Metals • Alkali Earth Metals • Transition Metals • Halogens • Noble Gases

  6. Electron Dot Diagrams • An electron dot diagram is a model in which each dot represents a valence electron. • The number of valence electrons an element has depends on what group it’s in.

  7. Electron Dot Diagrams H C Ar F Al Cl

  8. iClicker Question • How many valence electrons does Chlorine have? • 1 • 2 • 7 • 8 • 17

  9. Electron Dot Diagrams

  10. Ionic Bonding • Some elements which do not have a stable outer shell will try to get it by transferring electrons. • An element can achieve that by either gaining or losing electrons.

  11. iClicker Question • When an atom gets rid of 2 electrons, what is its charge? • -2 • -1 • 0 • +1 • +2

  12. Formation of Ions • When an atom gains or loses an electron, the number of protons is no longer equal to the number of electrons. • The charge on the atom is not balanced and it is no longer neutral. • An atom that has a positive or negative charge is called an ion.

  13. Ions • The charge on an ion is represented by a plus or minus sign next to the elements symbol. Na+

  14. iClicker Question • What ion does magnesium form? • Mg+2 • Mg+1 • Mg • Mg-1 • Mg-2

  15. Anion & Cation • An ion which has a negative charge is called an Anion • An ion which has a positive charge is called a Cation

  16. iClicker Question • Calcium has lost 2 electrons! Which of the following correctly describes the ion created: • Anion, -2 • Anion, -1 • Cation, +2 • Cation, +1 • Cation, -2

  17. Ionic Bonding • Negative and positives are attracted to each other. • An anion and a cation will attract each other and form a bond. • When two ions form a bond, its called an ionic bond.

  18. Ionic Bond Sodium wants to get rid of an electron… +1 Na Chlorine wants to get an electron… -1 Cl Positive Na is attracted to negative Cl…

  19. Ionic Compound • A chemical formula shows the ratio of one element to another in a compound. • Element will bond with other elements so they can have a stable electron configuration (full shell).

  20. Ionic Compound • Magnesium has 2 valence electrons • Chlorine has 7 valence electrons • Magnesium cannot be stable by reacting with just 1 chlorine. It must donate 2 electrons and chlorine can only accept 1. • Another Chlorine must be present to accept the electron and make a bond.

  21. Ionization Energy • Ionization Energy is the energy required to remove an electron from an atom.

  22. Homework: p. 187 #1-3, 11-13, 15-16, 26, 30 End of Chapter 6.1

  23. Covalent Bonding Chapter 6.2

  24. iClicker Question • What ion does Oxygen form? • -2 • -1 • 0 • +1 • +2

  25. iClicker Question • What is the ionic formula for a bond between Calcium and Fluorine? • CaF • CaF2 • Ca2F • Ca2F2 • Calcium and Fluorine do not bond.

  26. Covalent Bonding • In a covalent bond, electrons are shared. • A molecule is a group of atoms that are joined together by covalent bonds.

  27. Bonds • If only a single pair of electrons are shared between elements, that is a Single Covalent Bond • If more than one pair of electrons is shared, a covalent bond may be a double or triple bond.

  28. iClicker Questions • Which of the following could make a multiple bond? • Chlorine • Fluorine • Oxygen • Bromine • They could all make multiple bonds.

  29. iClicker Question • Atoms in covalent bonds are called: • Compounds • Molecules • Polar • Non-Polar • Ionic

  30. Polar Bonds • A covalent bond in which electrons are not shared equally is called a polar covalent bond. • When a polar bond forms, the element with the larger attraction has a partial negative charge. • The other element in the molecule will have a partial positive charge.

  31. Polar Molecules • An entire molecule can be polar if it contains polar bonds or if its shape causes it to be polar.

  32. Polar Molecule Attraction • Because polar molecules have a positive and negative end, they tend to have greater attraction to each other. • Like magnets, the positive end of a polar molecule lines up with the negative end of another polar molecule.

  33. p. 187 #4-5, 8, 17-19, 27, 34-35 End of 6.2

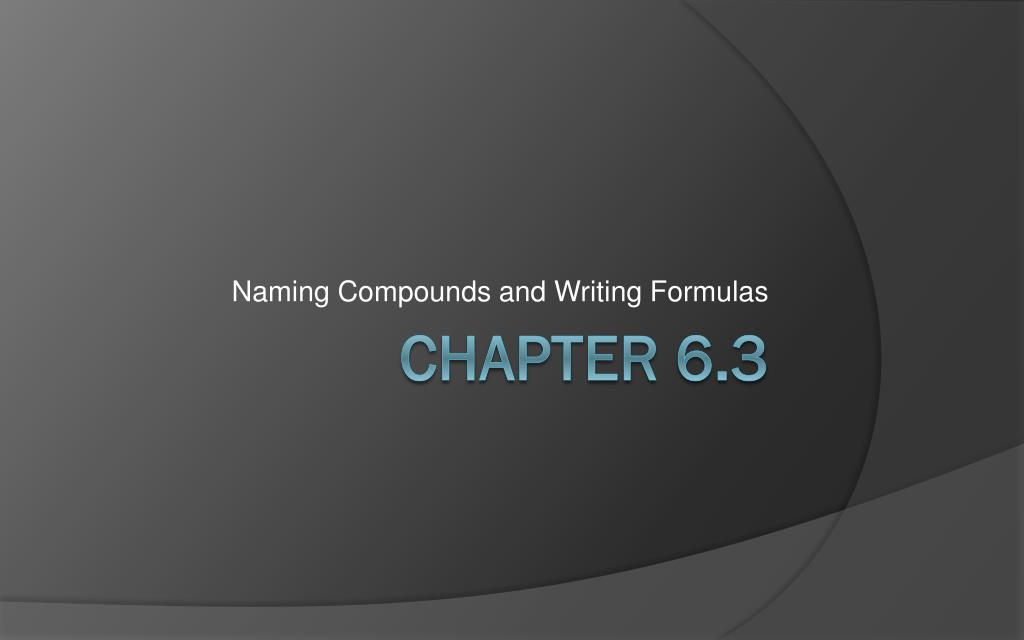

  34. Naming Compounds and Writing Formulas Chapter 6.3

  35. iClicker Question • What ion does Oxygen usually form? • O-1 • O-2 • O+1 • O+2 • Oxygen doesn’t form an ion

  36. iClicker Question • What does the prefix bi mean in the word bicycle? • One • Two • Three • Four • None of the above

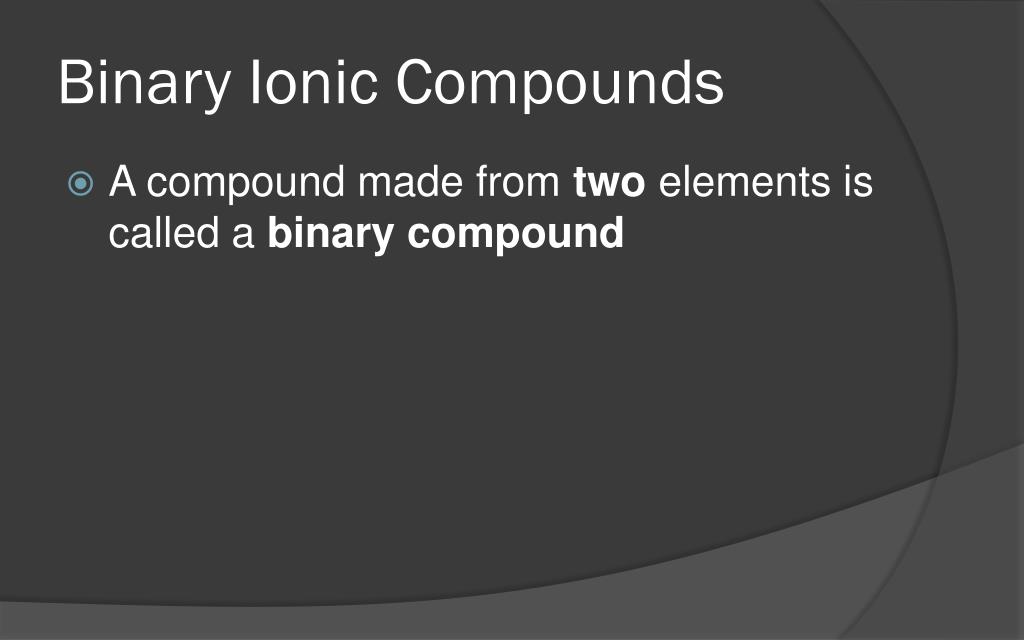

  37. Binary Ionic Compounds • A compound made from two elements is called a binary compound

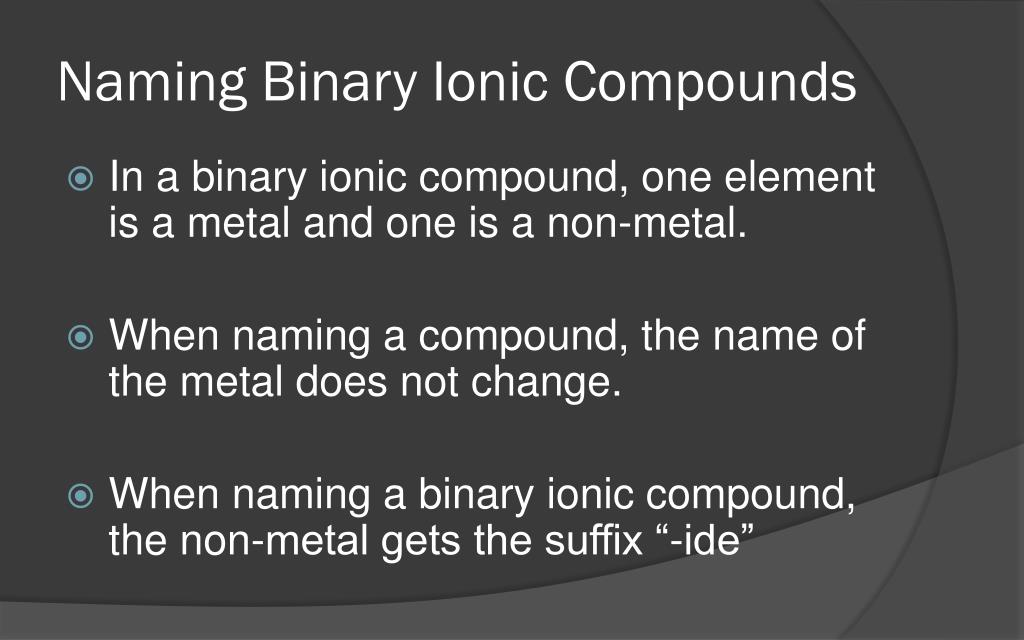

  38. Naming Binary Ionic Compounds • In a binary ionic compound, one element is a metal and one is a non-metal. • When naming a compound, the name of the metal does not change. • When naming a binary ionic compound, the non-metal gets the suffix “-ide”

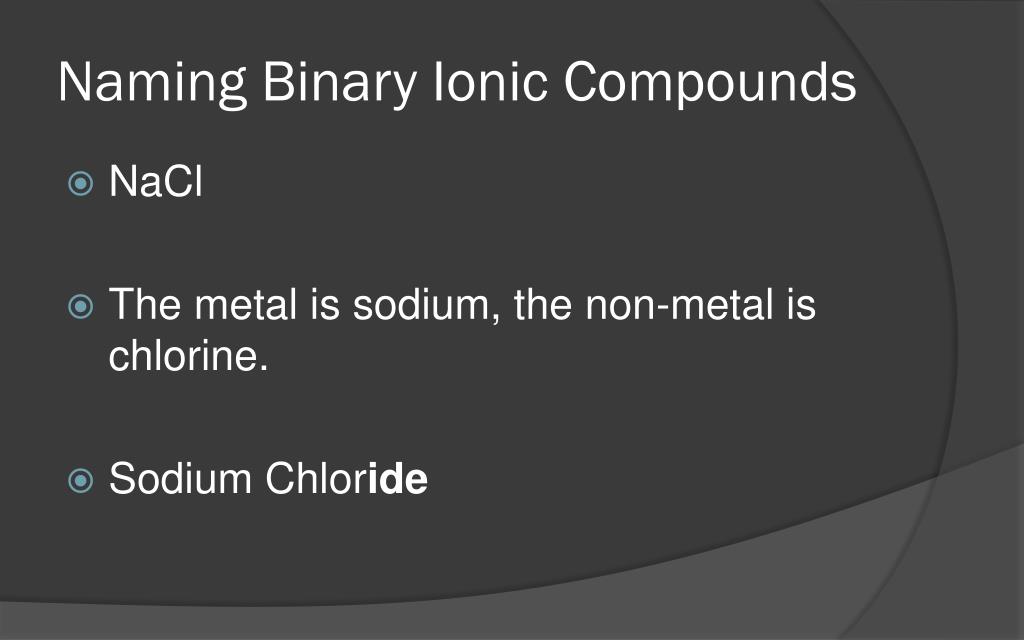

  39. Naming Binary Ionic Compounds • NaCl • The metal is sodium, the non-metal is chlorine. • Sodium Chloride

  40. iClicker Question • Name the following compound: KI • Potassium Iodine • Potassium Iodide • Iodine Potassium • Iodide Potassium • Iodine Potasside

  41. iClicker Question • Name the following compound: Li2O • Lilthium Oxygen • Bilithium Oxide • Lithium Oxide • Lithide Oxide • Lithide Oxygen

  42. Multiple Ions • Some metals have multiple ions, meaning they have more than one ion. • A roman numeral is placed after the name of the metal to tell which ion is being used

  43. Metals with Multiple Ions • Copper sometimes makes a +1 ion CuCl- Copper (I) Chloride • But it can also make a +2 ion CuCl2 - Copper (II) Chloride • The roman numeral tells what ion it is.

  44. Polyatomic Ions • An ion which is made up of more than two ions is called a polyatomic ion. • The prefix “poly-” means many • (NH4)+1, (NO3)-1, (OH)-1 are example of polyatomic ions.

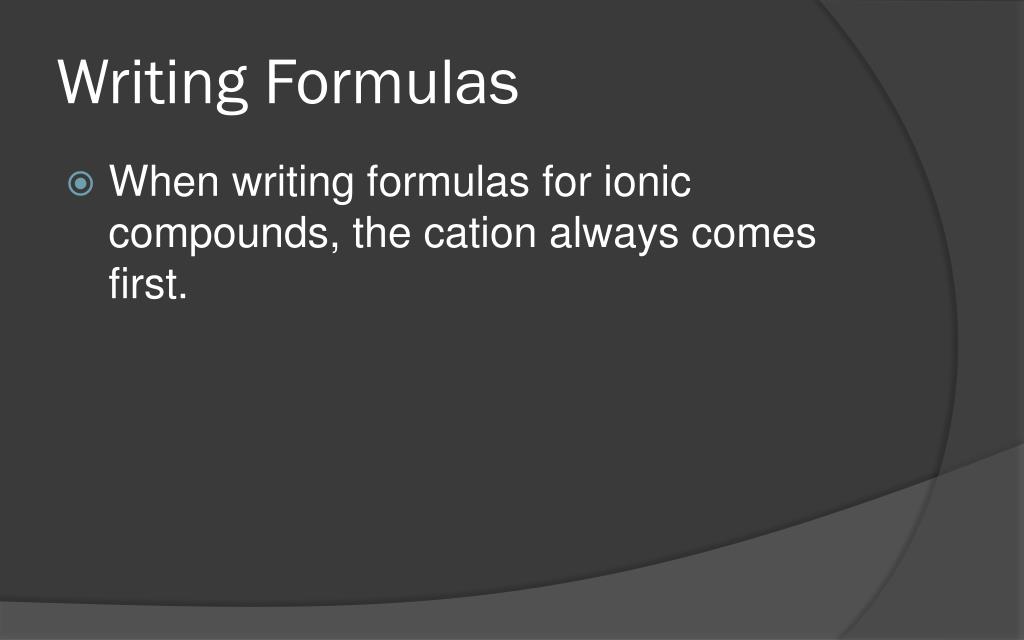

  45. Writing Formulas • When writing formulas for ionic compounds, the cation always comes first.

  46. iClicker Question • What is the correct formula for Calcium Oxide? • CaO • Ca2O • CaO2 • O2Ca • OCa2

  47. iClicker Question • What is the difference between compounds and molecules? • Compounds are only ionic bonds • Compounds do not include ions • Molecules are made from isotopes • Molecules are made from compounds • None of the above are correct

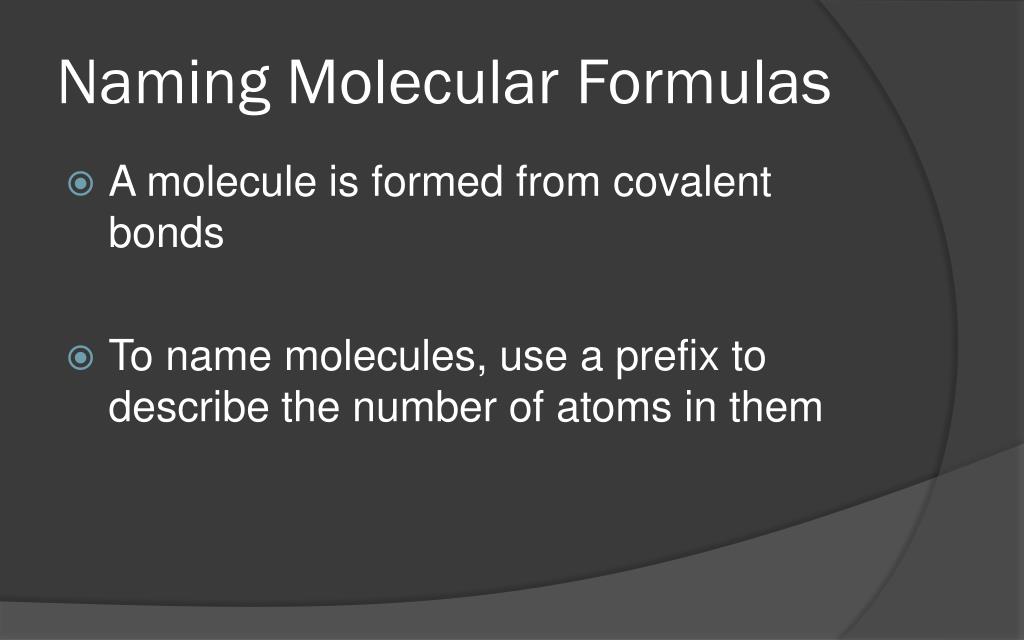

  48. Naming Molecular Formulas • A molecule is formed from covalent bonds • To name molecules, use a prefix to describe the number of atoms in them

  49. Prefixes
