  1. The George Washington UniversitySchool of Engineering and Applied ScienceDepartment of Electrical and Computer Engineering ECE122 – Lab 7 Binary Counter Ritu Bajpai August 18, 2009

  2. Introduction • Sequential circuit that goes through a prescribed sequence of states • We’ll design binary up-down counter • Use T flip flops • T flip flop designed by tying the inputs of JK flip flop together

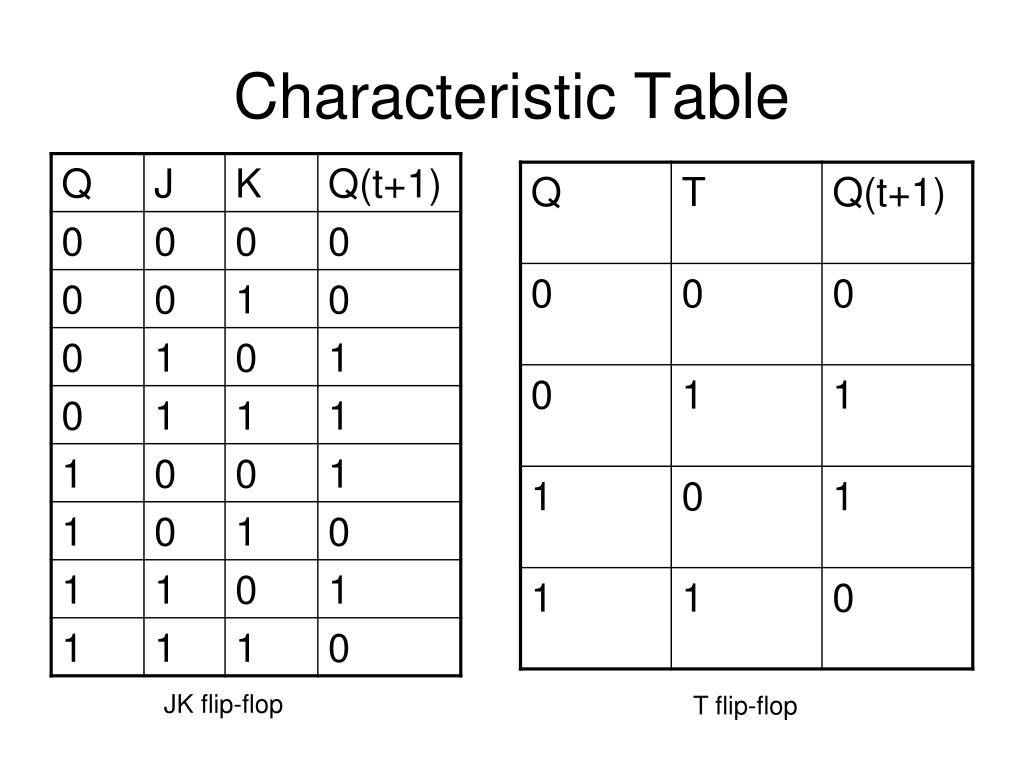

  3. Characteristic Table JK flip-flop T flip-flop

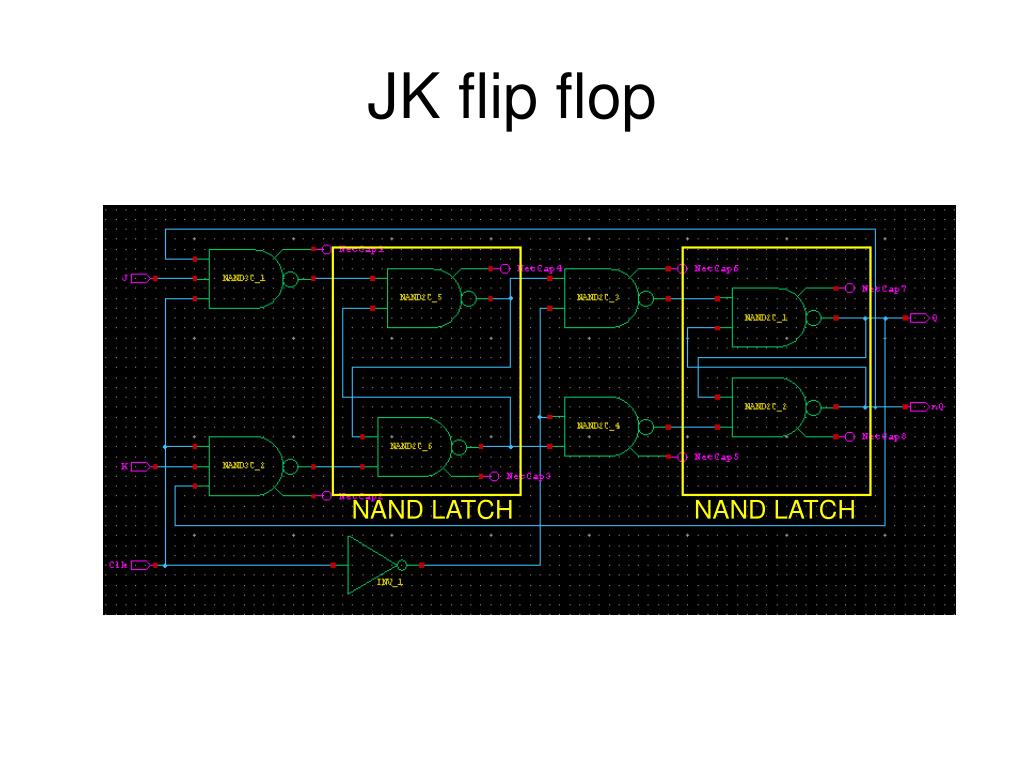

  4. JK flip flop NAND LATCH NAND LATCH

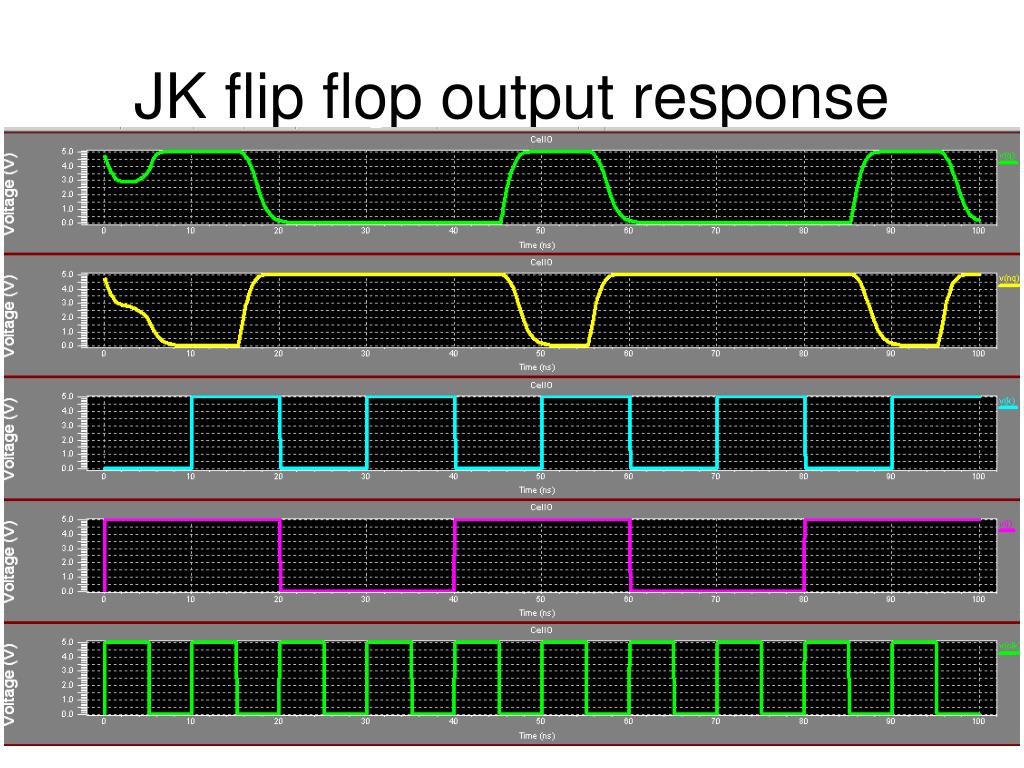

  5. JK flip flop output response

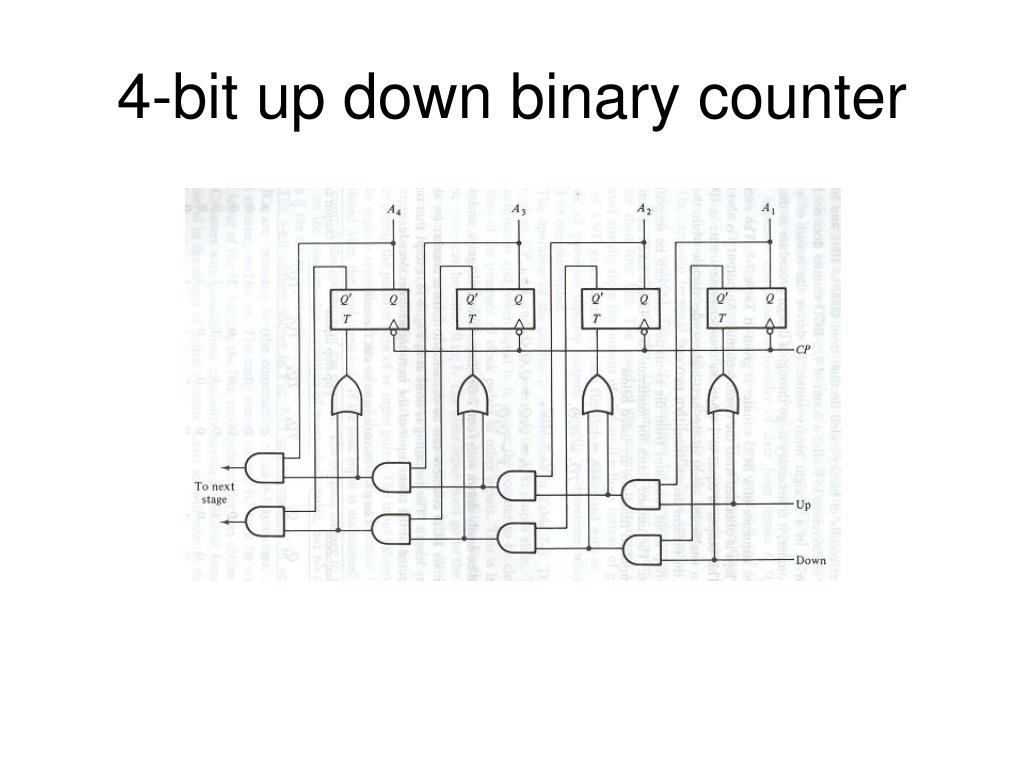

  6. 4-bit up down binary counter

  7. Counter output response
