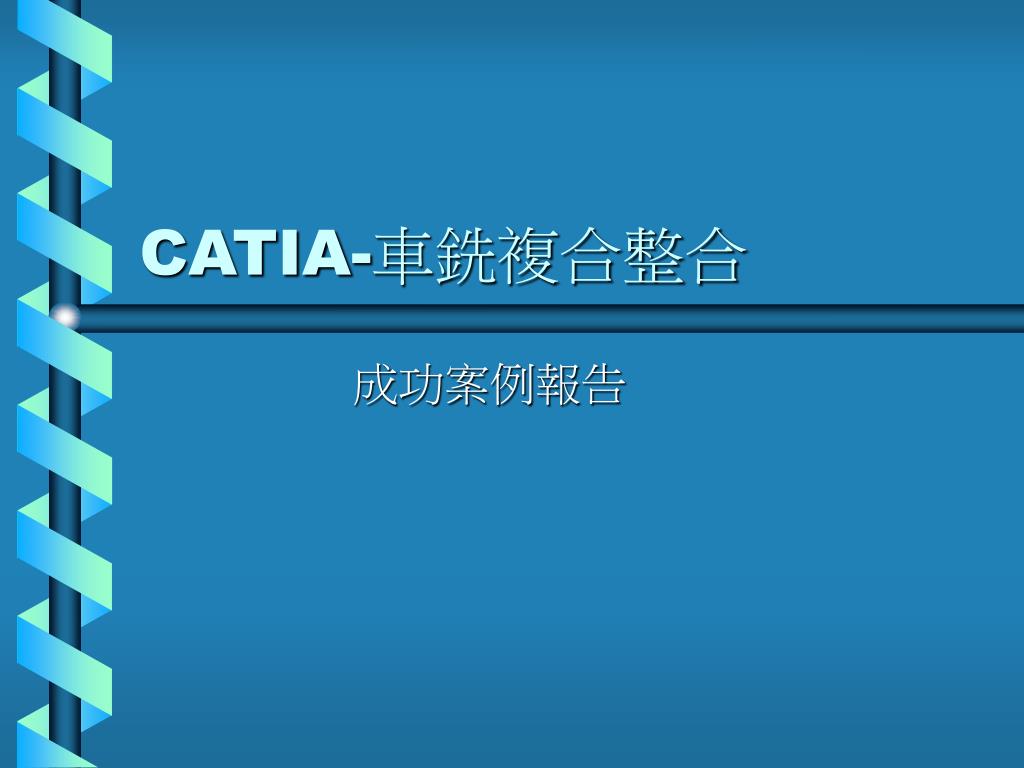

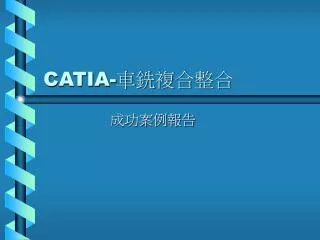

  1. CATIA-車銑複合整合 成功案例報告

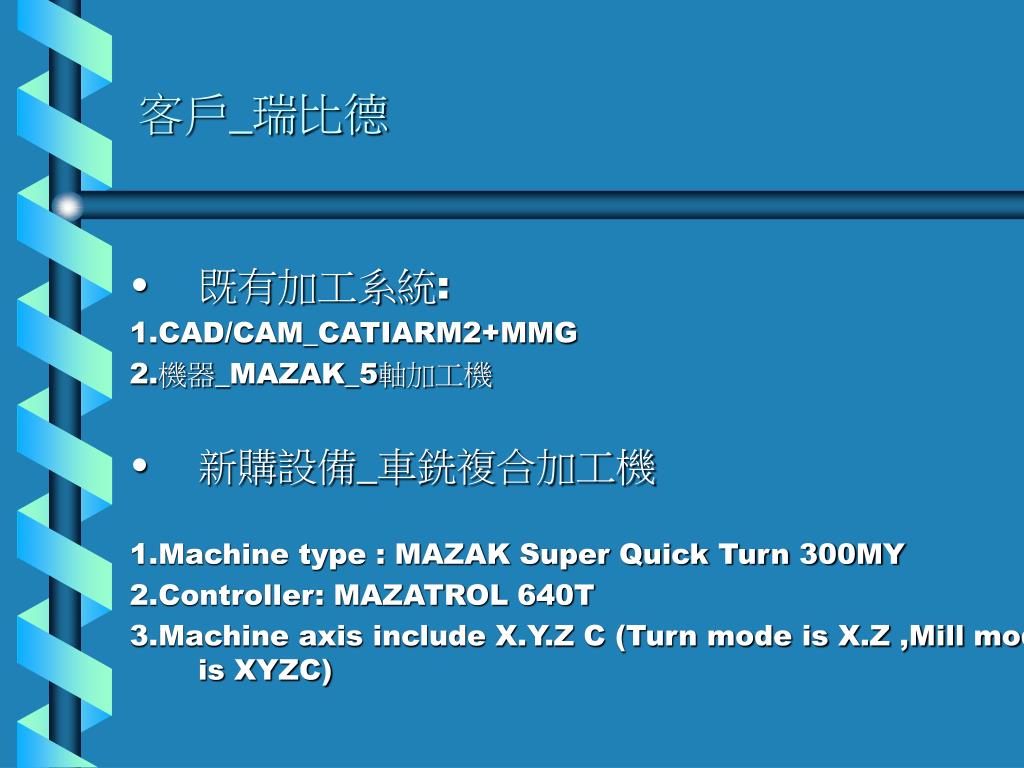

  2. 客戶_瑞比德 • 既有加工系統: 1.CAD/CAM_CATIARM2+MMG 2.機器_MAZAK_5軸加工機 • 新購設備_車銑複合加工機 1.Machine type : MAZAK Super Quick Turn 300MY 2.Controller: MAZATROL 640T 3.Machine axis include X.Y.Z C (Turn mode is X.Z ,Mill mode is XYZC)

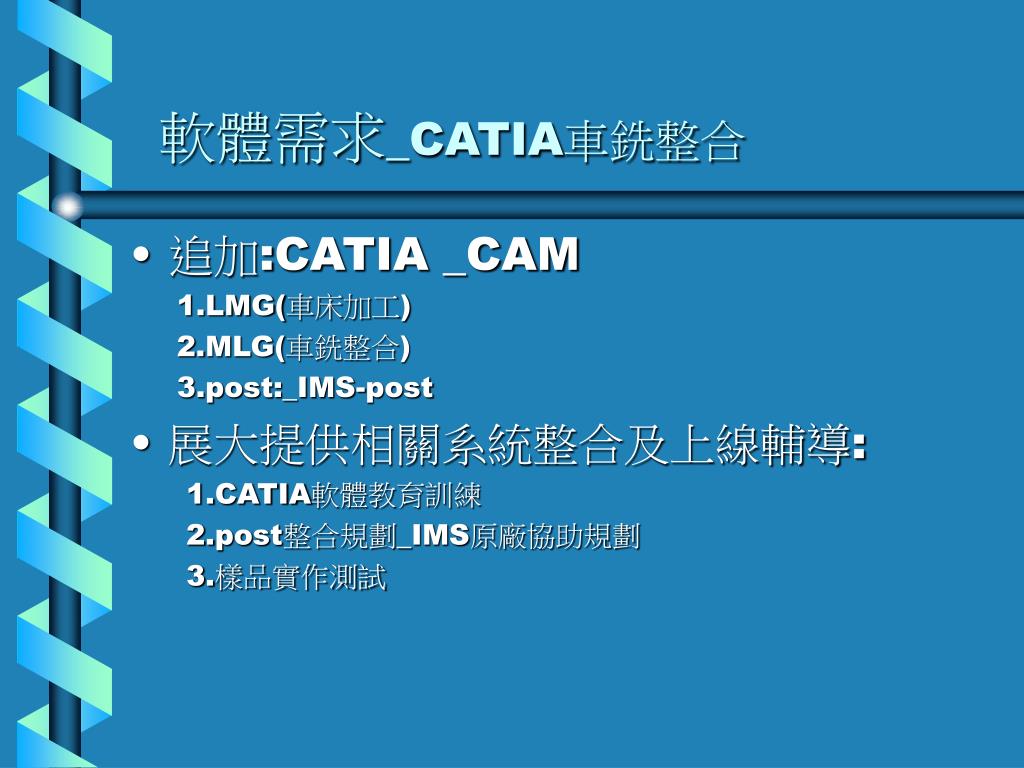

  3. 軟體需求_CATIA車銑整合 • 追加:CATIA _CAM 1.LMG(車床加工) 2.MLG(車銑整合) 3.post:_IMS-post • 展大提供相關系統整合及上線輔導: 1.CATIA軟體教育訓練 2.post整合規劃_IMS原廠協助規劃 3.樣品實作測試
