Motion in One Dimension

Motion in One Dimension. Kinematics. Distance vs. Displacement. Distance – how far you’ve traveled Scalar quantity - 20 m Displacement – shortest distance traveled from starting point to end point. Vector quantity – 20 m, 40 o , N of W. Instantaneous Position.

ashtyn
Download Presentation

Motion in One Dimension

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Motion in One Dimension Kinematics

  2. Distance vs. Displacement • Distance – how far you’ve traveled Scalar quantity - 20 m • Displacement – shortest distance traveled from starting point to end point. Vector quantity – 20 m, 40o, N of W

  3. Instantaneous Position Where an object is located at one and only one time. • At 1.0 s, object is at 3.0 m • At 2.0 s, object is at 6.0 m

  4. Remember the example? Change the paces to meters (m). • Walk due west for 52 m, then walk 30.0o North of West for 42 m, and then walk due north for 25 m. • The total distance traveled was (52 + 42 + 25)m = 119 m The total displacement is 99 Paces, 28o, N of W

  5. Speed Speed is how fast an object is moving. Scalar quantity = 30 km/h

  6. Velocity Velocity is how fast an object is moving in a certain direction. Vector quantity = 30 km/h, 45o, S of E

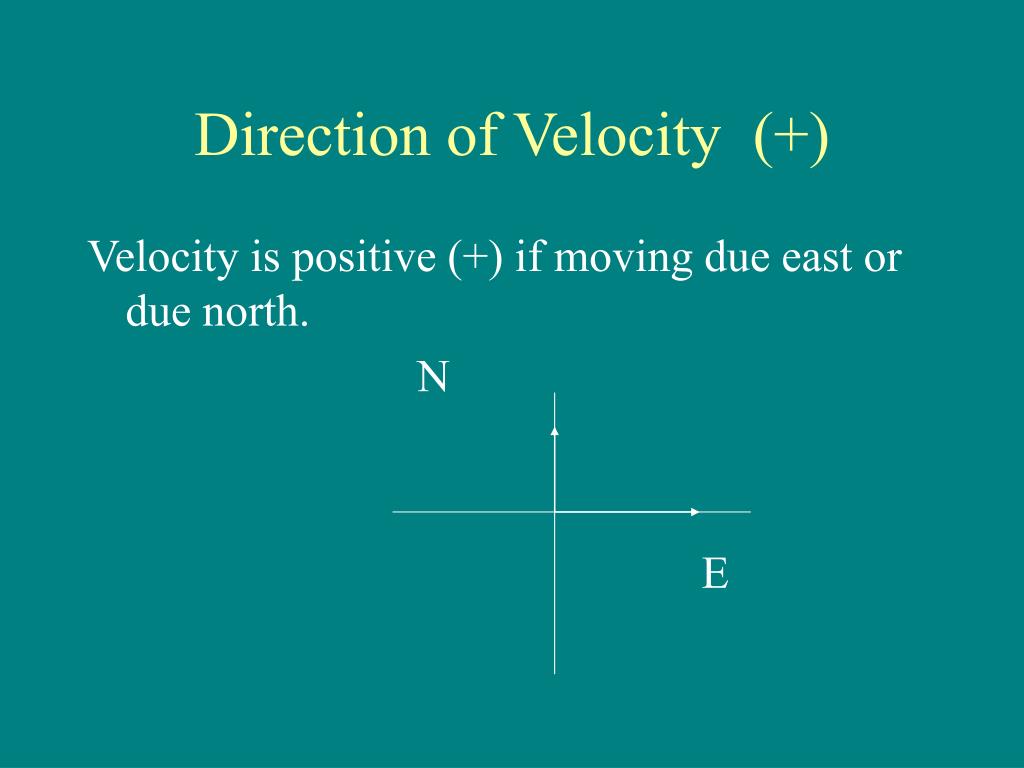

  7. Direction of Velocity (+) Velocity is positive (+) if moving due east or due north. N E

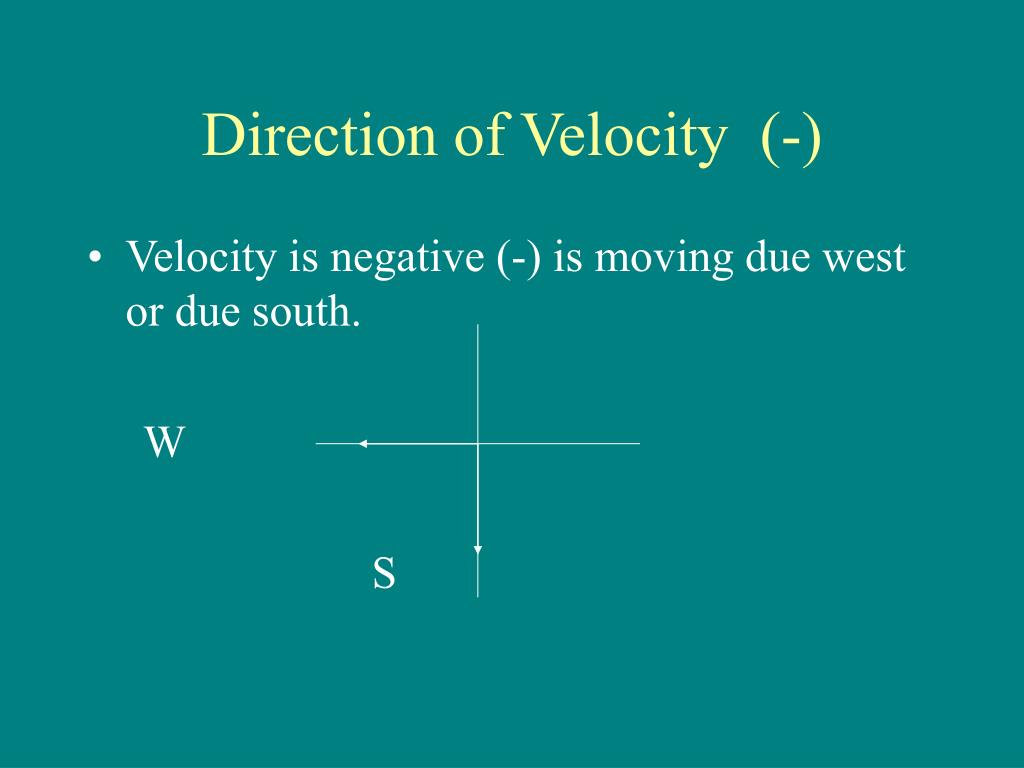

  8. Direction of Velocity (-) • Velocity is negative (-) is moving due west or due south. W S

  9. Constant Velocity • Average velocity is the same for all time intervals.

  10. Instantaneous Velocity Speed and direction at one and only one time. At 1.0 s, the instantaneous velocity is 35 m/s. At 2.0 s, the instantaneous velocity is 55 m/s.

  11. Average Velocity I Change in displacement over a given time interval. Equation: V = ∆d = d2 – d1 ∆t t2 - t1 Unit of measurements: m/s, cm/s, ft/s, km/h, and mi/h

  12. Average Speed Total distance traveled over total time Equation: V = dt = d1 + d2 +.. tt t1 + t2 + ….. Units of Measurements: m/s, cm/s, ft/s, km/h, and mi/h

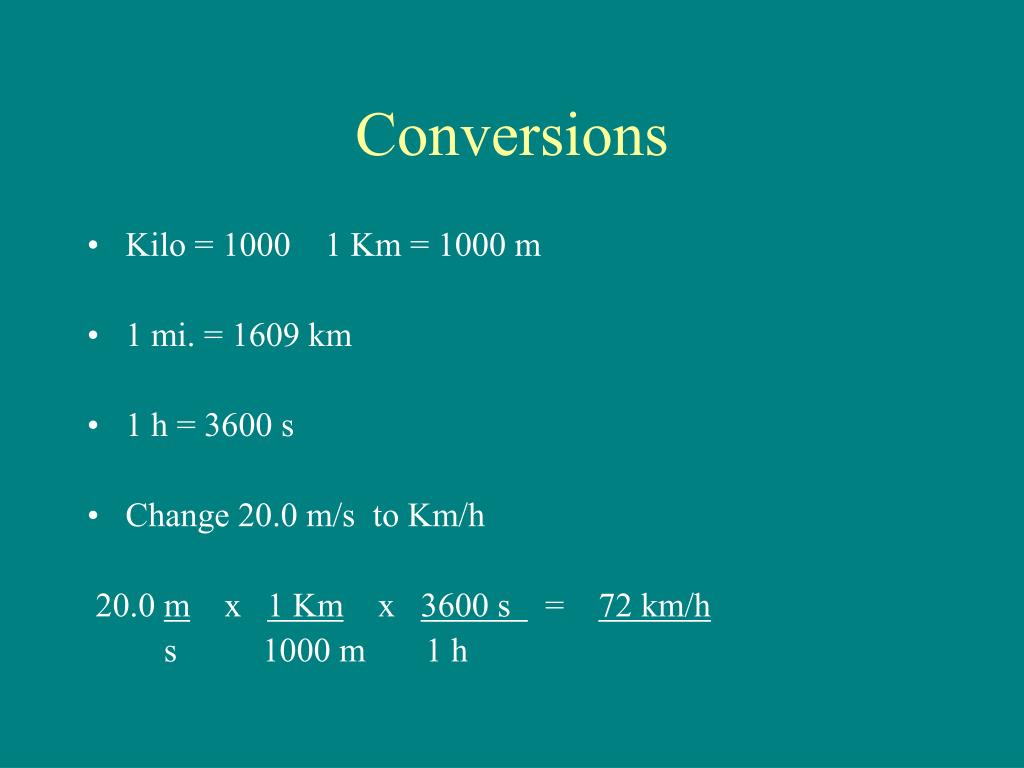

  13. Conversions • Kilo = 1000 1 Km = 1000 m • 1 mi. = 1609 km • 1 h = 3600 s • Change 20.0 m/s to Km/h 20.0 m x 1 Km x 3600 s = 72 km/h s 1000 m 1 h

  14. Example 1 • A person walks 13 km in 2.0 h. What is the person’s average velocity in km/h and m/s? V = ∆d = d2 – d1 = 13 km = 6.5 km/h ∆t t2 - t1 2.0 h 6.5 Km x 1000 m x 1h = 1.8 m/s h 1 Km 3600 s

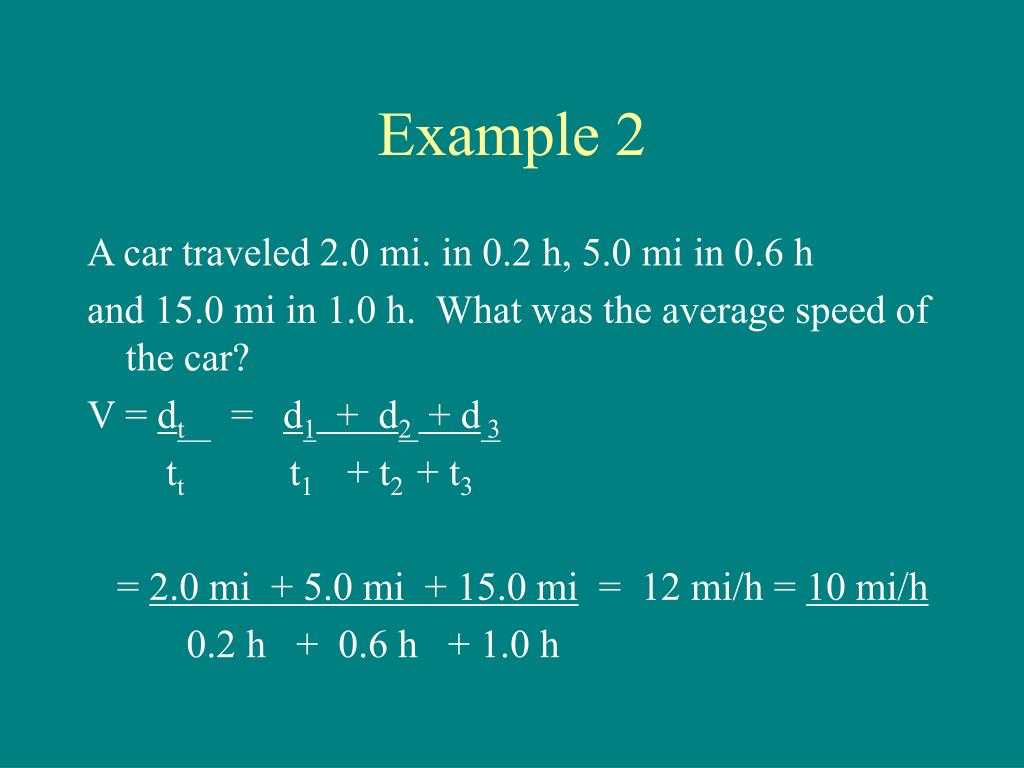

  15. Example 2 A car traveled 2.0 mi. in 0.2 h, 5.0 mi in 0.6 h and 15.0 mi in 1.0 h. What was the average speed of the car? V = dt = d1 + d2 + d 3 tt t1 + t2 + t3 = 2.0 mi + 5.0 mi + 15.0 mi = 12 mi/h = 10 mi/h 0.2 h + 0.6 h + 1.0 h

  16. Example 3 A car traveled 2.0 h at a speed of 50 mi/h and 4.0 h at 75 mi/h. Calculate the average speed. V = (2.0 h x 50. mi/h) + (4.0 h x 75 mi/h) 2.0 h + 4.0 h V = 67 mi/h

  17. Example 4 • A toy train starts at 0 m and runs around the 1.0 m track in 30 s. train stops at the starting point. What was its average speed? V = 1.0 m/30 s = 0.03 m/s What was its average velocity? V = 0 m/s. It stopped at its starting point. The change in displacement is 0.

  18. Average Acceleration • Change in velocity over a period of time. a = ∆V = V2 – V1 ∆t t2 - t1 Units of measurements: m/s2, cm/s2, ft/s2 km/h2, and mi/h2

  19. Direction of Acceleration • Positive if the change in velocity is positive. ∆V = 40 m/s – 20 m/s = + 20 m/s Acceleration is increasing. • Negative if the change in velocity is negative. ∆V = 20 m/s – 40 m/s = -20 m/s Acceleration is decreasing. (decelerating)

  20. Acceleration Example An Indy-500 race car’s velocity increases from +4.0 m/s to +36 m/s over a 4.0 s period. What is its average acceleration? V 1 = +4.0 m/s V2 = +36.0 m/s ∆t = 4.0 s a = ∆V = +36.0 m/s – +4.0 m/s = 8.0 m/s2 ∆t 4.0 s
