DANTEC DYNAMICS. ComfortSense application program. ComfortSense software. You can choose between 3 types of ComfortSense application programs, which all require a dongle. 1: Thermal Comfort Solution,

aurora
Download Presentation

DANTEC DYNAMICS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. DANTEC DYNAMICS ComfortSense application program

  2. ComfortSense software You can choose between 3 types of ComfortSense application programs, which all require a dongle. 1: Thermal Comfort Solution, 2: Flow and Temperaturesolution, 3: Single point Flow and Temperature solution – to be used together with ComfortSense Mini. Local language can be selected in the lower left corner : English, German, French,Turkish, Chinese, Hindi, Swedish and Danish

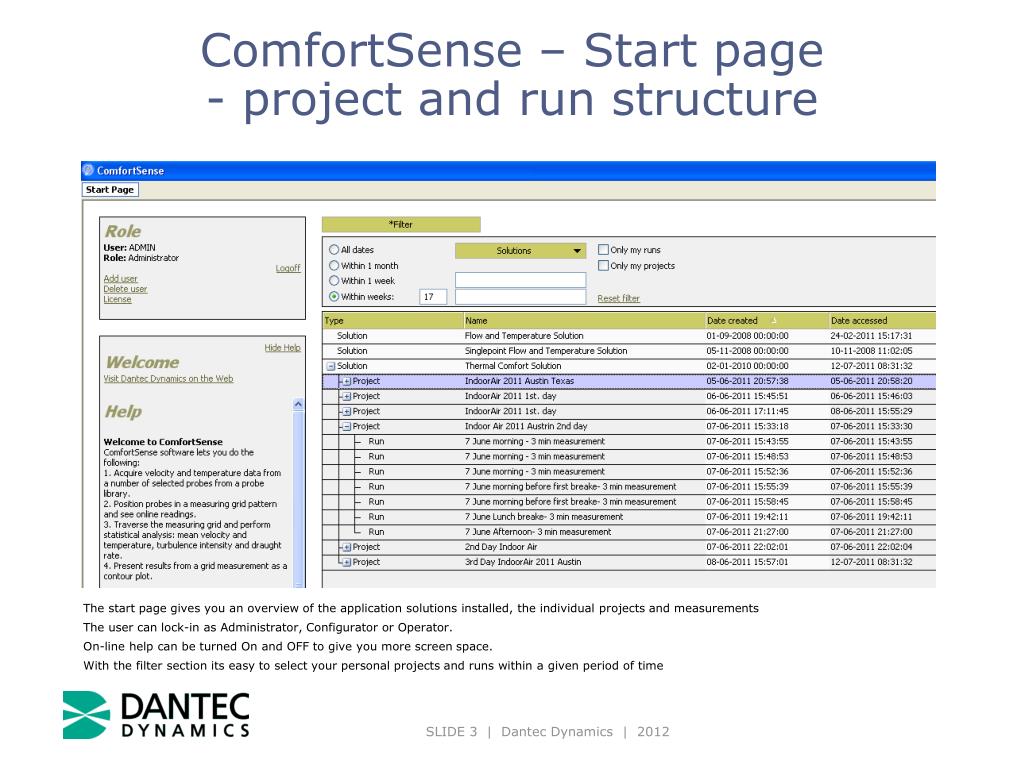

  3. ComfortSense – Start page- project and run structure The start page gives you an overview of the application solutions installed, the individual projects and measurements The user can lock-in as Administrator, Configurator or Operator. On-line help can be turned On and OFF to give you more screen space. With the filter section its easy to select your personal projects and runs within a given period of time

  4. Asignment of probes from library to ComfortSense frame When a ComfortSense frame is connected to the PC via the USB connector, the ComfortSense program will recognize the frame and show an Icon. Below is a library of all installed probes with calibration date and status indication if recalibration is recommended. To attach the probes needed from the library, simply drag and drop them to the frame. You will immediately get response with actual readings. If a ComfortSense frame is not present you can simulate one and set up a measurement template

  5. Definition of probe grid and measuring plane Next step is to define the probes position in the measuring grid. This can be done either by key in the actual X-Y values or by moving the probe on the graph. Finally the traversing step size of the grid is defined – Z value. Instead of a measuring grid you can define a single point Y value, and then move this point according to your predefined table X,Z values. 3 types of grid layout can be selected: Grid Point -, Grid Plane - and Grid 3D layout

  6. On-line display of probe data and warning indicator Alarm level set-point To give the operator a quick graphical presentation of the velocity levels as well as if any probe exceed a given velocity level, the operator can make a set-point on the alarm bar. By clicking on any of the probes, the actual velocity reading will be shown to the right

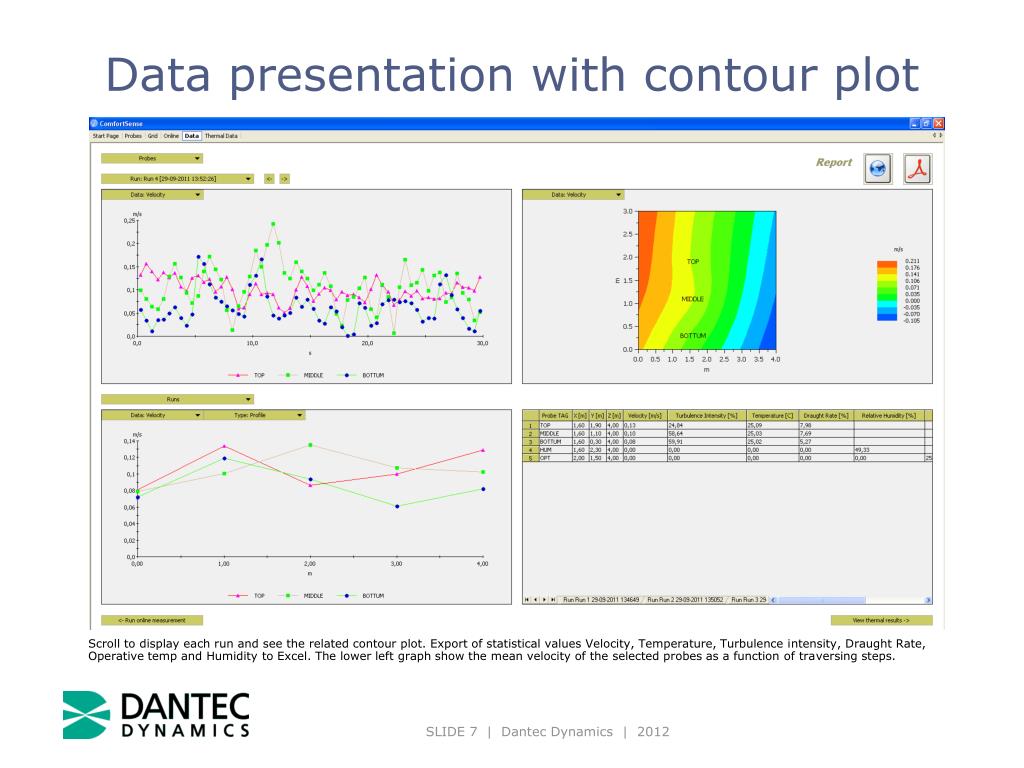

  7. Data presentation with contour plot Scroll to display each run and see the related contour plot. Export of statistical values Velocity, Temperature, Turbulence intensity, Draught Rate, Operative temp and Humidity to Excel. The lower left graph show the mean velocity of the selected probes as a function of traversing steps.

  8. Data presentation with with 3D contour plot A 3D contour plot gives a direct and intuitive perception of the measured data, as well as to identify problematic zones. The operator can zoom, rotate and arrange all 3 planes individually as well as animate the 3 planes.

  9. Thermal Comfort Solution – PMV and PPD calculation Select activity level Choose clothing In the application software “Thermal Comfort solution” the PMV and PPD calculations have been implemented. In the drop down menus MET and CLO, the operator can select activity level and dress the person The measurement show that the PPD value increase when the room ventilation is increased.

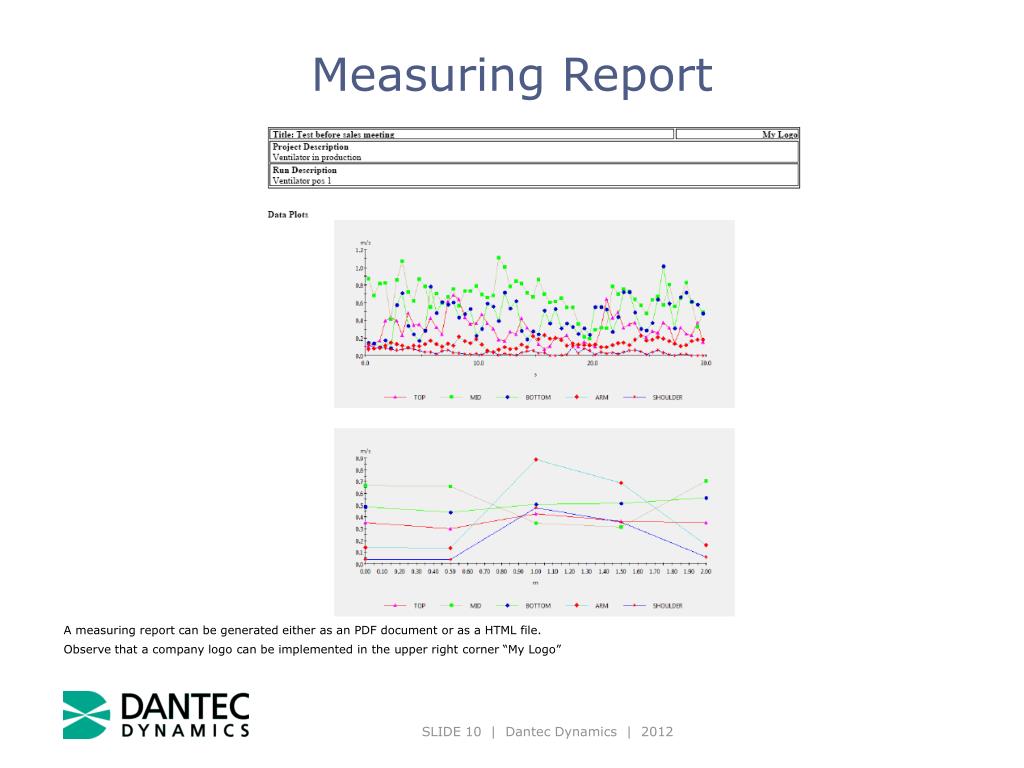

  10. Measuring Report A measuring report can be generated either as an PDF document or as a HTML file. Observe that a company logo can be implemented in the upper right corner “My Logo”

  11. Measuring report continued

  12. Contact us If you have any questions about ComfortSense, please do not hesitate to use the dialogue form or find yourlocal distributor here
